Aztec Fencing System
Metalcraft Roofing
All products

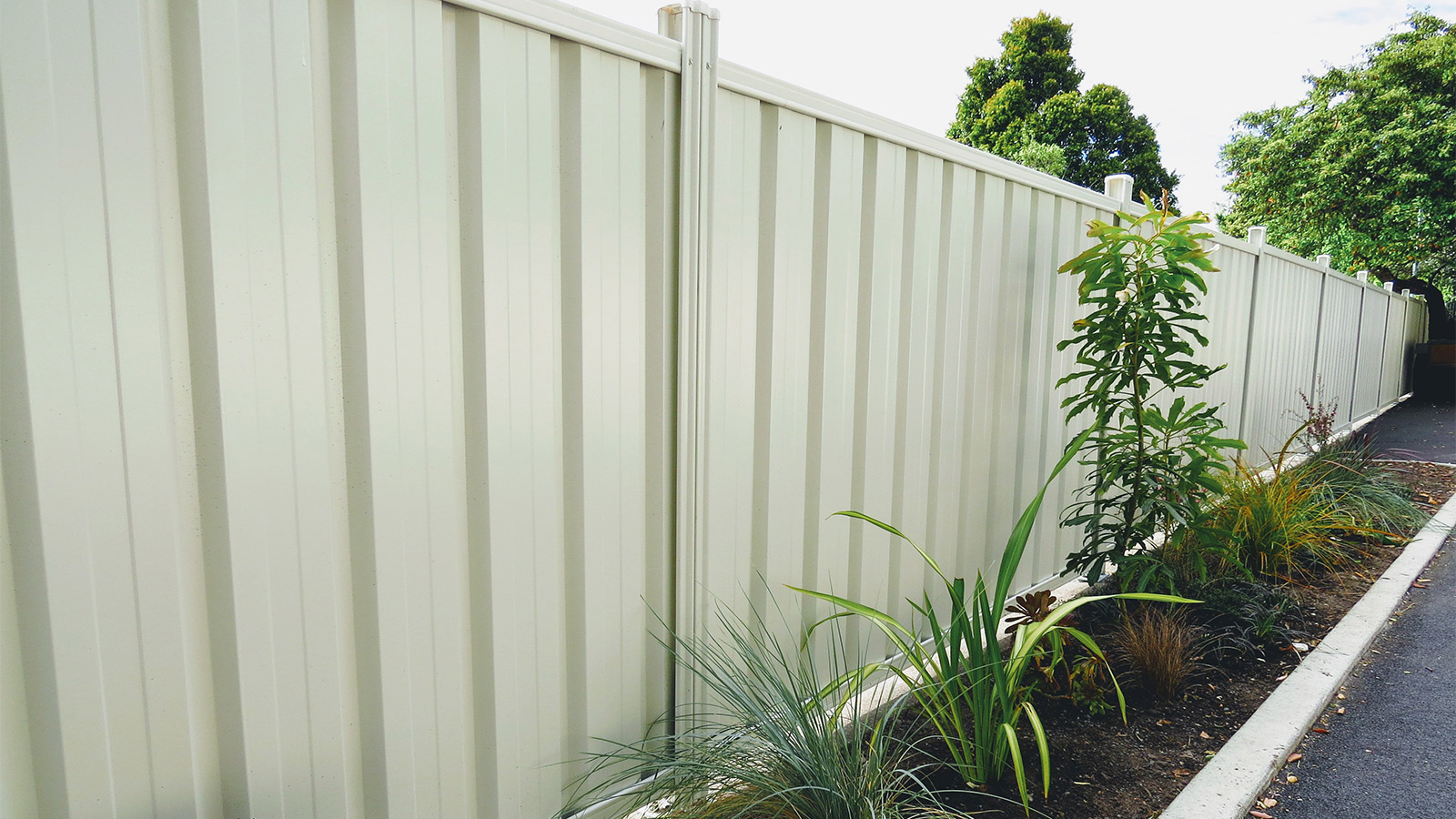

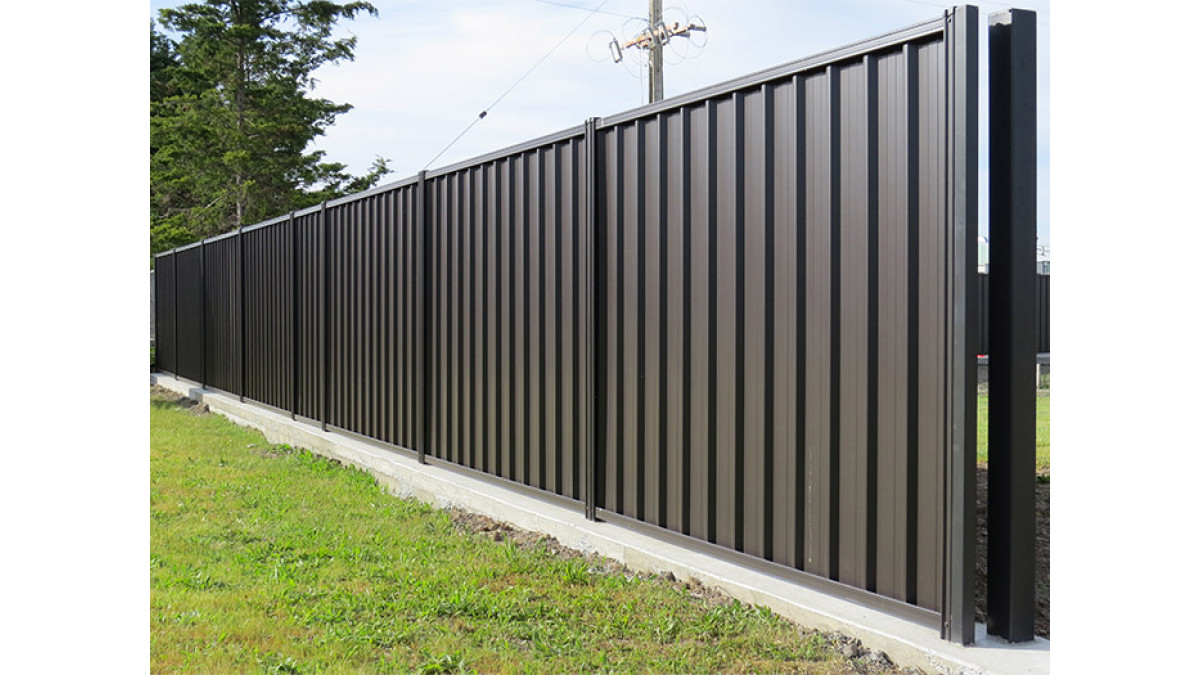

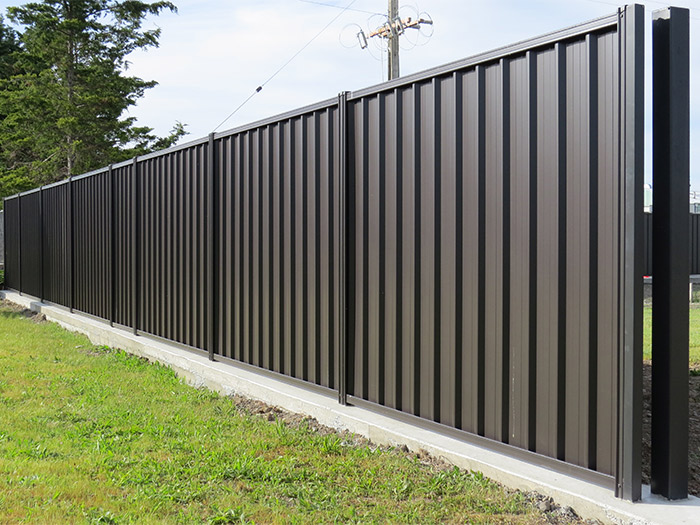

AZTEC FENCE 700x525
AZTEC FENCE 1600X900

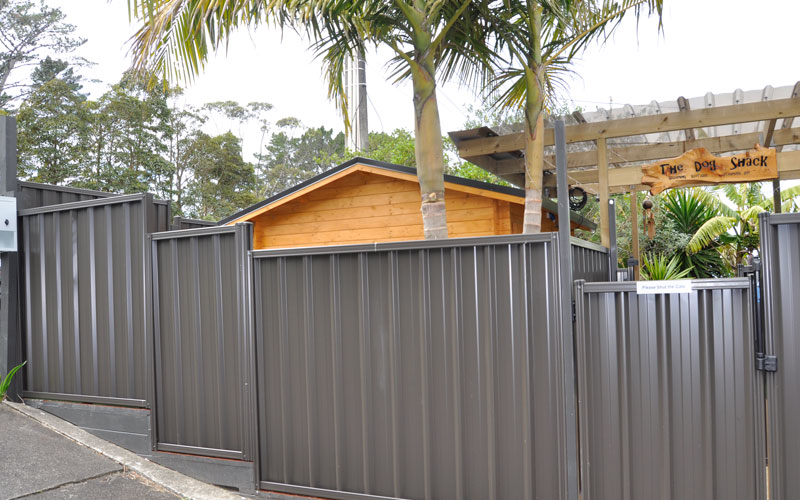

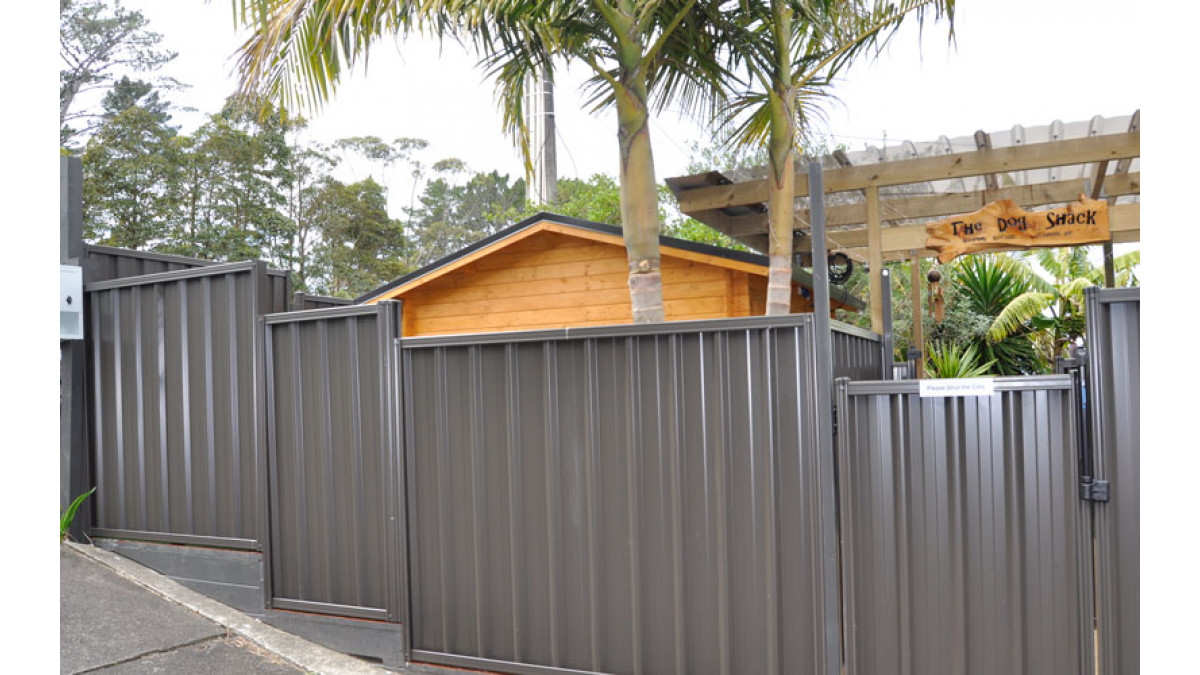

800x500
Description

Metalcraft Roofing’s Aztec fencing profile has a raised five rib trapezoid form on one side, and a flat aspect on the other. The Aztec fencing system is rollformed from double sided NZ Steel COLORSTEEL.

Key Features
  • Offers the longevity and durability of steel and saves the trouble of post painting
  • Manufactured from locally sourced steel from New Zealand Steel in COLORSTEEL® ENDURA®
  • Can be used as infill panels between block or brick columns
  • Can be installed in both flat and sloping sites
  • The post and rails are manufactured from double sided 0.75BMT G550 galvanised steel from New Zealand Steel and are available as standard in the same colours as the fence
  • Standard fence height of 1.8m, custom heights are also available
  • Backed by a warranty of up to 10 years from NZ Steel Ltd
  • Metalcraft Fencing has no toe holds, this makes it harder to climb

  •

Categories
Fencing, Walling and Gates
Ranges
Residential Commercial
Eco Choice Aotearoa (ECNZ) Licensed
Eco Choice Aotearoa
NZ Made
NZ Made
Scope of Use
  • Aztec has strong defined lines — popular profile that will complement most homes or project
  • Profile has a raised five rib trapezoid form on one side, and a flat aspect on the other
  • Popular profile that will complement most homes or project
  • No toe holds making it harder to climb — ideal for added security
  • Standard fence height of 1.8m. Custom heights are also available
  • Can be used as infill panels between block or brick columns
  • Can be installed in both flat and sloping sites
  • Metalcraft has a range of gates to complement the standard range of Metalcraft fencing and accessories
Limitations on Use
  • Metalcraft Fencing System is acceptable in a Moderate ISO Category 3 environment
  • Installation in zones up to High Wind Zone, anything above this consult with the local Metalcraft branch
  • Poolside and barrier fencing require specific design requirements outside the standard scope of Metalcraft Fencing. Please contact Metalcraft as to the suitability of Metalcraft Fencing for these specific areas
Other Performance Attributes
  • Backed by a warranty of up to 10 years from NZ Steel Ltd
  • Manufactured from double sided 0.35BMT G550 Colorsteel Endura
Documents
Metalcraft Barrier Fencing Specification

May 2020

pdf
Maintenance and Warranty

May 2020

pdf
Information Brochure

webjuly 2020

pdf
