Marley Curve®
Description

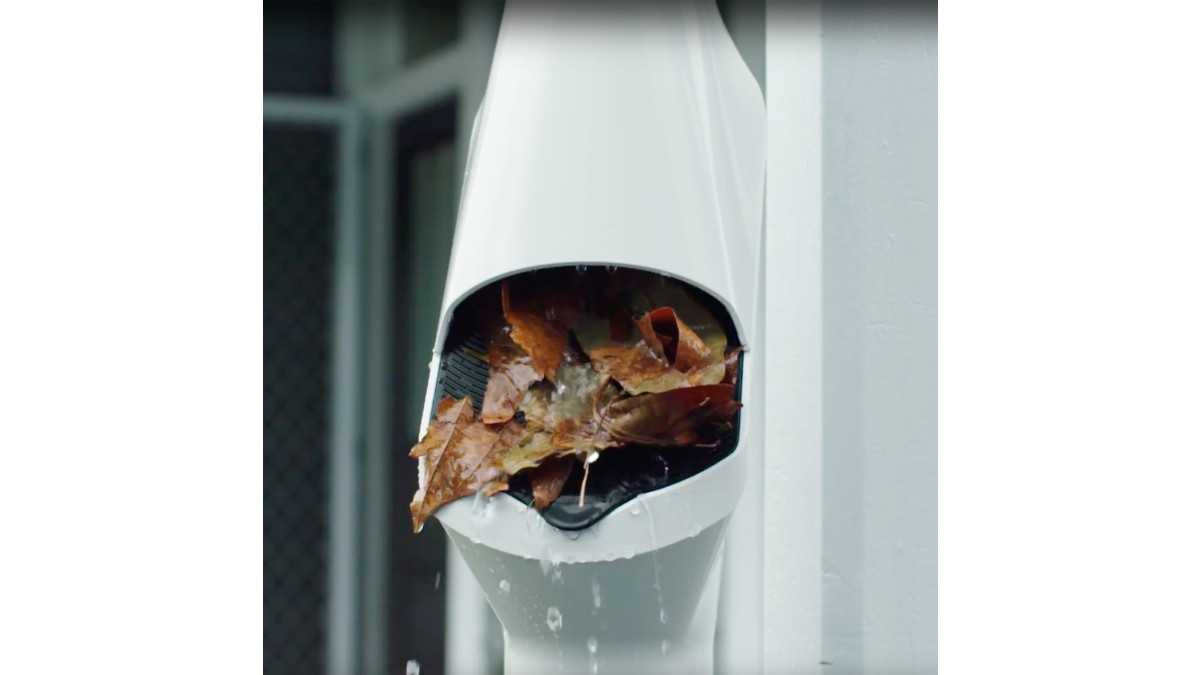

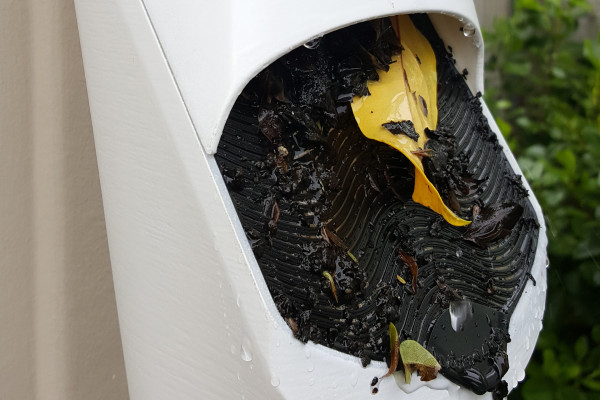

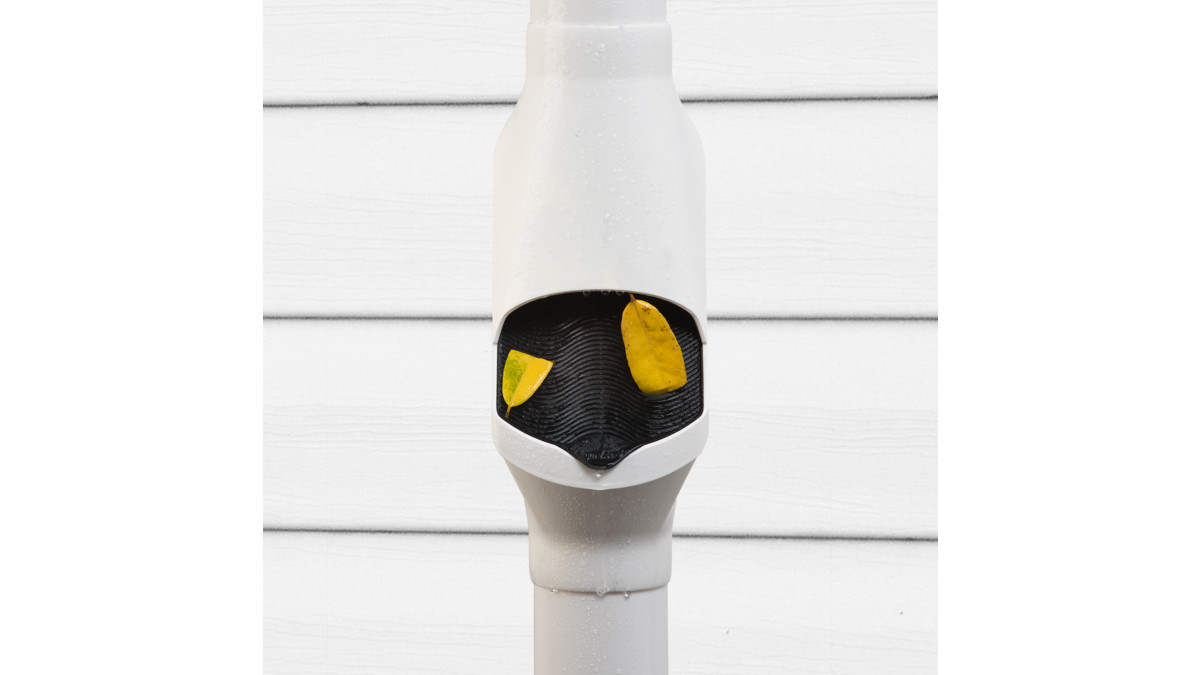

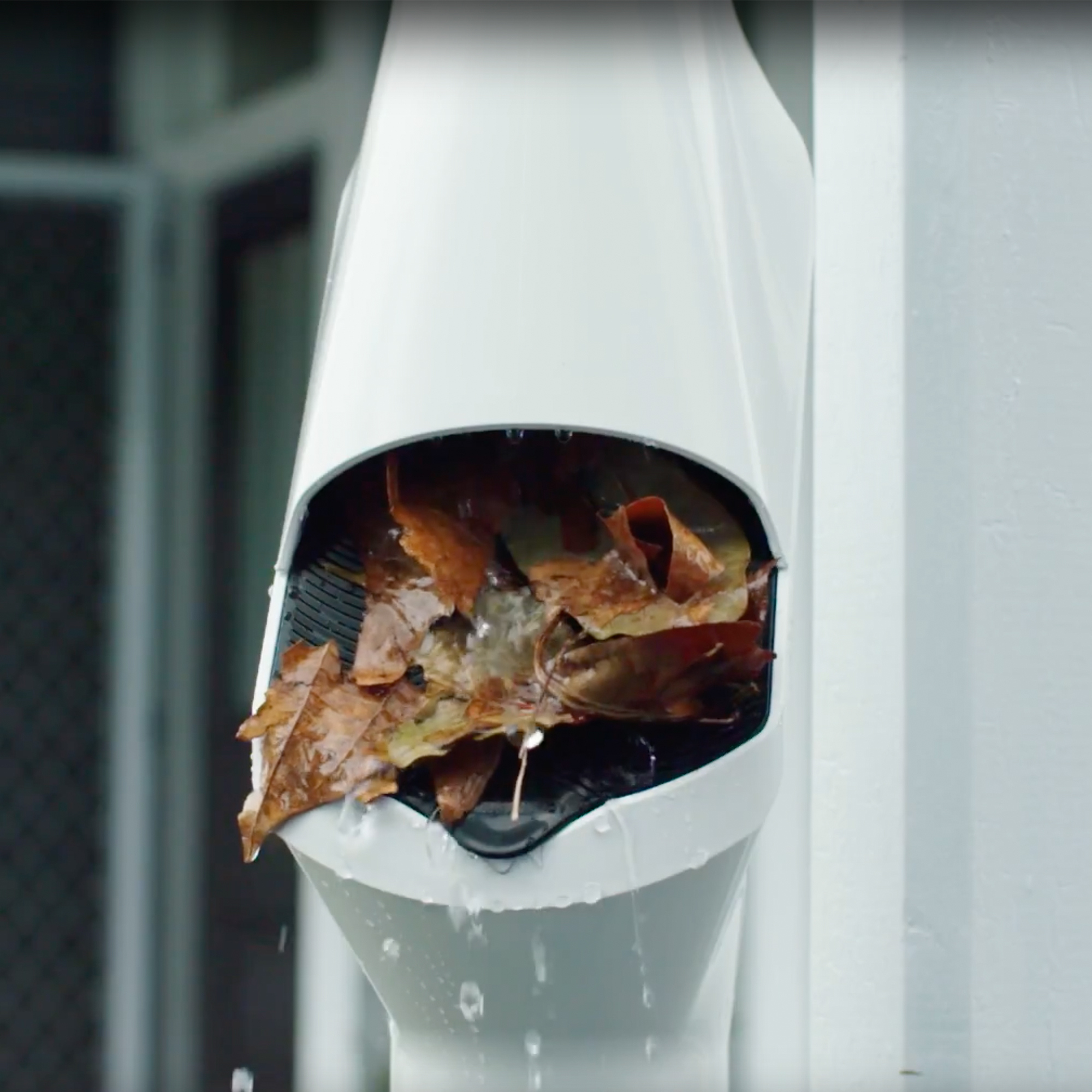

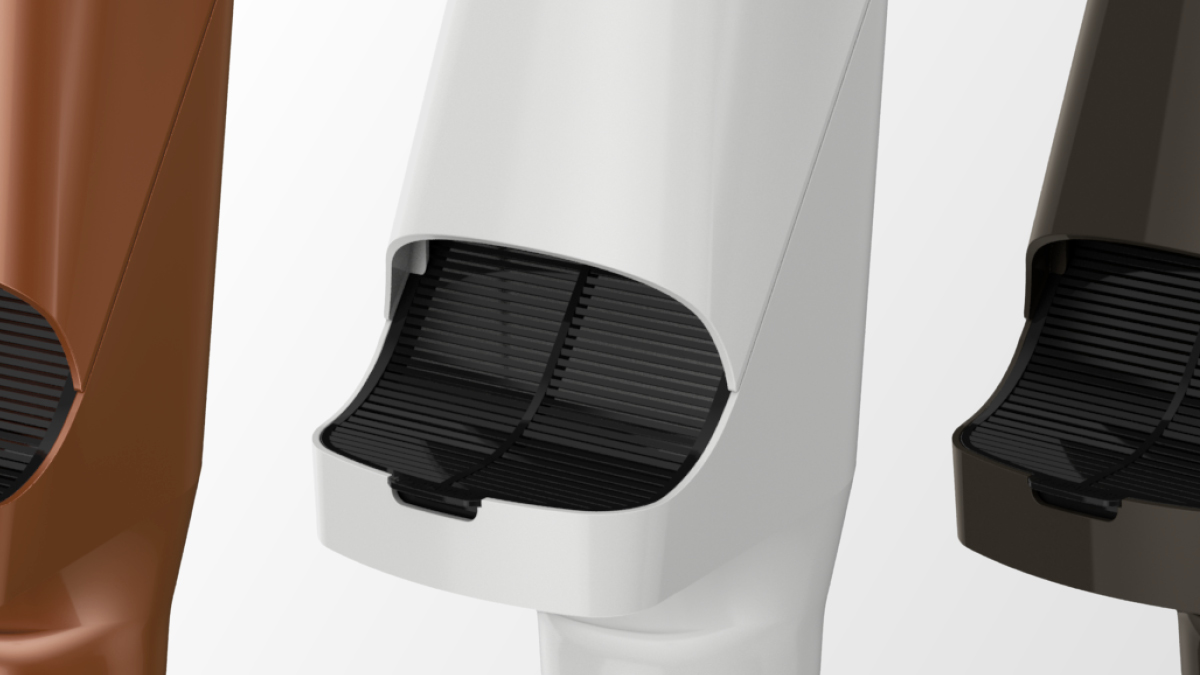

The Marley Curve® is a leaf diverter that combines sleek, sophisticated design with innovative filtering technology. Its unique screen design draws rainwater in while preventing leaves and other debris from entering into water tanks or stormwater systems.

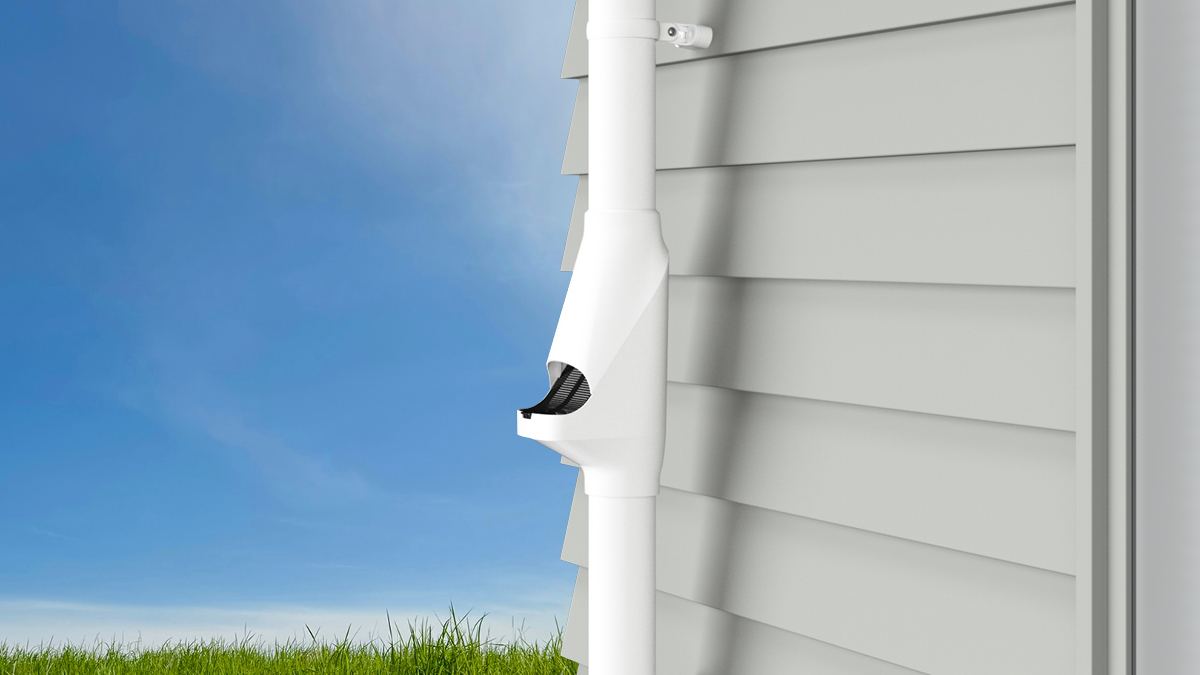

Suitable for new or existing downpipes, the Marley Curve® has been designed in New Zealand to meet all rainfall conditions. Curve® helps to improve water quality and reduce system maintenance by delivering cleaner water to water tanks. If on stormwater, Curve® reduces the chance of drains blocking.

Key Features
  • Automatically sheds debris
  • Low maintenance

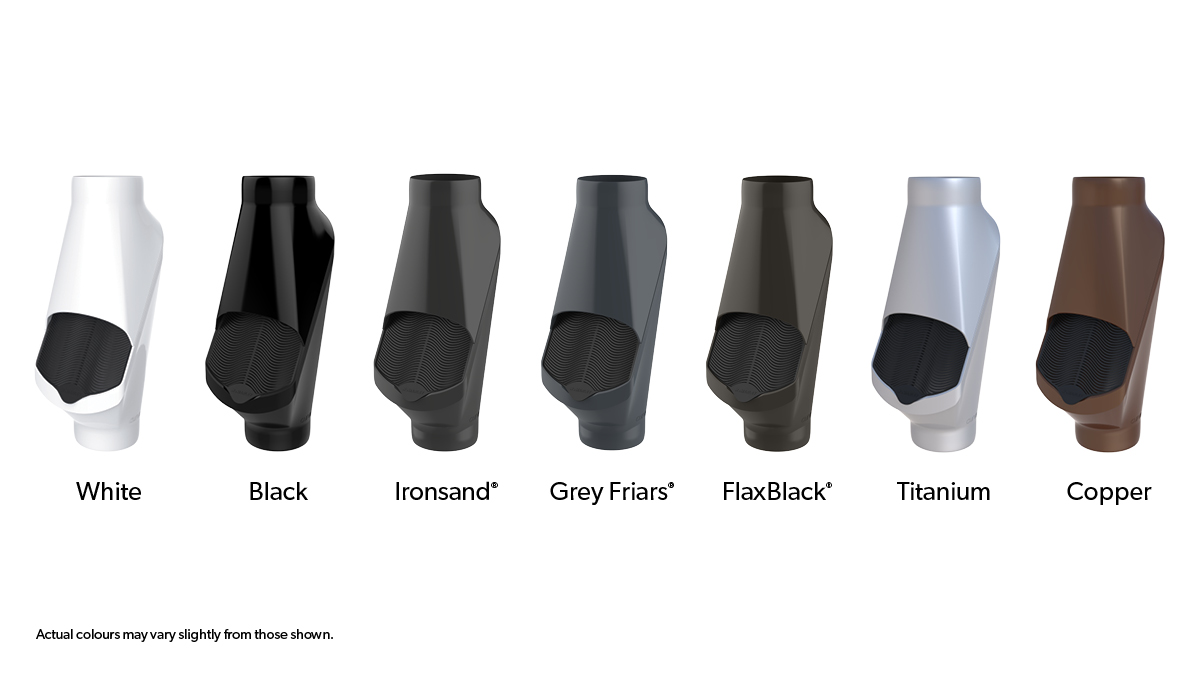

  • Curve® is available in a range of colours to match the Marley Stratus Design Series® range of spouting and downpipes. Now available in 7 colours – White, Black, Ironsand®, Grey Friars®, FlaxBlack®, Titanium and Copper.
  • No glue is required and Curve® can be mounted anywhere on the downpipe in five simple steps
  • UV resistant, uPVC
  • 100% recyclable
  • Will not rust
  • 15 year guarantee
  • Made in New Zealand
NZ Made
NZ Made
Scope of Use
  • Curve is compatible with Marley’s RP80 80mm round downpipe system
  • Adaptors are available to connect to other Marley downpipe sizes
Limitations on Use
  • If Curve® is being connected to a tank, the tank must be at least 300mm lower than the spouting and the Curve® must be above the inlet to the tank.
  • Consideration should always be given as to where the debris will be discharged e.g. if possible avoid discharging onto pathways and decks.
Statement of Building Code Compliance
  • Curve® is certified for use with potable water: Certified to AS/NZS 4020:2005
Other Performance Attributes

Maintenance

  • Regularly check the filter screen to ensure that there are no debris blocking the water flow
  • Routinely wash the filter screen
  • Replacement filter screens are available if required
Documents
Installation and Operation
Curve® & Twist® Brochure
