Drainflo® HDPE Corrugated Drainage
Marley
All products
2
3
4
5
6
Description

Marley Drainflo® is a range of HDPE Corrugated Drainage to deliver the optimal combination of strength durability, flow and drainage. In particular, Drainflo® Smooth is a high performing solution, with its refined double-walled, smooth inner lining for outstanding water flow rates, superior drainage and crush resistance.

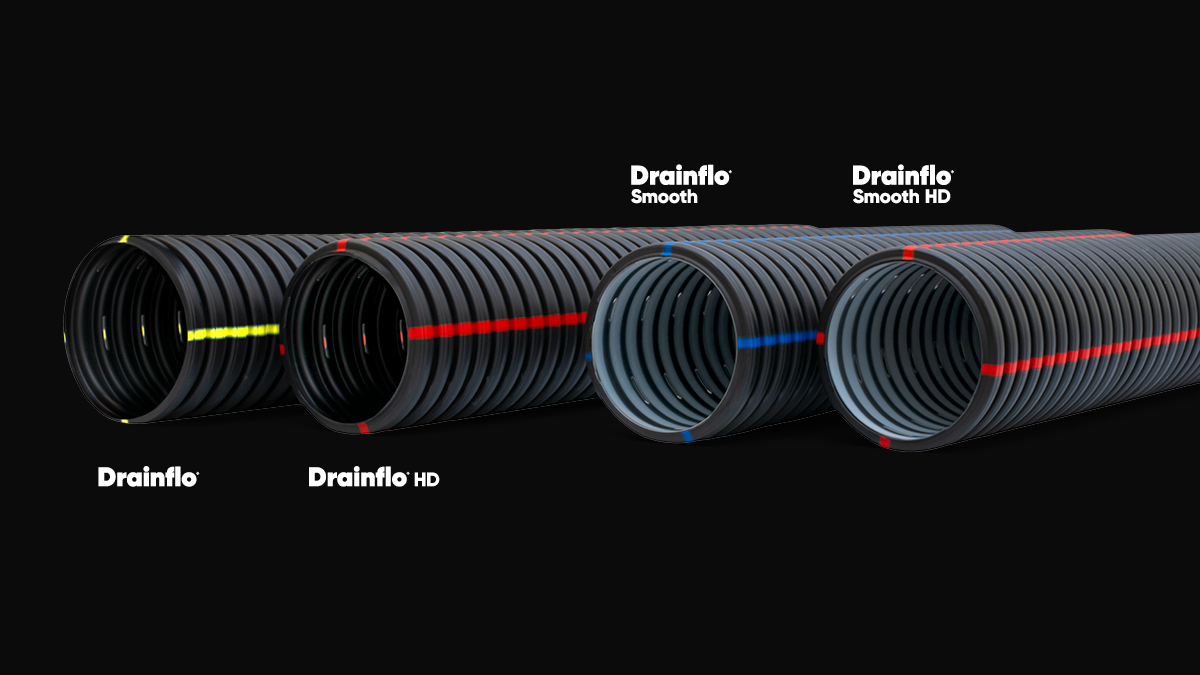

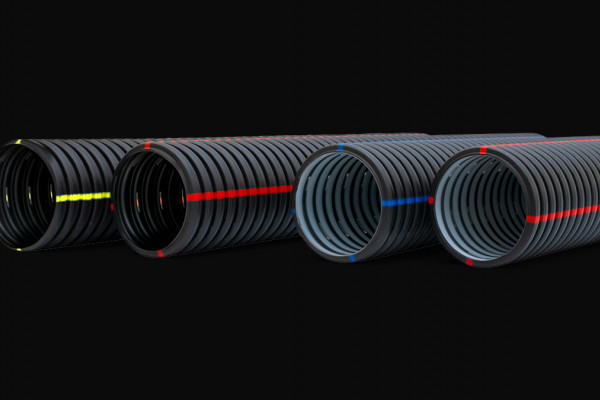

The four stripe colour ID and coupler system make product selection simple:

  • Drainflo® — 4 yellow stripes (SN6)
  • Drainflo® HD — 4 red stripes (SN10)
  • Drainflo® Smooth — 4 blue stripes and smooth inner (SN6)
  • Drainflo® Smooth HD — 4 red stripes and smooth inner (SN10)
  • Black coupler — Punched (for drainage)
  • Grey coupler — Unpunched (for fluid transmission)
Key Features
  • Range — Extensive range providing choice of diameter, length, stiffness and filtration to suit the application.
  • Durability — Proven reliability with over 60 years in the New Zealand market, consistent quality management verified by ISO 9001 certification and IANZ accredited laboratory
  • Strength — SN6 and SN10 stiffness rating, options available to meet both NZTA F/2 and F/5 specification
  • Flow — Drainflo® Smooth range has 50% higher flow rates, ideal for low gradient or high-volume applications
  • Drainage — Specifically designed slot pattern maximises drainage performance whilst maintaining strength
  • Filtration — Custom-made Cirtex® Filter Sleeve options available as a tested and proven filtration solution for protecting subsoil drains from sedimentation
  • New Zealand Made — Complete Drainflo® range of pipe and fittings made in New Zealand.
  • 100% Recyclable — Drainflo® HDPE material is 100% recyclable, Marley will take back unused off-cuts for recycling and re-process HDPE production waste to avoid waste going to landfill.
Categories
Pipes and Drainage Fittings
Ranges
Corrugated Drainage
NZ Made
NZ Made
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use
  • Drainflo® Smooth range has 50% higher flow rates, ideal for low gradient or high-volume applications

Available in two strengths (SN6 or SN10):

  • Drainflo® — (SN6)
  • Drainflo® HD — (SN10)
  • Drainflo® Smooth — (SN6)
  • Drainflo® Smooth HD — (SN10)
In-Service History

Proven reliability with over 60 years in the New Zealand market, consistent quality management verified by ISO 9001 certification and IANZ accredited laboratory

Other Performance Attributes
  • SN6 and SN10 stiffness rating, options available to meet both NZTA F/2 and F/5 specification
  • 100% Recyclable — Drainflo HDPE material is 100% recyclable, Marley will take back unused off-cuts for recycling and re-process HDPE production waste to avoid waste going to landfill.
  • Case Studies
  • News
Documents
Data Sheet
URL

Marley New Zealand is a plastics manufacturing company, producing extruded and injection moulded uPVC and Polyethylene products for the rainwater, building, plumbing, civil and infrastructure, electrical and rural markets.

Product Enquiries

News from Marley

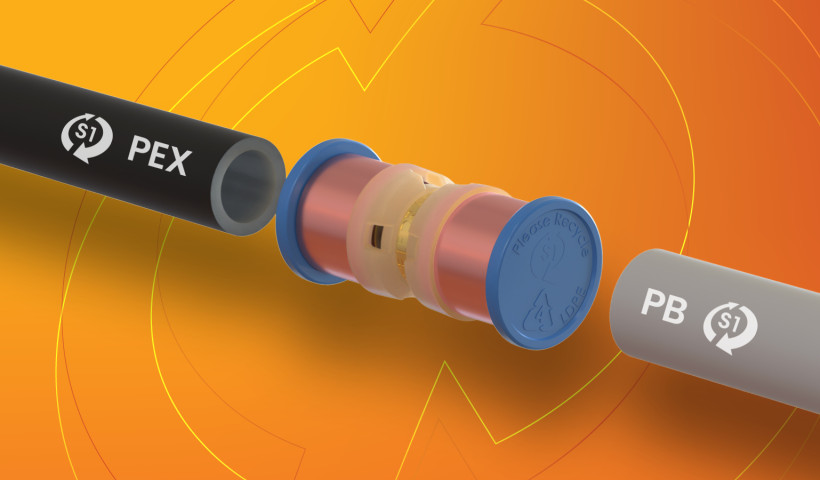

SecuraOne by Marley: One Fitting, Your Choice of Pipe NEW
SecuraOne by Marley: One Fitting, Your Choice of Pipe
Marley
December 2024 New Products
Introducing SecuraOne: One Fitting, Your Choice of Pipe NEW
Introducing SecuraOne: One Fitting, Your Choice of Pipe
Marley
October 2024 New Products

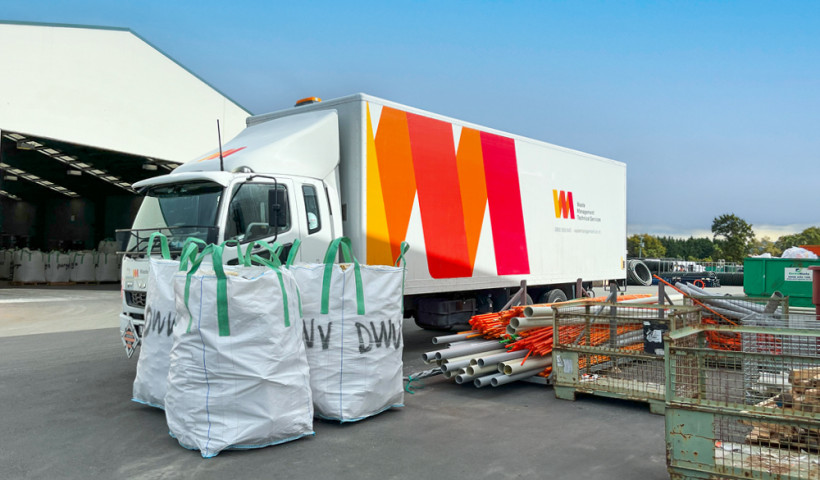

Marley Leads the Way for Construction Waste Reduction
