Kooltherm K12 Framing Board
Description

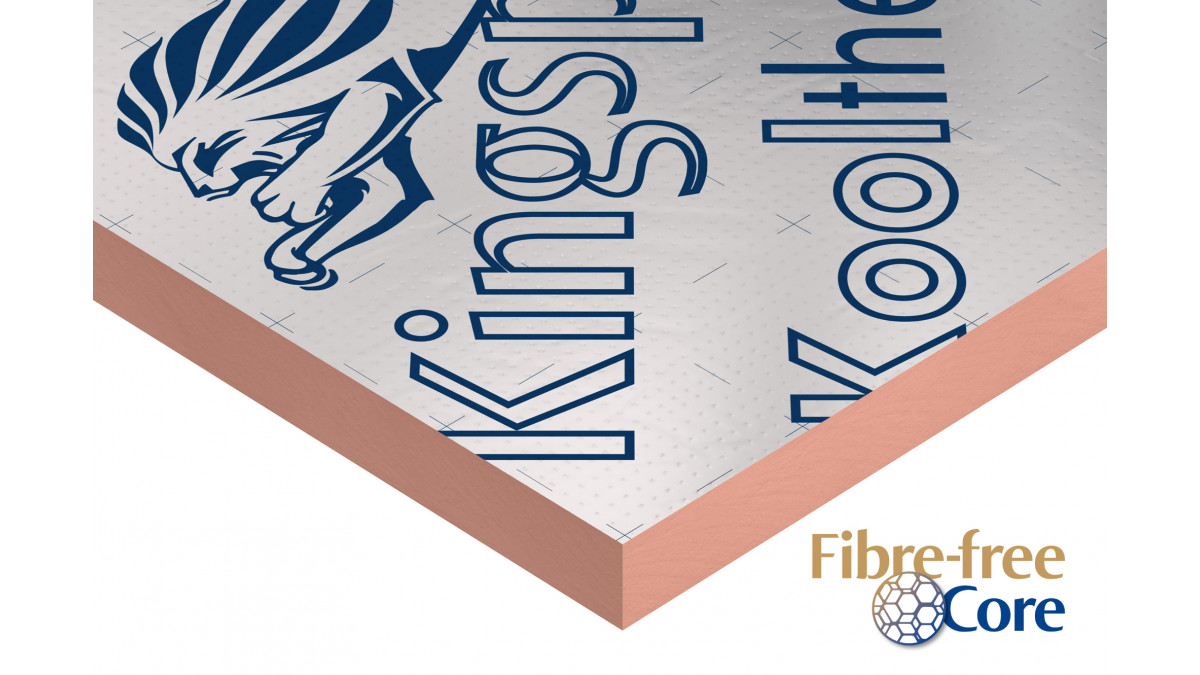

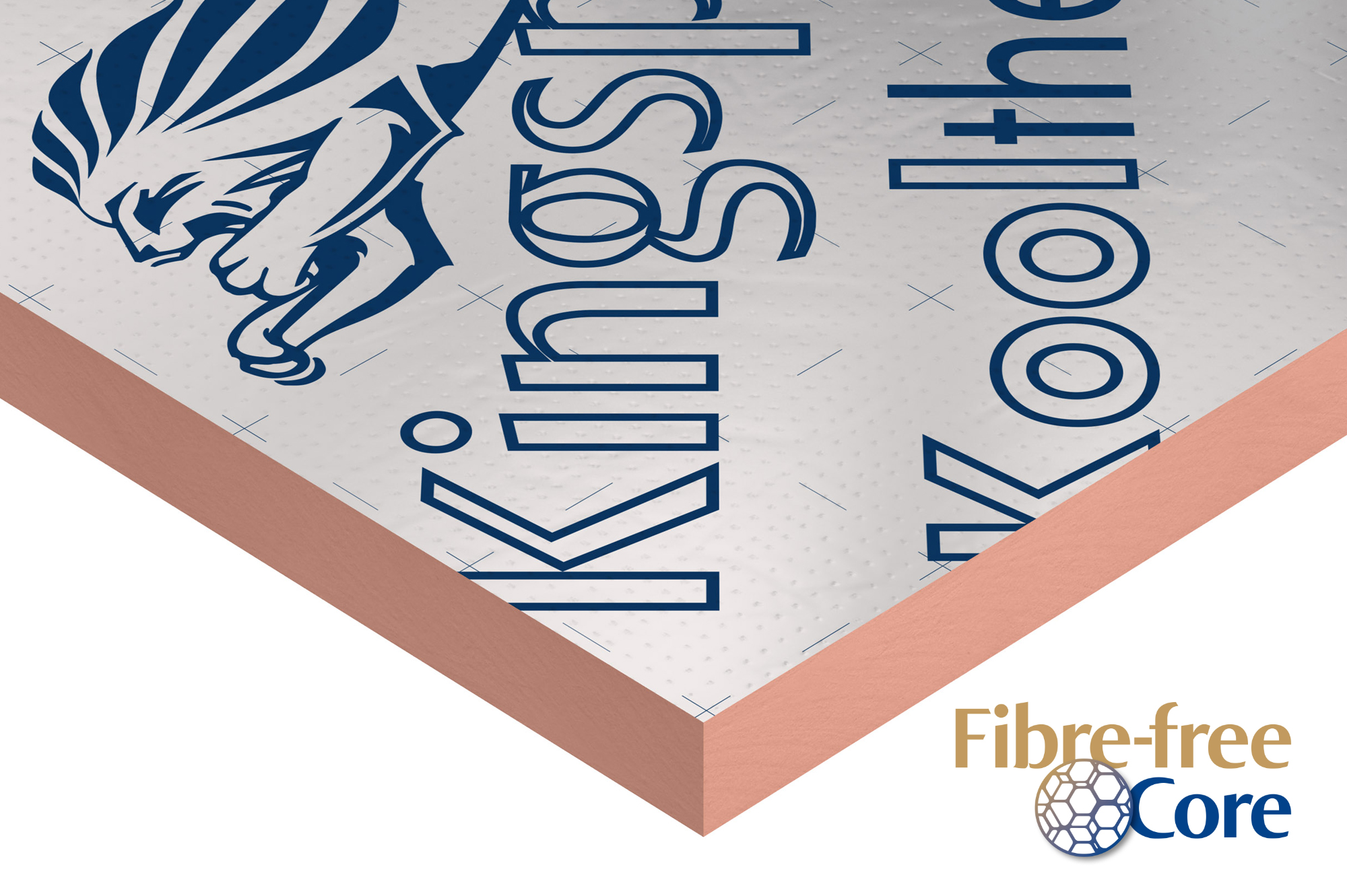

Kingspan Kooltherm K12 Framing Board is a super high performance, fibre-free rigid thermoset phenolic insulation, faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture. This reflective surface improves the thermal resistance of any cavity adjacent to the board.

Kingspan Kooltherm K12 Framing Board is manufactured without the use of CFCs/HCFCs and has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).

Key Features
  • CodeMark-certified for NZBC compliance
  • Suitable for use with timber frame and steel frame wall constructions
  • Can eliminate cold bridging
  • NZBC and AS/NZS 4859.1 compliant

Specifications

Product size:

  • 2400mm x 1200mm (2.88m²)

Product thickness:

  • 25mm (R 1.1)
  • 30mm (R 1.3)
  • 40mm (R 1.75)
  • 50mm (R 2.35)
  • 60mm (R 2.8)
  • 70mm (R 3.3)
  • 80mm (R 3.75)
  • 90mm (R 4.2)
  • 100mm (R 4.7)

Other thicknesses available upon enquiry. Minimum order quantities apply.

Categories
Thermal Insulation
Ranges
Kooltherm
Scope of Use

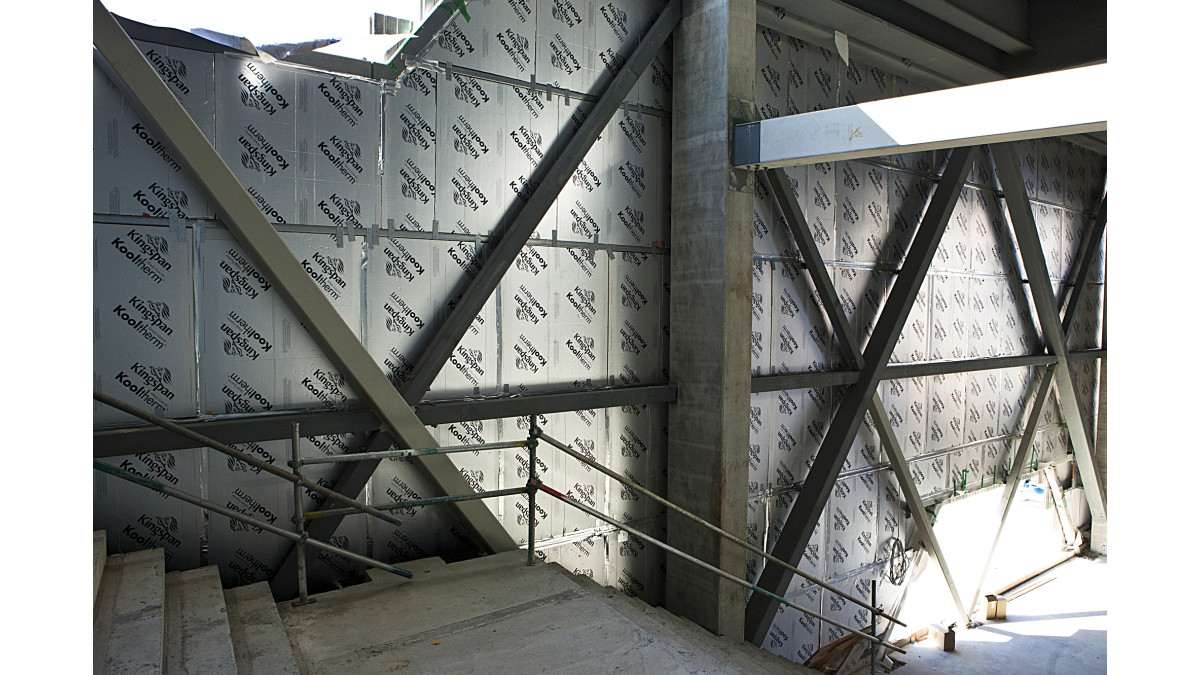

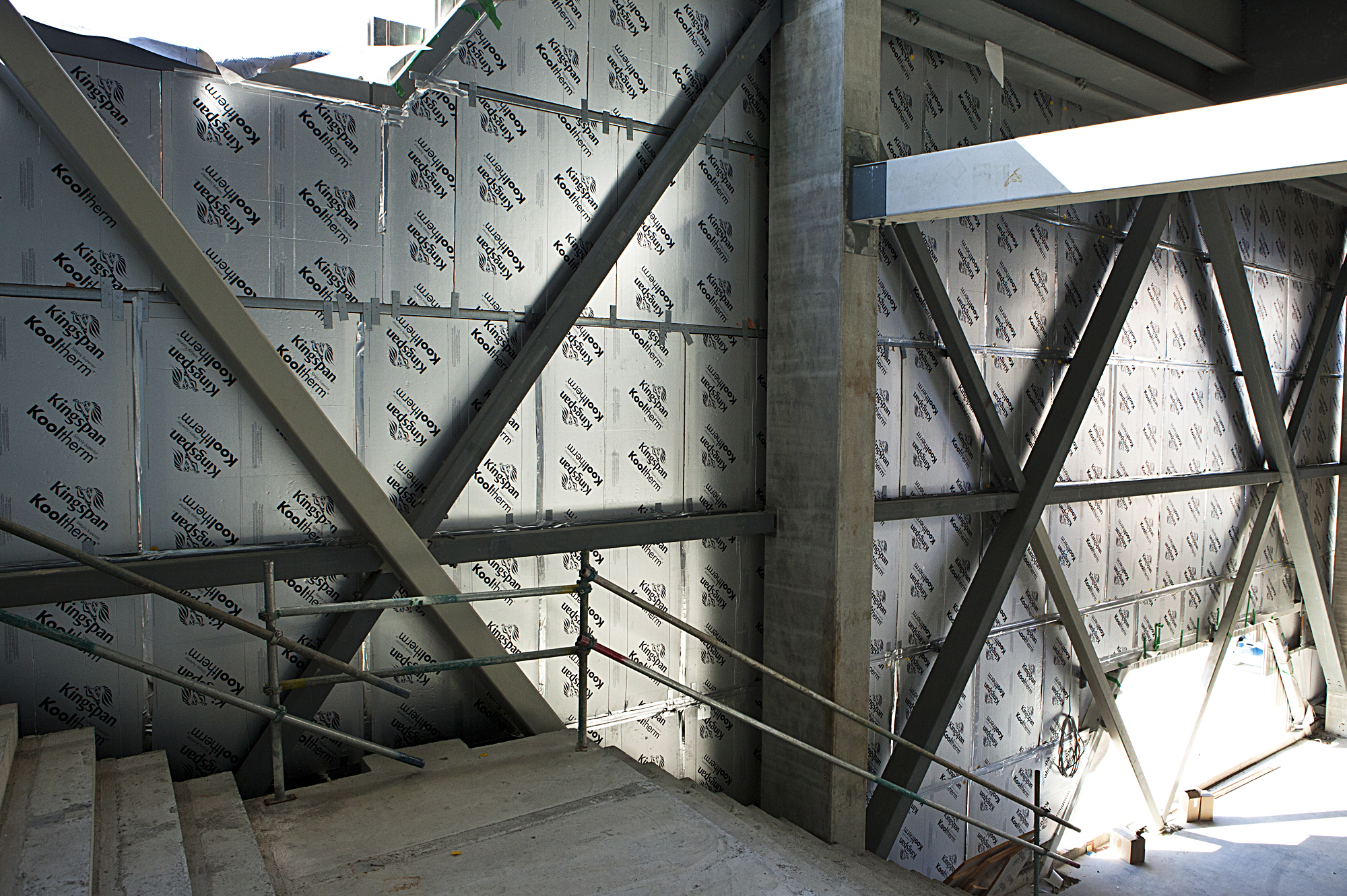

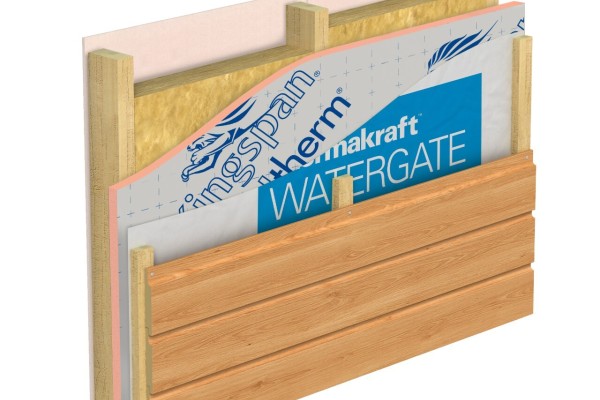

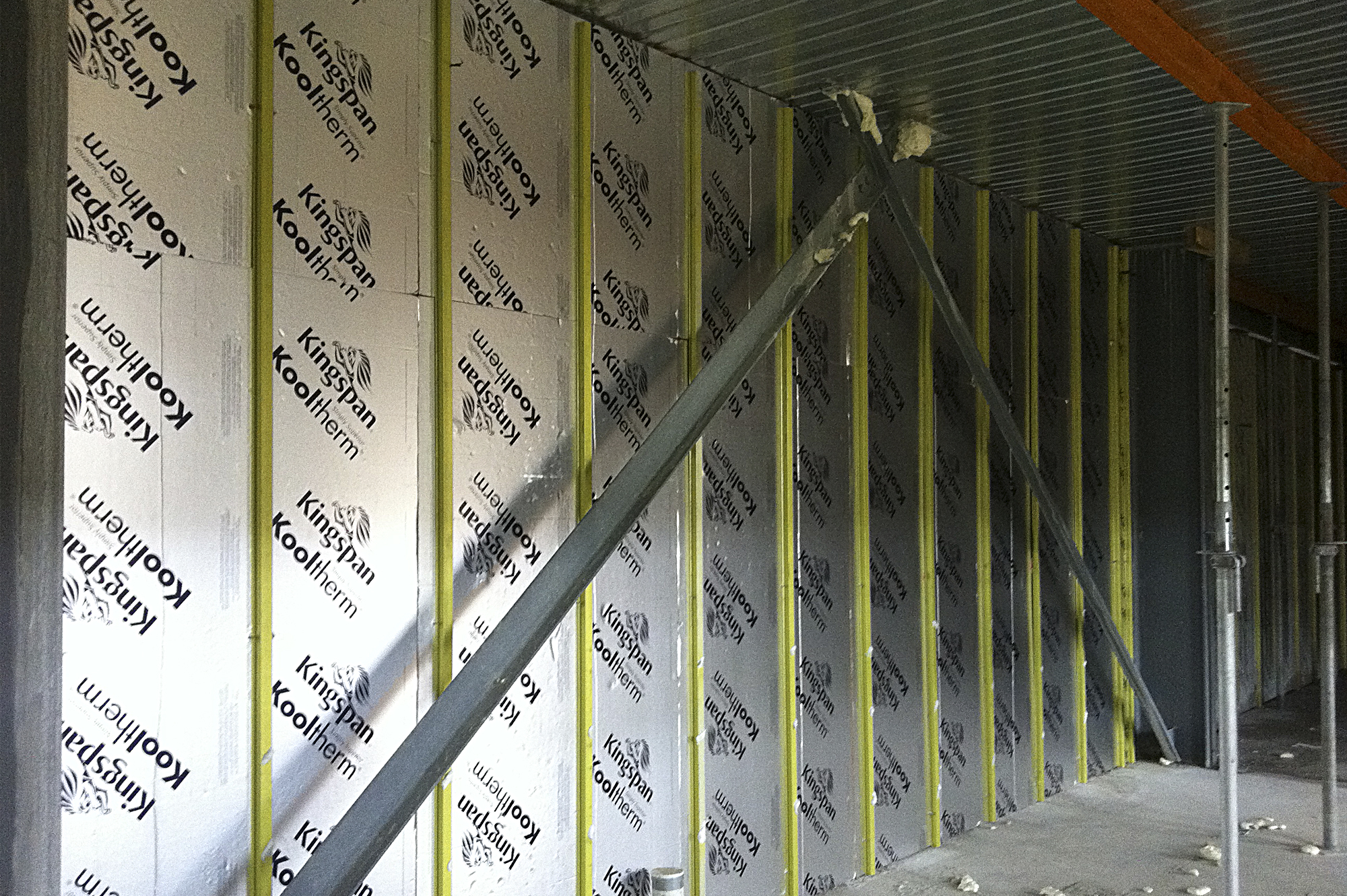

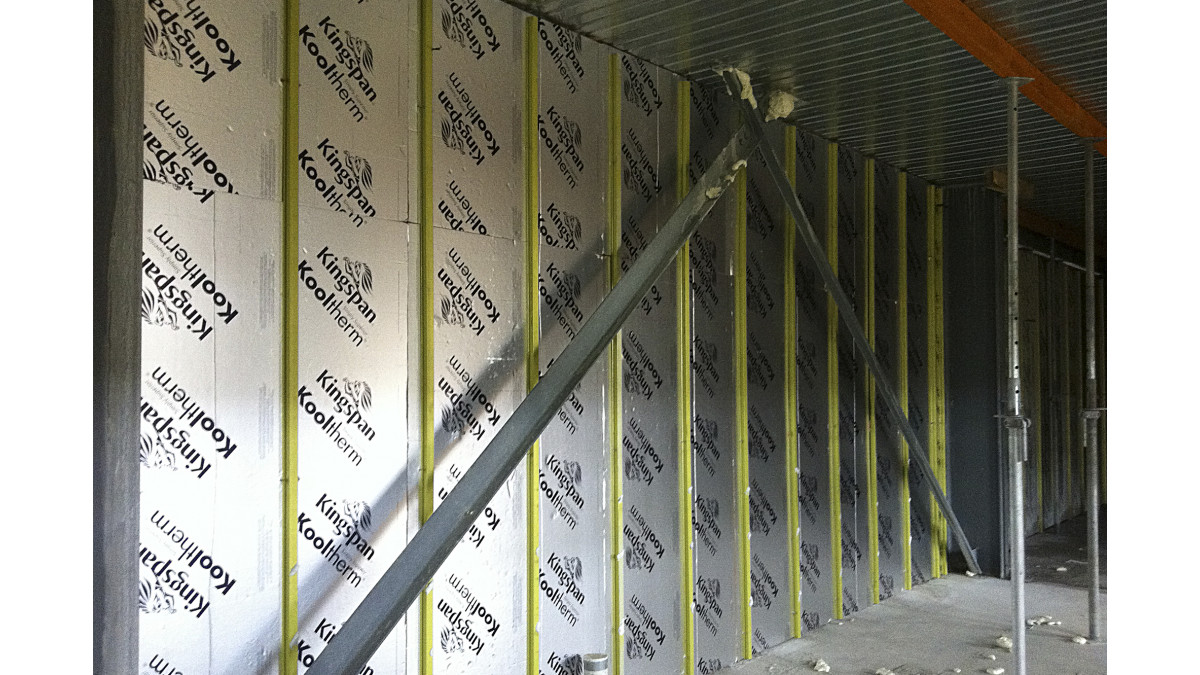

  • Can be used between studs or as an insulating sheathing
  • Suitable for use with timber frame and steel frame wall constructions
  • Ideal for new builds or refurbishments
Limitations on Use

Must be used in accordance with the supplier Installation Guide.

Statement of Building Code Compliance

Codemark Certified for:

  • B1 Structure
  • B2 Durability
  • F2 Hazardous Building Materials
  • H1 Energy Efficiency



CodeMark
CodeMark
Documents
Data Sheet

KINZ-K12DS V12.0 May 2023

AIR-CELL Insulation Tape

KINZ-ACITDS v1 Sept 2024

Quick Reference Guide

KINZ-QRGPR-WEBv1.0 May 23

CodeMark Certificate

CM20099-V03

Needle Flame Test

PL1849-1 - 30/08/23

Installation Guide

KINZ-K12IG V9.0 May 2023

Kingspan Thermakraft Troldtekt Product Warranty Statement

Issue 4.0, Jun 2024

CAD/PDF Details

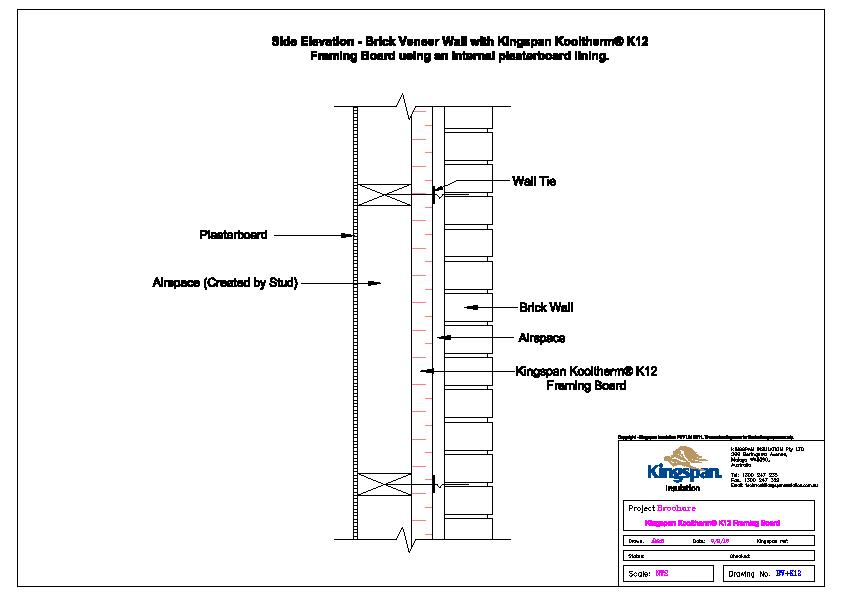

Brick Veneer Wall - K12
Concrete Wall - K12

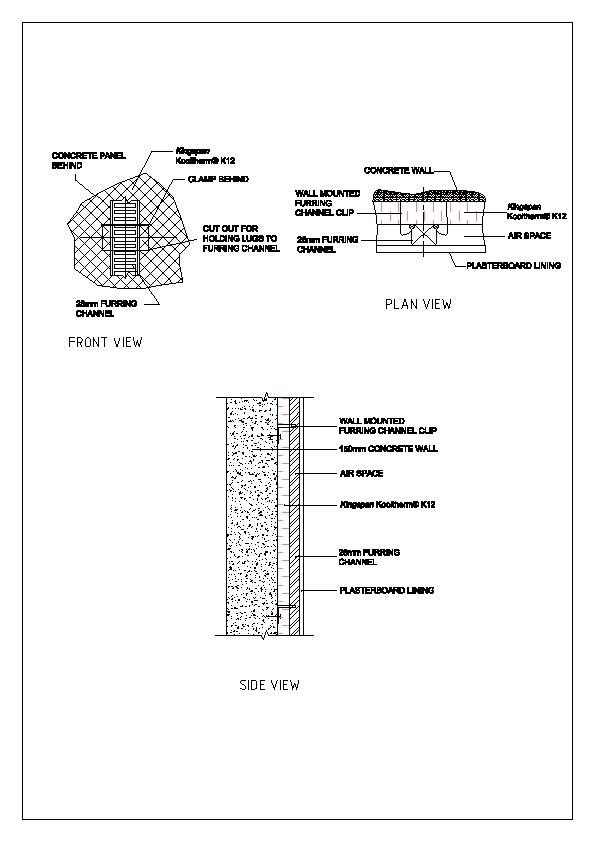

Masonry Block Wall - K12
Steel Framed Wall - K12

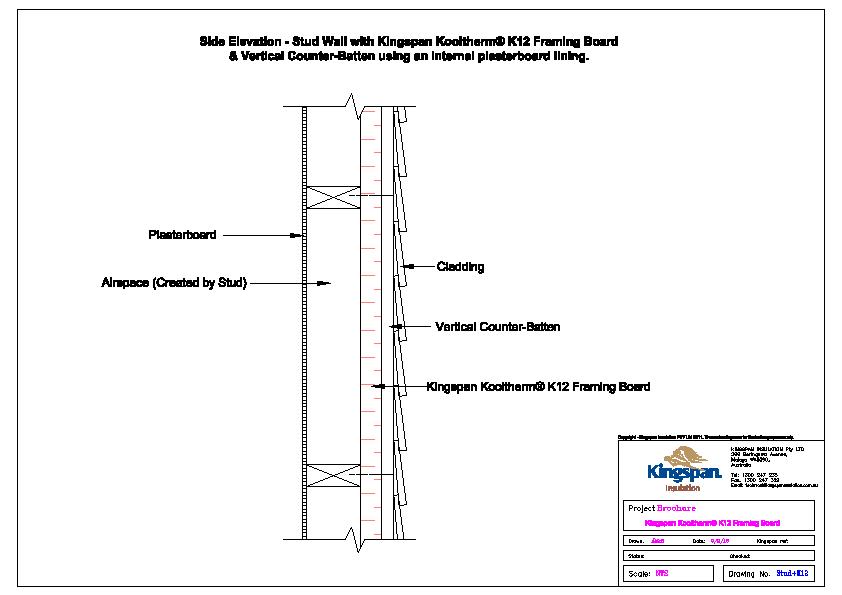

Timber Framed Wall - K12
