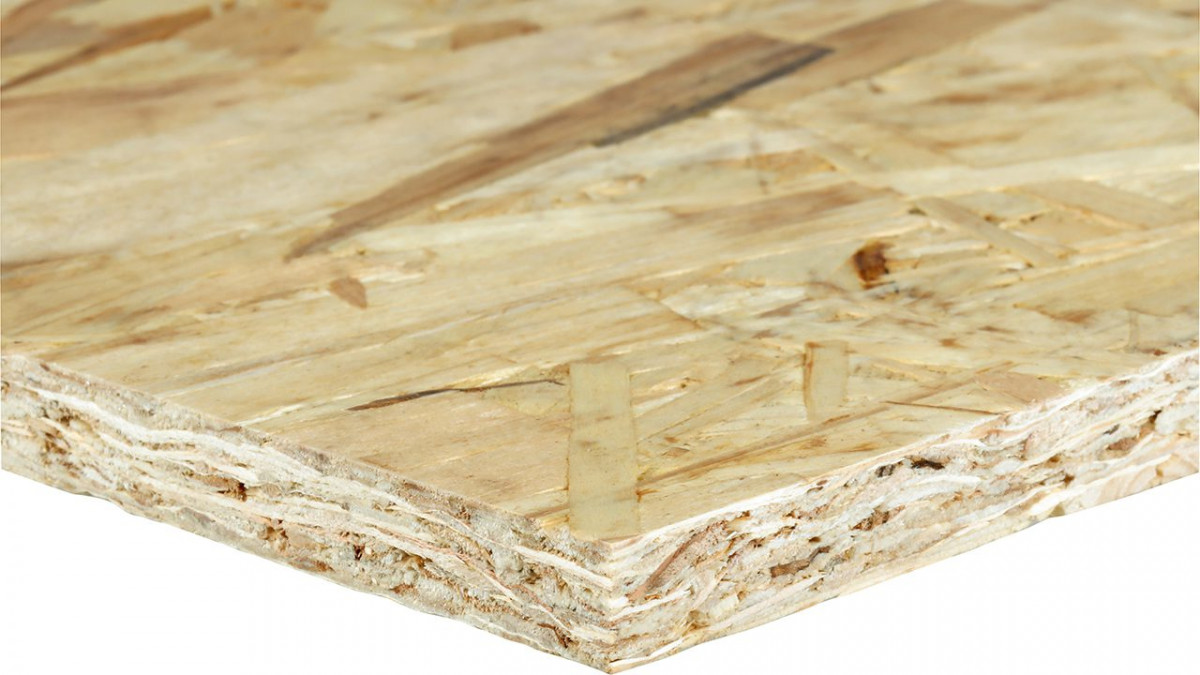

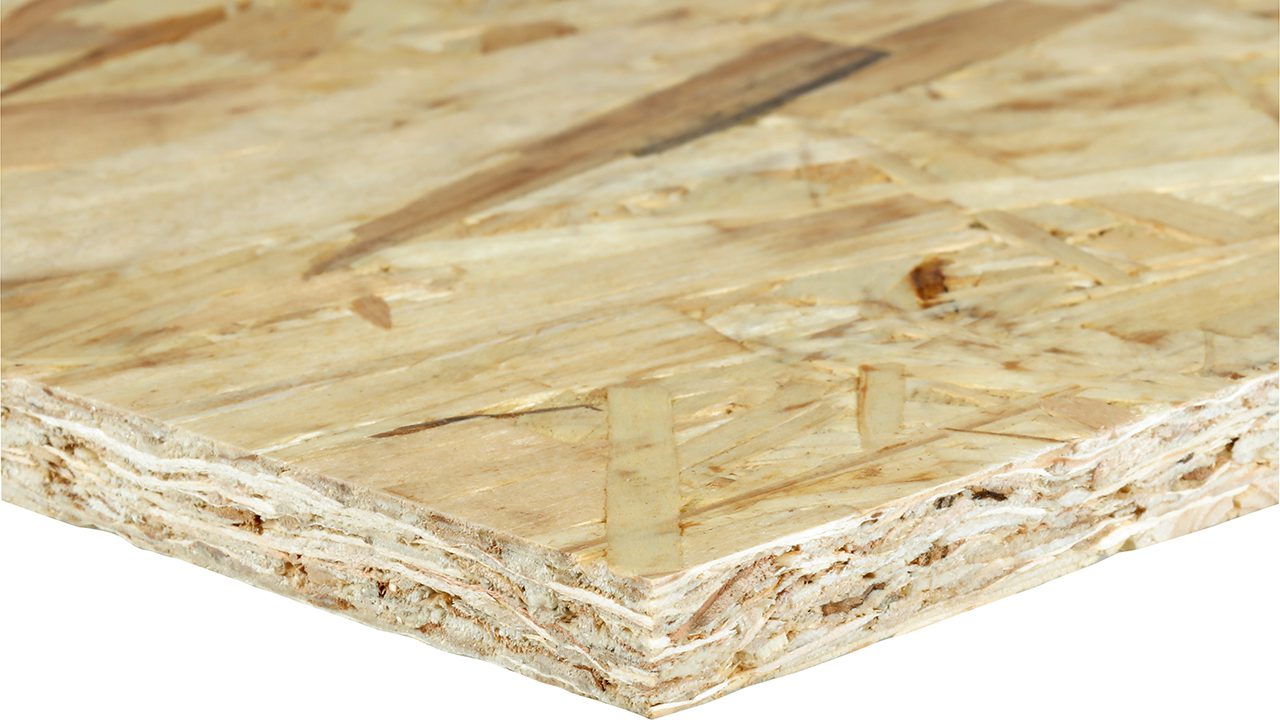

IBS supplies EUROline for use as load-bearing or non-load bearing internal linings; walls, ceilings and general applications.

Intended use for EUROLine are:

• In buildings where the relevant part complies with the NZ Building Code or where the designer and installer have satisfied themselves that the relevant part of the existing building is suitable for the intended building work
• As a wall bracing element
• As a ceiling
• As an internal lining.

Confirm the intended use is covered by the PASS^TM and specify the product; wall or ceiling lining.

Consider:

• the use of the building
• use of the space in respect to fire, water splash, moisture and/or acoustics
• the supporting structure.

• Nail fixings and screw fixings shall be in accordance with AS/NZS 1860.2: 2006, Tables 1 & 2 and section 2.4, NZS 3604:2011.
• Stud spacings of 300 mm – 600 mm for horizontal installation or 600 mm maximum centres for vertical installation.
• The installation must be in accordance with the Scion P21 test assembly details.
• Once installed, a protective covering or paint application must be used. Where used in areas prone to water splash, a waterproof membrane or a protective coating must be applied.
• EUROline must only be used where material group number 3 or less is required.
• EUROline should only be used within the building envelope and in well ventilated situations when it is protected from moisture.

If designed, used, installed and maintained in accordance with the scope, this product will meet the following provisions of the NZBC:

• B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b, f, h, m, q), B1.3.4 (a, b, c, d, e)
• B2 Durability: B2.3.1 (a)
• F2 Hazardous Building Materials: F2.3.1
