Concelo Laundry 1 x 60L Bucket — Cinder
Description

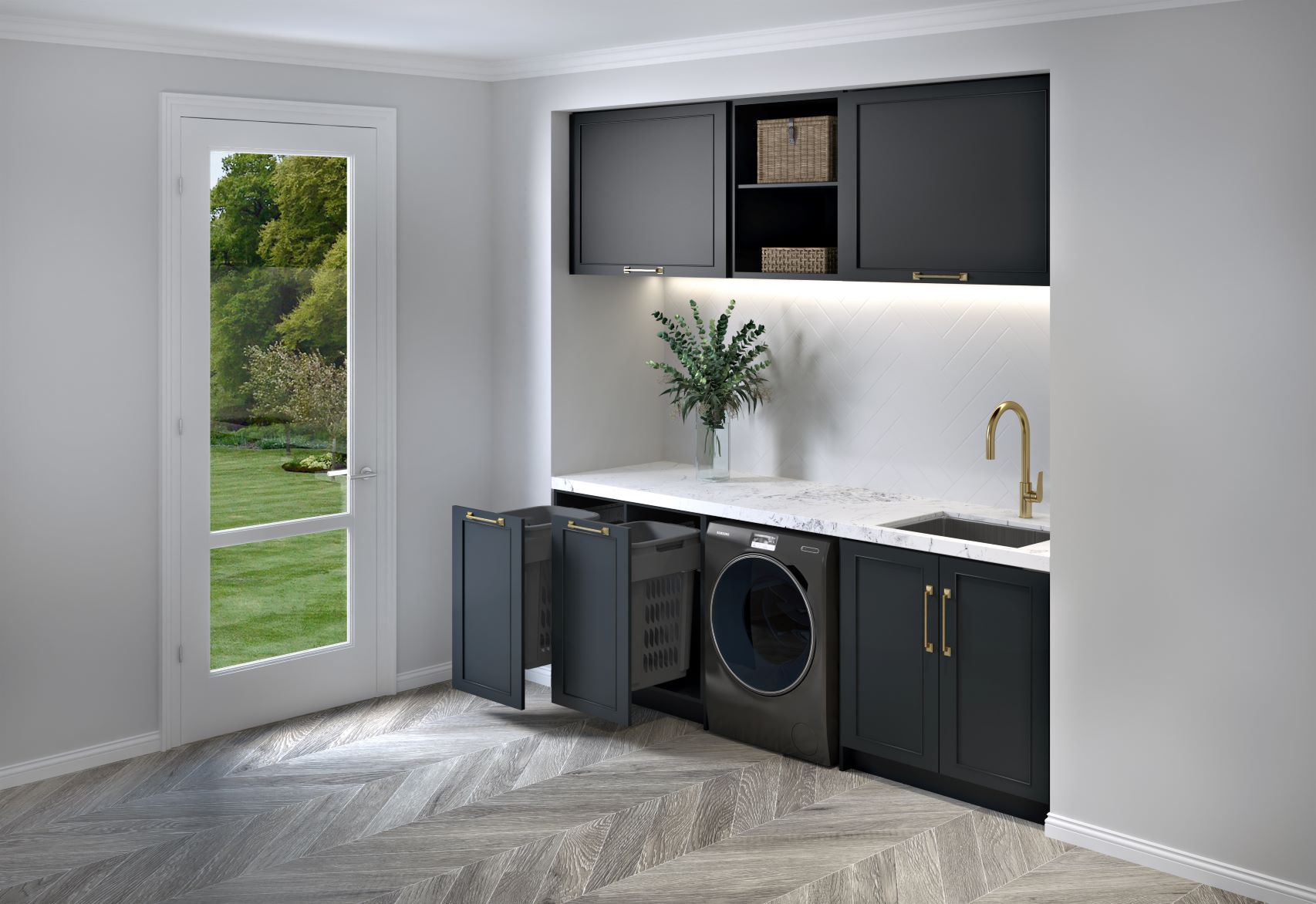

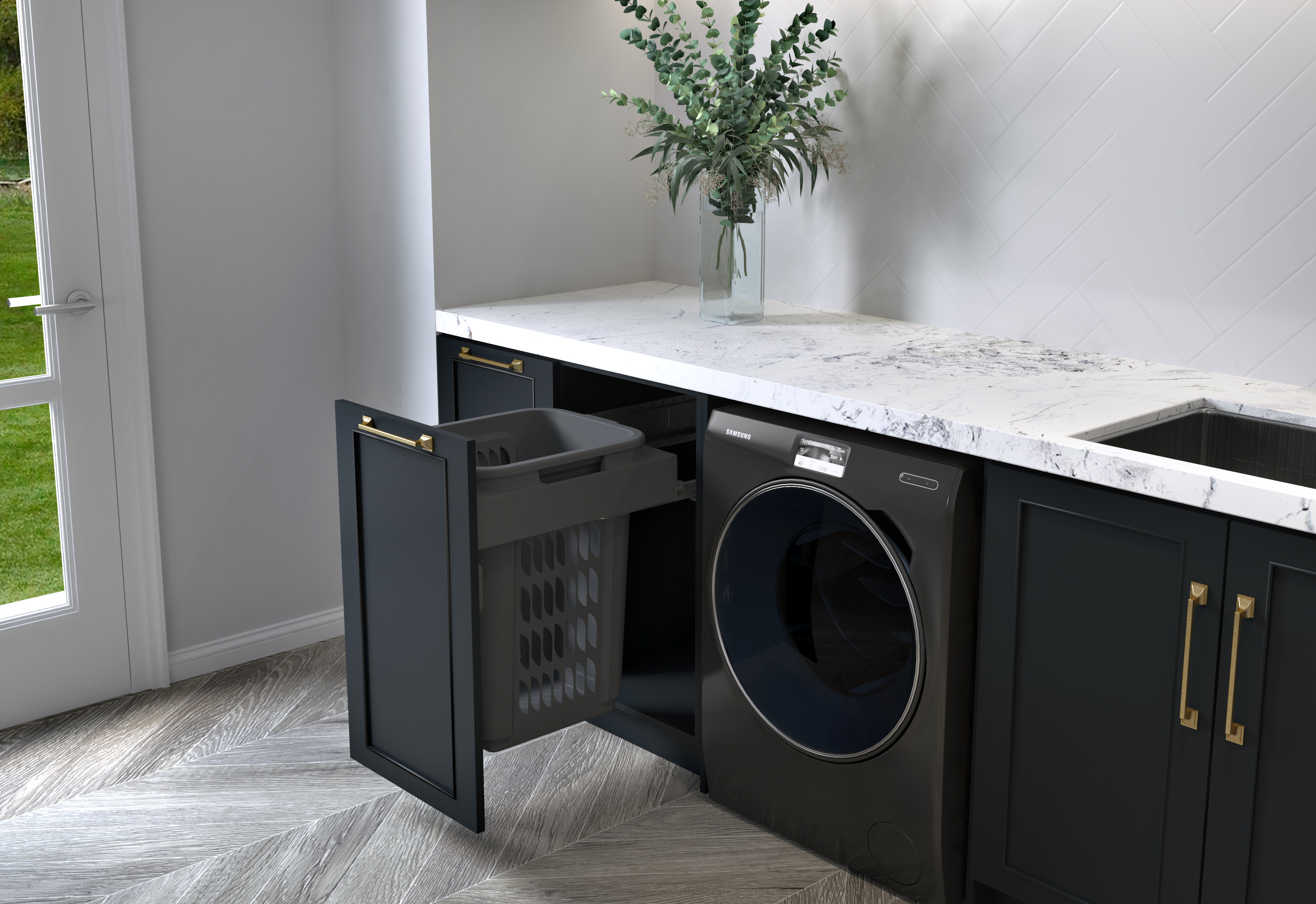

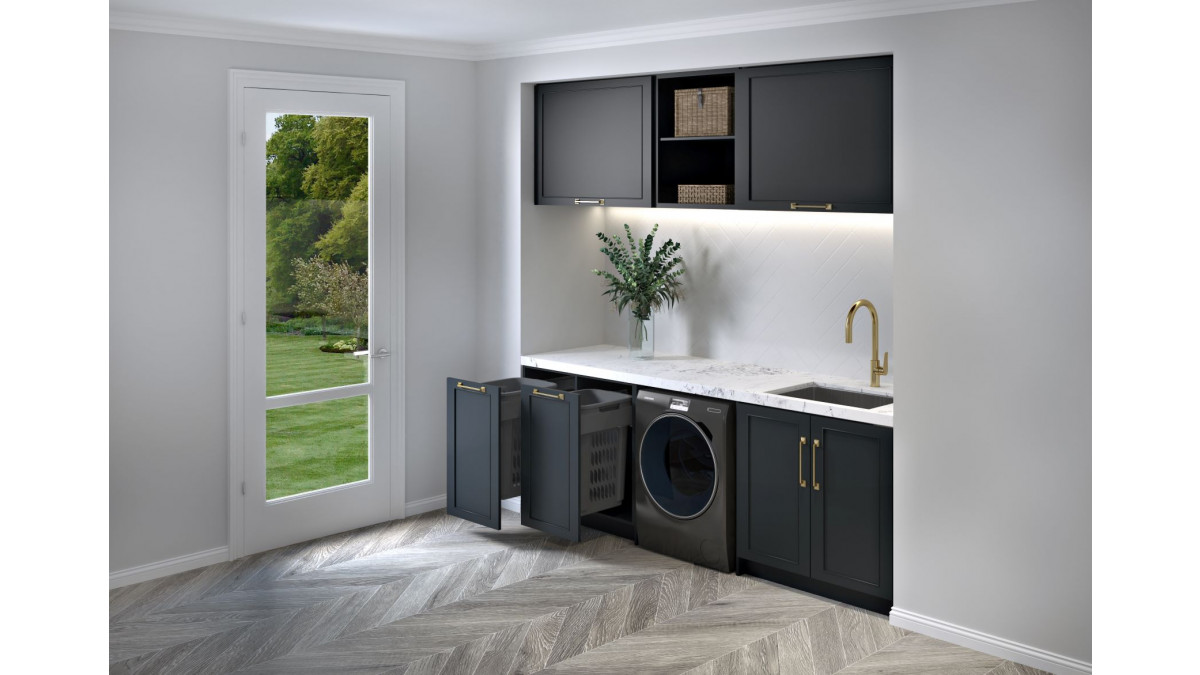

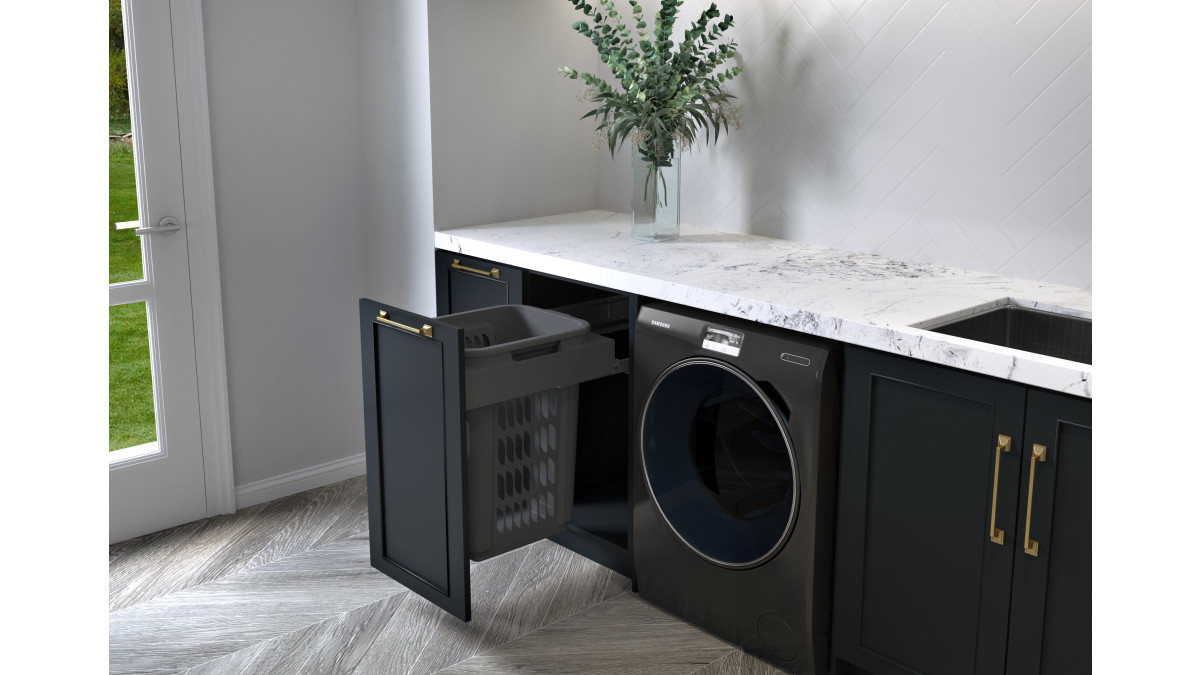

Premium Cinder 1 x 60L Laundry Hamper system for use in laundries, bathrooms or wardrobes, fits a 450mm cabinet.

  • Model: CRL450-160D-C

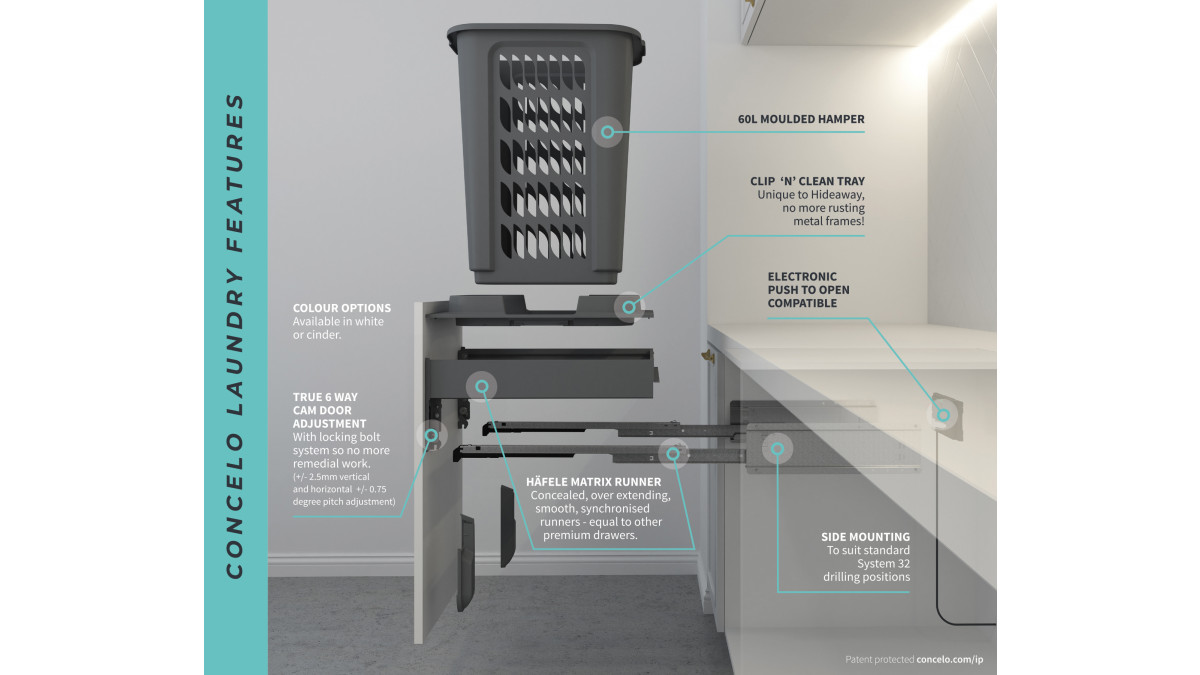

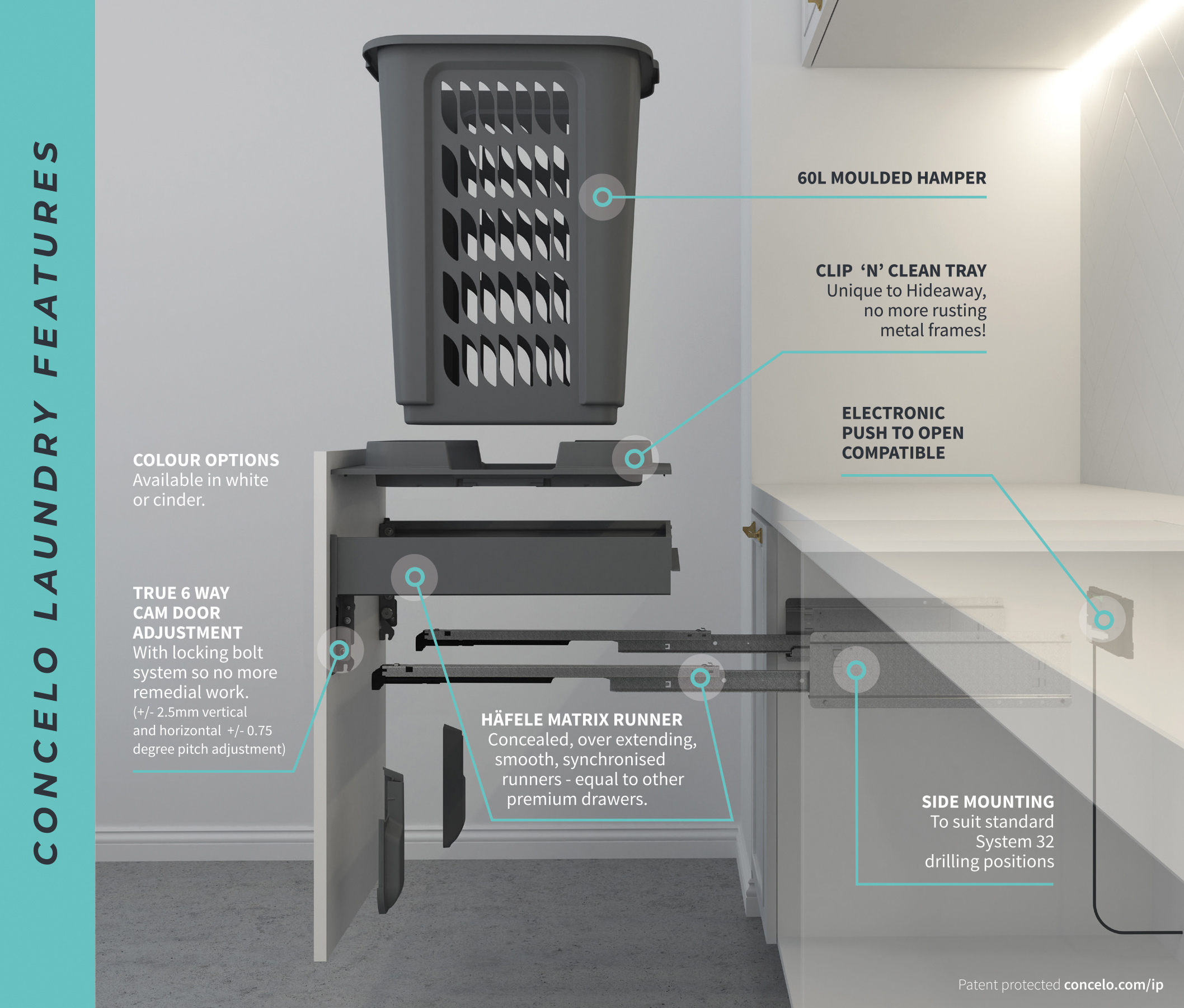

Key Features

Concelo Clip 'n' Clean Tray:

  • Tray designed for easy removal of the hamper and can be wiped clean effortlessly
  • Unique in the laundry hamper market
  • Allows the door front to be accessed and wiped. Eliminates risk of rust

6-Way Door Adjustment:

  • Precise door panel adjustment made simple using cams
  • Works with framed doors
  • Sleek covers clip over the adjustment
  • Fixed adjustment with the locking bolts
  • Horizontal adjustment +/- 2.5mm, Vertical +/- 2.5mm, Tilt/pitch;+/- 0.75°

Side Mounting:

  • To suit standard System 32 drilling positions

Häfele Matrix Runner:

  • Runs beautifully — the German made, Häfele Matrix runner is smooth, synchronised, and has over extension runners with fluid damper for seamless quiet closing action
  • 45kg dynamic weight loading
  • Equal running to premium drawers

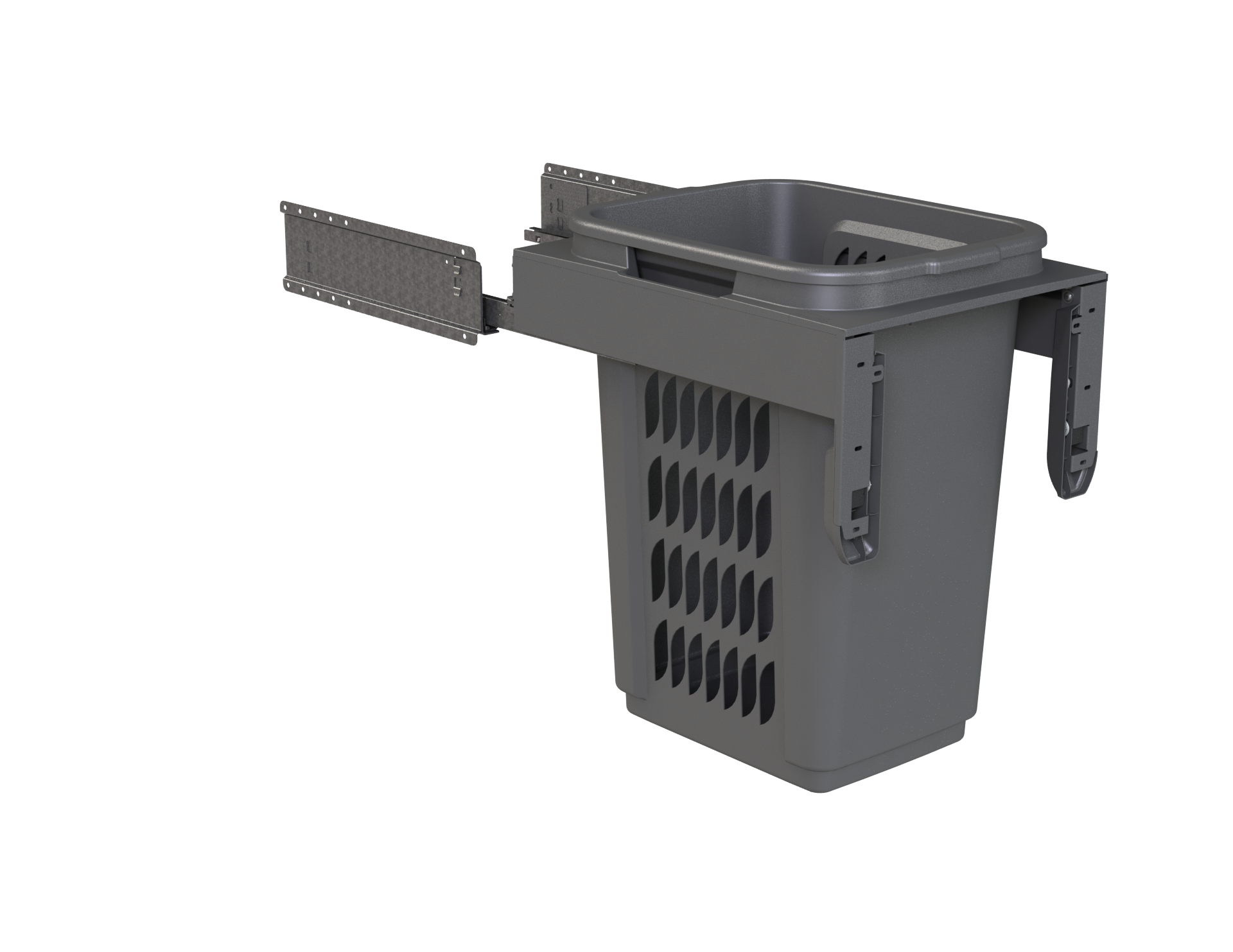

Large 60L Moulded Hamper:

  • Handles for easy removal
  • Light weight and eliminates risk of rust
  • Ventilated sides with a solid base

Electronic Push-to-Open Compatible:

  • Concelo is warranted for use with Häfele Grass Sensomatic and Blum Servo-Drive systems
  • Refer to the technical guides on the Hideaway website for installation of electronic systems
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Concealed laundry hamper — 60L, large size suitable for family load
  • 45kg dynamic weight loading
  • Side Mounting: — To suit standard System 32 drilling positions
  • Electronic Push-to-Open Compatible — warranted for use with Häfele Grass Sensomatic and Blum Servo-Drive systems
  • Sizes:
    • Minimum cabinet width: 450mm — assumes 16mm carcass
    • Minimum internal width: 418mm
    • Minimum internal height: 590mm
    • Recommended minimum internal height: 630mm
    • Minimum internal depth: 525mm
Limitations on Use
  • Bench Overhang Clearance — The CRL450-160D has been designed with over extension drawer runners which allow for a bench overhang of up to 50mm, allowing the bucket to come clear of the benchtop. If more bench overhang clearance is required, mount the bin lower in the cabinet
In-Service History

Concelo was launched in New Zealand and Australia in 2018, being used in both residential and commercial environments.

Other Performance Attributes
  • 10 year warranty (residential applications)
  • 2 year warranty (commercial applications)
  • Global GreenTag Certified — GreenRate Level C
Documents
Global GreenTag: GreenRate Level C

December 2023

Installation and Operation
Maintenance and Warranty
Brochure

June 2023

Hideaway IP

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
