Concelo 4 x 13L Buckets — White
Hideaway Bins
All products
CR600 413 White 1920
HideawayProdShots 1000pxsq CR600 413D W
Hideaway EditorialImages CR600 Mar20232 v5
Description

Premium White 4 x 13L bin system for waste or recycling, fits a 600mm cabinet.

  • Model: CR600-413D-W
Key Features
  • Concelo by Hideaway Bins, winner of the prestigious international Red Dot design award, is the result of seven years of research, development and testing. Concelo has been designed to deliver a waste bin without compromise. Every element of the bin has been engineered and tested to ensure it delivers both the form and function that should be expected from a premium kitchen appliance
  • 4 bucket waste solution — Waste & organics/food scraps can fit in the two left hand buckets, recycling can be separated in the two right hand buckets. 64L total storage
  • Clip 'n' Clean components — Simply remove the components and wash in warm soapy water, once dry, clip the components back into place. The result is a completely clean, more hygienic bin in seconds. No more dirt traps commonly found in other waste bin brands

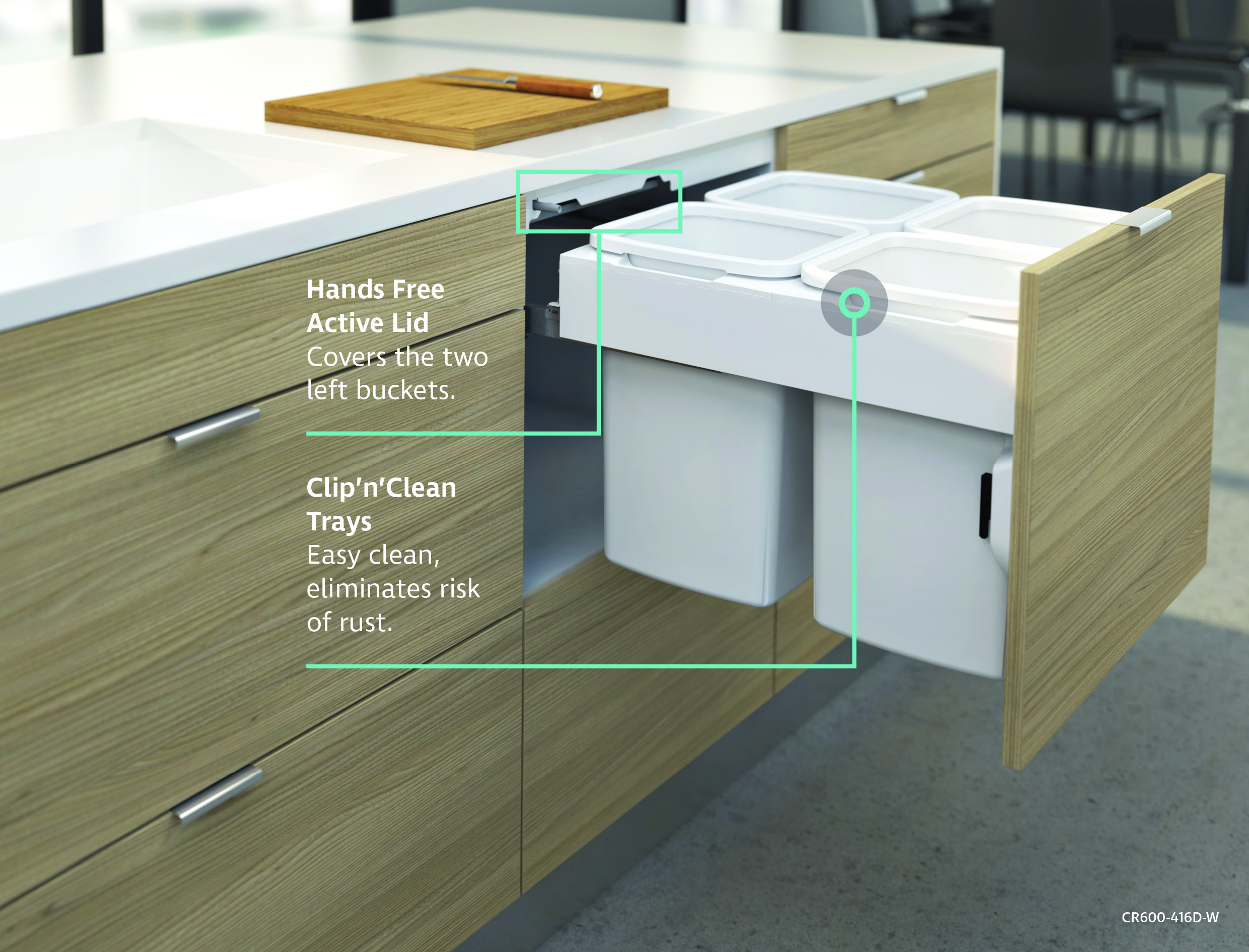

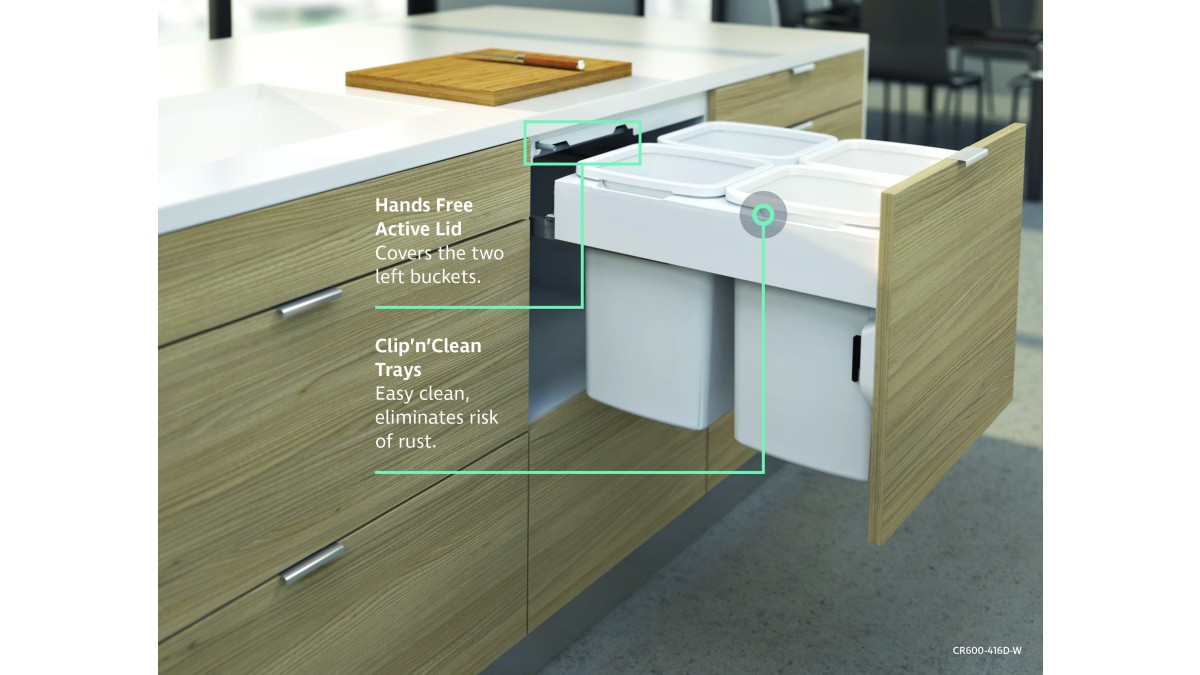

  • Active Lid — Hidden from sight at the top of the bin inside the cabinet and drops down to close over the two left hand buckets when the bin is closed. The motion of the lid is synchronised with the opening and closing action of the bin, which lets you keep hands free to simply drop waste into the bin
  • German synchronised over-extension runners — More than just buckets in a drawer, but smooth synchronised runners, with a fluid dampener for seamless quiet closing action. Runners are manufactured by Hafele Schneider Furniture division to provide a closing action equal to other premium kitchen drawer runners. Over-extension allows Concelo to be installed at bench height for enhanced ergonomics and allows the rear bucket to clear benchtop overhangs up to 40mm. German quality with a 45kg dynamic weight rating
  • Installation — Side mount in standard 600mm cabinet, suits System 32 drilling pattern. The Concelo CR600 bin canbe positioned at bench height which is the most ergonomic to easily dispose of waste
  • Colour options — Available in 2 colour options; Arctic White to match ever popular white drawers, or Cinder to suit the growing trend for darker coloured hardware
  • Electronic Push to Open — Concelo is also compatible with electronic push to open mechanisms. When combined with the Active Lid, this creates the perfect hands-free waste bin solution
  • 6-way door adjustment — two-piece door bracket design with cams provides simple yet precise adjustment of door position. 6 locking bolts secure the door in place
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Concelo by Hideaway
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Kitchen waste and recycling bin
  • Width: 568mm — Height: 335mm — Depth: 525mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Side Mounting
  • Compatible with electronic 'push to open' mechanisms
  • 45kg dynamic weight rating
Limitations on Use

Bench Overhang Clearance — The CR600-413D-W has been designed with over extension drawer runners which allow for a bench overhang of up to 40mm, allowing the back buckets to come clear independent of the front bucket. If more bench overhang clearance is required, please mount the bin lower in the cabinet.

In-Service History

Concelo was launched in New Zealand and Australia in 2018, being used in both residential and commercial environments.

Other Performance Attributes
  • 10 year warranty (residential applications)
  • 2 year warranty (commercial applications)
  • Global GreenTag Certified — GreenRate Level C
  • News
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
Maintenance and Warranty
pdf
Brochure

June 2023

pdf
Hideaway IP
URL

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
