Residential Series ThermalHEART® Hinged & French Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

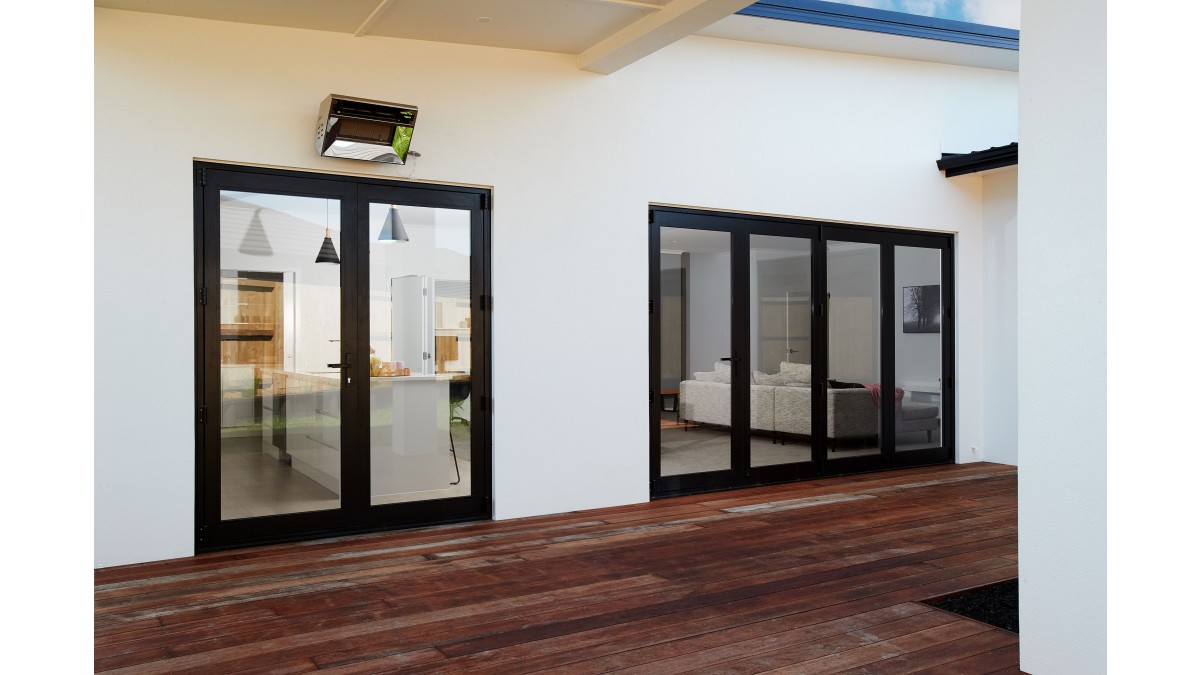

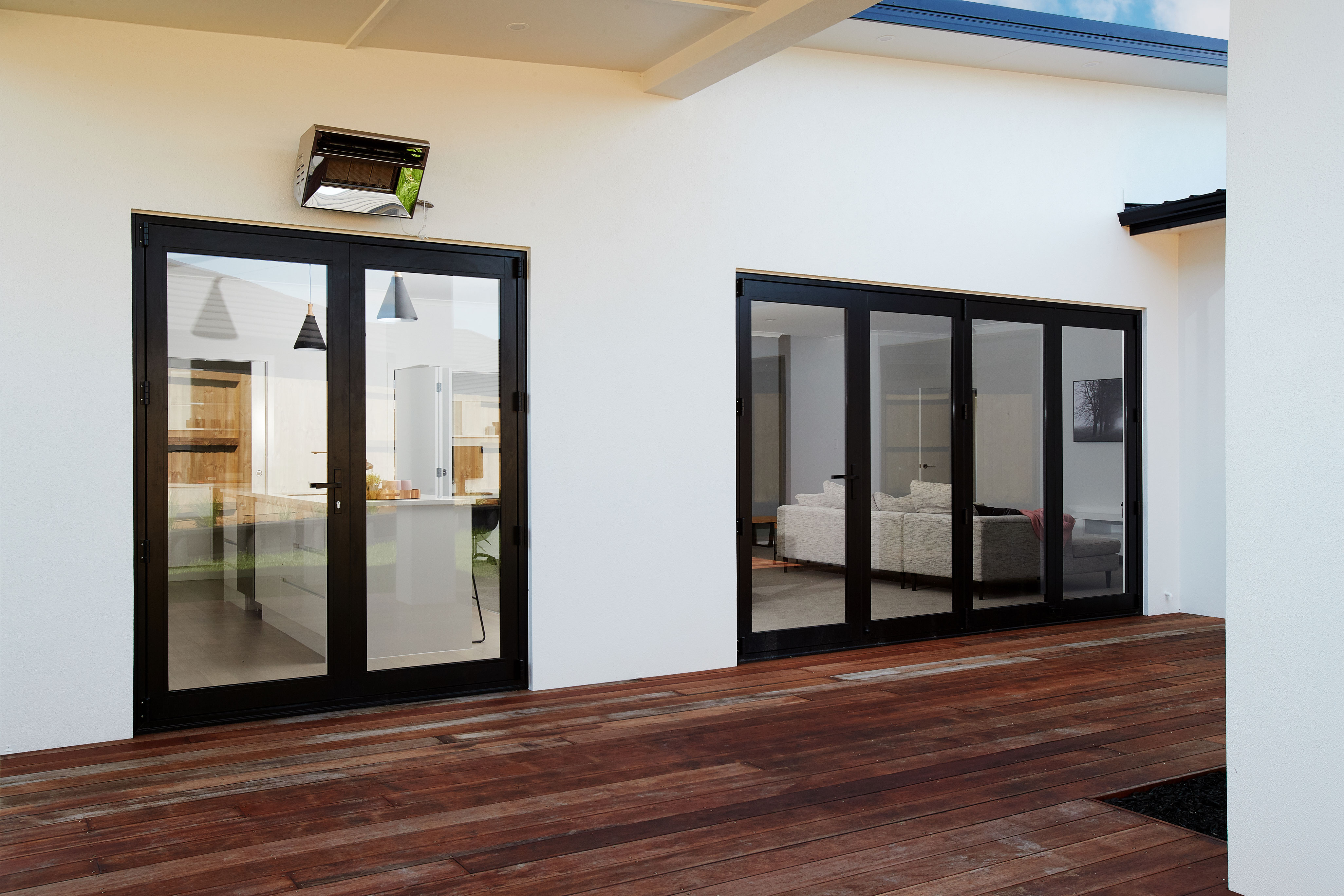

These are available in open-in and open-out formats. Doors are rated to 2.2m high in Extra High wind zones. For larger sizes consider using Metro Series ThermalHEART®. Both open-in and open-out door systems are available with integrated or coupled sidelights and overlights, with or without opening sashes. French doors have flush meeting stiles for a clean look.

Key Features

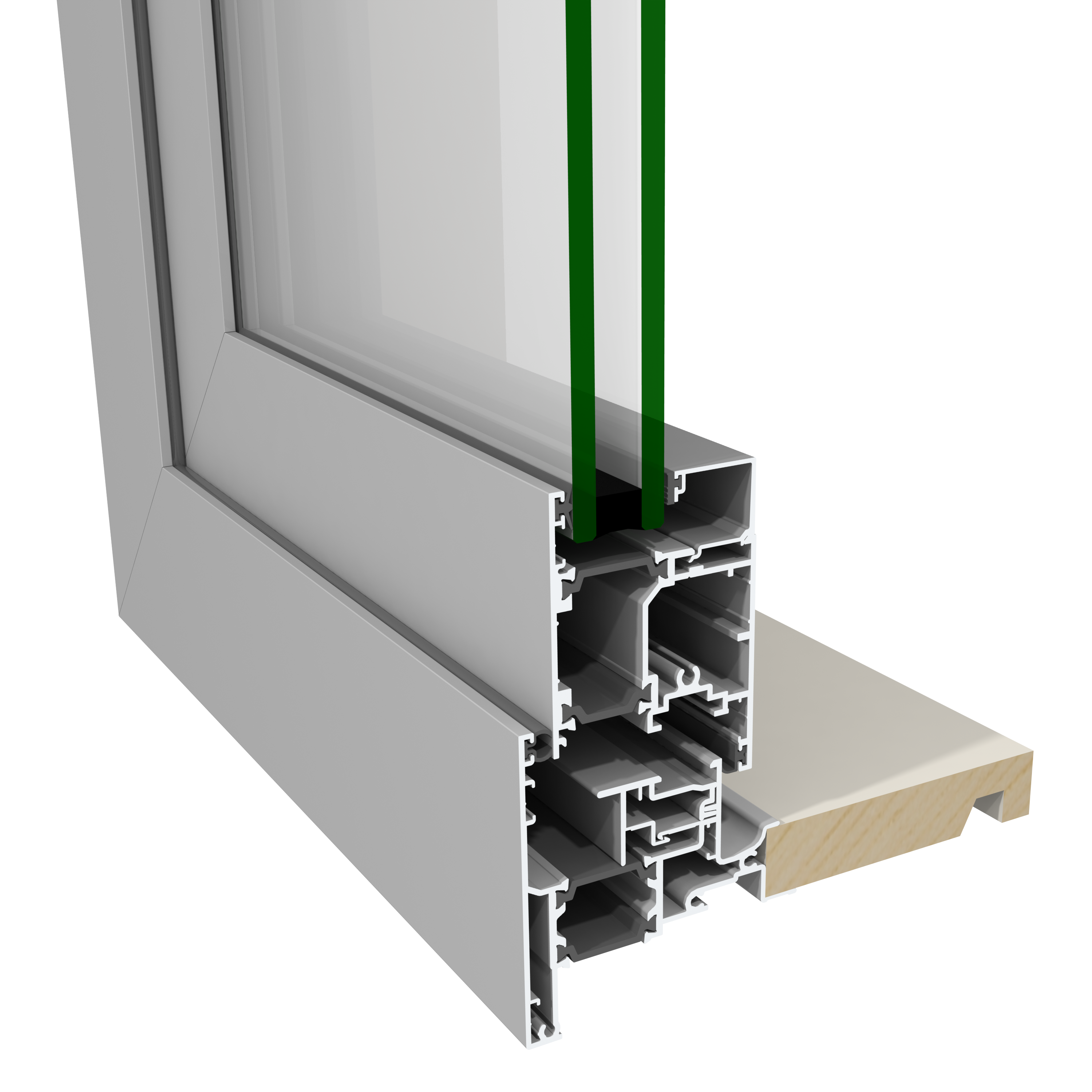

  • Door panels lap over frame for superior aesthetics, air tightness, weather tightness, security and thermal performance

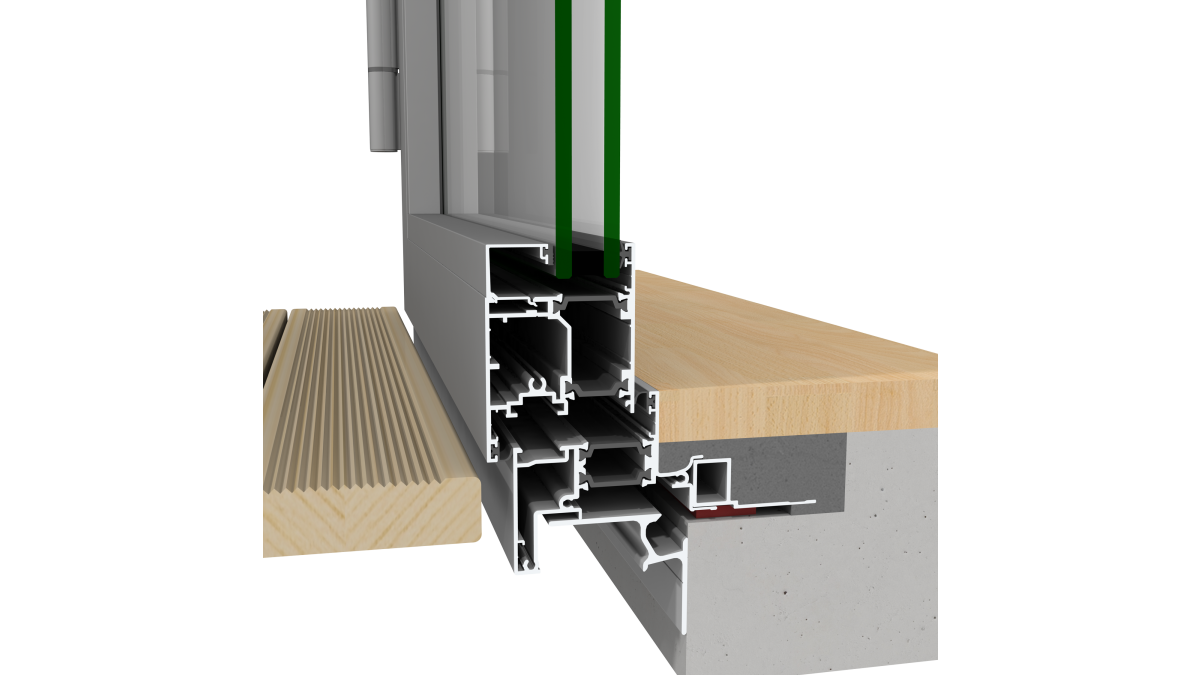

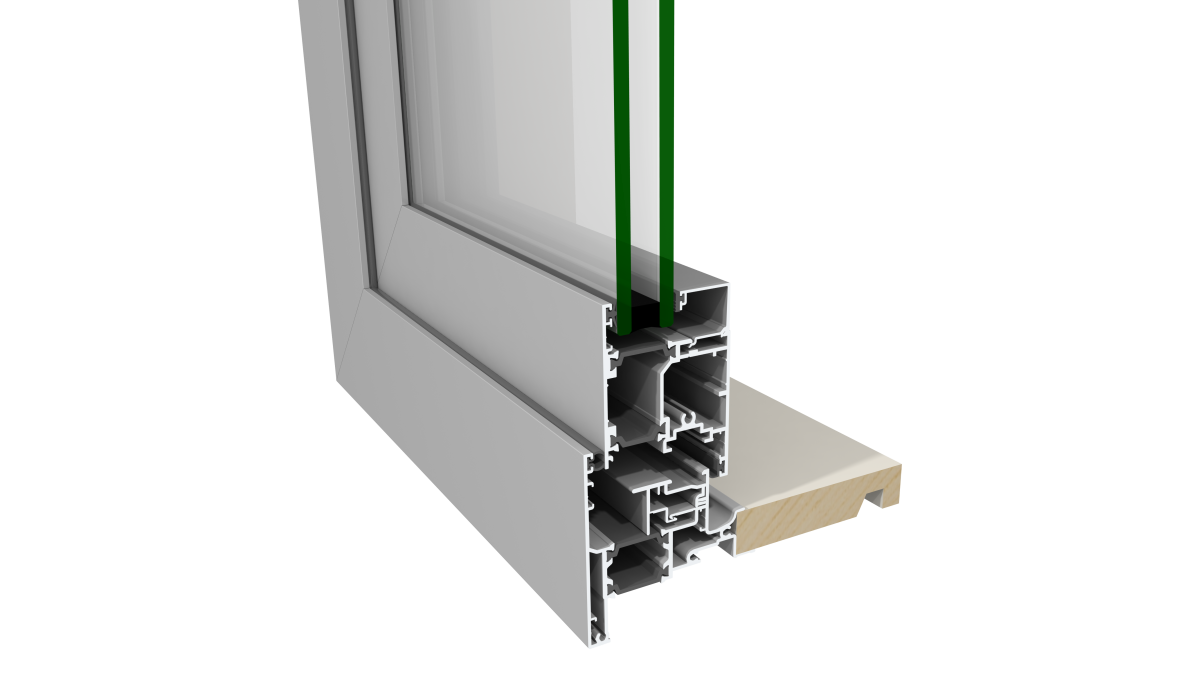

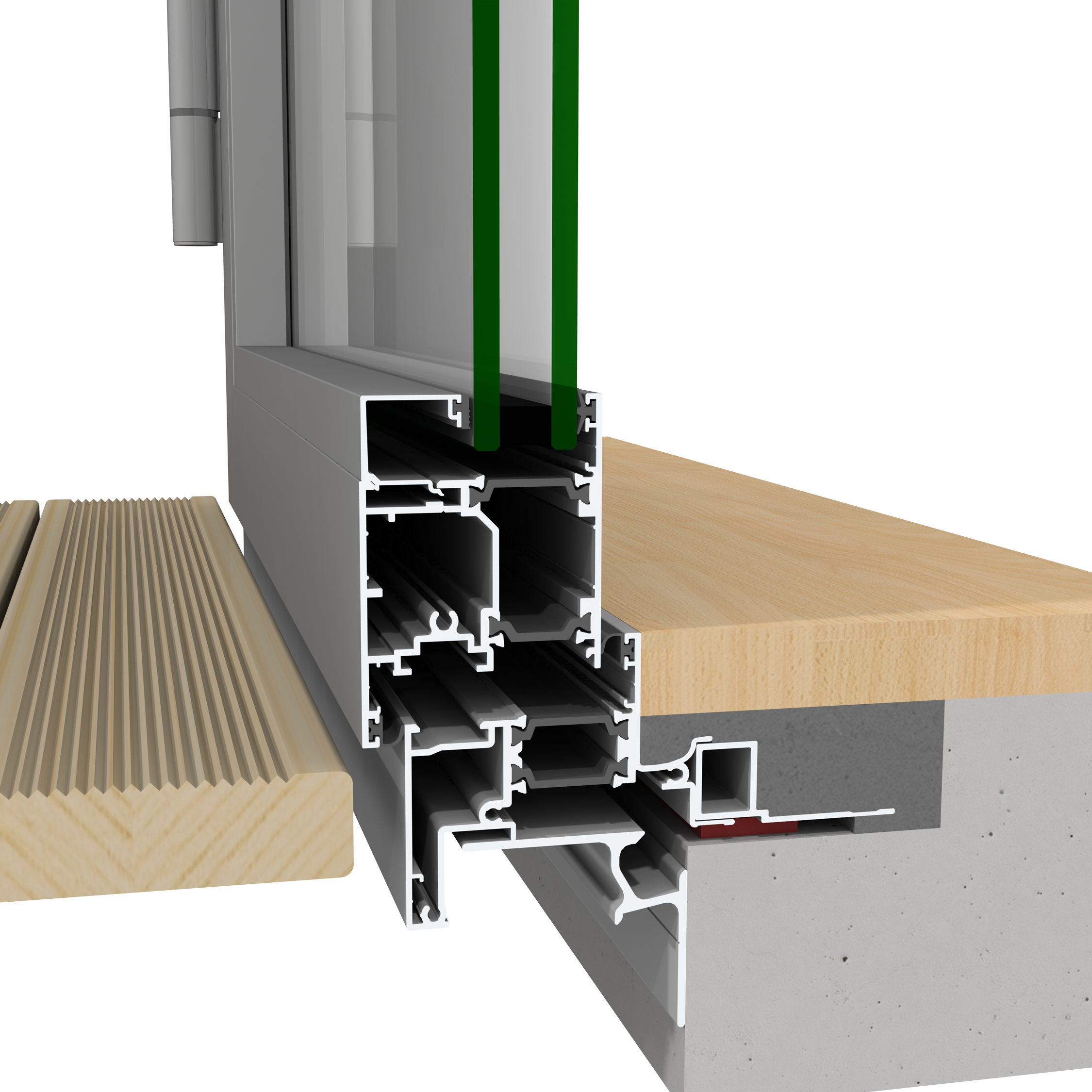

  • Thermal efficiency achieved through thermal breaks in aluminium profiles and controlled air spaces via panel lap
  • 24mm IGU as standard but 32m IGU can be used with a wedged bead — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

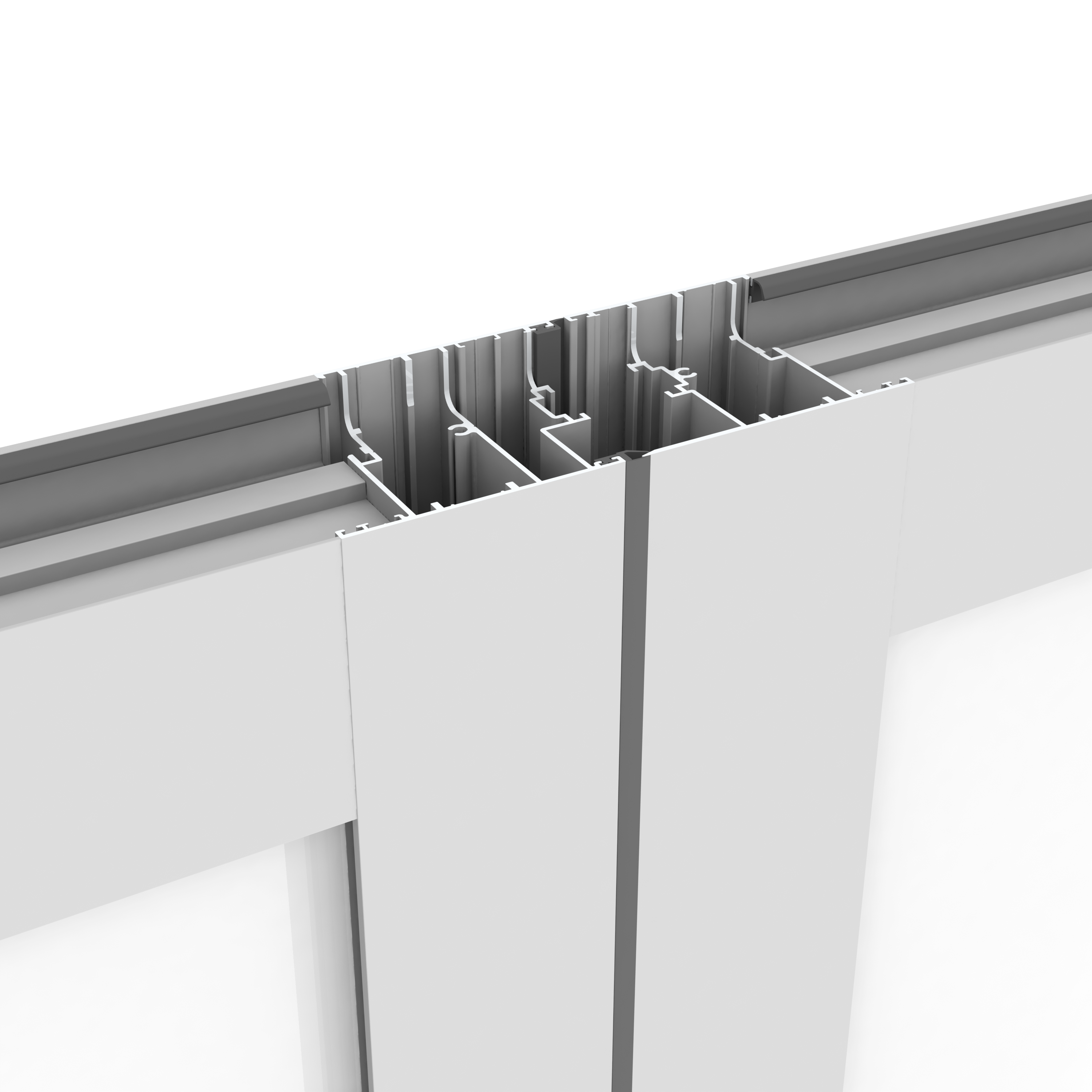

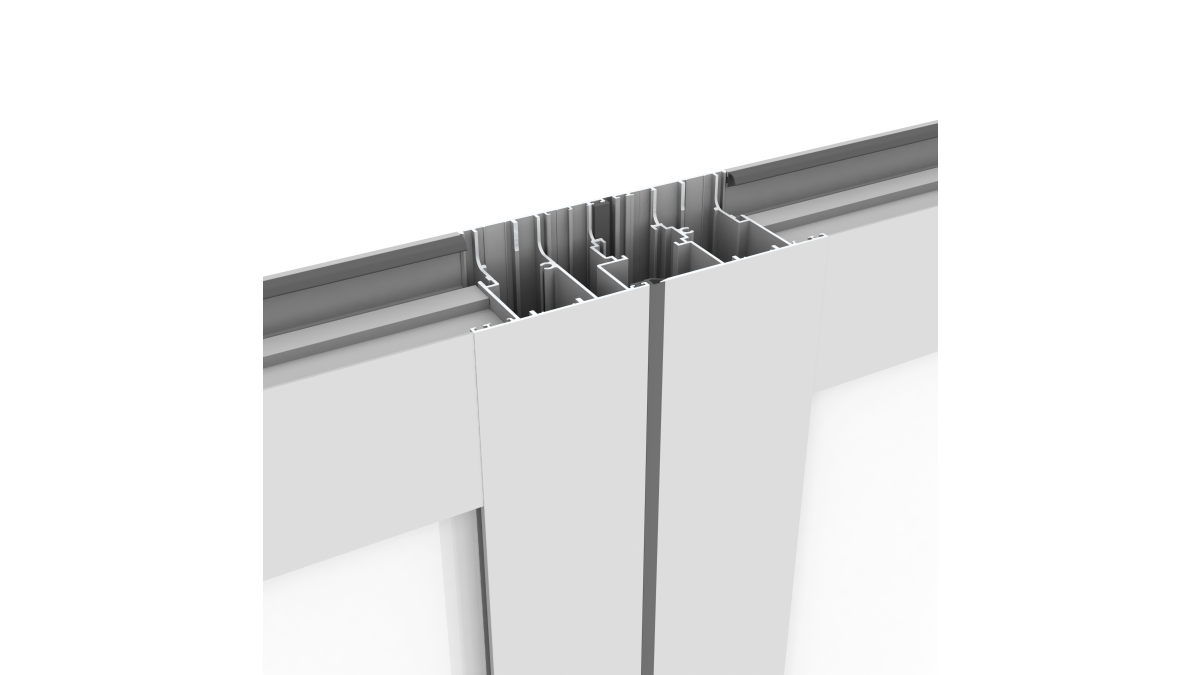

  • Flush meeting stiles give a clean appearance in French doors and provide superior weathering

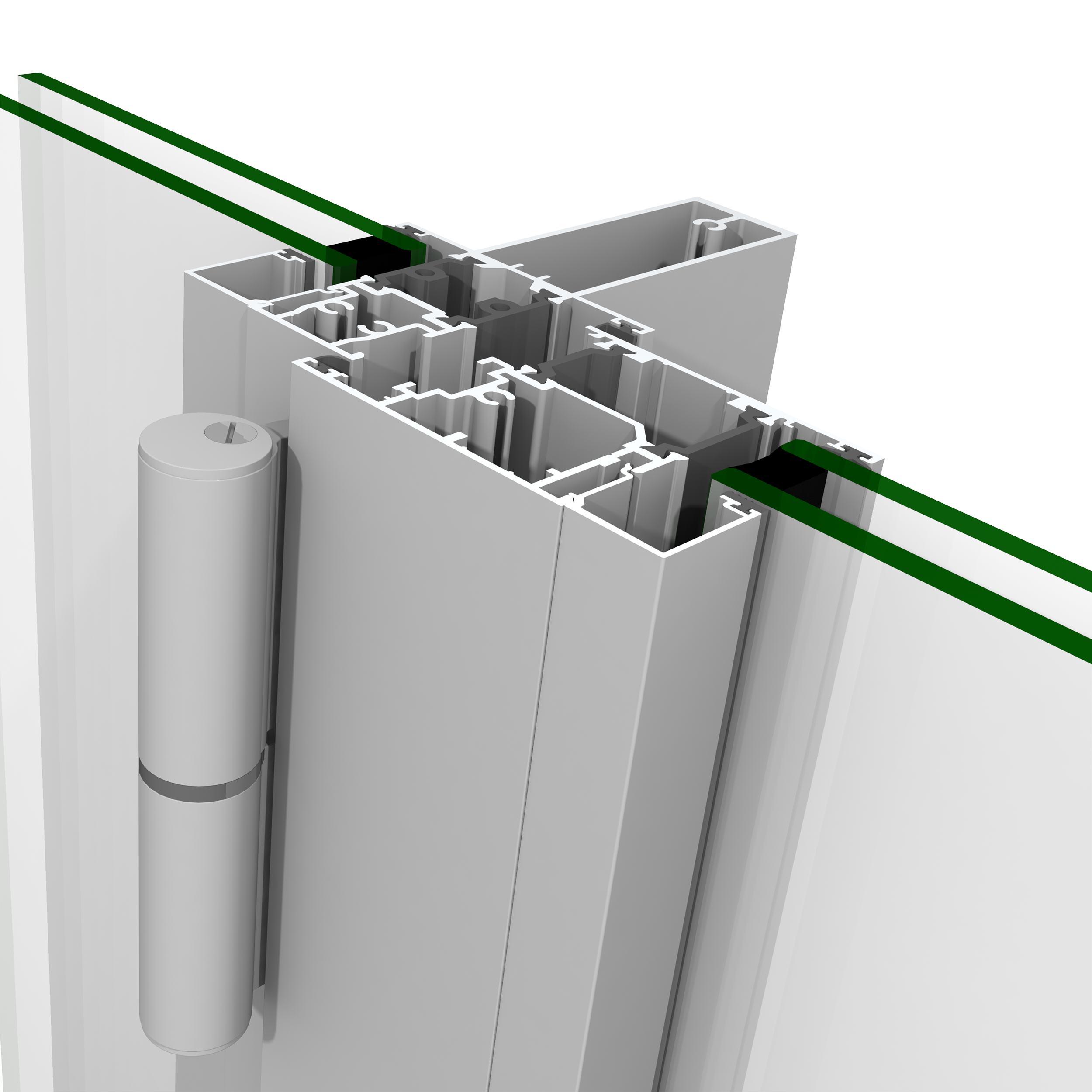

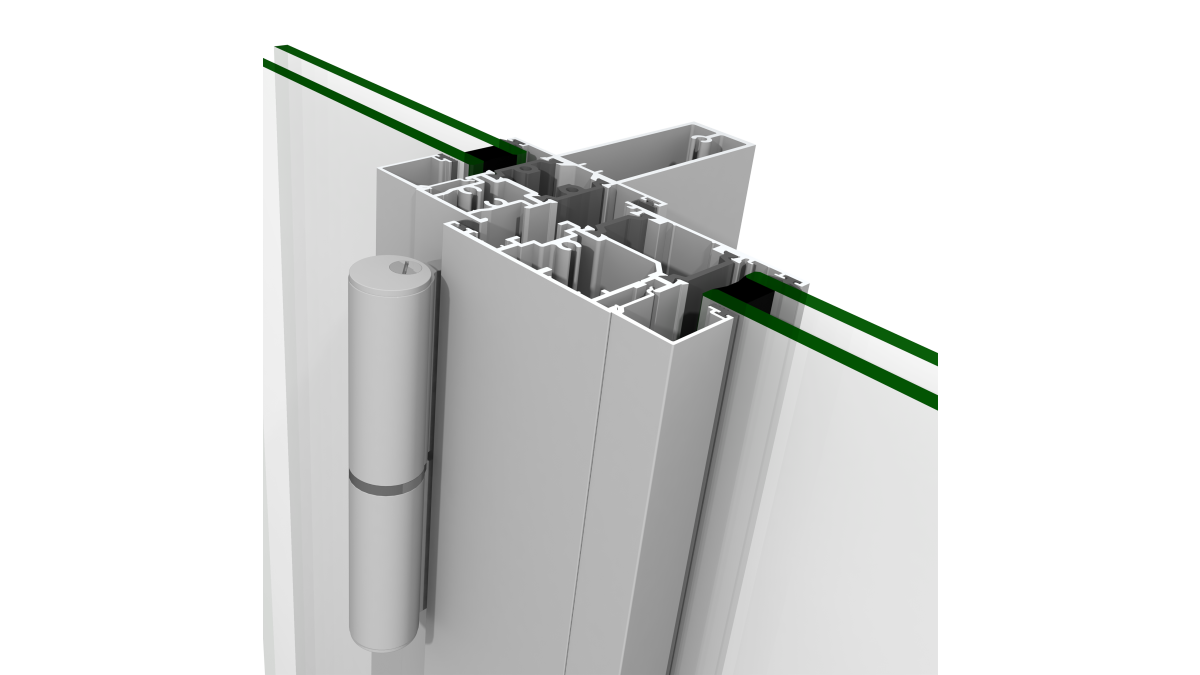

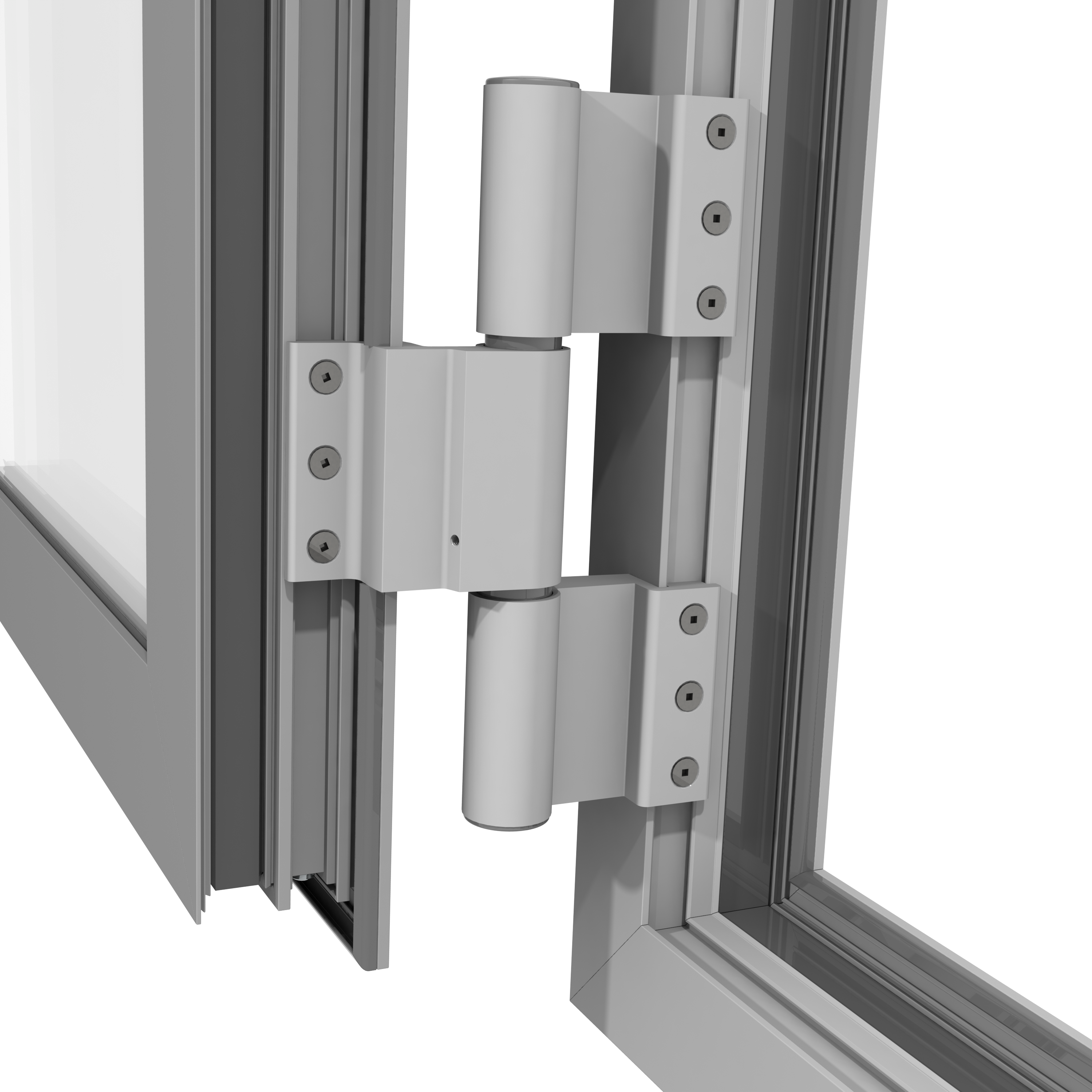

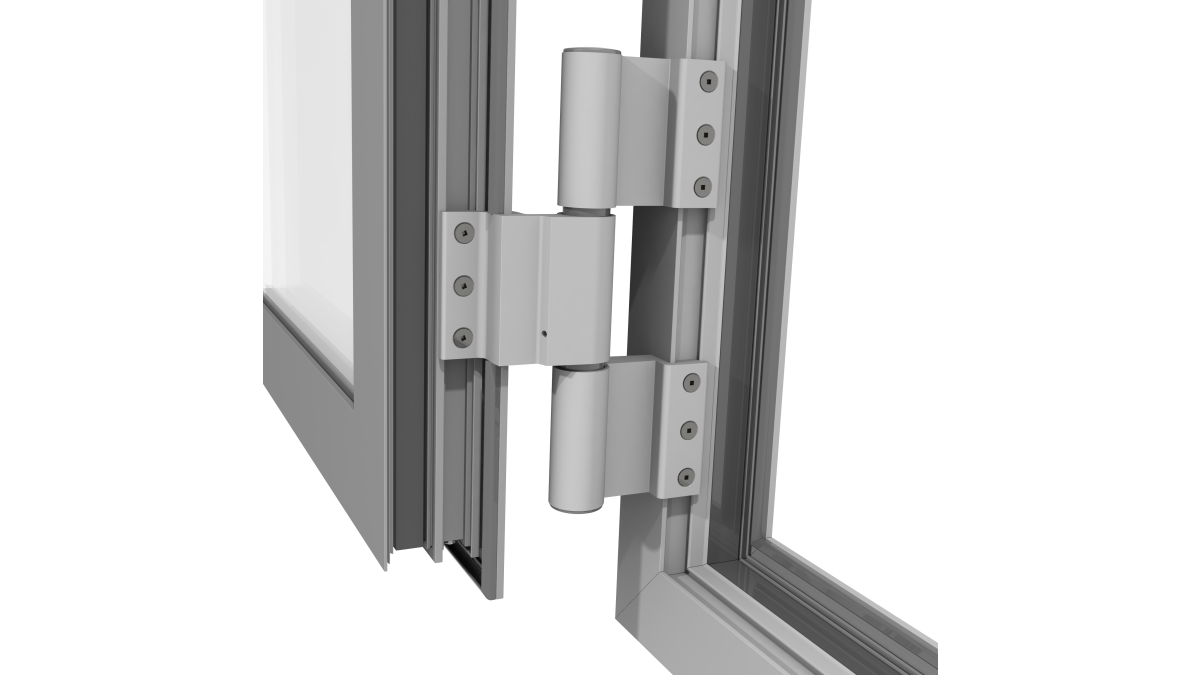

  • Three-way adjustable hinges for optimum installation and performance
  • Recommended maximum door height 2200mm
Scope of Use
  • Suitable for broad residential use
  • Available in defined maximum sizes
Limitations on Use
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E doubleglazing
  • Recommended maximum 2200mm high doors in Extra High wind zones — For larger sizes consider using Metro Series ThermalHEART®
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2022 (previous version 2011)
  • New range rolling out nationally; previous version in use in residential projects throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet: Residential Series ThermalHEART® Doors

2023

Span Tables: Residential Series ThermalHEART® HInged Doors

2022

Declare Label

2022

Environmental Product Declaration (EPD) Report

2023

FIRST on Masterspec
Full Specification Guide: Residential Series ThermalHEART

2023

Specification Guide: Residential Series ThermalHEART Hinged & French Doors

2023

WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
Manufacturer Contact List
CAD/PDF Details
Residential Series ThermalHEART® Hinged Doors

FULL SET

PDF and ZIP (contains all DWGs)

Residential Series ThermalHEART® Hinged Doors — Open Out with Rail Option

TRHD01-0

Residential Series ThermalHEART® Hinged Doors — Open Out Transom Overlight Option

TRHD02-0

Residential Series ThermalHEART® Hinged Doors — Open Out Coupler with Awning Window

TRHD03-0

Residential Series ThermalHEART® Hinged Doors — Open Out Hinge Options

TRHD04-0

Residential Series ThermalHEART® Hinged Doors — Open Out Meeting Stile

TRHD05-0

Residential Series ThermalHEART® Hinged Doors — Open Out Sidelight Mullion Option

TRHD06-0

Residential Series ThermalHEART® Hinged Doors — Open Out Sidelight Coupler Option

TRHD07-0

Residential Series ThermalHEART® Hinged Doors — Open In

TRHD10-0

Residential Series ThermalHEART® Hinged Doors — Open In Overlight Coupler

TRHD11-0

Residential Series ThermalHEART® Hinged Doors — Open In

TRHD12-0

Residential Series ThermalHEART® Hinged Doors — Open In French Door

TRHD13-0

Residential Series ThermalHEART® Hinged Doors — Open In Sidelight Coupler

TRHD14-0

Installation Details
Residential Series ThermalHEART® Hinged Doors — Open In On Board & Batten Cavity Construction

TRHIBB

Residential Series ThermalHEART® Hinged Doors — Open In On Brick Veneer Cavity Construction

TRHIBV

Residential Series ThermalHEART® Hinged Doors — Open In On Bevelback Weatherboard Cavity Construction

TRHIBW

Residential Series ThermalHEART® Hinged Doors — Open In On Flat Sheet Cavity Construction

TRHIFS

Residential Series ThermalHEART® Hinged Doors — Open In On Profile Metal Cavity Construction

TRHIPM

Residential Series ThermalHEART® Hinged Doors — Open In On Rusticated Weatherboard Cavity Construction

TRHIRW

Residential Series ThermalHEART® Hinged Doors — Open In On Stucco Cavity Construction

TRHIST

Residential Series ThermalHEART® Hinged Doors — Open Out On Board & Batten Cavity Construction

TRHOBB

Residential Series ThermalHEART® Hinged Doors — Open Out On Brick Veneer Cavity Construction

TRHOBV

Residential Series ThermalHEART® Hinged Doors — Open Out On Bevelback Weatherboard Cavity Construction

TRHOBW

Residential Series ThermalHEART® Hinged Doors — Open Out On Flat Sheet Cavity Construction

TRHOFS

Residential Series ThermalHEART® Hinged Doors — Open Out On Profile Metal Cavity Construction

TRHOPM

Residential Series ThermalHEART® Hinged Doors — Open Out On Rusticated Weatherboard Cavity Construction

TRHORW

Residential Series ThermalHEART® Hinged Doors — Open Out On Stucco Cavity Construction

TRHOST
