Description

The 40mm series is a diverse range of window products designed for versatility — as strip windows, hopper and pivoting windows, seismically framed windows and curtain wall applications.

There are numerous sash and fixed light options for different site exposures, glass thickness and aesthetic requirements.

Key Features

For low to high rise applications
A varied, multi-product window system based on a 40mm frame platform. It includes:
- Glazed frames and sashes for general commercial applications

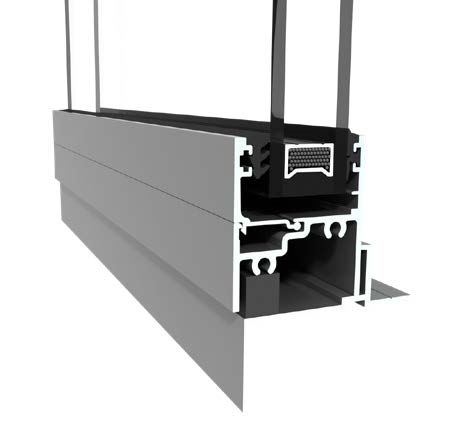

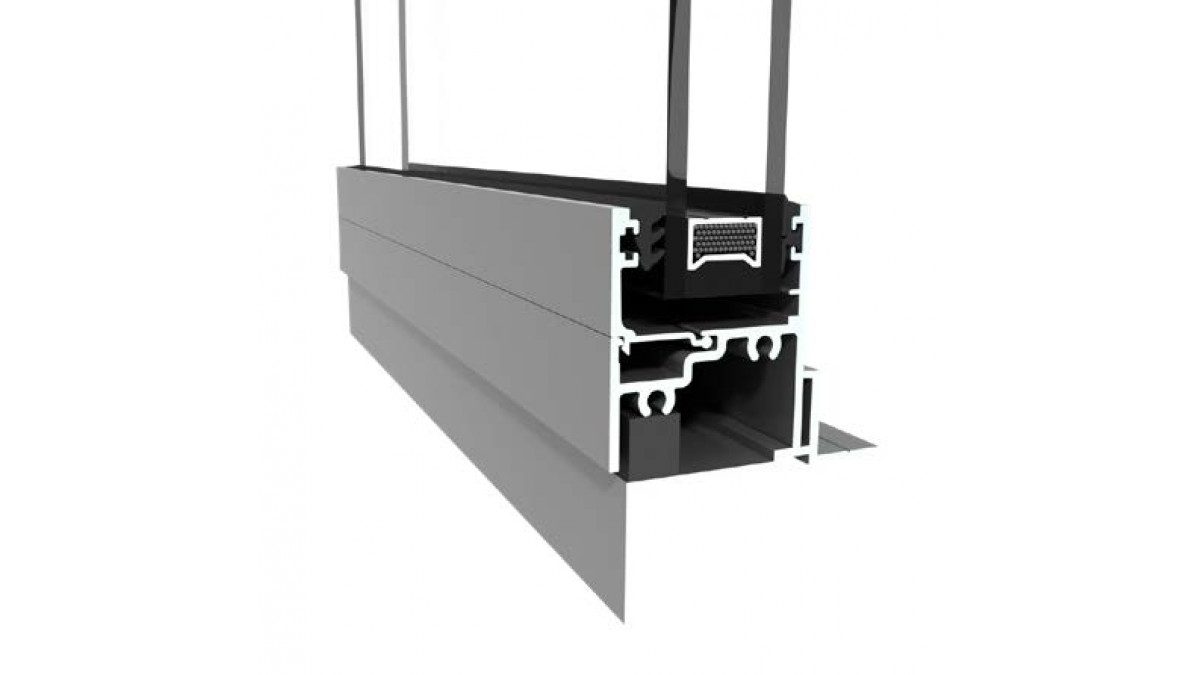

- Glazed frames and sashes for strip windows
- Hopper windows
- Pivoting windows

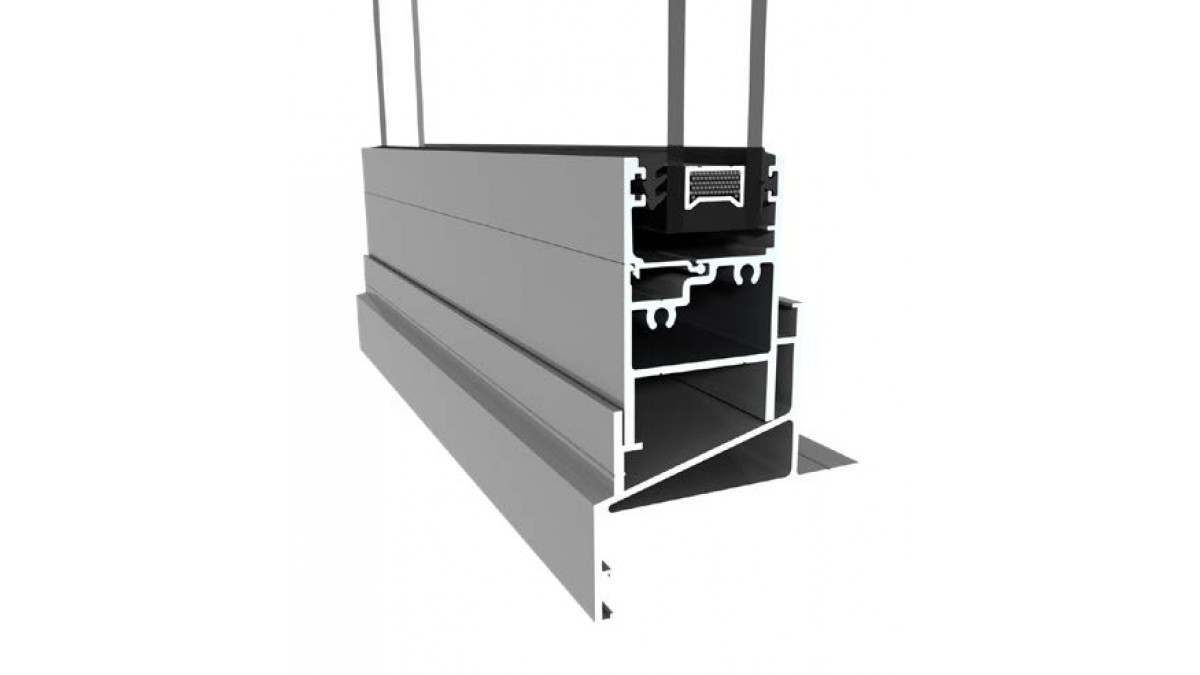

- Glazed frames seismically separated from the building structure
- Curtain walling

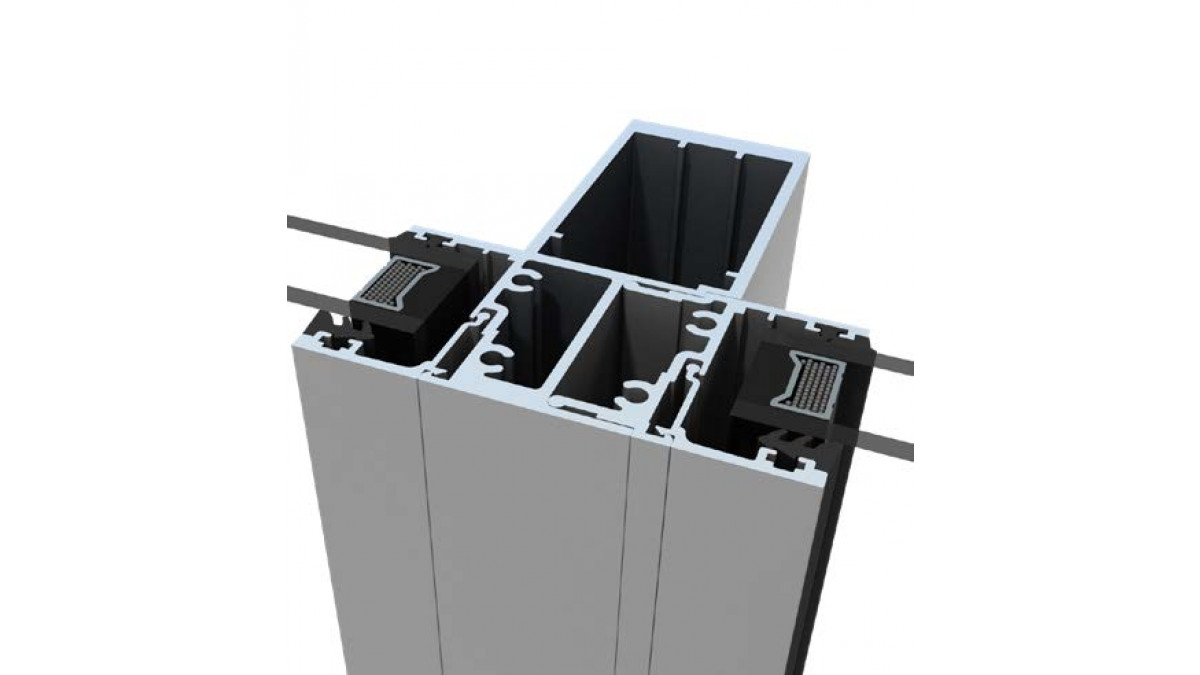

Substantially sized box-section extrusions allow large sashes up to 1600mm high x 1000mm wide dependent on the glass used (awning and casement applications)

Ranges

Commercial Series

Scope of Use

Suitable for commercial environments
For low to high rise applications
Need to be used in defined maximum sizes
The 40mm window system is compatible with the use of Magnum commercial doors
Hopper window option is suitable for institutional and education sector use

Limitations on Use

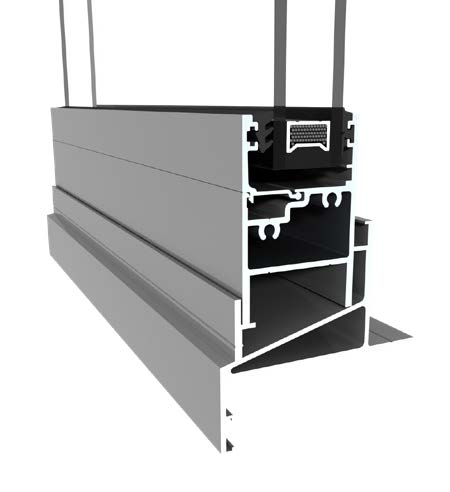

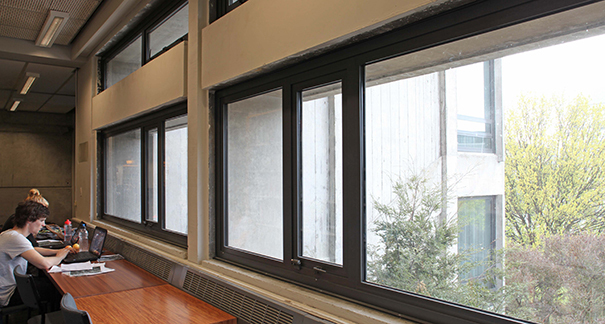

The 40mm seismic system is for banks of windows requiring seismic separation in low to medium rise applications
Depending on type of project, windows may come fully assembled and glazed or be assembled on site from pre-made modules
40mm curtain wall glazed panels are generally pre-assembled and fixed to continuous runs of curtain wall mullion on site
Shop drawings can be supplied by manufacturers when specified

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

The 40mm window series was launched in 1993
Some design upgrades have taken place
Widely used by builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies

Genesis Energy Project Uses Multiple APL Systems

FIRST Windows & Doors

April 2019

Case Studies

Documents

Data Sheet

pdf

Span Tables

pdf

Environmental Product Declaration (EPD) Report

2023

URL

FIRST on Masterspec

URL

Specifier Guide

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

First Brochure

2014

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2019

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full

Full Set of Drawings

pdf

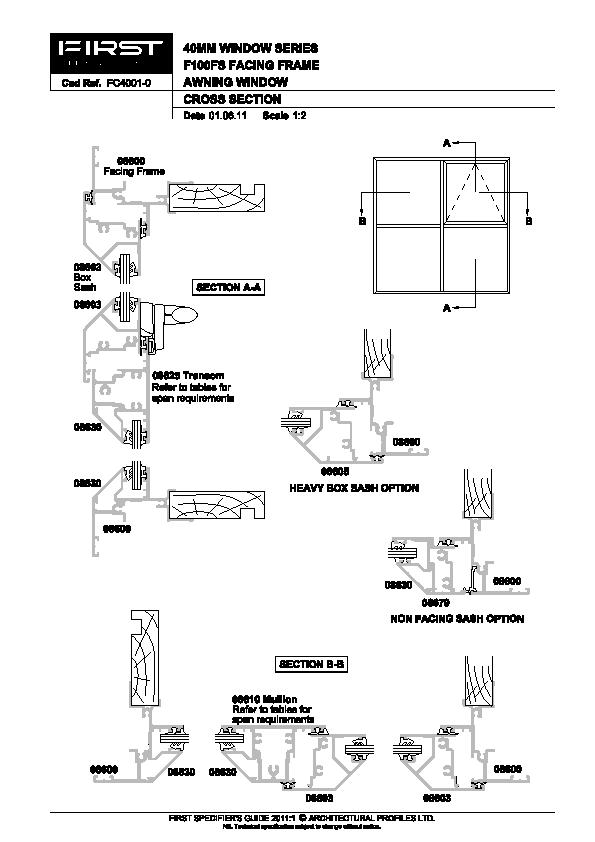

FIRST Commercial 40mm Window Series F100FS Facing Frame Awning Window

FC4001-0

dwf

dwg

dxf

pdf

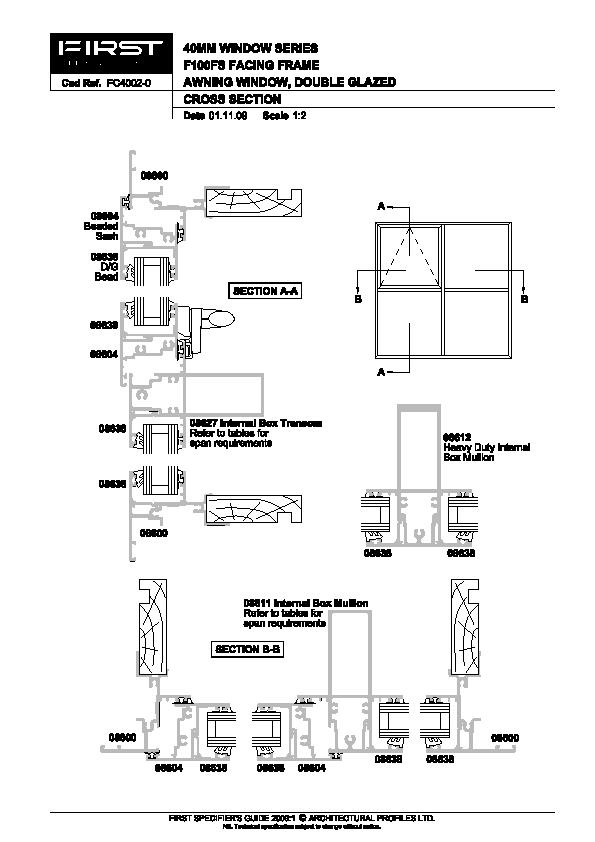

FIRST Commercial 40mm Window Series F100FS Facing Frame Awning Window Double Glazed

FC4002-0

dwf

dwg

dxf

pdf

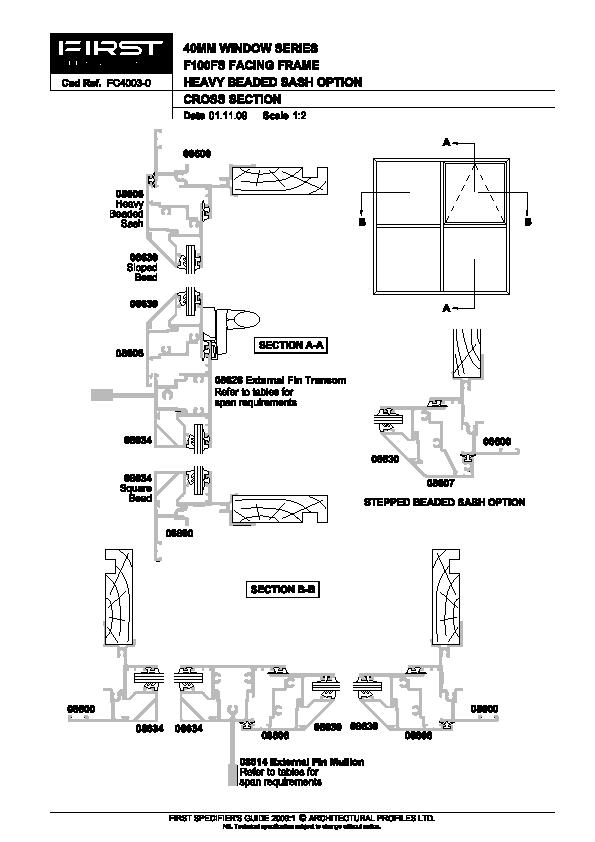

FIRST Commercial 40mm Window Series F100FS Facing Frame Heavy Beaded Sash Options

FC4003-0

dwf

dwg

dxf

pdf

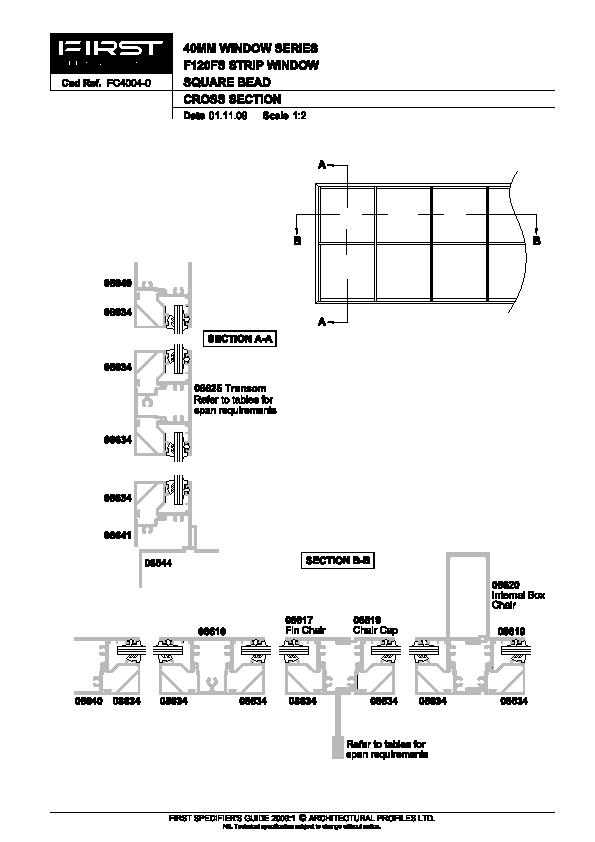

FIRST Commercial 40mm Window Series F120FS Strip Window Square Bead

FC4004-0

dwf

dwg

dxf

pdf

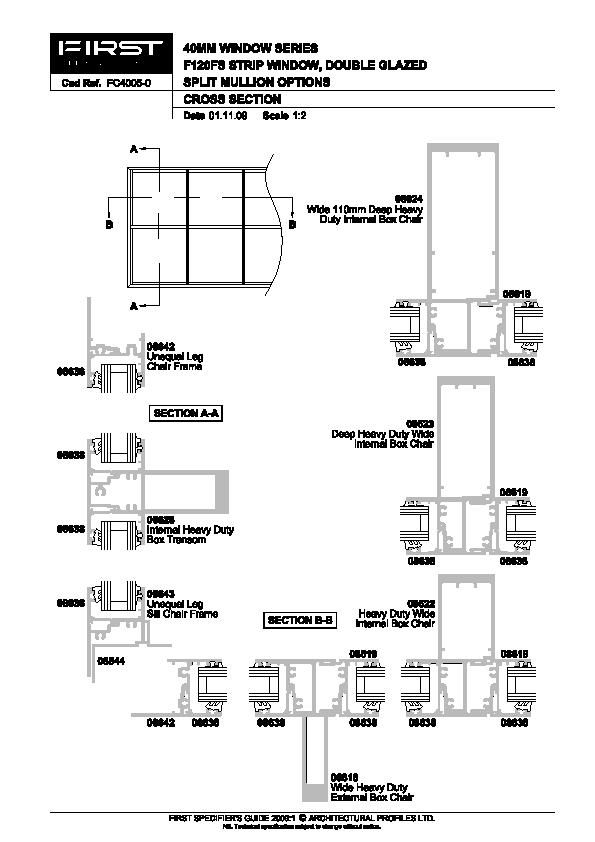

FIRST Commercial 40mm Window Series F120FS Strip Window Double Glazed Split Mullion Options

FC4005-0

dwf

dwg

dxf

pdf

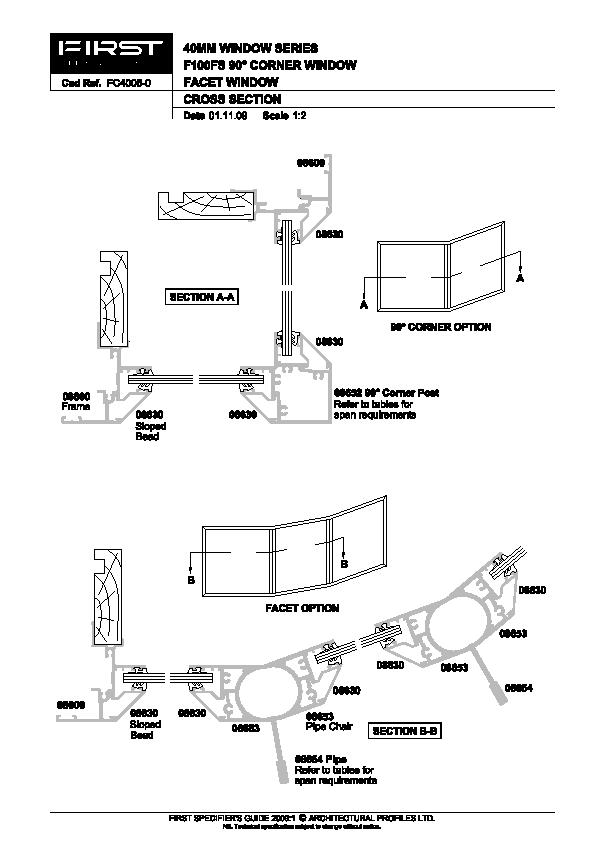

FIRST Commercial 40mm Window Series F100FS 90º Corner Window Facet Window

FC4006-0

dwf

dwg

dxf

pdf

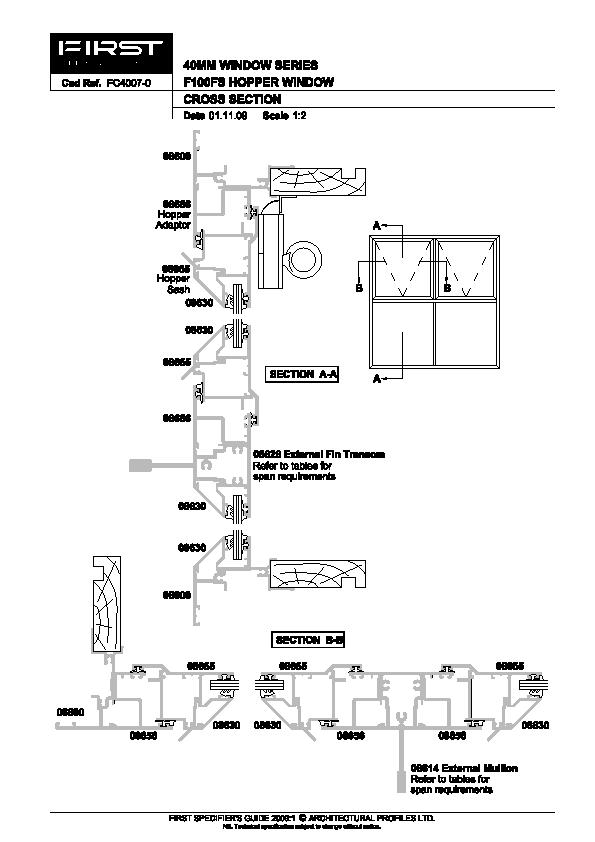

FIRST Commercial 40mm Window Series F100FS Hopper Window

FC4007-0

dwf

dwg

dxf

pdf

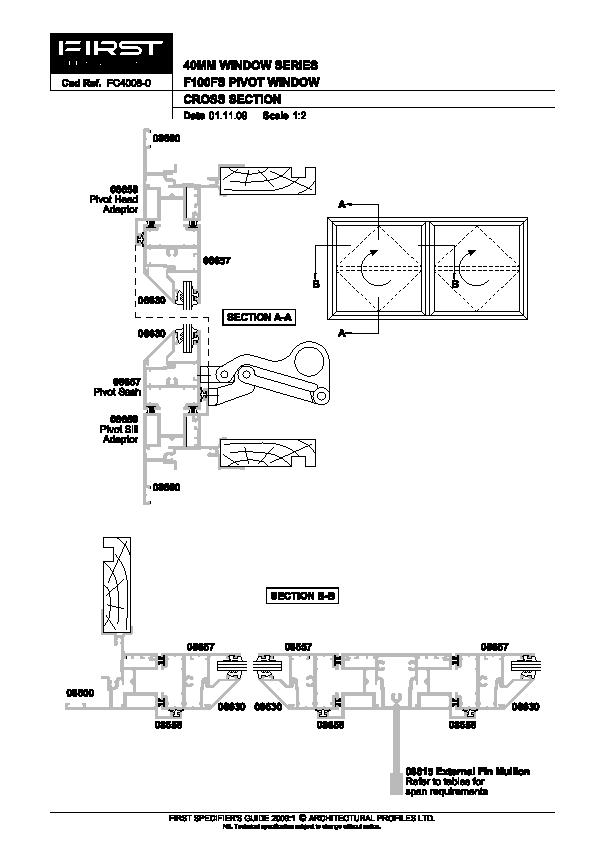

FIRST Commercial 40mm Window Series F100FS Pivot Window

FC4008-0

dwf

dwg

dxf

pdf

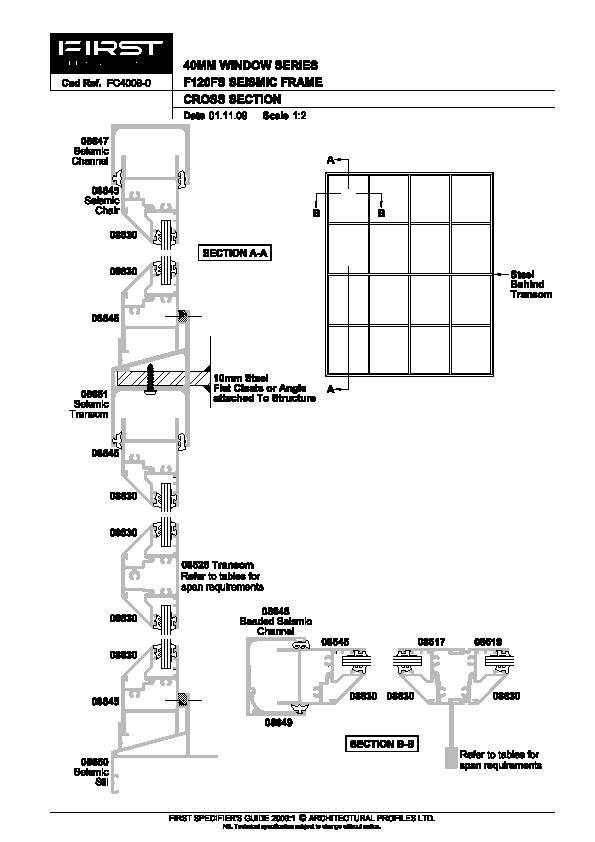

FIRST Commercial 40mm Window Series F120FS Seismic Frame

FC4009-0

dwf

dwg

dxf

pdf

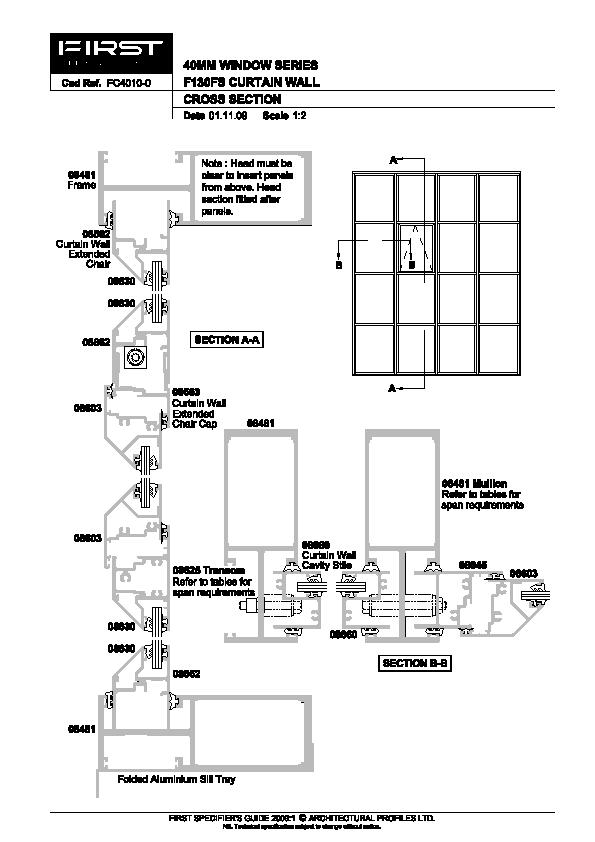

FIRST Commercial 40mm Window Series F130FS Curtain Wall

FC4010-0

dwf

dwg

dxf

pdf

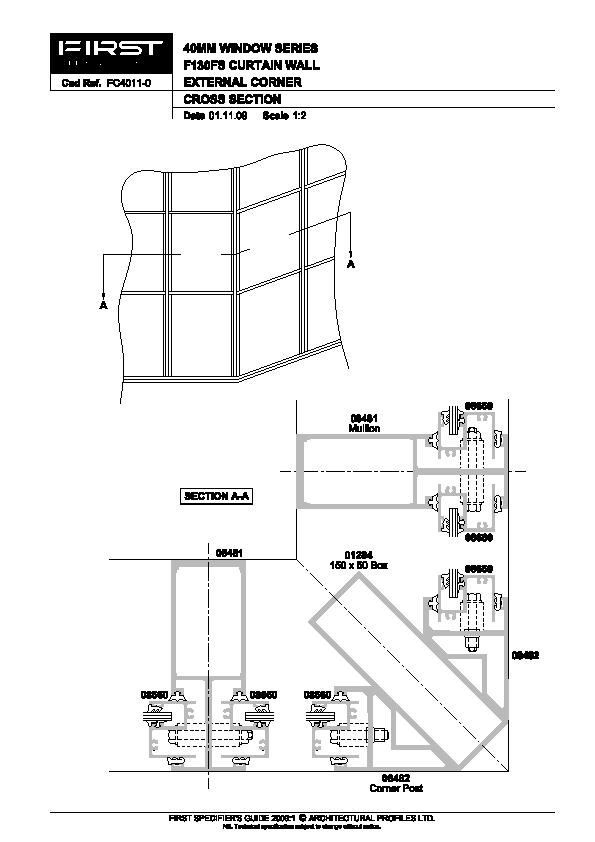

FIRST Commercial 40mm Window Series F130FS Curtain Wall External Corner

FC4011-0

dwf

dwg

dxf

pdf

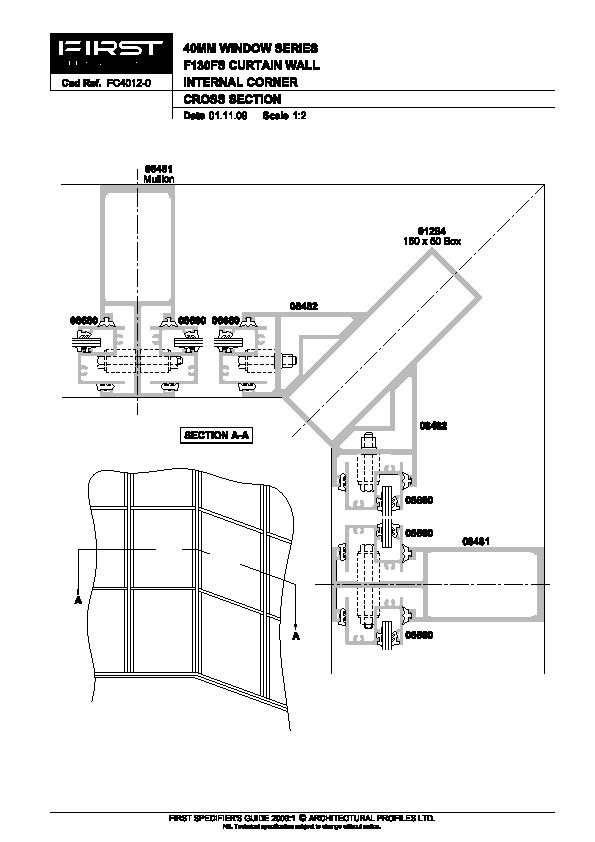

FIRST Commercial 40mm Window Series F130FS Curtain Wall Internal Corner

FC4012-0

dwf

dwg

dxf

pdf

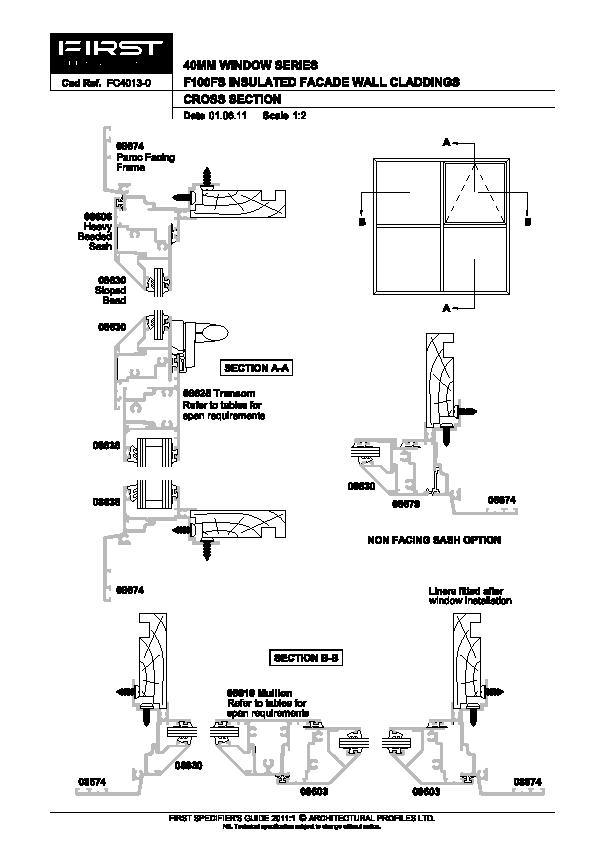

FIRST Commercial 40mm Window Series F100FS Insulated Facade Wall Claddings

FC4013-0

dwf

dwg

dxf

pdf

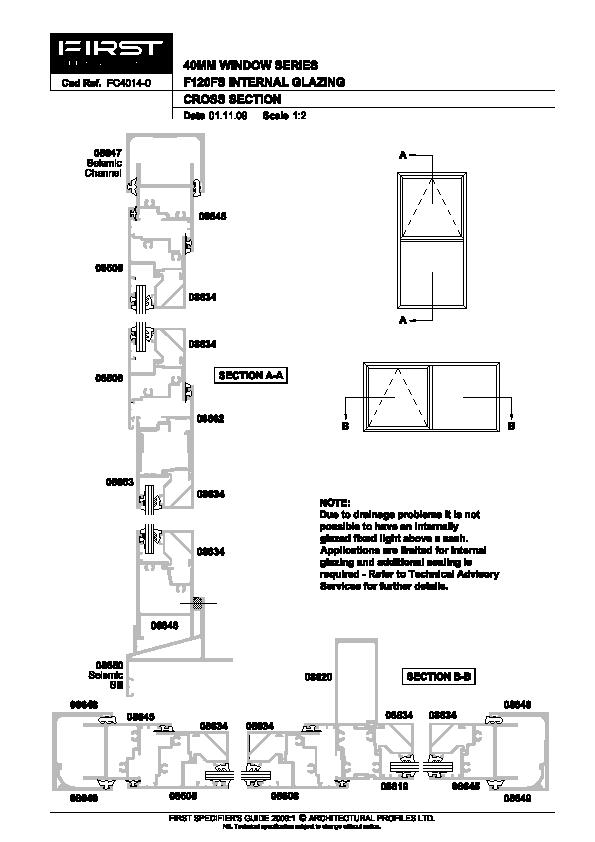

FIRST Commercial 40mm Window Series F120FS Internal Glazing

FC4014-0

dwf

dwg

dxf

pdf
