APL Architectural Series Awning & Casement Windows

FIRST Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

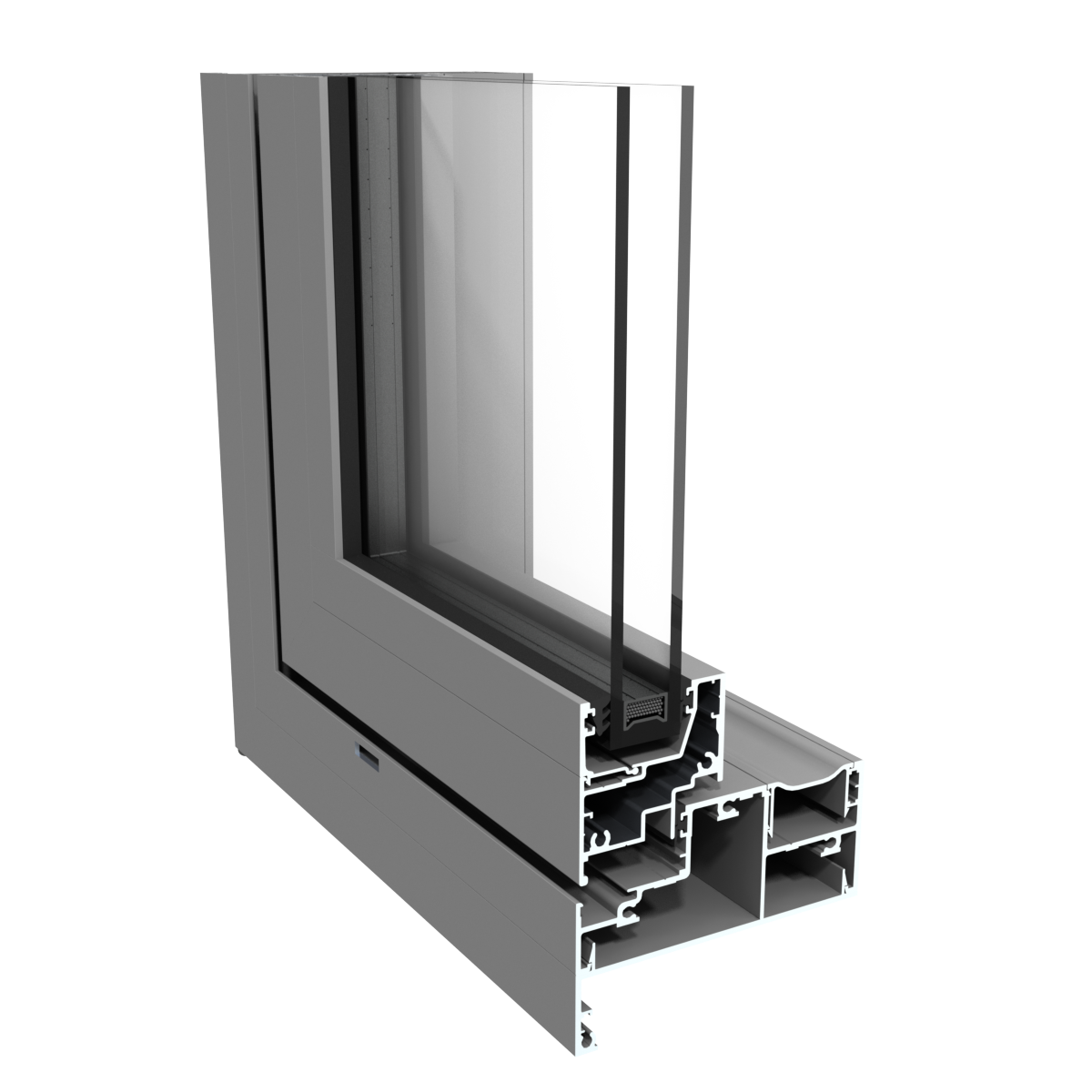

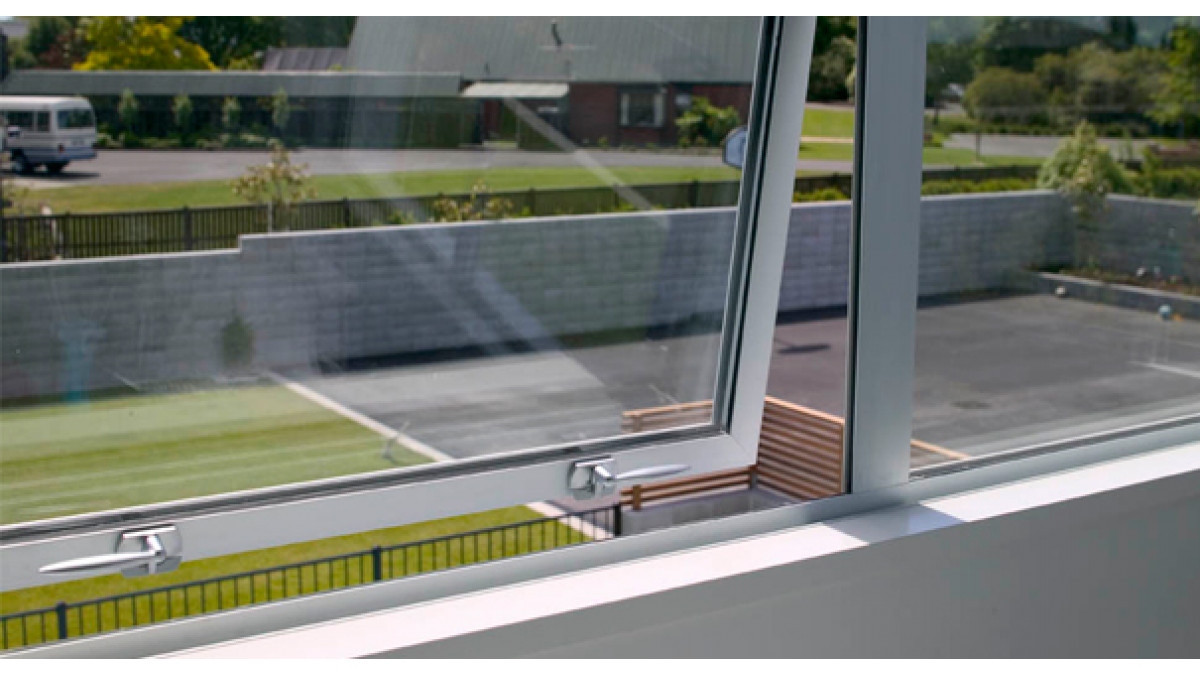

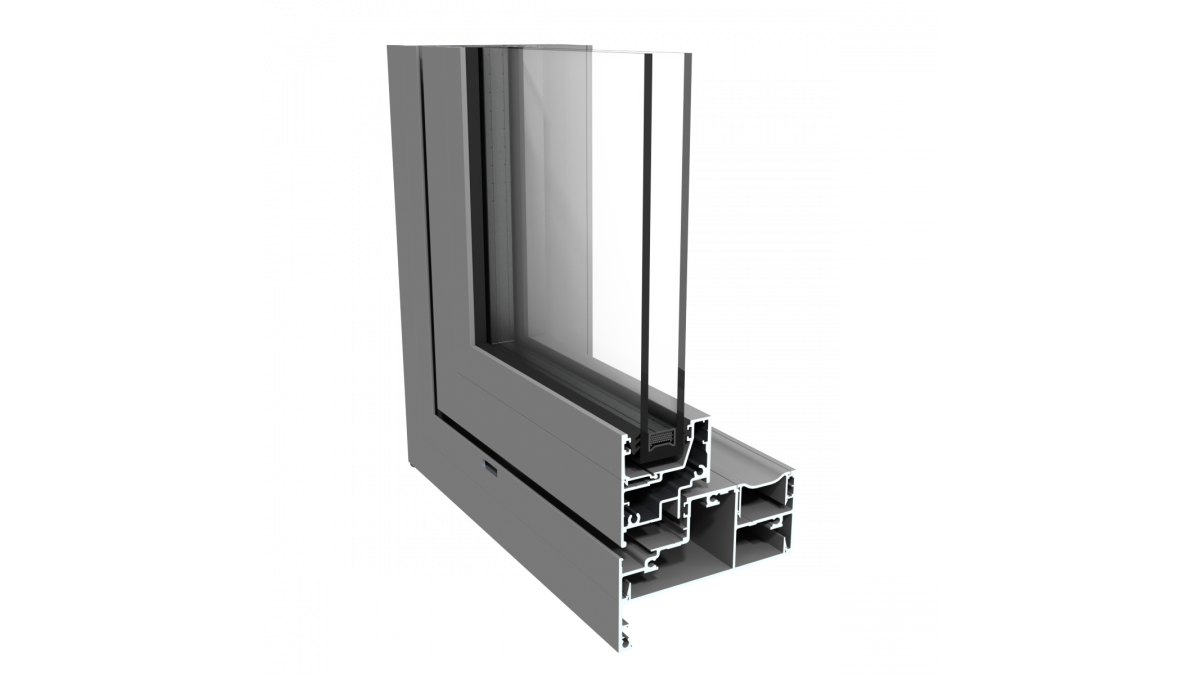

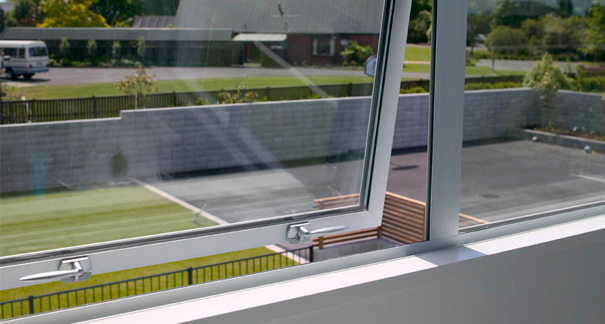

Standard window frame (106mm option) and awing sash

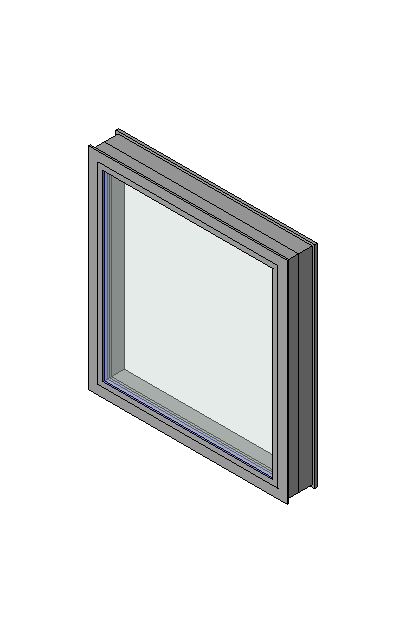

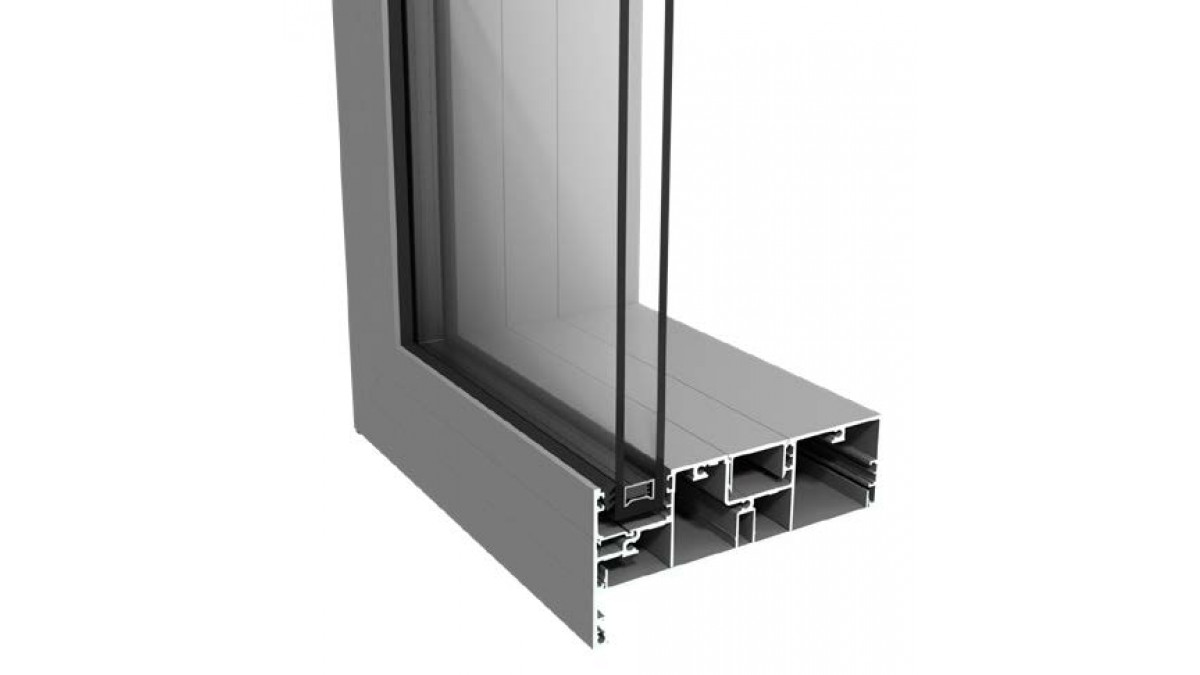

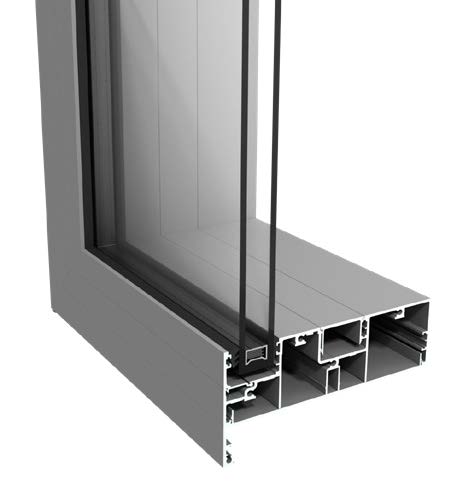

Fixed light – 158mm frame

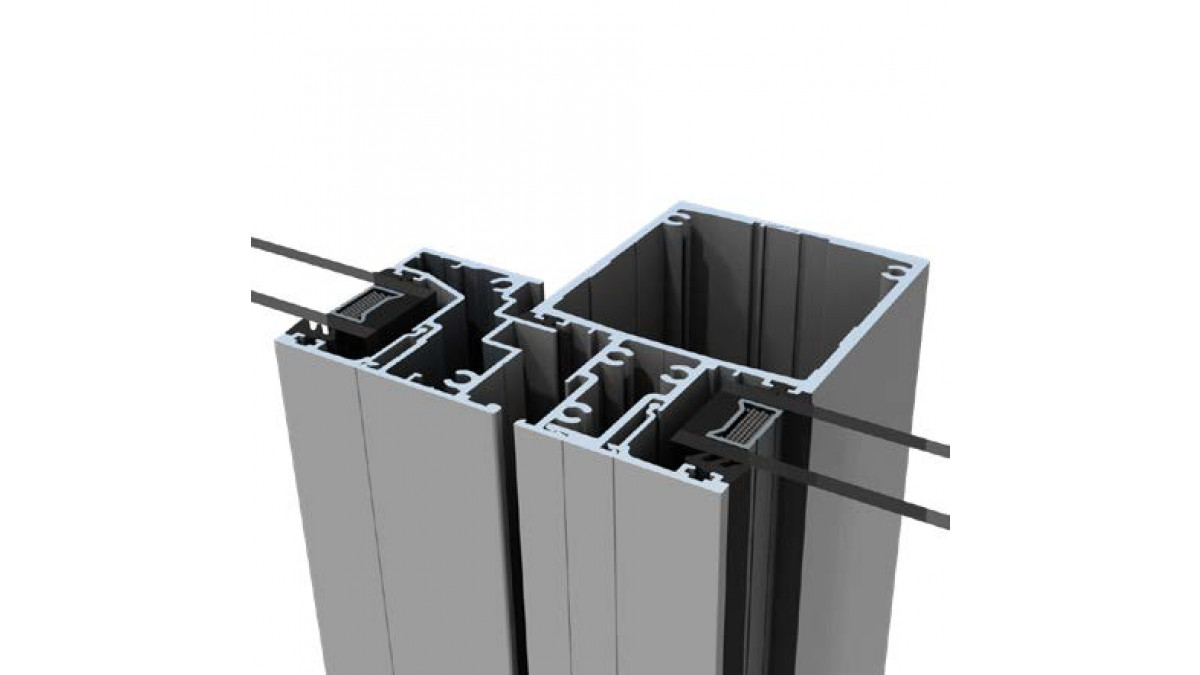

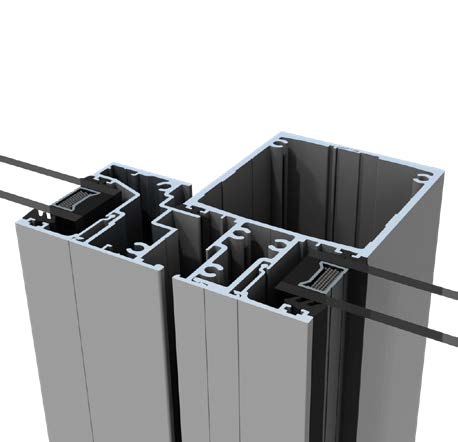

Internal box mullion – sash on left

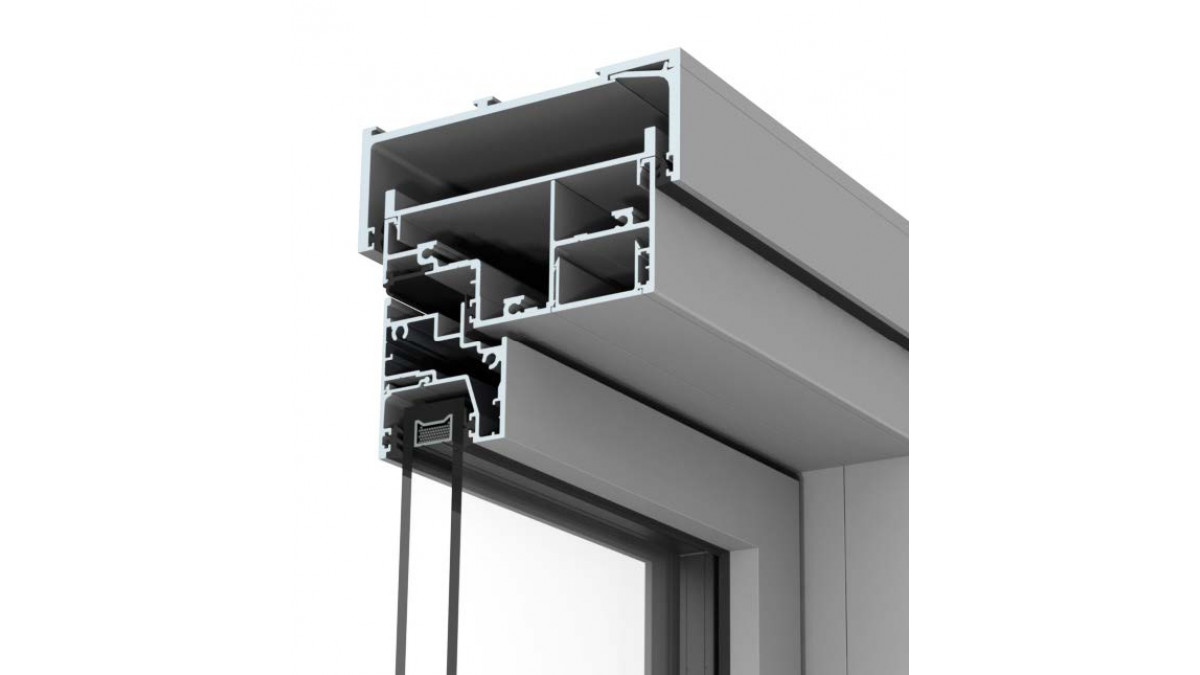

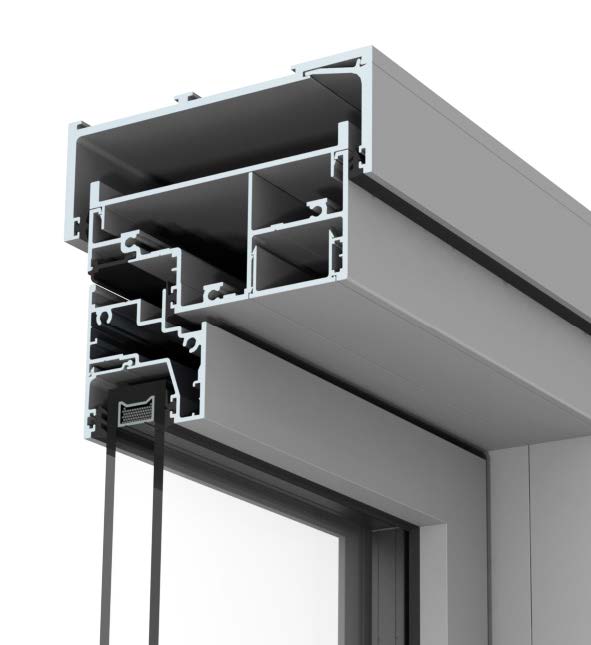

Seismic frame option at head

Product Enquiries

Description

Opening sashes are non-facing, lying flush with the frame for enhanced aesthetics. Matching depth window frames and hinged and sliding door frames allow a continuous edge on the inside when products are coupled together.

Sashes and fixed lights are bead glazed externally on all sides for glass thicknesses of 4-28mm.

Key Features

A high performance series of windows and doors ideal for architecturally designed houses and apartments
Can achieve tall heights and wide spans and has been designed for suitability for Extra High wind zones and Specific Design applications
The window frame is available in two options, 106mm and 158mm, which couple with adjoining door frames for a continuous interior edge
Awning and casement sashes have a flush, non-facing sash
Frames have facing adaptors which allow 25mm of weather cover if desired
Mullions and transoms have stiffening boxes which project to the interior
Two–point espagnolette locking available

Ranges

APL Architectural Series

Scope of Use

Suitable for the full spectrum of residential environments in standard or large formats. Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure
Designed for suitability for Extra High wind zones and Specific Design applications
Can achieve tall heights and wide spans

Limitations on Use

Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
Consider a horizontal sliding window to protect walkways
Caution is required for the use of casements which open directly into prevailing winds
Casements beyond benches may have top fasteners that are hard to reach

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2004
Design upgrades regularly released
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

News

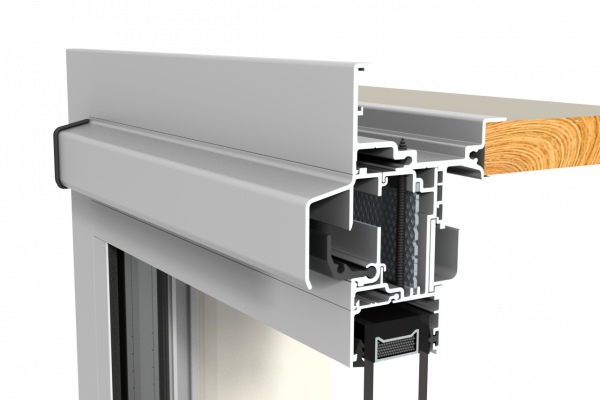

Aerovent Upgrade Included in APL Passive Ventilation Offering

FIRST Windows & Doors

October 2018

New Products

Documents

Data Sheet

pdf

Span Tables

pdf

Declare Label

2022

pdf

Declare Label

2025

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

First Brochure

2014

URL

Sound Solutions Brochure

2020

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2019

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full


Full Set of Drawings

pdf

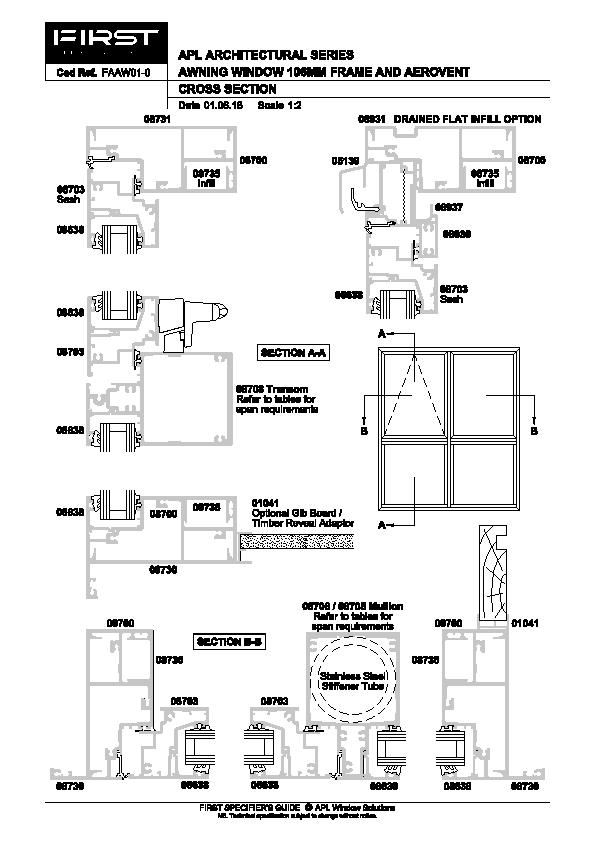

FIRST APL Architectural Series Awning window 106mm Frame

FAAW01-0

dwf

dwg

dxf

pdf

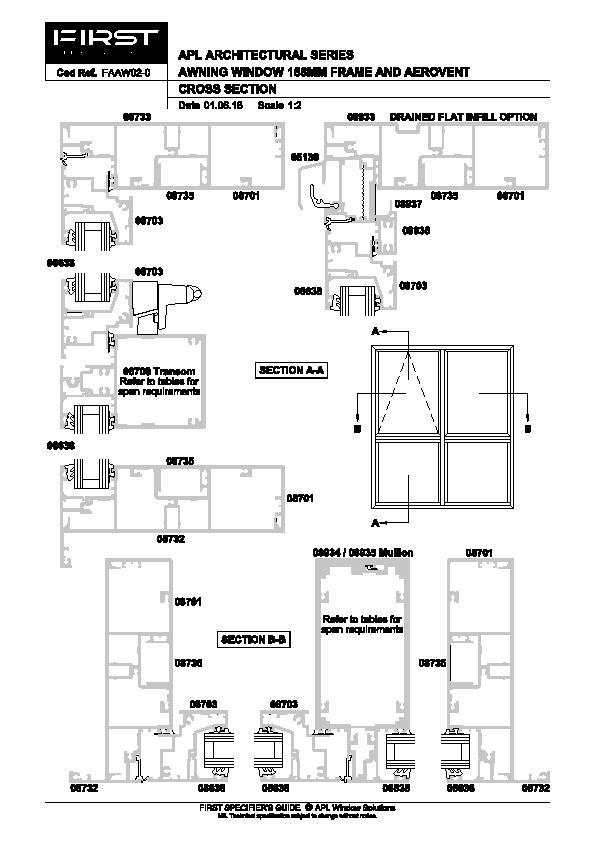

FIRST APL Architectural Series Awning Window 158mm Frame

FAAW02-0

dwf

dwg

dxf

pdf

APL Architectural Series 106mm & 158mm Seismic Frame Option

FAAW03-0

dwf

dwg

dxf

pdf

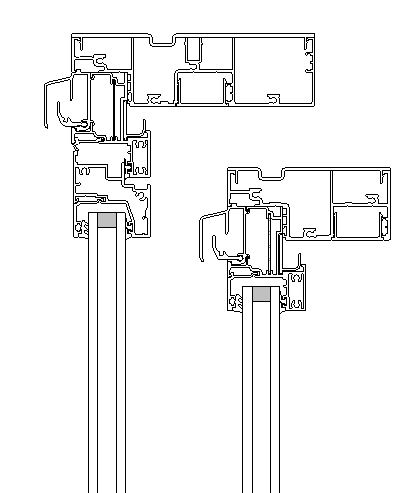

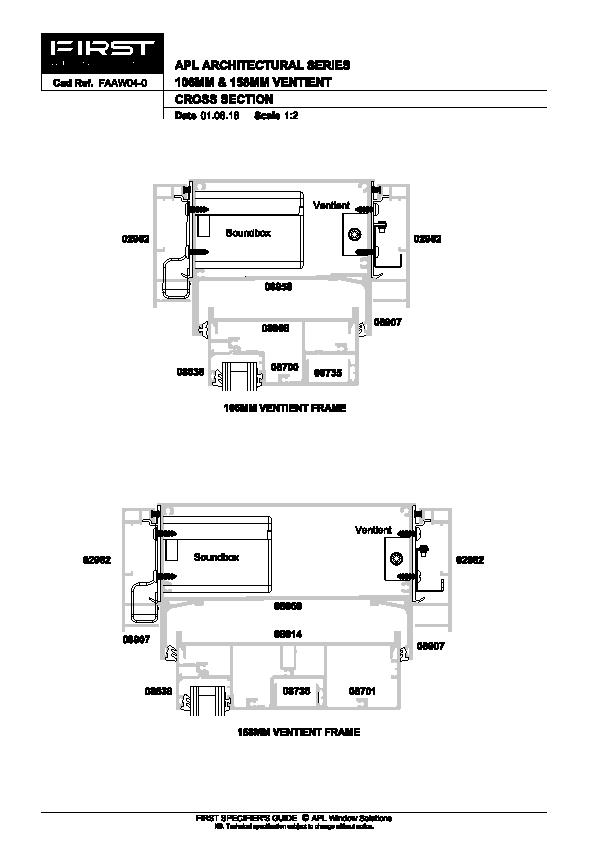

FIRST Architectural Series Ventient

FAAW04-0

dwf

dwg

dxf

pdf

Installation Details

View full

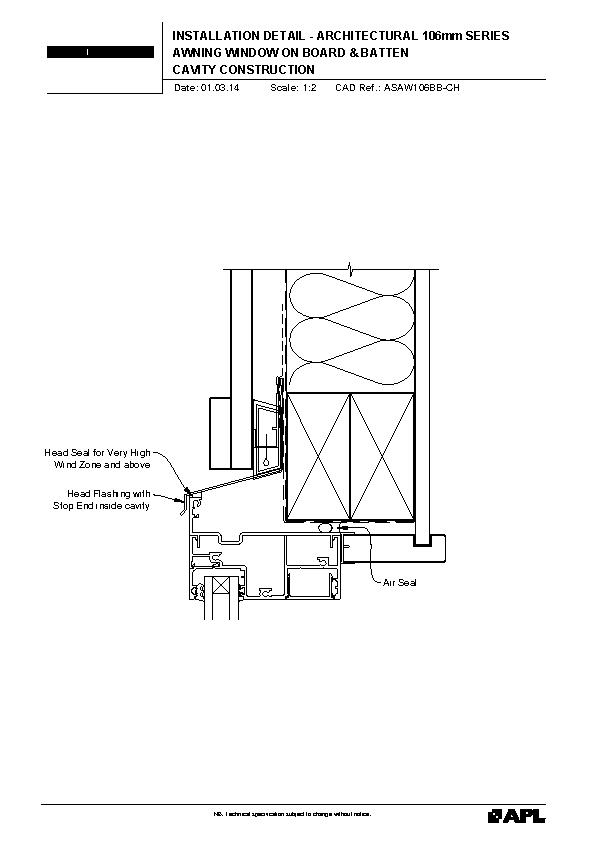

FIRST APL Architectural Series 106mm Awning Window on Board and Batten

ASAW106BB

dwg

pdf

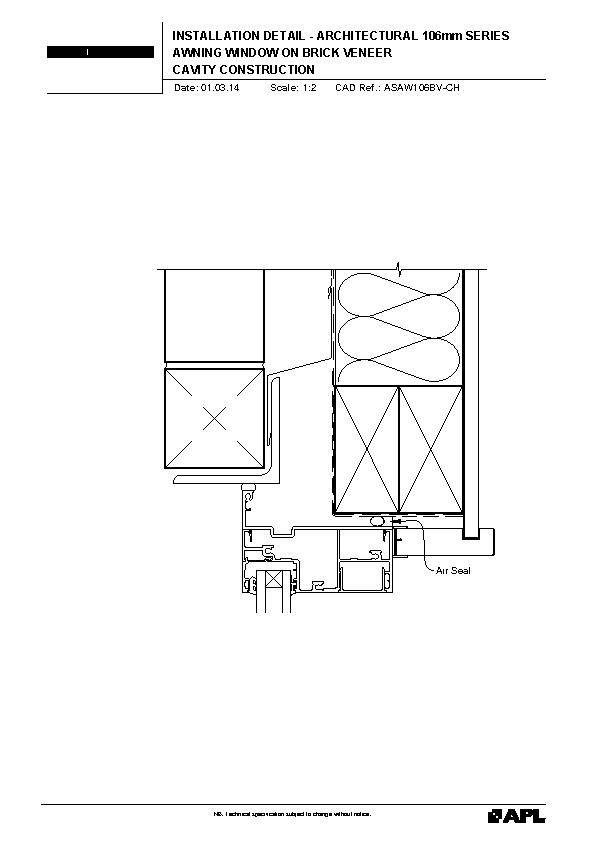

FIRST APL Architectural Series 106mm Awning Window on Brick Veneer

ASAW106BV

dwg

pdf

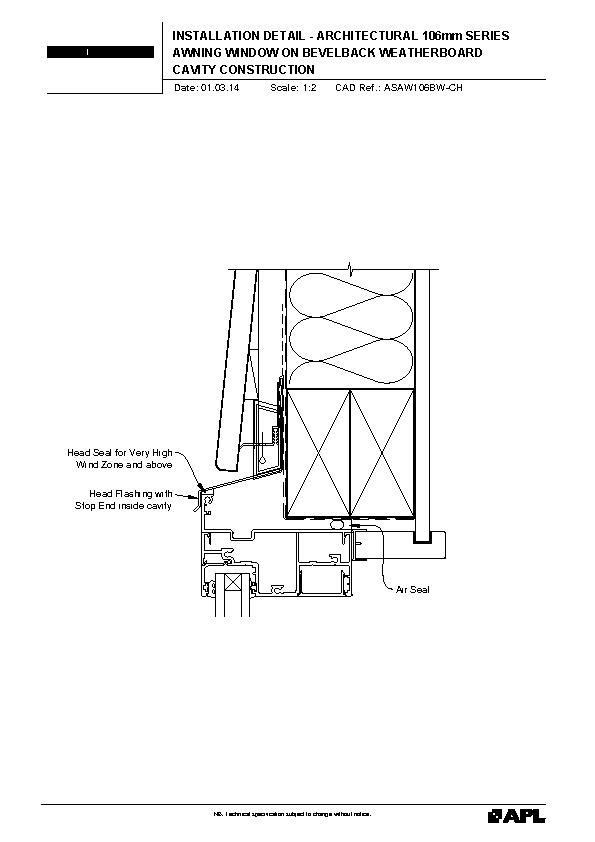

FIRST APL Architectural Series 106mm Awning Window on Bevelback Weatherboard

ASAW106BW

dwg

pdf

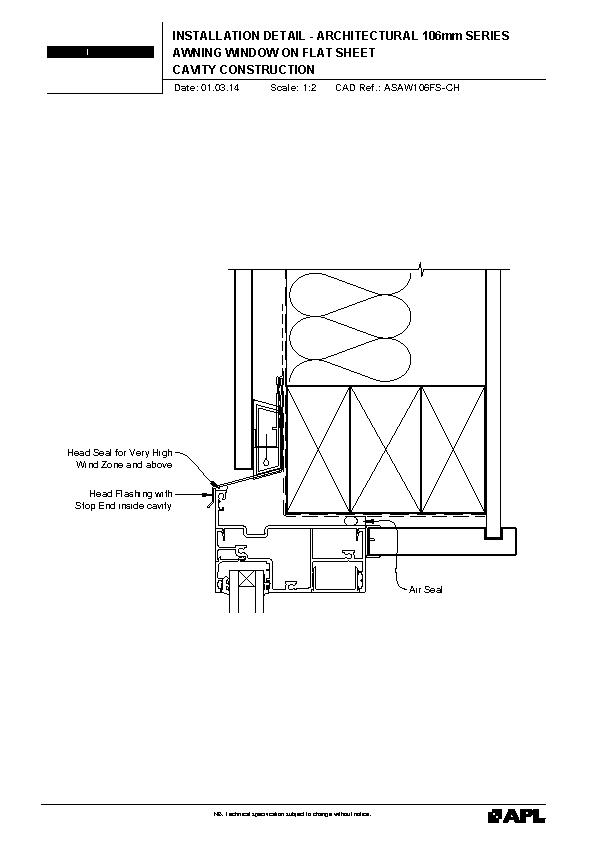

FIRST APL Architectural Series 106mm Awning Window on Flat Sheet

ASAW106FS

dwg

pdf

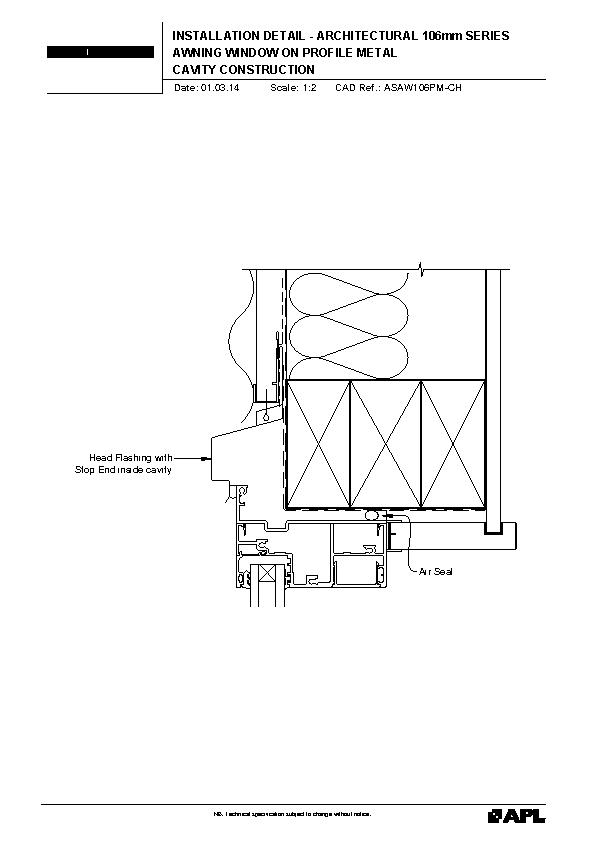

FIRST APL Architectural Series 106mm Awning Window on Profile Metal

ASAW106PM

dwg

pdf

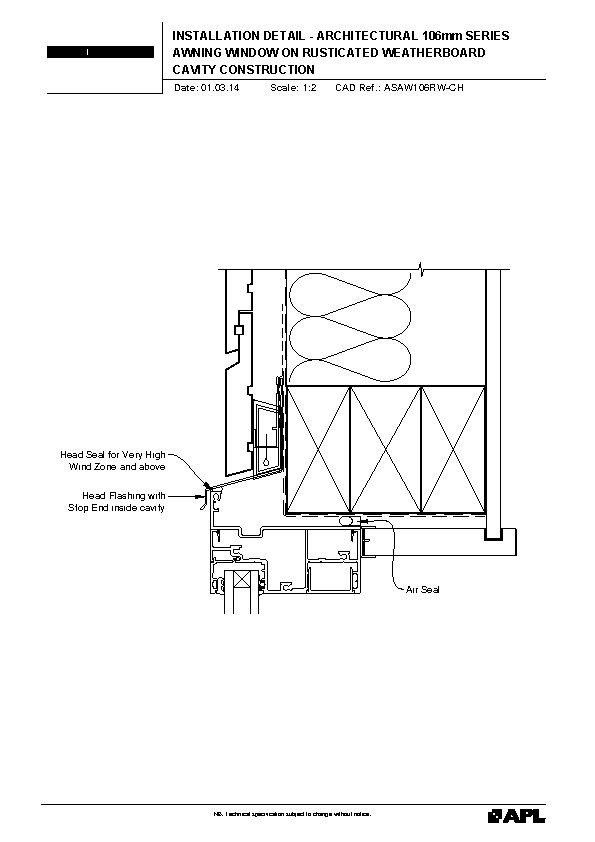

FIRST APL Architectural Series 106mm Awning Window on Rusticated Weatherboard

ASAW106RW

dwg

pdf

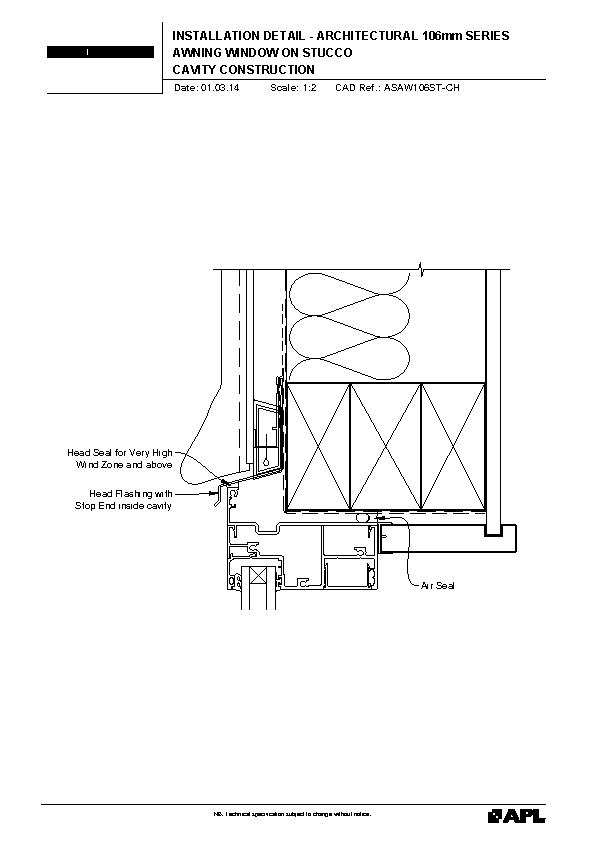

FIRST APL Architectural Series 106mm Awning Window on Stucco

ASAW106ST

dwg

pdf

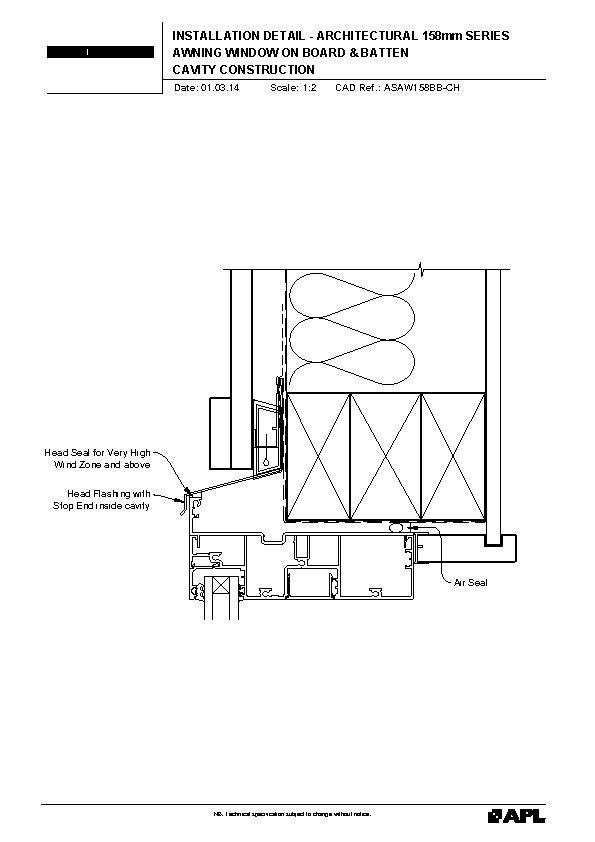

FIRST APL Architectural Series 158mm Awning Window on Board and Batten

ASAW158BB

dwg

pdf

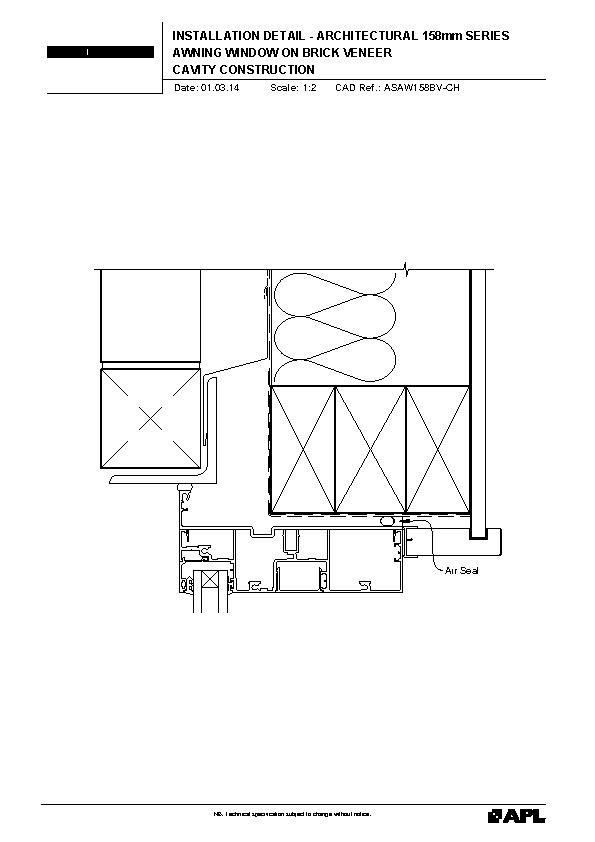

FIRST APL Architectural Series 158mm Awning Window on Brick Veneer

ASAW158BV

dwg

pdf

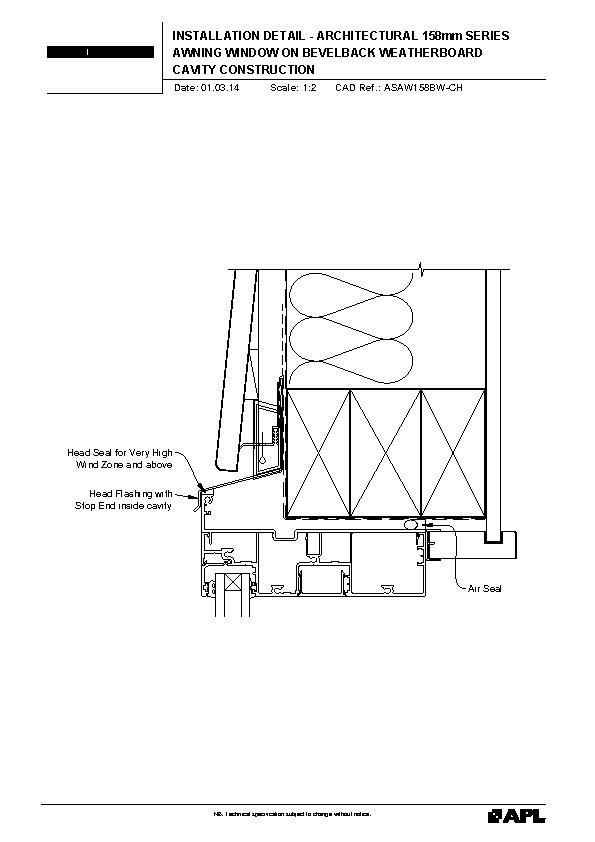

FIRST APL Architectural Series 158mm Awning Window on Bevelback Weatherboard

ASAW158BW

dwg

pdf

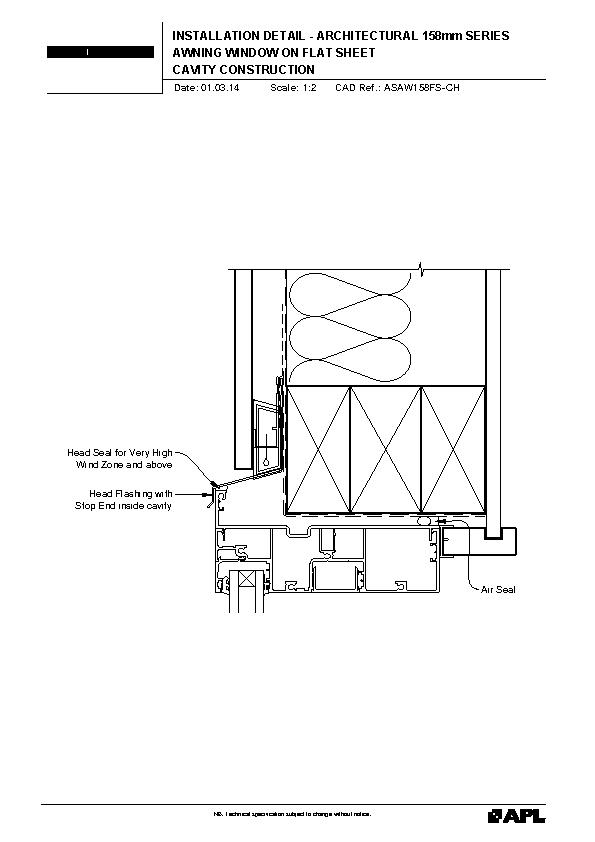

FIRST APL Architectural Series 158mm Awning Window on Flat Sheet

ASAW158FS

dwg

pdf

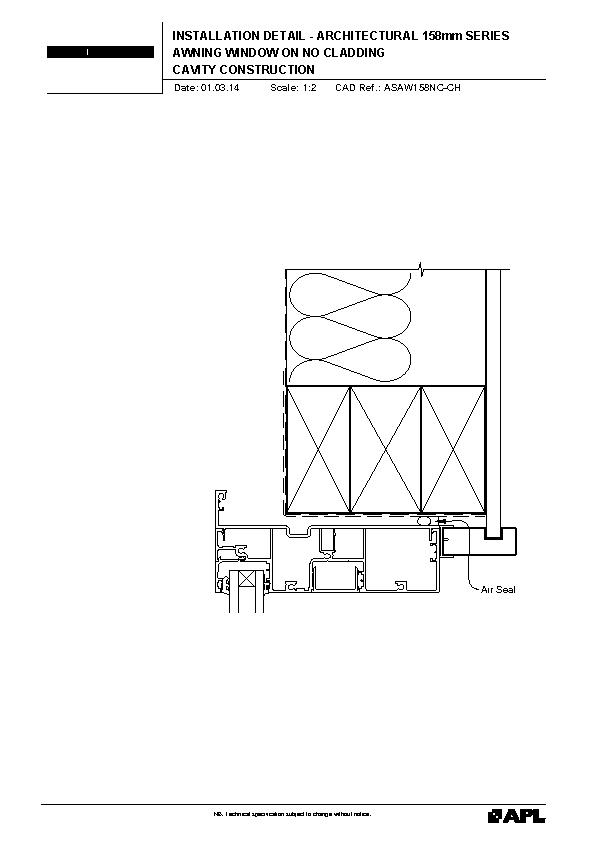

FIRST APL Architectural Series 158mm Awning Window on No Cladding

ASAW158NC

dwg

pdf

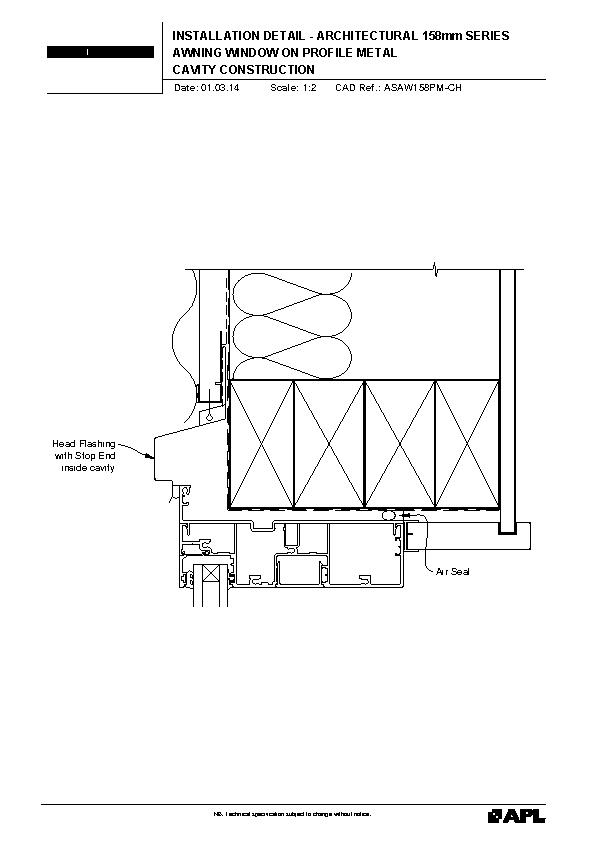

FIRST APL Architectural Series 158mm Awning Window on Profile Metal

ASAW158PM

dwg

pdf

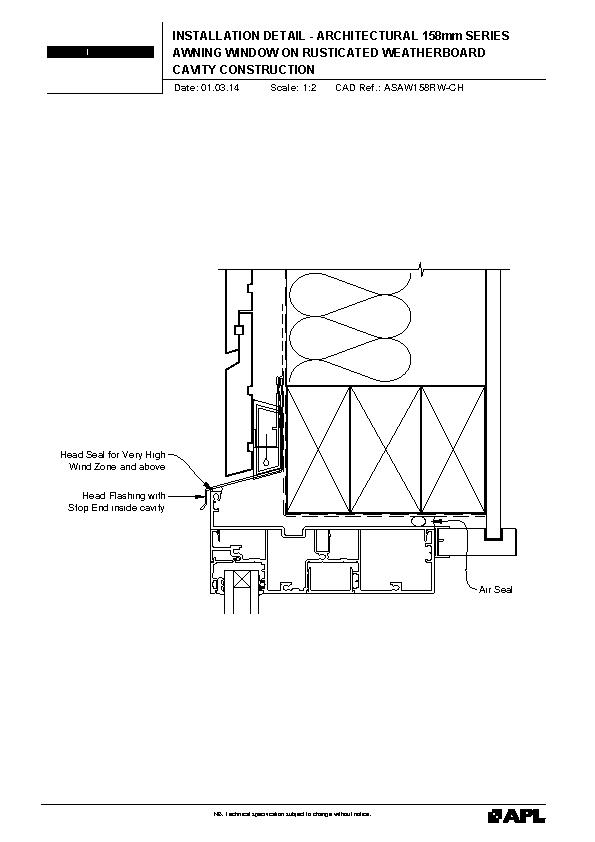

FIRST APL Architectural Series 158mm Awning Window on Rusticated Weatherboard

ASAW158RW

dwg

pdf

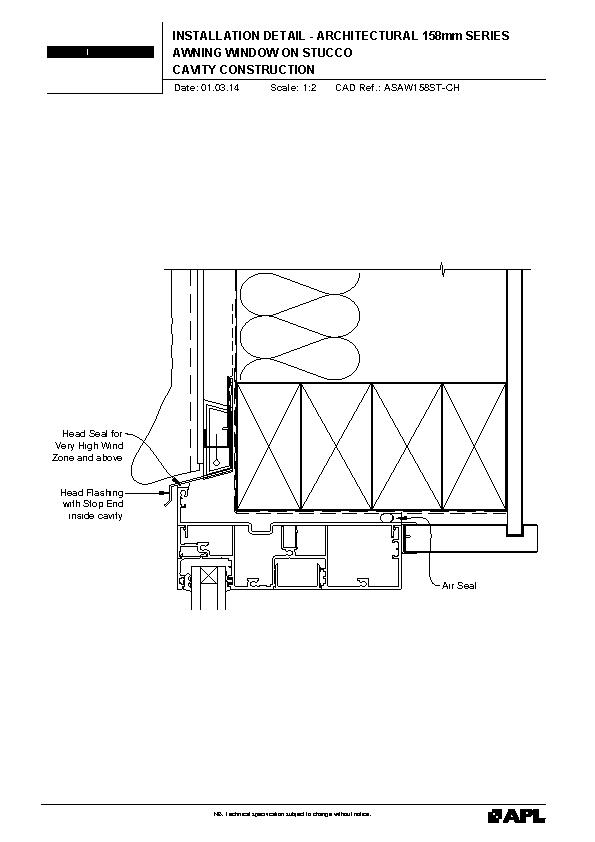

FIRST APL Architectural Series 158mm Awning Window on Stucco

ASAW158ST

dwg

pdf

BIM

View full

APL Architectural Series 106mm Seismic Awning Window

Revit LT 2020

zip

APL Architectural Series 158mm Seismic Awning Window

Revit LT 2020

zip

Architectural Series 106mm and 158mm Awning Window with Aerovent

Revit LT 2020

zip

Architectural Series 106mm and 158mm Awning Window with Ventient

Revit LT 2020

zip

First Windows & Doors have a high-performing range of solutions for all homes and commercial projects, from entrance doors to windows, sliders, bi-folds and thermally efficient options.

Product Enquiries

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

Exploring Options for Self-certification of Building Work

Complaints Not Upheld

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

FIRST APL Architectural Series Awning window 106mm Frame

FIRST APL Architectural Series Awning Window 158mm Frame

APL Architectural Series 106mm & 158mm Seismic Frame Option

FIRST Architectural Series Ventient

FIRST APL Architectural Series 106mm Awning Window on Board and Batten

FIRST APL Architectural Series 106mm Awning Window on Brick Veneer

FIRST APL Architectural Series 106mm Awning Window on Bevelback Weatherboard

FIRST APL Architectural Series 106mm Awning Window on Flat Sheet

FIRST APL Architectural Series 106mm Awning Window on Profile Metal

FIRST APL Architectural Series 106mm Awning Window on Rusticated Weatherboard

FIRST APL Architectural Series 106mm Awning Window on Stucco

FIRST APL Architectural Series 158mm Awning Window on Board and Batten

FIRST APL Architectural Series 158mm Awning Window on Brick Veneer

FIRST APL Architectural Series 158mm Awning Window on Bevelback Weatherboard

FIRST APL Architectural Series 158mm Awning Window on Flat Sheet

FIRST APL Architectural Series 158mm Awning Window on No Cladding

FIRST APL Architectural Series 158mm Awning Window on Profile Metal

FIRST APL Architectural Series 158mm Awning Window on Rusticated Weatherboard

FIRST APL Architectural Series 158mm Awning Window on Stucco

APL Architectural Series 106mm Seismic Awning Window

APL Architectural Series 158mm Seismic Awning Window

Architectural Series 106mm and 158mm Awning Window with Aerovent

Architectural Series 106mm and 158mm Awning Window with Ventient

FIRST APL 106mm Architectural Series Awning Window

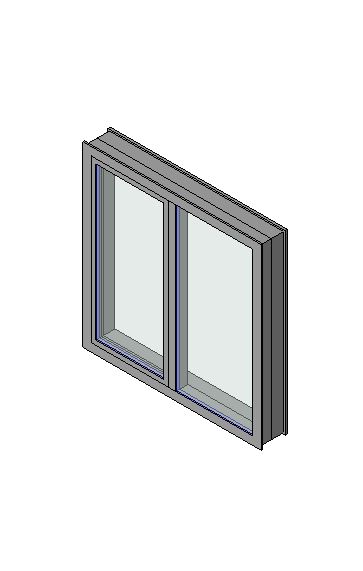

FIRST APL 106mm Architectural Series Awning Window Fixed / Sash

FIRST APL 106mm Architectural Series Awning Window, Sash / Fixed

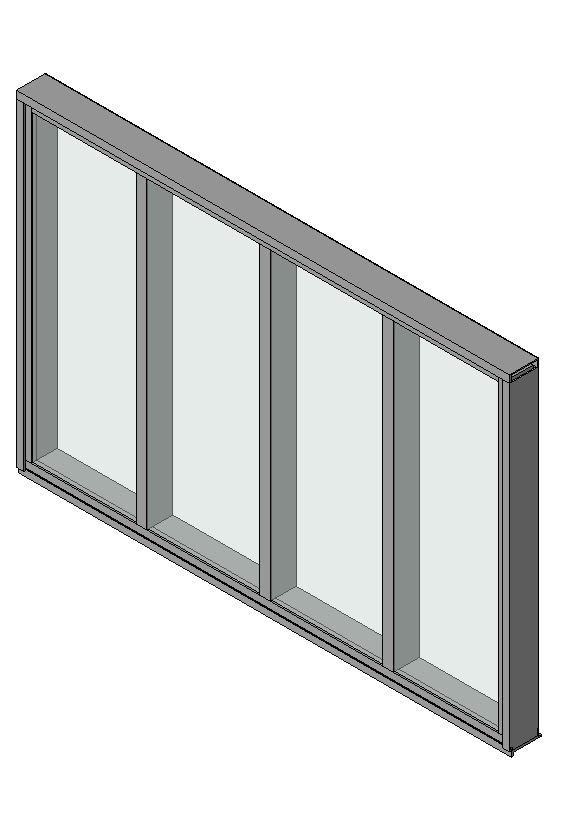

FIRST APL 158mm Architectural Series Awning Window
