APL Architectural Series ThermalHEART®️ Awning & Casement Windows
FIRST Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

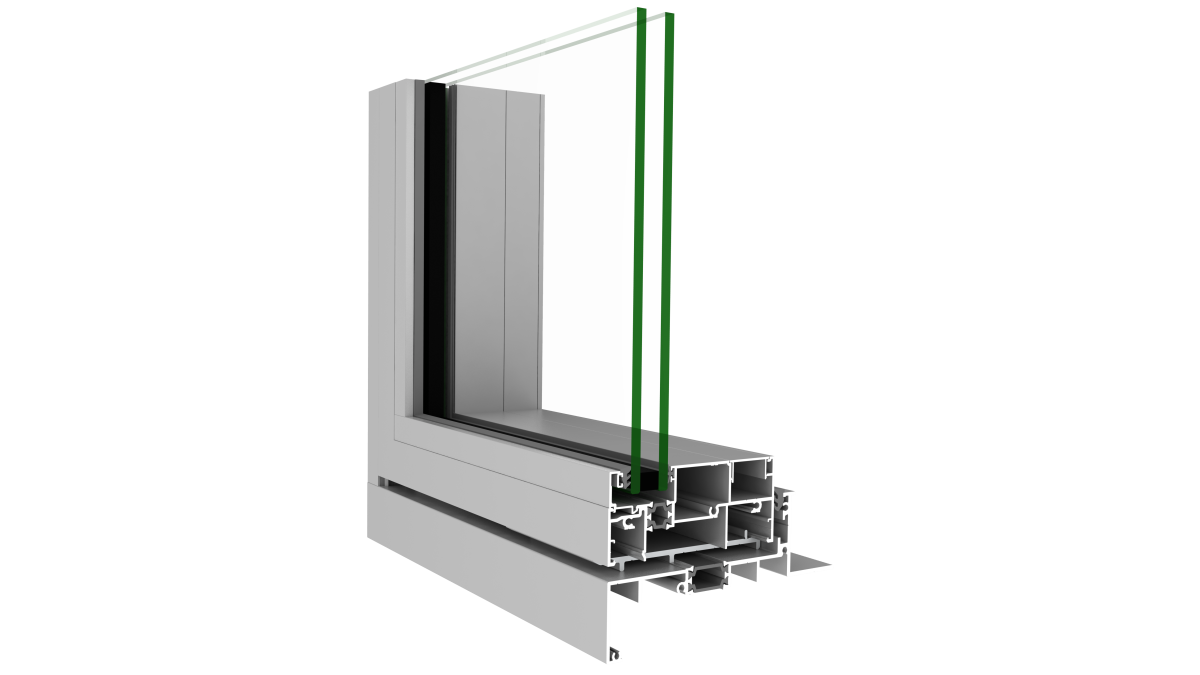

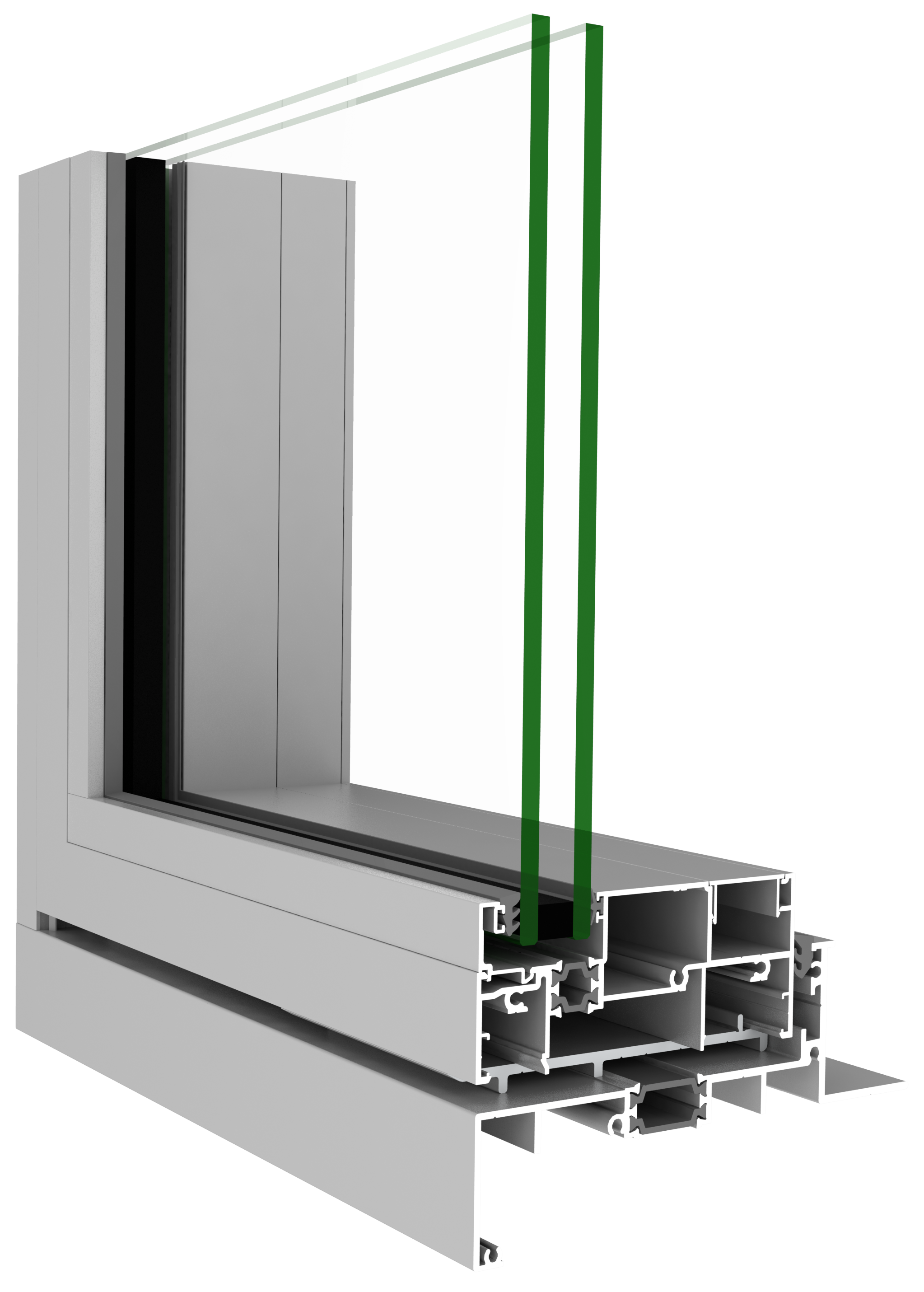

ASTH AW1

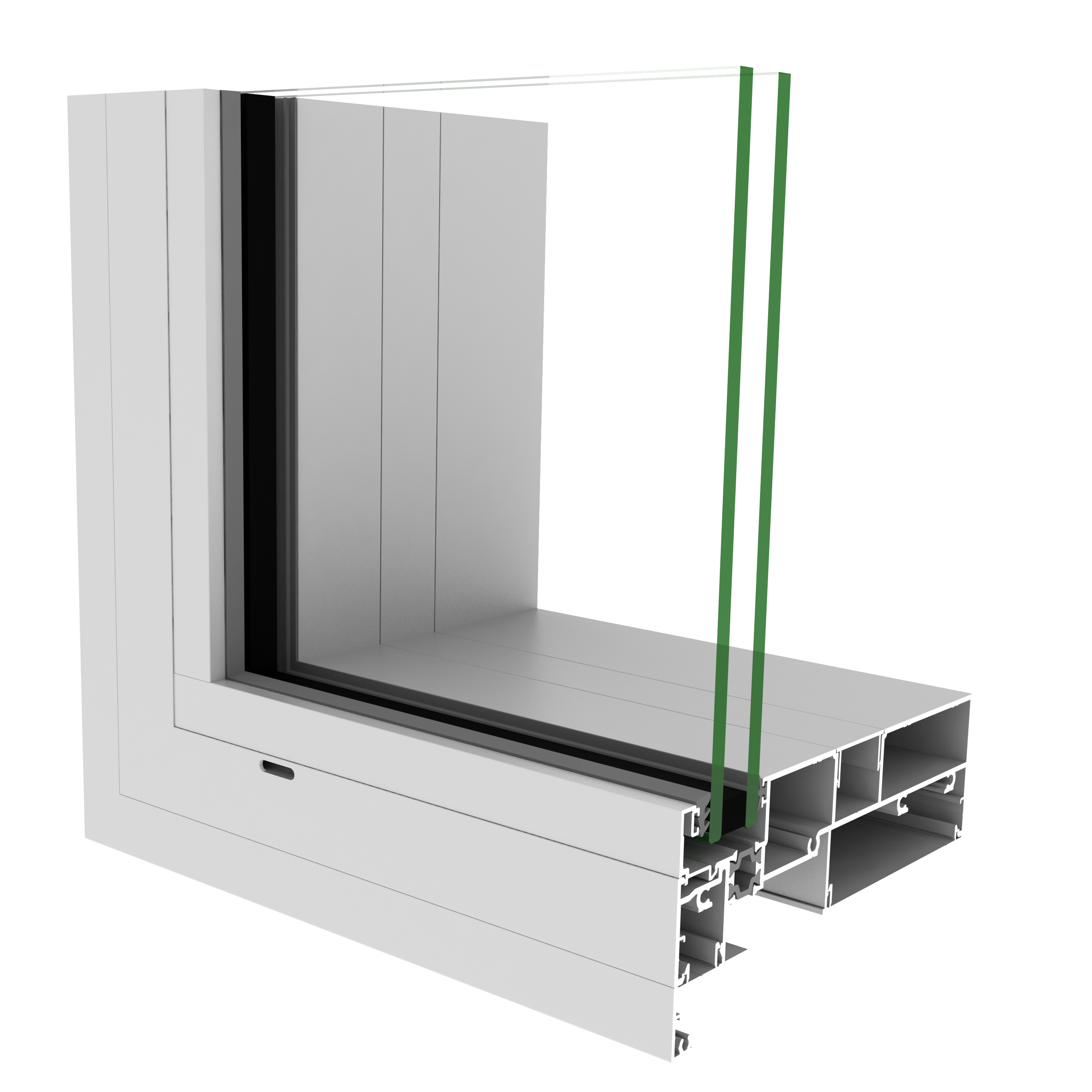

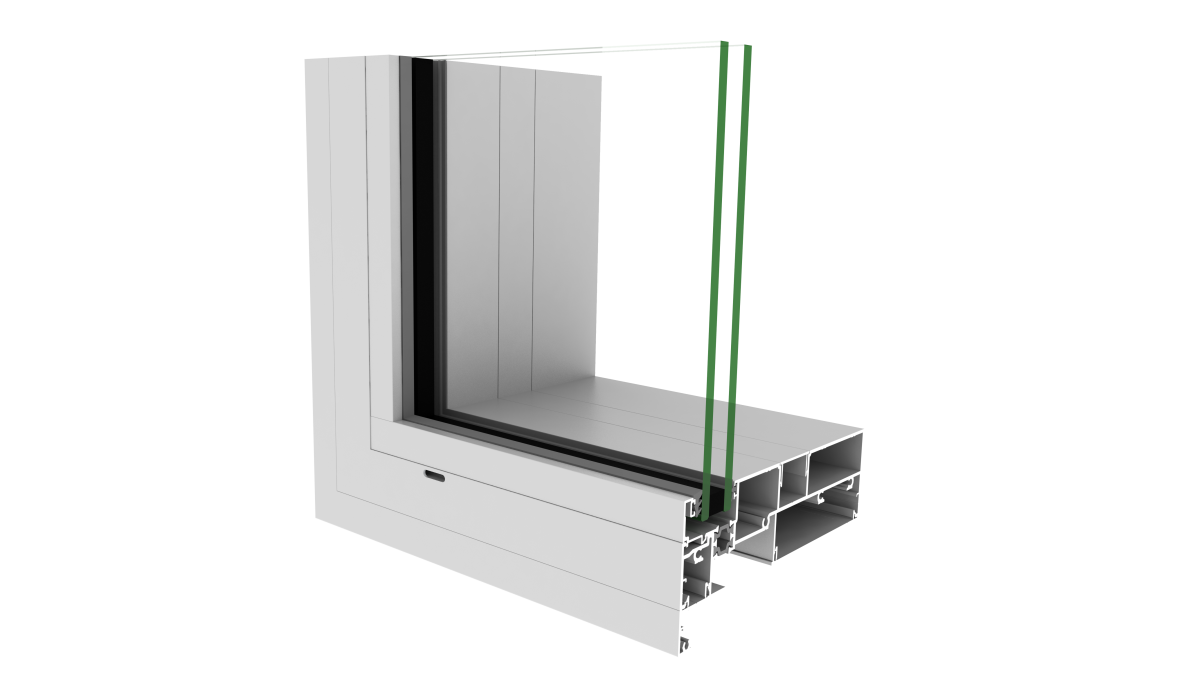

ASTH AW2
ASTH AW3
ASTH AW4

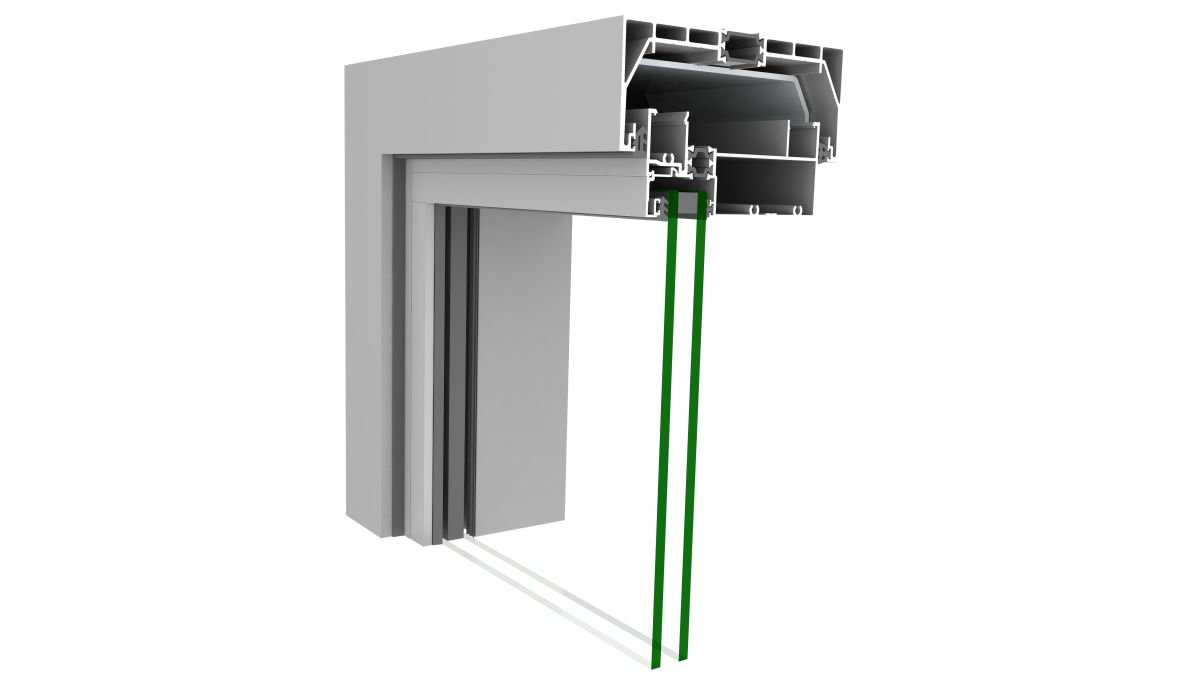

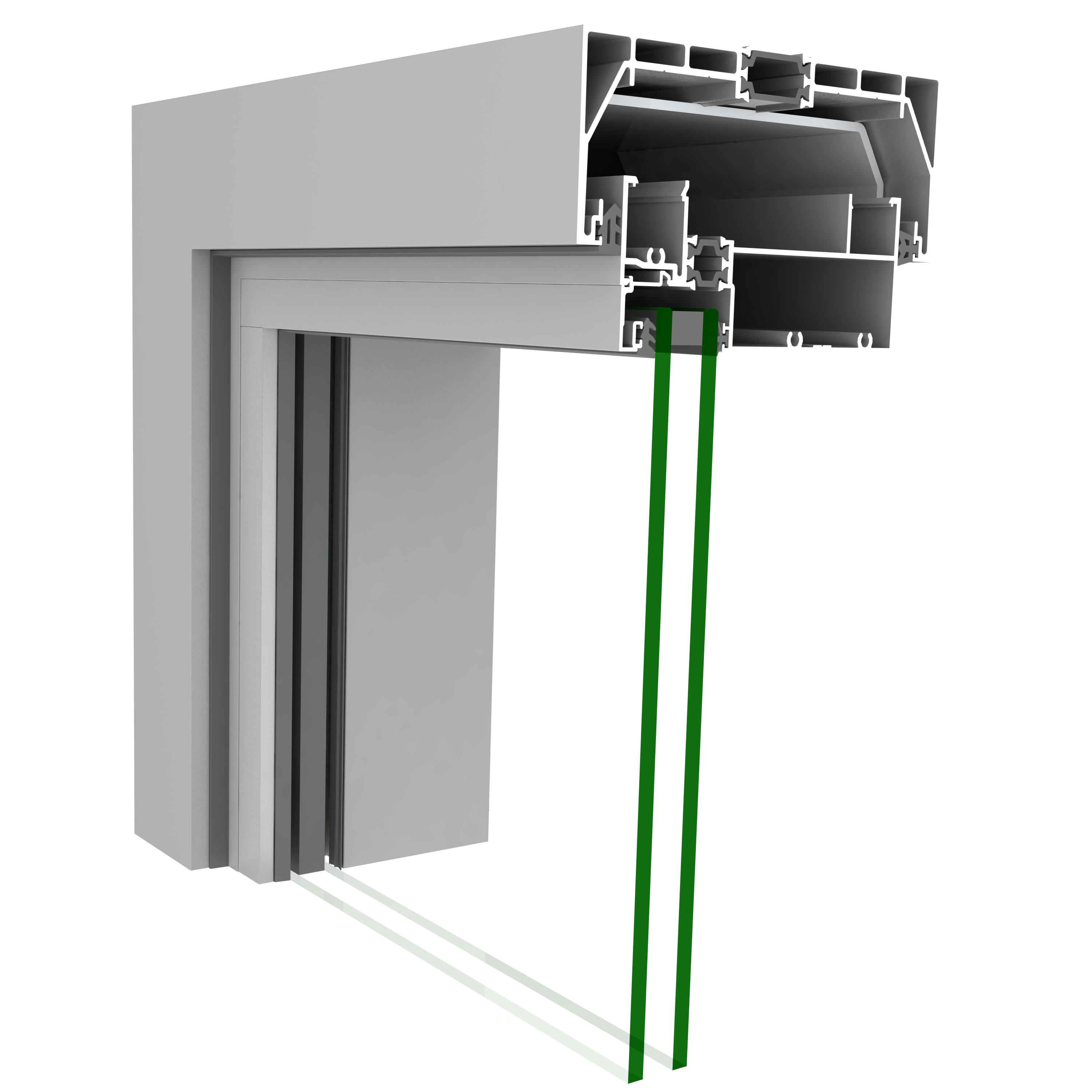

ASTH AW5
Description

Awning and casement windows have clean lines and a visual aesthetic that matches the entire product range. There is a choice of facing and flush, non-facing options. Designed for suitability in large sizes in demanding exposures.

Key Features

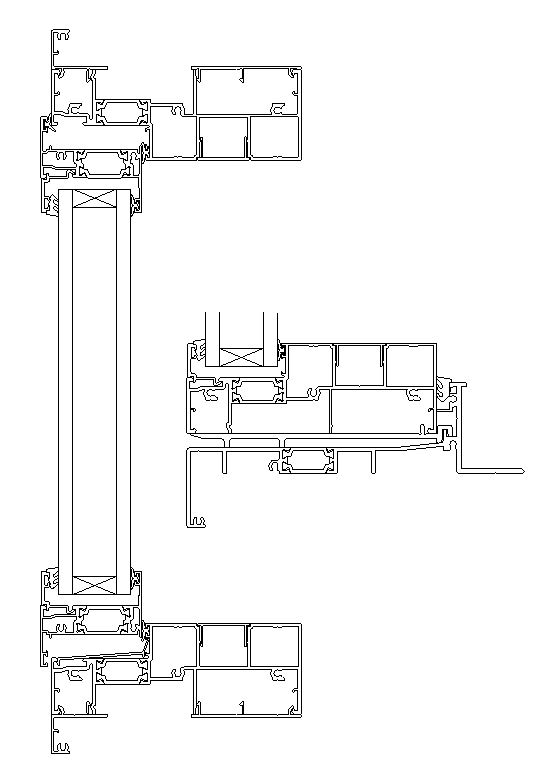

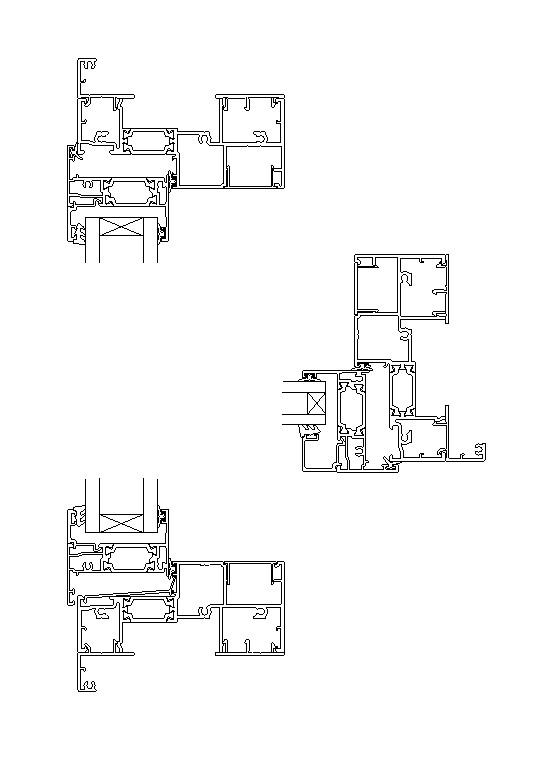

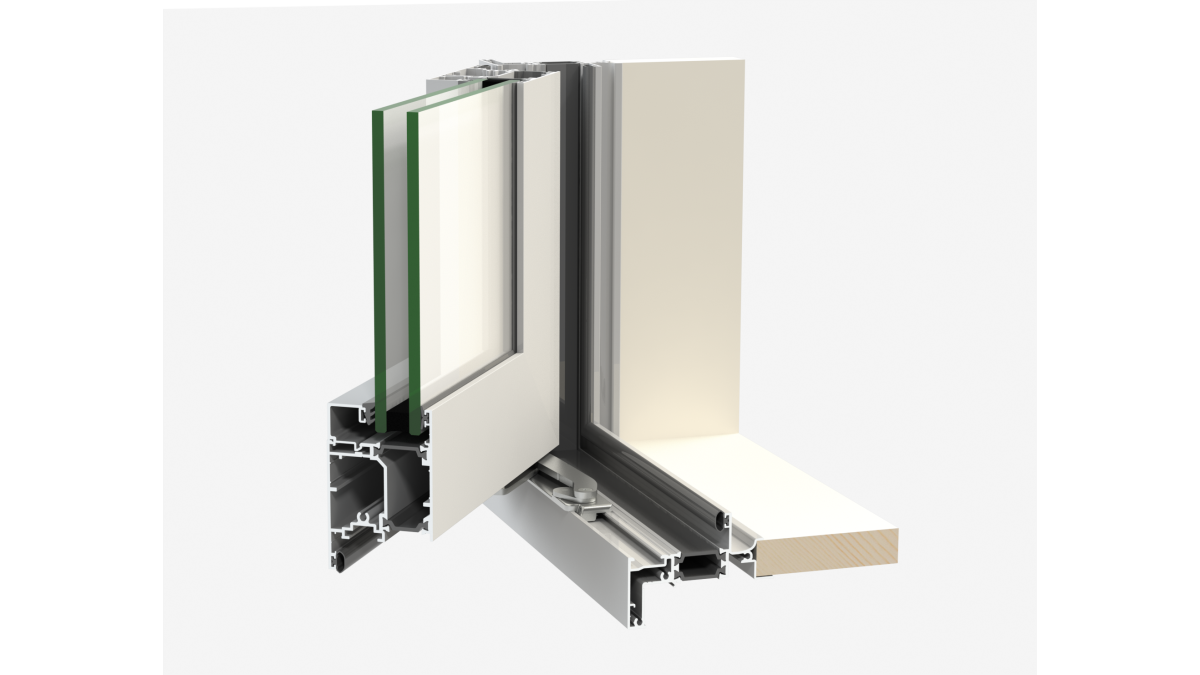

  • Awning and casement sashes have a facing sash option, though a non-facing sash option is available in the 56mm platforms
  • Frames have facing adaptors which allow 20mm of weather cover if desired
  • A full range of sill trays and seismic frames are available

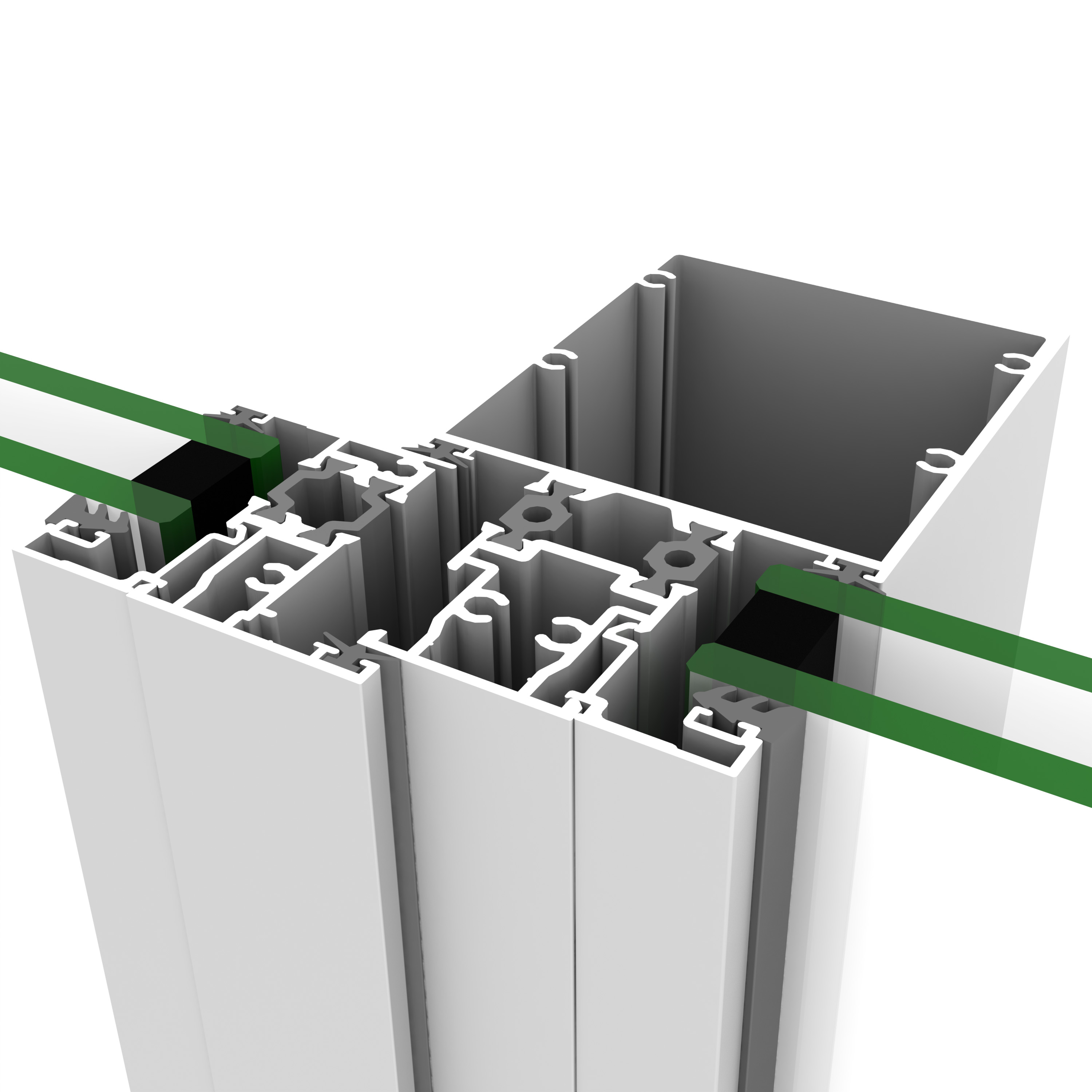

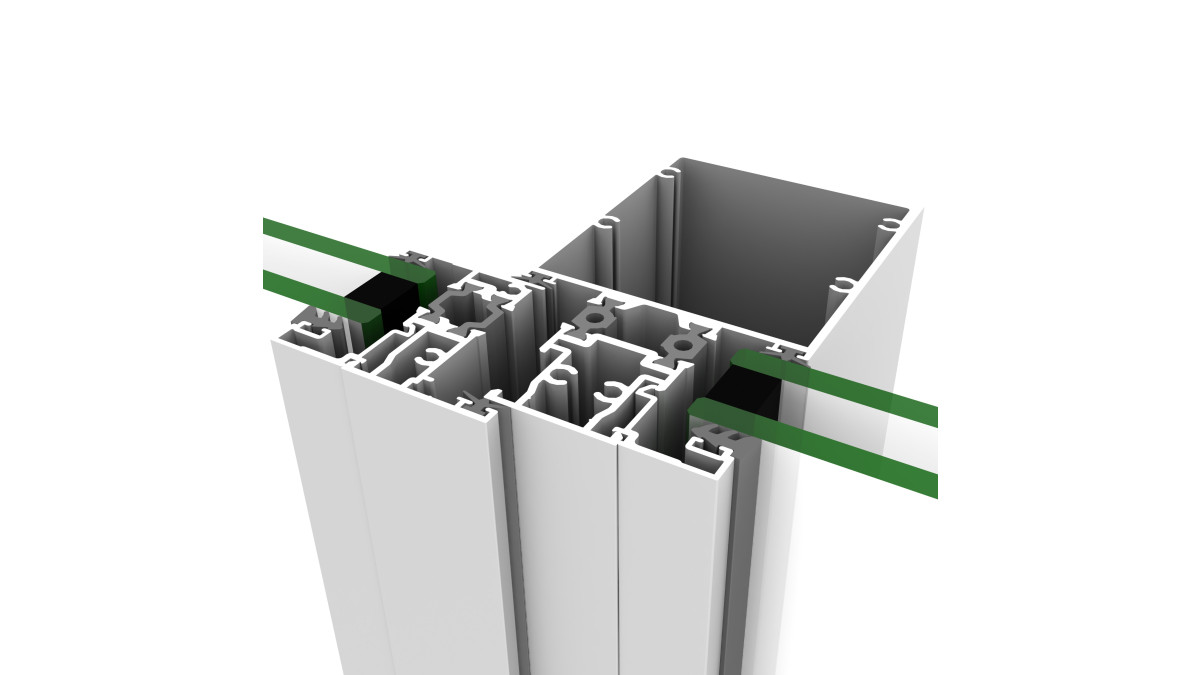

  • Mullions and transoms have stiffening boxes which project to the interior.

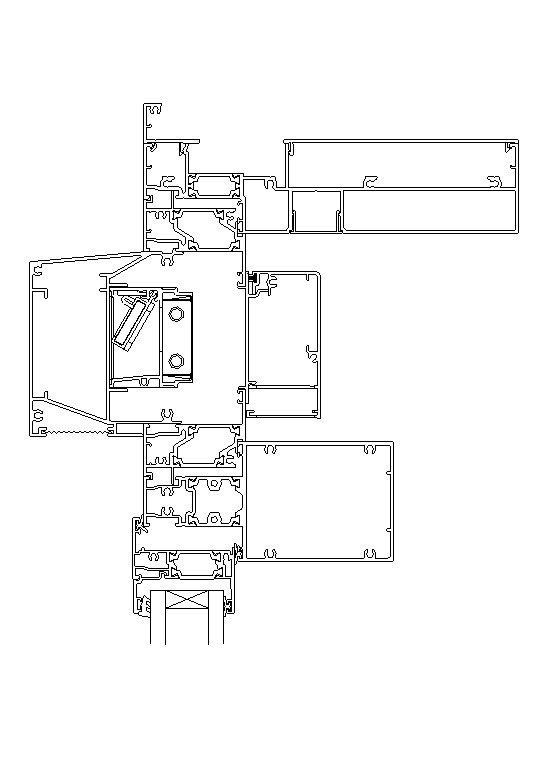

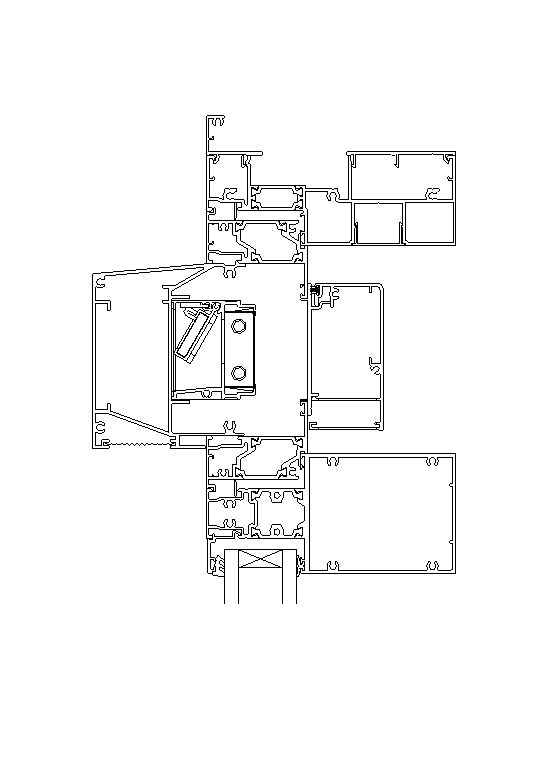

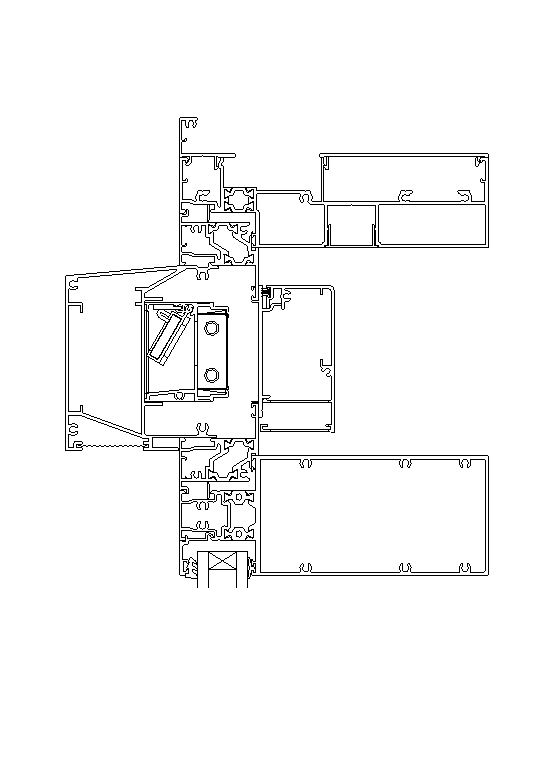

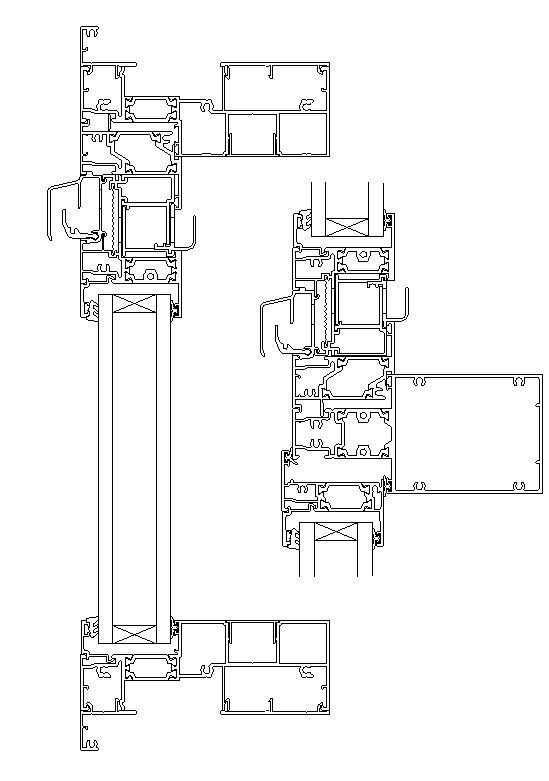

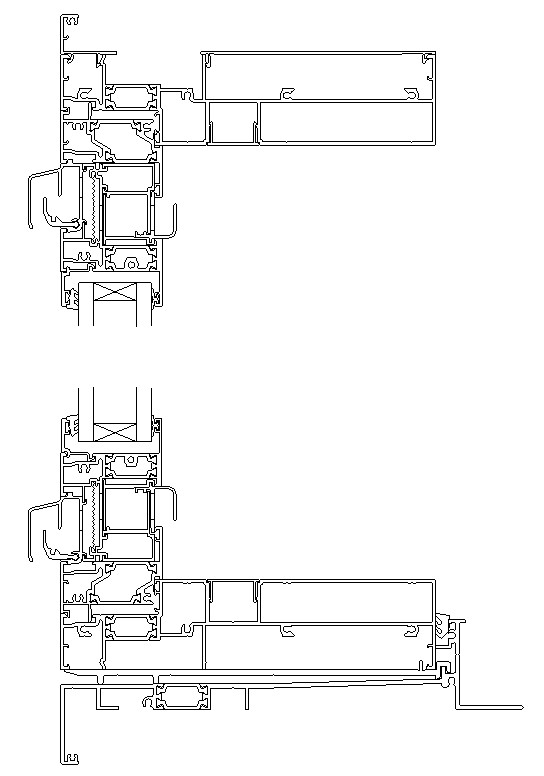

  • Vent options — Aerovent, SashVent and Ventient.
  • Windows are available in 114, 138, 171 and 207mm sizes which seamlessly match the full selection of Architectural ThermalHEART sliding and hinged door products

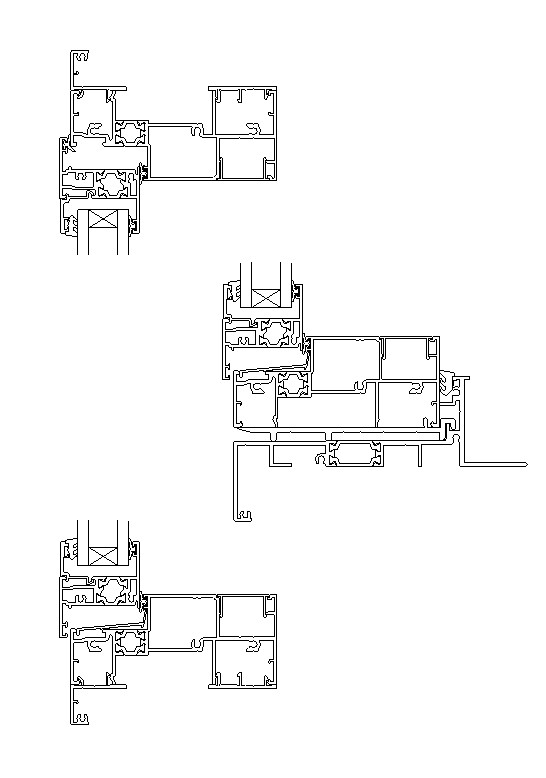

  • The 114 and 171mm sizes have 44mm glazing platforms which allow for up to a 32mm IGU

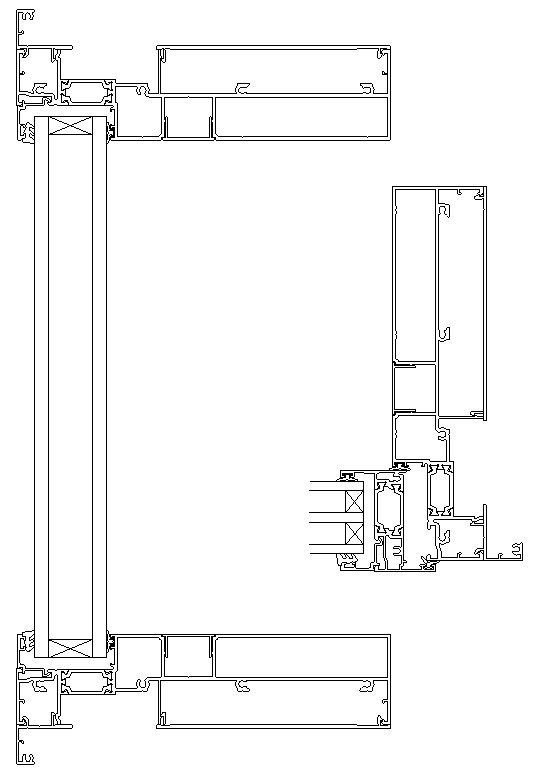

  • The 138 and 207mm sizes have 56mm glazing platforms which allow for up to a 44mm TGU
Categories
Awning and Casement Windows
Ranges
APL Architectural Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
  • Awning windows provide versatile ventilation with a good degree of weather protection
  • Casements can direct breezes inside and have a traditional aesthetic
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
  • Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
  • Consider a horizontal sliding window to protect walkways
  • Caution is required for the use of casements which open directly into prevailing winds
  • Casements beyond benches may have top fasteners that are hard to reach
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Launched in 2023
  • New range rolling out nationally
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Full Specification Guide: APL Architectural Series ThermalHEART®
docx
Specification Guide: APL Architectural Series ThermalHEART® Awning & Casement Windows
docx
Span Tables
pdf
Data Sheet: APL Architectural Series ThermalHEART®
pdf
APL and Sustainability
URL
Declare Label
pdf
Manufacturer Contact List
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
FIRST Brochure
URL
First Care, Maintenance & Warranty Brochure (with AGP)
URL
FIRST on Masterspec
URL
Specifier Guide

2023

URL
WGANZ Guide to E2/AS1
pdf
CAD/PDF Details
View full
APL Architectural Thermal Heart Awning Window Drawings pdf v2
APL Architectural Series ThermalHEART®️ Awning & Casement Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
TAAW01 0 v2 pdf
114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Option

TAAW01

dwg
dxf
pdf
TAAW02 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Jamb Options

TAAW02

dwg
dxf
pdf
TAAW03 0 pdf v2

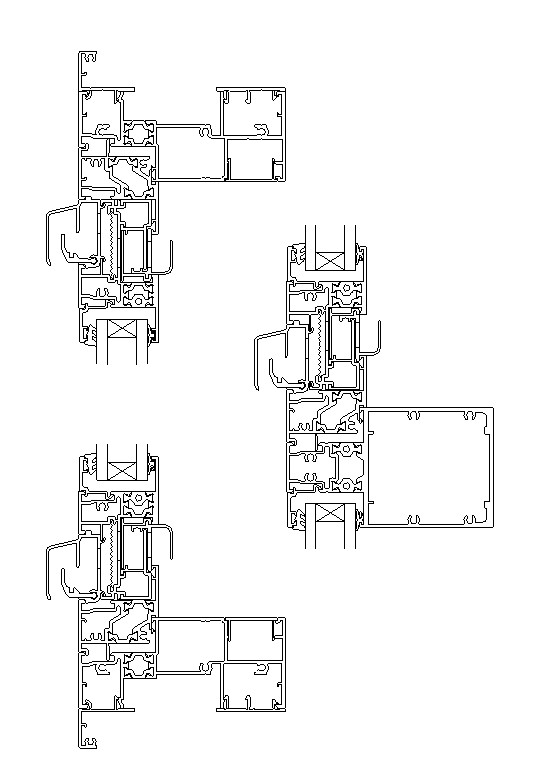

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Aerovent Options

TAAW03

dwg
dxf
pdf
TAAW04 0 pdf v2

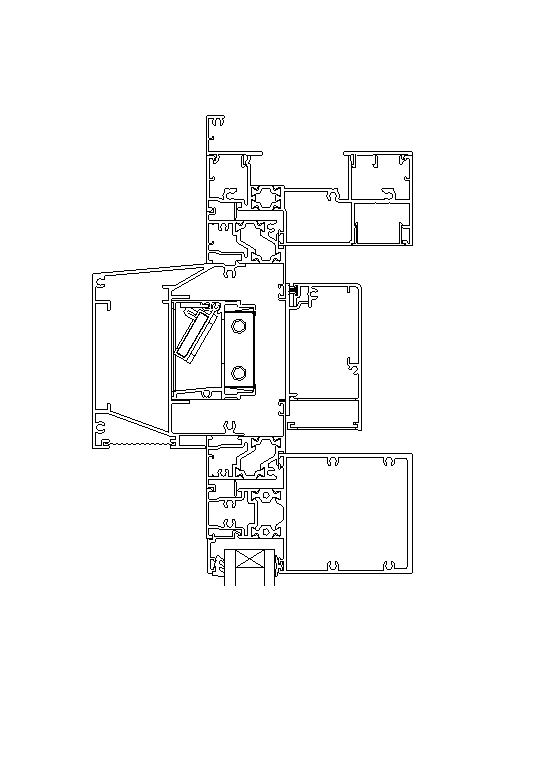

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Ventient Options

TAAW04

dwg
dxf
pdf
TAAW05 0 pdf

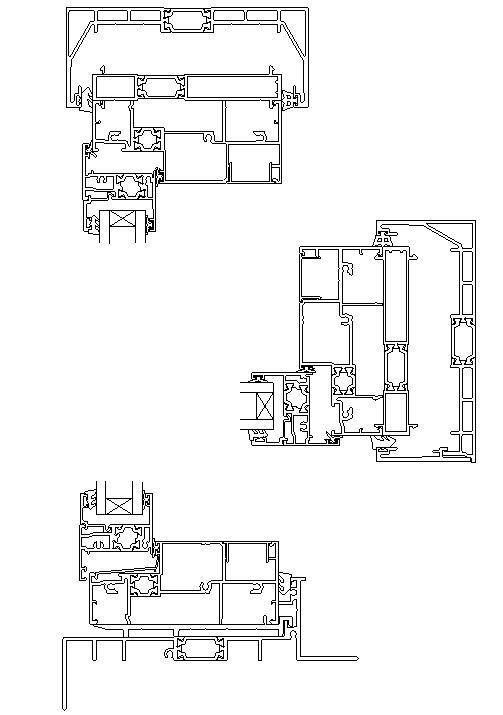

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Seismic Frame

TAAW05

dwg
dxf
pdf
TAAW06 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Seismic Frame Jambs

TAAW06

dwg
dxf
pdf
TAAW10 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Head/Sill Option

TAAW10

dwg
dxf
pdf
TAAW11 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Jamb Options

TAAW11

dwg
dxf
pdf
TAAW12 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Aerovent Options

TAAW12

dwg
dxf
pdf
TAAW13 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Ventient Options

TAAW13

dwg
dxf
pdf
TAAW14 0 pdf v2
114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Head/Sill

TAAW14

dwg
dxf
pdf
TAAW15 0 pdf
114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Jamb

TAAW15

dwg
dxf
pdf
TAAW20 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Flange Facing Infill

TAAW20

dwg
dxf
pdf
TAAW21 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Flat Facing Infill

TAAW21

dwg
dxf
pdf
TAAW22 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Jamb/Mullion Options

TAAW22

dwg
dxf
pdf
TAAW23 0 pdf v2

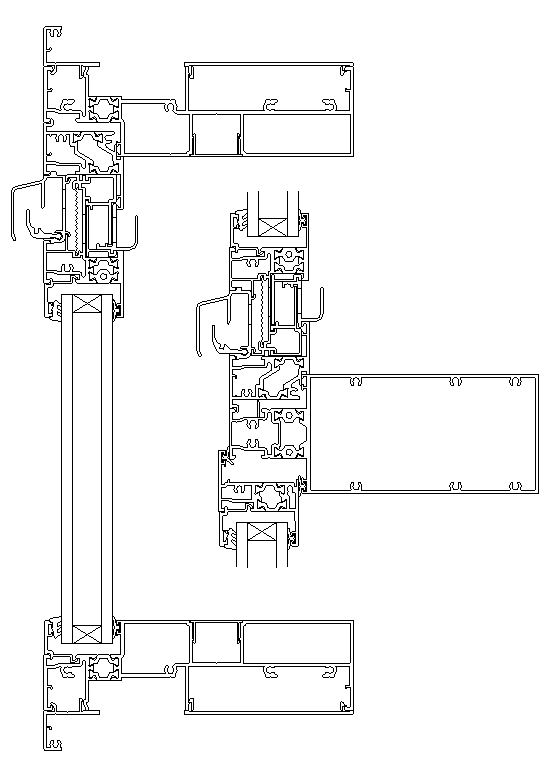

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Aerovent Options

TAAW23

dwg
dxf
pdf
TAAW24 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Ventient Options

TAAW24

dwg
dxf
pdf
TAAW25 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Option

TAAW25

dwg
dxf
pdf
TAAW26 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Seismic Frame Jamb/Mullion Options

TAAW26

dwg
dxf
pdf
TAAW30 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Head/Sill Flange Facing Infill

TAAW30

dwg
dxf
pdf
TAAW31 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Head/Sill Flat Facing Infill

TAAW31

dwg
dxf
pdf
TAAW32 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Jamb/Mullion Options

TAAW32

dwg
dxf
pdf
TAAW33 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Aerovent Options

TAAW33

dwg
dxf
pdf
TAAW34 0 pdf v2
171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Ventient Options

TAAW34

dwg
dxf
pdf
TAAW35 0 pdf
171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Head/Sill Options

TAAW35

dwg
dxf
pdf
TAAW36 0 pdf v2

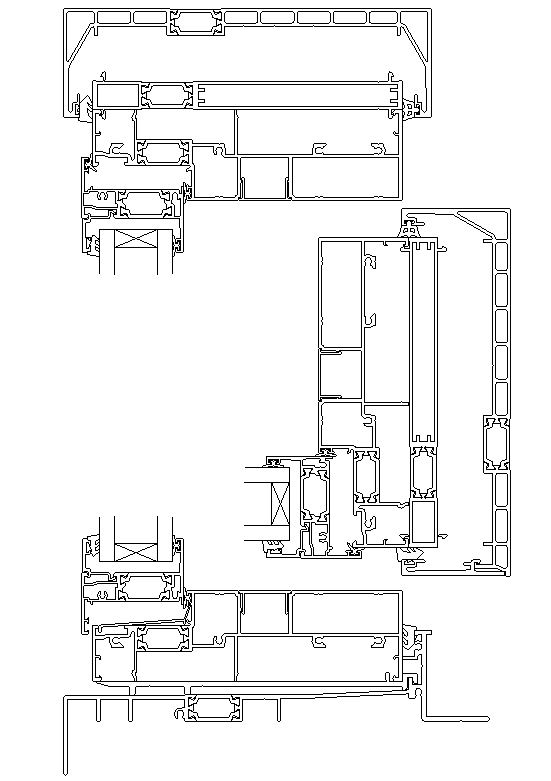

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Jamb/Mullion Options

TAAW36

dwg
dxf
pdf
Installation Details
View full
TA114AWBB pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Board & Batten

TA114AWBB

dwg
pdf
TA114AWBV pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Brick Veneer

TA114AWBV

dwg
pdf
TA114AWBW pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Bevelback Weatherboard

TA114AWBW

dwg
pdf
TA114AWFS pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Flat Sheet

TA114AWFS

dwg
pdf
TA114AWPM pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Profile Metal

TA114AWPM

dwg
pdf
TA114AWRW pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Rusticated Weatherboard

TA114AWRW

dwg
pdf
TA114AWST pdf
APL Architectural Series ThermalHEART® - 114mm Awning Window on Stucco

TA114AWST

dwg
pdf
TA171AWBB pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Board & Batten

TA171AWBB

dwg
pdf
TA171AWBV pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Brick Veneer

TA171AWBV

dwg
pdf
TA171AWBW pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Bevelback Weatherboard

TA171AWBW

dwg
pdf
TA171AWFS pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Flat Sheet

TA171AWFS

dwg
pdf
TA171AWPM pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Profile Metal

TA171AWPM

dwg
pdf
TA171AWRW pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Rusticated Weatherboard

TA171AWRW

dwg
pdf
TA171AWST pdf
APL Architectural Series ThermalHEART® - 171mm Awning Window on Stucco

TA171AWST

dwg
pdf
