Equus Chevaline Epistixx CP Carpark Coating
Description

Chevaline Epistixx CP is a two-component waterborne epoxy primer and bodycoat with high adhesion, and a two-component waterborne epoxy topcoat that provides a semi-gloss, fast-curing finish. These properties make the system an ideal solution where solvent release during application is not desirable, and where down-time restrictions require early access to coated areas. Chevaline Epistixx CP Carpark Coating System is an easy to maintain, economical interior concrete carpark finish.

Key Features
  • 100% NZ made
  • Proven durability with 40+ years in service history
  • Easy to clean and maintain
  • Economical coating option
  • Medium duty floor finish
  • High adhesion to most surfaces
  • Wide dilution tolerance for application requirements
  • Can be used on contaminated surfaces eg. residual bitumen or paint
Scope of Use

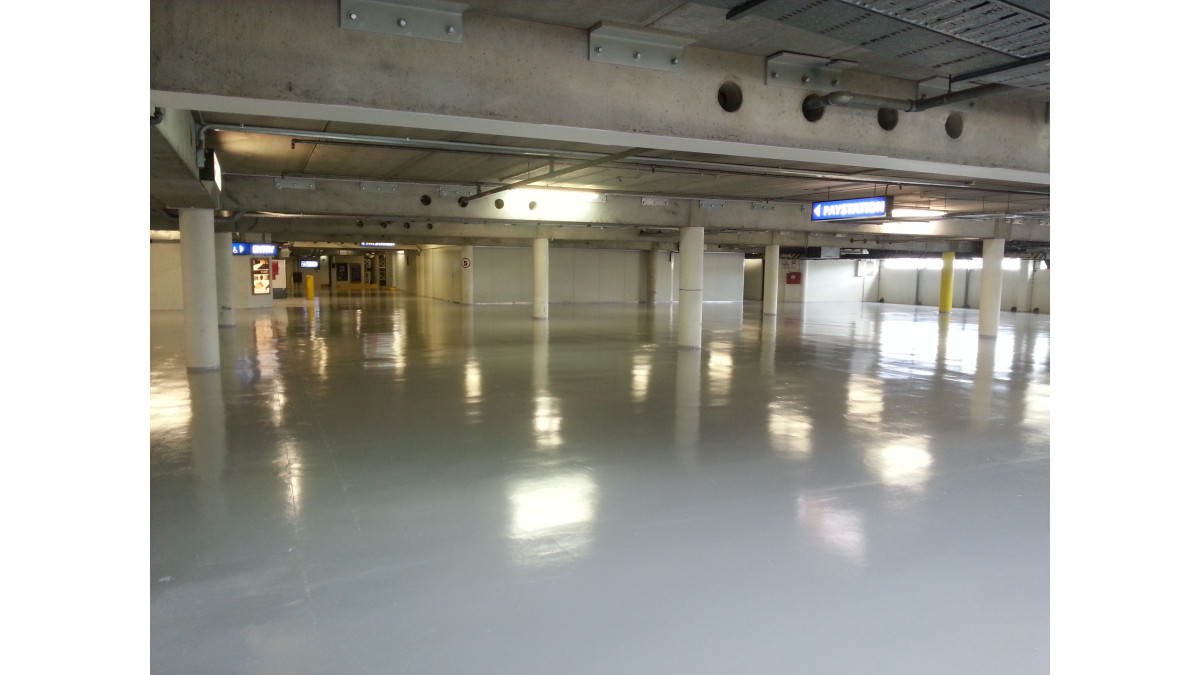

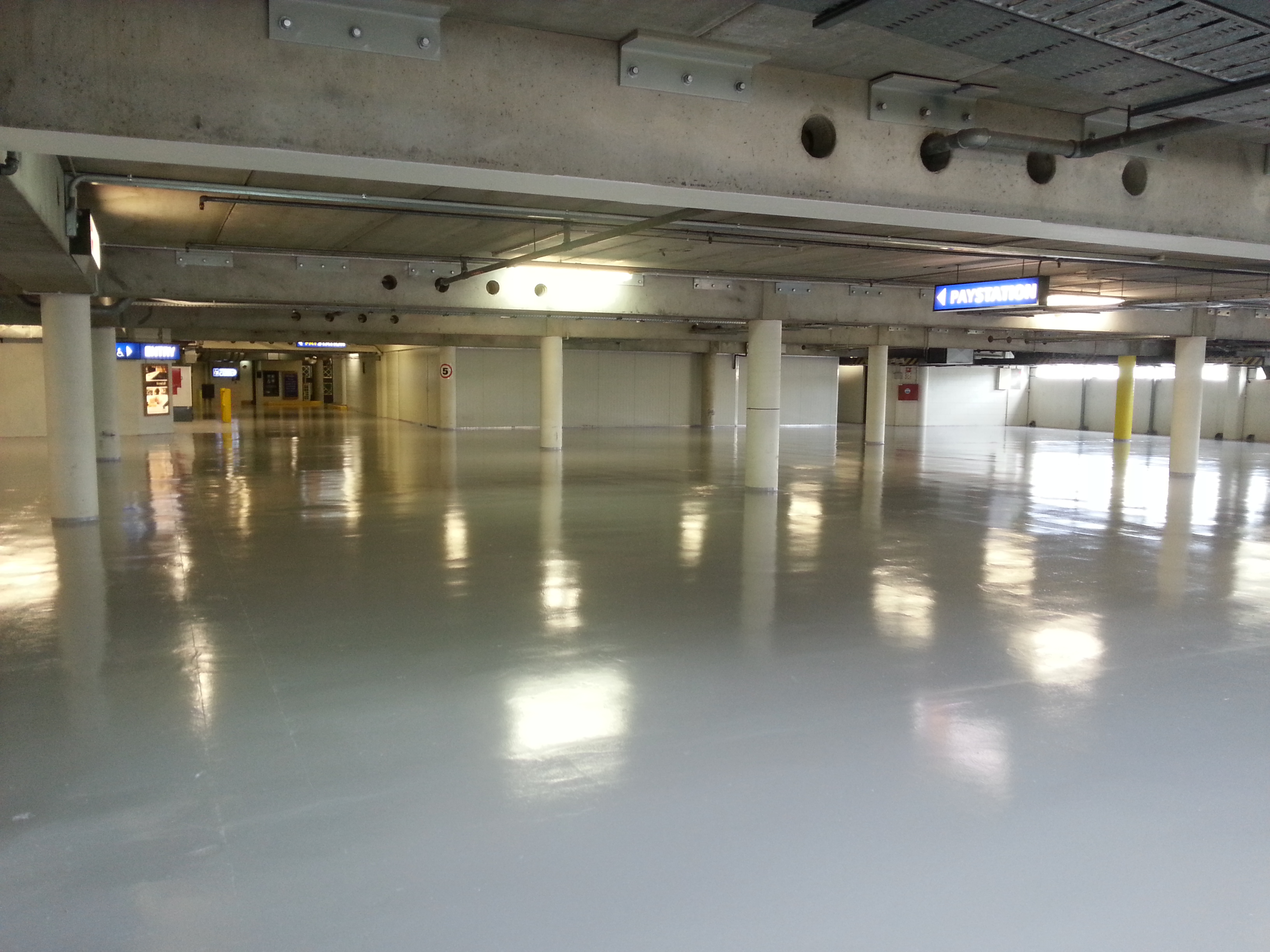

Chevaline Epistixx CP Carpark Coating system is used over new or existing interior concrete floors in carparking buildings or underground carparks. It is designed as a decorative coating to refresh and seal concrete surfaces stopping carbonation from breaking down the concrete. The system provides a smooth or non-slip finish in areas where required. This product is particularly useful on carpark areas where down-time restrictions require early access to coated areas.

Limitations on Use

Chevaline Epistixx CP Carpark Coating system must be used in accordance with the correct specifications and substrates mentioned in the product statements, TDS, or in other Equus approved technical documentation.

Not suitable as a heavy-duty floor finish. Not suitable as a waterproofing solution. Not suitable for exterior conditions or in areas with UV exposure except where specifically approved by Equus Industries.

Statement of Building Code Compliance
  • B2 Durability - B2.3.1(c) Chevaline Epistixx CP has a durability of at least 5 years when installed with the correct specification, installation and maintenance.
  • C3 Fire affecting areas beyond the fire source - C3.4 (b) Chevaline Epistixx CP test data together with in-service history of the correctly installed system show that the product limits the probability of fire spreading throughout the building. See BRANZ Fire Test Report FH5630.
  • D1 Access Routes - D1.3.3(d) Chevaline Epistixx CP complies with D1/AS1 on level surfaces, and on sloping surfaces and stairs with the addition of aggregate to create Chevaline Epistixx CP NS.
  • F2 Hazardous building materials - F2.3.1 Chevaline Epistixx CP is a waterborne material and contains no mammalian-toxic substances . Refer to SDS at www.equus.nz
In-Service History

Over 40 years in service history in New Zealand

Documents
Product Statement: Equus Chevaline Epistixx CP Carpark System

2024

Equus Document Library
BRANZ FH5730 Fire Test Report

2014

Equus Industries Ltd provide technical waterproofing, tanking, coating and flooring solutions for architects, engineers, property managers and contractors in the building industry.
