Kilargo IS7010si Perimeter Seal
Description

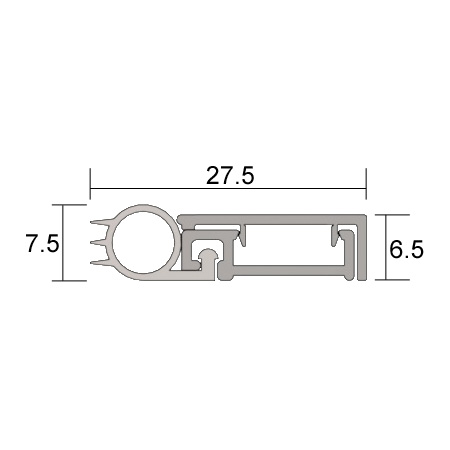

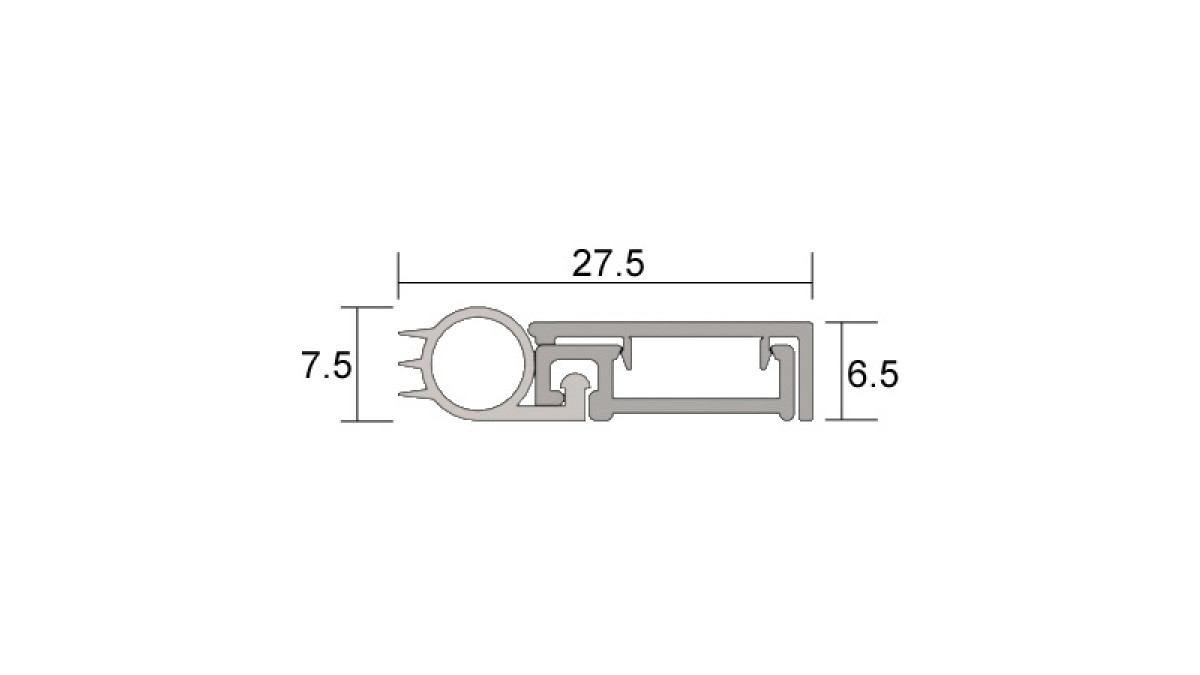

The IS7010si is an aesthetically designed, slim-line compression type perimeter seal for installation around the head and jambs of single swing doors. They are proven to be effective acoustic, smoke, light, dust and weather seals.

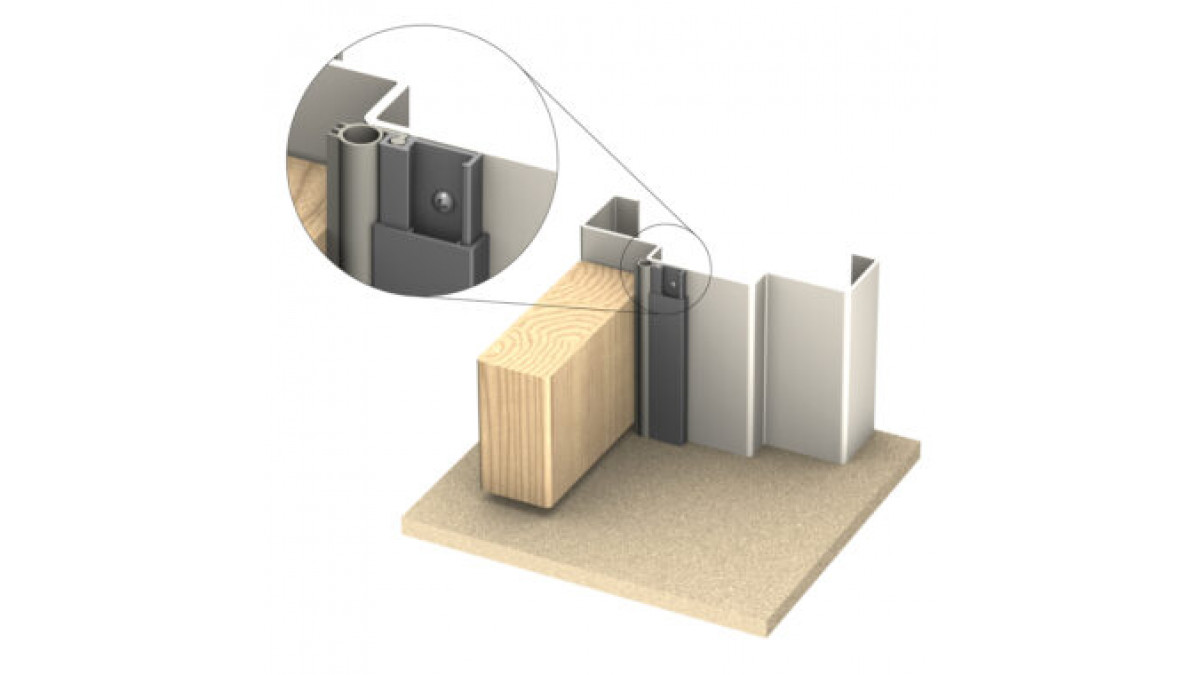

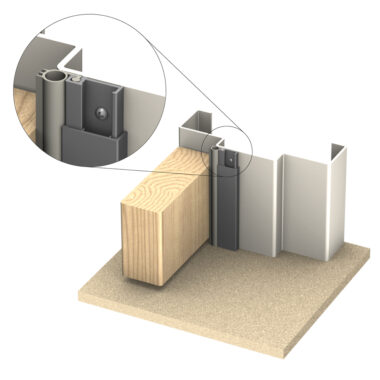

The aluminium carrier is pre-drilled and slotted for adjustable retrofit installation. The easy to install, 'snap-on', anodised aluminium cover plate provides concealed fixings.

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey silicone gasket
  • Black silicone gaskets also available upon request
Key Features
  • Easy to install, 'snap-on', anodised aluminium cover plates provide concealed fixings — It is not necessary to remove the door from its hinges
  • The aluminium carrier is pre-drilled and slotted for adjustable retrofit installation
  • Aesthetically designed, slim-line compression type perimeter seals. They are proven to be effective acoustic, smoke, light, dust and weather seals
Scope of Use
  • Perimeter seal for installation around the head and jambs of single swing doors
  • Effective acoustic, smoke, light, dust and weather seals
  • Also available with antimicrobial silicone gasket(s)

Gap size:

  • Min. 0mm / max. 6mm

Door set standard lengths:

  • Single: 1 x 1000mm, 2 x 2100mm
  • Long Single: 1 x 1000mm, 2 x 2750mm
  • Double: 3 x 2100mm
  • Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths:

  • 1000mm
  • 2250mm
  • Also available in individual lengths: 250mm increments from 1000mm to 5000mm

Fixing:

  • The IS7010si is designed to be mitred or butt-jointed at the corners

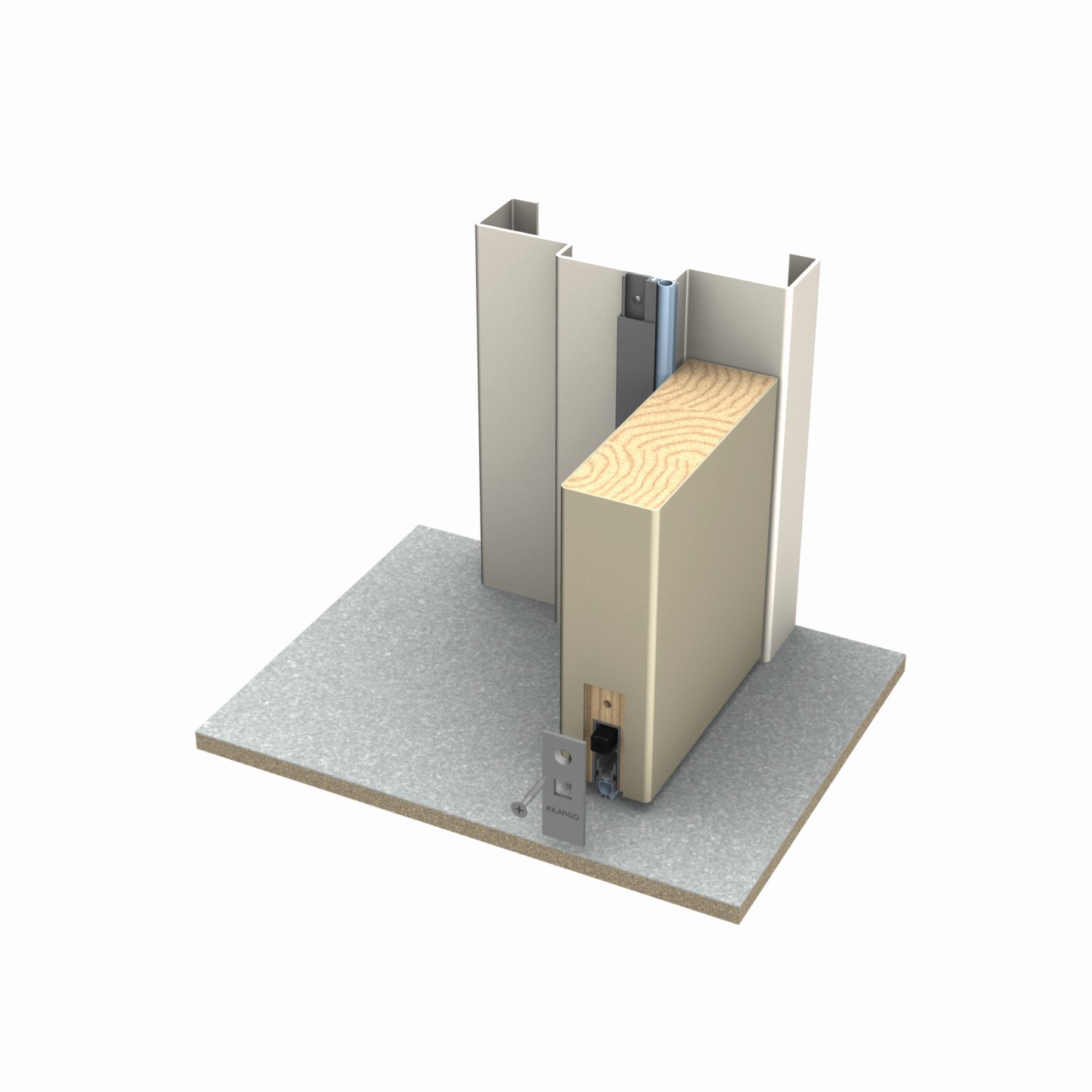

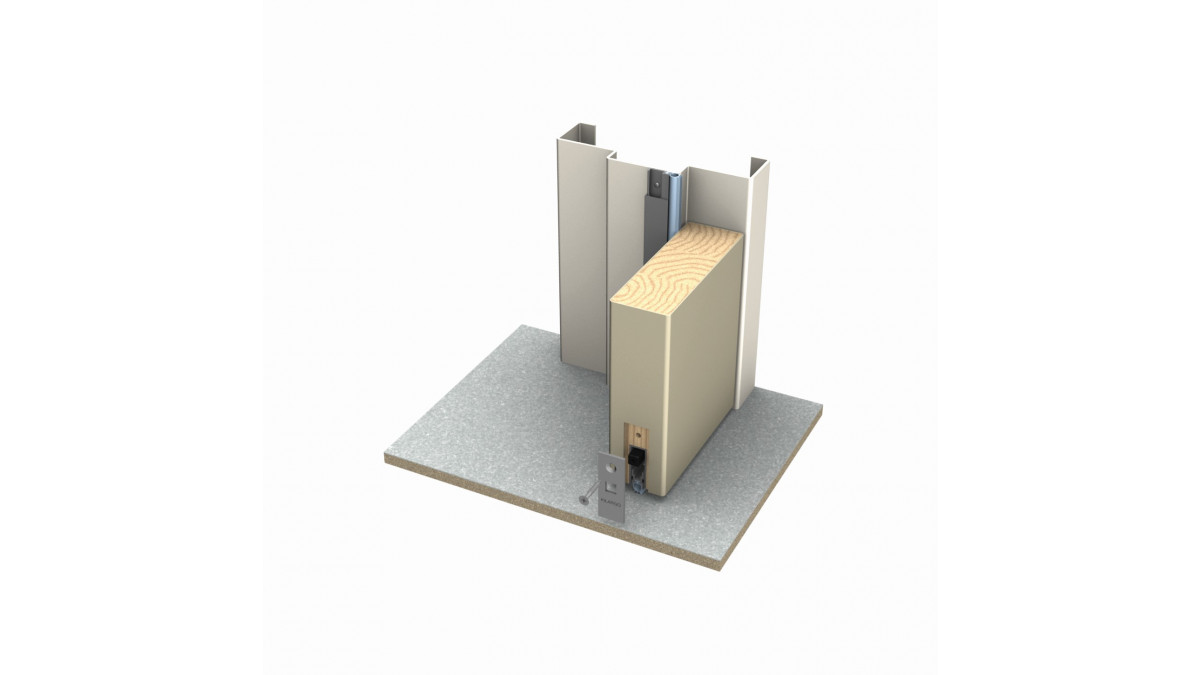

  • Kilargo recommend the IS7010si perimeter seal be fitted with the Kilargo Integrity IS8010si or IS8090si automatic door bottom seal



Limitations on Use
  • Kilargo does not recommend the installation of profiles with ‘snap-on’ aluminium cover plates for aluminium door / frame systems
  • Kilargo recommend the IS7010si perimeter seal be fitted with the Kilargo Integrity IS8010si or IS8090si automatic door bottom seal

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1. Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
In-Service History

Notable projects include:

  • 1 William Street, Brisbane City
  • Adelaide Oval Redevelopment, South Australia
  • Royal Children's Hospital, Melbourne
  • Perth Arena, Western Australia
Other Performance Attributes
  • All seals manufactured in Australia
