Kilargo IS3022si Door Bottom Seal
Description

The IS3022si is a sweep action blade seal with high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors. This seal can provide effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies.

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey silicone gasket/s
  • Black silicone gaskets also available upon request
Key Features

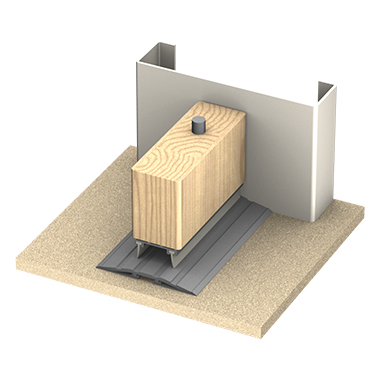

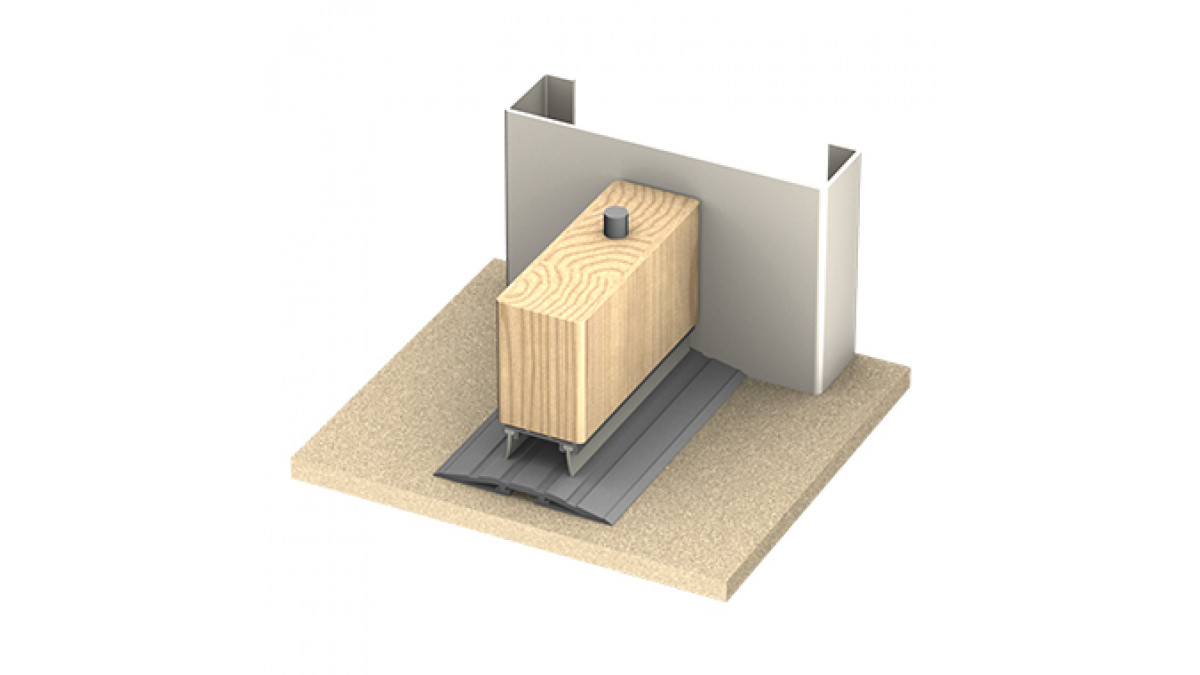

  • Can be fitted to door bottoms or perimeters of single and double action doors

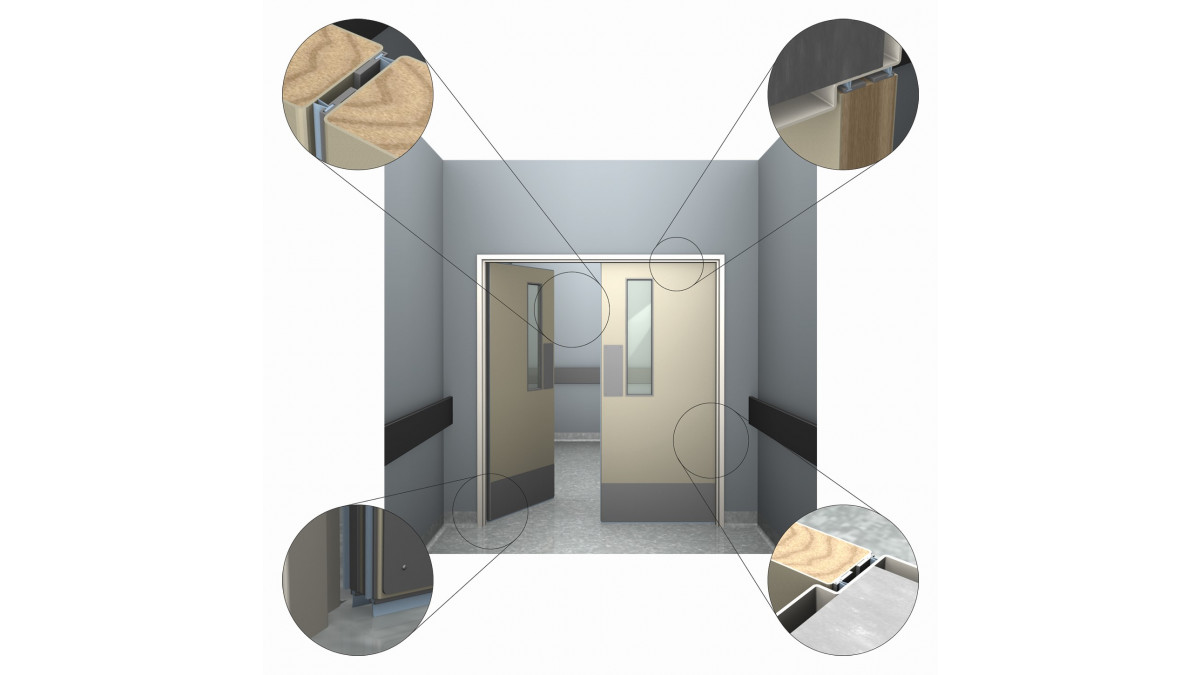

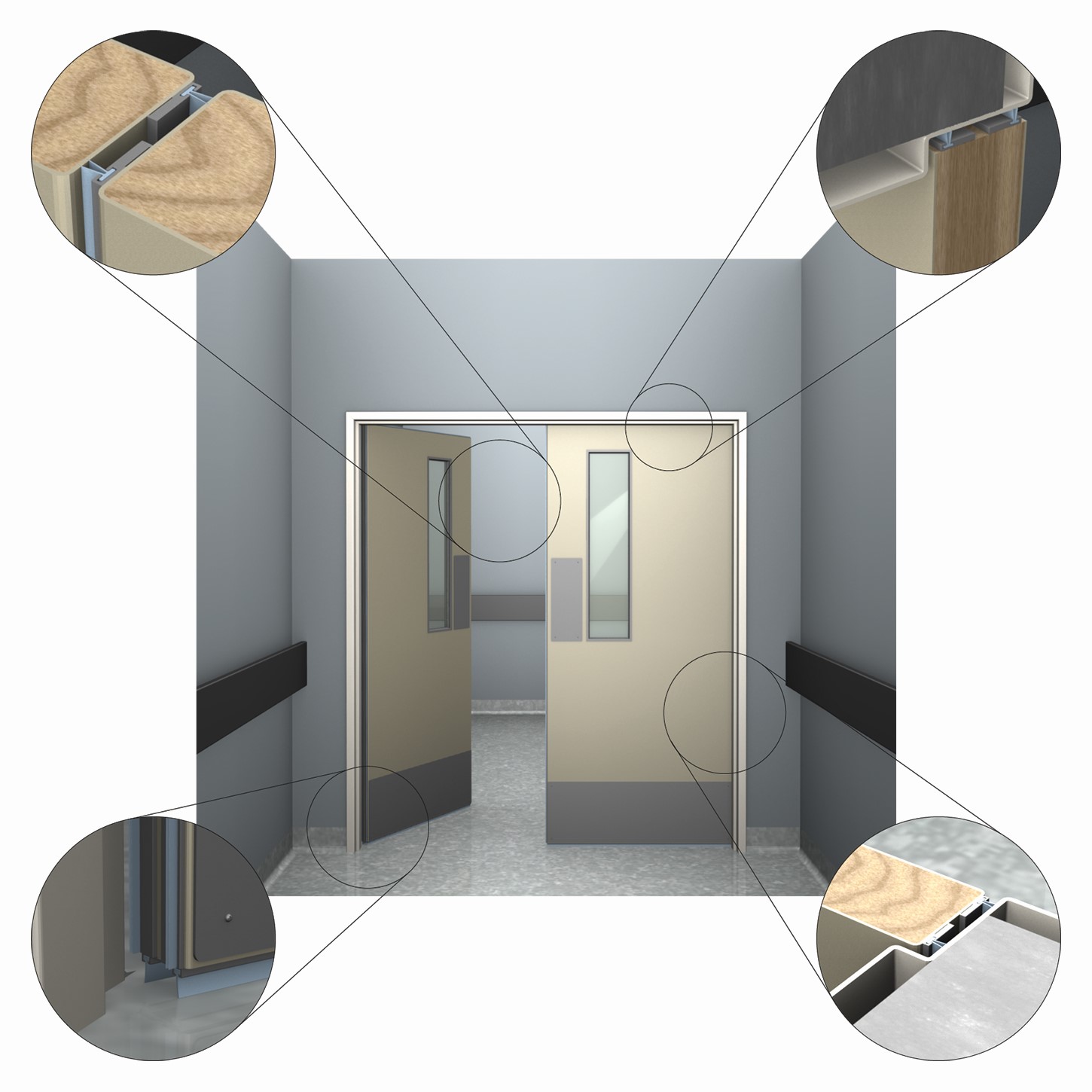

  • Ideal for pivot door assemblies
Scope of Use
  • Can be fitted to door bottoms or perimeters of single and double action doors
  • This seal can provide effective containment against dust, light, weather and vermin
  • Ideal smoke seal for pivot door assemblies

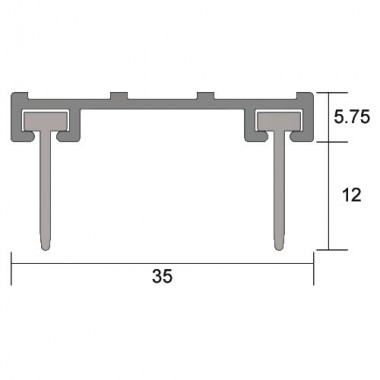

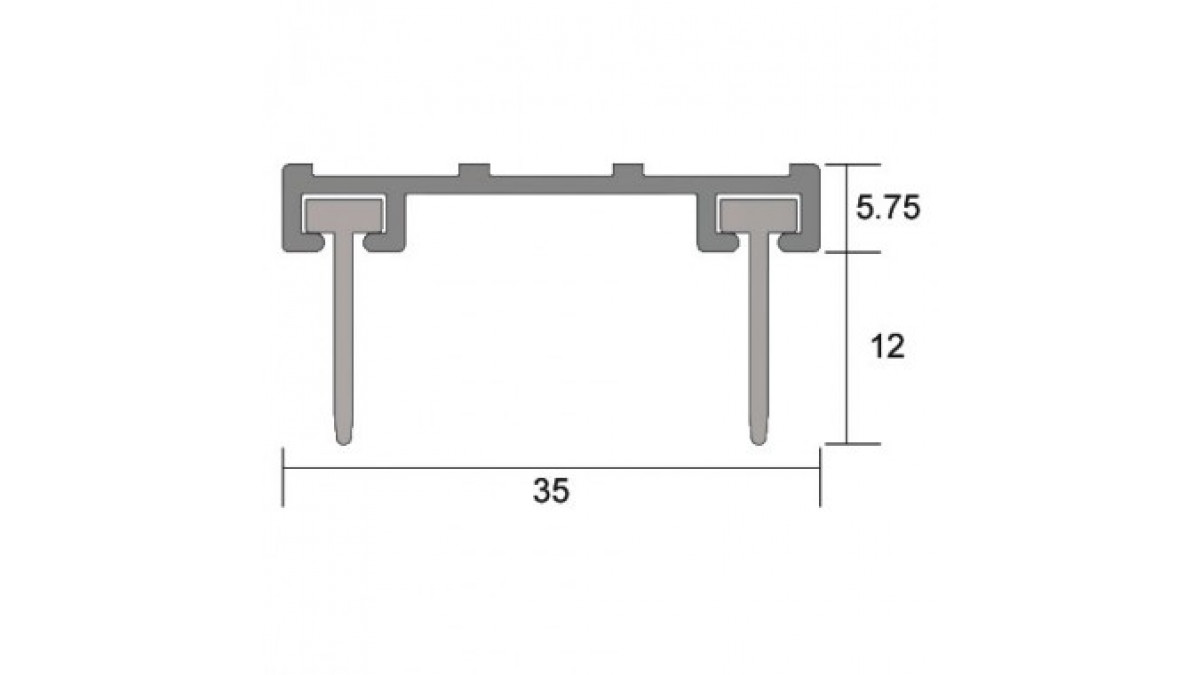

Gap size:

  • IS3020si: Min. 15mm / max. 19mm
  • IS3021si: Min. 20mm / max. 24mm
  • IS3022si: Min. 13mm / max. 17mm

(allowing to be surface-mounted onto the door)

Standard lengths:

  • 1000mm
  • 2250mm
  • Also available in: 250mm increments from 1000mm to 5000mm

Fixing:

  • Fixing screws are supplied with detailed fitting instructions
  • Fixing holes are pre-drilled to allow the seals to be positioned accurately
Statement of Building Code Compliance
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
Other Performance Attributes
  • All seals manufactured in Australia
Documents
Data Sheet

IS3022si 10/04/2018

Kilargo Antimicrobial Seals Factsheet

Jan 2020

Installation and Operation

IS3022si 05/12

Kilargo Care and Maintenance
Kilargo Door Sealing Systems Product Catalogue

Feb 2018

Kilargo Healthcare & Hygenic Environments Door Sealing Solutions

20200318

CAD/PDF Details
