Kaba 1500 Series Plate Furniture
Description

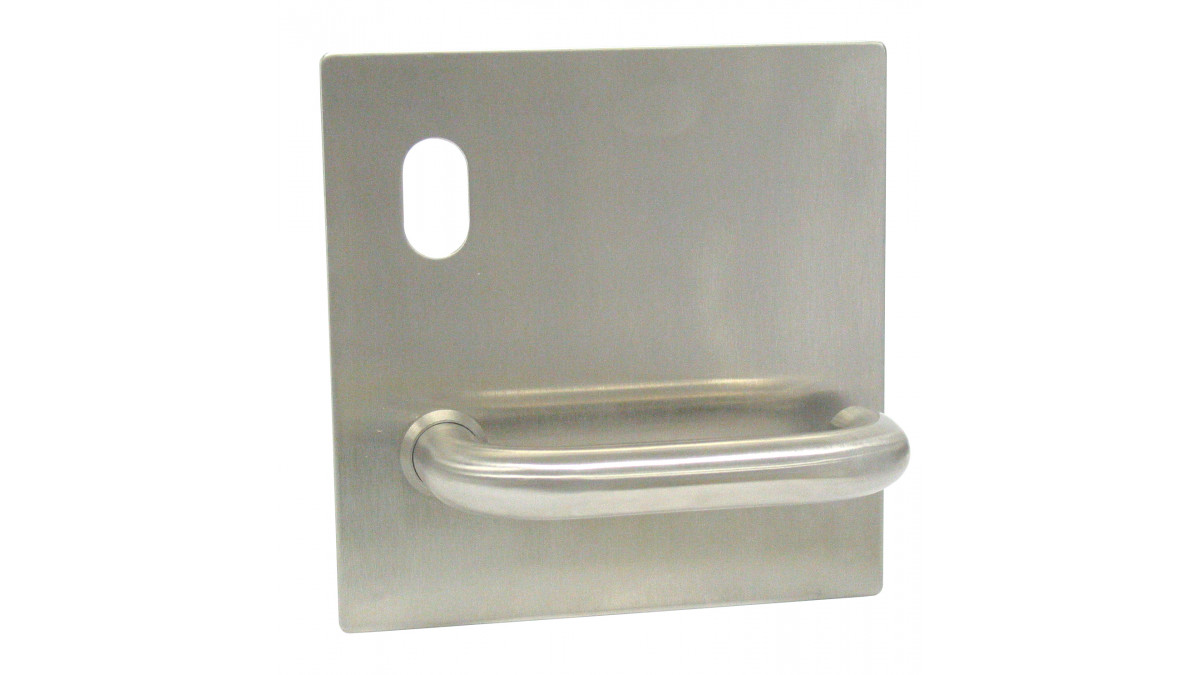

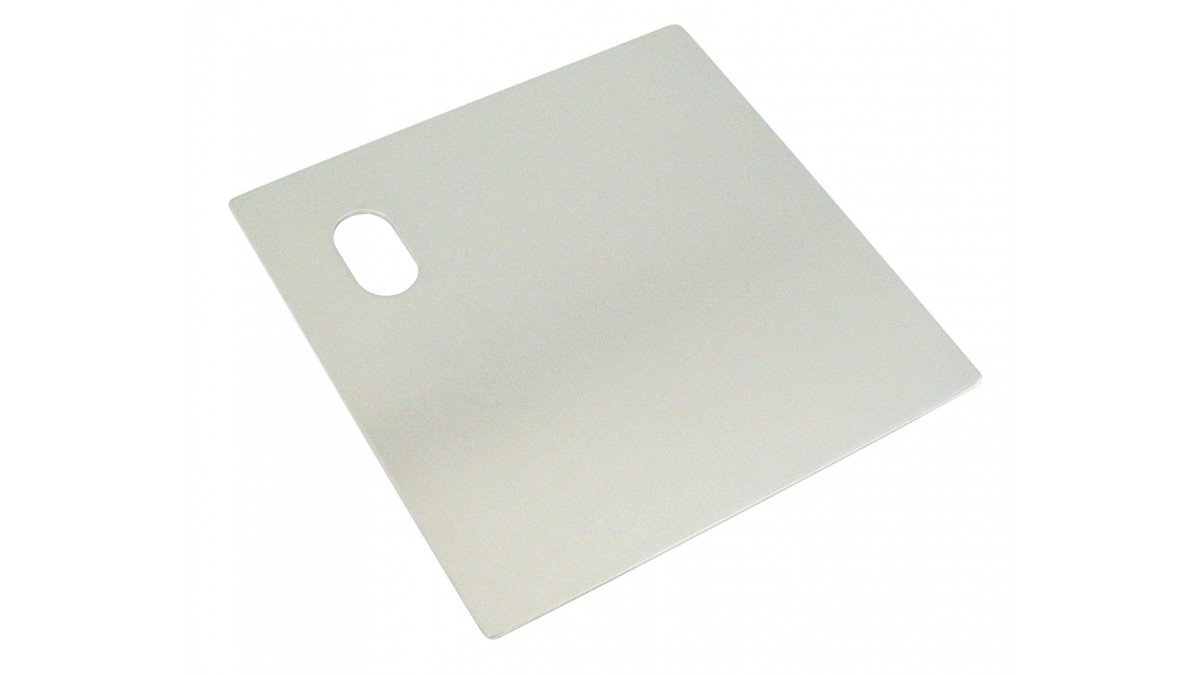

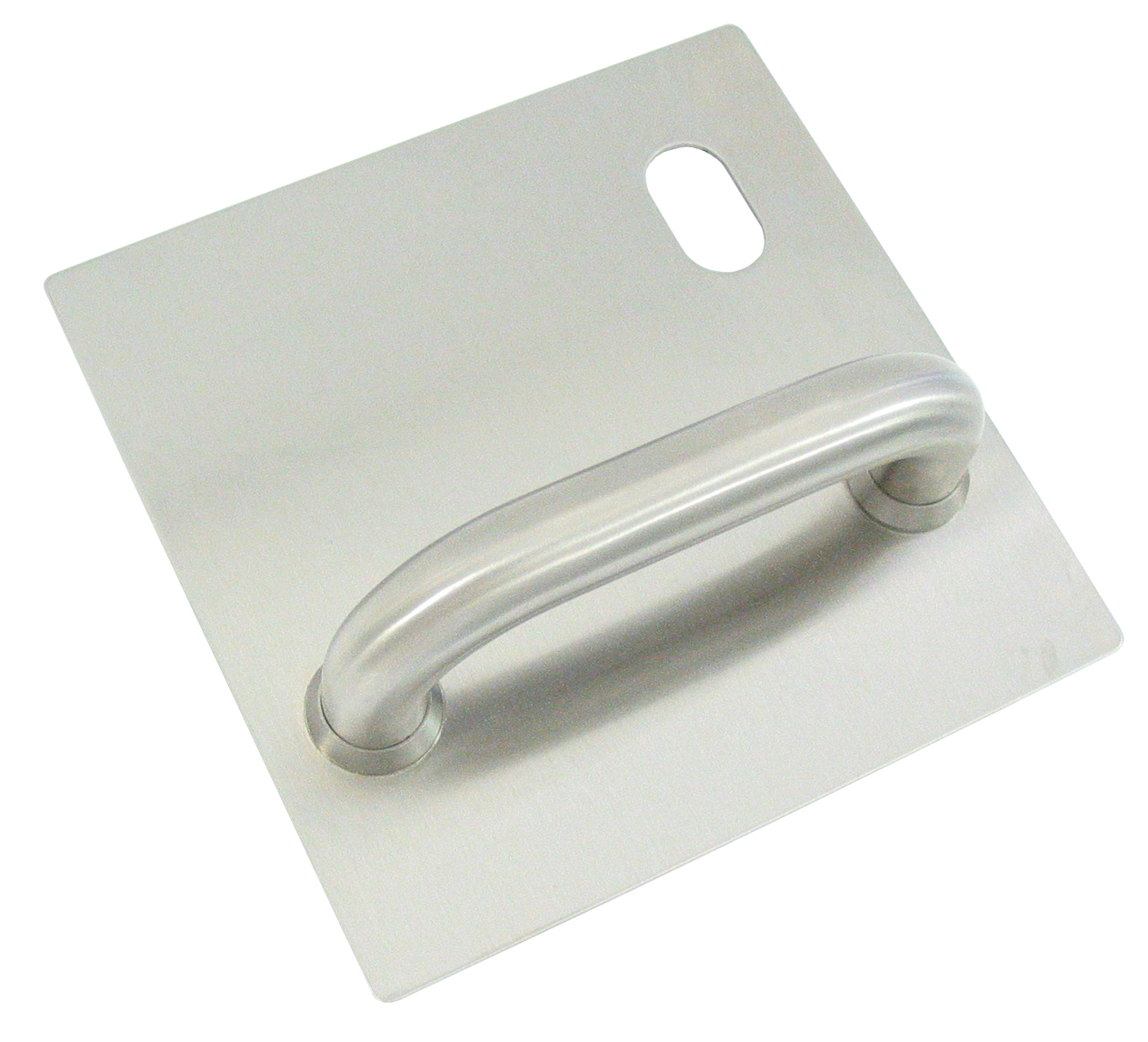

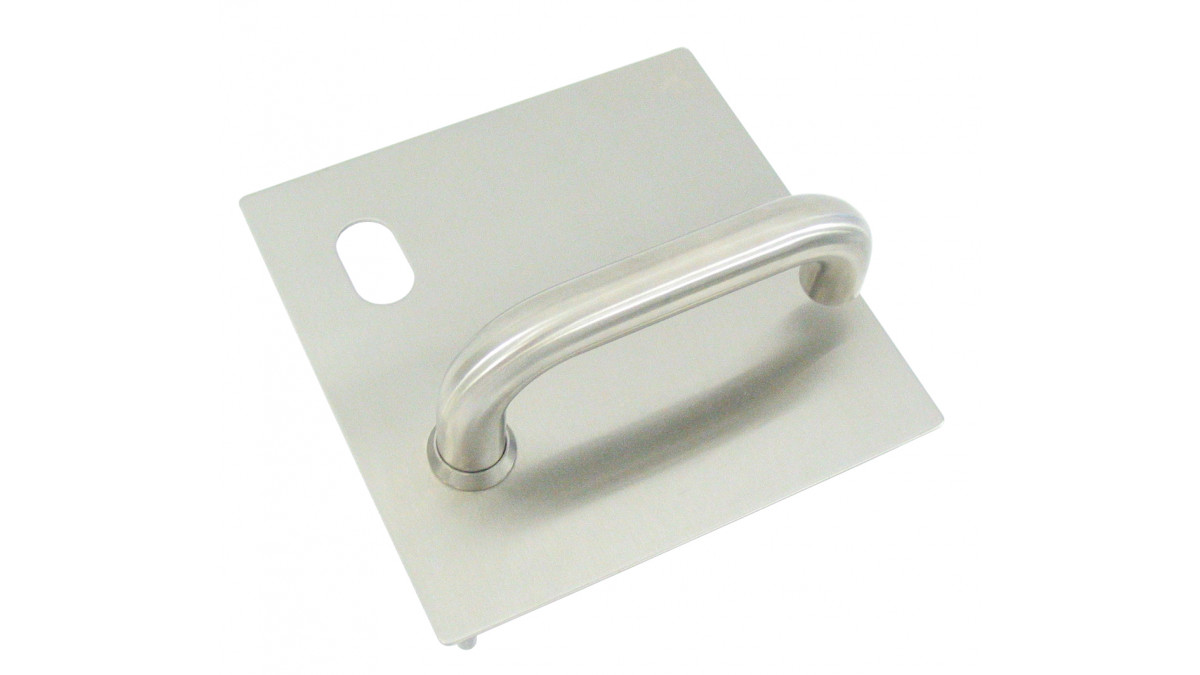

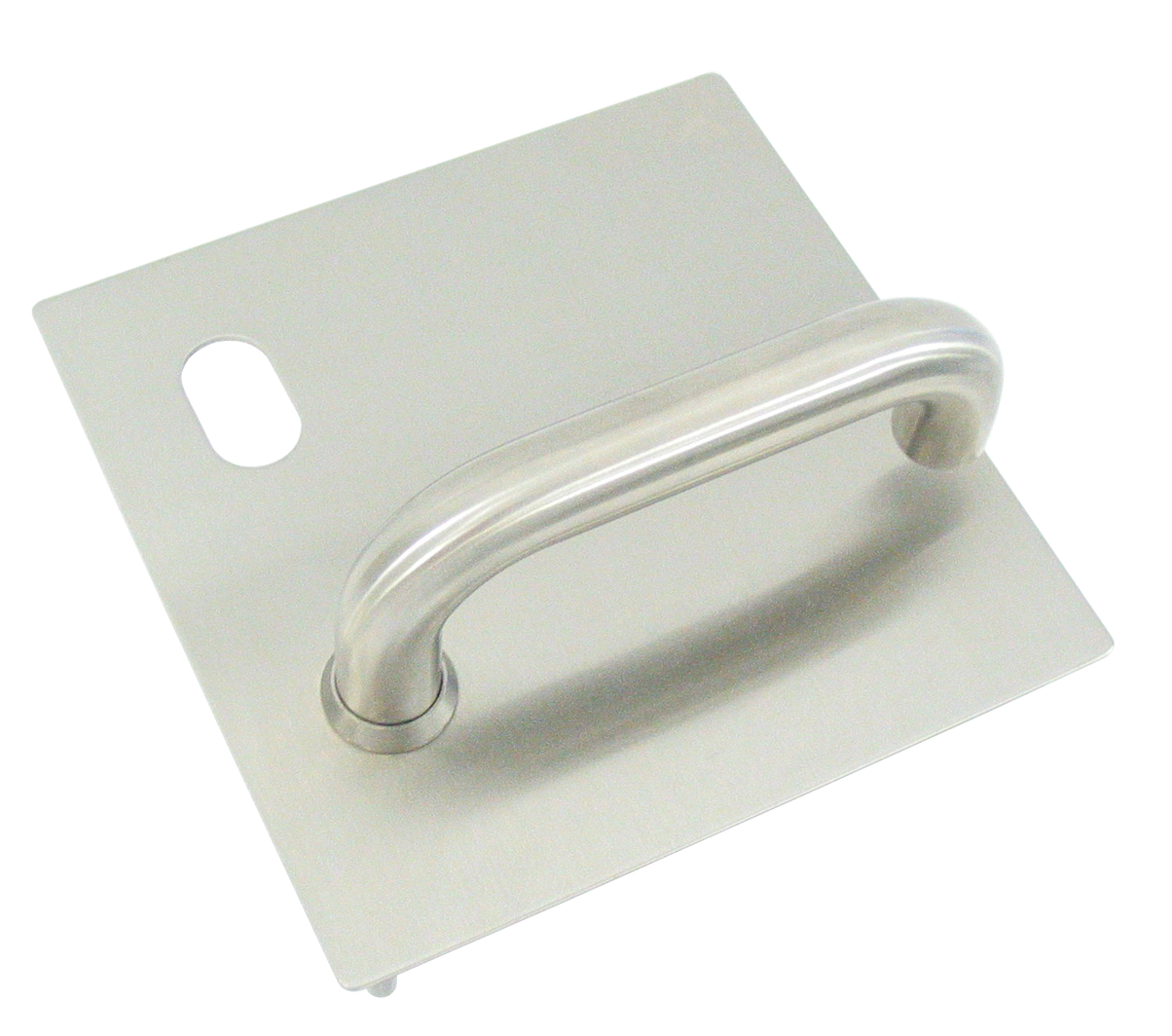

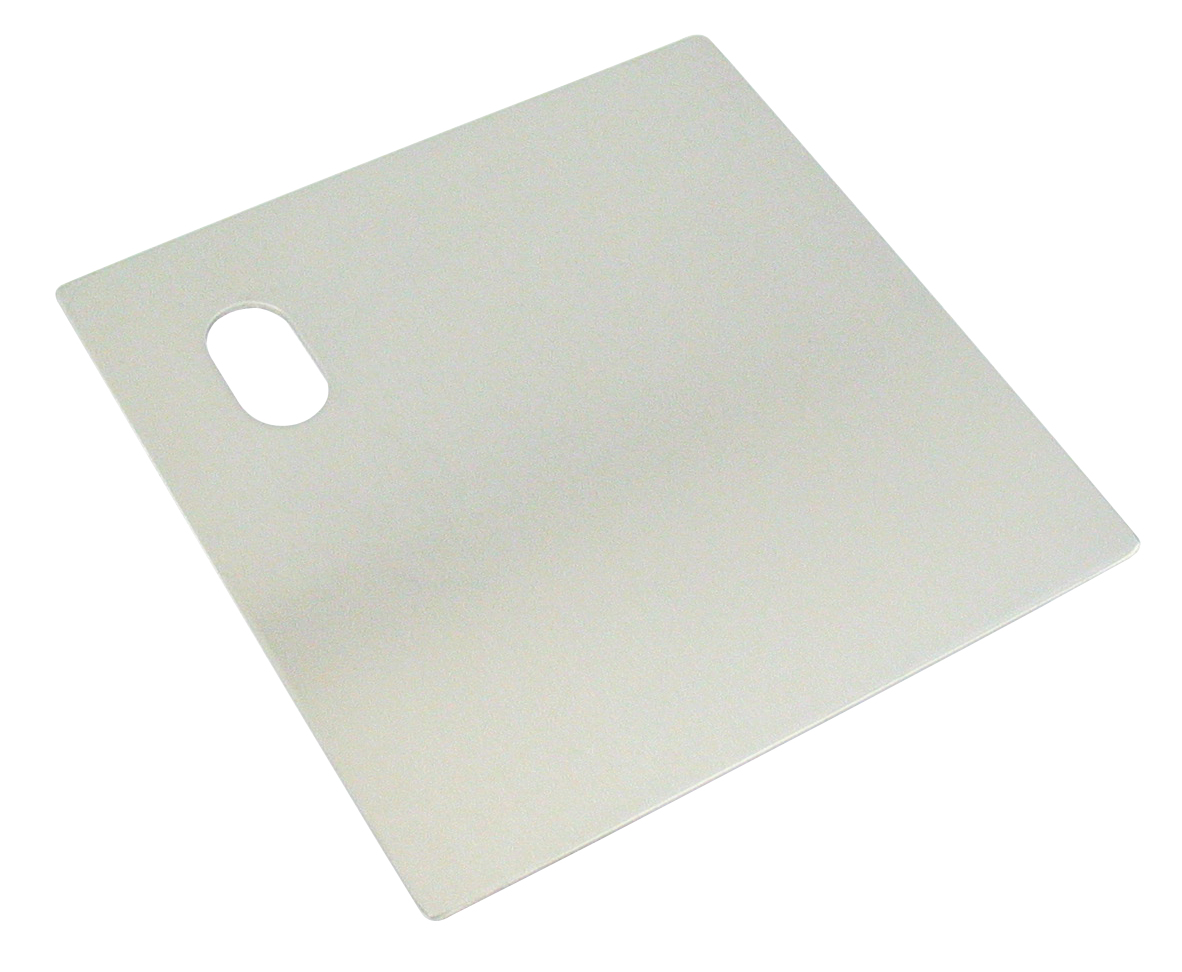

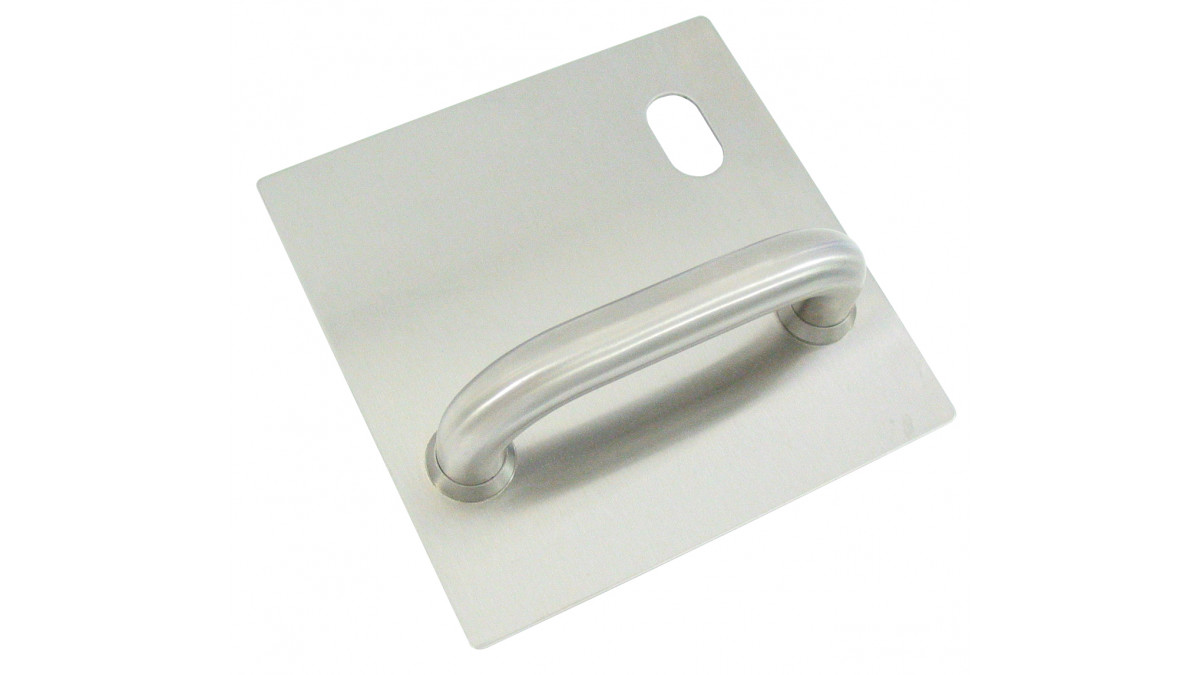

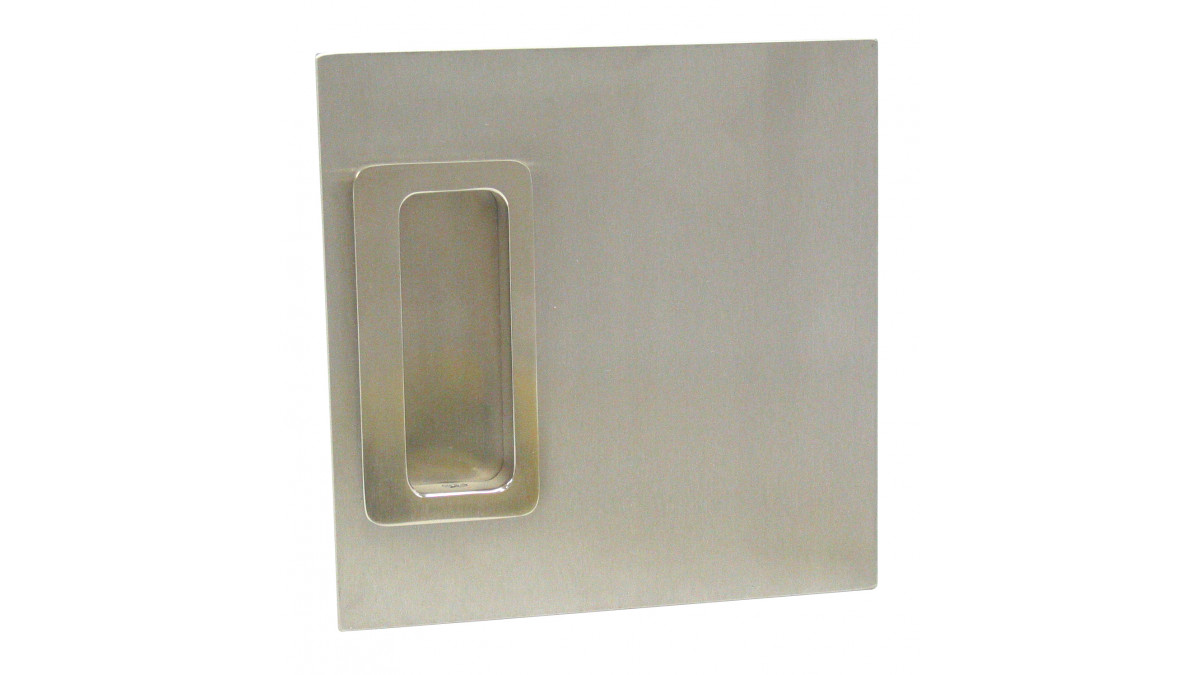

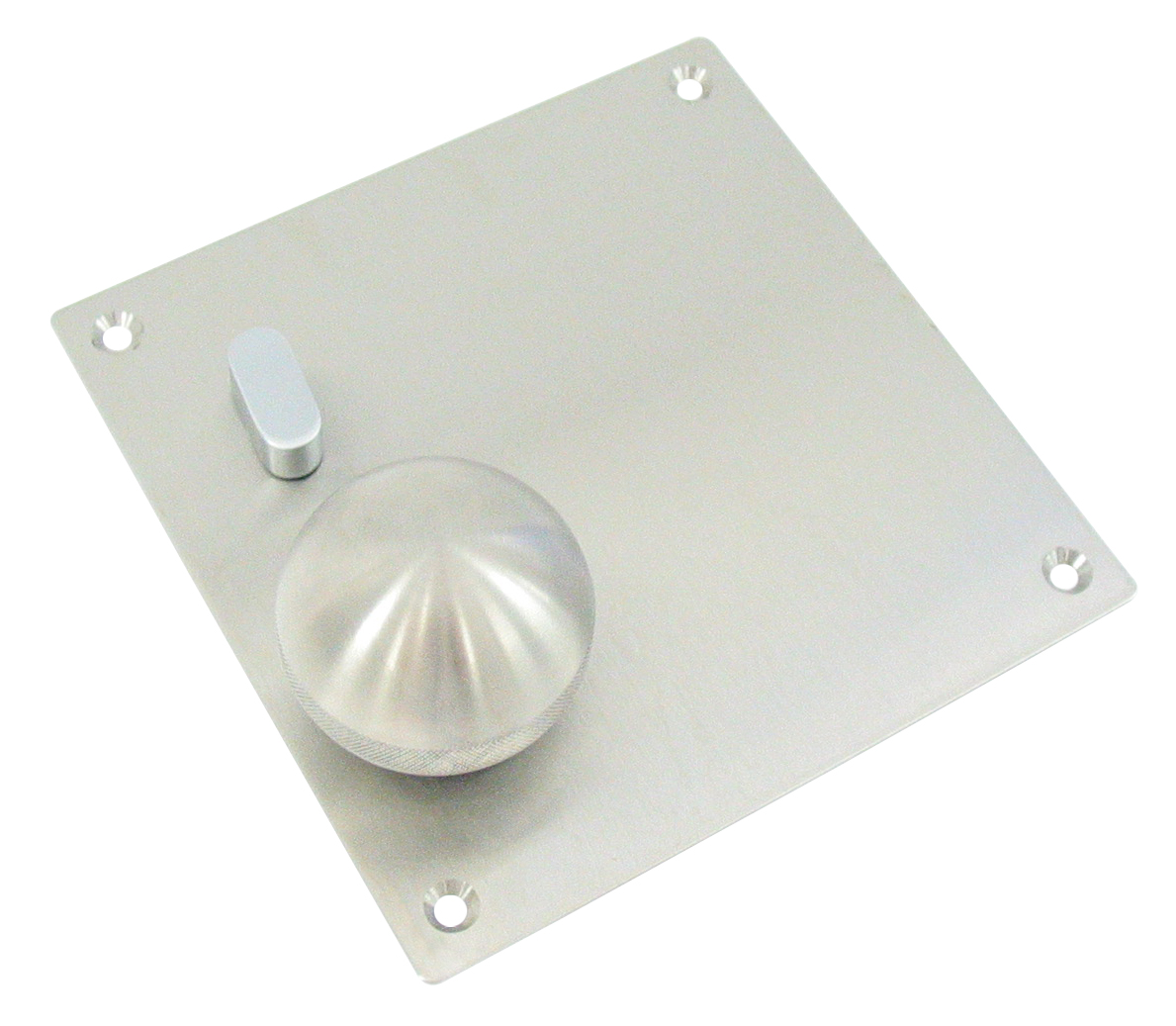

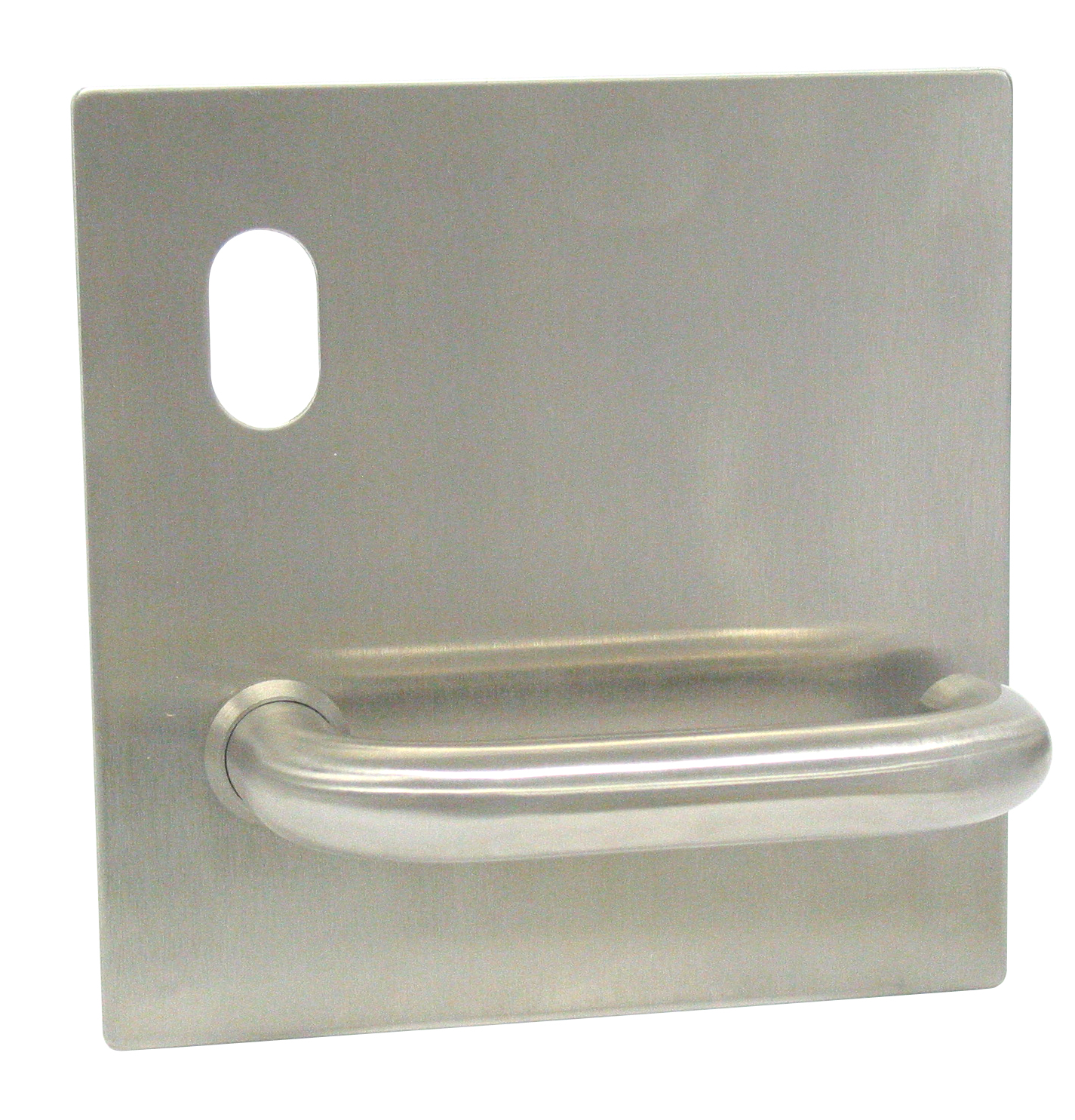

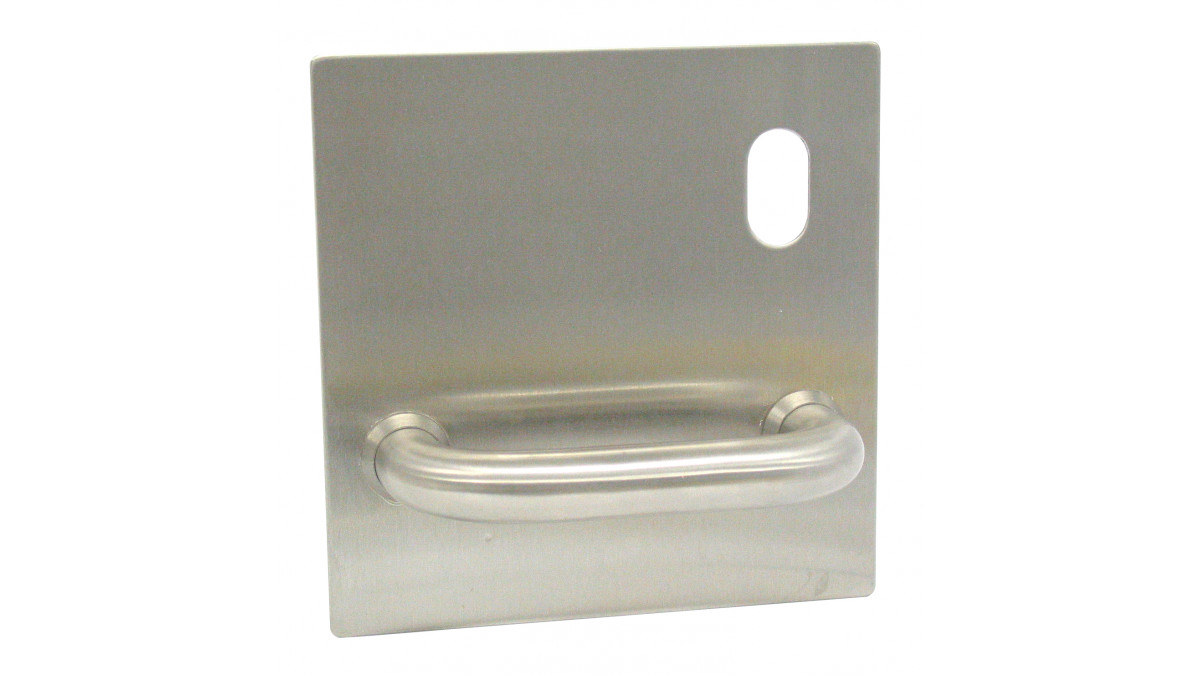

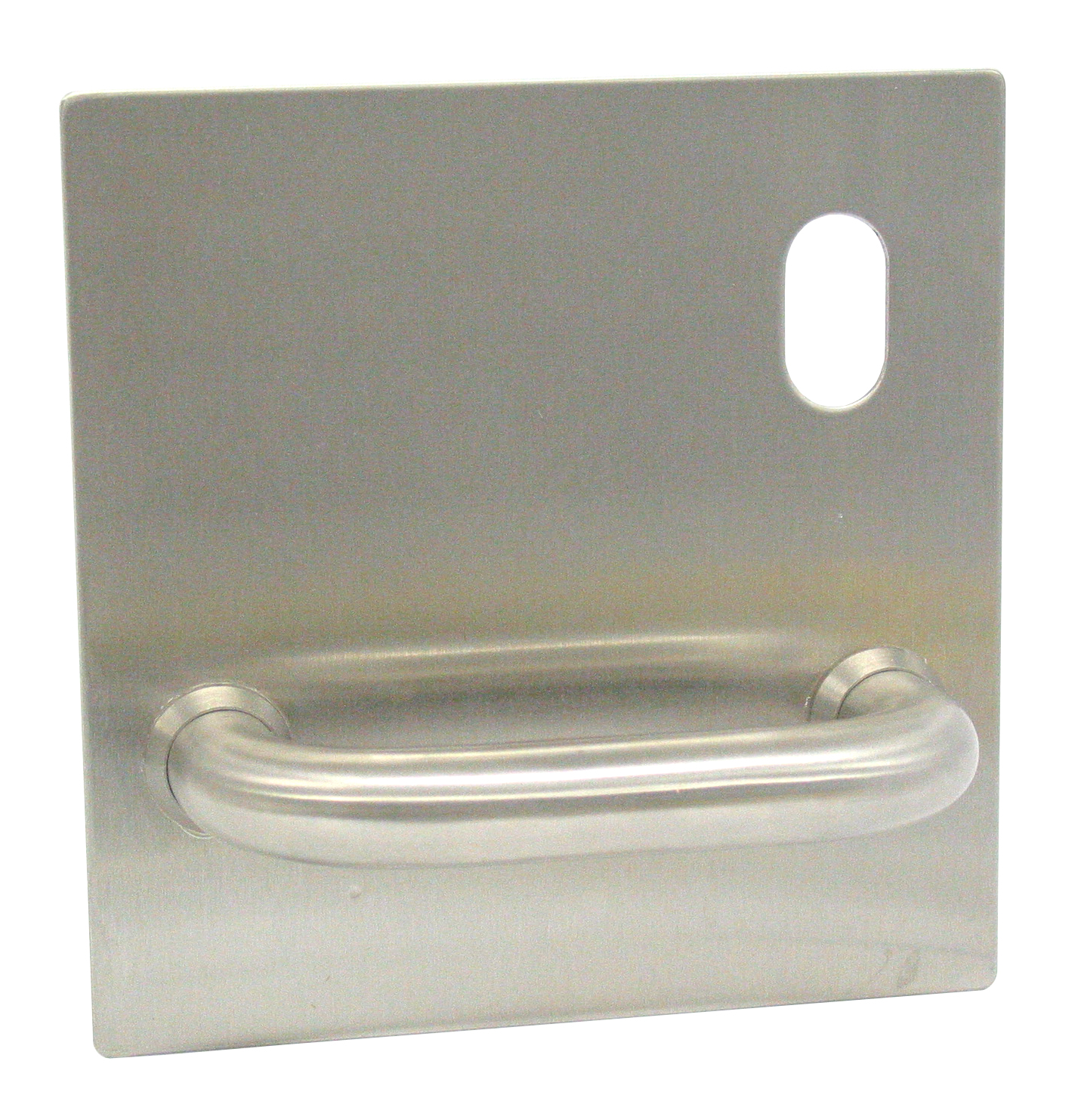

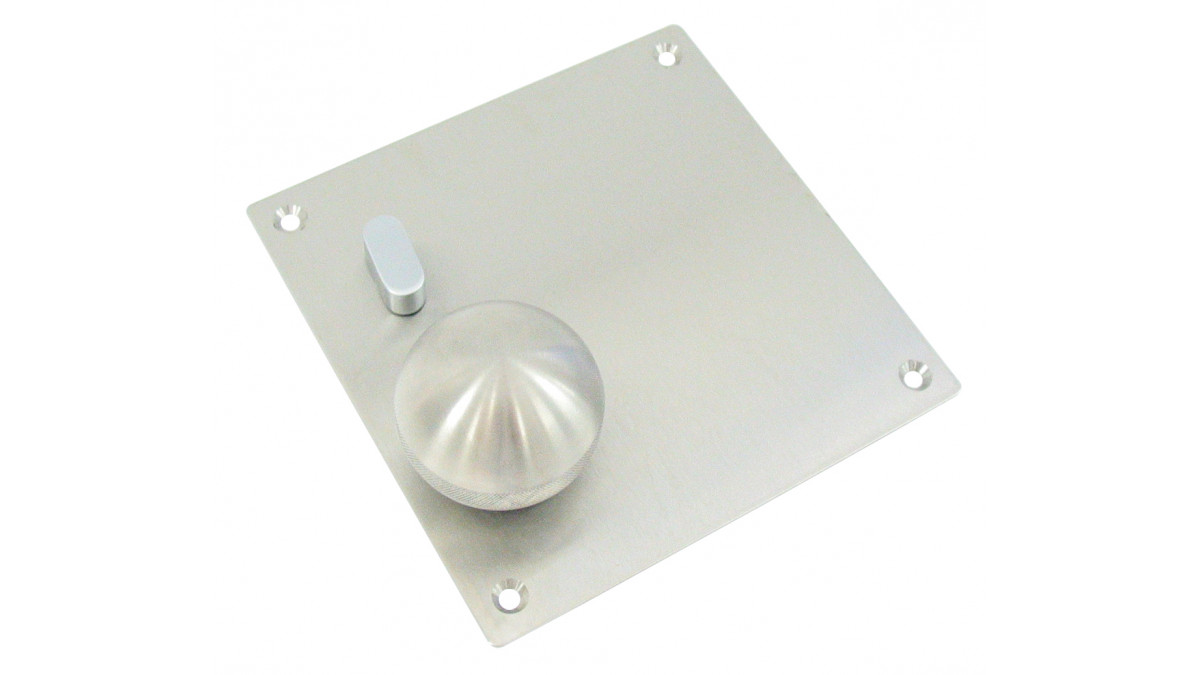

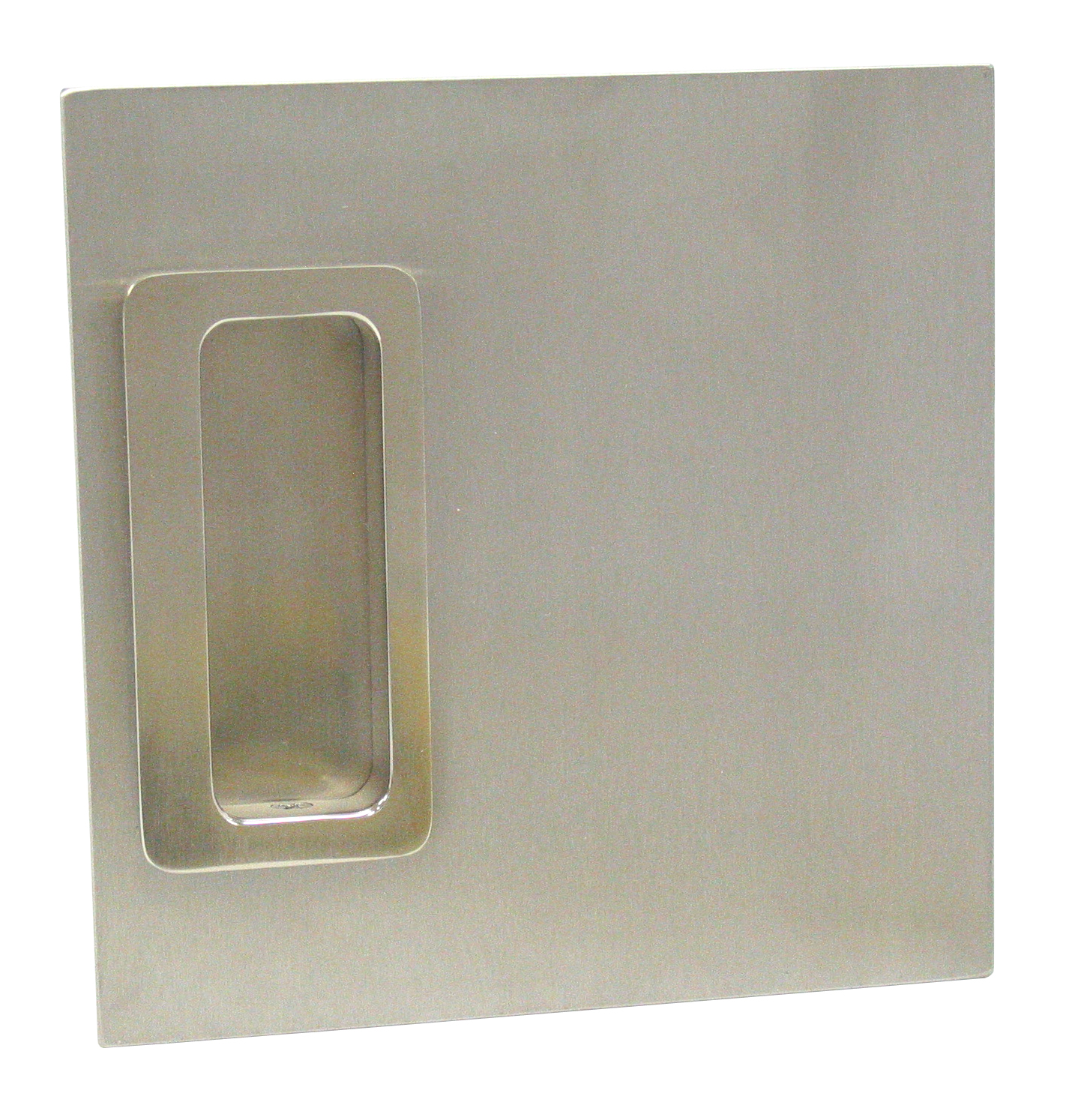

The Kaba 1500 Series flat form square door furniture is designed for use with Kaba mortice locks or similar locks and latches. The 1500 Series has been manufactured for commercial applications where high traffic and wear is expected. The levers or knobs are mounted on a high-quality 316-grade stainless steel sheet metal plate. Along with lever options, the 1500 Series offers pulls, knobs and plain plates.

Plates are designed to fit back to back with concealed fixing for the outside plate. Optional security screws are available for high-risk areas.

Key Features
  • Plates, levers and knobs are constructed from 316-grade stainless steel
  • Disabled access options available
  • Finish - Satin Stainless Steel
  • Plates are handed
  • Concealed fixing for outside plate
  • Suitable for doors 35-50mm thick (standard)
  • Accessories include Thick Door Kit, 150-000 Cam and Post Torx Screw pack
  • Plate size: 160mm x 160mm x 2mm thick
Scope of Use

Kaba 1500 Series Plate Furniture is suitable for high traffic, commercial applications.

Statement of Building Code Compliance

Fire Rating
The 1500 Series plate furniture is fire rated and complies with Australian Standard AS1905-1-2005 Part 1.

Disabled Access
A selection of the 1500 Series plate furniture complies with AS1428 - Design for Access and Mobility, depending on lever handle and turn snib selection.

Documents
BPIR Product Statement: dormakaba Door Furniture

v1.0 July 2024

Brochure
Additional Information

dormakaba offer a comprehensive portfolio of products and services for security and access for rooms and buildings.
