Electromagnetic Locks
Description

Kaba offers leading technological solutions for mechanical, mechatronic and electronic security applications that satisfy a wide variety of security needs. This product range now includes KES-2100, Kaba’s new fully monitored electric strike and a range of Electromagnetic Locks for installers of electronic access control solutions.

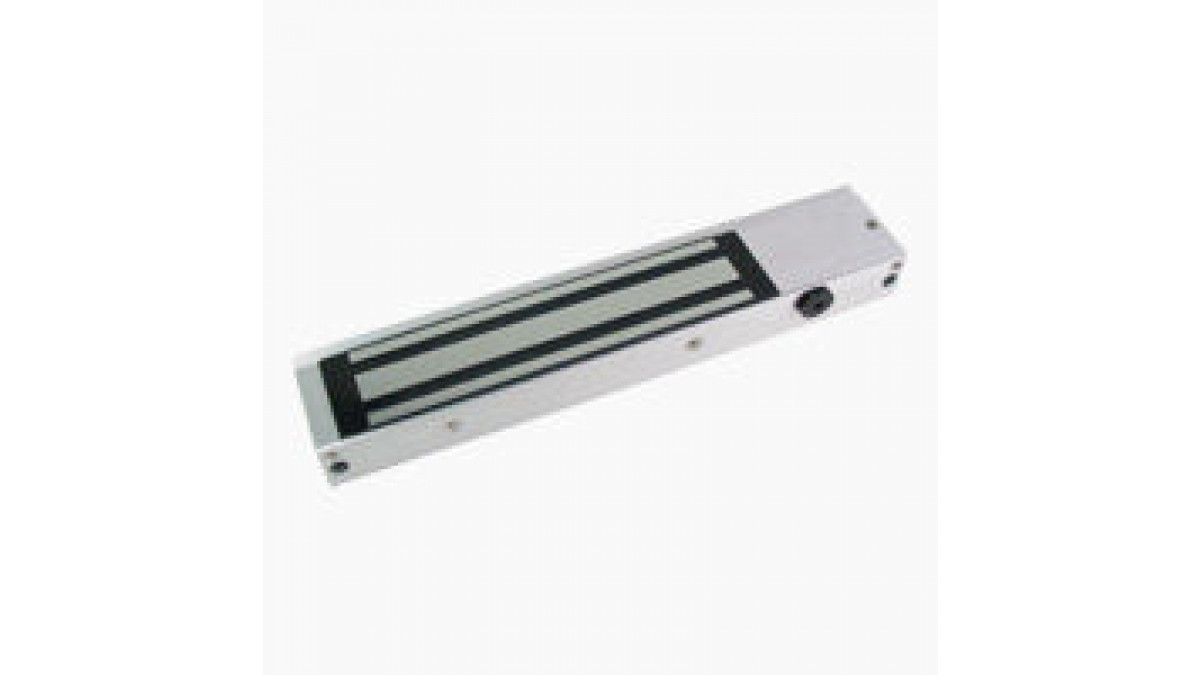

KML-2H

The KML-2H is an electromagnetic lock which can be used on single or surface mounted doors. It has a holding force 270KGS and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and an LED Monitor. It is C-Tick, UL Listed and CE approved, with a 2 hour fire rating.

Dimensions: 250L x 47W x 25D (mm) / 9.84” x 1.85” x 0.98”



KML-2 (Mortised Type)

The KML-2 is a mortised type electromagnetic lock which can be used on single, sliding, double mounted and mortised type doors. It has a holding force 270KGS and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved.

Dimensions: 250L x 47W x 25D (mm) / 9.84” x 1.85” x 0.98”



KML-6

The KML-6 is an electromagnetic lock which can be used on single or surface mounted doors. It has a holding force540KGS and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is CTick, UL Listed, CE approved and has a 2 hour fire rating.

Dimensions: 266L x 73W x 40D (mm) / 10.47” x 2.87” x 1.57”



KML-10

The KML-10 is an electromagnetic lock which can be used for double or surface mounted doors. It has a holding force 540KGS and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed, CE approved and has a 2 hour fire rating.

Dimensions: 532L x 73W x 40D (mm) / 20.94” x 2.87” x 1.57”



KML-CCW30

EML 300LBS/135KGS Surface Mounted / Single Door

Dimensions: 165L x 38.5W x 21D (mm) / 6.5” x 1.52” x 0.83”



KML-CCW30F (Mortised Type)

The KML-CCW30F is a mortised type electromagnetic lock which can be used for single, sliding, mortised type or double action doors. It has a holding force of 135KGS and dual voltage with lock sensor. It also features a built-in voltage spike suppressor and is UL Listed and CE approved.

Dimensions: 202L x 34.5W x 21D (mm) / 7.95” x 1.36” x 0.83”



KML-5000G (Gate Lock)

The KML-5000G is an electromagnetic gate lock which can be used on single, surface mounted or sliding doors. It has a holding force of 540KGS and dual voltage with lock sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved.

Dimensions: 220L x 63W x 40D (mm) / 7.99” x 2.87” x 1.57”
