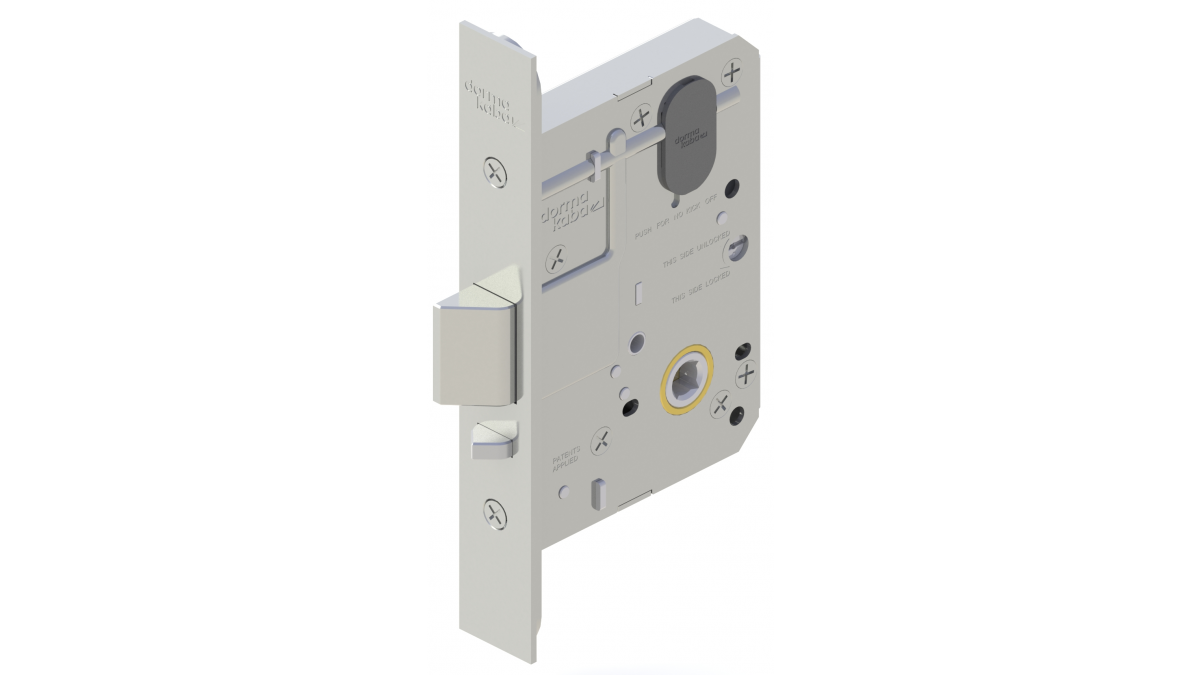

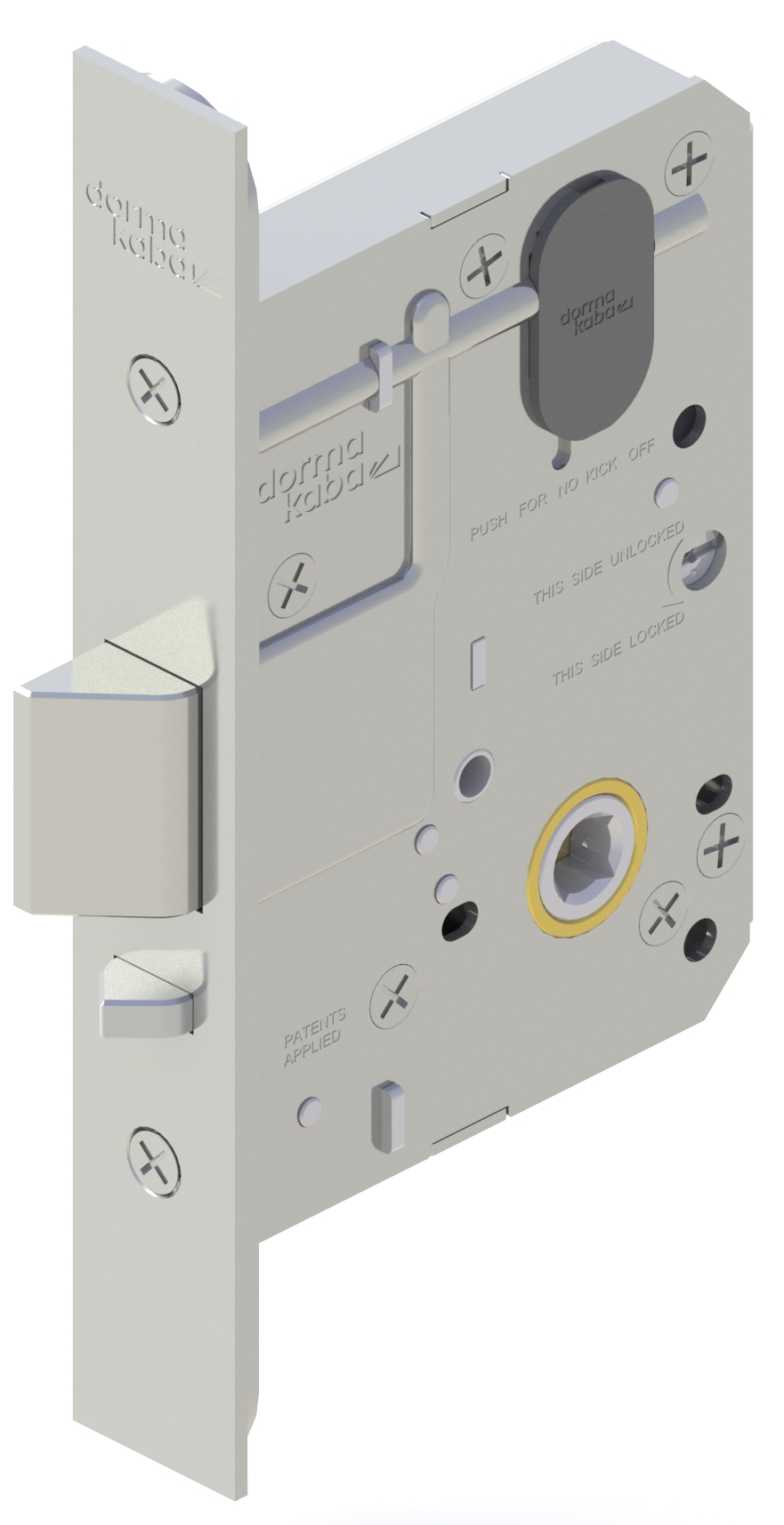

dormakaba MS2600 Mortice Locks
Description

The new dormakaba MS2600 Mortice Lock are heavy duty stainless steel mortice locks, designed, engineered and built for optimal performance across a full range of applications including education, healthcare, office, retail, municipal buildings and residential projects.

Key Features
  • Construction:
    • The mortice case, cover and faceplate are constructed of 304 grade stainless steel providing greater security than die cast mortice locks and better corrosion resistance
    • The lock spindle hubs, latch bolt, deadbolt and dead latch are constructed of high grade sintered stainless steel
    • Springs are of high grade spring steel
  • Security: dormakaba MS2600 locks conform to level SL8 (Physical Security) and D8 (Durability) in accordance with ANZ lock standard AS/NZS 4145.2·2008
  • Strikes: Universal 'T' shape strike plate as standard
  • Anti-lockout (Kick off):
    • This function is built into the MS2602 Mortice Locks and can be easily activated or de-activated
    • Primary lock is supplied de-activated; refer to functions for further information
  • Hold back: The MS2602 offers a latch hold back function via a 130 cylinder with a hold back cam (CAM KH) ordered separately, with or without cylinder
  • Rebate kits:  Available as accessory to convert the MS2600 mortice locks into a rebated unit
Categories
Locks
Scope of Use
  • Heavy duty applications
  • Education, healthcare, office, retail, municipal buildings, and residential projects
Statement of Building Code Compliance

dormakaba MS2600 locks conform to level SL8 (Physical Security) and D8 (Durability) in accordance with ANZ lock standard AS/NZS 4145.2·2008.

Other Performance Attributes
  • Construction:
    • The mortice case, cover and faceplate are constructed of 304 grade stainless steel providing greater security than die cast mortice locks and better corrosion resistance
    • The lock spindle hubs, latch bolt, deadbolt and dead latch are constructed of high grade sintered stainless steel
    • Springs are of high grade spring steel
  • Strikes: Universal 'T' shape strike plate as standard
  • Anti-lockout (Kick off):
    • This function is built into the MS2602 Mortice Locks and can be easily activated or de-activated
    • Primary lock is supplied de-activated; refer to functions for further information
  • Hold back: The MS2602 offers a latch hold back function via a 130 cylinder with a hold back cam (CAM KH) ordered separately, with or without cylinder
Documents
BPIR Product Statement: dormakaba Mortice Locks

v1.0 July 2024

dormakaba offer a comprehensive portfolio of products and services for security and access for rooms and buildings.
