DORMA BTS Accessories
dormakaba
All products
bts zubehoer 1200x1200 jpg image slider product image slider zoom
Description

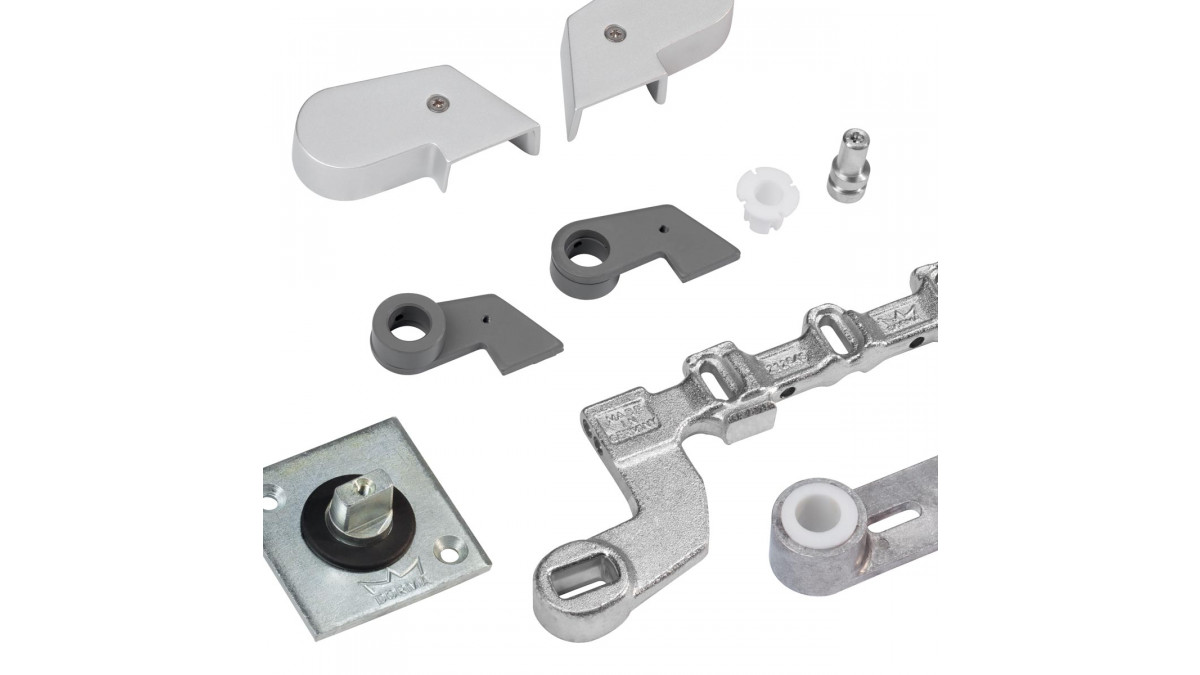

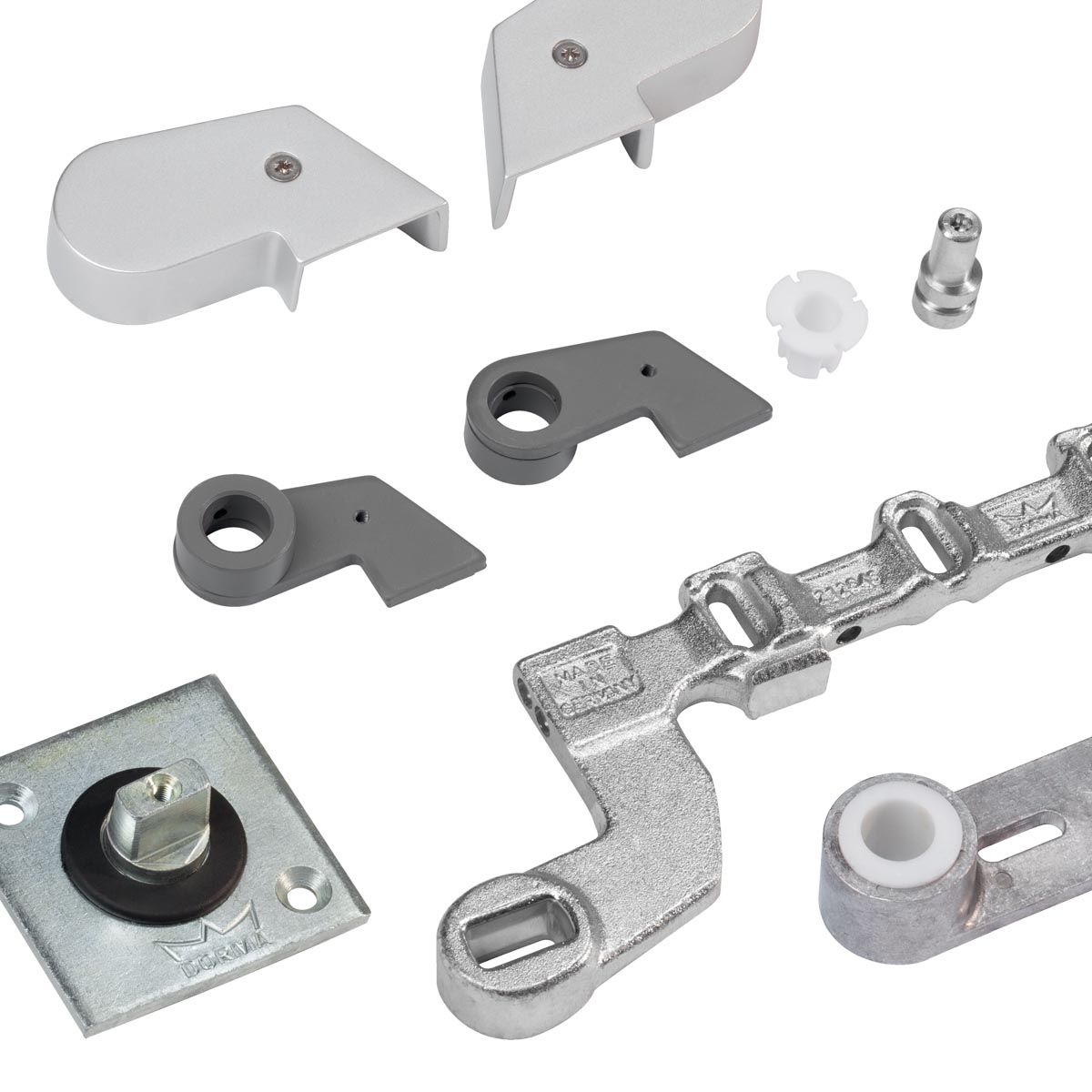

A comprehensive range of pivot accessories for floor springs and transom closers which can be used with a wide variety of door constructions and floor coverings.

Key Features
  • Suitable for single action and double action door types
  • For use on flush-closing and rebated doors and butt hung door types
  • Choose according to door construction: Steel, aluminium, timber and glass
  • Broad range: door straps, top centres, pivot bearings and spindle inserts
Categories
Automatic Doors
Ranges
Architectural Hardware
Scope of Use
  • Wide range of additional accessories for BTS Floorsprings including extended spindles, offset spindles, lever arms, pivot hinges and sealing compound.
  • For single and double action doors of various types, suitable for door widths up to 1400mm and a door weights of up to 300kg depending on hardware selected and door construction.  Non-handed parts for both left and right handed opening.
  • For double action steel, aluminium and timber doors, suitable for door widths up to 1400mm and a door weights of up to 300kg depending on hardware selected and door construction. Non-handed parts for both left and right handed opening.
  • Pivot bearings are available with extended spindles in increments of 5mm to a maximum of 50mm. Pivot bearings available for door weights up to 300kg.
Documents
Warranty
pdf
Brochure
pdf
Additional Information
URL
