Description

CS SoundStop combines all the benefits of standard models with the added feature of measured acoustic ratings up to STC 42 / RW 42 dB. These units are supplied complete with a specialised acoustic door panel when an acoustic rating above STC 31 is required.

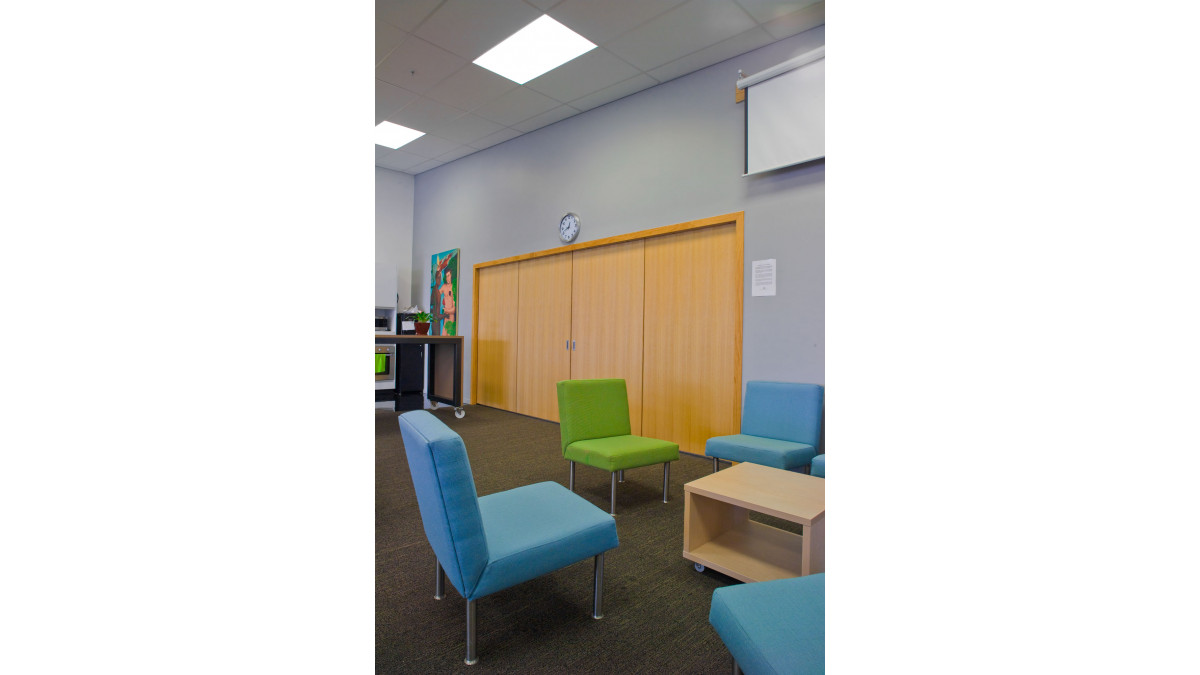

SoundStop cavity sliders can be used in boardrooms or any other area requiring a level of privacy. Due to the weight of the door panels, it is advised that the doors do not slide fully back into the pocket.

The CS AluTec aluminium door leaf is also available for use with the SoundStop cavity slider. It has been tested to STC 36 / RW 36 dB, and is suitable for single doors up to 2400 x 2200mm. GIB Noiseline 13mm linings must be used for this option.

Key Features

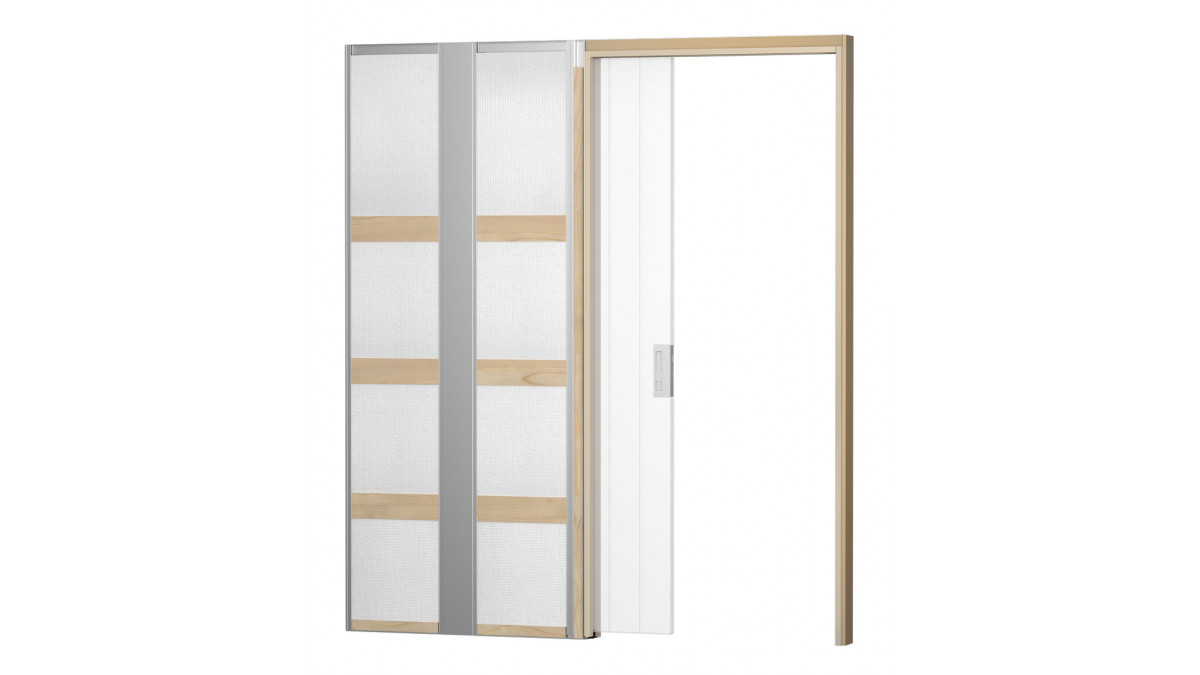

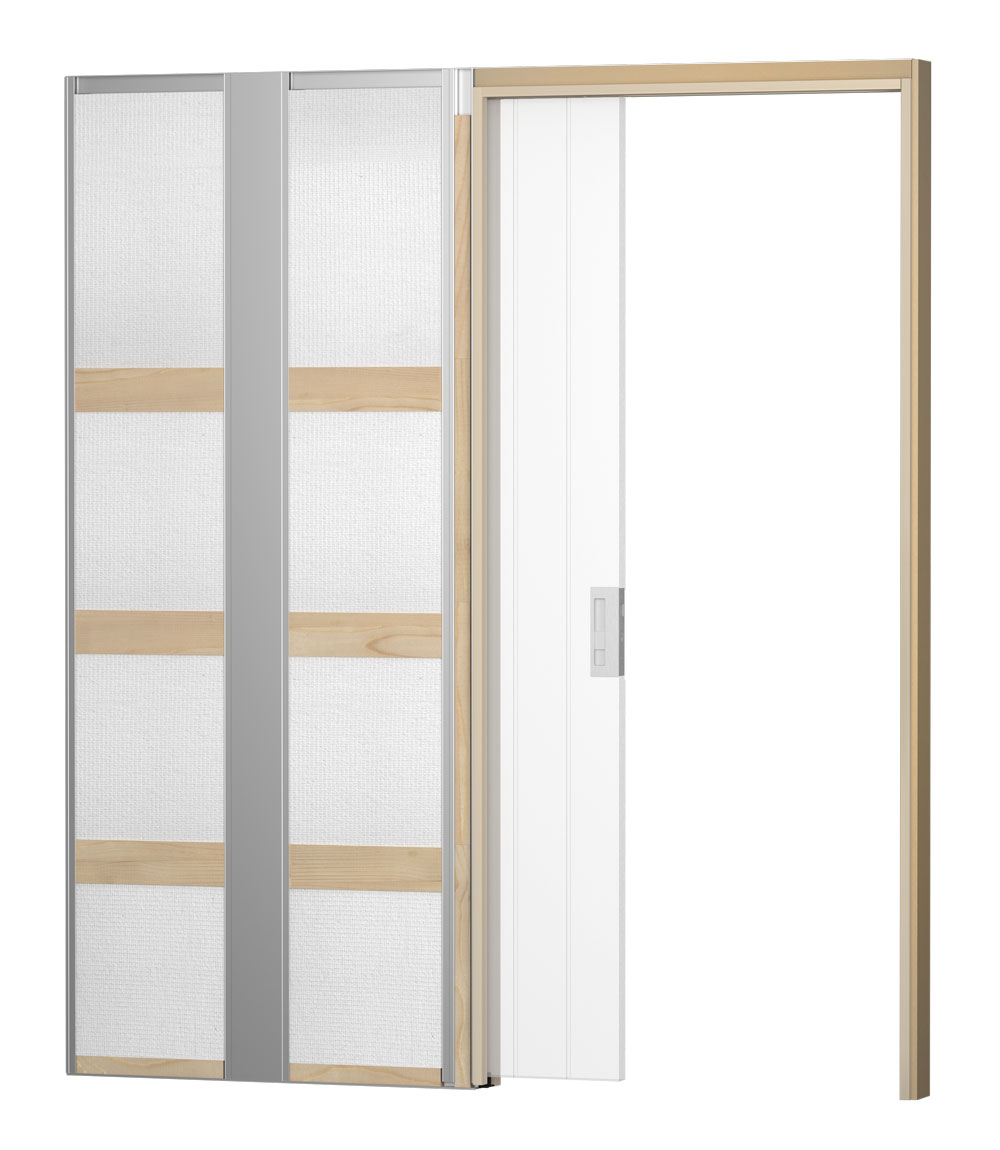

Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
Door cannot jump off the track

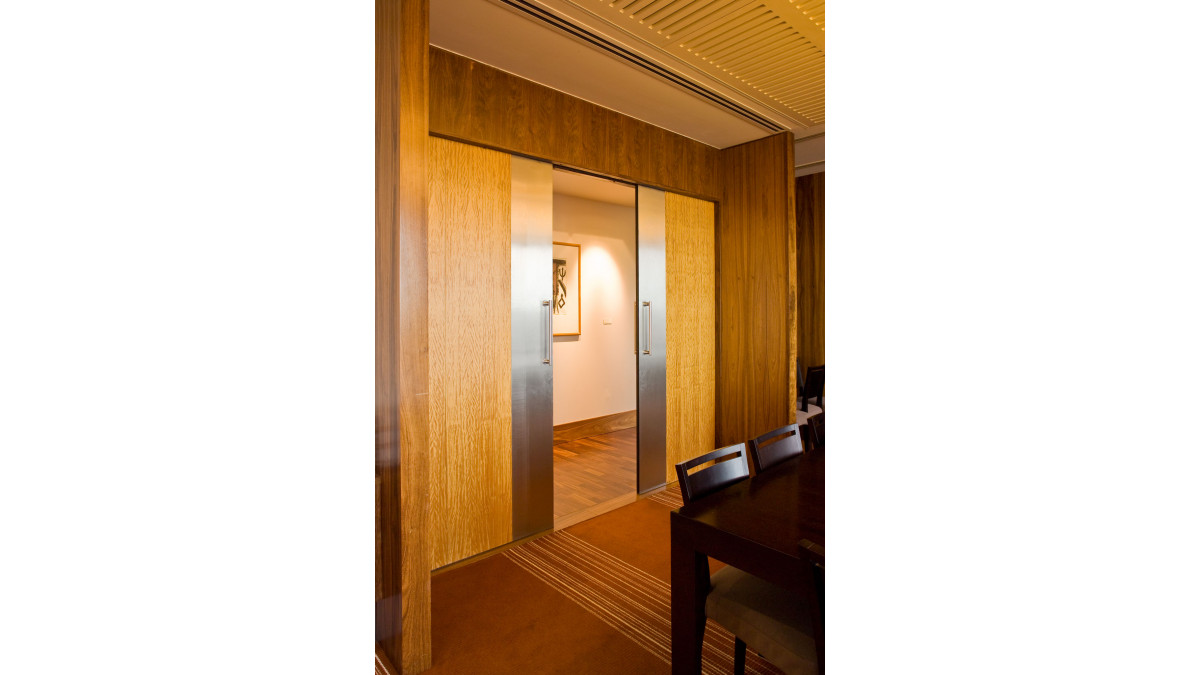

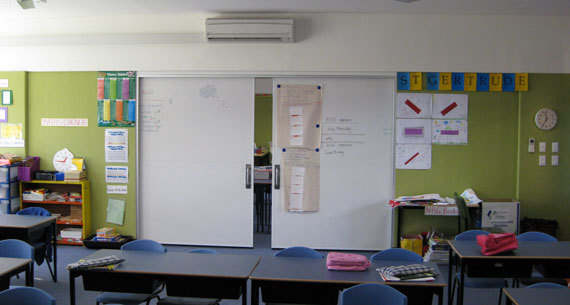

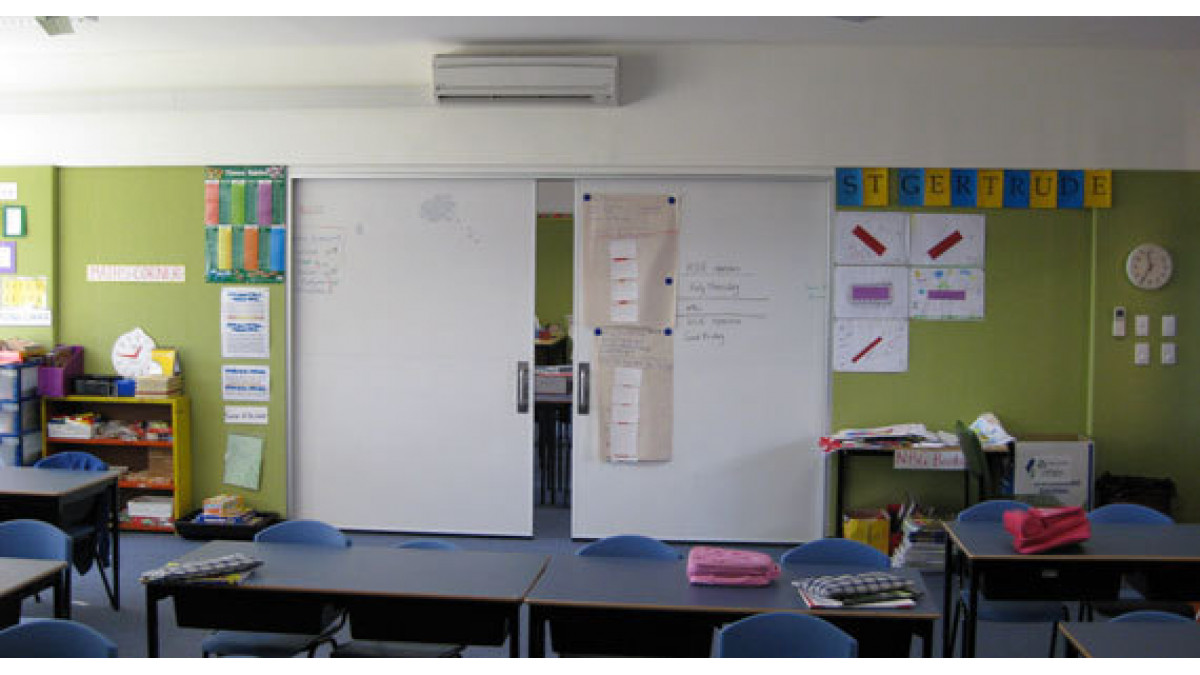

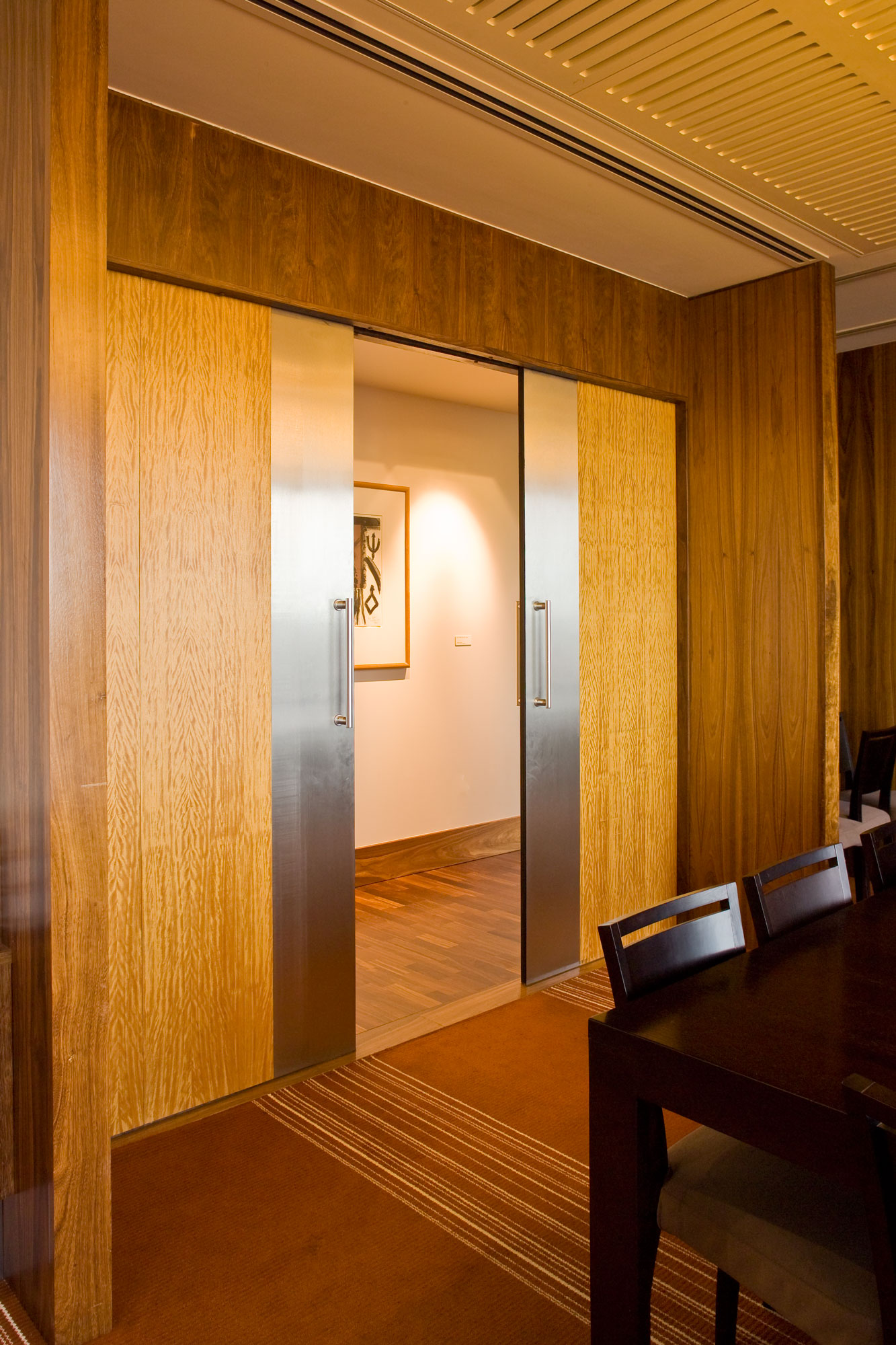

Available as single or bi-parting (double) units
Tested by Acoustic Testing Services Ltd
Door and carriages can be removed without removing wall linings
Fits into a standard thickness wall (90mm framing)
Supplied fully assembled for on-site installation
No visible floor guides

Detail Options

Incorporate any of the following architectural detail options with the CS SoundStop cavity slider to create a specific look or to provide a unique solution:

ShadowLine
SquareStop
Extra-WideJambs
Hi-ImpactJambs
Protrude100
Servery

Ranges

CS Cavity Sliders

NZ Made

Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

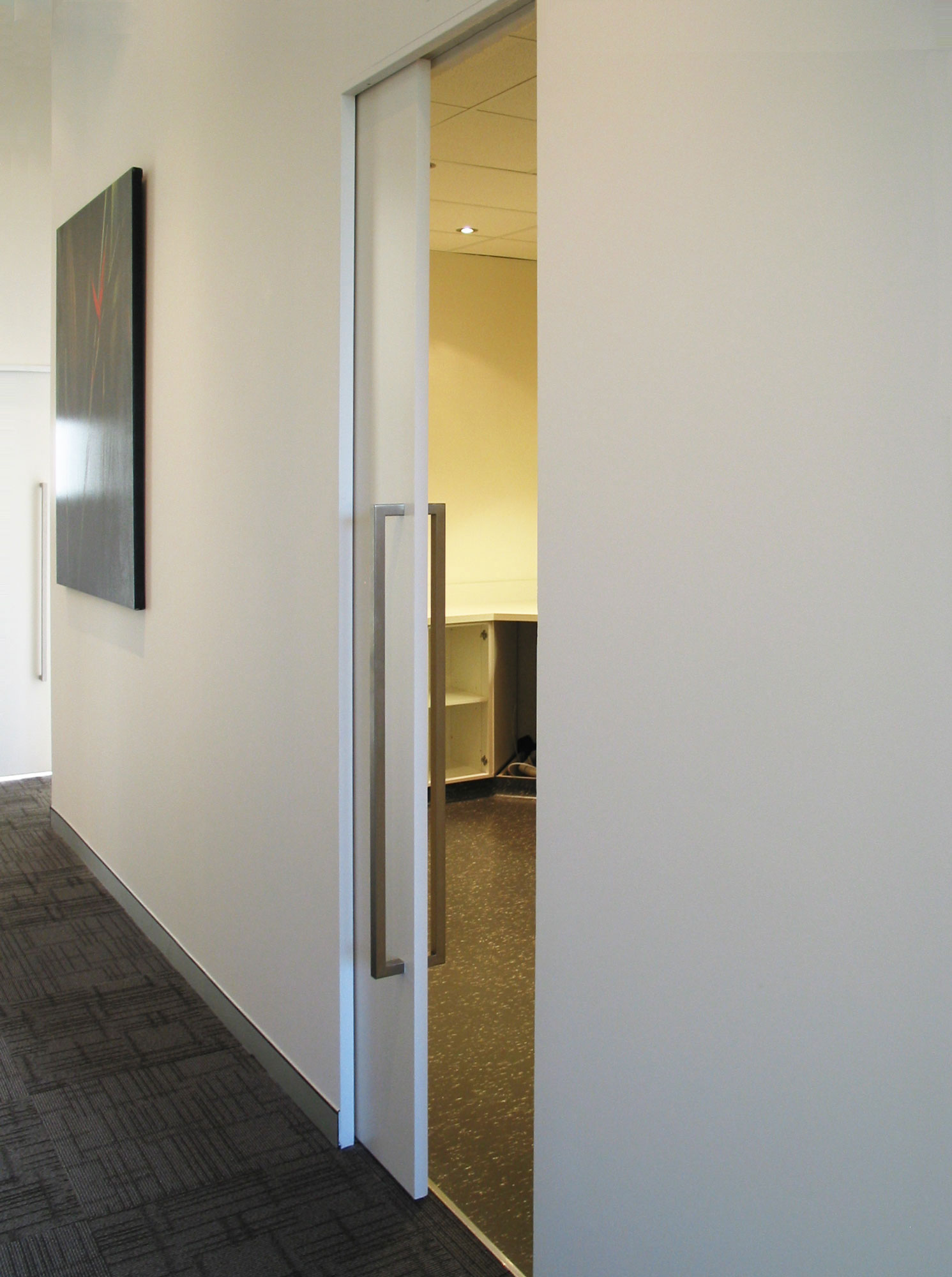

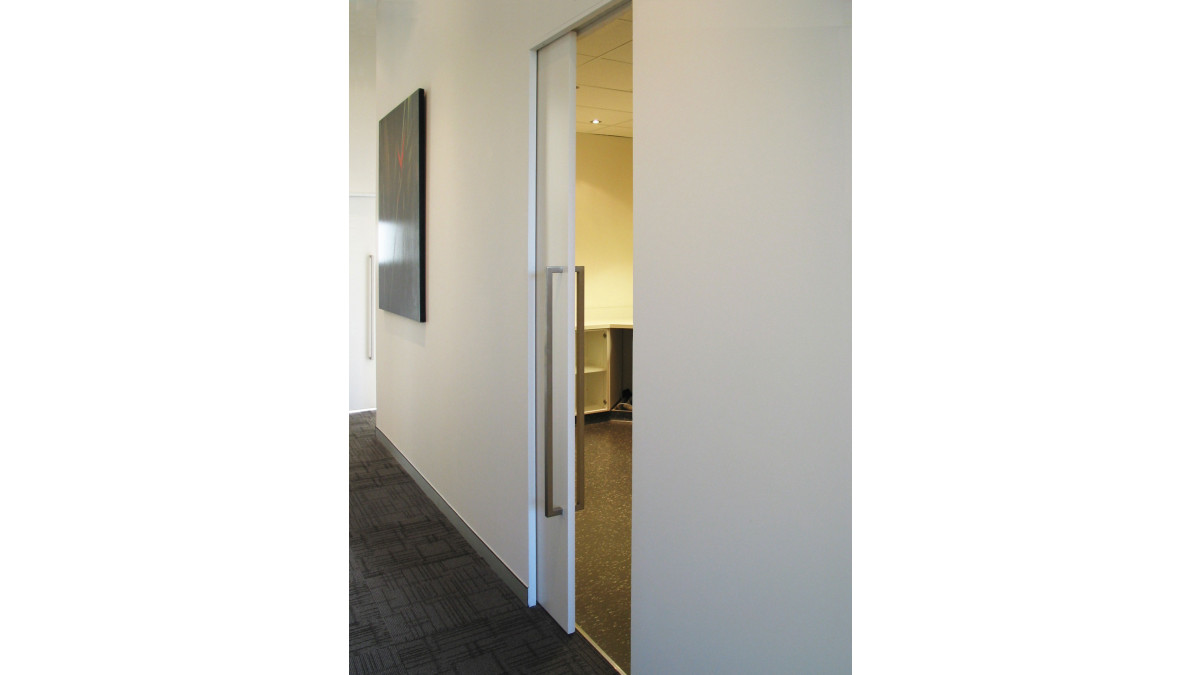

Acoustic door perfect for areas requiring privacy
The CS AluTec aluminium door leaf is also available for use with the SoundStop cavity slider

Limitations on Use

CS Cavity Sliders are not suitable for use with fire doors or smoke control doors
CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exit-ways
Due to the weight of the door leaves, it is advised that the doors do not slide fully back into the pocket
Minimum 13mm thick wall linings must be used
The CS AluTec aluminium door leaf is suitable for single doors up to 2400 x 2200mm. GIB Noiseline 13mm linings must be used with this option

Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes

Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
Door cannot jump off the track
CS Cavity Sliders are backed by a 10 year written guarantee
Tested by Acoustic Testing Services Ltd
Measured acoustic ratings up to STC 43
The CS AluTec aluminium door leaf has been tested to STC 36
