CS Premier 3T-190
Description

CS WardrobeSliders are a complete sliding wardrobe door solution. As a unit they come complete with track, guides and all jamb liners. Installation is simply a case of securing the unit within the wall framing, then lining and finishing. The range of double and triple top track sliding wardrobe door systems allow for doors up to 40mm thick with no visible floor guides. Match wardrobe doors to other internal hinged or cavity sliding doors.

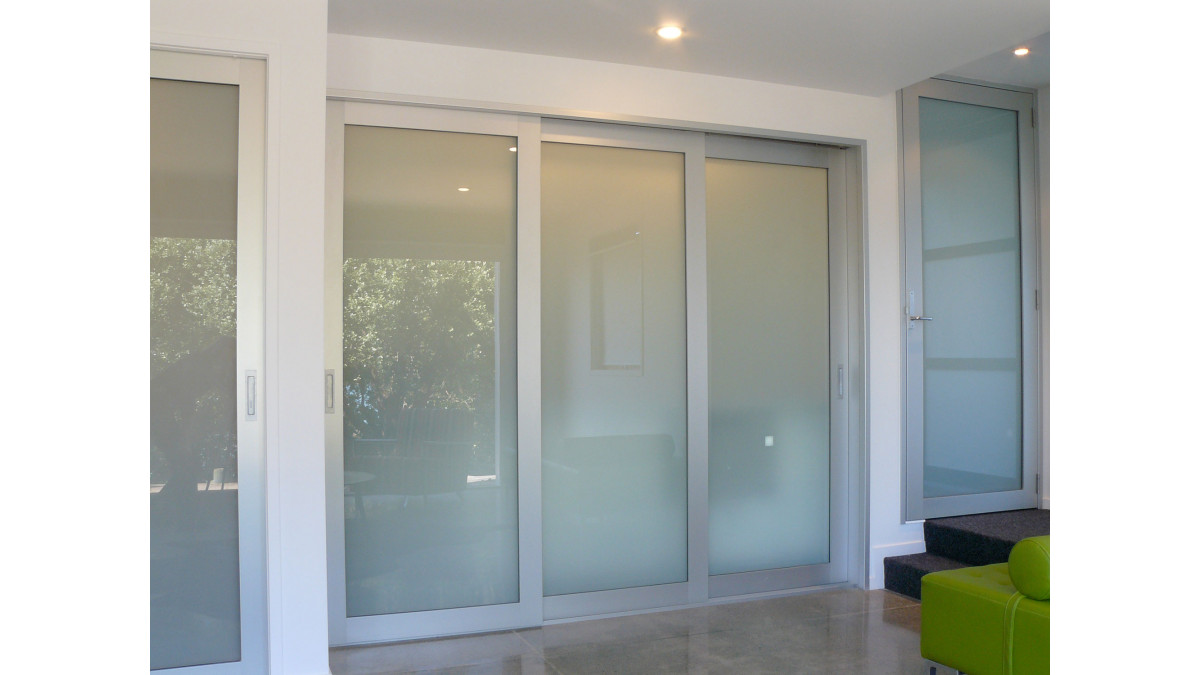

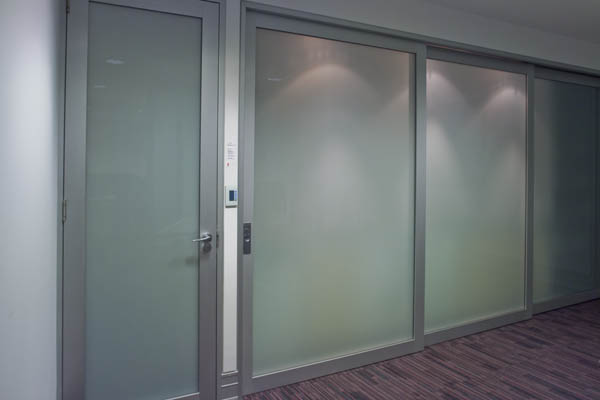

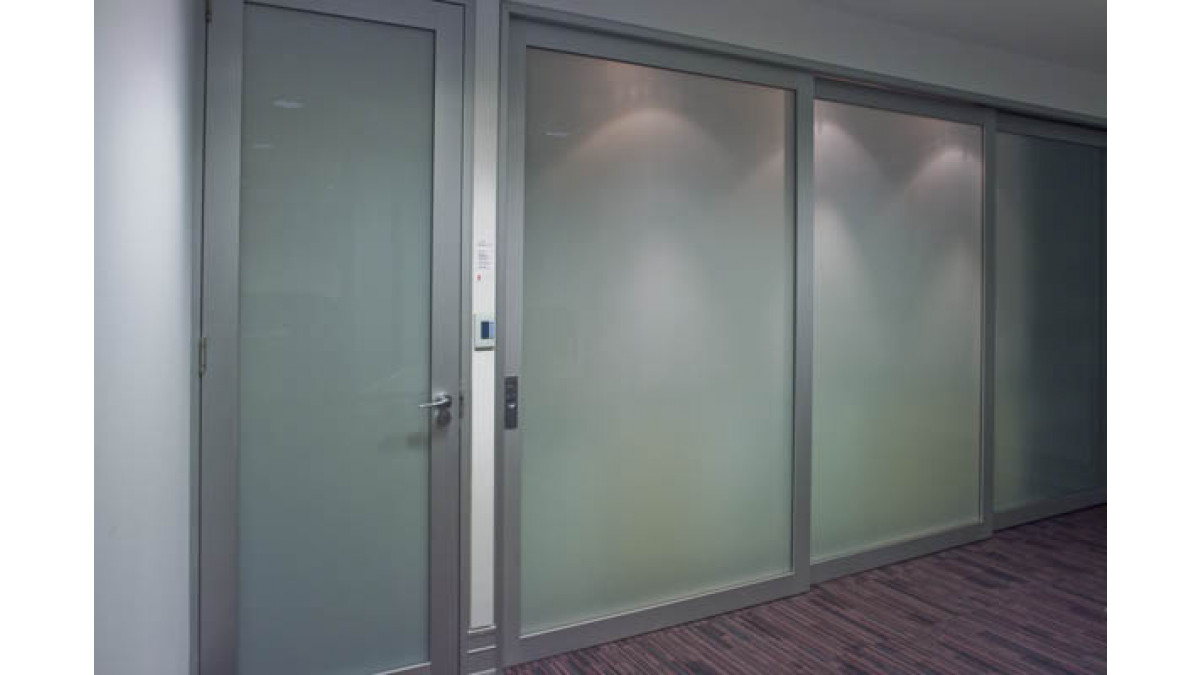

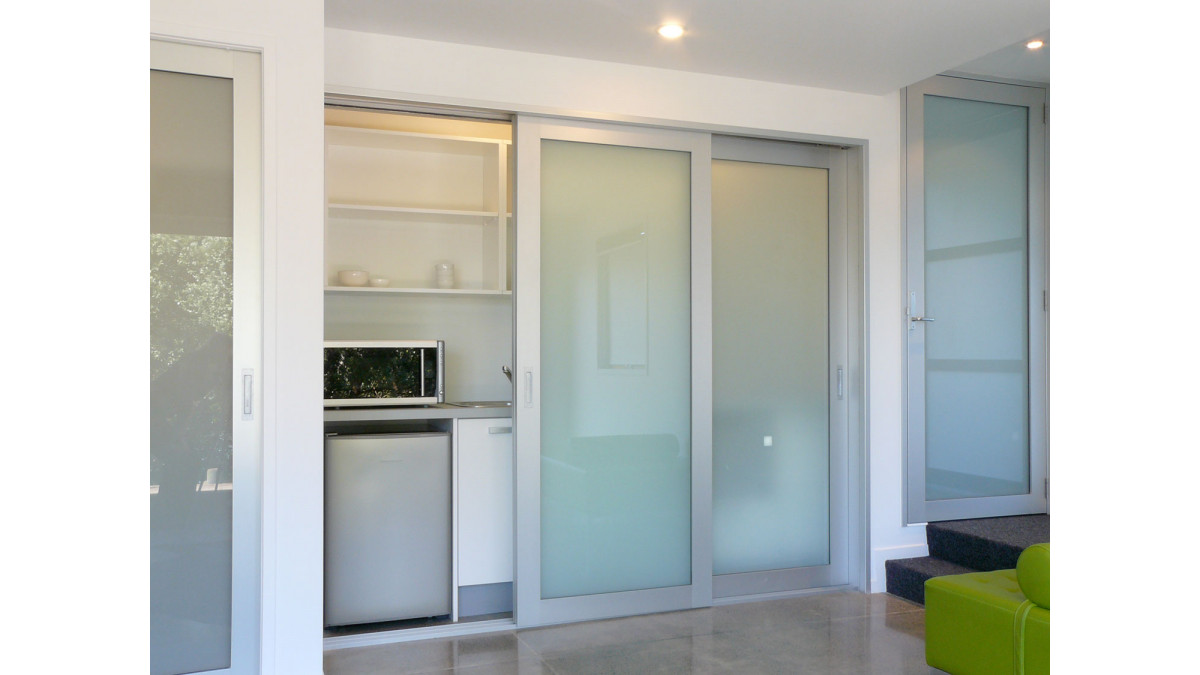

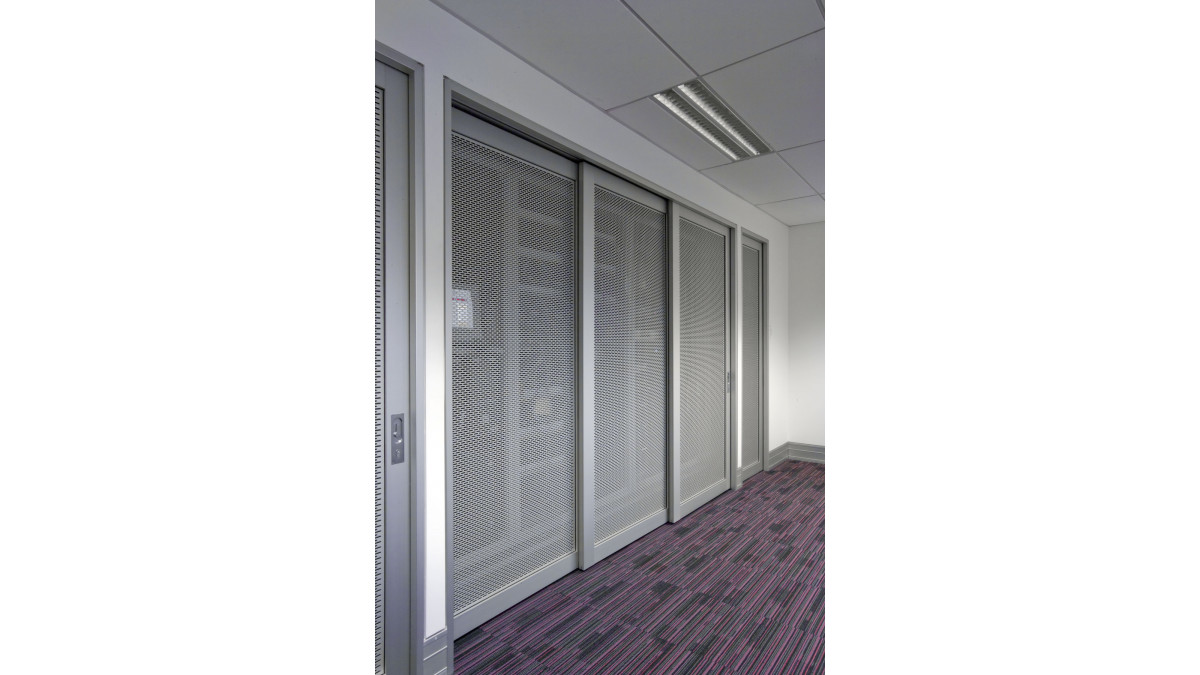

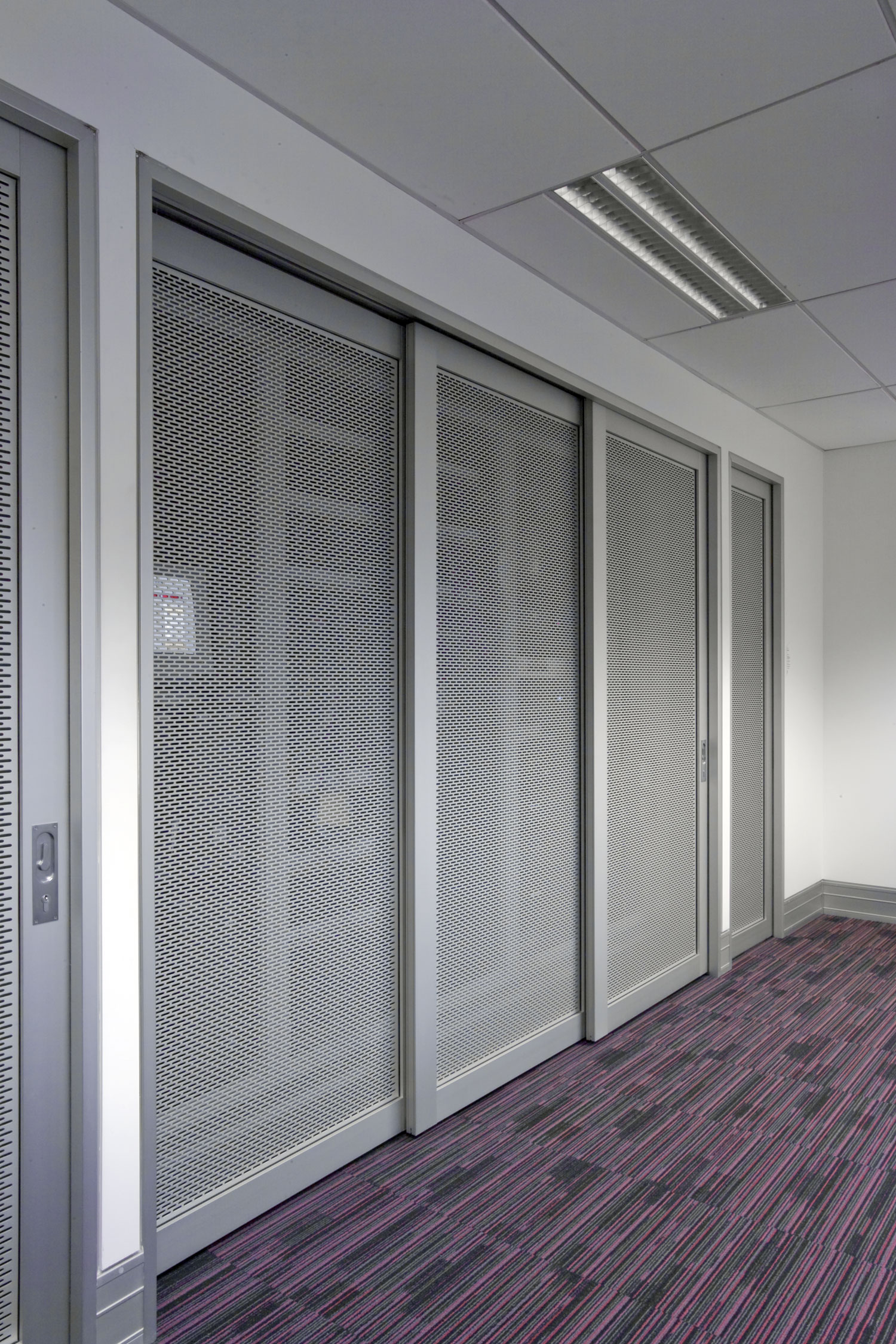

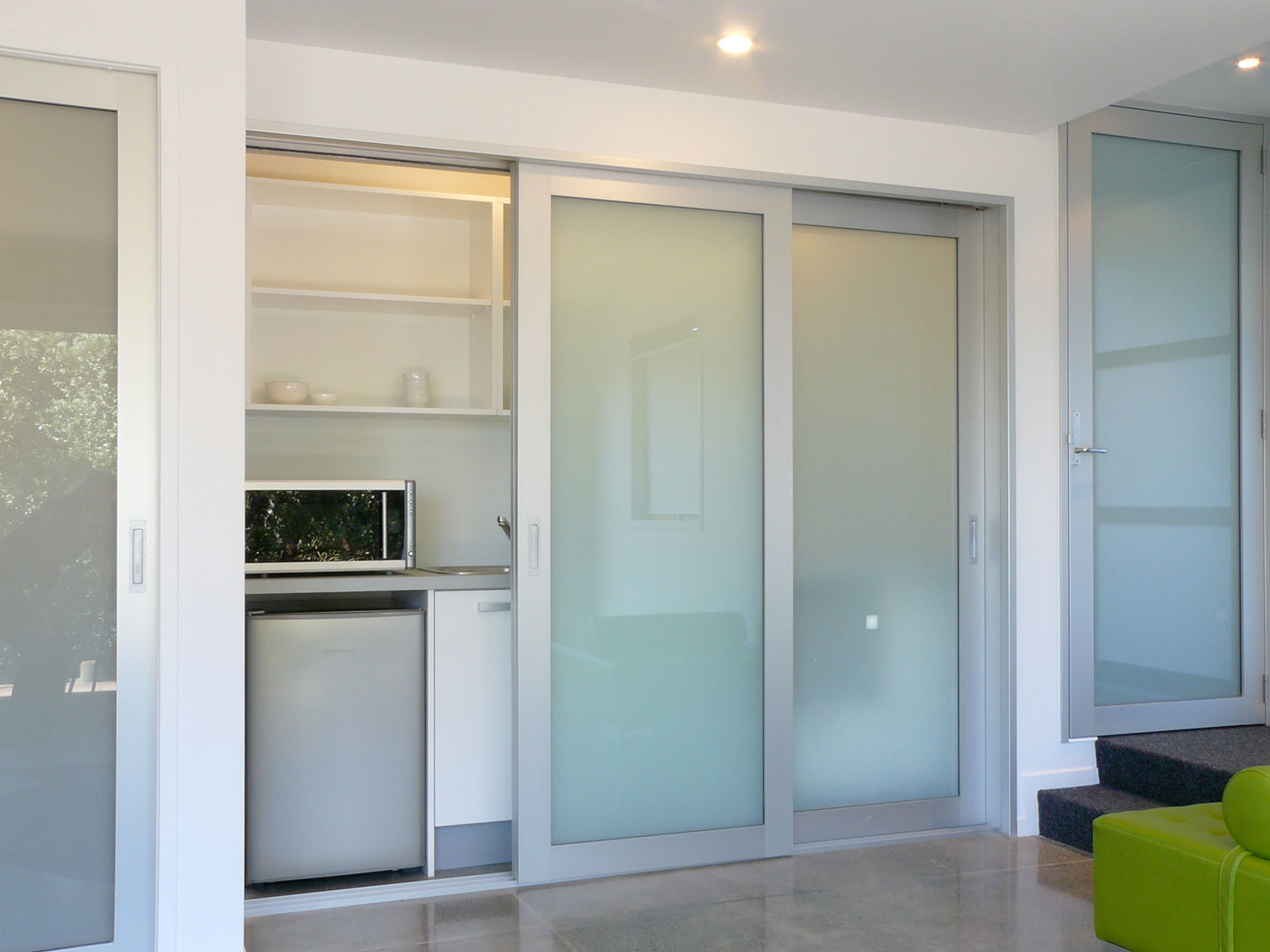

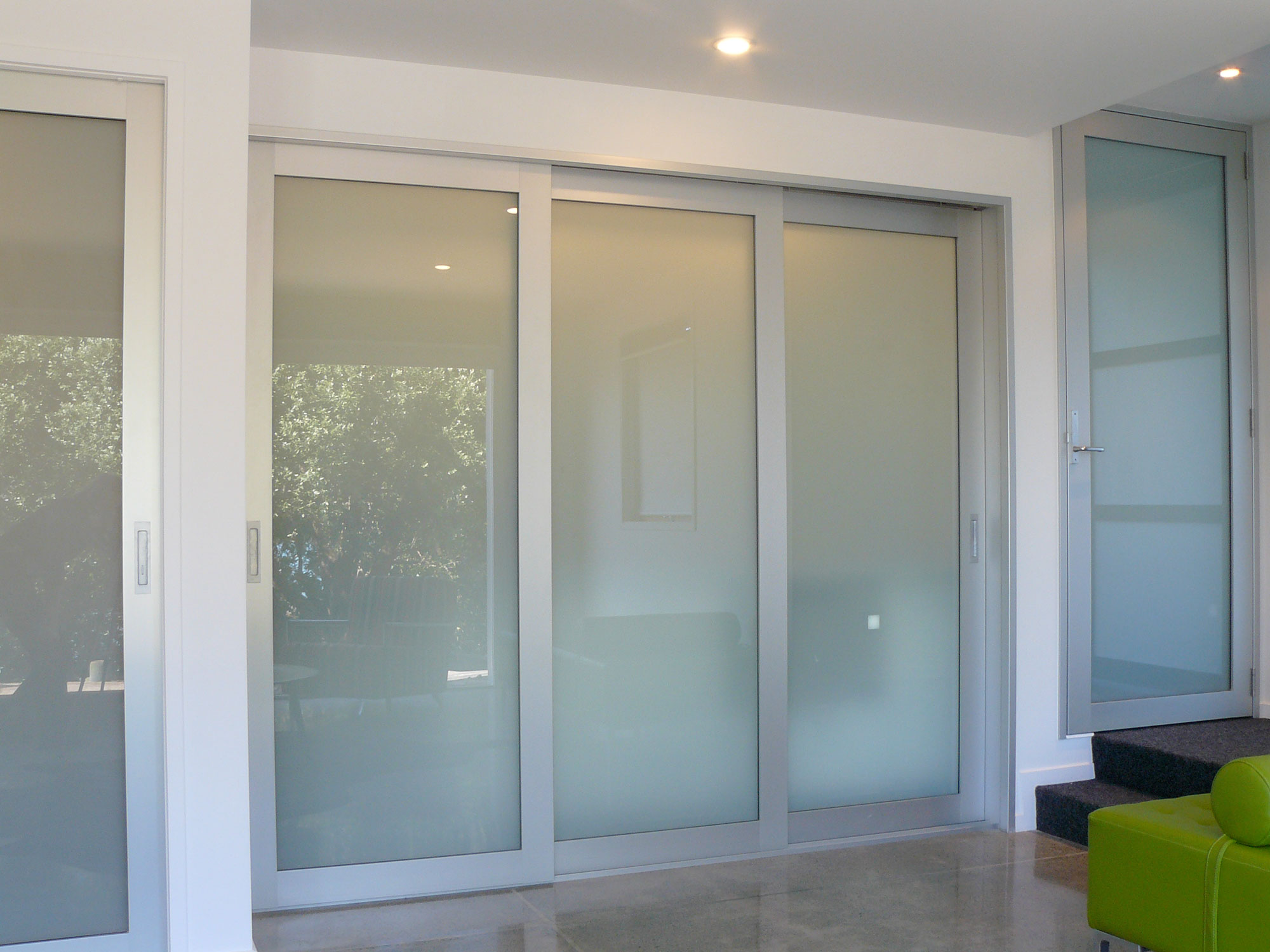

CS Premier 3T-190 is a complete wardrobe sliding door system that includes high quality track, carriages and timber head and closing jambs. WardrobeSliders incorporate the same quality track and carriage system that is used in our Cavity Sliders, allowing the confident use of over-height and over-width wardrobe doors. Full length floor guides are used for all 3T-190 set-ups.

Cavity and wardrobe doors can be supplied from the same joinery manufacturer, as the same standard thickness doors that suit CS CavitySliders (38mm thick) can be used in CS WardrobeSliders. This uniformity ensures a consistent look between doors in a given area or throughout a building.

Operation: Choose from standard M6 (120kg) or M8 (240kg) carriages or SofStop Twin soft open & close (50kg).

Key Features
  • Track is engineered from high-quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • Available as 3 or 6 door setups
  • Doors cannot jump off the track
  • Requires 190mm framing
  • Supplied fully assembled for on-site installation

Detail Options

Incorporate any of the following architectural detail options with CS Wardrobes Premier 3T-190 to create a specific look or to provide a unique solution:

  • Full-Height
  • NoClosingJamb
  • ShadowLine
  • SquareStop
  • Extra-WideJambs
Categories
Storage
NZ Made
NZ Made
Scope of Use

Suitable for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

  • Door thickness: 35-40mm
  • Maximum door weight: 240kg per door
  • Wall Framing: 190mm
In-Service History

CS Wardrobe Sliders have been successfully used in commercial and residential projects in New Zealand and Australia since 1994. CS Wardrobe Sliders are backed by a 10 year written guarantee.

Documents
Data Sheet
Maintenance Instructions
Warranty
Additional Information

CS Cavity Sliders (CS For Doors) are a manufacturer of cavity sliding door systems and related products.
