CS Partition-TopMountTrack
Description

CS Partition-TopMountTrack is a versatile track that best suits office fit-outs, but may be used in other applications where a single or dual top mount track is required. The track comes complete with pelmets offering 2 different finishes:

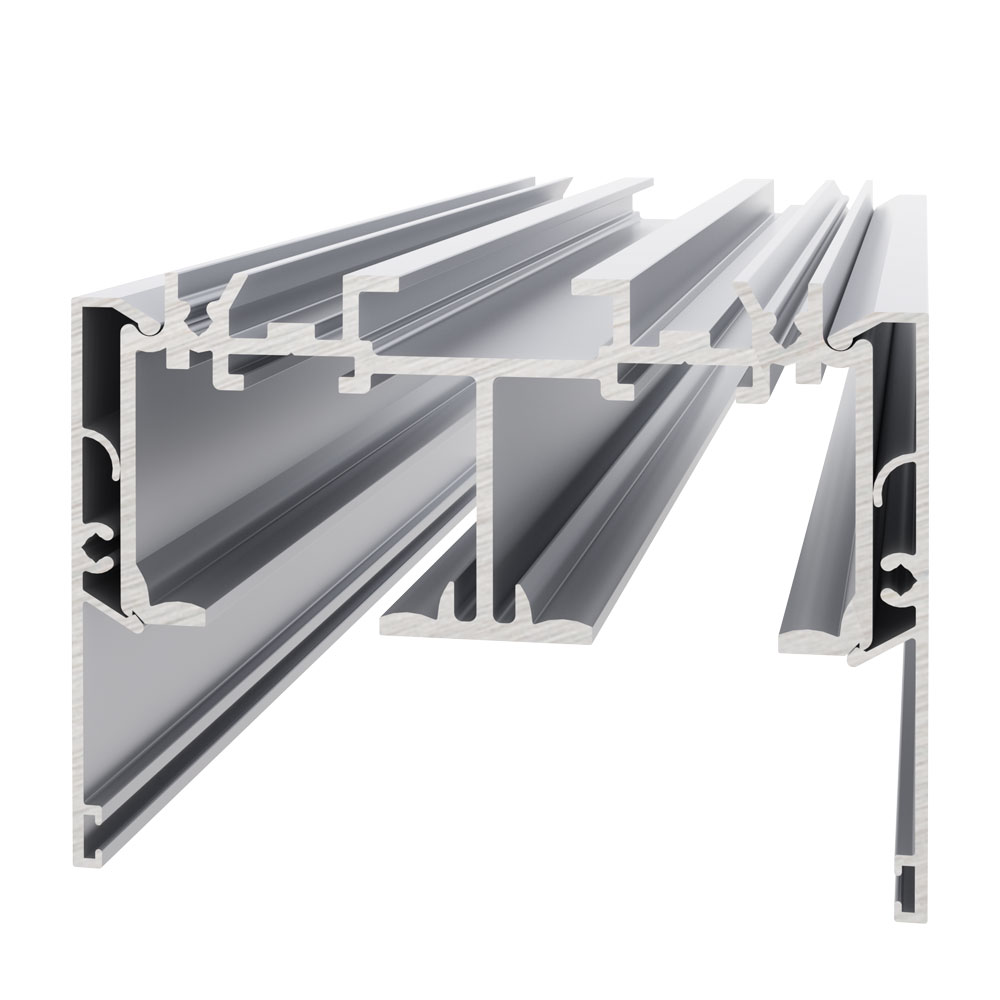

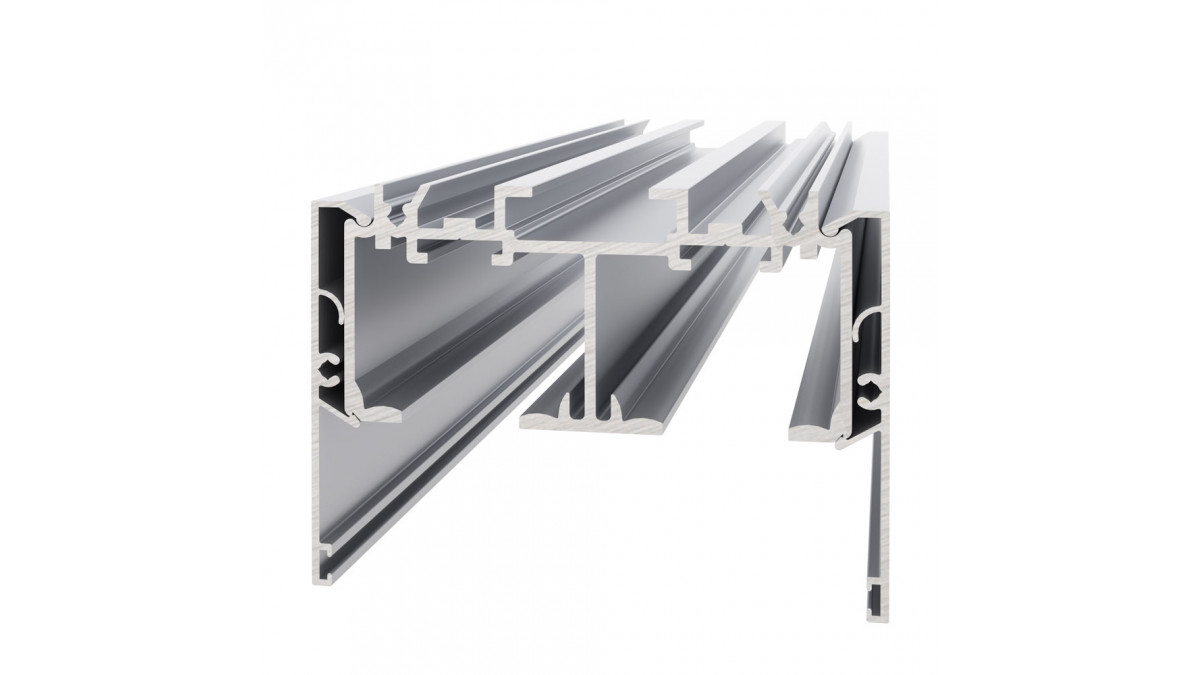

  • The track is fitted neatly under a bulk head with a flush pelmet either side

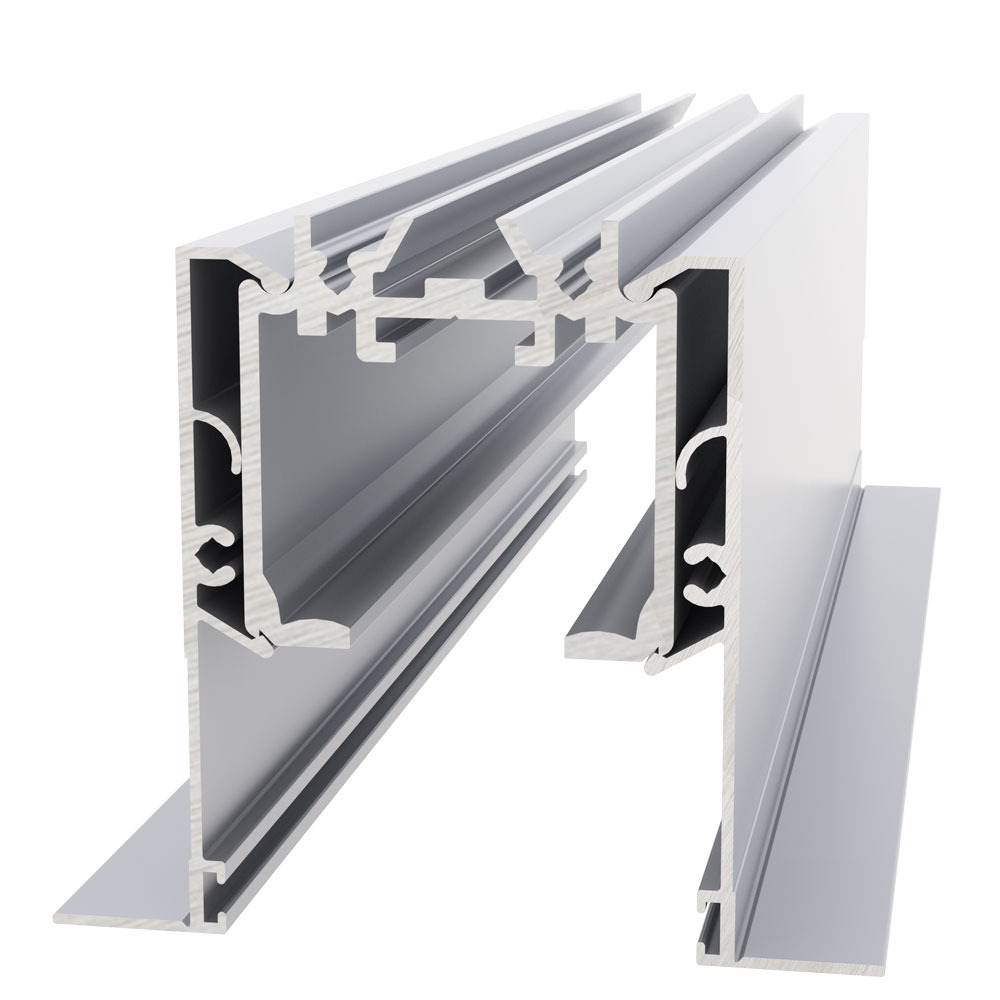

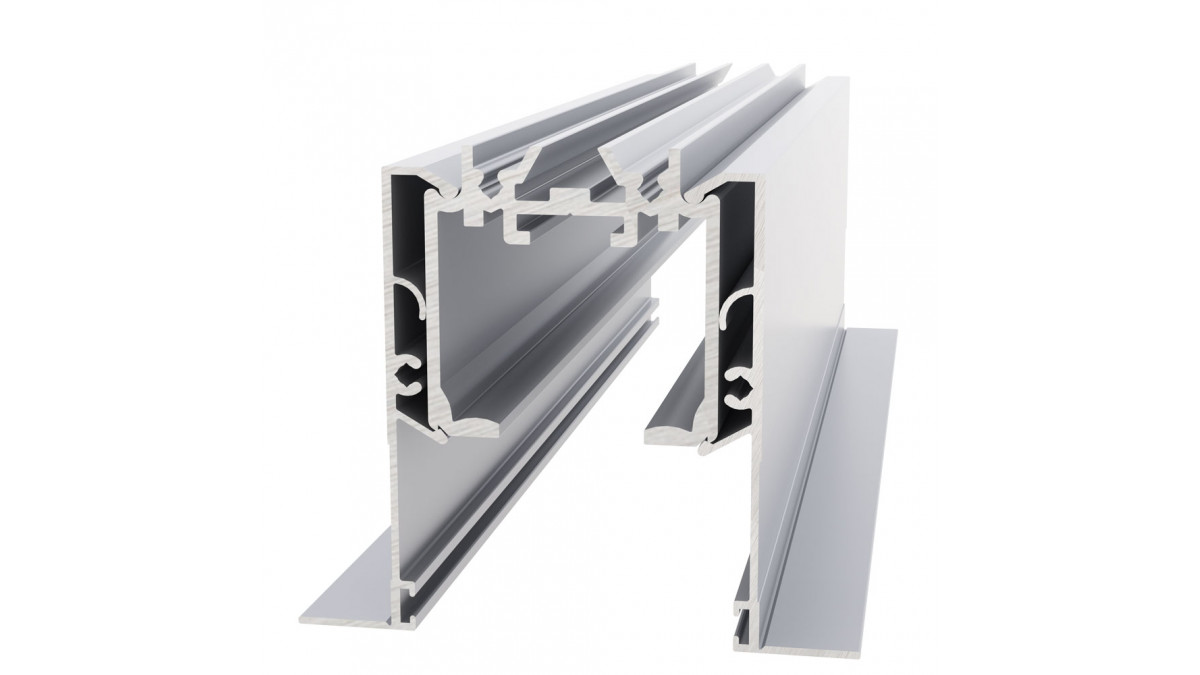

  • The track is mounted within a suspended ceiling and a legged pelmet is used to sit the ceiling tile on

Both pelmet options clip on to the track and can be powder coated or anodised, and in the case of the 'ceiling tile' option this is usually Penrose White to match the ceiling grid.

Operation: Choose from standard M6 (120kg) or M8 (240kg) carriages, SofStop Single soft close (100kg) or SofStop Twin soft open & close (50kg).

Key Features
  • High-quality, heavy duty extruded aluminium
  • Available in lengths up to 10m (pelmets 6m)
  • Tracks may be anodised or powder coated in a range of colour options
  • Tracks may be supplied in a single or double-track configuration
  • Supplied with one of two pelmet options: A flush pelmet, which is ideal for fixing under bulk heads; A pelmet that has a 20mm horizontal leg to accommodate ceiling tiles in office fit-outs

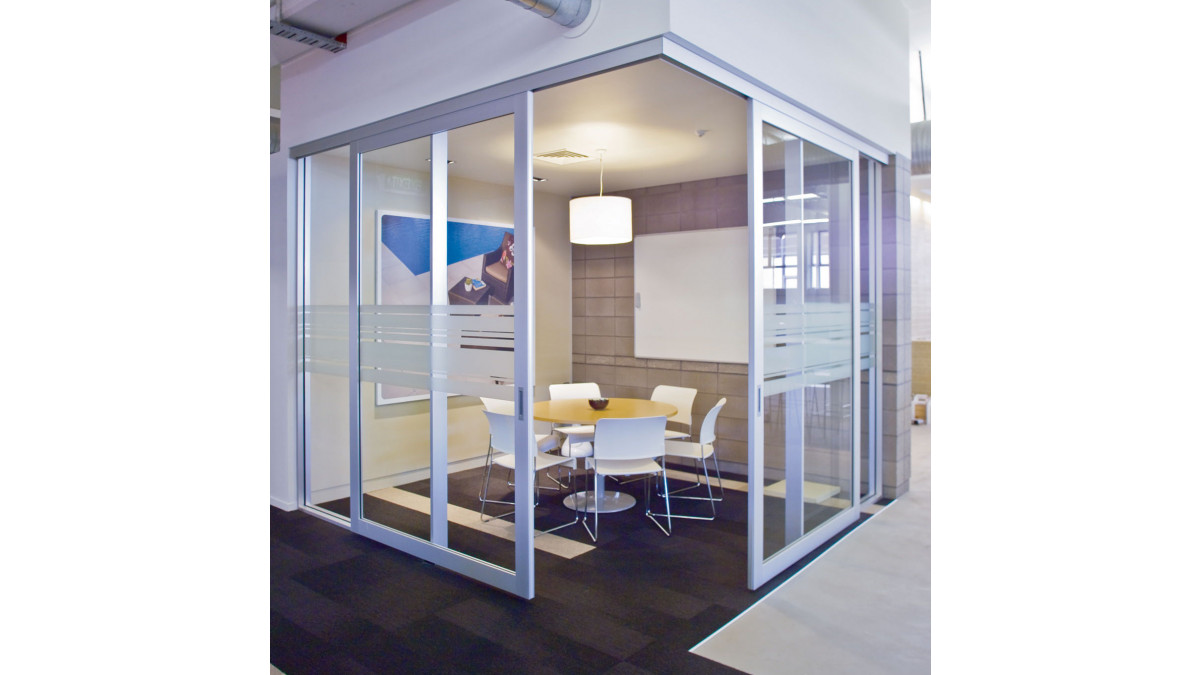

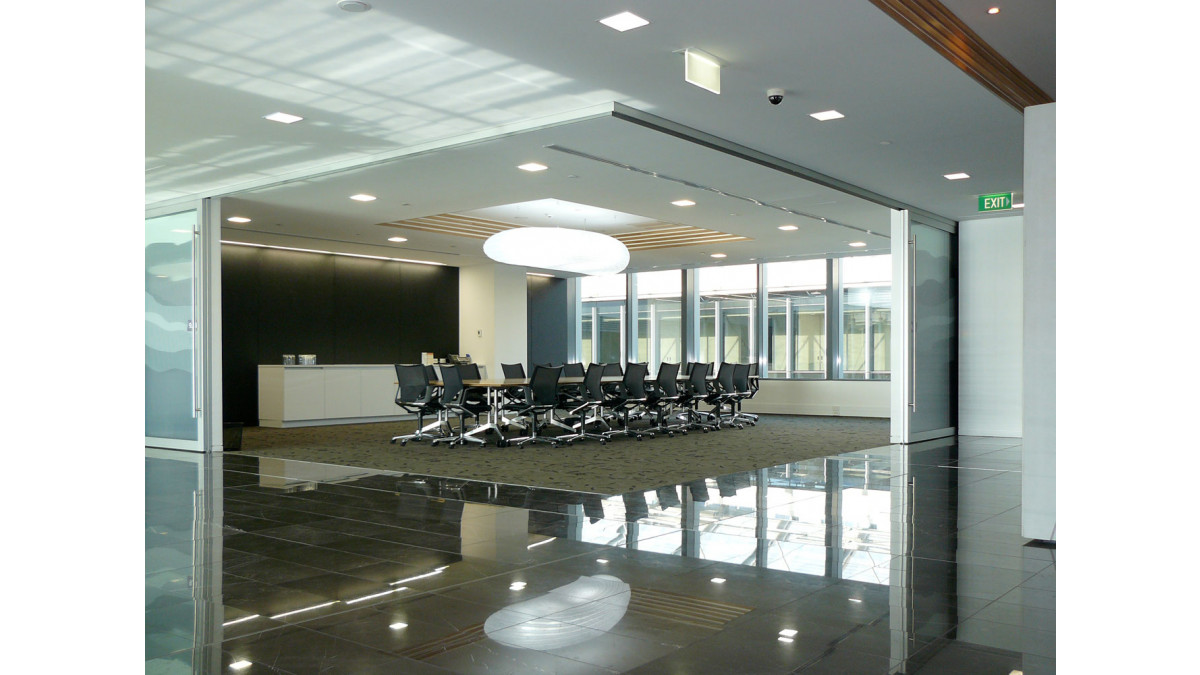

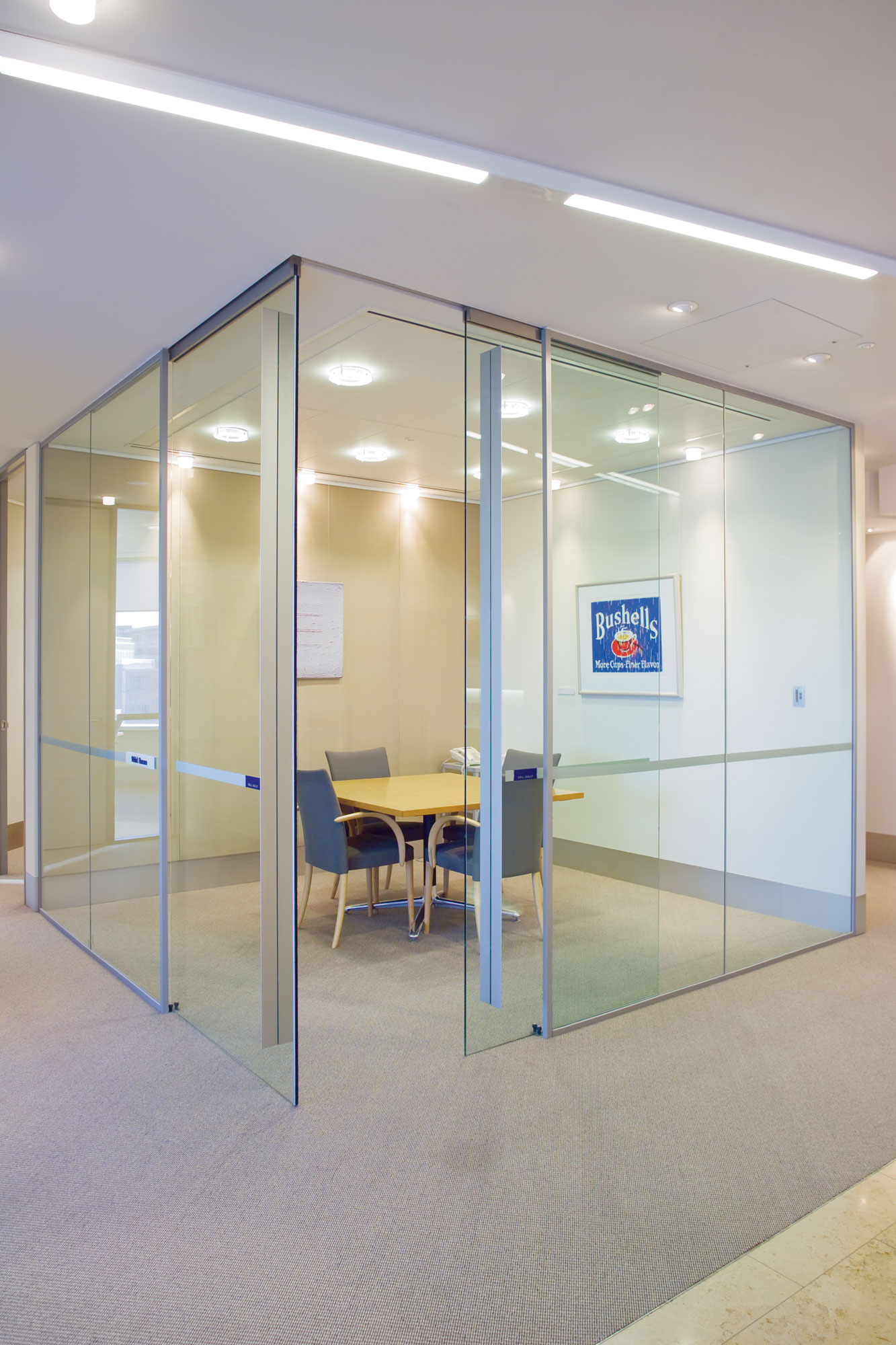

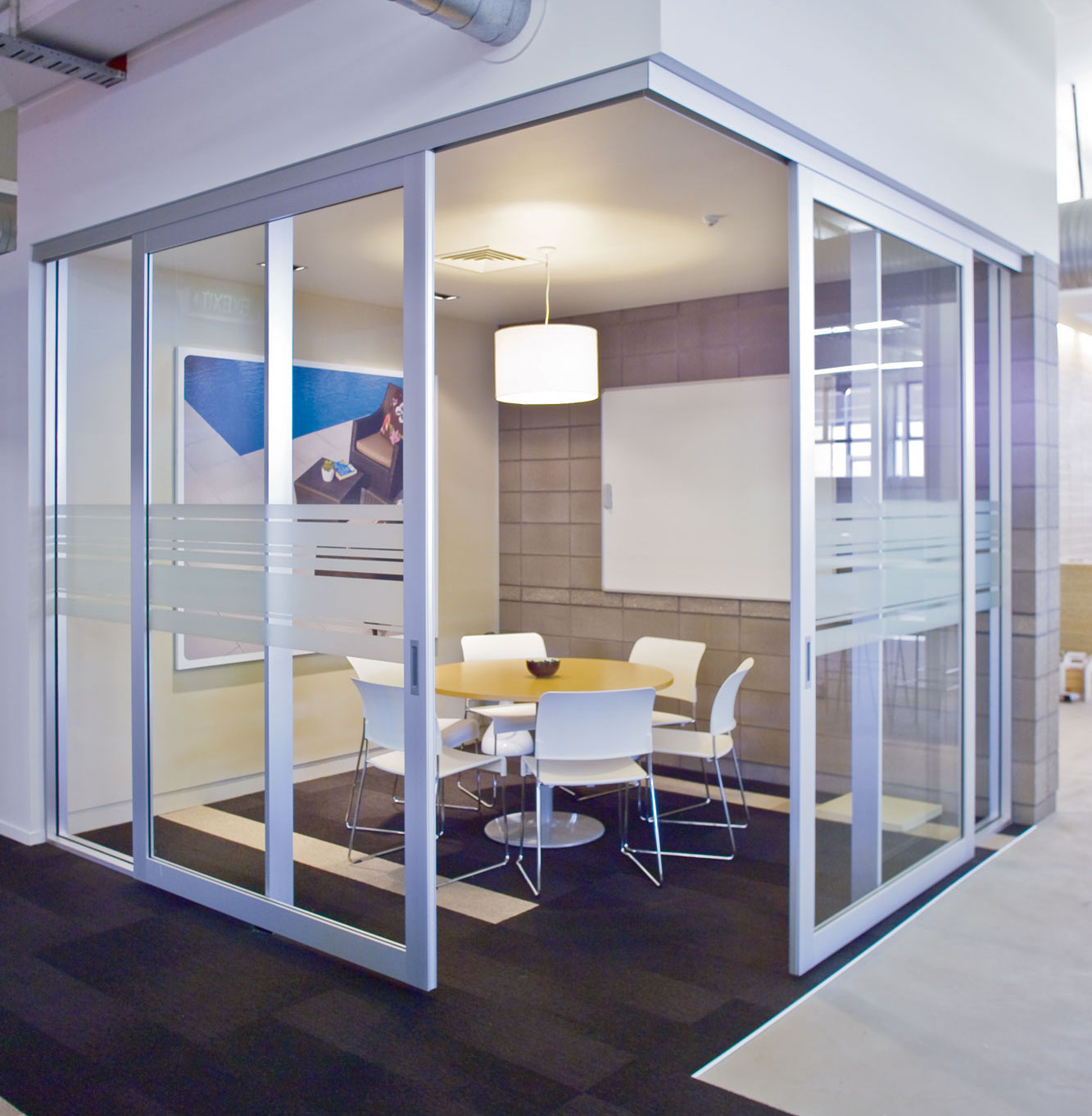

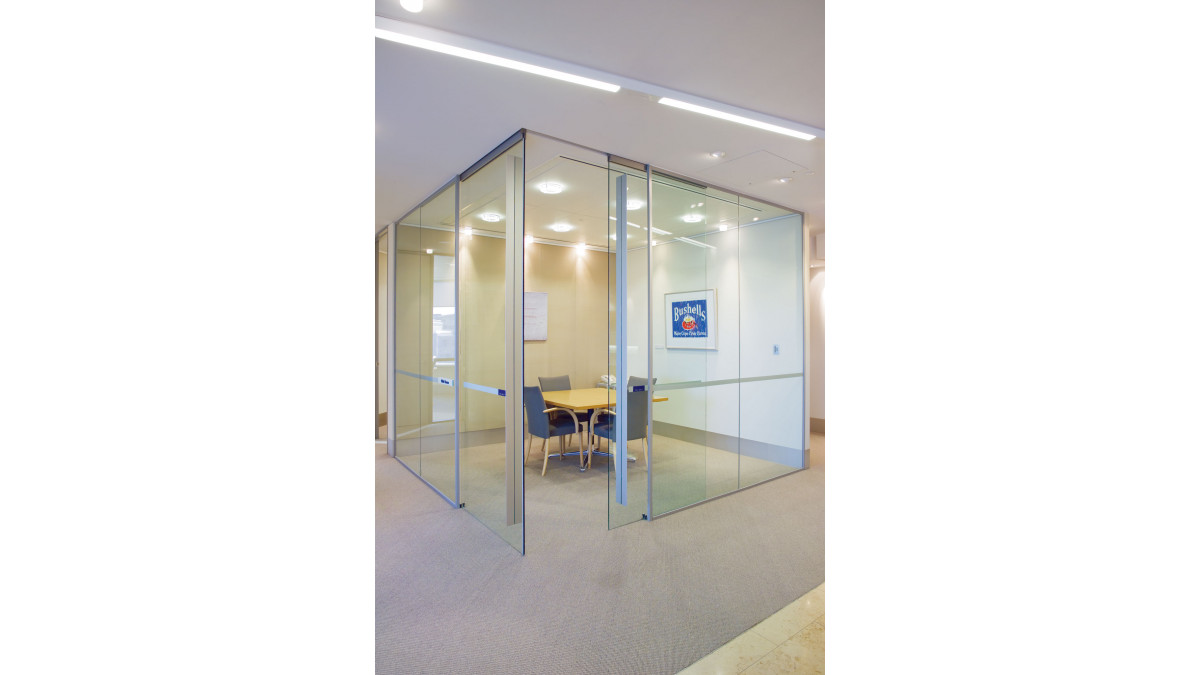

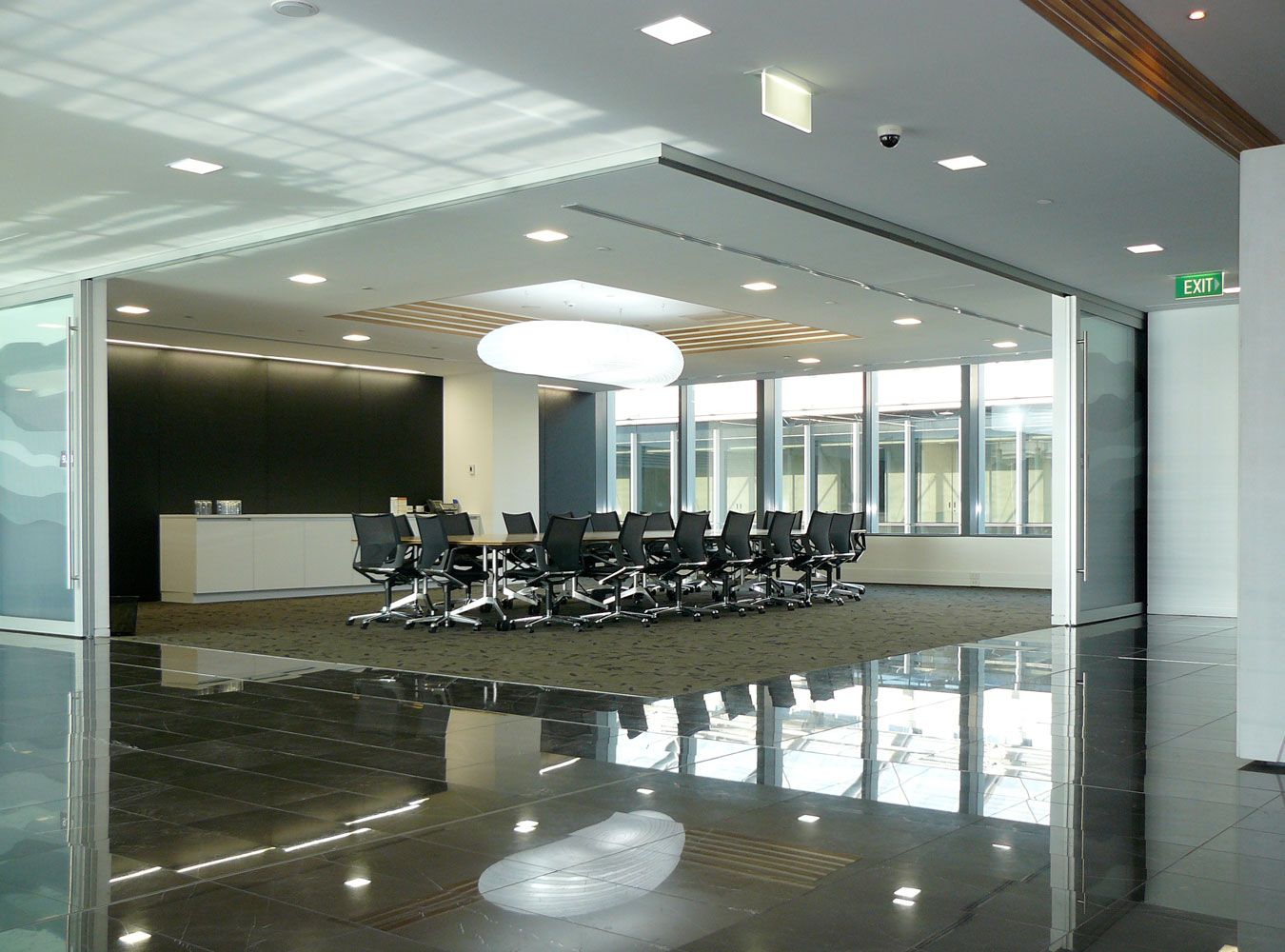

  • Track can be configured to suit Bi-Parting door setups, including CornerMeeting detail
  • Door pick-up system is available for use with dual track set-ups
NZ Made
NZ Made
Scope of Use
  • Best suited to office fit-outs
Documents
Data Sheet
Maintenance Instructions
Warranty
Additional Information

CS Cavity Sliders (CS For Doors) are a manufacturer of cavity sliding door systems and related products.
