Promat Promaseal IBS Foam
Description

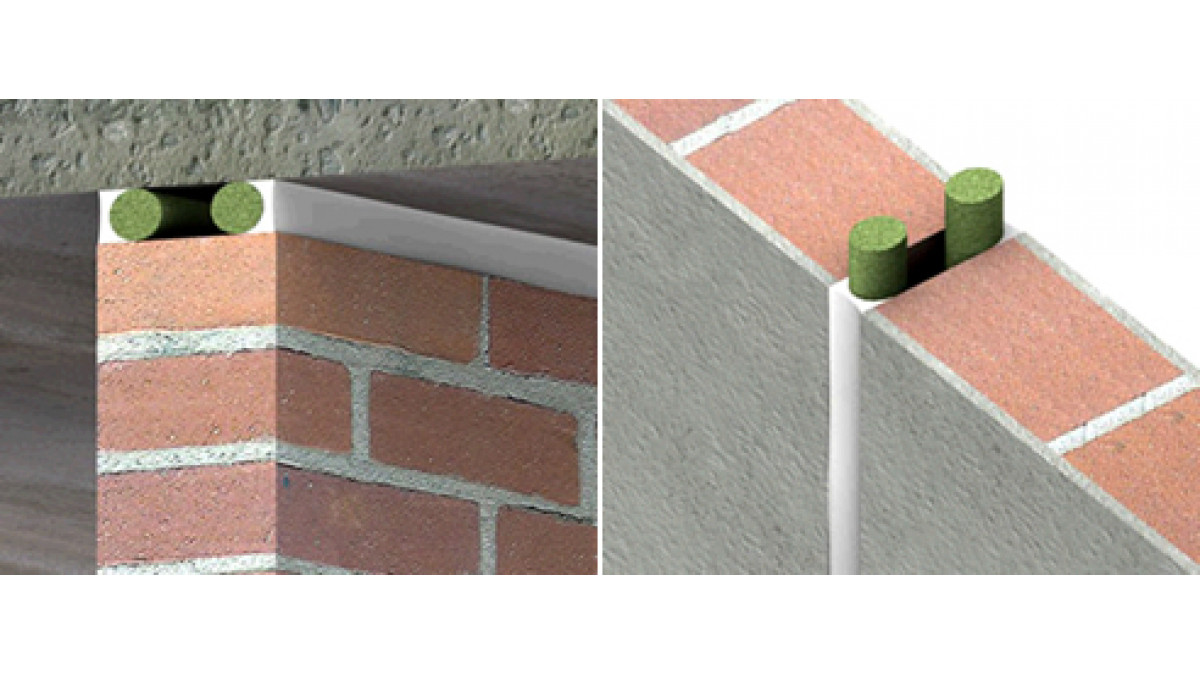

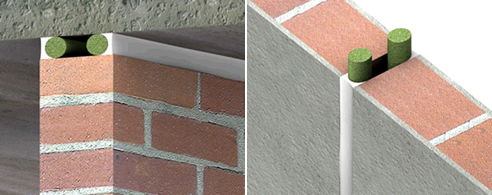

Promaseal IBS is a fire resistant, flexible foam strip which, when placed in joints and around service penetrations in floors and walls, will maintain the fire resistance of the separating element. In most instances the addition of Promaseal-A Acrylic Sealant is necessary. On some occasions a non fire resistant sealant can be applied.

Promaseal IBS is a factory made product and can be easily verified as being installed in the correct manner. Generally used in lieu of a fire resistant sealant where the specifying authority or certifying body is concerned that the correct depths of sealant or the correct type sealant may not be applied by the contractor.

Promaseal IBS accommodates movement in building services, e.g. the expansion or contraction of metal pipes, while maintaining the integrity of the penetration. It can be used for external wall joints in conjunction with an exterior grade sealant. Promaseal IBS is not designed for use in control joints that are designed to accommodate high or ongoing movement.

Key Features
  • Flexible fire protection foam strip used for sealing joints and gaps within walls or floors
  • Excellent versatility, second only to sealant in dealing with fire stopping for joints, gaps, building and services movement, etc.
  • Can be used as a stand alone product or with a cover of Promaseal AN acrylic sealant where required
  • Tested up to 4240 minutes fire resistance according to AS 1530 Part 4 and AS 4072 Part 1
  • The fire resistance level of Promaseal IBS will vary and applications are dependant on the barrier the type and size of service
  • Applications include cable and pipe penetrations, deflection heads of partitions and walls and joints within walls, around fire dampers, floor joints, cable trays, control joints, etc.
Categories
Fire Safety
Scope of Use
  • Used for sealing joints and gaps within walls or floors
  • Can be used as a stand alone product or with a cover of Promaseal AN acrylic sealant where required
  • Applications include cable and pipe penetrations, deflection heads of partitions and walls and joints within walls, around fire dampers, floor joints, cable trays, control joints, etc.
Limitations on Use
  • Promaseal IBS is not designed for use in control joints that are designed to accommodate high or ongoing movement
Statement of Building Code Compliance
  • Tested up to 4240 minutes fire resistance according to AS 1530 Part 4 and AS 4072 Part 1
  • The fire resistance level of Promaseal IBS will vary and applications are dependant on the barrier the type and size of service
Documents
Data Sheet
