CNZ Ace-Wall™
CNZ Insulation
All products
Ace Wall Panel

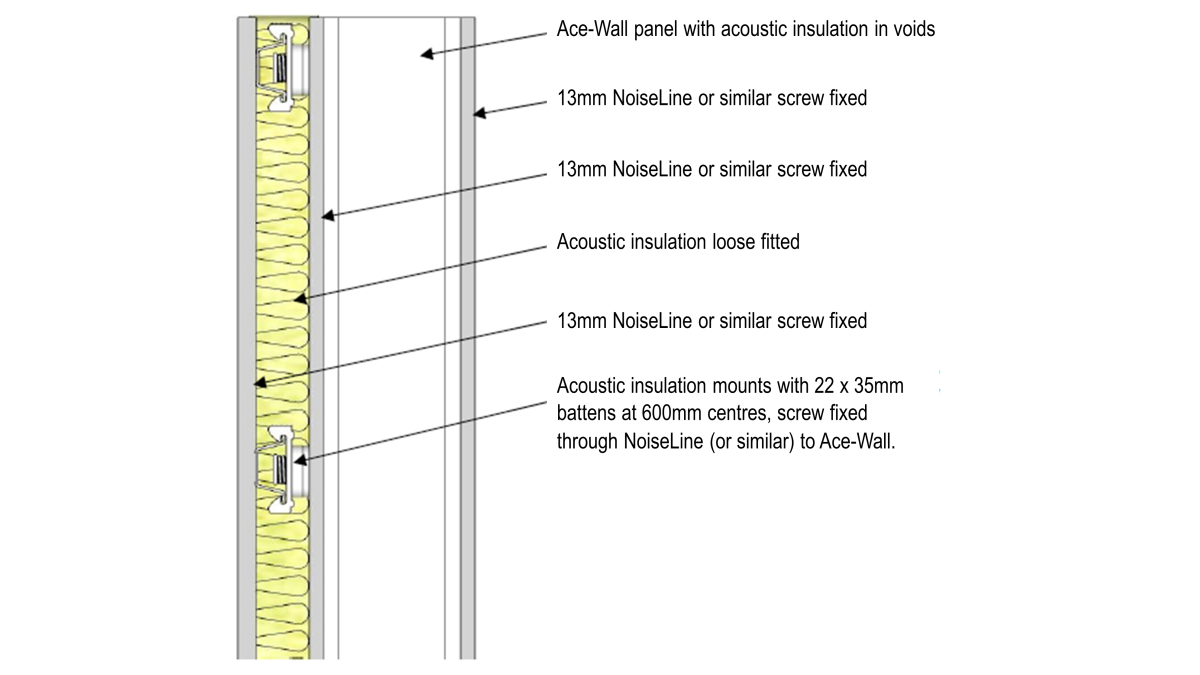

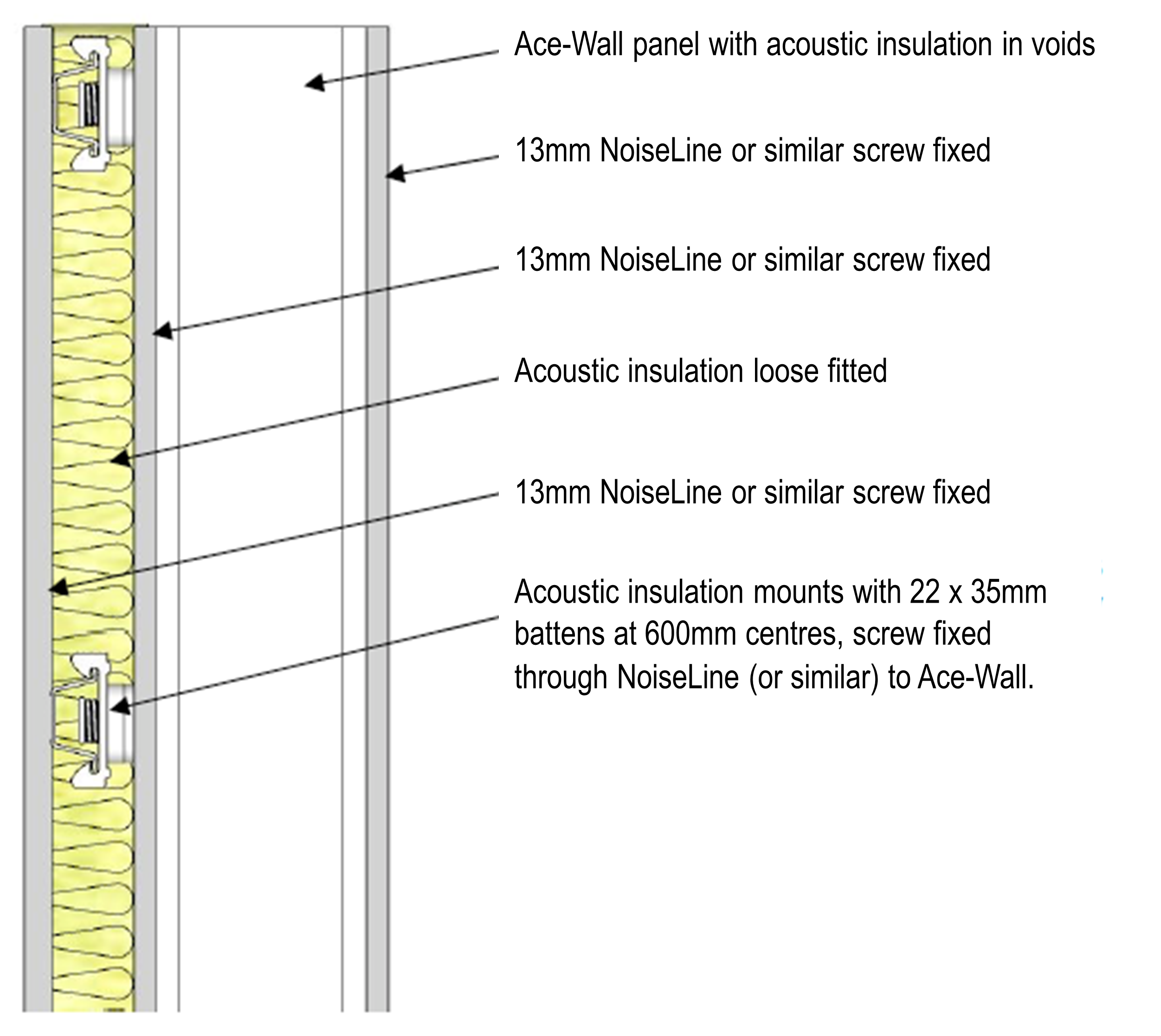

Intertenancy Wall Solution
Description

Ace-Wall™ is a non-load-bearing injection-moulded wall panel, with a range of applications from intertenancy walls to fencing. It is fibre-reinforced, water-resistant, and gypsum-based which combine to create a unique set of properties. Suitable as an internal or external product for residential, commercial, or industrial project be they low-rise or high-rise developments.

CNZ Insulation Limited is New Zealand’s only supplier of Ace-Wall™.

Key Features
  • Customisable sizing, with both manufacture and cut-to-length options.
  • Non-combustible, Ace-Wall™ has excellent fire-resistant properties.
  • High STC acoustic rating.
  • High moisture resistance, suitable for internal and external applications.
  • Adds to thermal performance when using CNZ Insulation’s complete wall system.
  • One of the thinnest possible solutions for intertenancy walls when used as part of CNZ Insulation’s recommended system.
  • Fast installation, no special tools required.
  • Light weight easy to handle.
  • Environmentally friendly and recyclable materials.
  • Prefabricated injection moulded panels provide precision manufacturing, high quality control, and a consistent flat finish.
Categories
Interior Intertenancy Walls Partitions
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Designed for internal use for non-loadbearing intertenancy wall application for apartments, terraced housing, residential and commercial.

  • Acoustic dividing walls
  • Partitioning walls
  • Lift shaft walls
  • Boundary walls
  • Boundary fencing

External cladding as alternative to non-loadbearing façade e.g. brickwork and monolithic.

Ace-Wall™ is the only gypsum-based product on the market in New Zealand for its application/scope.

Limitations on Use
  • Non-loadbearing
  • Maximum length 3000mm
Statement of Building Code Compliance

Fire Performance

AS 1530.1 1994, non-combustible

AS 1530.3 1999, pass

AS 1530.4 2014, FRR -/120/60

Acoustic Performance

STC 58



In-Service History

Currently there is no in-service history within New Zealand.

Other Performance Attributes

•High density

•Paint ready finish

•Vermin proof



C Protection from Fire compliant
Protection from Fire
F2 Hazardous Building Materials compliant
Hazardous Building Materials
H1 Energy Efficiency compliant
Energy Efficiency
  • News

CNZ Insulation Ltd offer a range of insulation options for commercial and residential applications.

Product Enquiries

News from CNZ Insulation

Ace-Wall: The Innovative New Intertenancy Solution NEW
Ace-Wall: The Innovative New Intertenancy Solution
CNZ Insulation
August 2024 New Products
CNZ Insulation Board: High Performance PIR Insulation Made in New Zealand
CNZ Insulation Board: High Performance PIR Insulation Made in New Zealand
CNZ Insulation
October 2023 Product News
Reduce Energy Use with CNZ PIR Insulation Boards
Reduce Energy Use with CNZ PIR Insulation Boards
CNZ Insulation
July 2023 Product News
View all news

Popular Products from CNZ Insulation

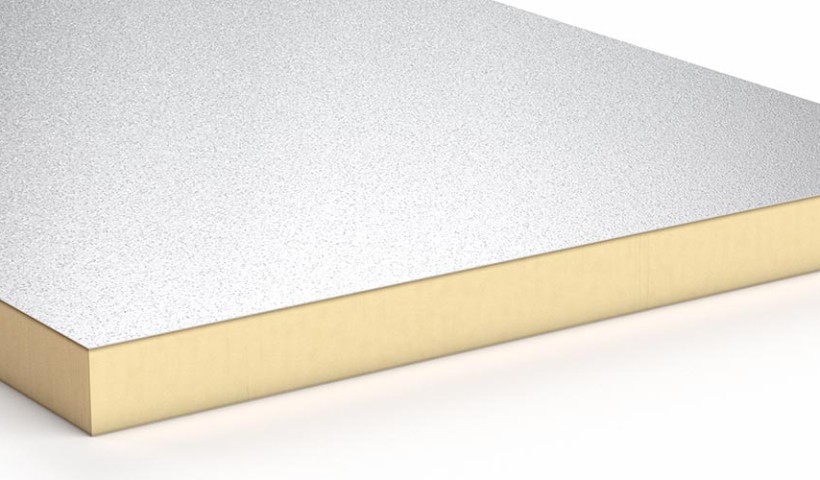

CNZ PIR Insulation Board
