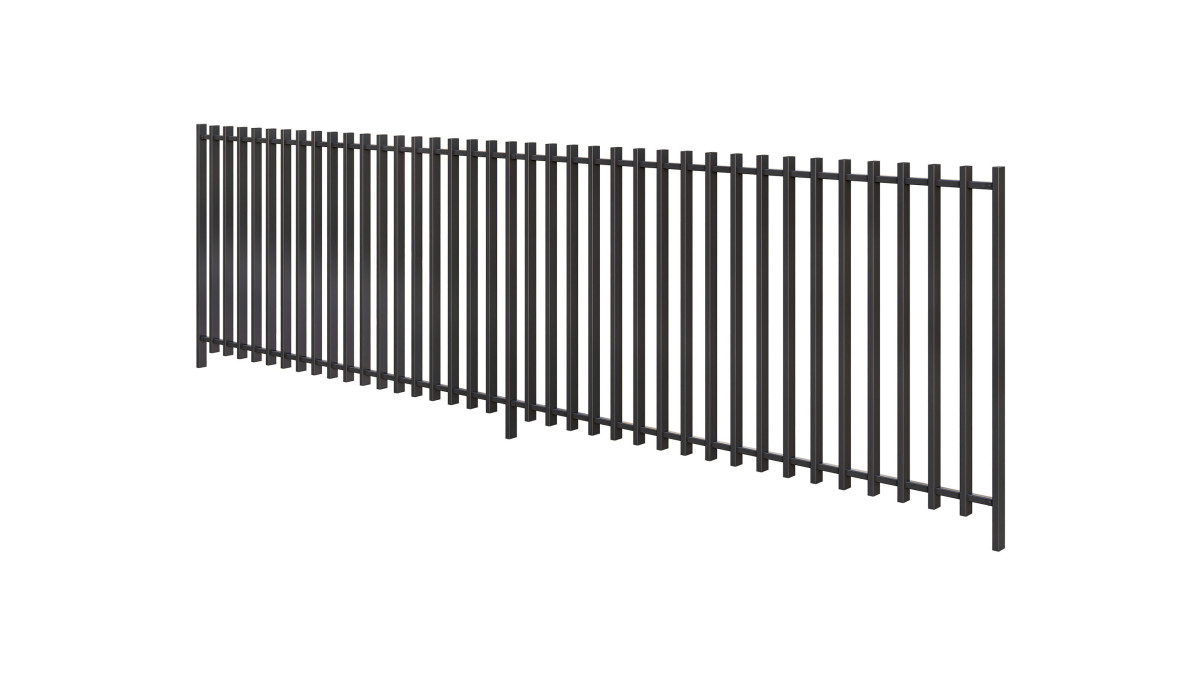

DuraPanel Axis Fencing System
Description

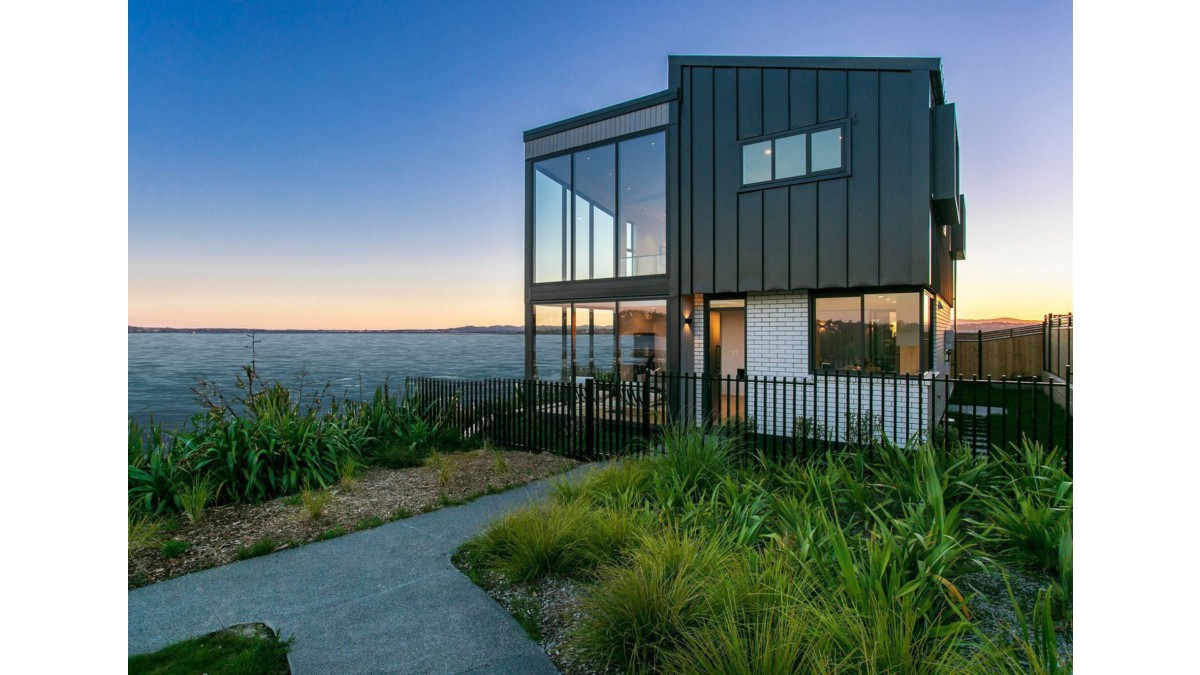

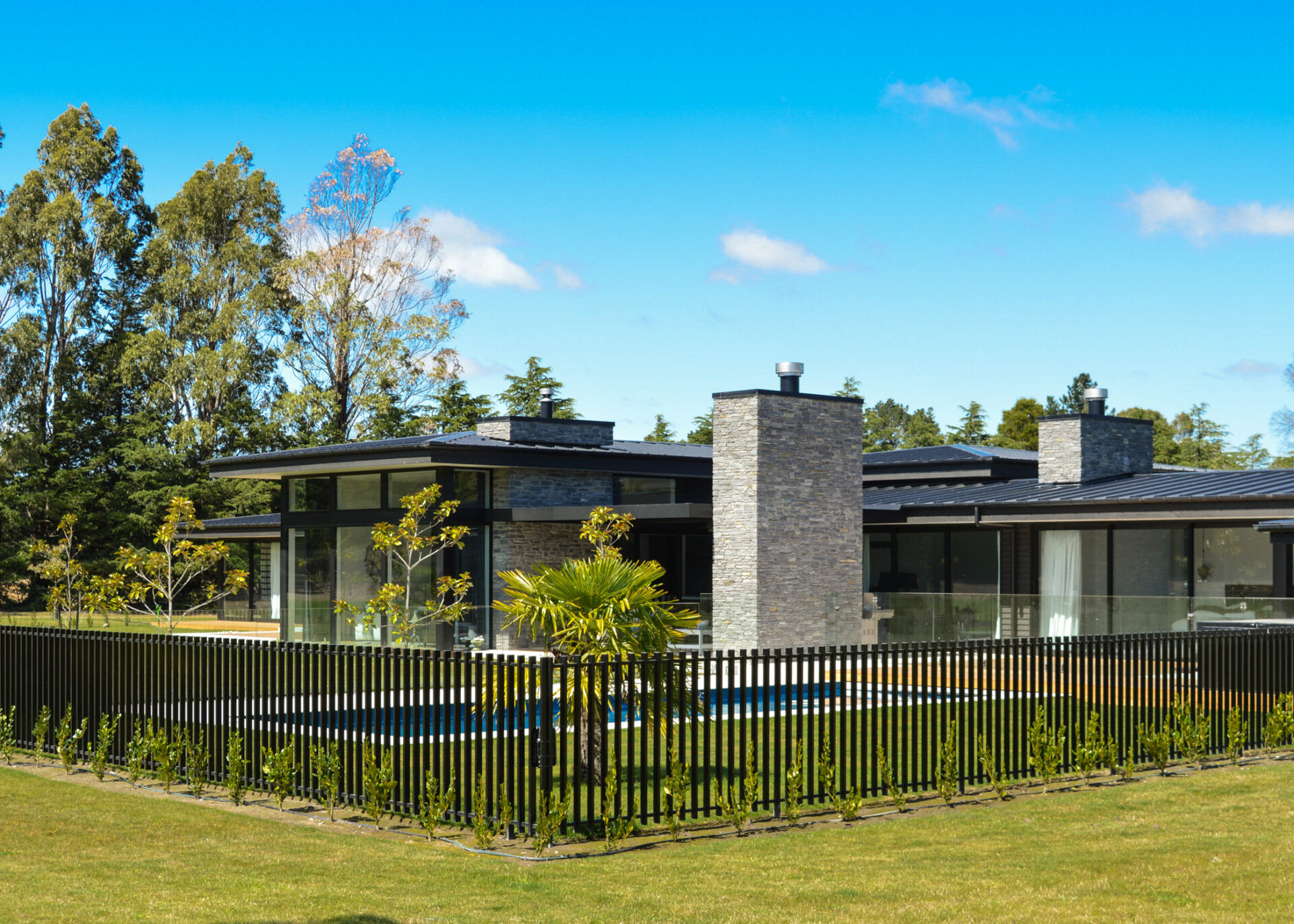

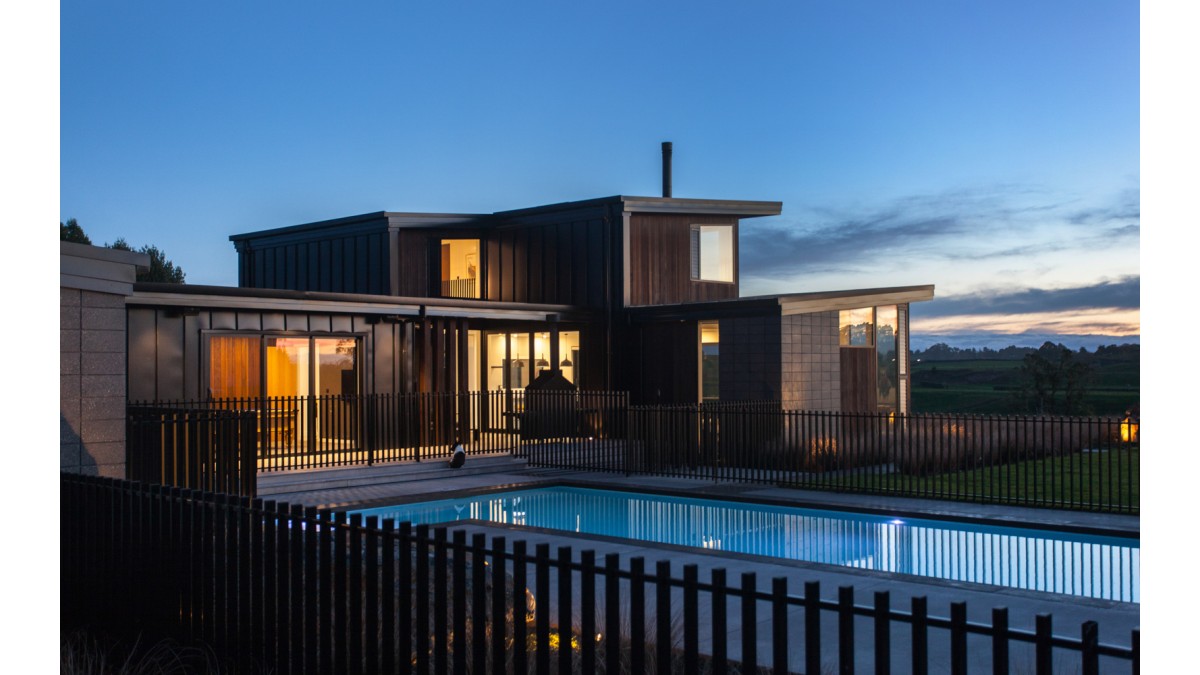

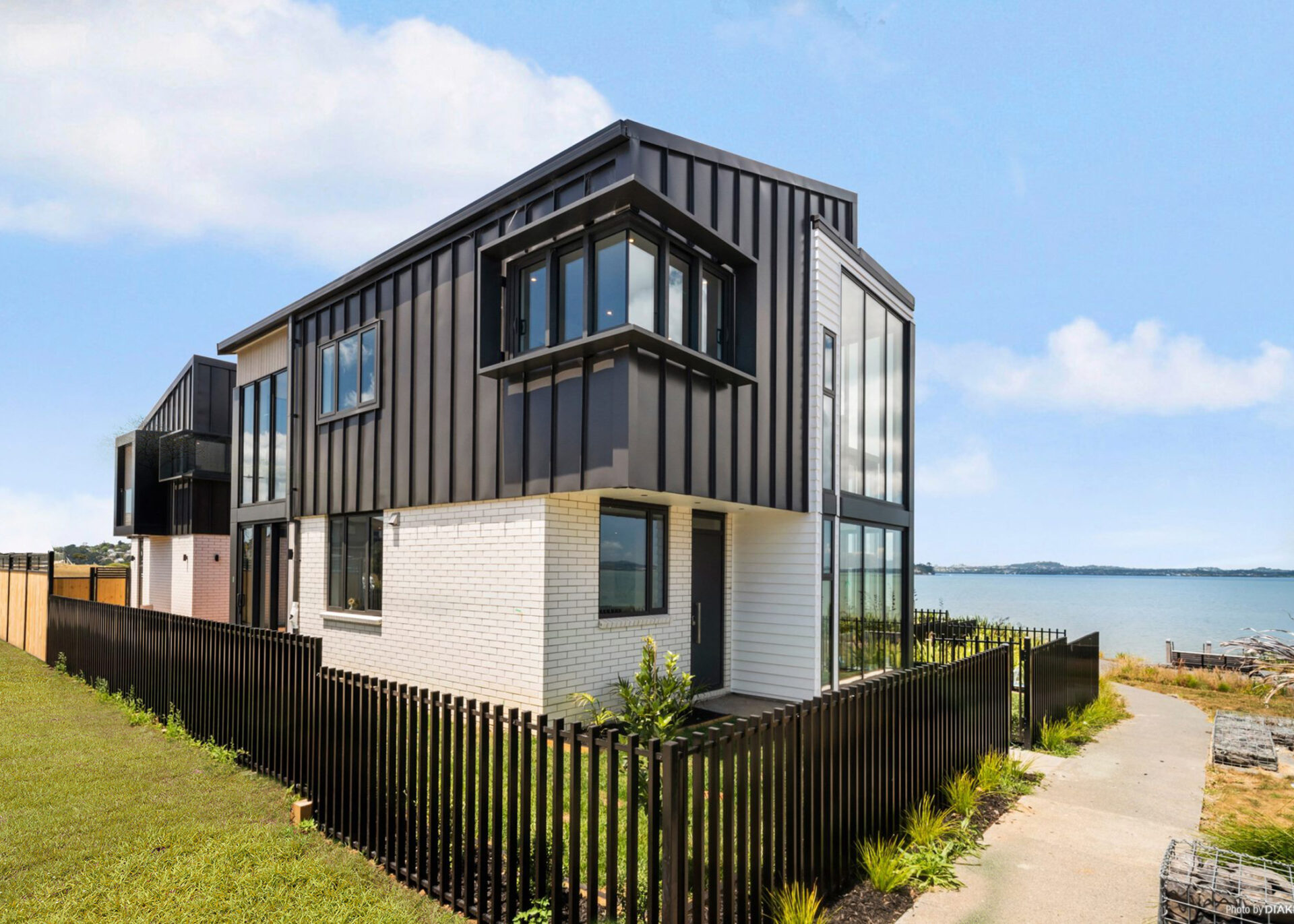

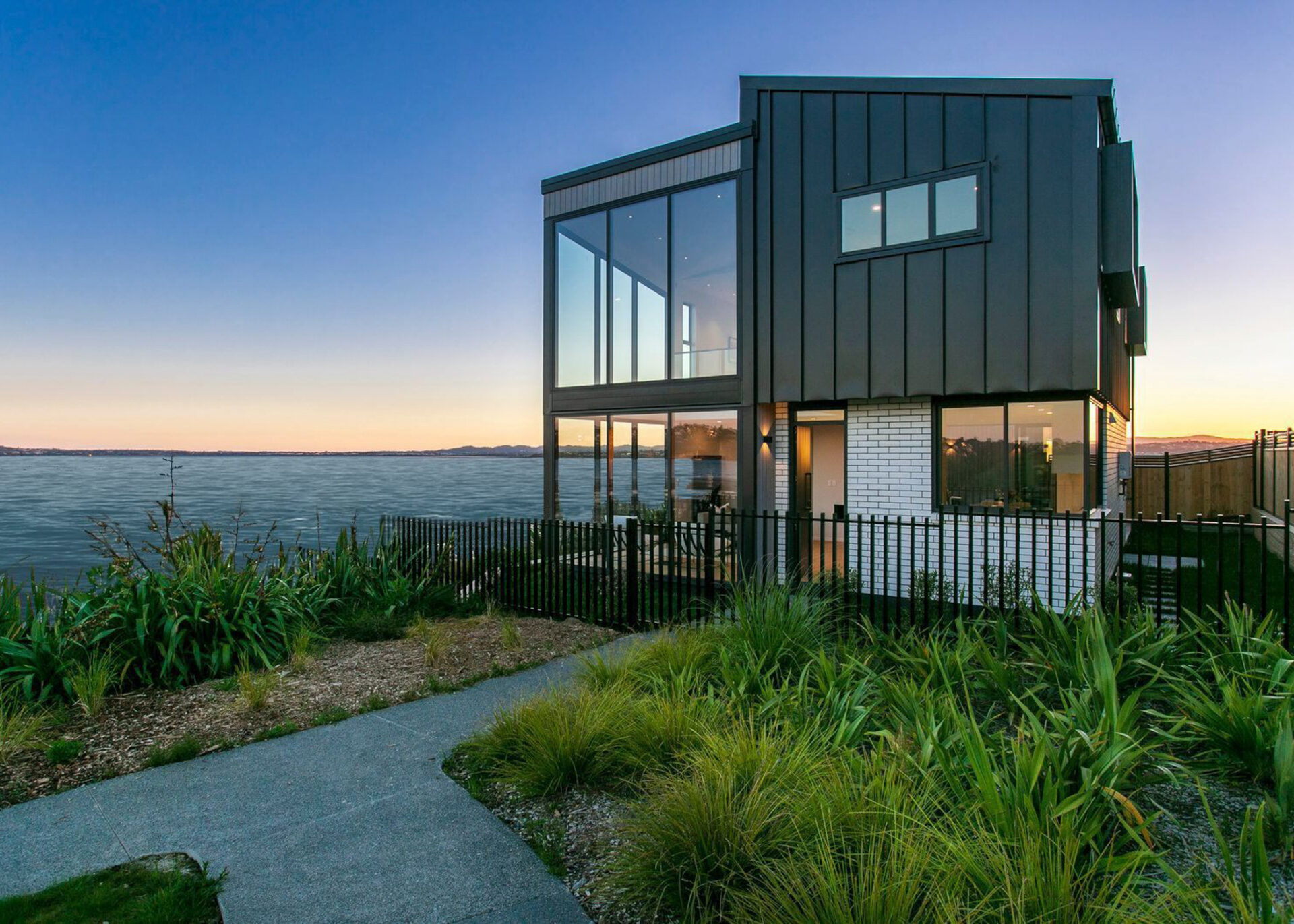

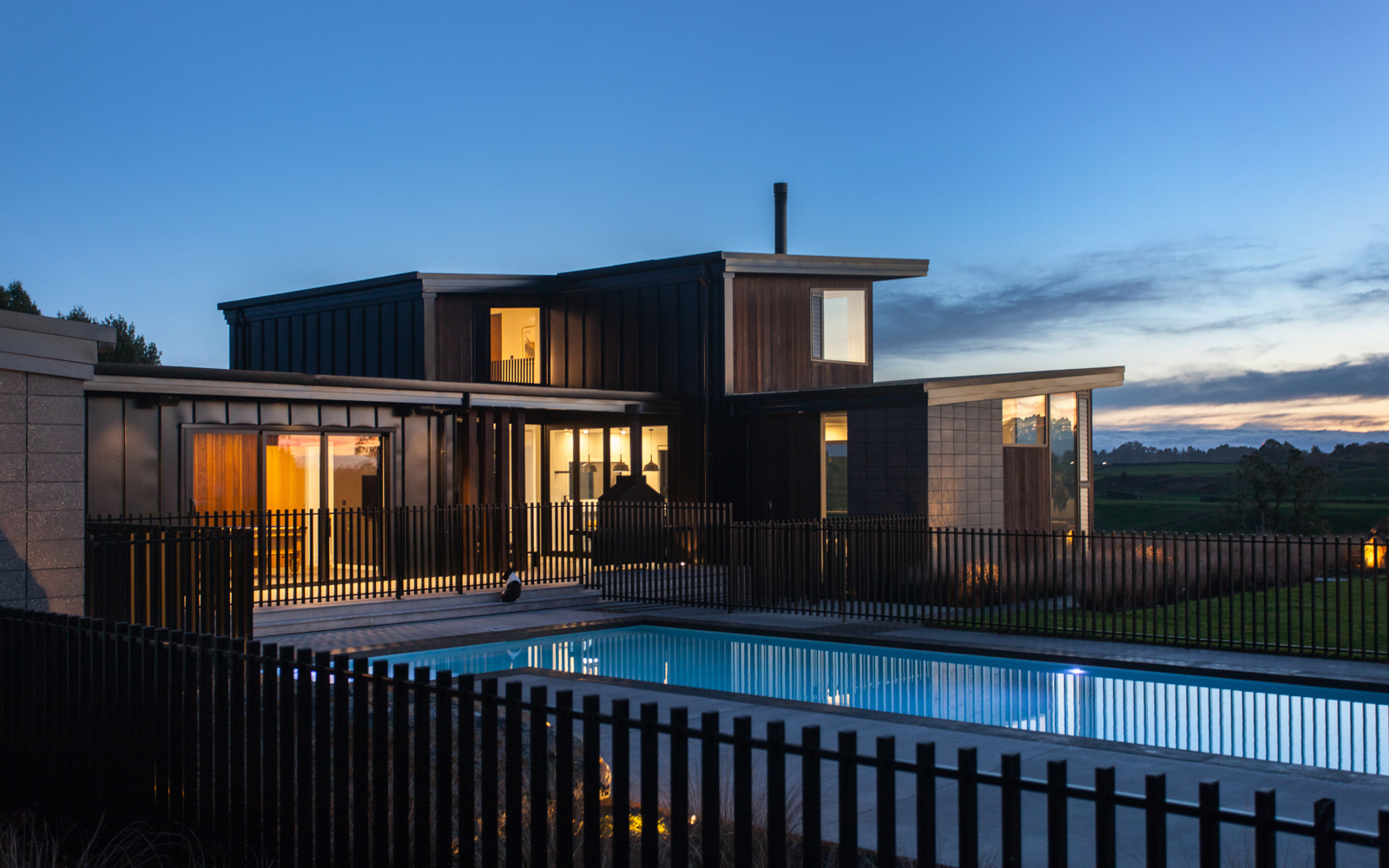

Axis is an attractive fence design that gives the appearance of a floating fence, making it a popular choice for pools and landscaping.

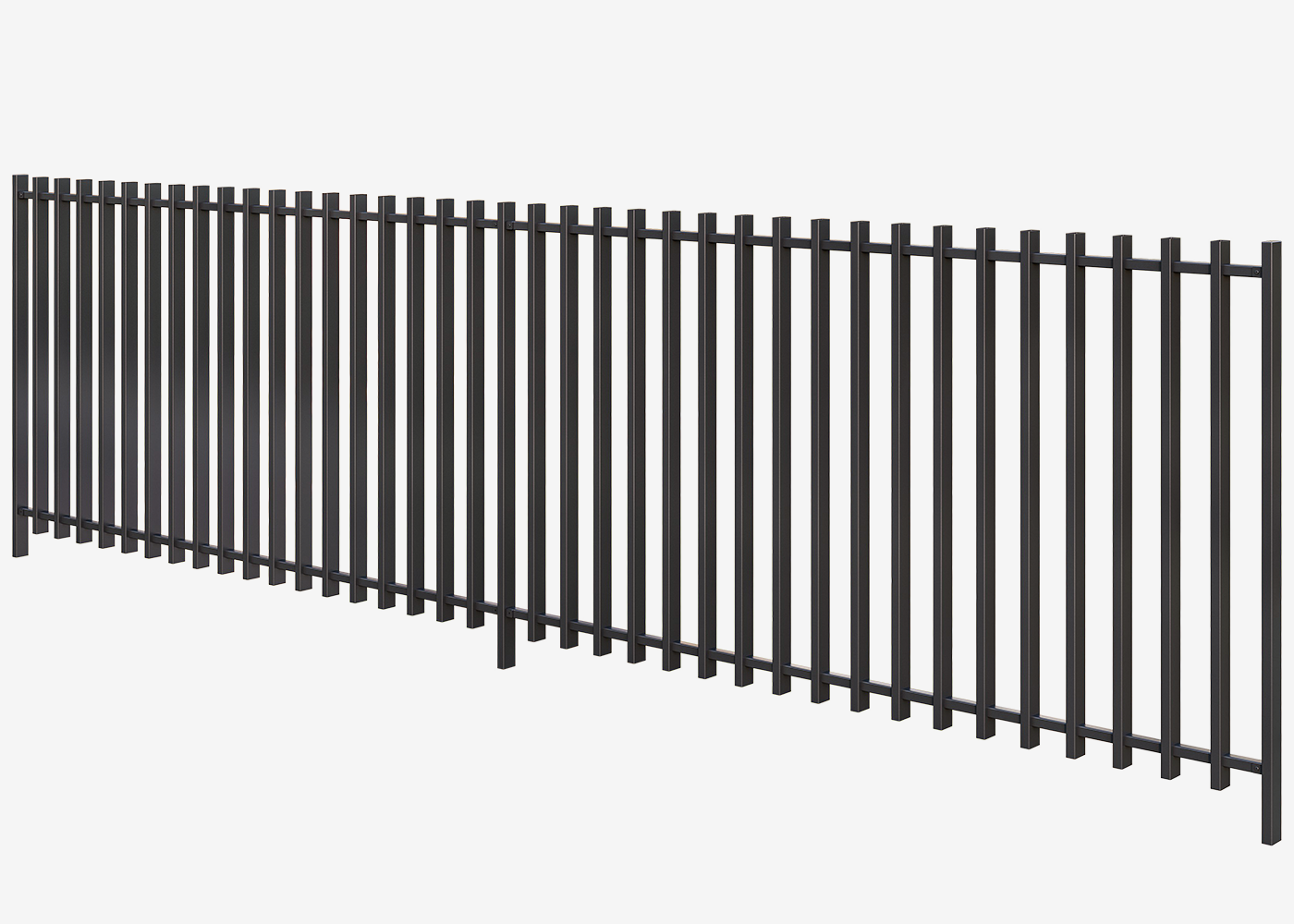

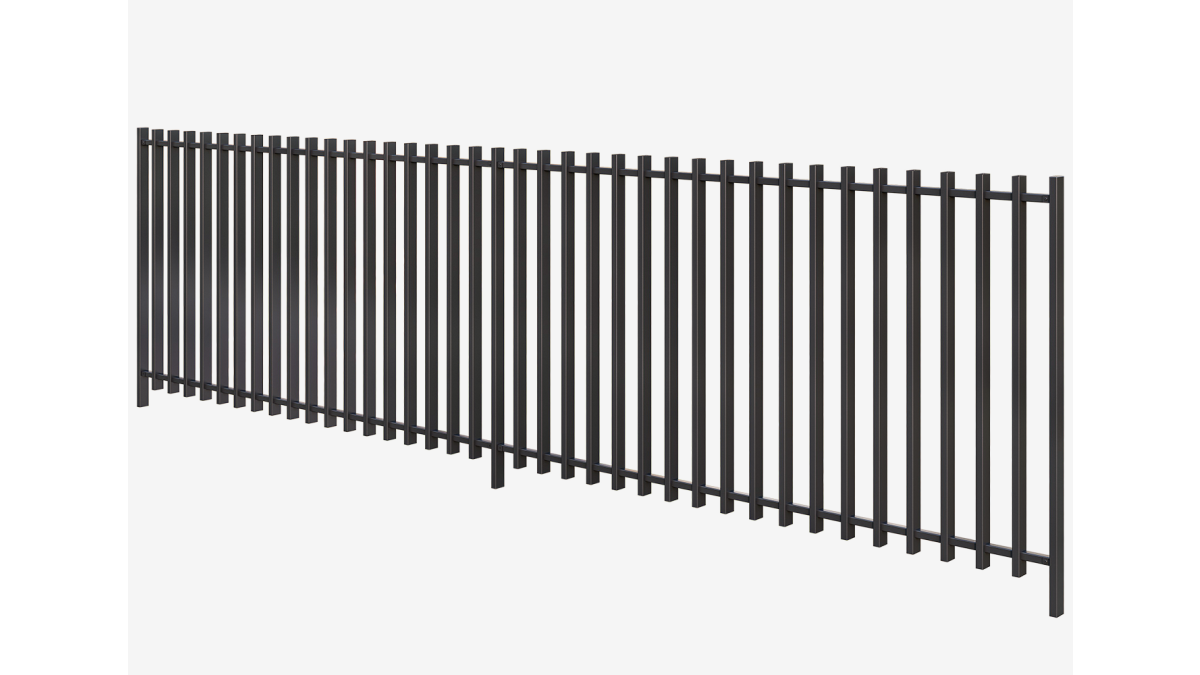

DuraPanel Axis is made from welded aluminium and finished with black powder-coating.

  • Panel Height: 1200mm
  • Panel Length: 2250mm
  • Custom gates and panels available
Key Features
  • F9 compliant for residential pool fencing
  • Double front-facing panels — no 'bad' side
  • Custom panels or gates are available
  • Powder-coated black as standard, with other colour options available on request
  • Posts for in-ground applications or flanged for mounting to decking or concrete
  • Site-specific PS1 available on request
Scope of Use

Durable fencing with double front-facing panels, ideal for:

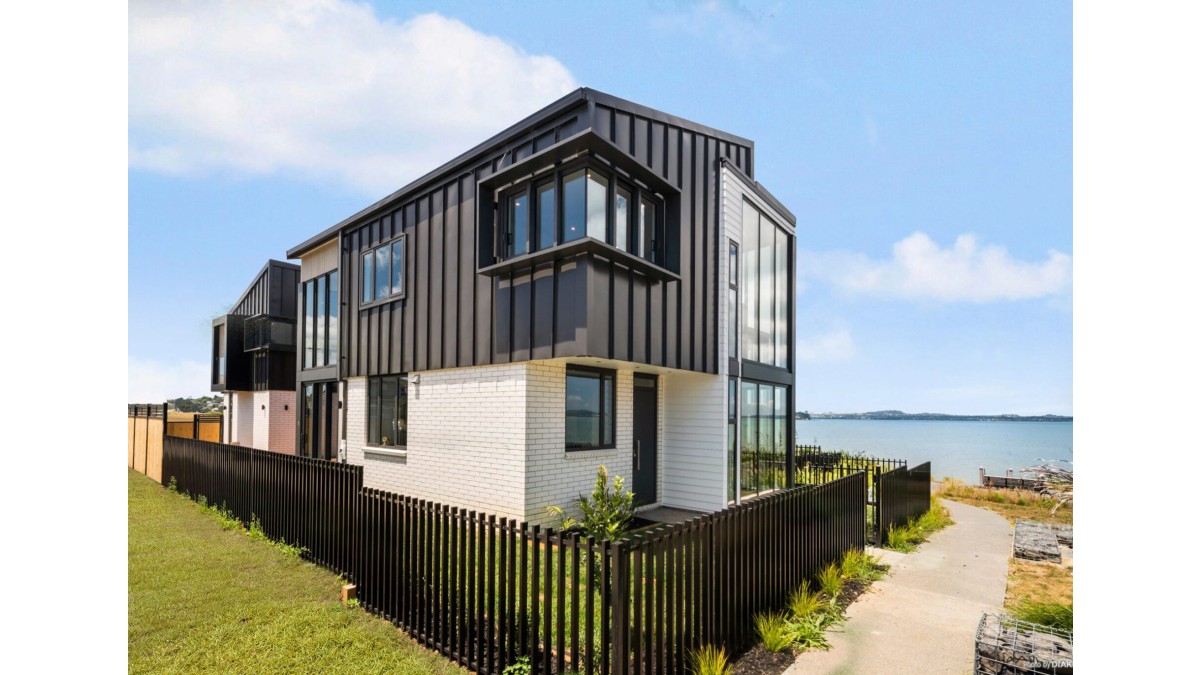

  • Medium density housing
  • Subdivisions

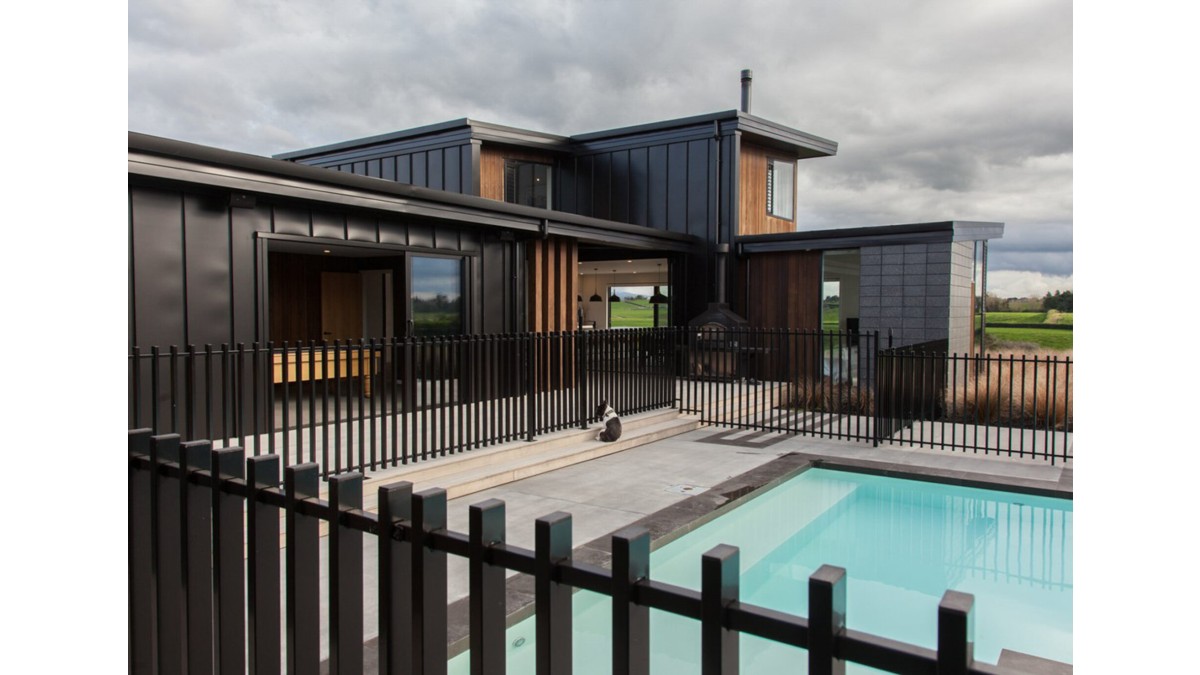

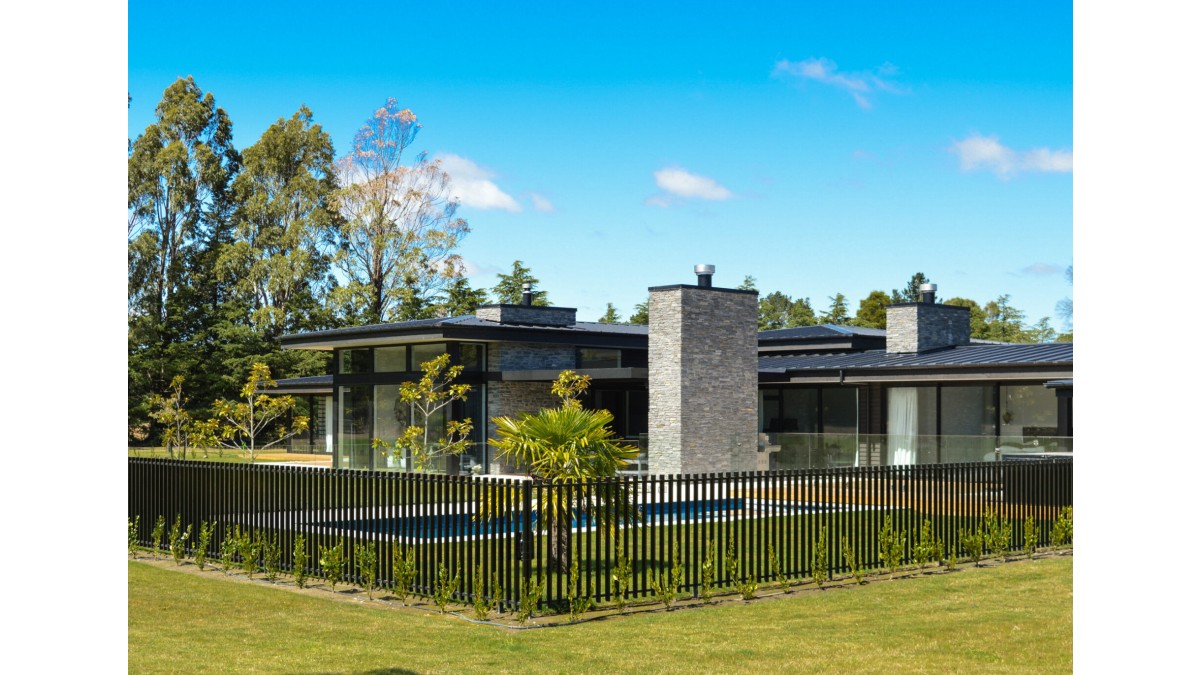

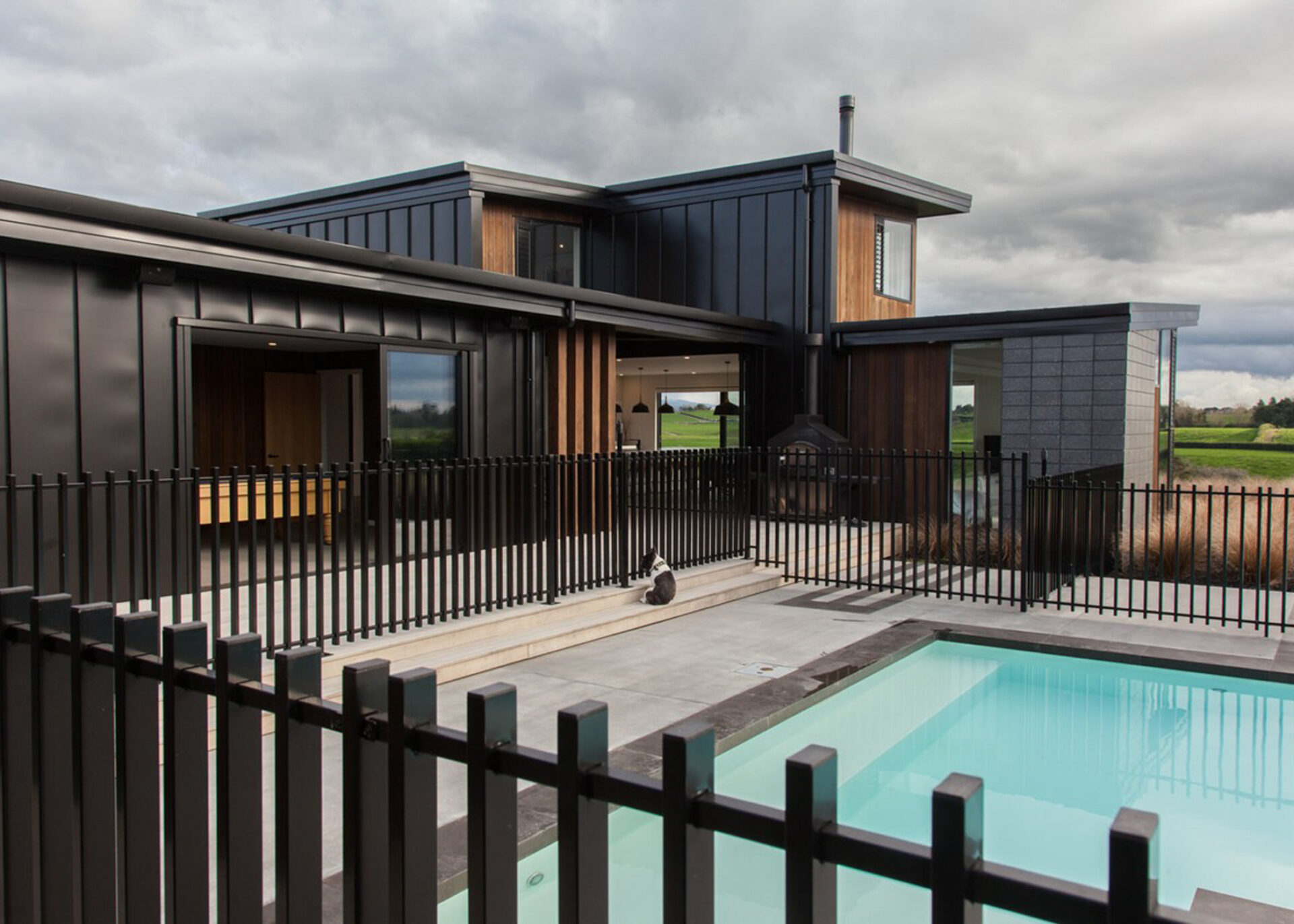

  • Residential pool fencing
  • Retaining wall fencing and balustrades

Installation:

  • In-ground posts or flanged for mounting on timber or concrete
  • Supplied with 4x brackets and tek screws to suit
  • Uses 50x25mm in-line posts
  • Corner posts are 50x50mm
Limitations on Use
  • Must be designed and installed in accordance with Boundaryline's specifications when being used for F9 or F4 applications — PS1s available
  • Not recommended for sloped ground — where raking is required consider Delta, Polo, Titan or Vecta in the DuraPanel fencing range
Statement of Building Code Compliance

When designed and installed in accordance with the Boundaryline installation instructions and PS1:

  • Compliant with NZ Building Code F4 Safety from falling
  • Compliant with NZ Building Code F9 Restricted access to residential pools

Site-specific PS1 available on request.

Other Performance Attributes
  • 5 year warranty
Documents
Data Sheets: DuraPanel
PS1 DuraPanel
CAD Library & Technical Support
Boundaryline on Masterspec
Installation and Operation
Install Guide: DuraPanel
Boundaryline Warranty & Maintenance
Brochure: Boundaryline Fence Book
Brochure: Pool Fence Book
