LEGRABOX free — Box System
Description

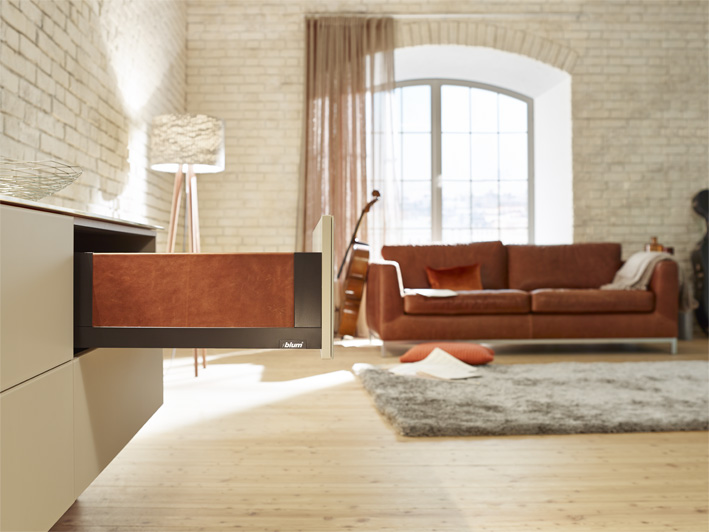

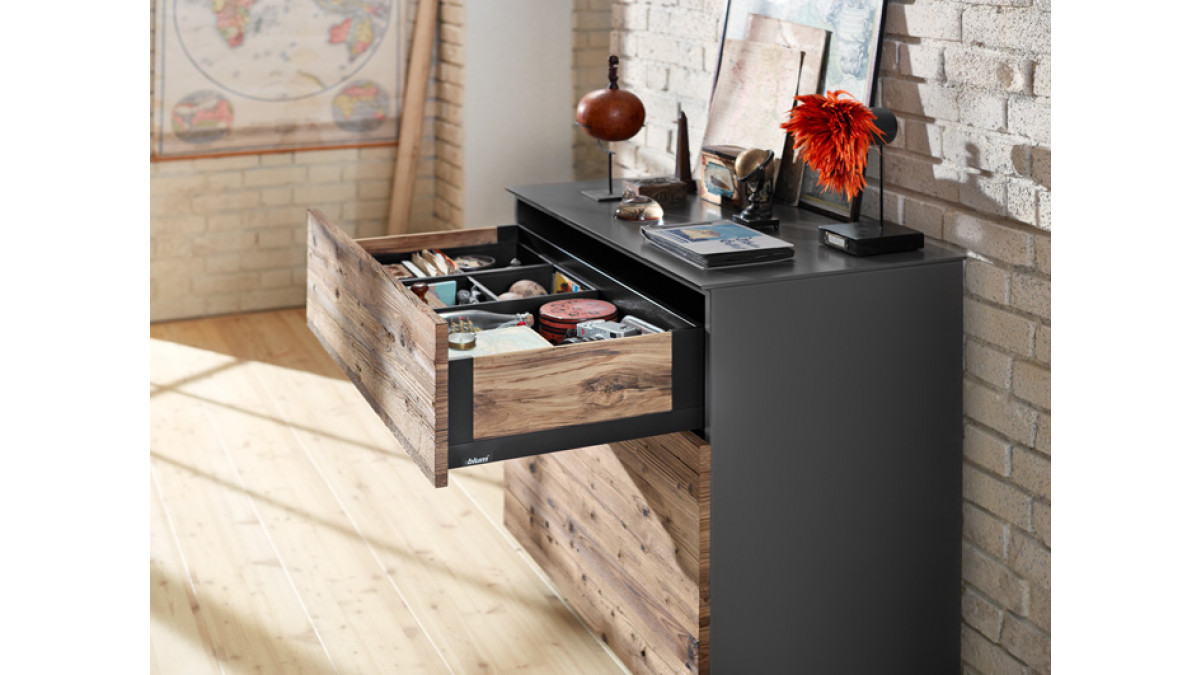

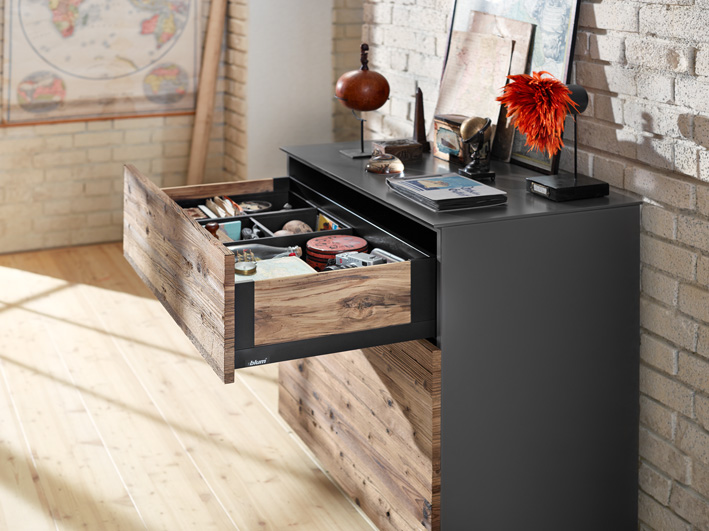

LEGRABOX free offers the freedom of individual design through the use of glass sides or design elements of a chosen specified material. This option is exclusively available for the C height LEGRABOX pull-outs.

Key Features

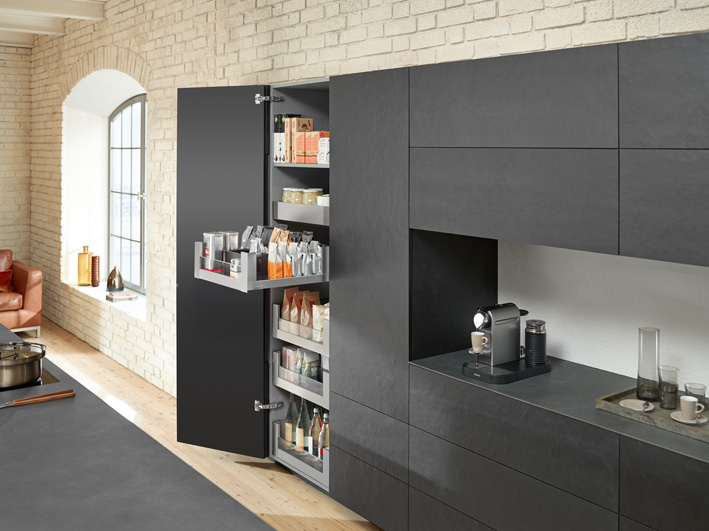

  • Compatible with AMBIA-LINE inner dividing system and kitchen accessories

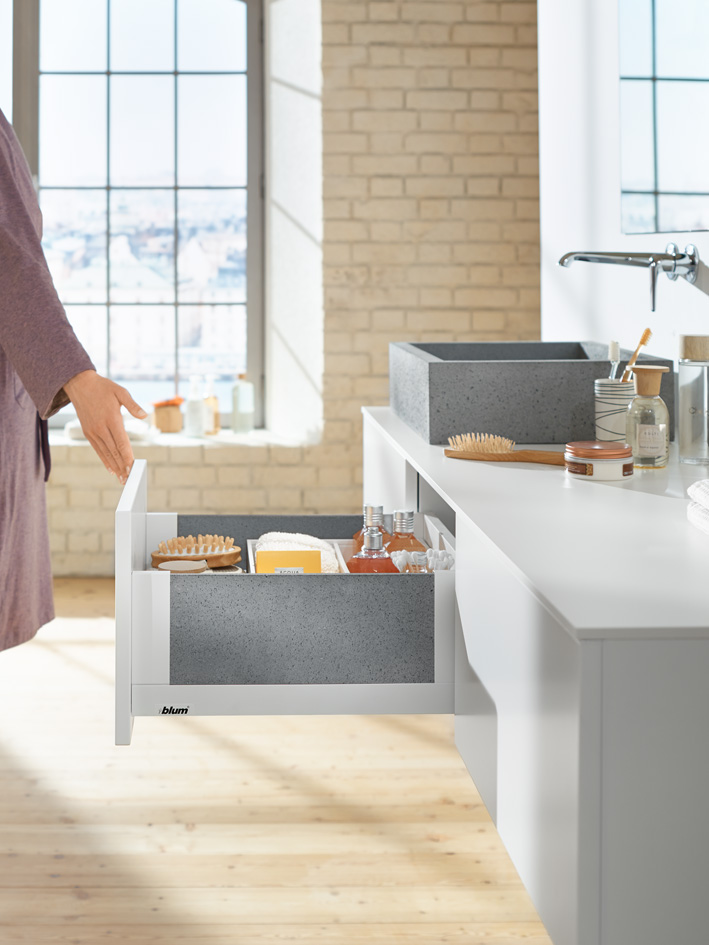

  • Ideal for kitchens, laundries, bathrooms and all other cabinetry in living areas

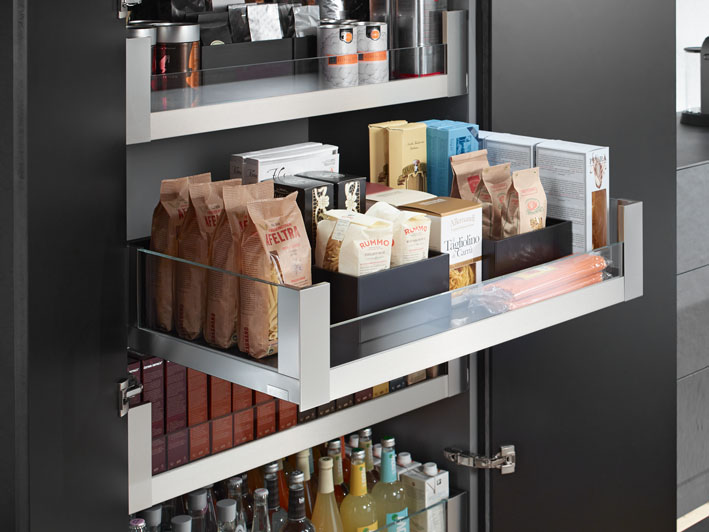

  • Ideal for drawers which benefit from items being visible from the side

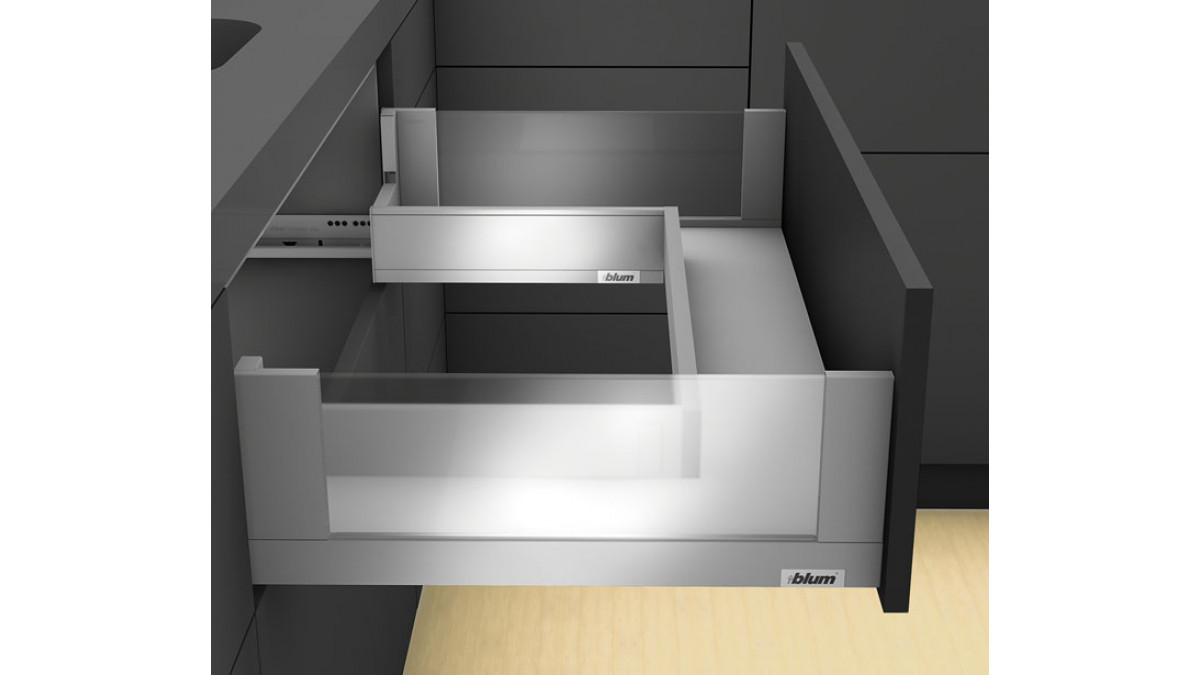

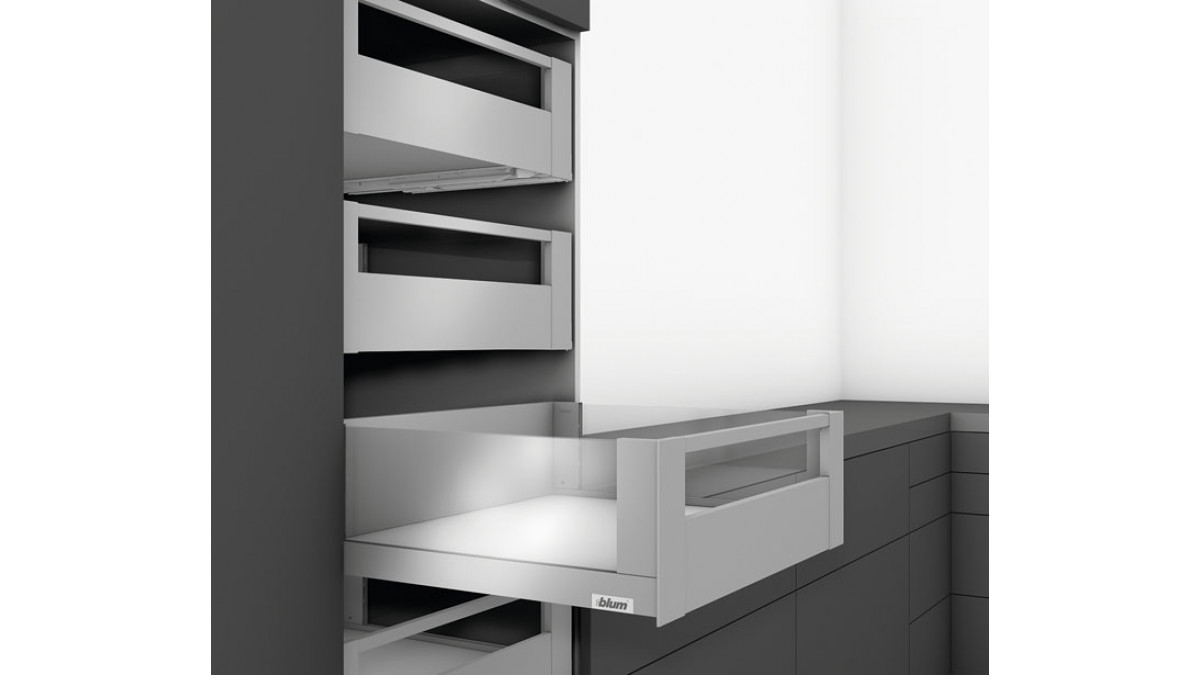

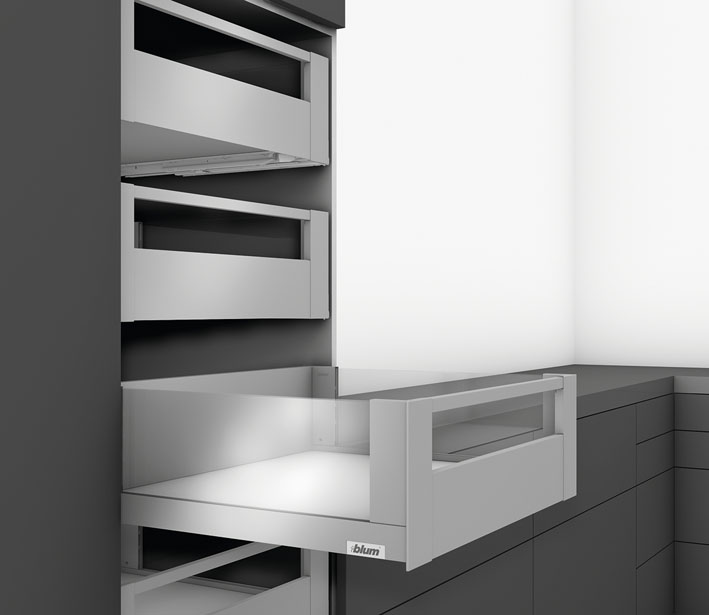

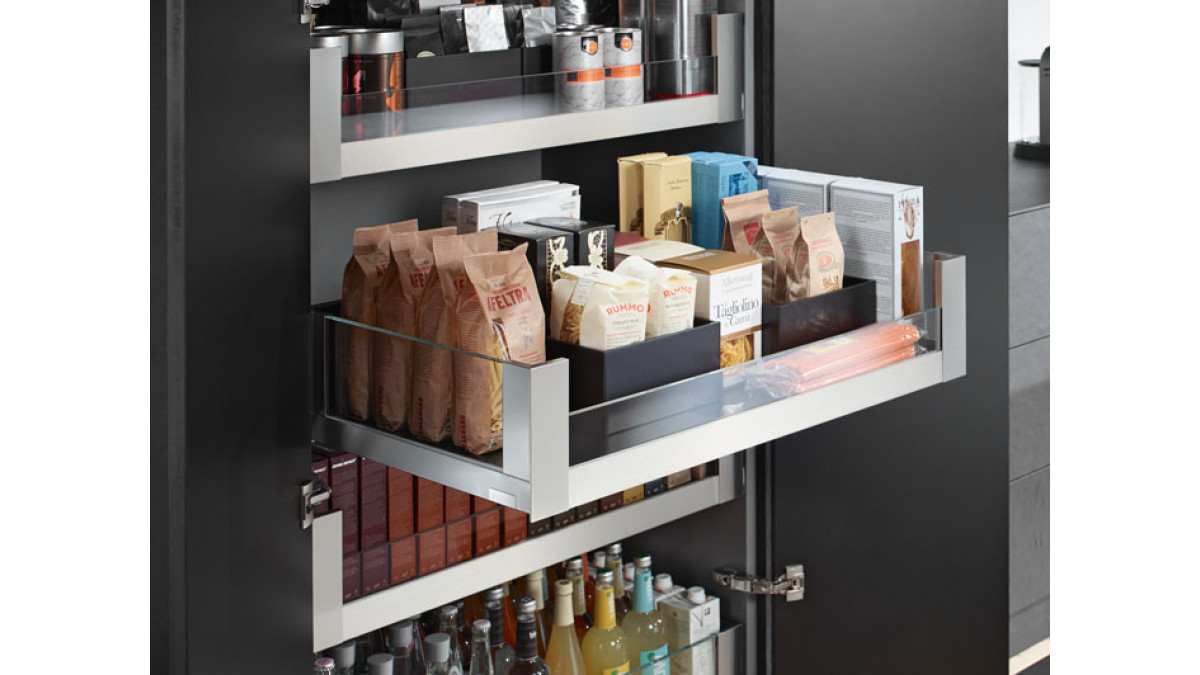

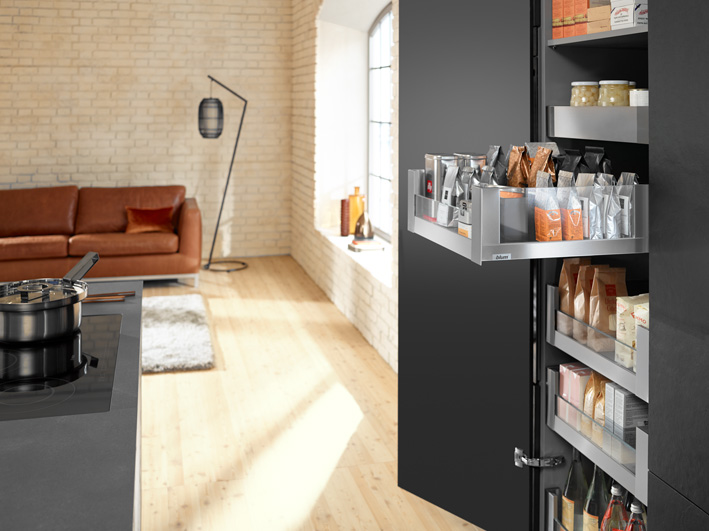

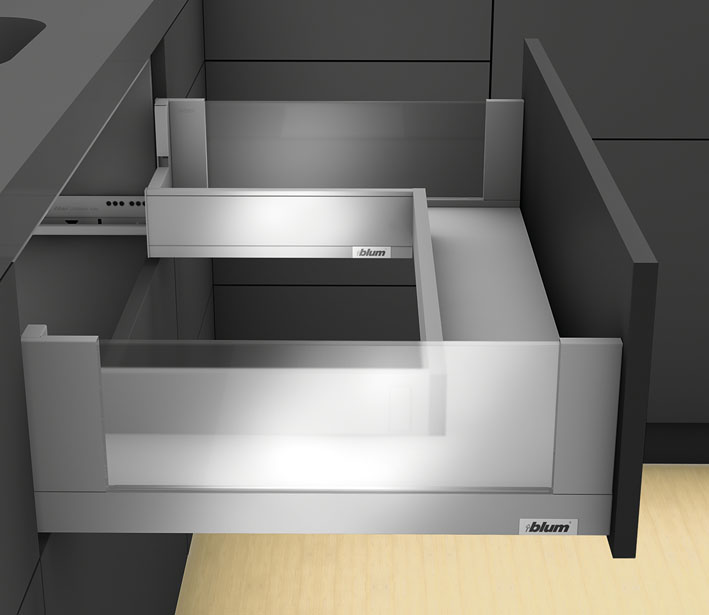

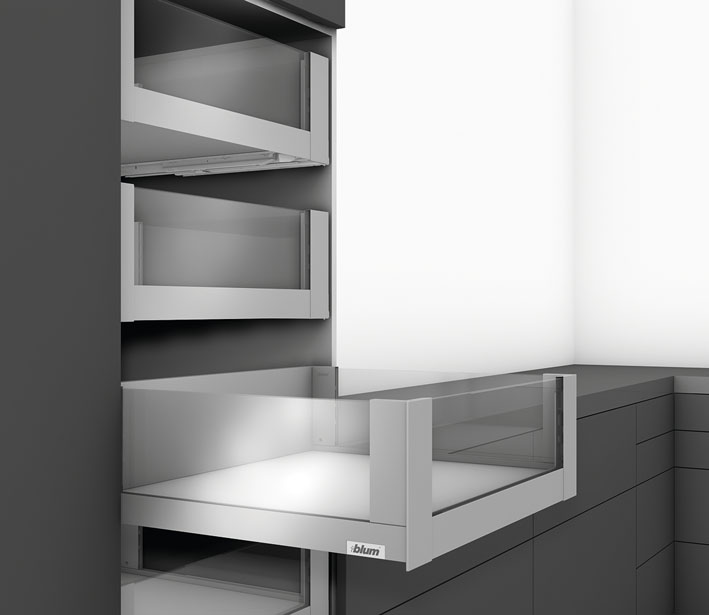

  • Inner drawer C height front options – gallery rail, low glass or high glass

Options

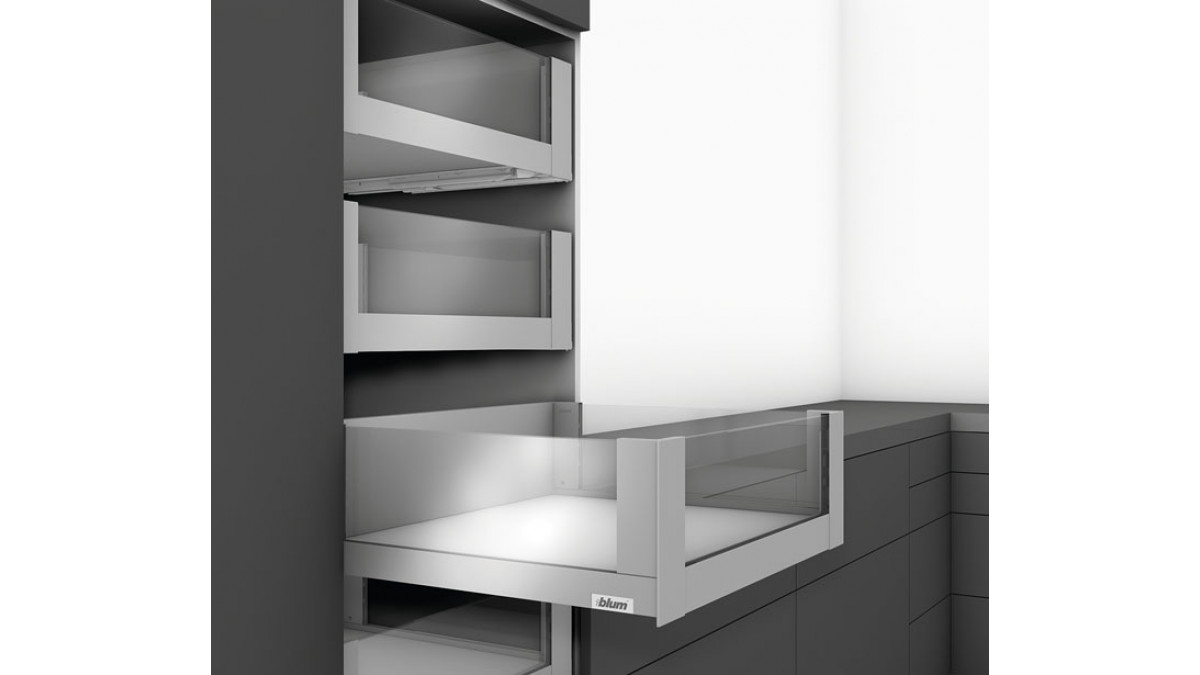

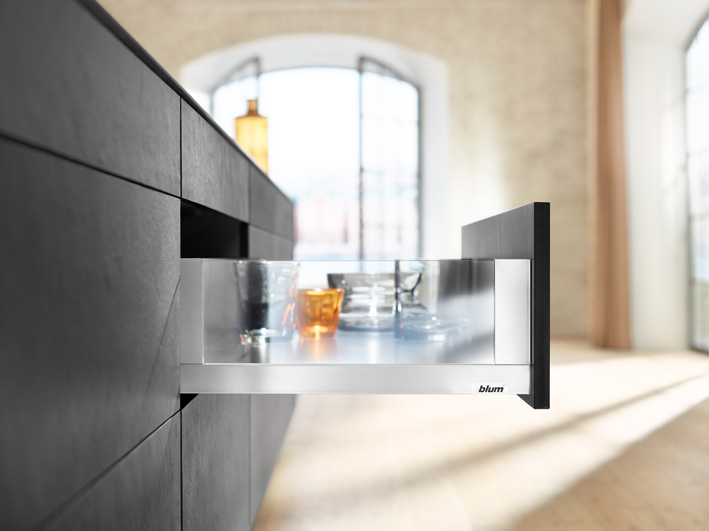

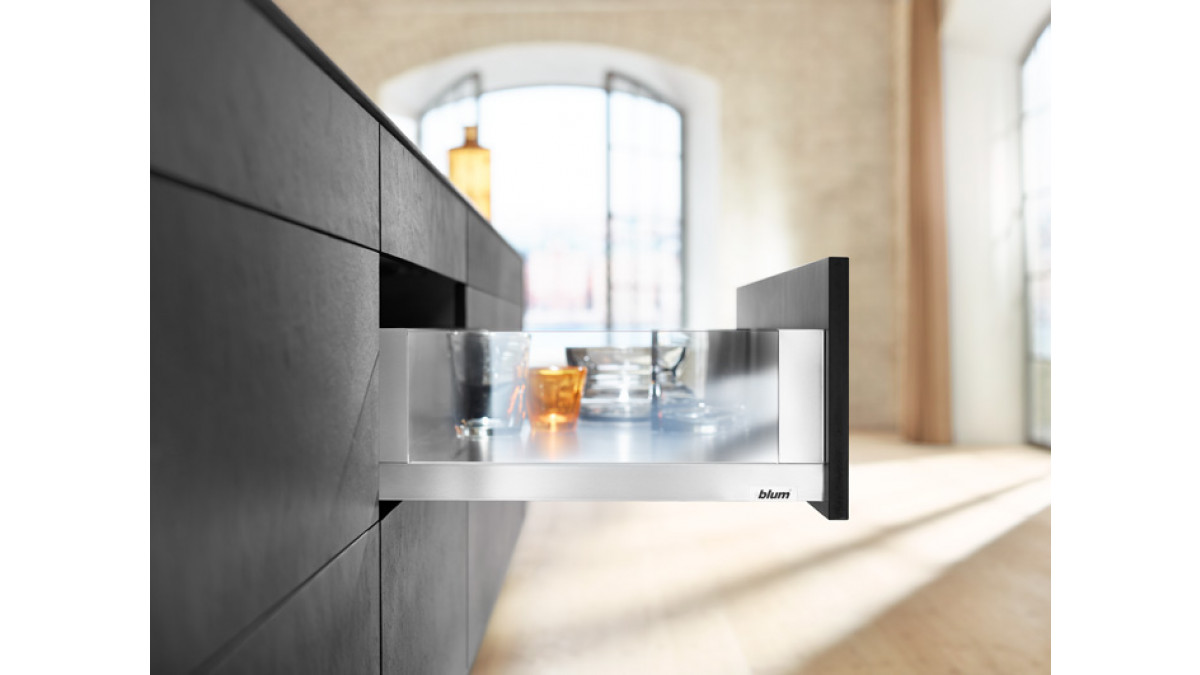

  • Available with 10mm clear glass

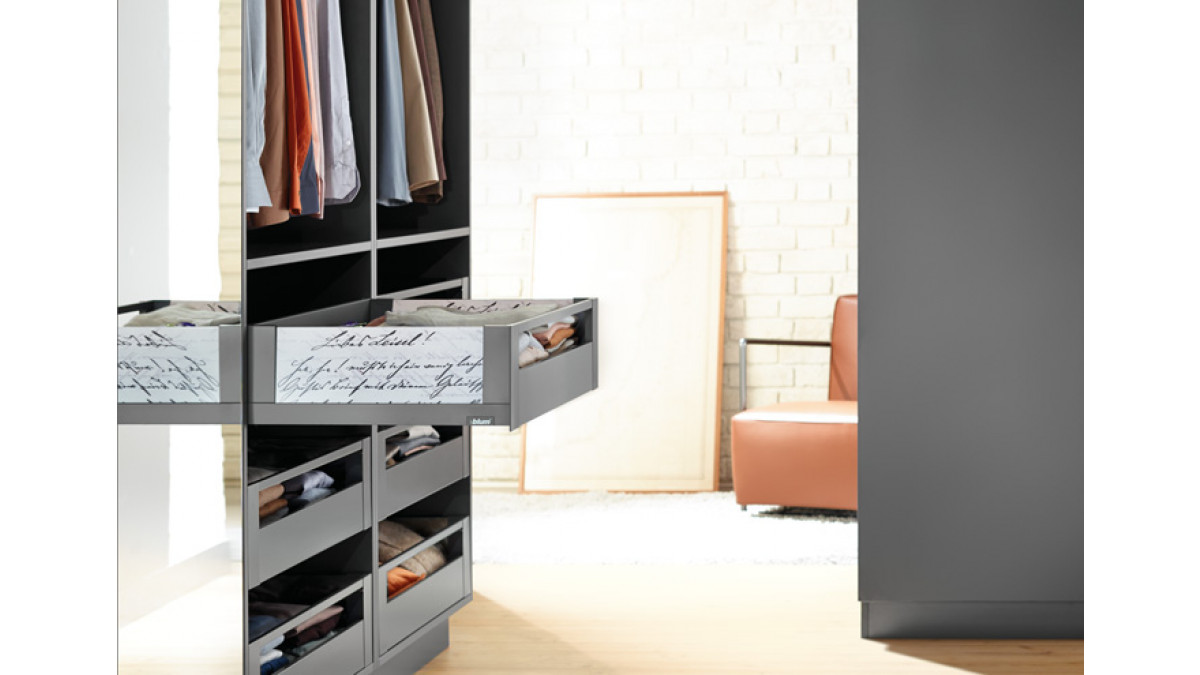

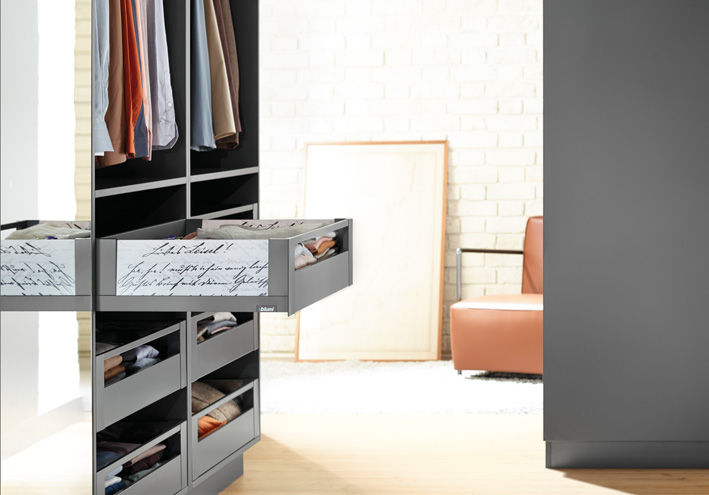

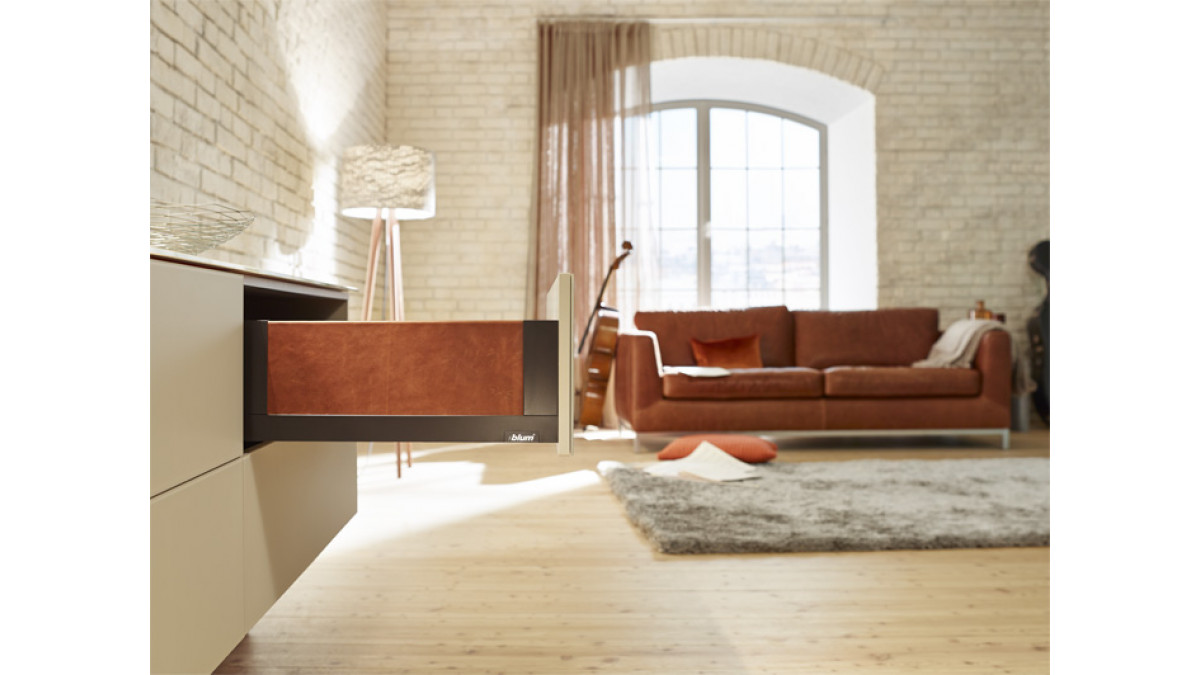

  • Option to specify custom design elements
  • 40kg or 70kg weight loading
  • Silk white, orion grey, terra black or anti-fingerprint stainless steel
  • 500 or 550mm nominal length
  • For drawer widths 275–1400mm wide
  • For inner drawer widths 275–1200mm wide
  • C height sides
  • BLUMOTION as standard
  • SERVO-DRIVE optional
  • TIP-ON BLUMOTION optional
  • SERVO-DRIVE for LEGRABOX is a Lifemark Approved Product
  • AMBIA-LINE kitchen accessories are Lifemark Approved Products
Lifemark Product Partner
Lifemark Product Partner
Scope of Use

Kitchens, laundries, bathroom vanities, entertainment units, wardrobes, offices, commercial, schools, university, hospitality, shop fit-outs and other interior cabinetry.

  • Option to specify custom design elements (exclusively available for the C height LEGRABOX pull-outs)
  • Compatible with AMBIA-LINE inner dividing system and kitchen accessories
  • Ideal for drawers which benefit from items being visible from the side
  • Inner drawer C height front options – gallery rail, low glass or high glass
  • 40kg or 70kg weight loading
  • 500 or 550mm nominal length
  • For drawer widths 275–1400mm wide
  • For inner drawer widths 275–1200mm wide
Limitations on Use
  • Not suitable for exterior applications
Other Performance Attributes
  • SERVO-DRIVE for LEGRABOX is a Lifemark Approved Product
  • AMBIA-LINE kitchen accessories are Lifemark Approved Products
  • ISO 14001, 50001, 9001

Motion technologies

  • BLUMOTION: Soft-close. Technology for silent and effortless closing
  • SERVO-DRIVE: Electronic opening support system for lift systems, box systems and integrated appliances
  • TIP-ON: Push-to-open and push-to-close. Mechanical opening support system for handle-less AVENTOS HK, AVENTOS HK-XS and doors
  • TIP-ON BLUMOTION: Push-to-open and soft-close. Mechanical opening support system with silent and effortless closing for handle-less drawers and pull-outs
Documents
International Awards
ISO 14001
ISO 50001
ISO 9001
LGA Quality Certificate
Maintenance and Warranty
Hardware Checklist
