Lockwood Lever & Push/Pull Furniture: Artefact Range 212 Series Oval Plate
ASSA ABLOY
All products
212
Description

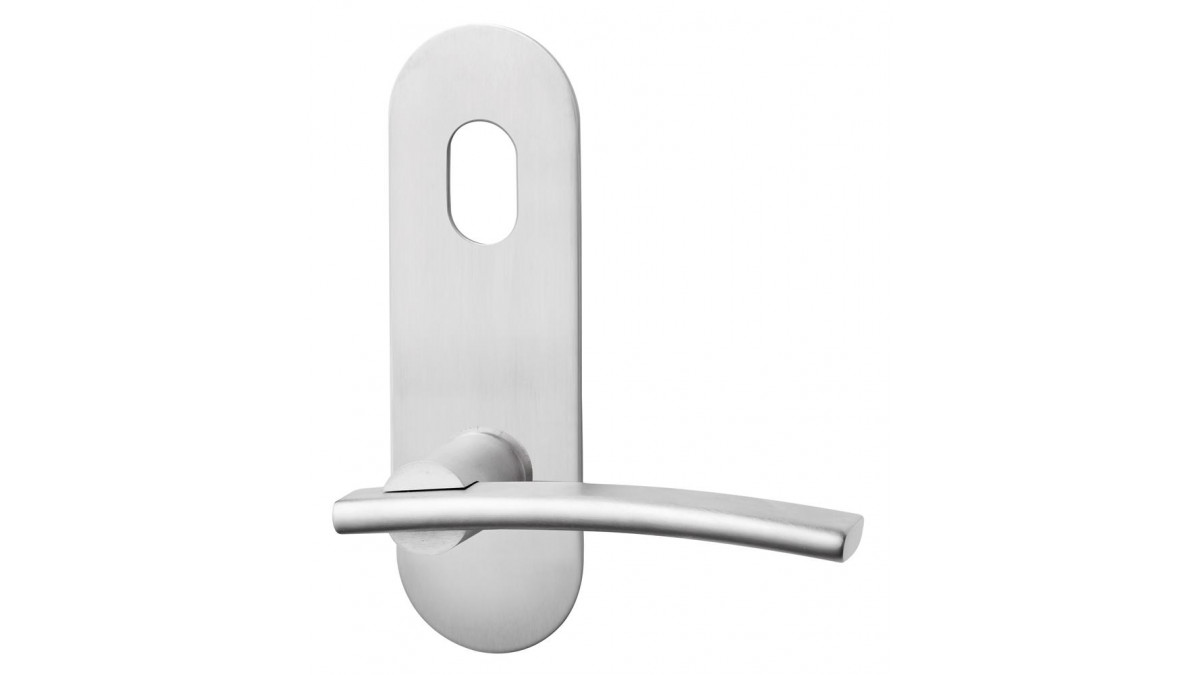

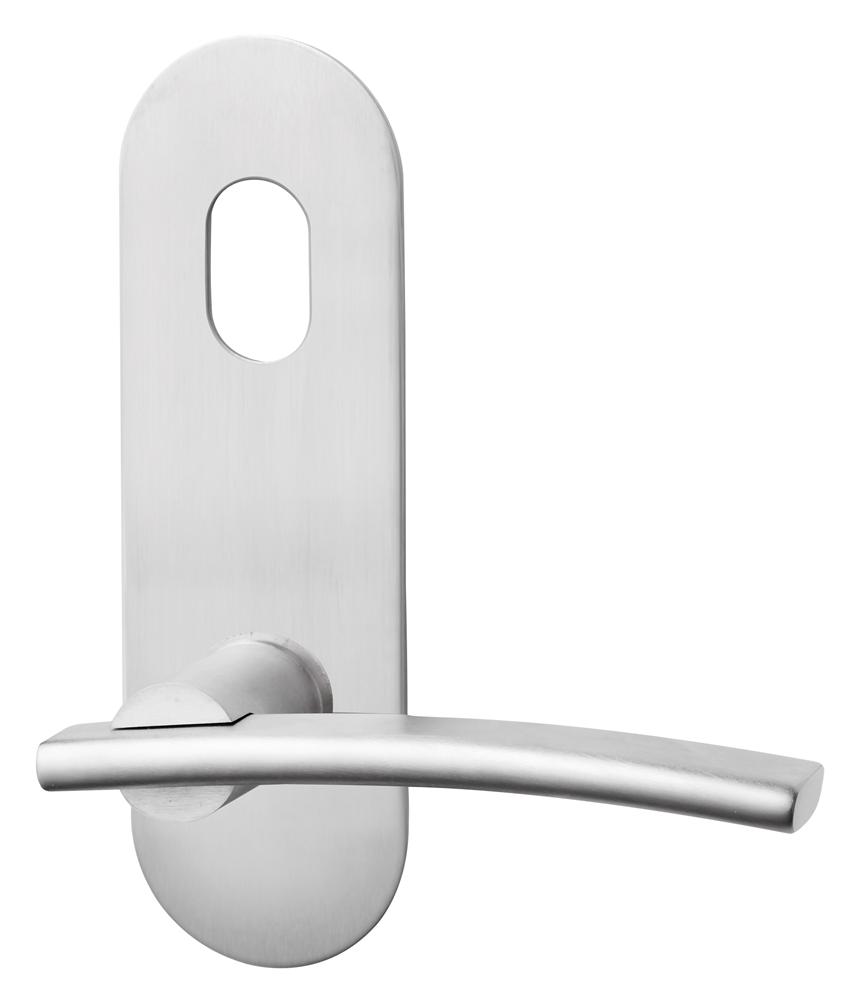

The 212 Artefact Series Door Furniture is 162mm long x 50mm. Concealed fixed plates have studs with internal threads located top and bottom, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Designed for use with Selector 3770 and Synergy 3570 Series Mortice Locks.

Key Features
  • Dimensions: 162 x 50 x 3mm — aluminium / 162 x 50 x 2mm — stainless steel and brass
  • Materials: Aluminium, stainless steel or brass
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Finished standard: Natural Anodised Aluminium (NT) / Stainless Steel (SS)
  • Finished non-standard: 316 Marine Grade (MG) / Polished Brass (PB) / Polished Stainless Steel (PS) / Powdercoat (PC)

Note: When using flush pulls back to back the minimum door thickness is 40mm

Categories
Handles and Knobs
Ranges
Lever & Push/Pull Furniture
Scope of Use
  • Designed for use with Selector 3770 and Synergy 3570 Series Mortice Locks
  • Door thickness: 35 to 45mm standard.
  • For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • When using flush pulls back to back the minimum door thickness is 40mm
