Lockwood Lever & Push/Pull Furniture: 200 Series Artefact Square Corner Plates
Description

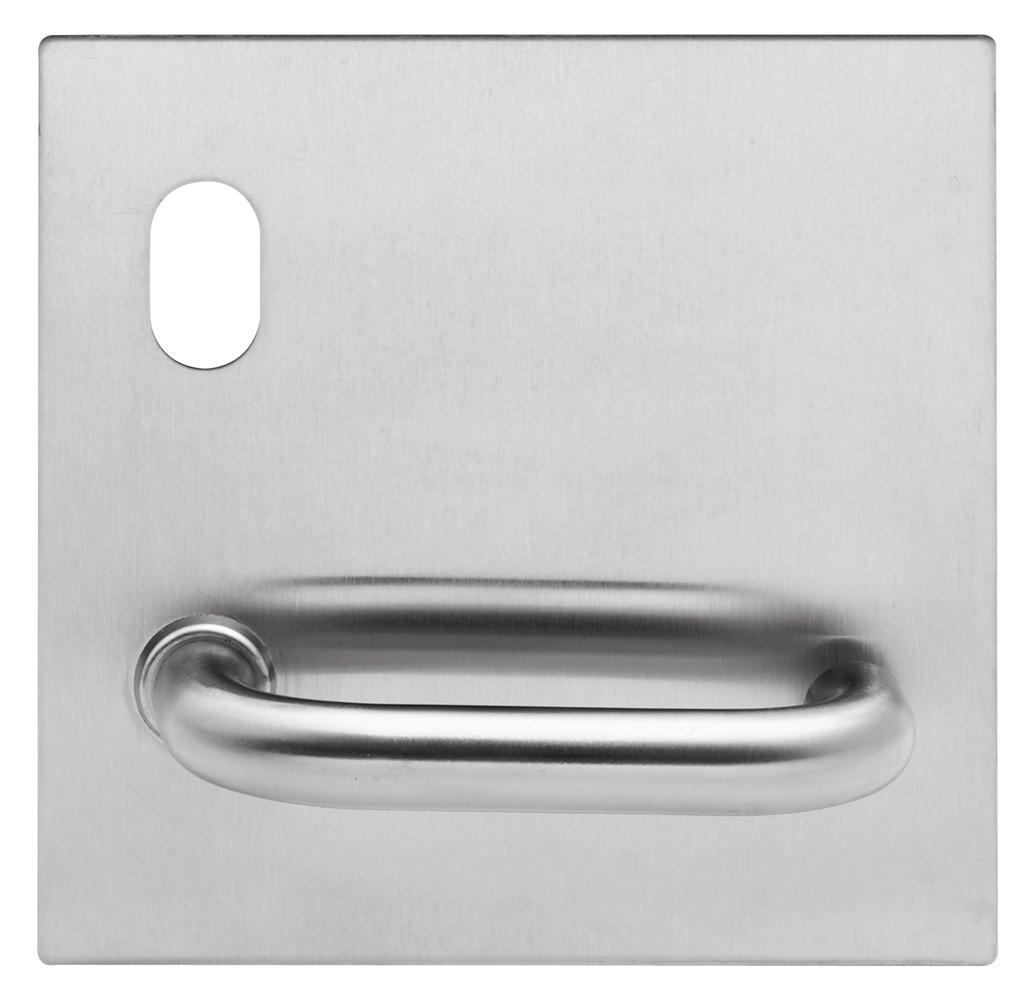

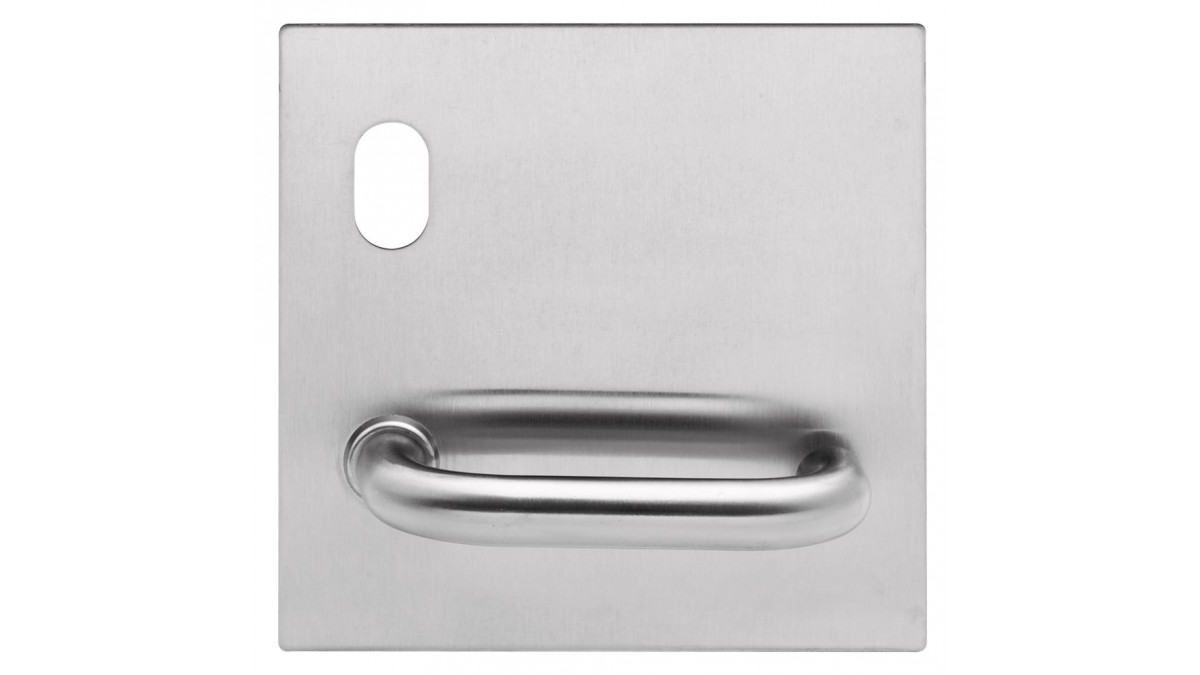

The 200 Series Door Furniture is 162mm square with square corners. Concealed fixed plates have studs with internal threads located in each corner, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Designed for use with Lockwood 3570 Series Mortice Locks; Latches and Push and Pull doors.

Key Features
  • Materials: Aluminium, brass and stainless steel
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208. When using flush pulls back to back the minimum door thickness is 40mm.
  • Standard finishes: Natural Anodised Aluminium (NT), Satin Stainless Steel (SS)
  • Non-standard finishes: Polished Stainless Steel (PS), Powdercoat (PC), Marine Grade (MG), Polished Brass (PB)
Scope of Use
  • Designed for use with Lockwood 3570 Series Mortice Locks; Latches and Push and Pull doors
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.  When using flush pulls back to back the minimum door thickness is 40mm.
