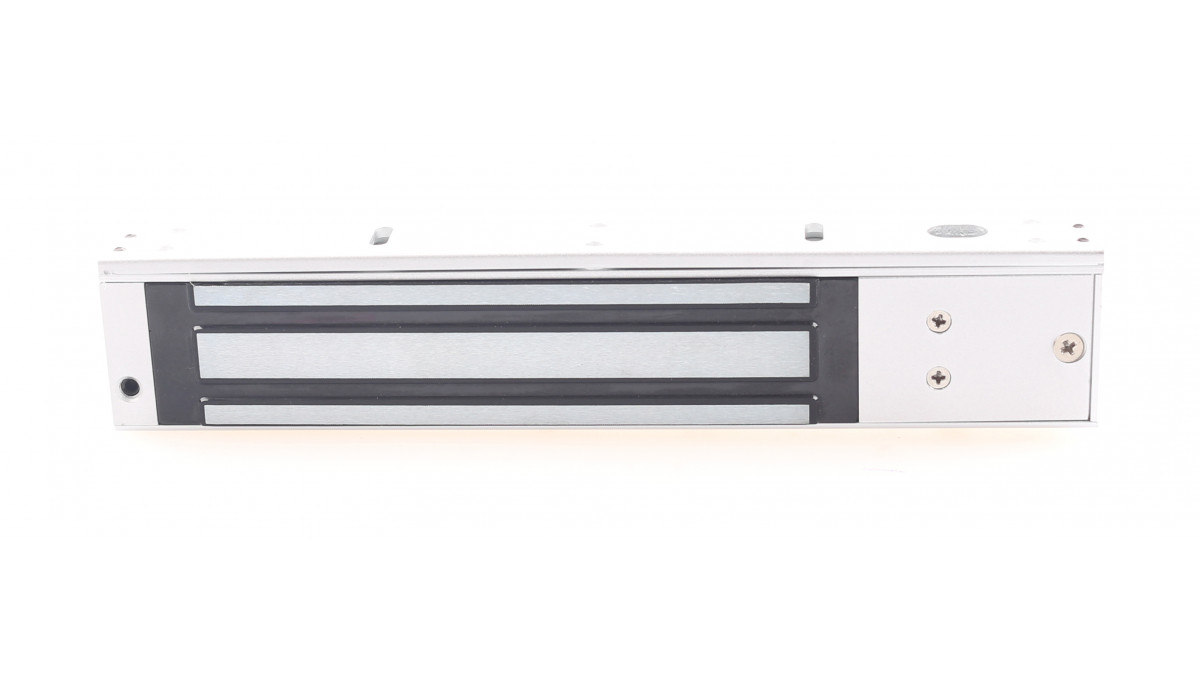

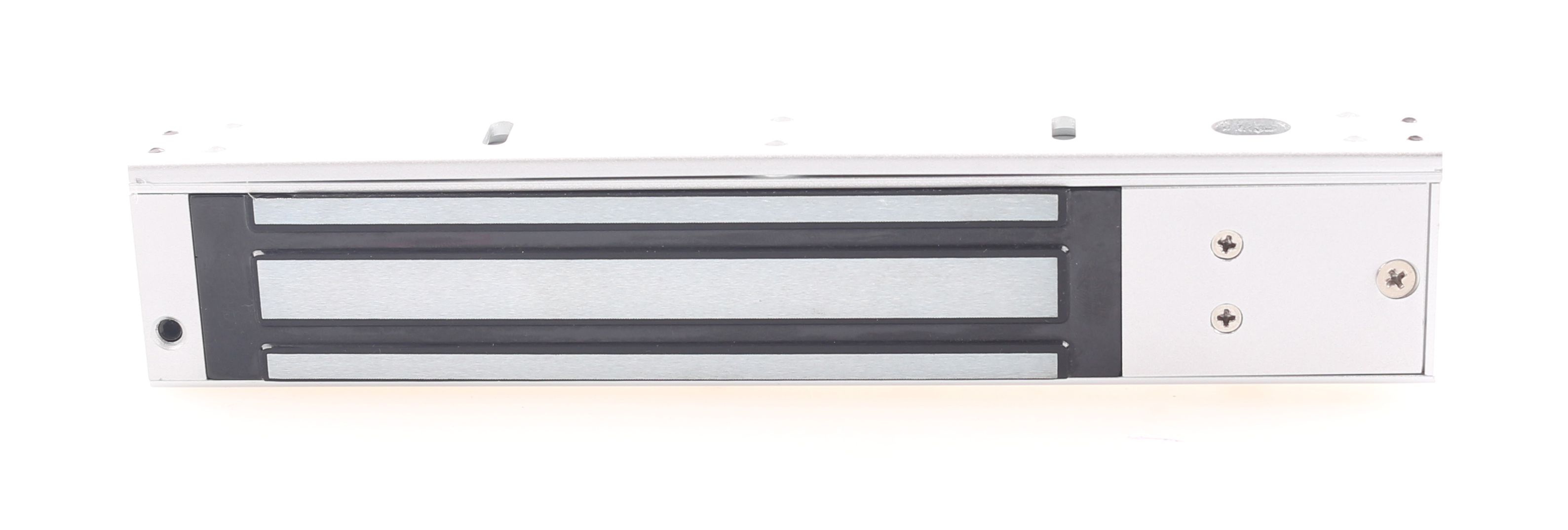

Single Series A4 Magnet:

• Holding force:250-280 Kg
• Dimensions: (L)250 x (H)51.8 x (D)27.9mm
• Voltage: 12Vdc/24Vdc +/- 10%
• Current: 520mA @ (12Vdc) and 260mA @ (24Vdc)
• Monitoring: Hall-effect and reed switch
• Operating temperature: -10 to 55°
• Operating humidity: 0-90%

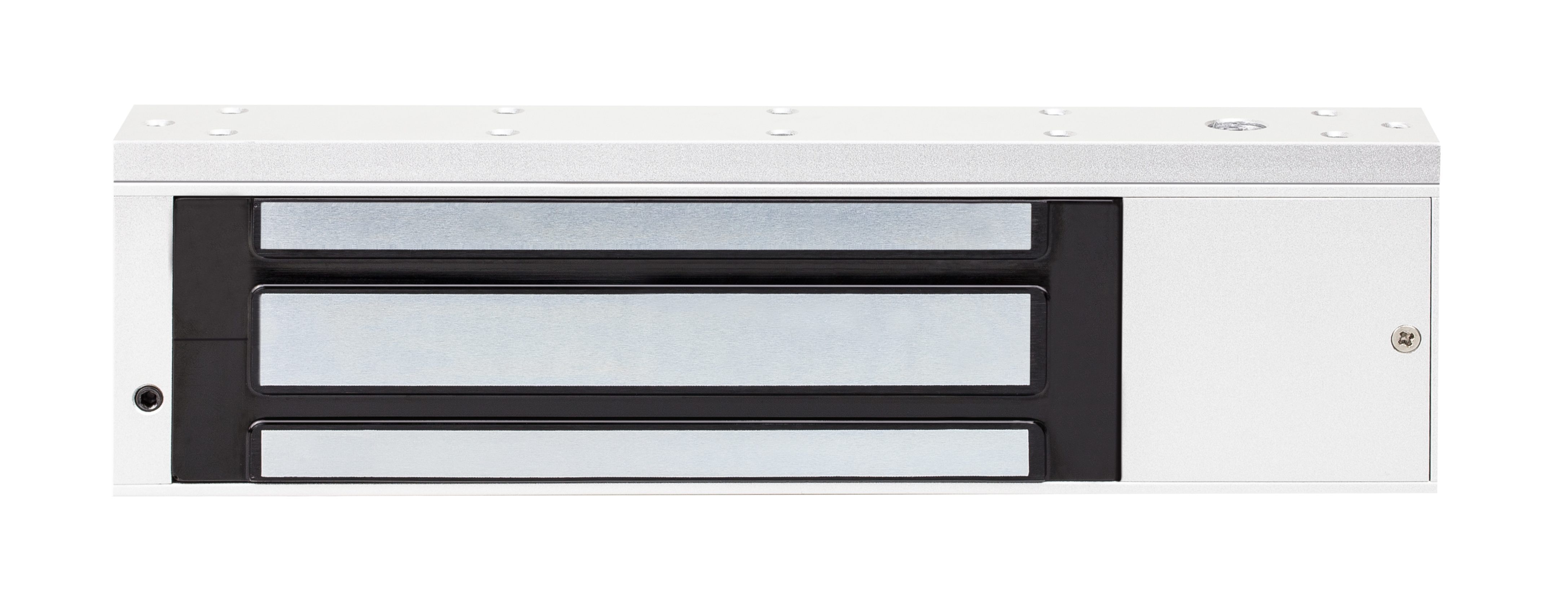

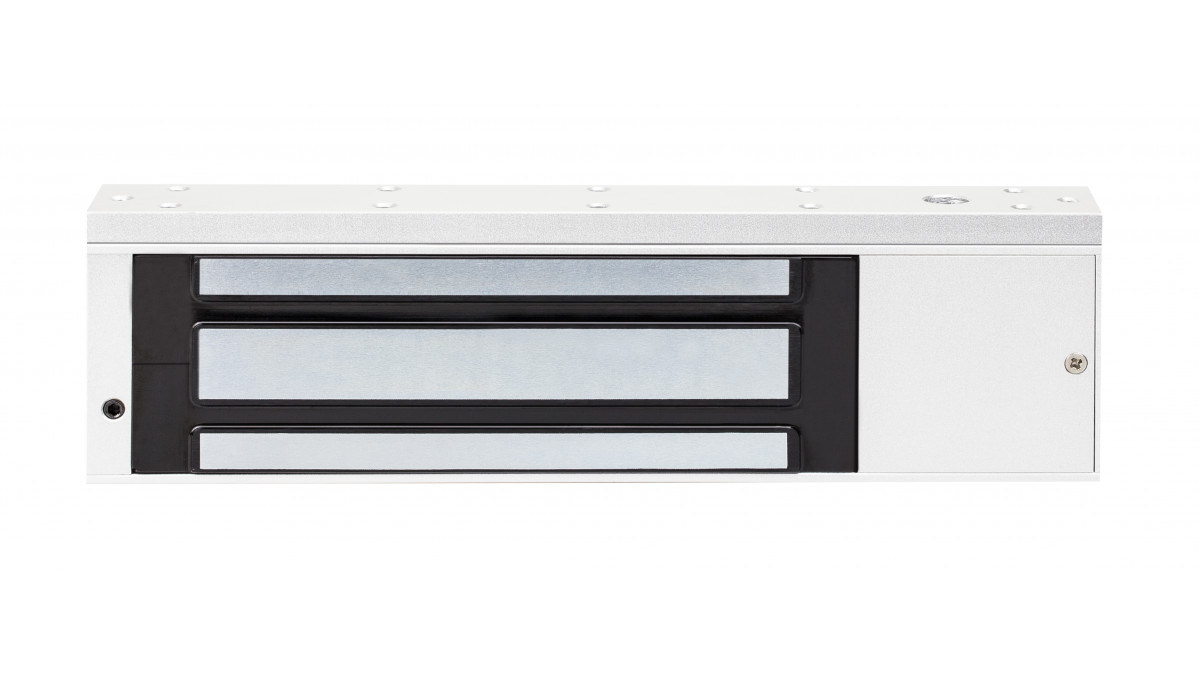

Single Series A8 Magnet:

• Holding force: 550kg-580 kg
• Dimensions: (L)265 x (H)71.8 x (D)39mm
• Voltage: 12Vdc/24Vdc +/- 10%
• Current: 420mA @ (12Vdc) and 210mA @ (24Vdc)
• Monitoring: Hall-effect and reed switch
• Operating temperature: -10 to 55 Degrees
• Operating humidity: 0-90%

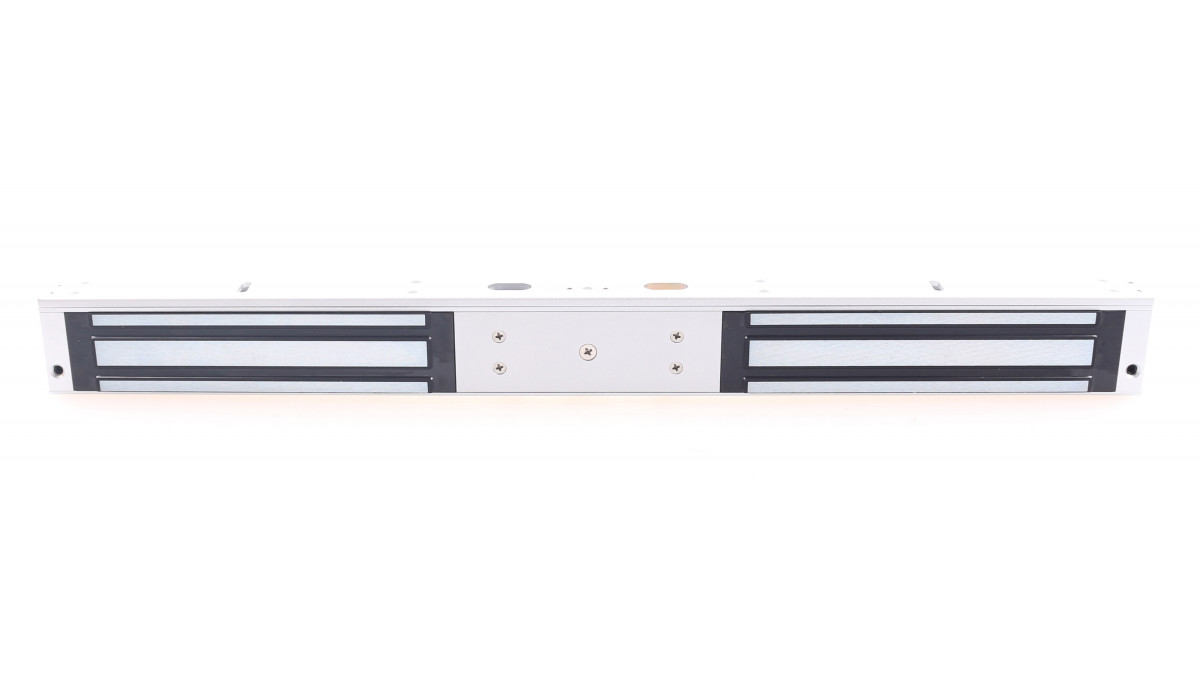

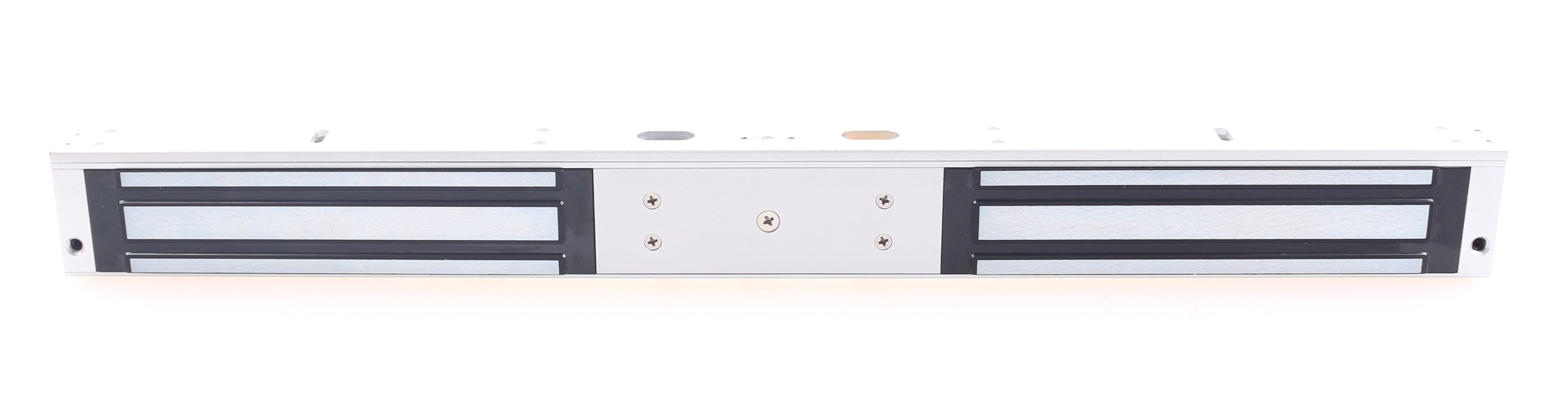

Double Series A4 Magnet:

• Holding force: 500-560 Kg
• Dimensions: (L)500 x (H)48.8 x (D)27.9mm
• Voltage: 12Vdc/24Vdc +/- 10%
• Current:520mA @ (12Vdc) and 260mA @ (24Vdc)
• Monitoring: Hall-effect and reed switch
• Operating temperature: -10 to 55°
• Operating humidity: 0-90%

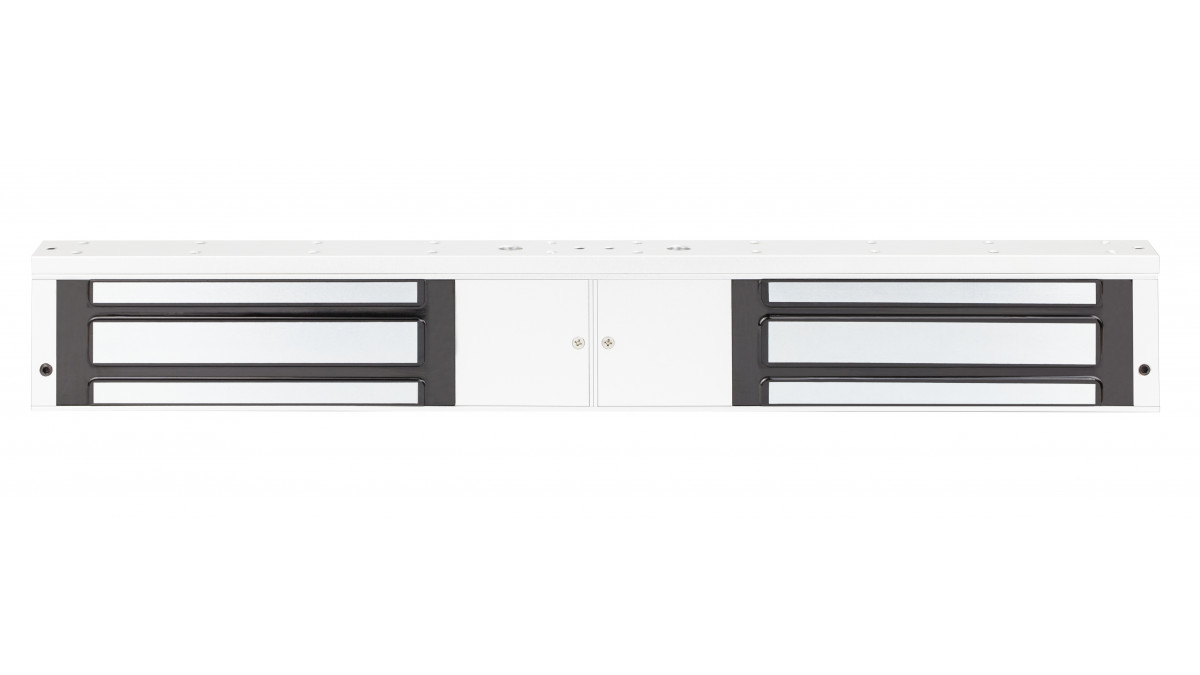

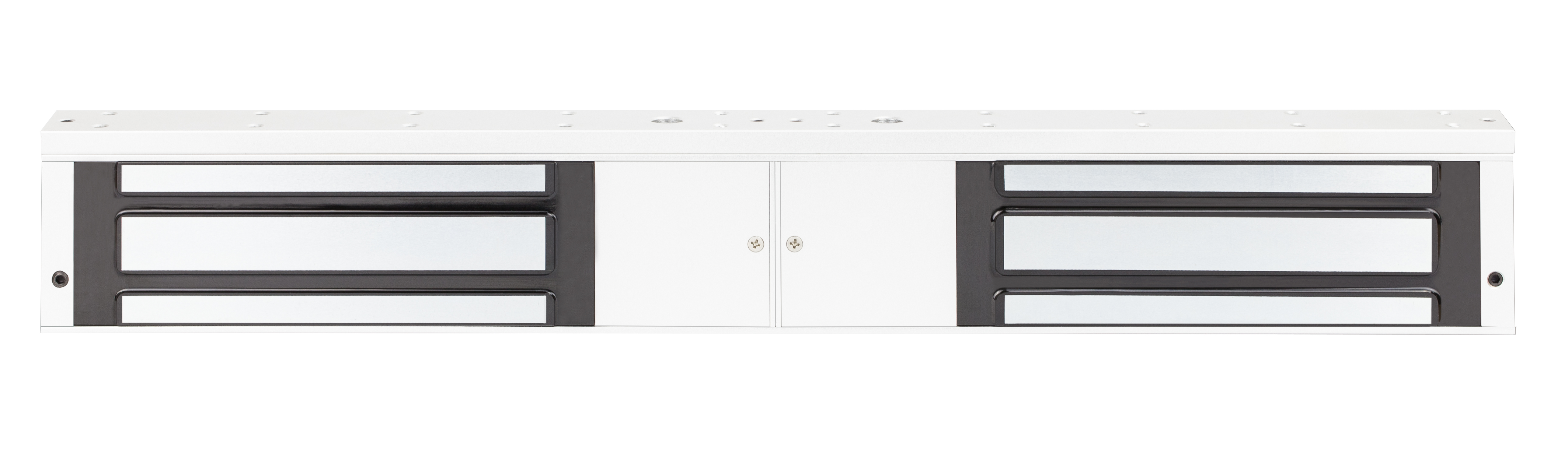

Double Series A8 Magnet:

• Holding force: 1100-1160 Kg
• Dimensions: (L)530 x (H)71.8 x (D)39mm
• Voltage: 12Vdc/24Vdc +/- 10%
• Current: 840mA @ (12Vdc) and 420mA @ (24Vdc)
• Monitoring: Hall-effect (optional)
• Operating temperature: -10 to 55°
• Operating humidity: 0-90%

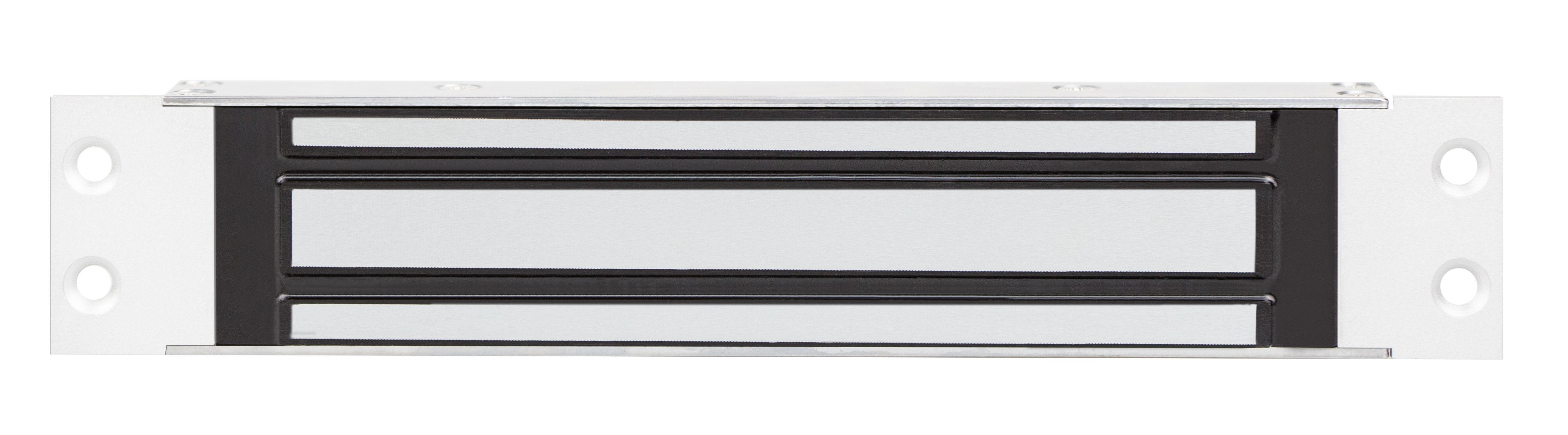

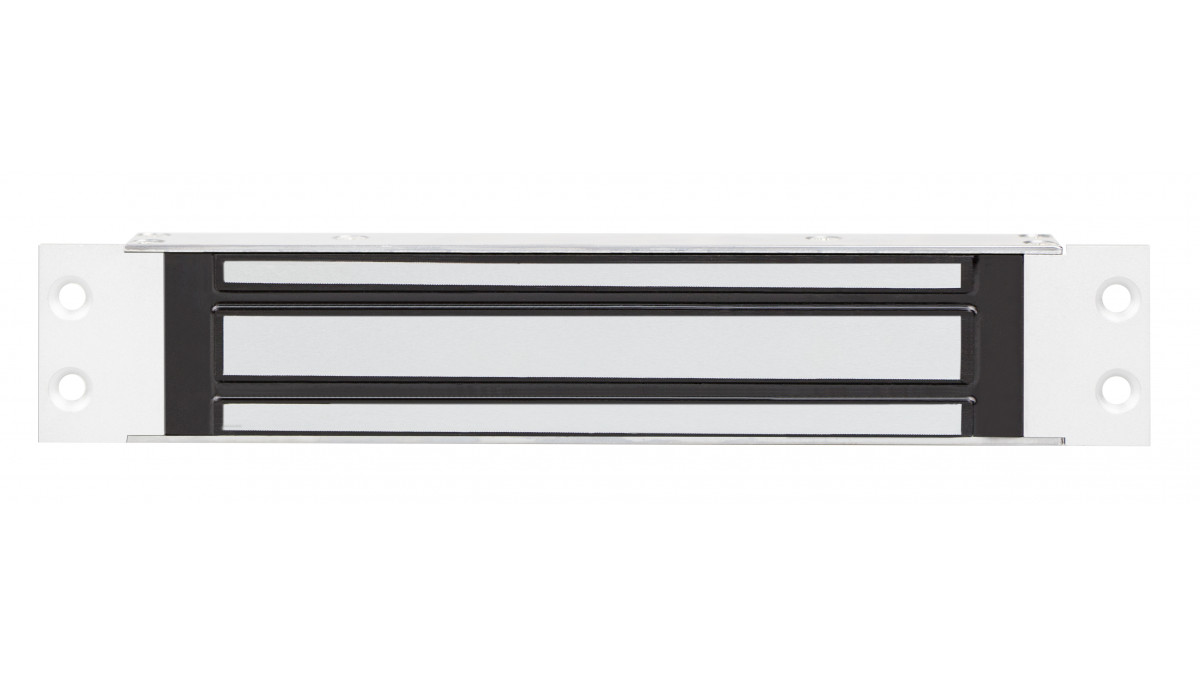

Recessed A4 Magnet:

• Holding Force: 500-560 Kg
• Dimensions: (L)500 x (H)48.8 x (D)27.9mm
• Voltage: 12Vdc/24Vdc +/- 10%
• Current: 520mA @ (12Vdc) and 260mA @ (24Vdc)
• Monitoring: Hall-effect and reed switch
• Operating temperature: -10 to 55°
• Operating humidity: 0-90%

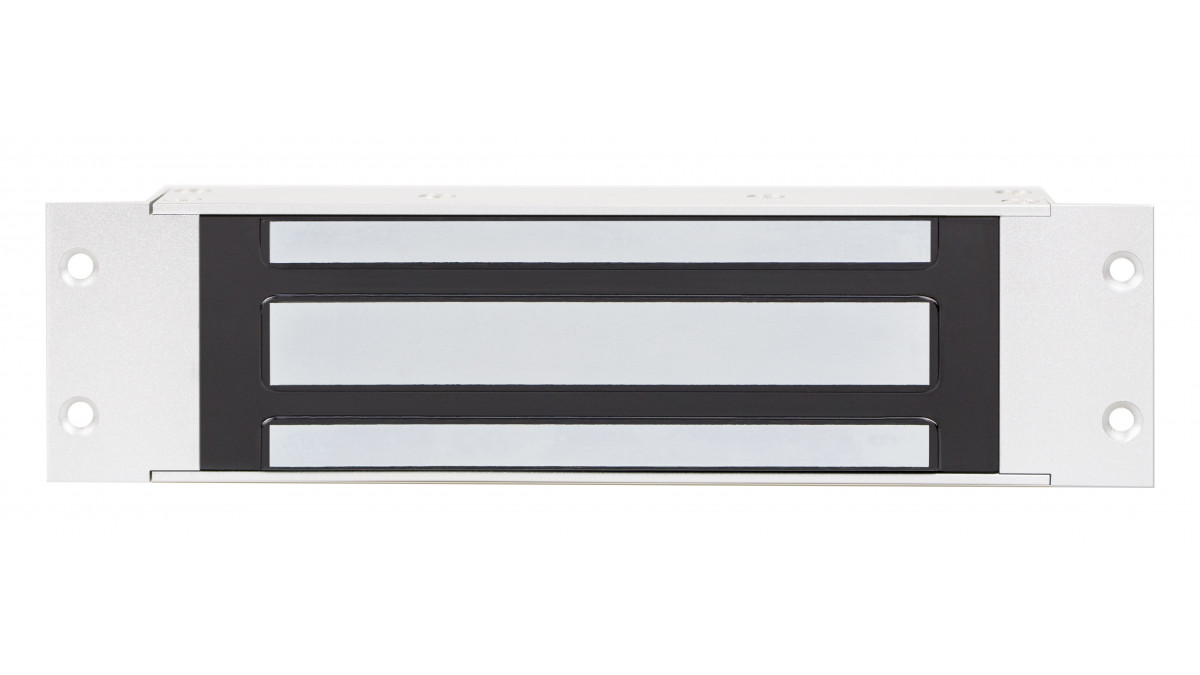

Recessed A8 Magnet:

• Holding Force: 1100 - 1160 Kg
• Dimensions: (L)530 x (H)71.8 x (D)39mm
• Voltage: 12Vdc/24Vdc +/- 10%
• Current: 840mA @ (12Vdc) and 420mA @ (24Vdc)
• Monitoring: Hall-effect (optional)
• Operating temperature: -10 to 55°
• Operating humidity 0-90%
