ARDEX Crack Isolation and Decoupling System
ARDEX
All products
Crack isolation decoupling system
Multiprime
LQ92 v2
AF2365 v2
DS70 v2
X18
ARDEX SE
FG8
Description

The ARDEX Decoupling system provides a tileable surface that protects and separates tiled finishes from the original substrate. This allows a cost effective reinstatement of the original floor at the end of a lease or upon refurbishment.

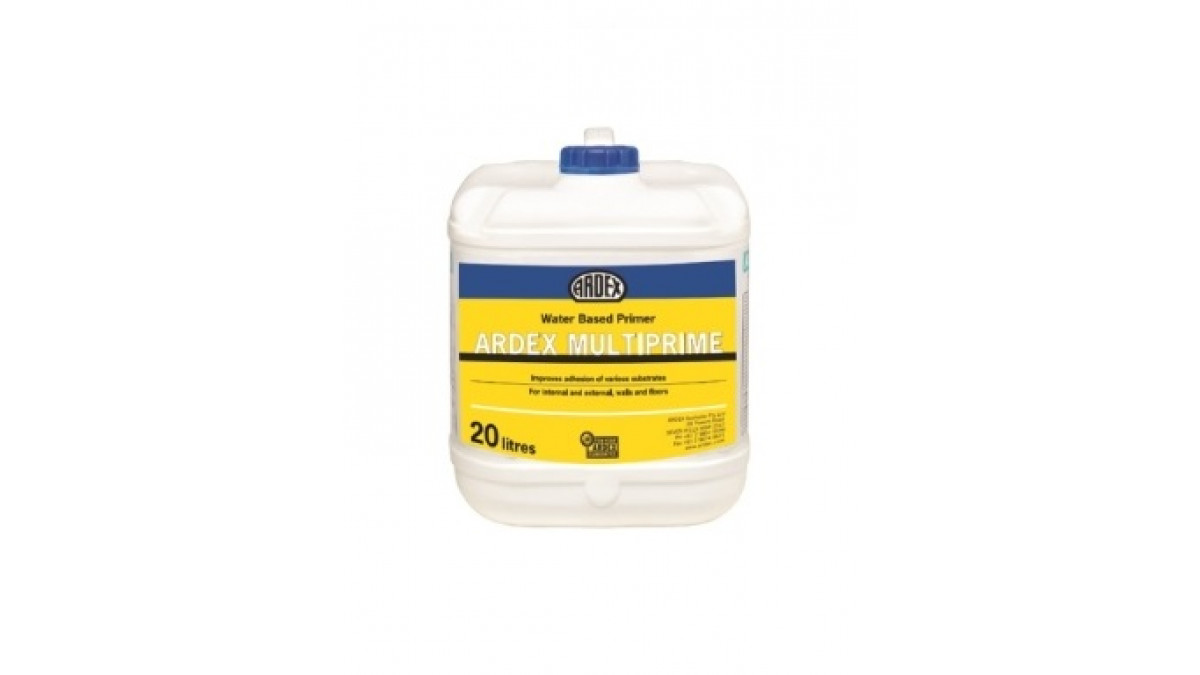

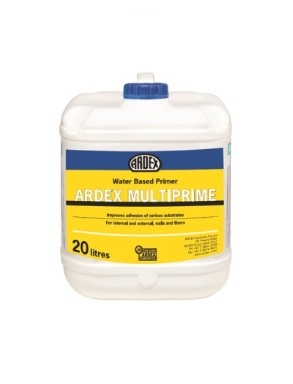

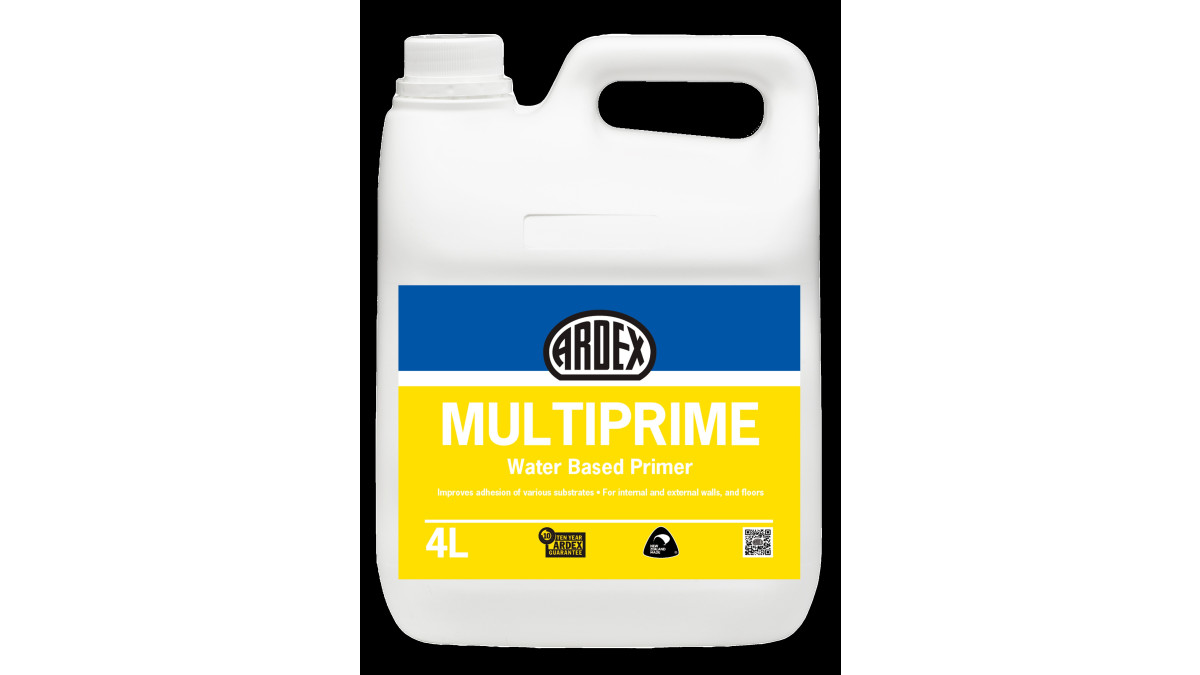

  • Primer: ARDEX Multiprime

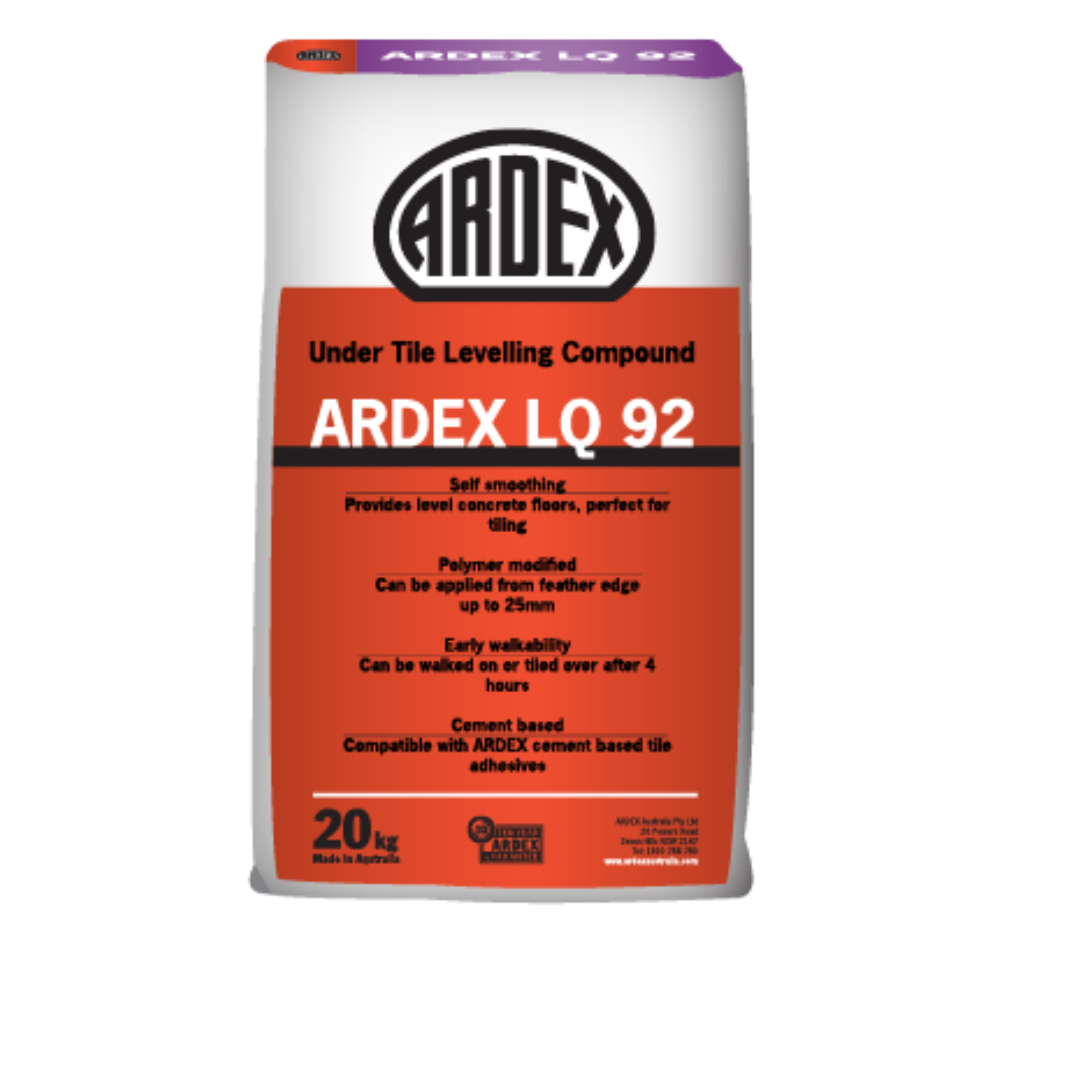

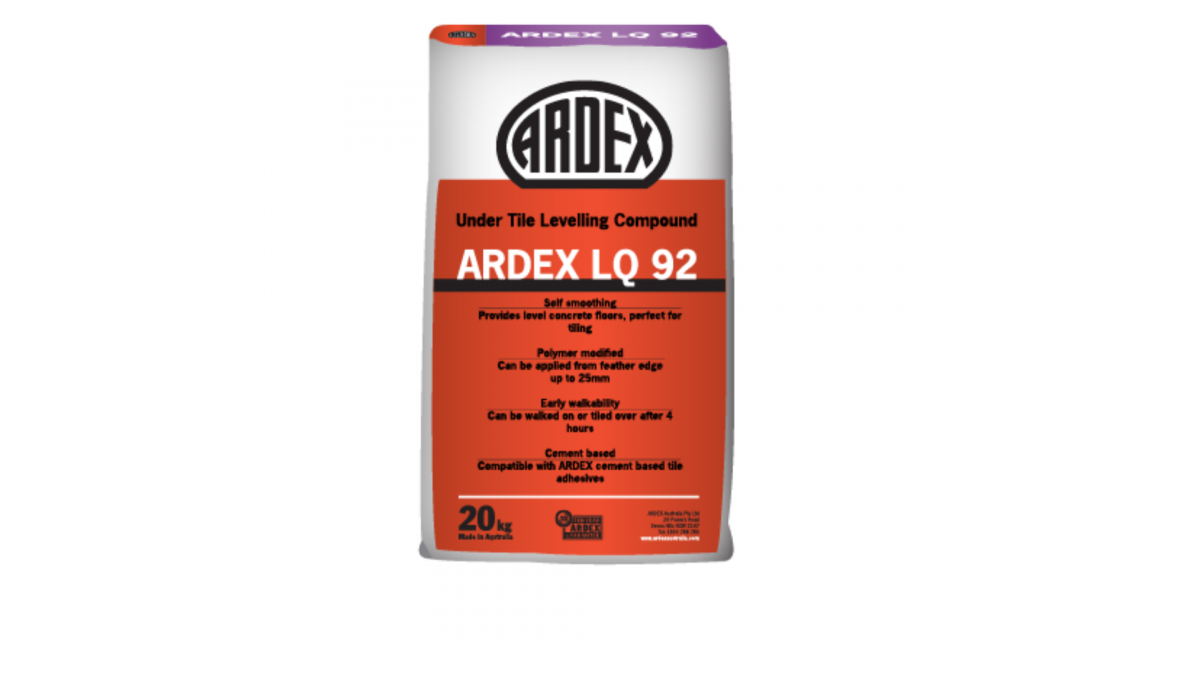

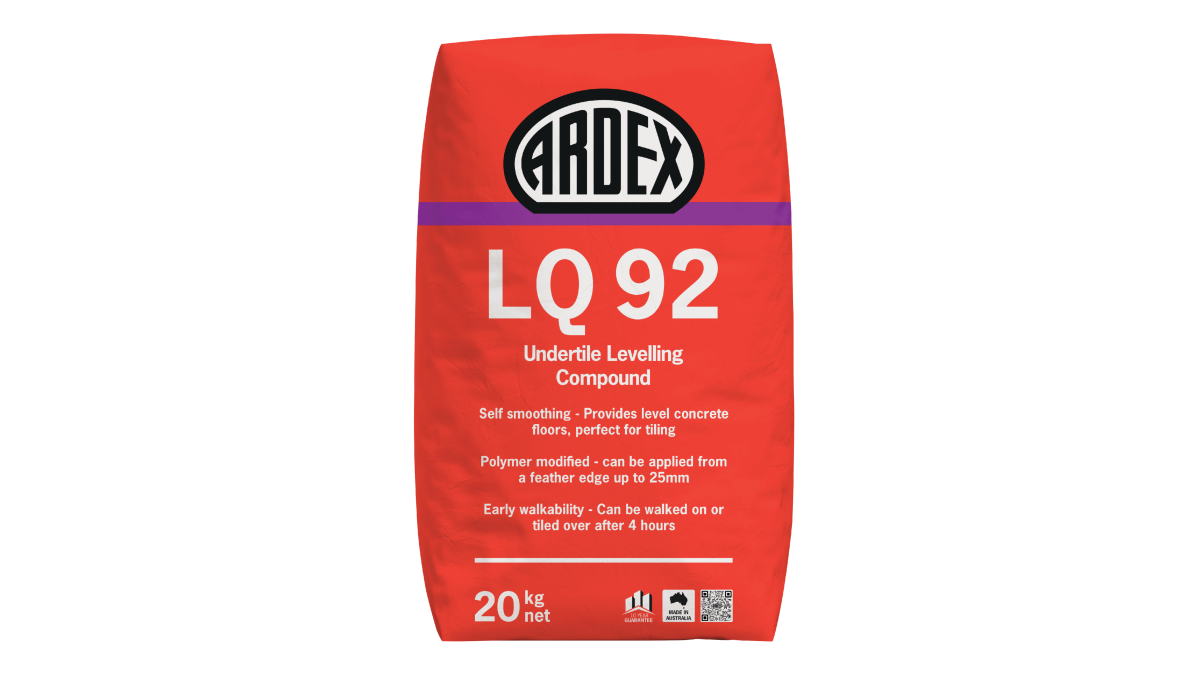

  • Levelling Compound: ARDEX LQ 92

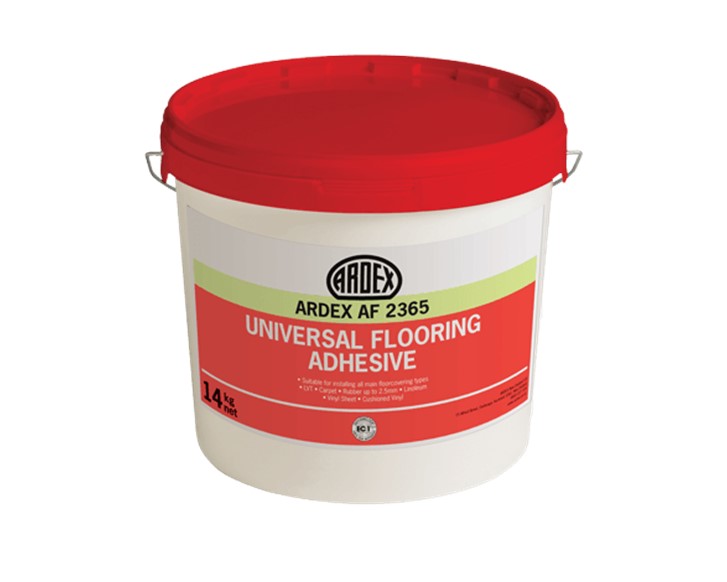

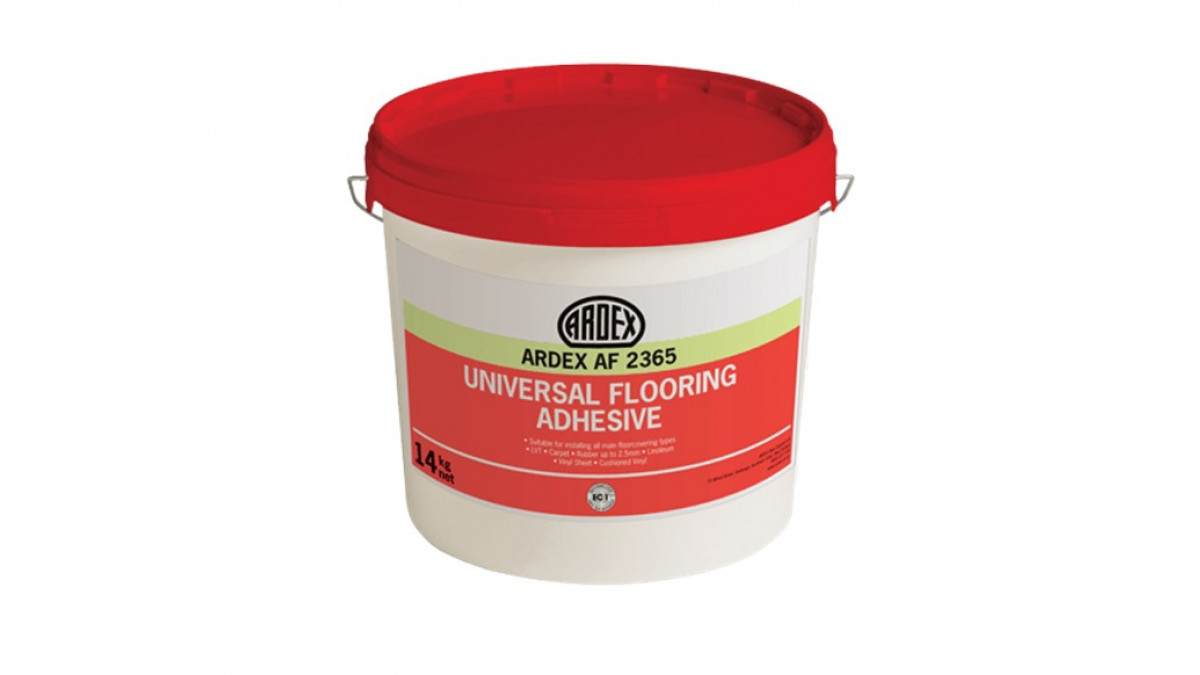

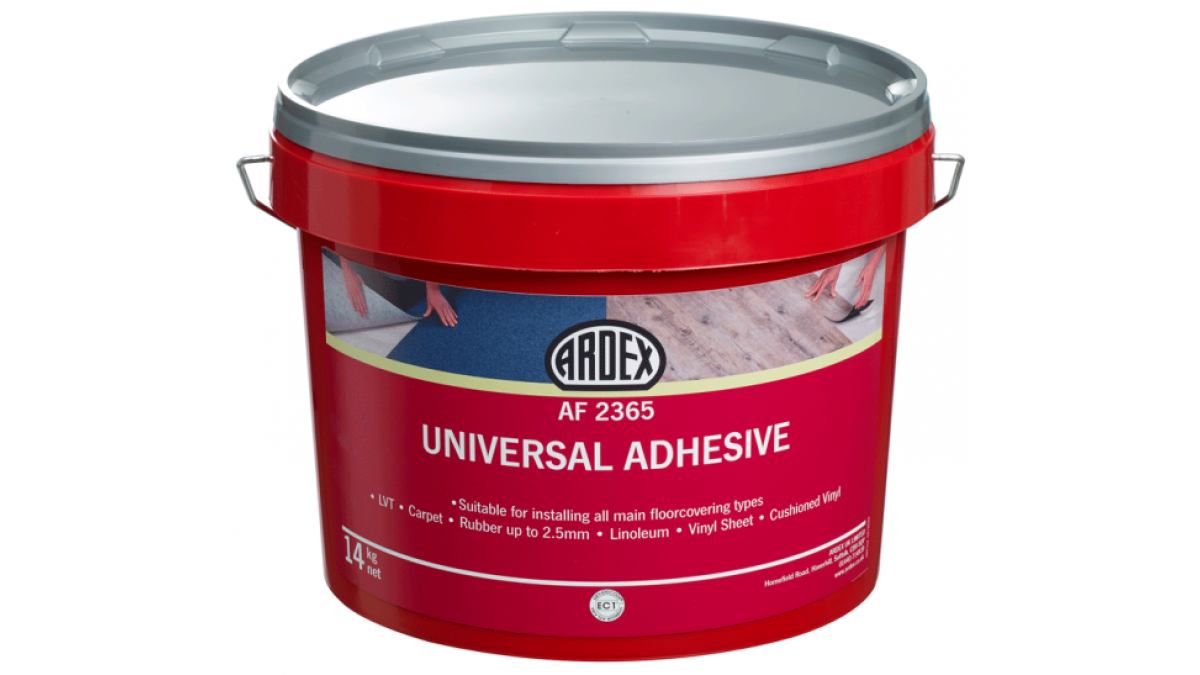

  • Adhesive: ARDEX AF 2365

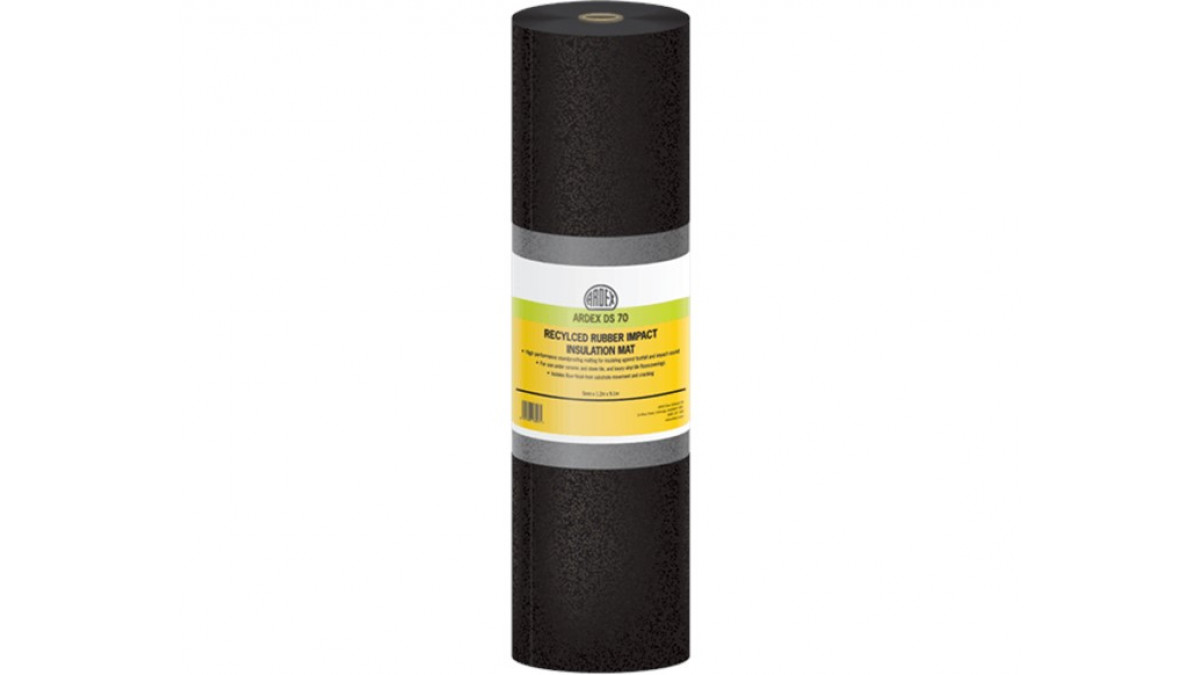

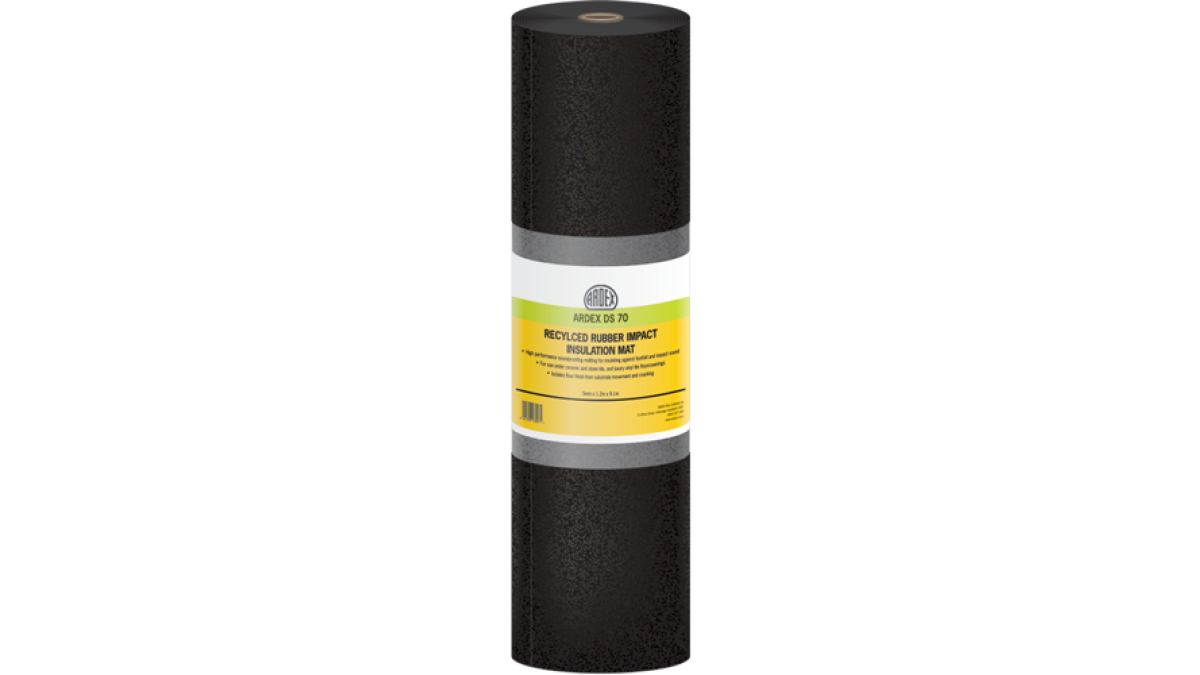

  • Matting: ARDEX DS 70

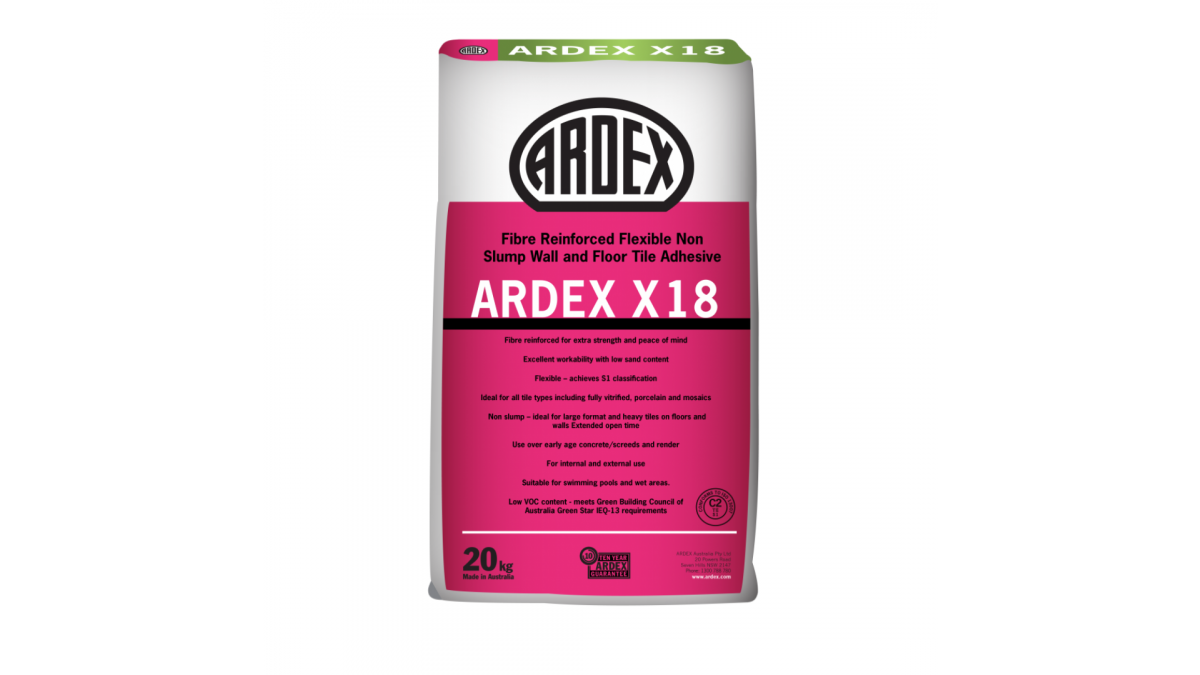

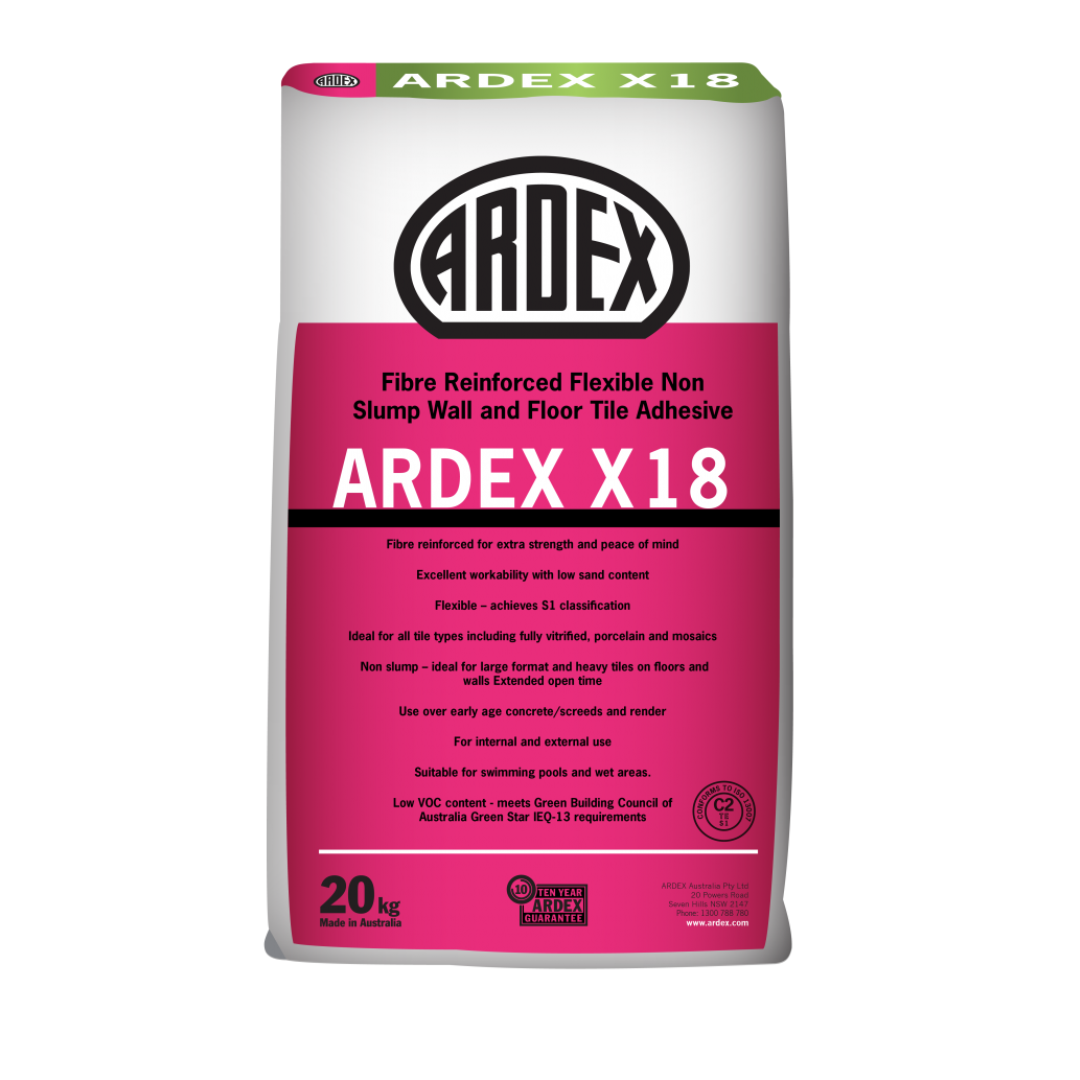

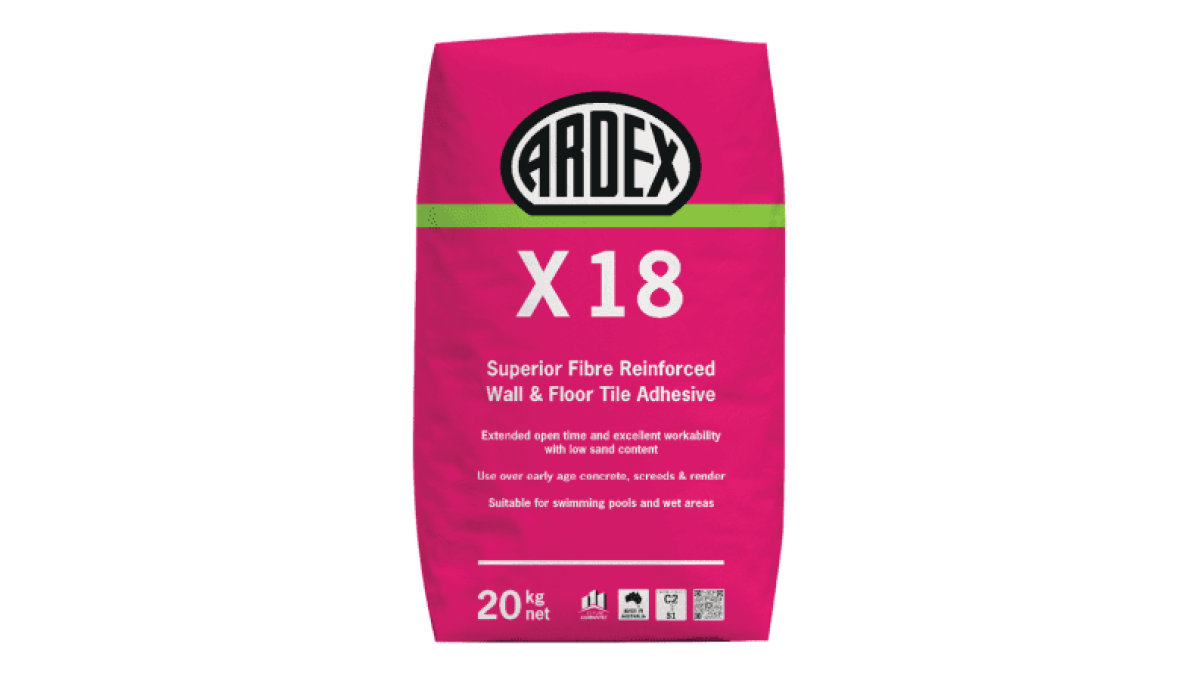

  • Tile Adhesive: ARDEX X 18

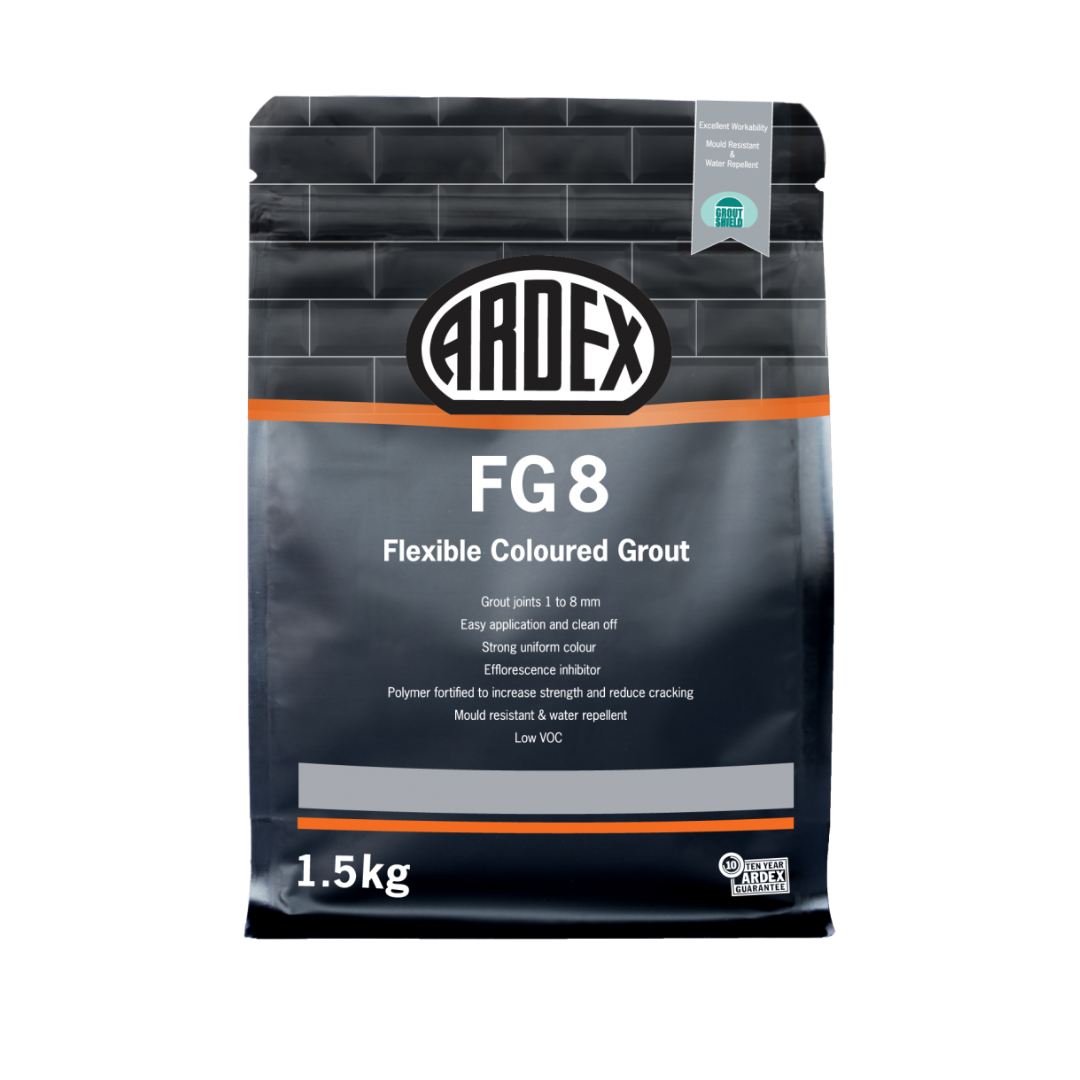

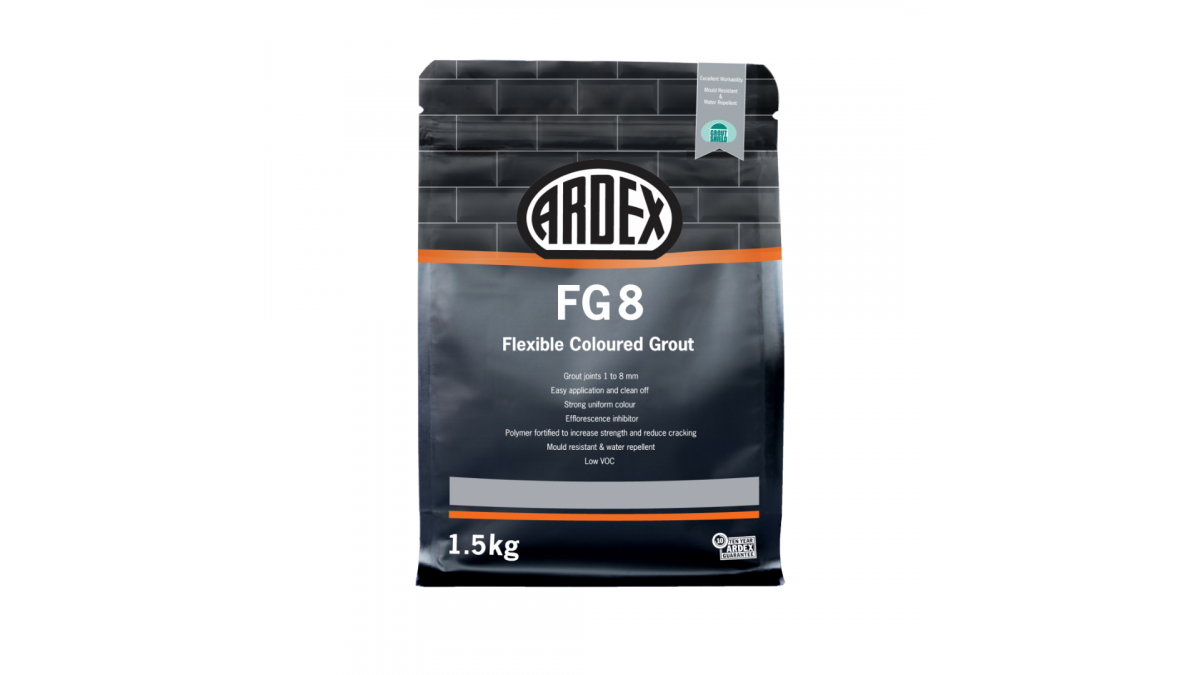

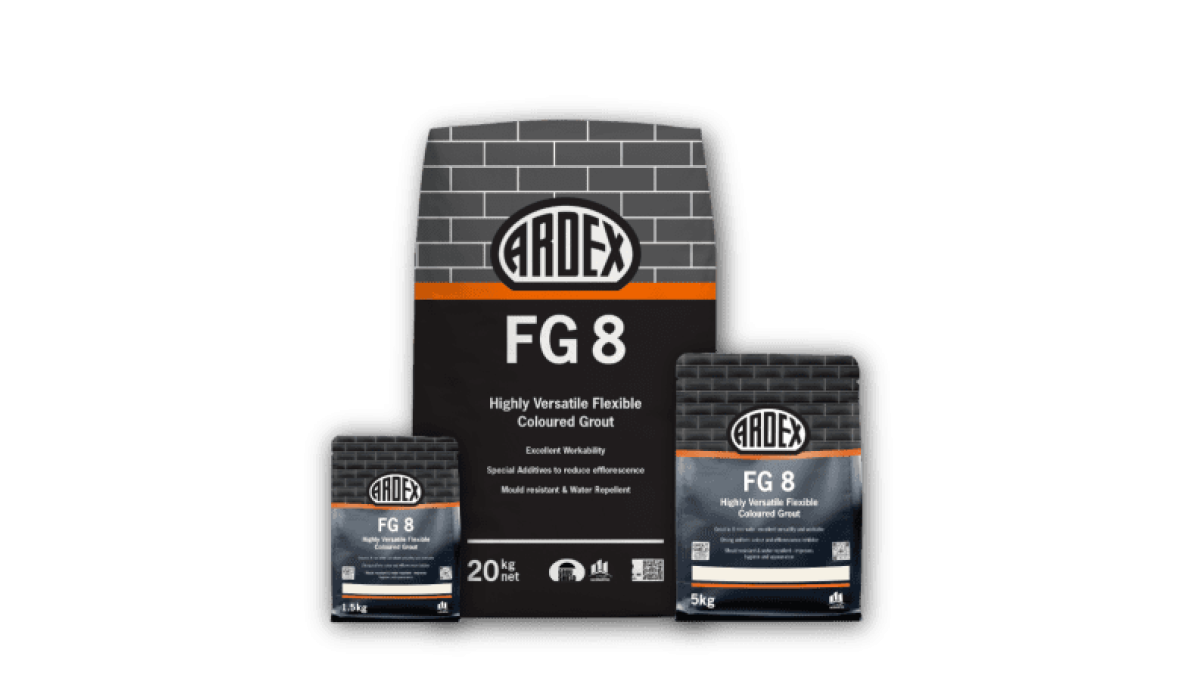

  • Tile Grout: ARDEX FG 8

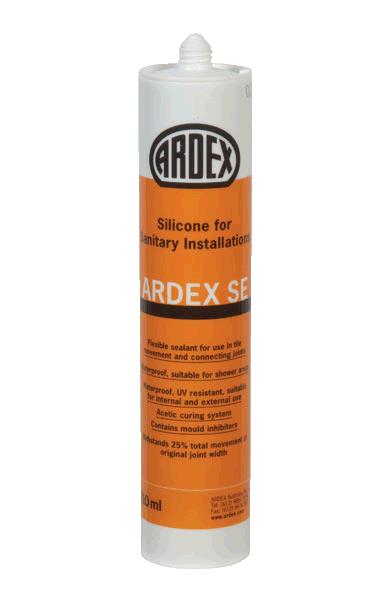

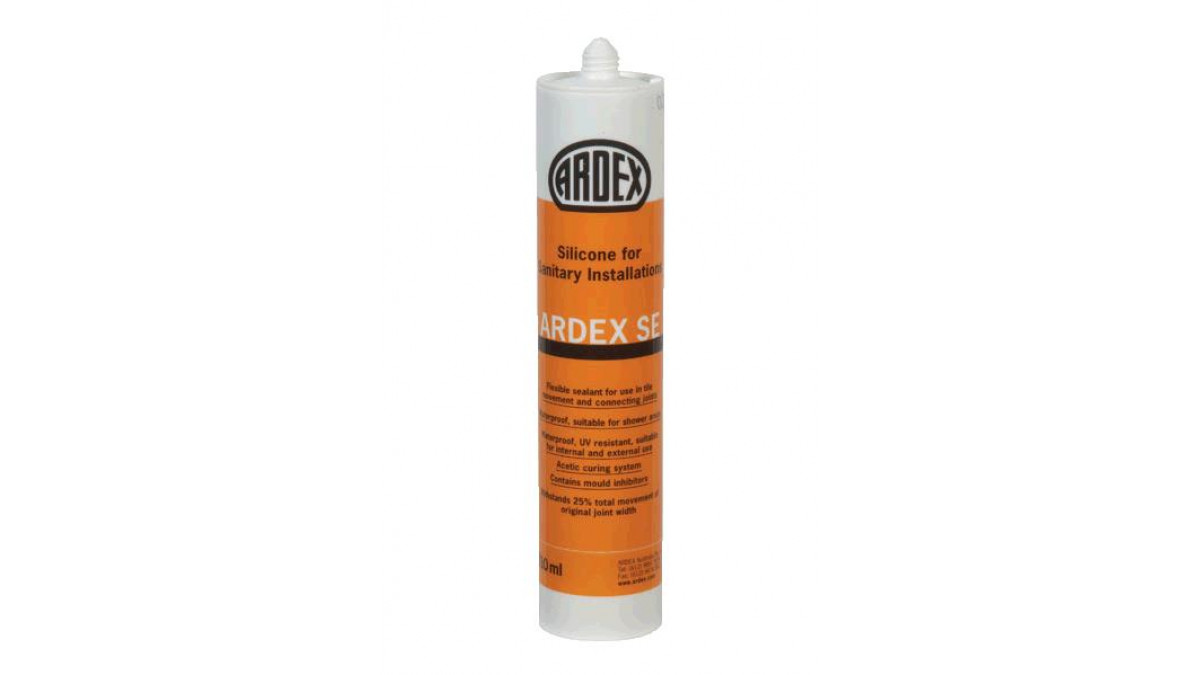

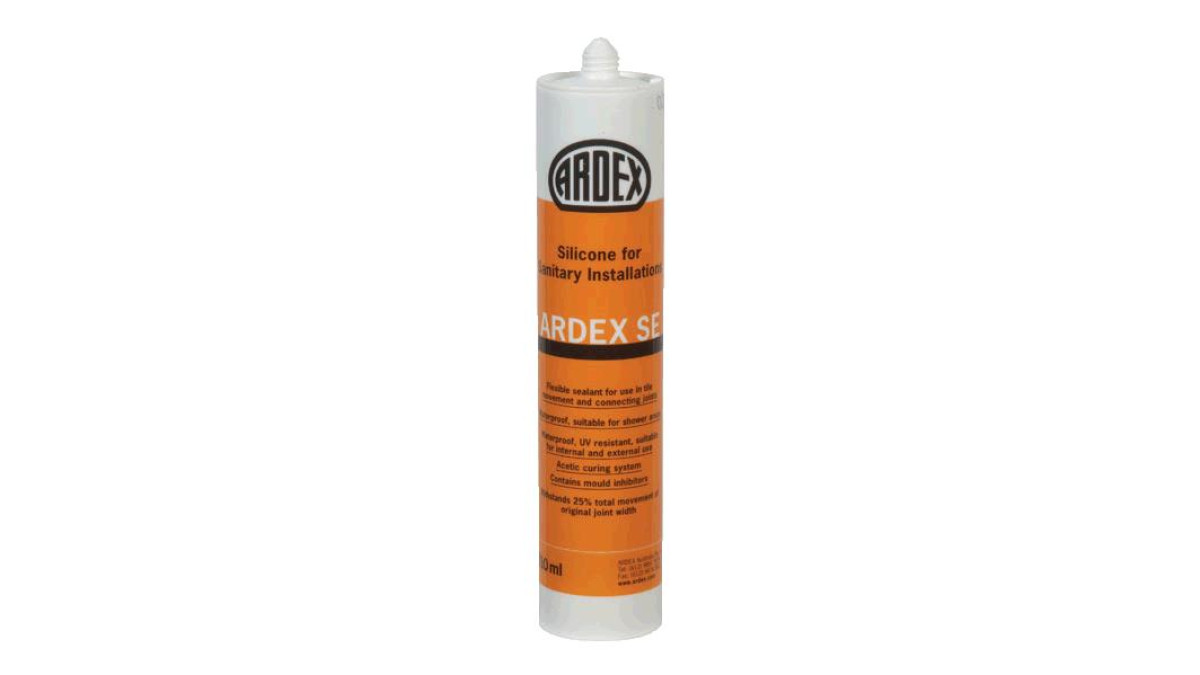

  • Silicone: ARDEX SE
Key Features
  • Decoupling mat — thin build height — 0.4mm gauge
  • Separates tiled finish from substrate movement
  • Prevents the cracking of adhesives, grouts and tiles from substrate movement
  • Allows economical removal of tiled surfaces
  • Ideal for leased or heritage applications
  • Adhered with washable, water-based, low VOC adhesive
  • Suitable for use with underfloor heating
  • Allows cost-effective reinstatement of the original floor upon refurbishment
  • Capable of withstanding hand pallet loads with a maximum gross weight of 350kg
  • Can also be installed as a floating system and a slip membrane
Categories
Tile Underlay
Ranges
Tiling Systems
NZ Made
NZ Made
Scope of Use
  • Internal, dry areas
  • Domestic or highly trafficked commercial floors
  • Large areas where crack isolation is necessary
  • Suitable for use with underfloor heating
  • Suitable for difficult-to-adhere-to surfaces e.g. bitumen membranes, epoxy, old composite cork or vinyl flooring
  • Level, flat concrete or timber floors
Limitations on Use
  • For fixed loads the maximum capacity should not exceed 150kg/m²
Other Performance Attributes
  • Low VOC adhesive
