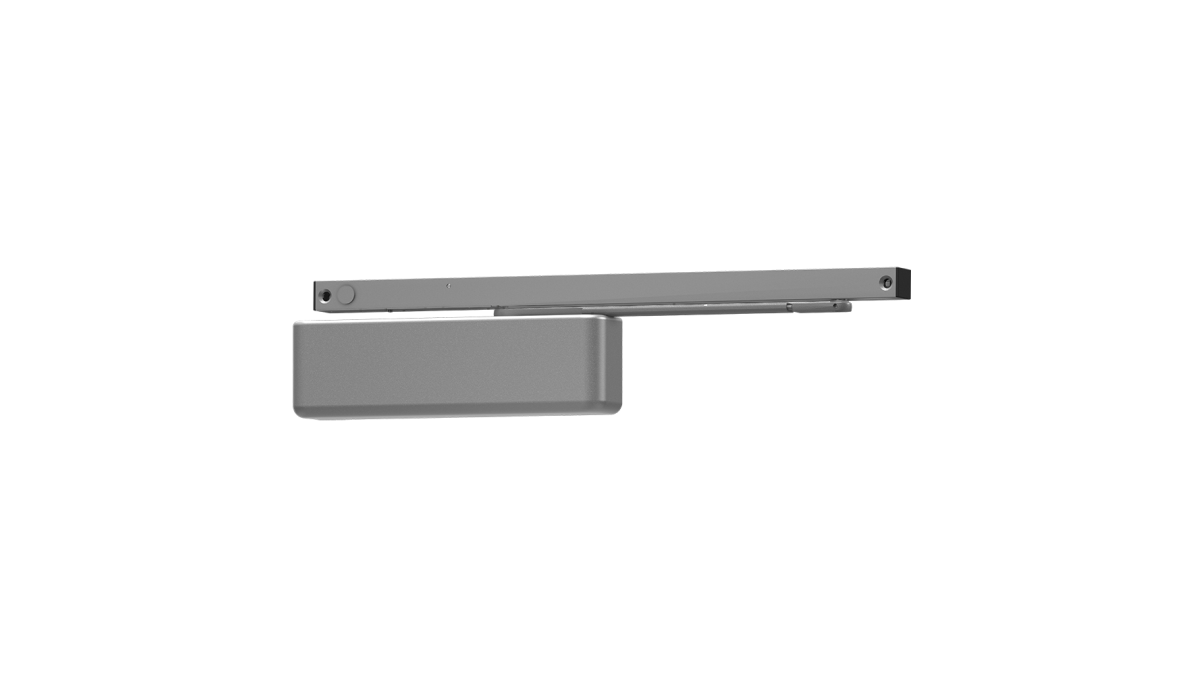

LCN 4040SE Series
Description

The LCN 4040SE Sentronic closer provides a single-point hold-open for fire and smoke barrier doors. The 4040SE Series is UL listed for metal smoke barrier or labeled fire doors and meets ANSI/BHMA A156.15 and NFPA 101 Life Safety Code standards.

Backed by a 2 year limited warranty, offers optional plated finishes and integrates with existing fire and life safety systems, minimising danger to life and property under fire conditions.

The 4040SE Series function as full rack-and-pinion closers when the hold-open option is not engaged or the electrical current to the door is interrupted. The single-lever arm is specifically designed for interior doors. The 4040SE Series is a surface-mounted closer on the pull side hinge pull side or the push side stop face.

Key Features
  • Designed for interior doors to 4'0"
  • Functions as full rack-and-pinion door closer when hold-open is not engaged or current is interrupted
  • Momentary on/off switch board assembly for testing the door release also provides over-voltage protection
  • UL listed for smoke barrier or labeled fire doors
  • Conforms to life safety code, NFPA 101
  • The 4040SE Series mounts surface hinge (pull side) or top jamb (push side)
Scope of Use
  • Provides a single-point hold-open for interior fire and smoke barrier doors
  • Designed for interior doors to 4'0"
Other Performance Attributes
  • The 4040SE Series is UL listed for metal smoke barrier or labeled fire doors and meet ANSI/BHMA A156.15 and NFPA 101 Life Safety Code standards
  • 2 year limited warranty
Documents
Product Catalogue
Installation and Operation
Commercial Warranty 2023
Caring for Door Hardware
