Legge 8000 Series
Allegion
All products

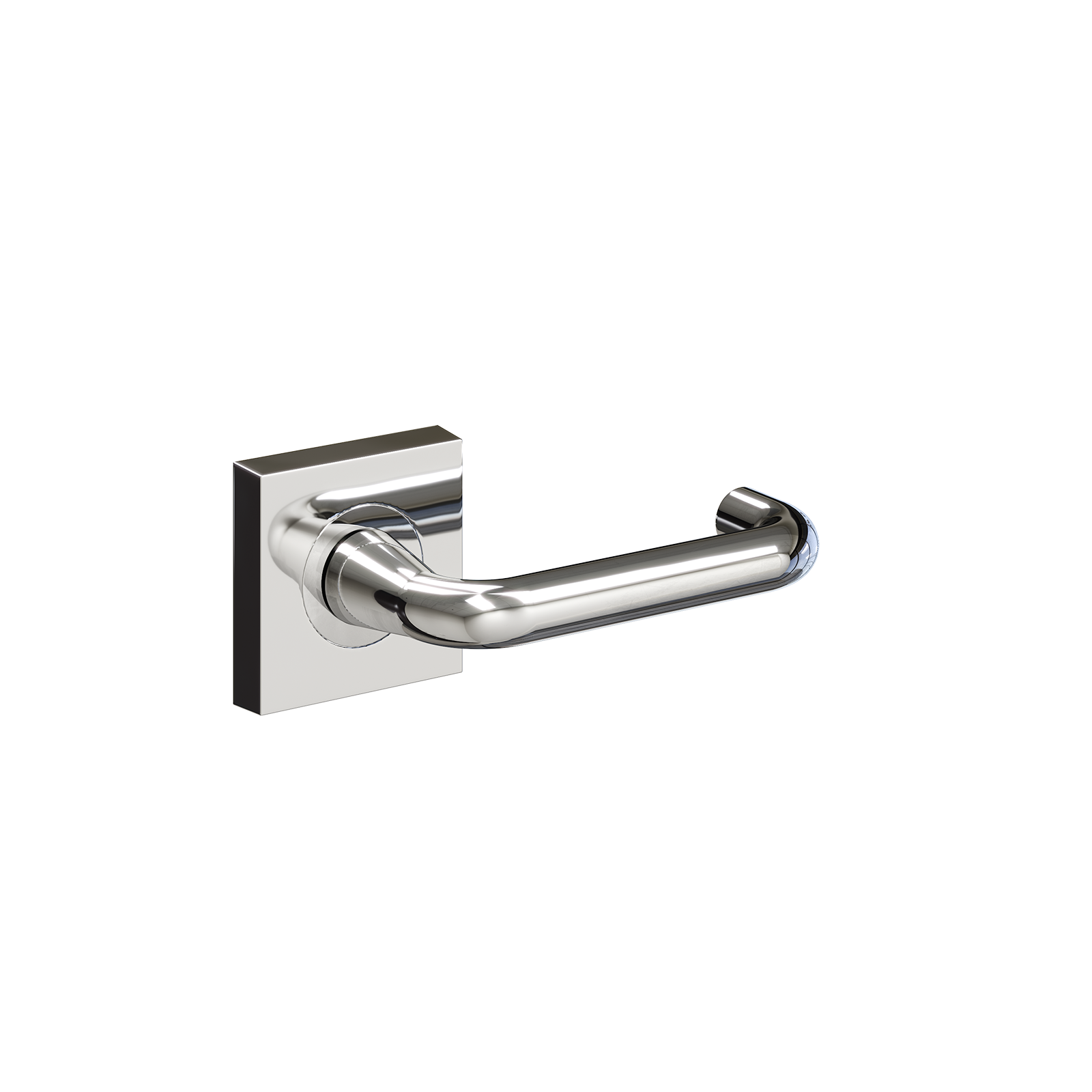

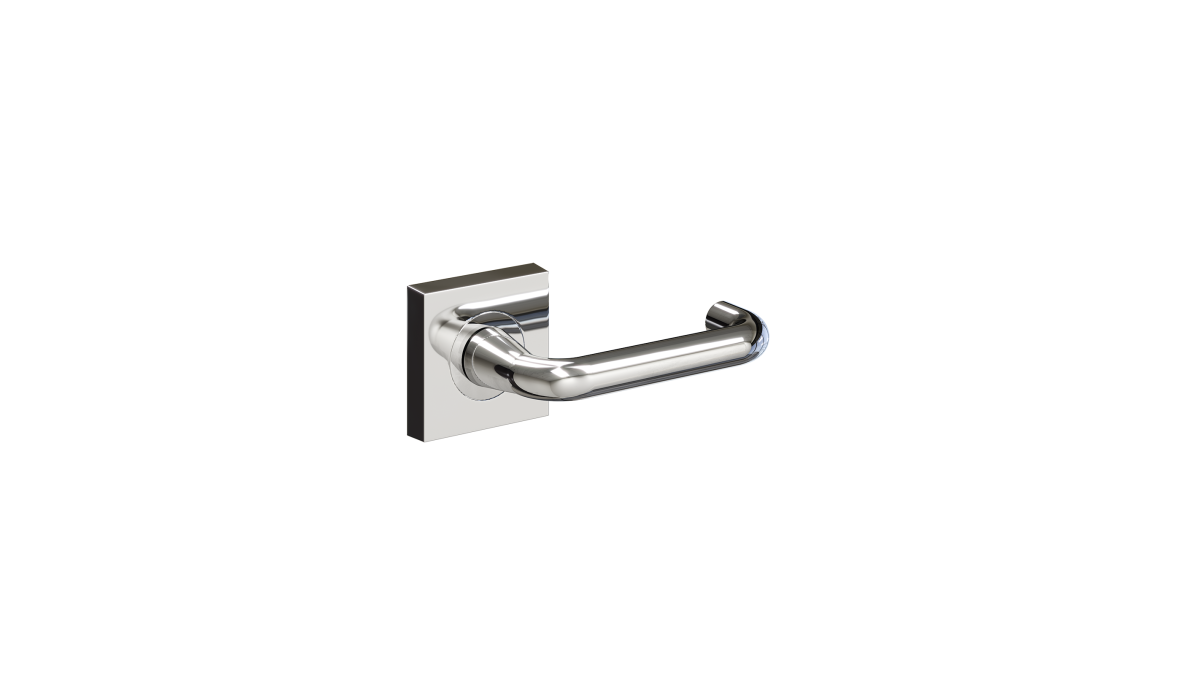

Legge 8000 Series Alpha Door Furntiure C

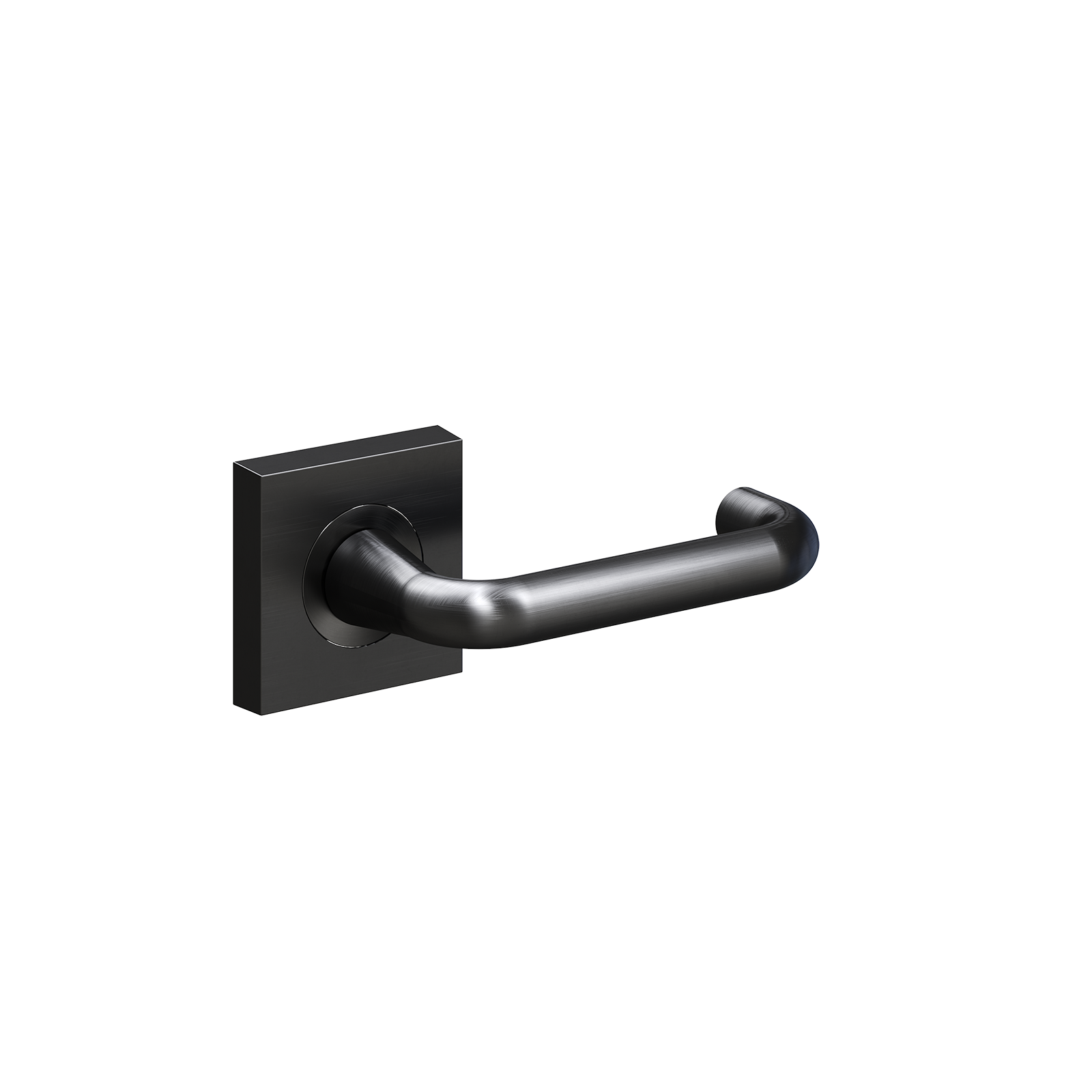

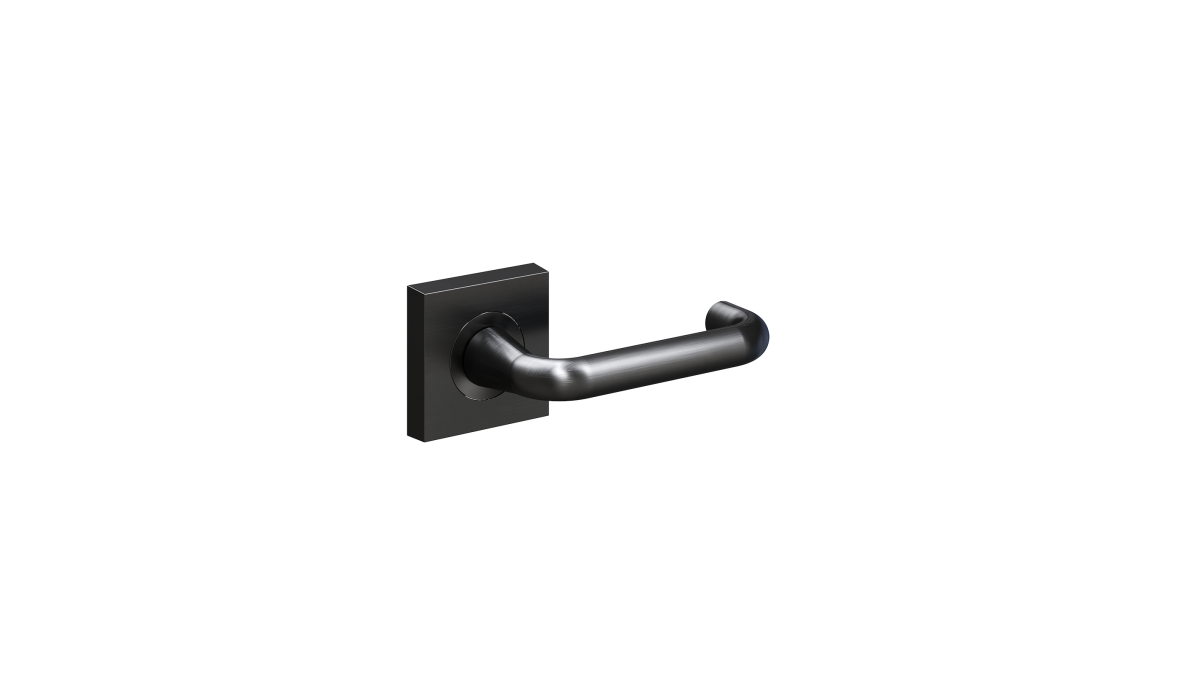

Legge 8000 Series Alpha Door Furntiure SBC
Legge 8000 Series Alpha Door Furntiure SCP

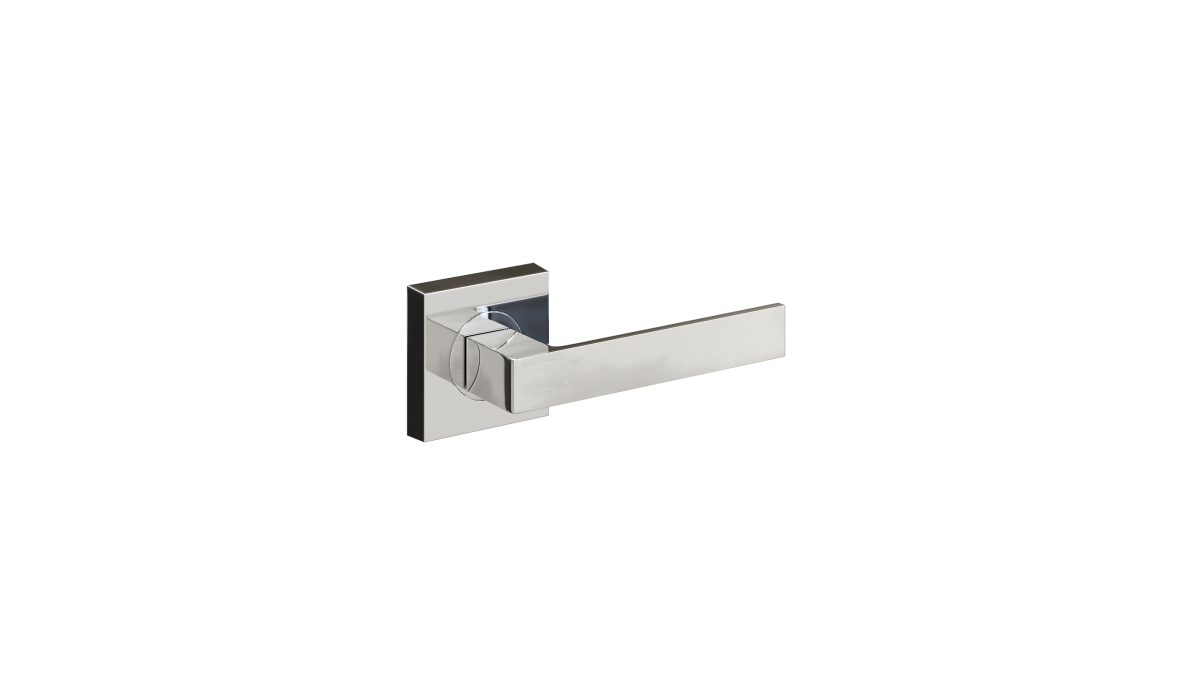

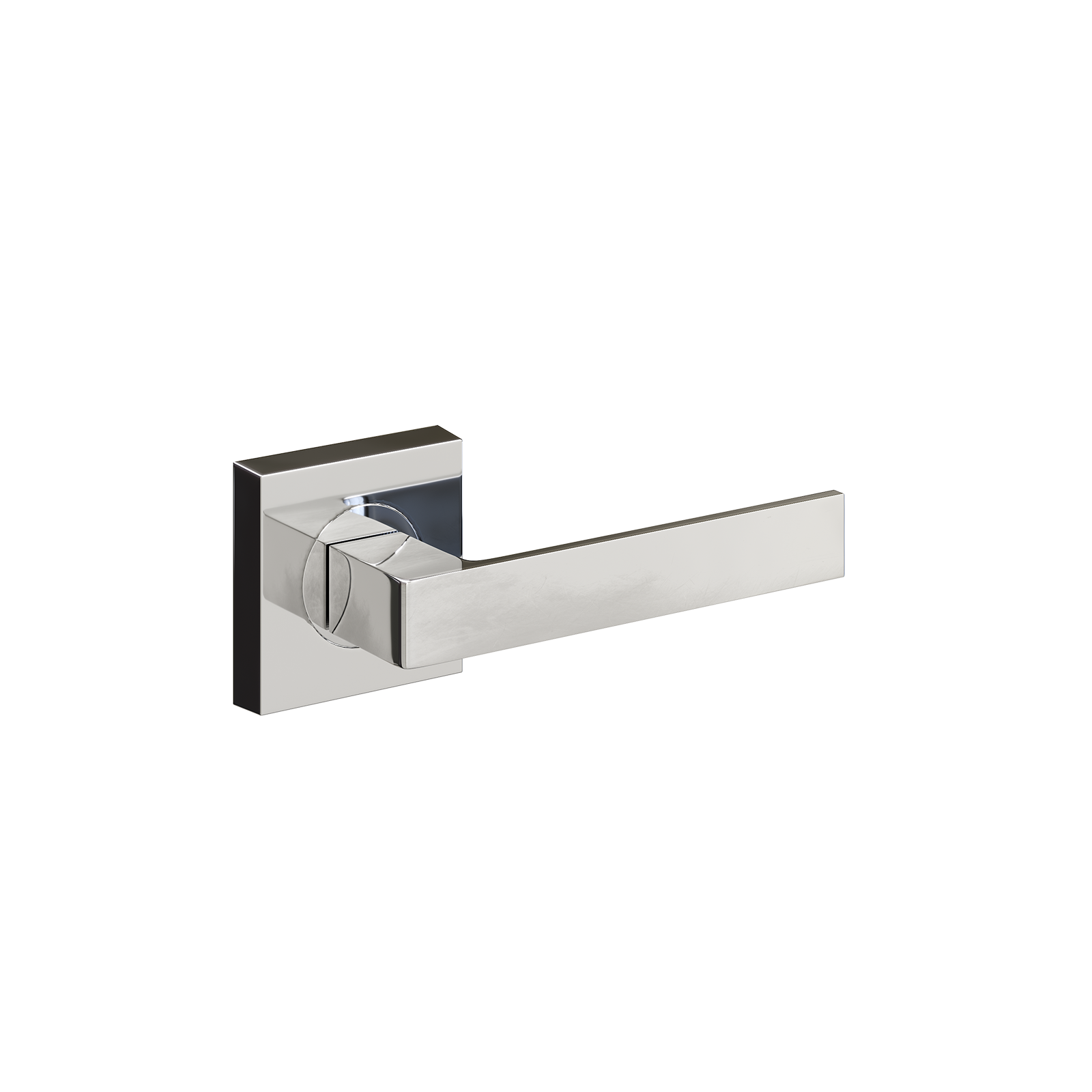

Legge 8000 Series Angela Door Furntiure C

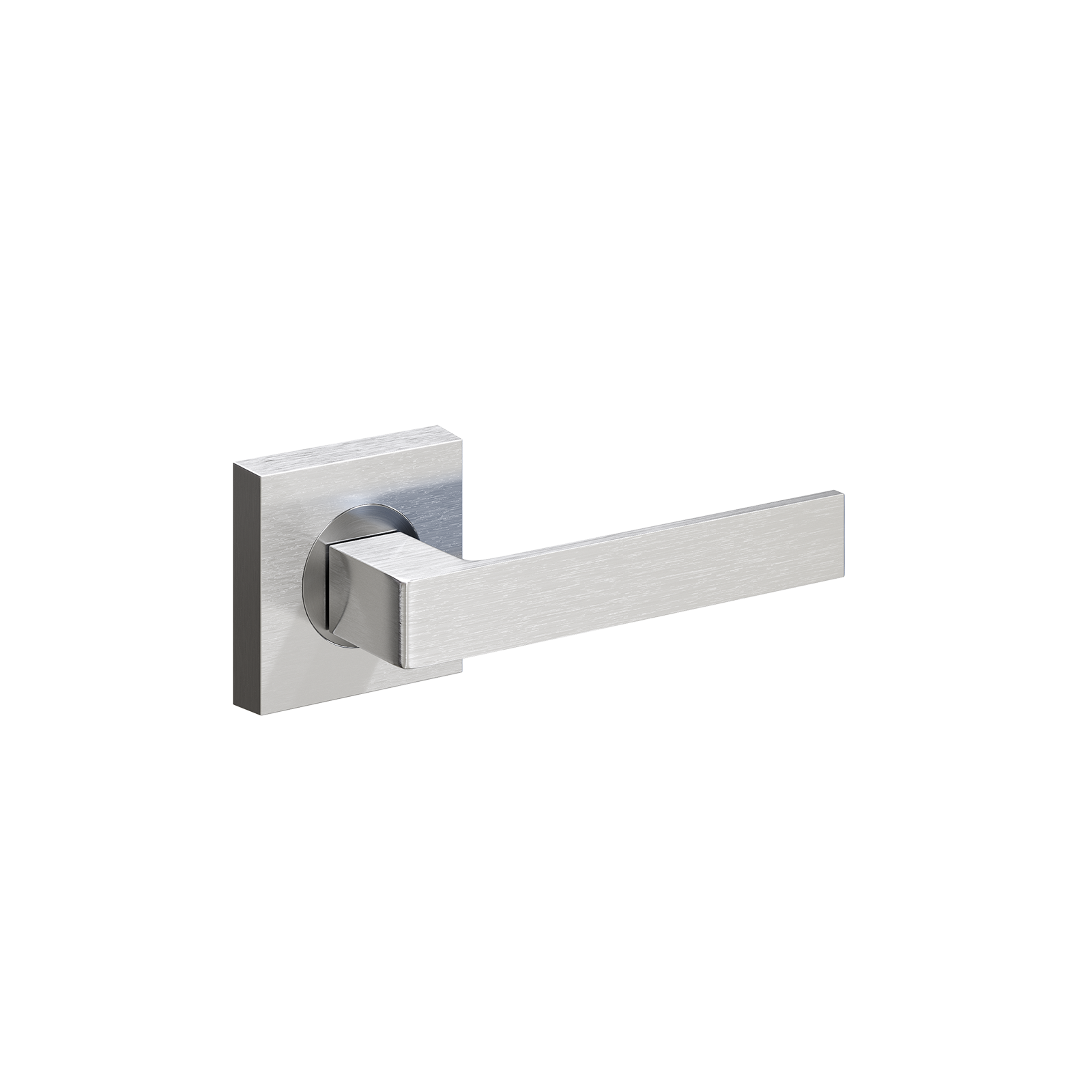

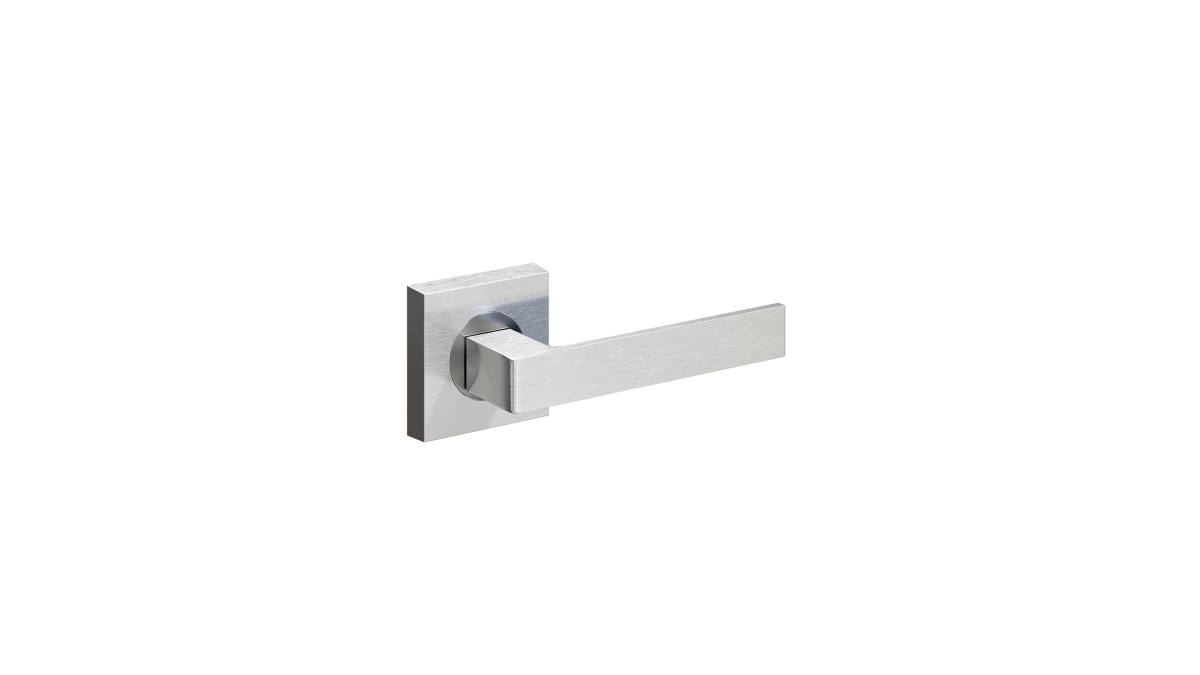

Legge 8000 Series Angela Door Furntiure SCP
Legge 8000 Series Bergen Door Furntiure SCP

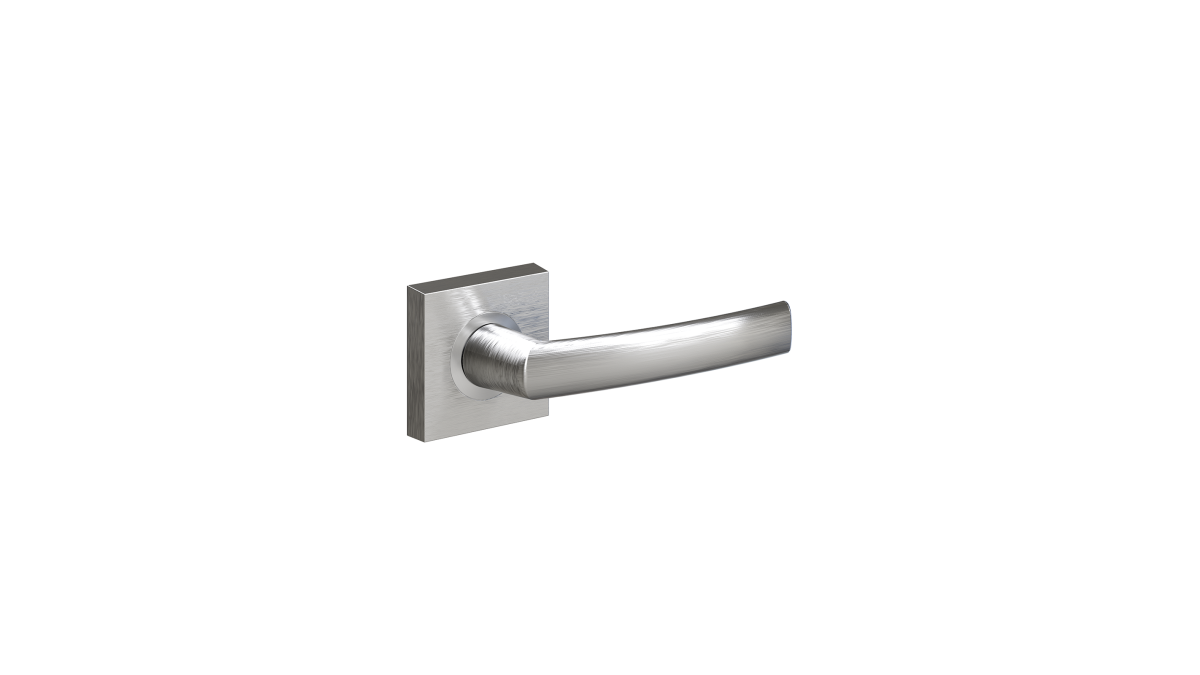

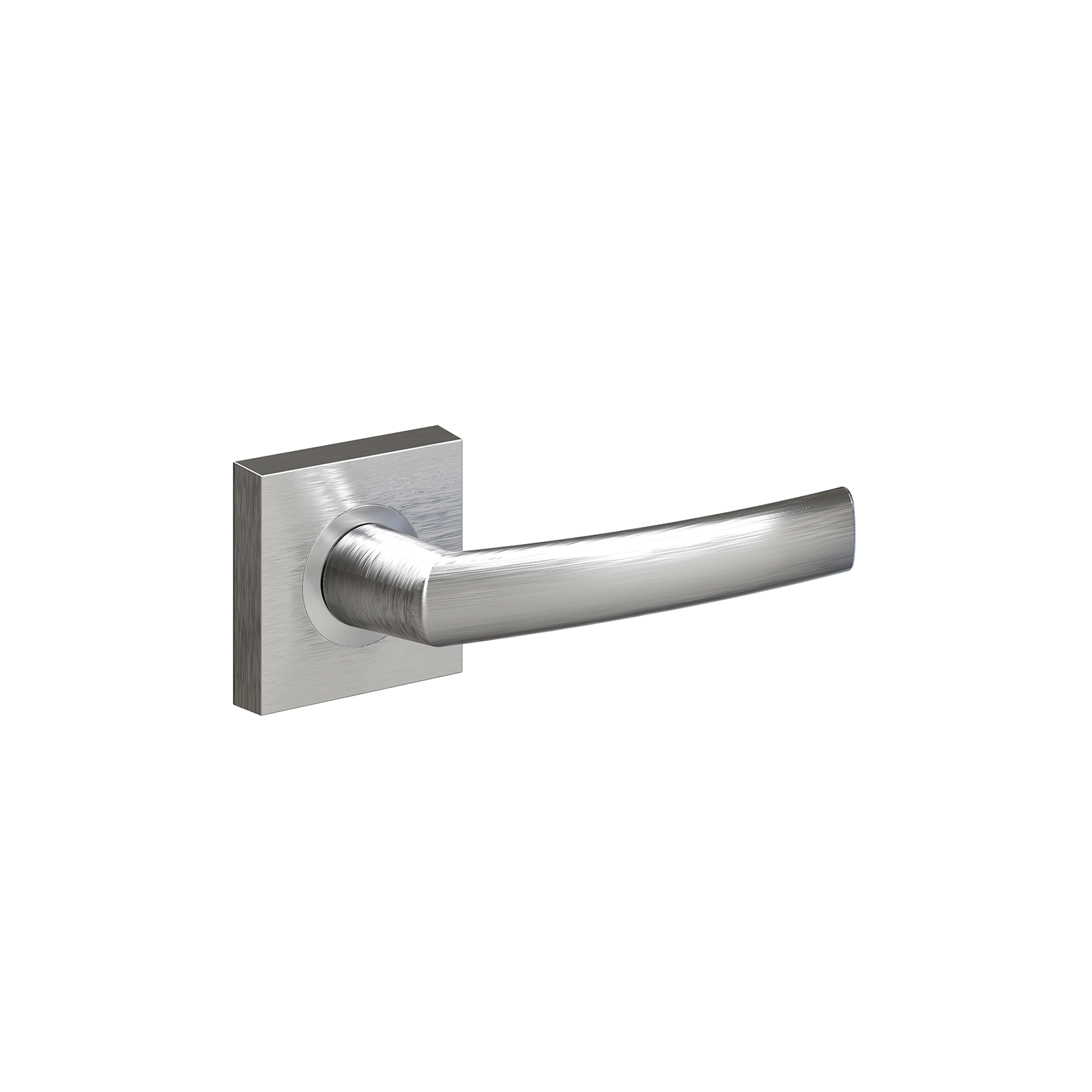

Legge 8000 Series Cisa Door Furniture SCP
Legge 8000 Series Ergo Door Furntiure SCP

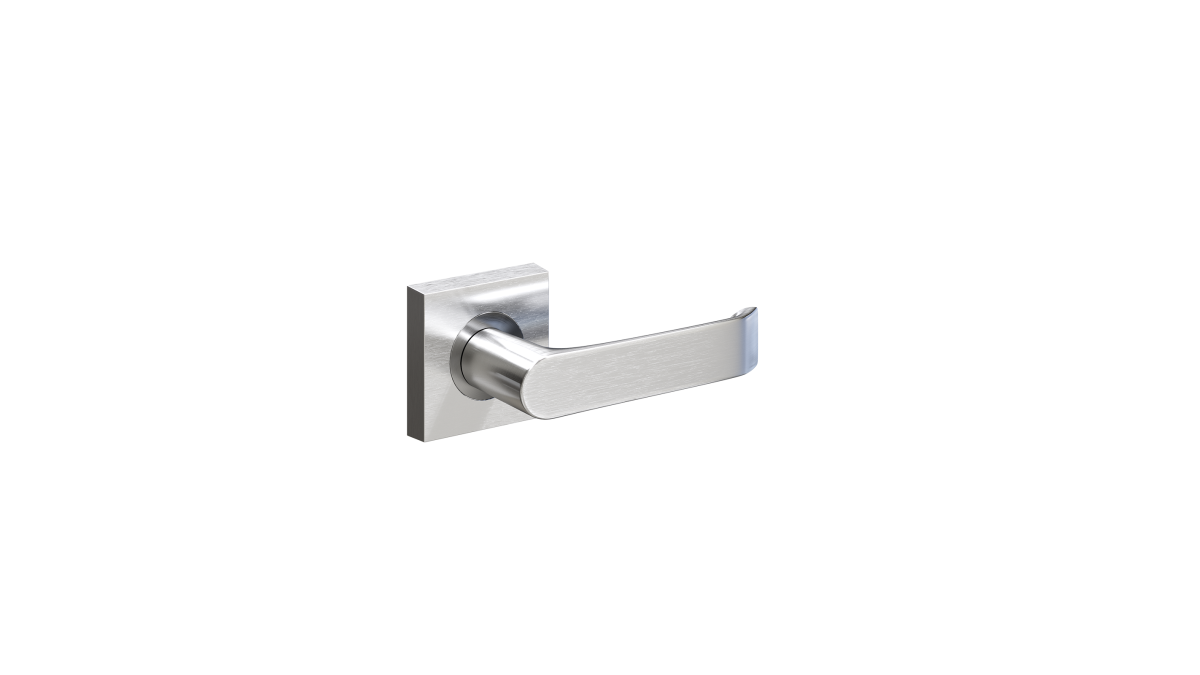

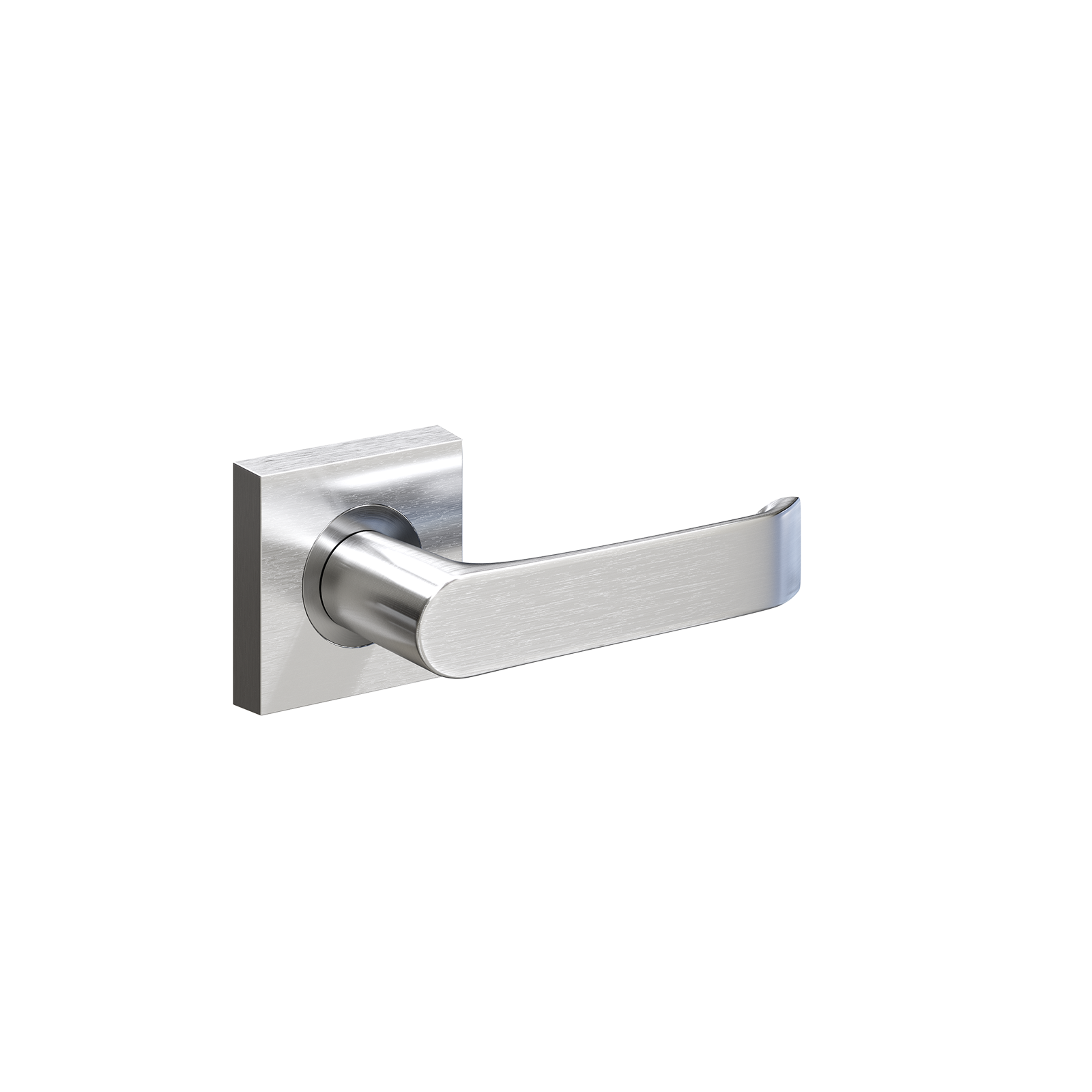

Legge 8000 Series Leonardo Door Furniture SCP

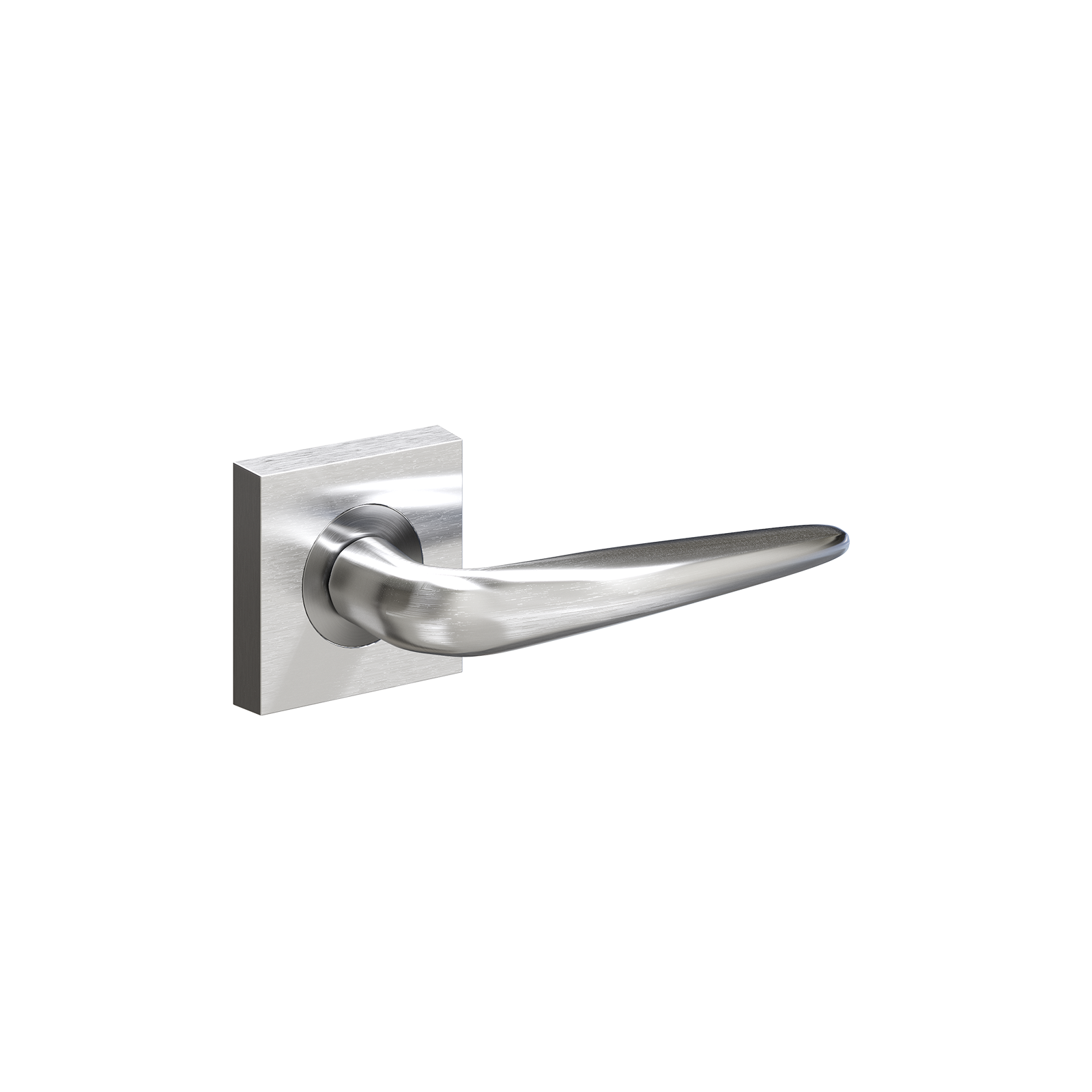

Legge 8000 Series Monet Door Furniture SCP

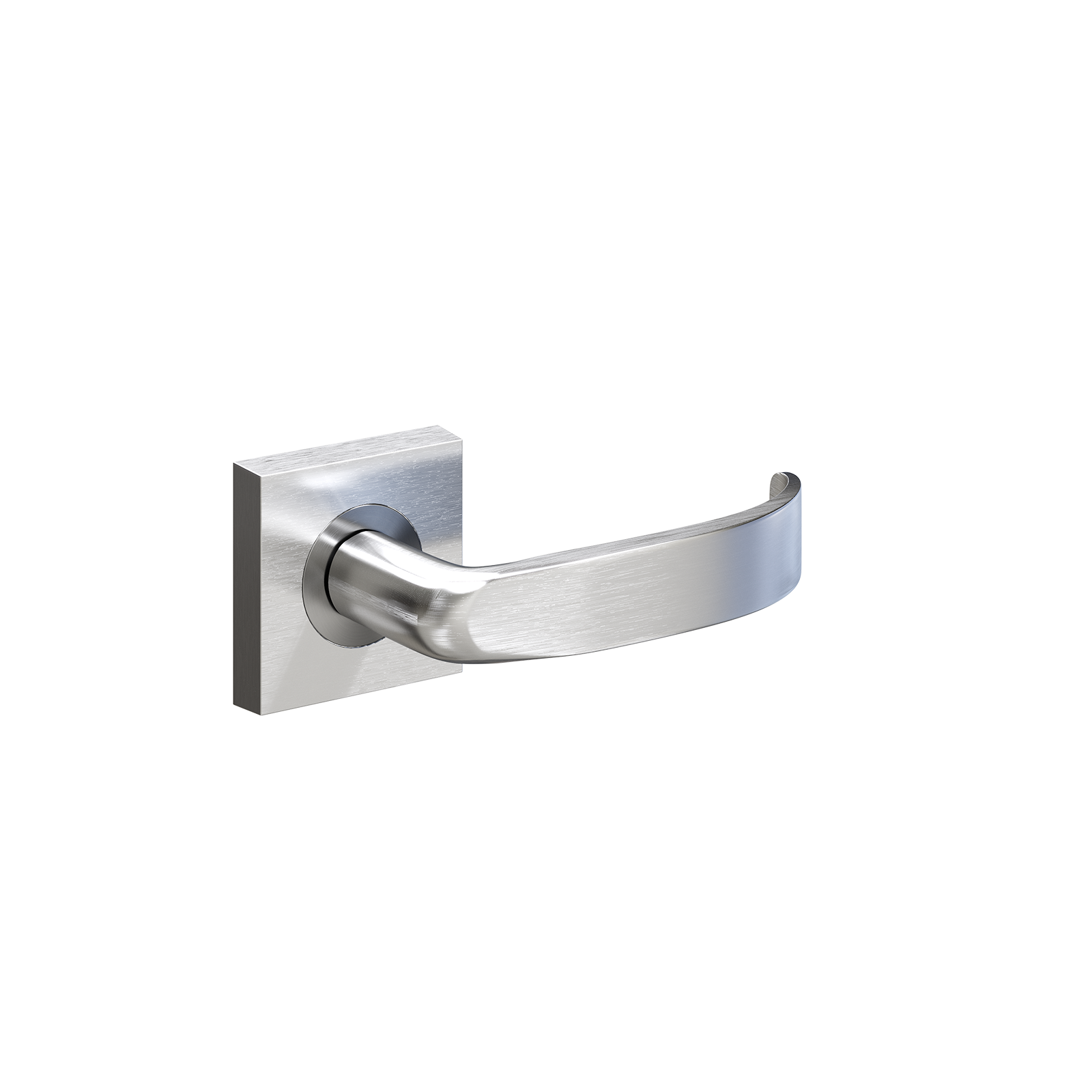

Legge 8000 Series Neptune Door Furniture SCP

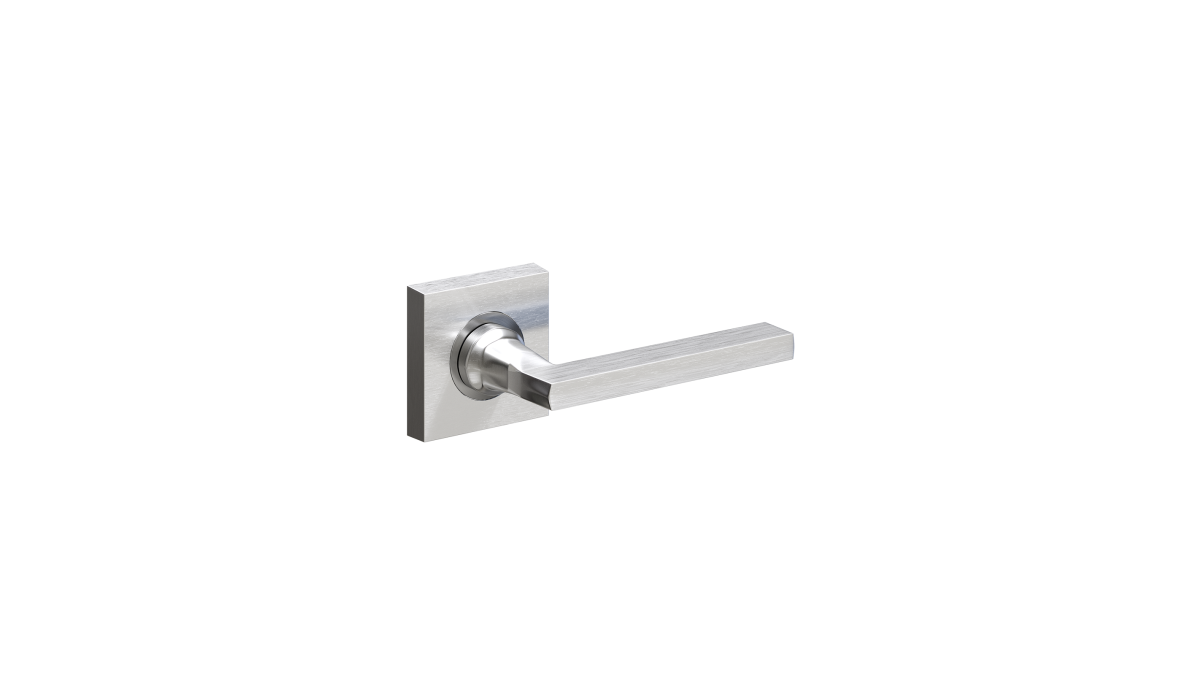

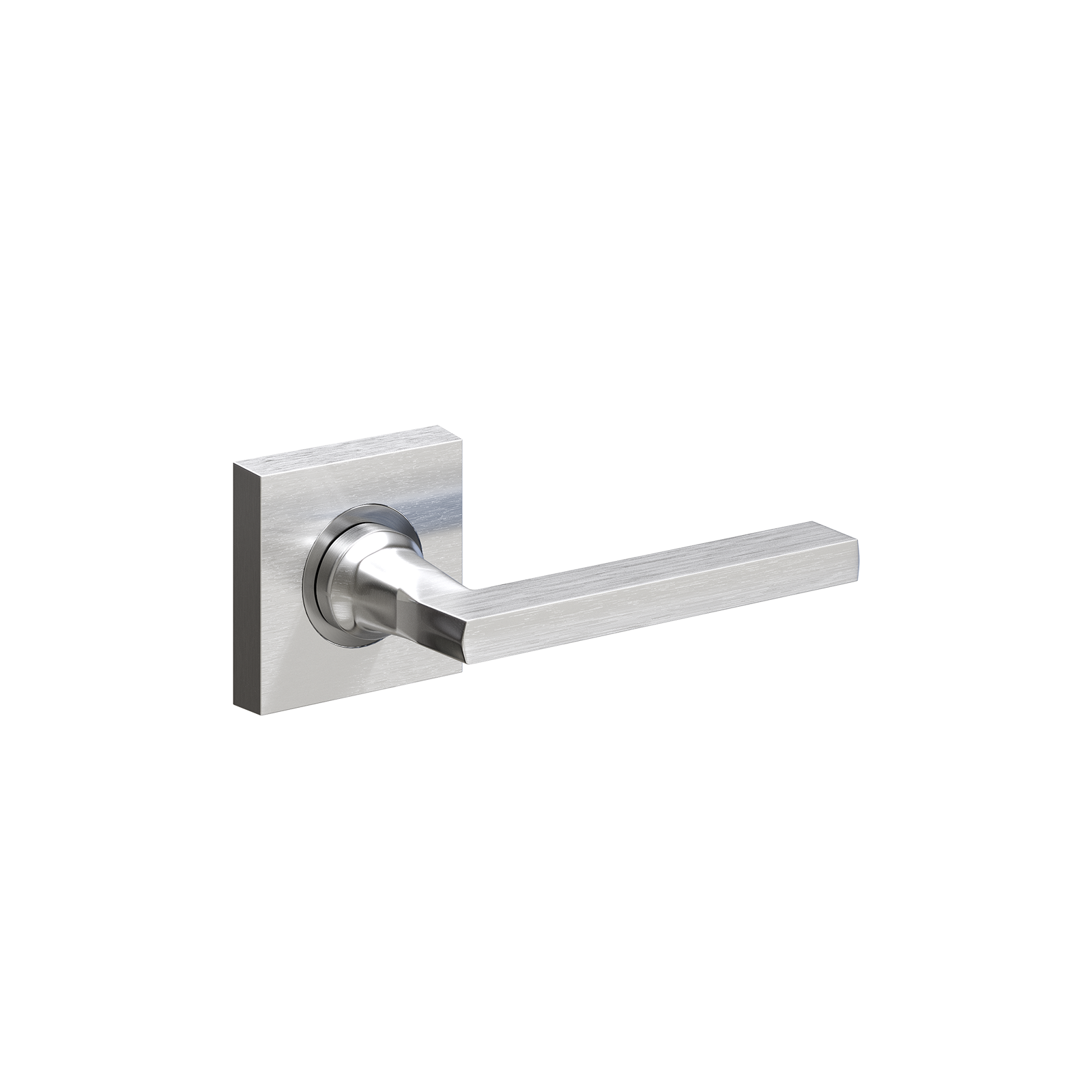

Legge 8000 Series Renoir Door Furniture SCP

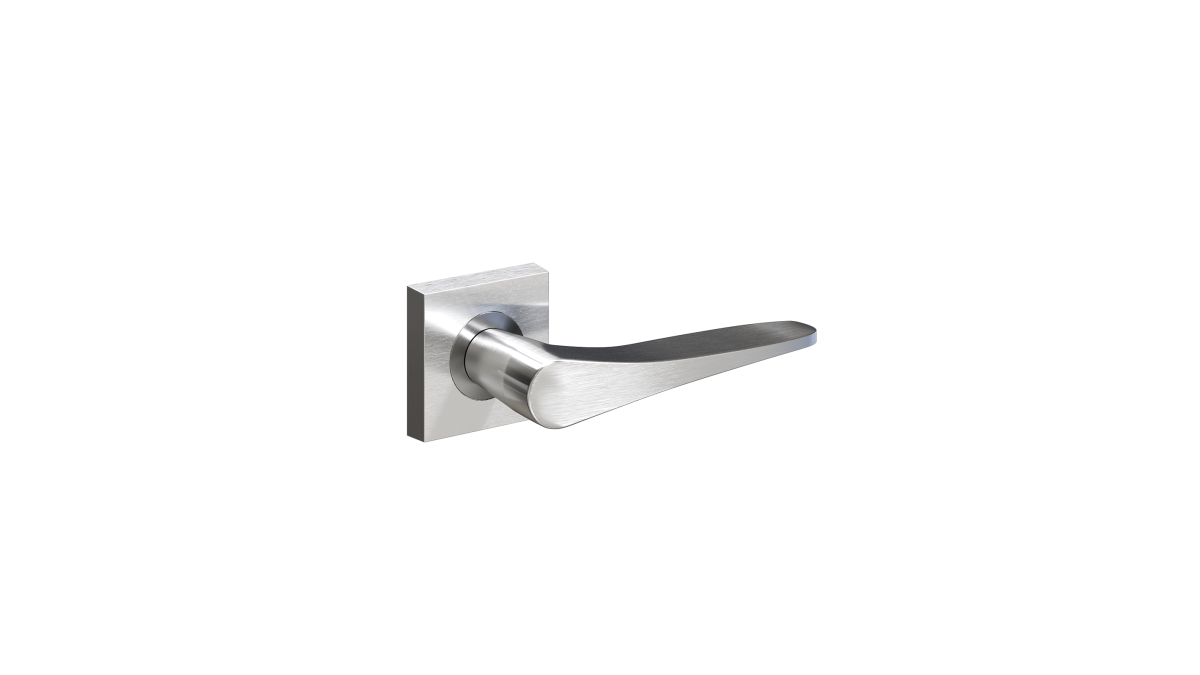

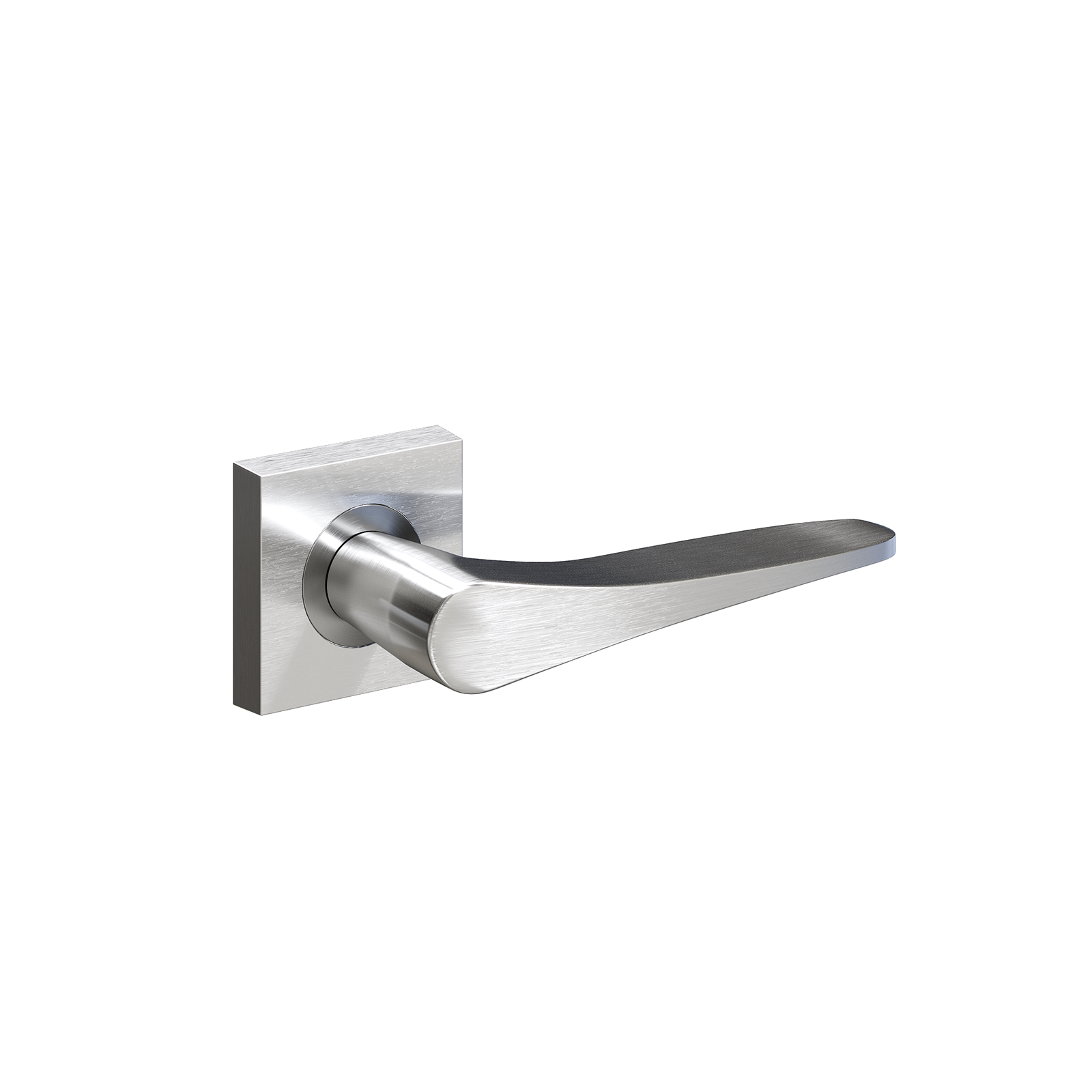

Legge 8000 Series Rubens Door Furniture SCP
Description

Modern design combined with functionality are the hallmark of the Legge 8000 Series, with a refined square rose and a wide selection of designer levers to choose from.

The Legge 8000 Series will enhance the standard and elegance of any residential and commercial applications like apartments, office fitouts, hotels, and high-end quality homes.

Key Features
  • Constructed of quality components, with forged brass levers and inner roses, and pressed zinc rose caps
  • Heavy duty spring provides a smooth, positive return action of the lever and eliminates drooping extending the life of the product
  • Furniture re-handed by simple relocation of stop block
  • Levers non-handed
  • Suitable for use on fire door assemblies when used with fire rated locks and latches
  • The 10 year warranty provides specifiers and users with assured quality and performance
Categories
Handles and Knobs
Ranges
Legge Door Furniture
Scope of Use

Residential and commercial settings like apartments, office fit-outs, hotels and motels, and quality homes.

  • Suitable for use on fire door assemblies when used with fire-rated locks and latches
  • Levers non-handed
  • Door type: Timber or metal
  • Door thickness: Latch furniture 32mm to 50mm, passage set 32mm to 50mm, privacy set 32mm to 42mm
  • Backset: 60mm
  • Spindle size: 7.6mm
  • Compatible locks/latches: Schlage ME Series mortice locks, Legge 990MF Series mortice locks, Legge Tubular Latches
  • Fixing bolt-through concealed fixing. Screw length 75mm
Other Performance Attributes
  • The 10 year warranty provides specifiers and users with assured quality and performance
  • News
Documents
8000 Series Escutcheons & Accessories
pdf
Installation and Operation
pdf
Commercial Warranty 2023
pdf
Brochure
pdf
Caring for Door Hardware
pdf

Allegion locally manufactures residential and commercial hardware: electronic locks, mechanical door furniture, cylinder, keying, door control, exit devices and hardware for sliding and folding doors.
