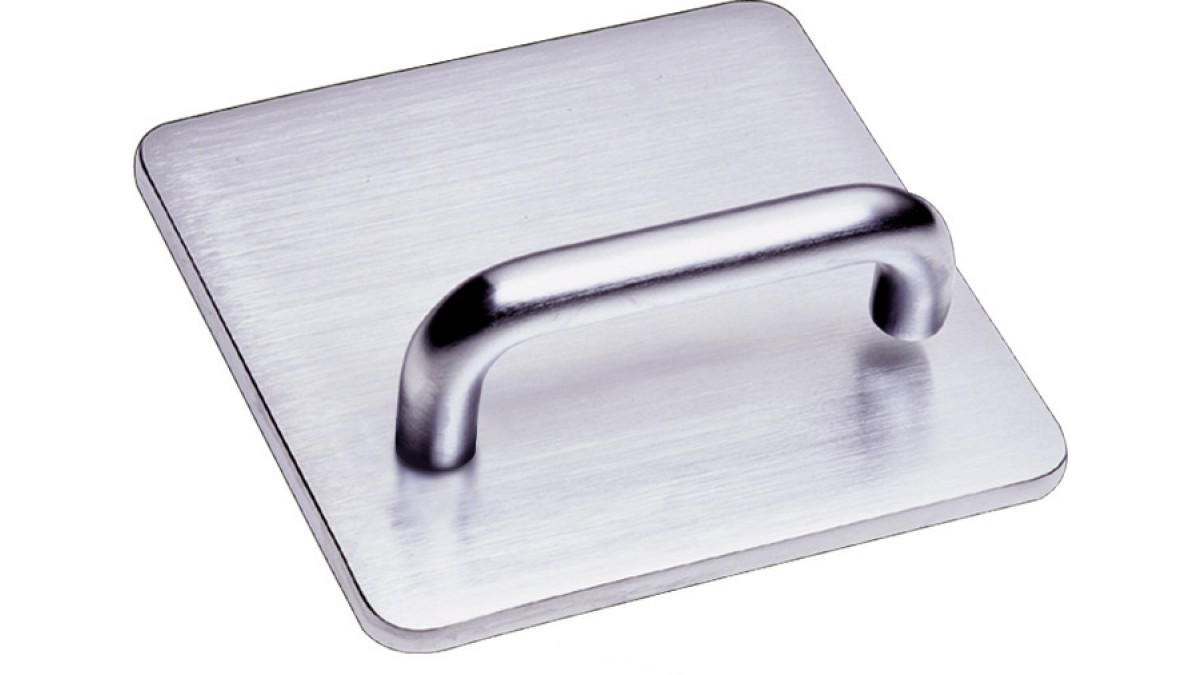

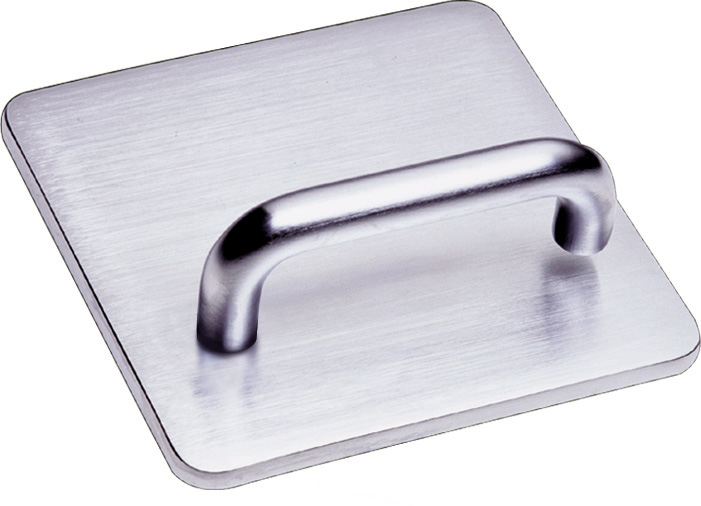

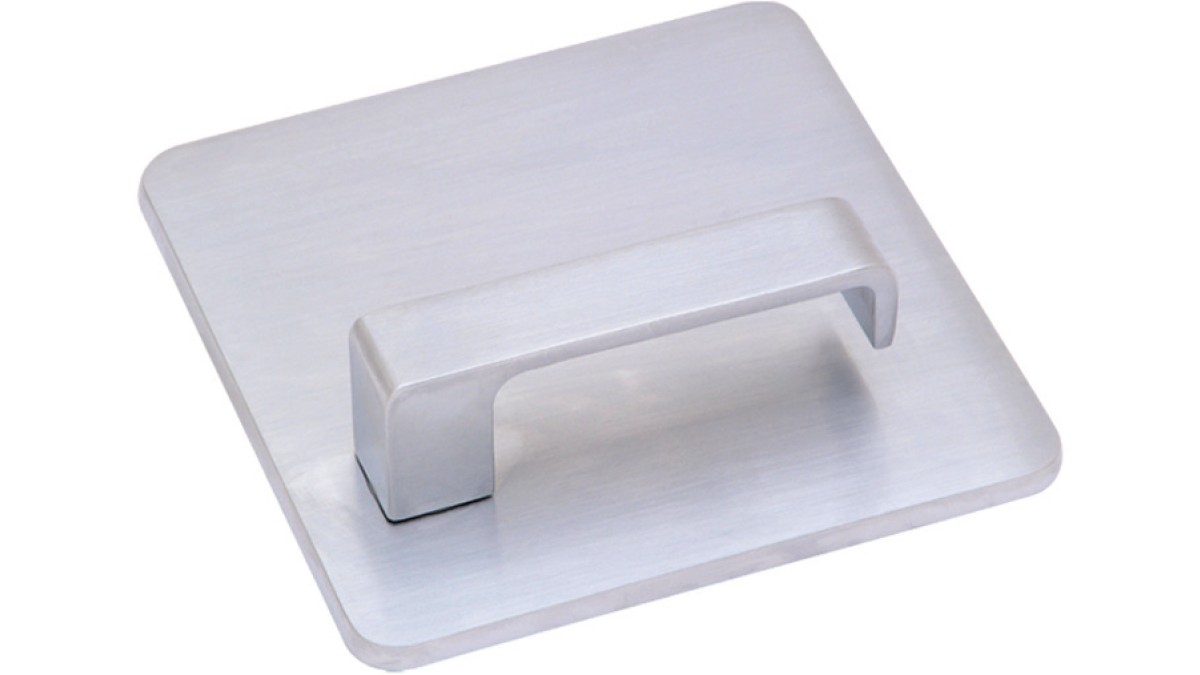

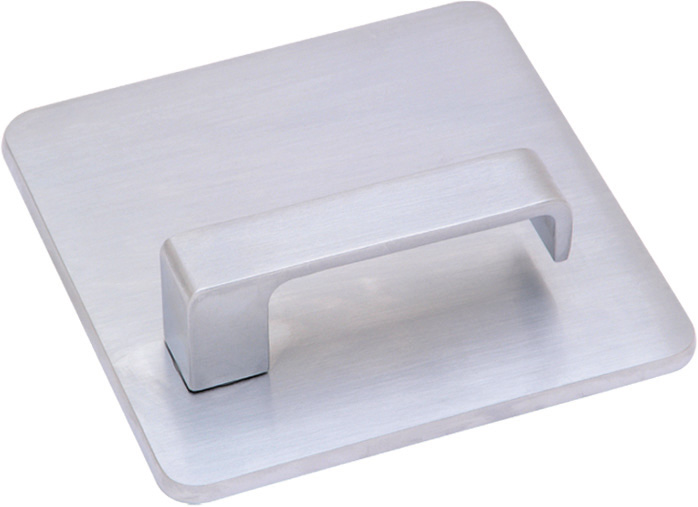

Legge 800 Series
Description

The Legge commercial range of door furniture has been designed for use on commercial applications, including interior and exterior doors for retail, educational, institutional, governmental, medical and public buildings.

Key Features
  • Constructed of commercial-grade quality components, with forged brass levers and plates
  • Heavy-duty spring provides a smooth, positive return action of the lever and eliminates droop extending the life of the furniture
  • Suitable for use on fire door assemblies when used with fire-rated locks and latches
Scope of Use
  • Designed for heavy commercial use in applications such as hospitals and educational facilities
  • Suitable for use on fire door assemblies when used with fire-rated locks and latches
  • Interior and exterior
  • Door type: Timber or metal
  • Door thickness: 32mm to 50mm
  • Spindle size: 7.6mm
  • Compatible locks/ latches: Legge 990MF Series mortice locks
  • Fixing: Semi concealed, back to back, external plates concealed fixing, screws supplied with exterior plates only, screw length 75mm
In-Service History
  • Heavy-duty spring provides a smooth, positive return action of the lever and eliminates droop extending the life of the furniture
  • Constructed of commercial-grade quality components, with forged brass levers and plates
Documents
Data Sheet
Installation Instructions
Commercial Warranty 2023
Caring for Door Hardware

Allegion locally manufactures residential and commercial hardware: electronic locks, mechanical door furniture, cylinder, keying, door control, exit devices and hardware for sliding and folding doors.
