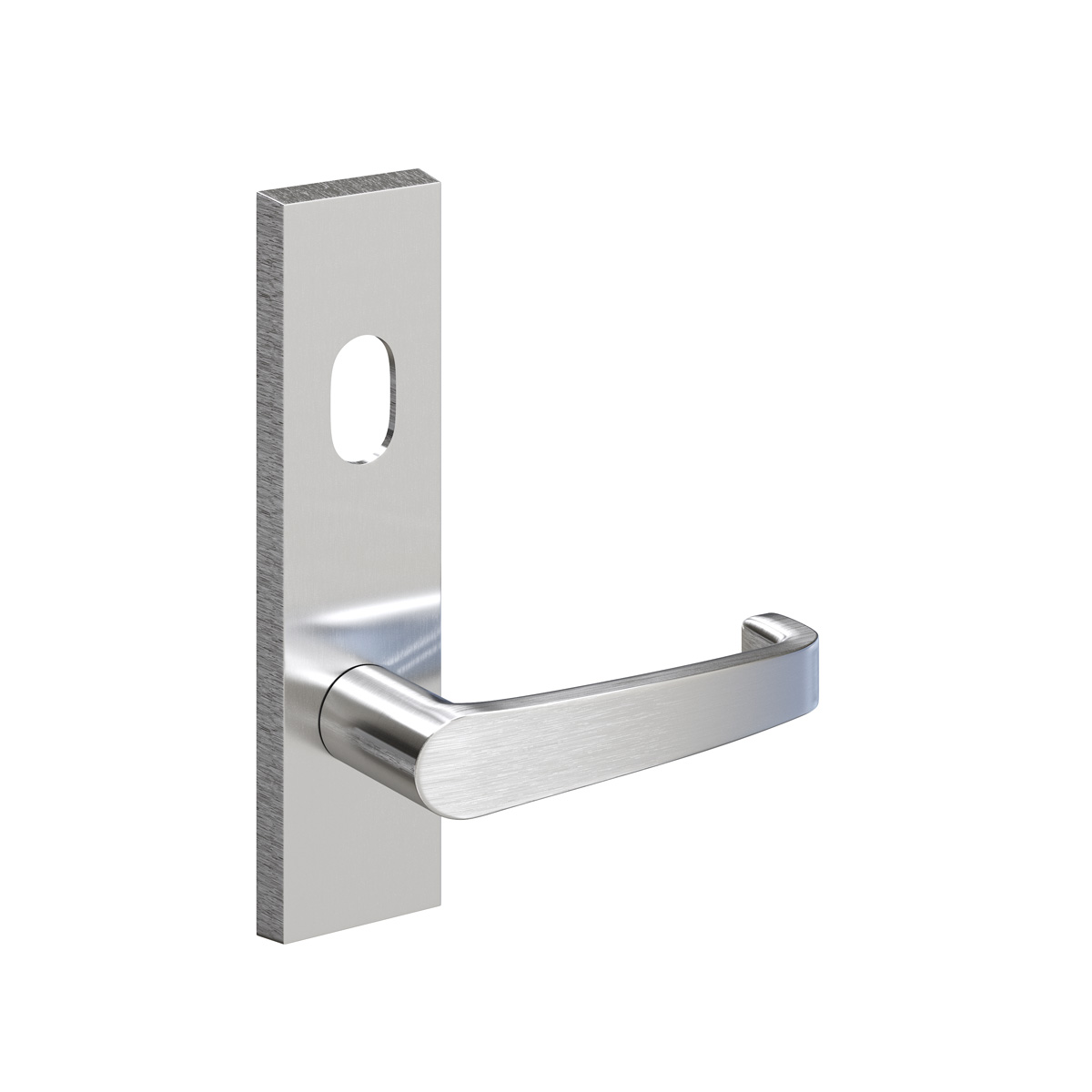

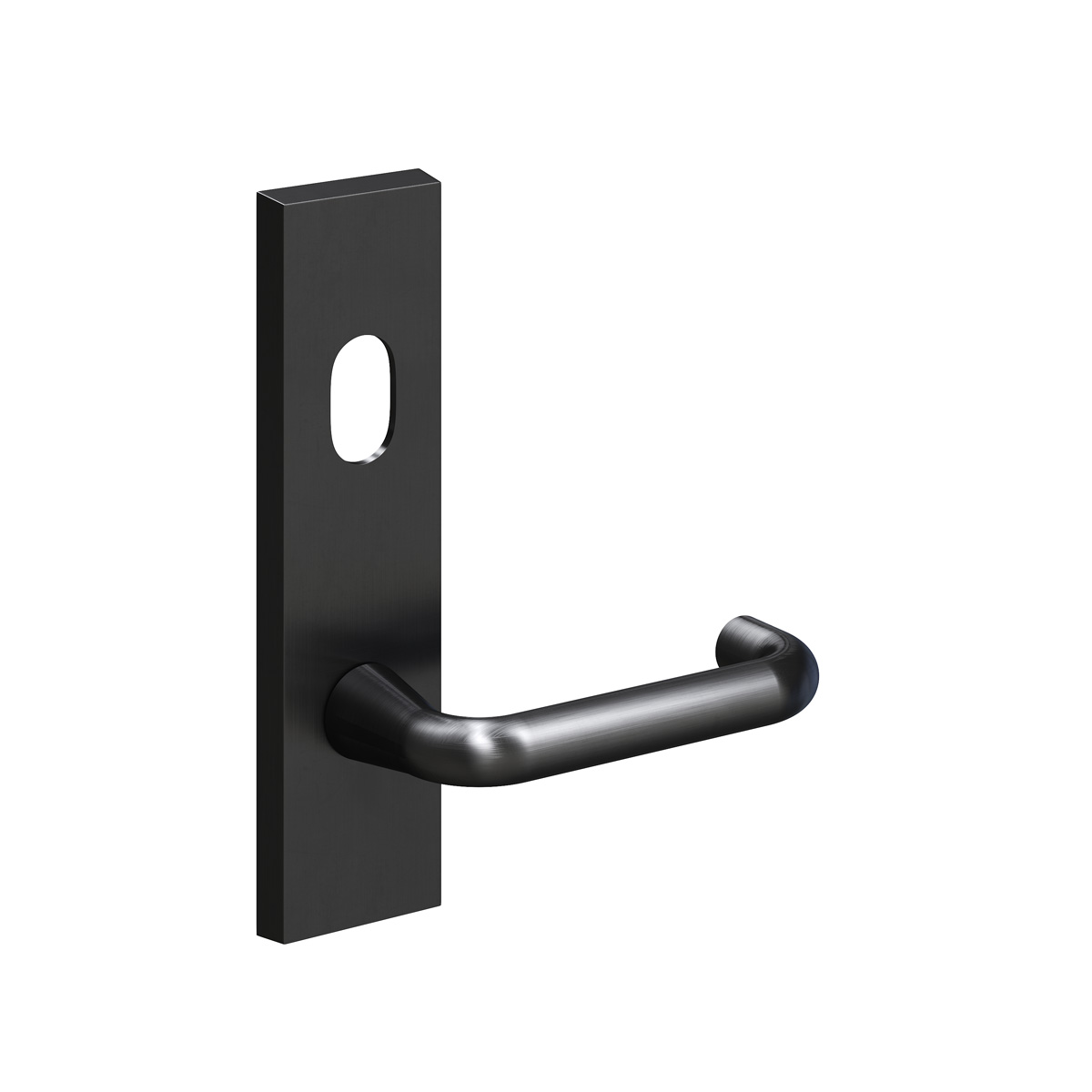

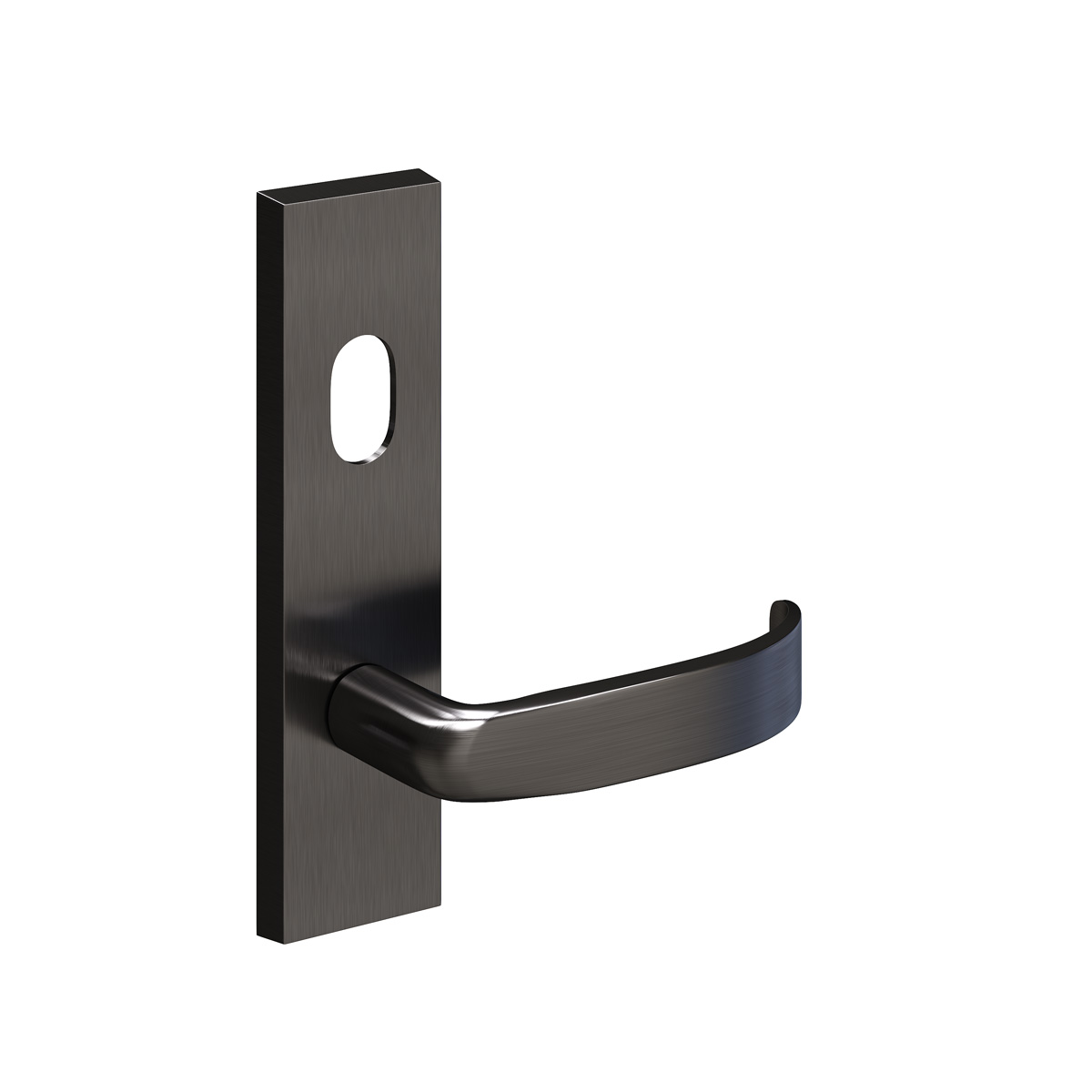

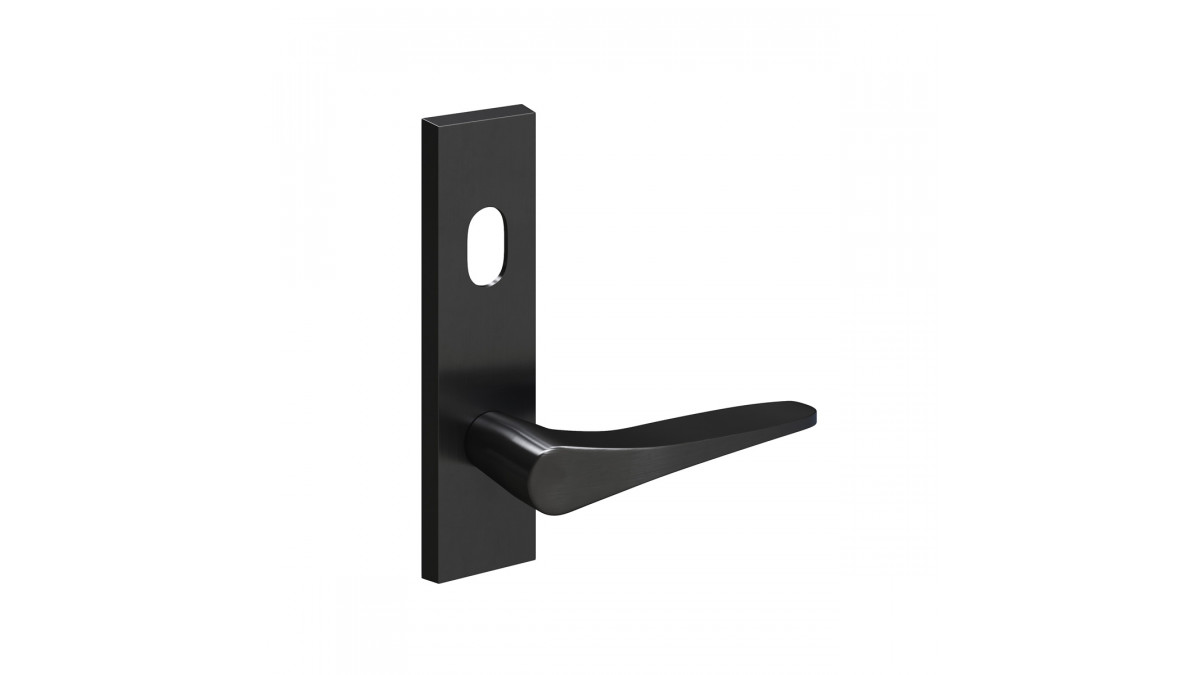

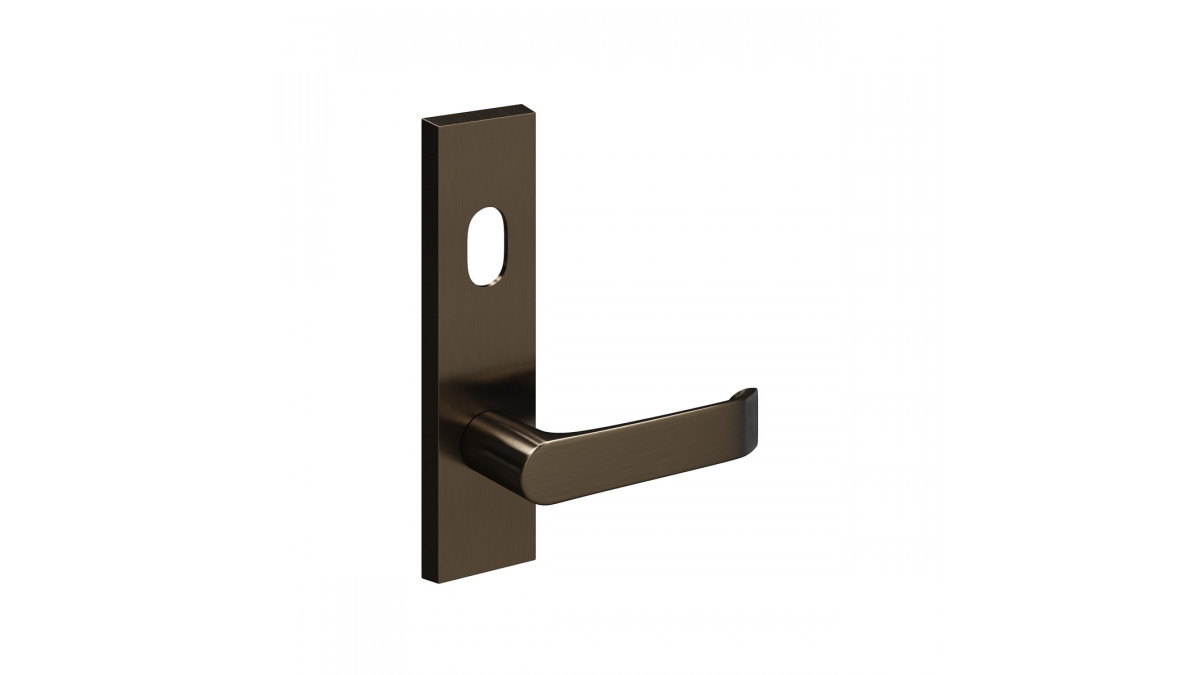

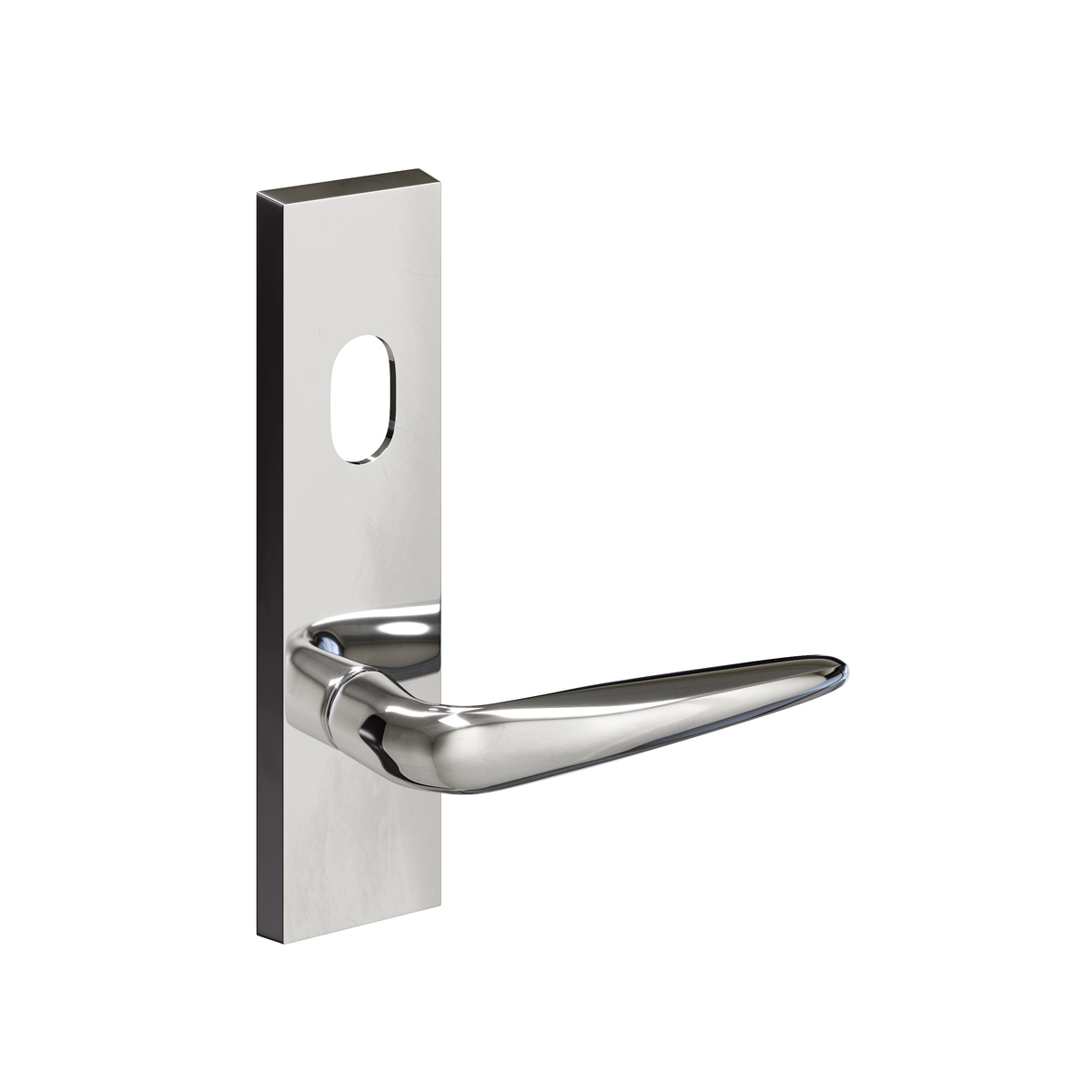

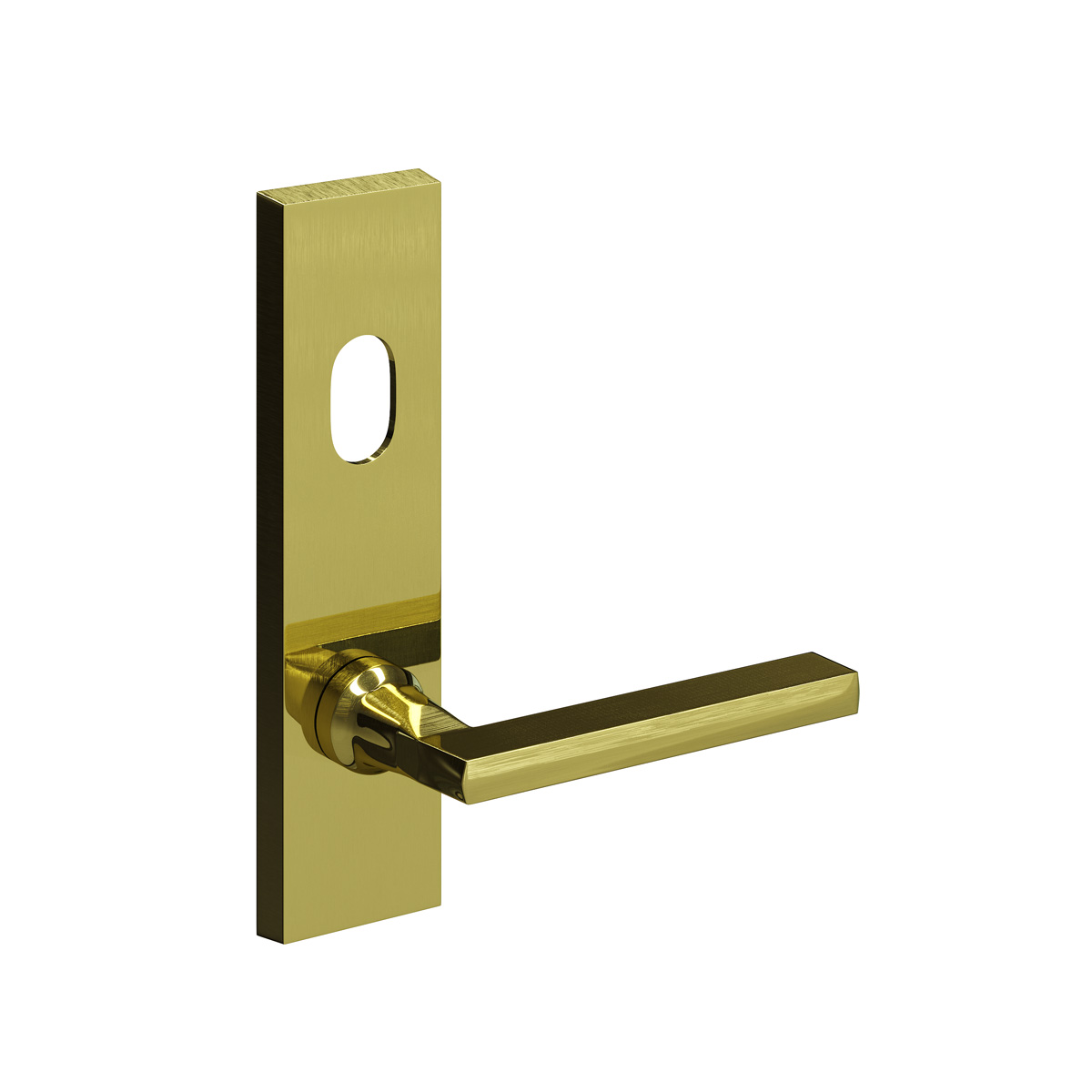

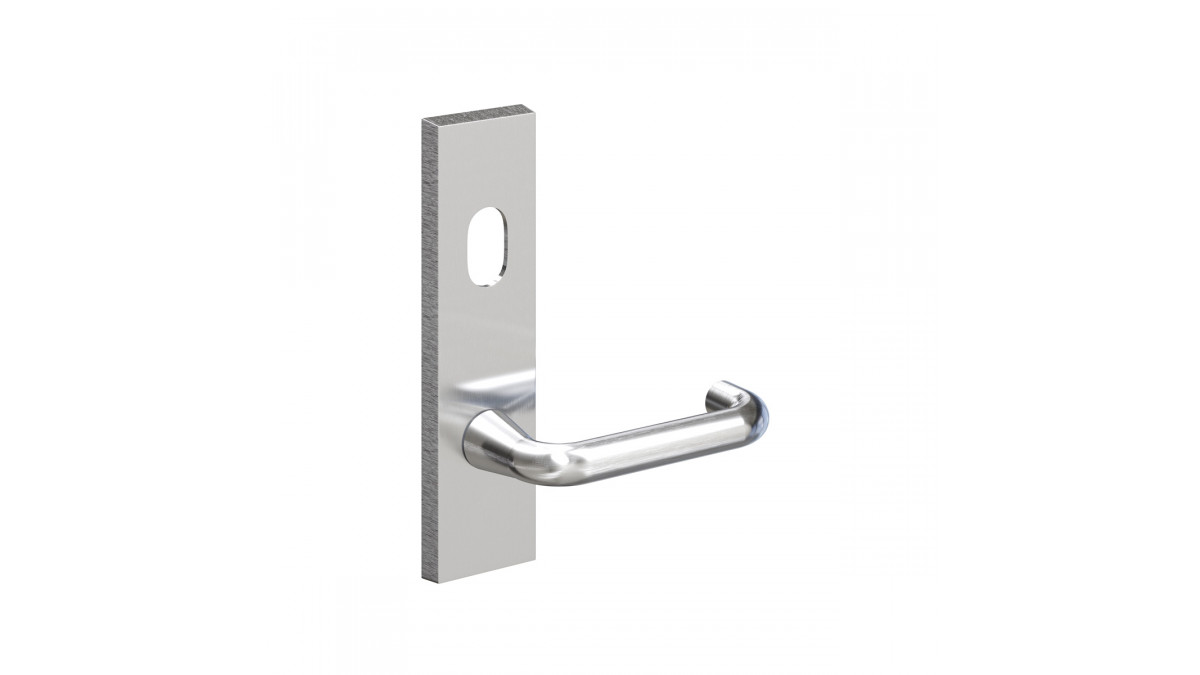

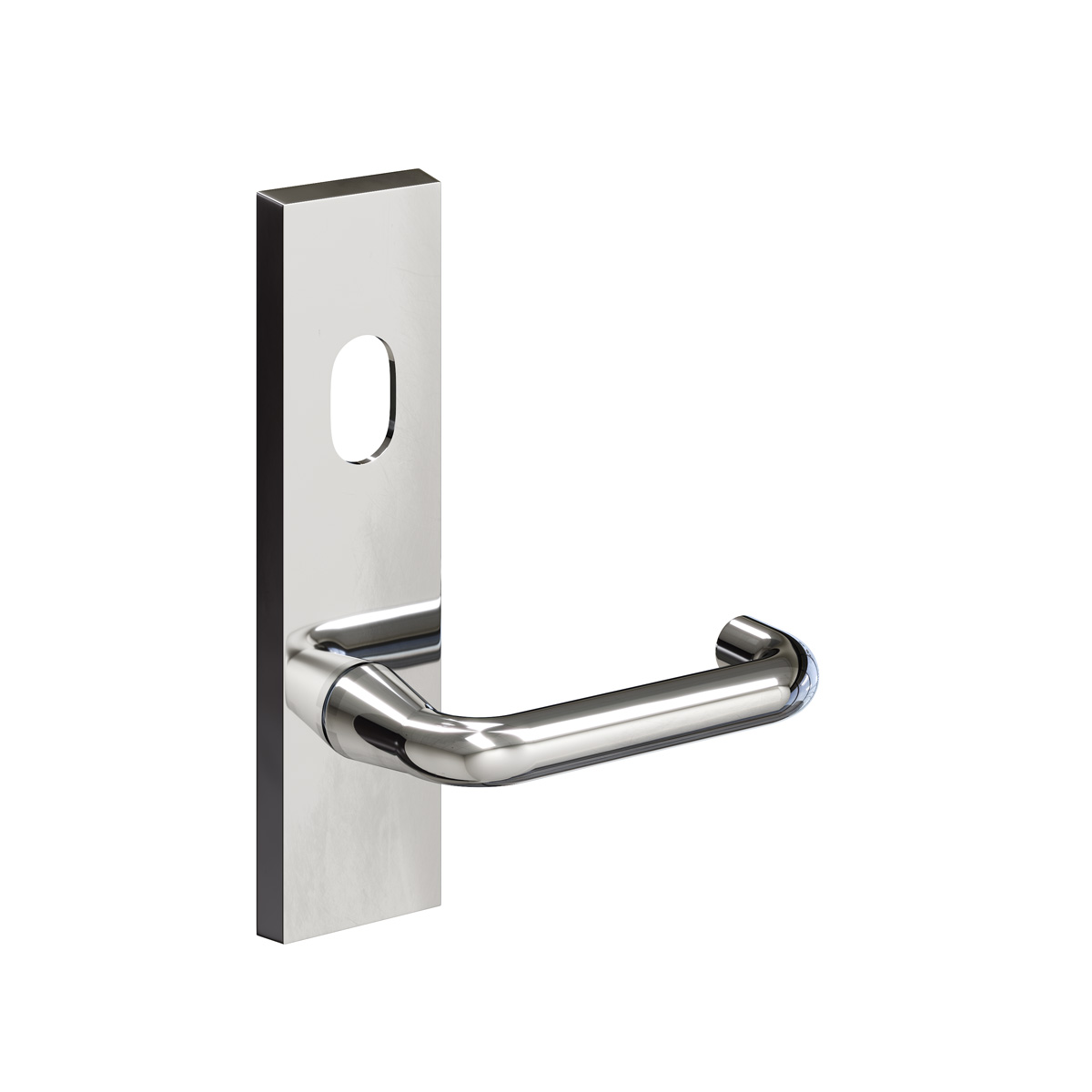

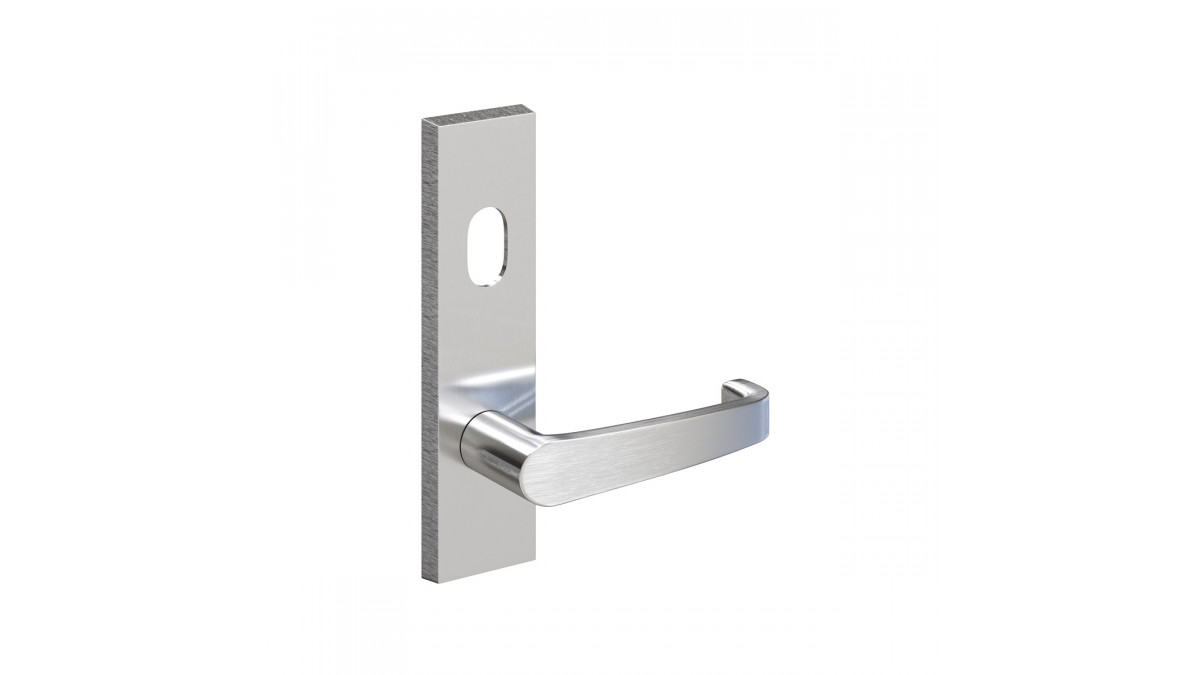

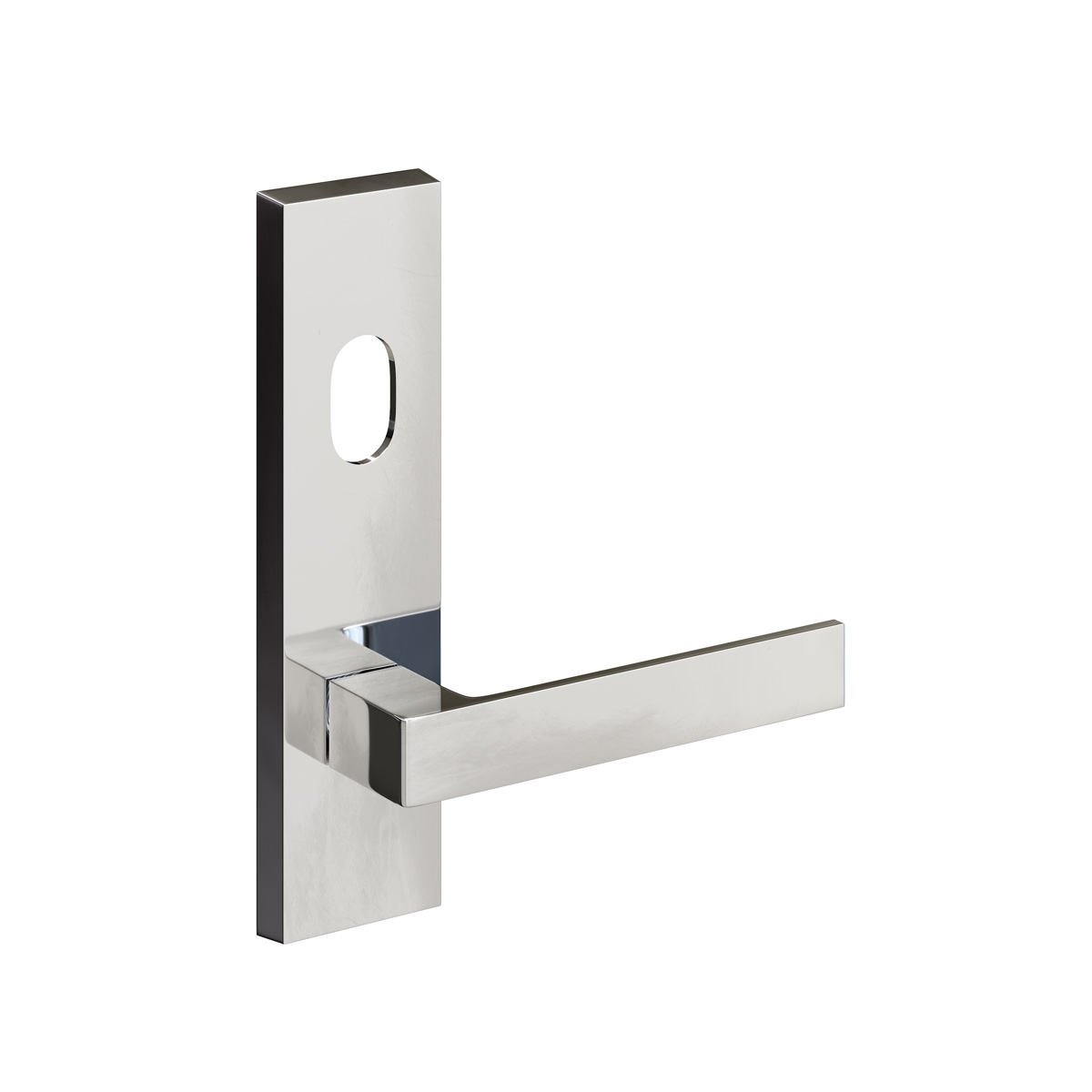

Legge 700 Series
Description

The Legge commercial range of door furniture has been designed for use on commercial applications, including interior and exterior doors for retail, educational, governmental, medical, and public buildings. Legge commercial furniture should be specified where heavy-duty durable door furniture is essential.

Available Finishes:

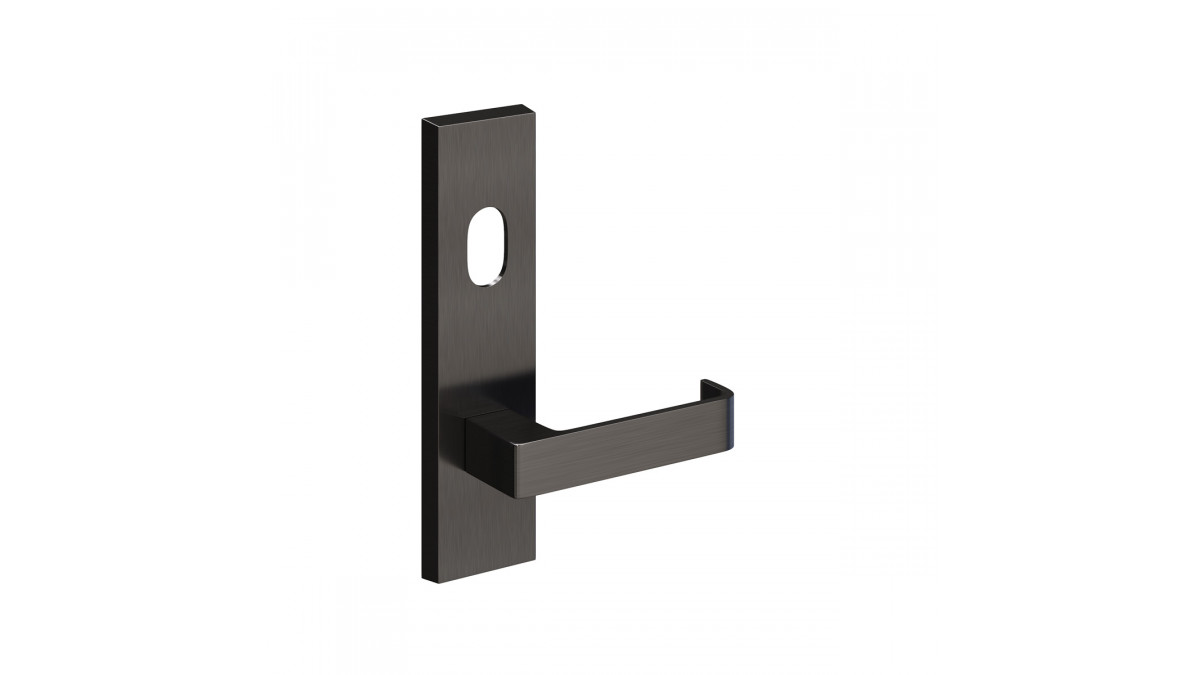

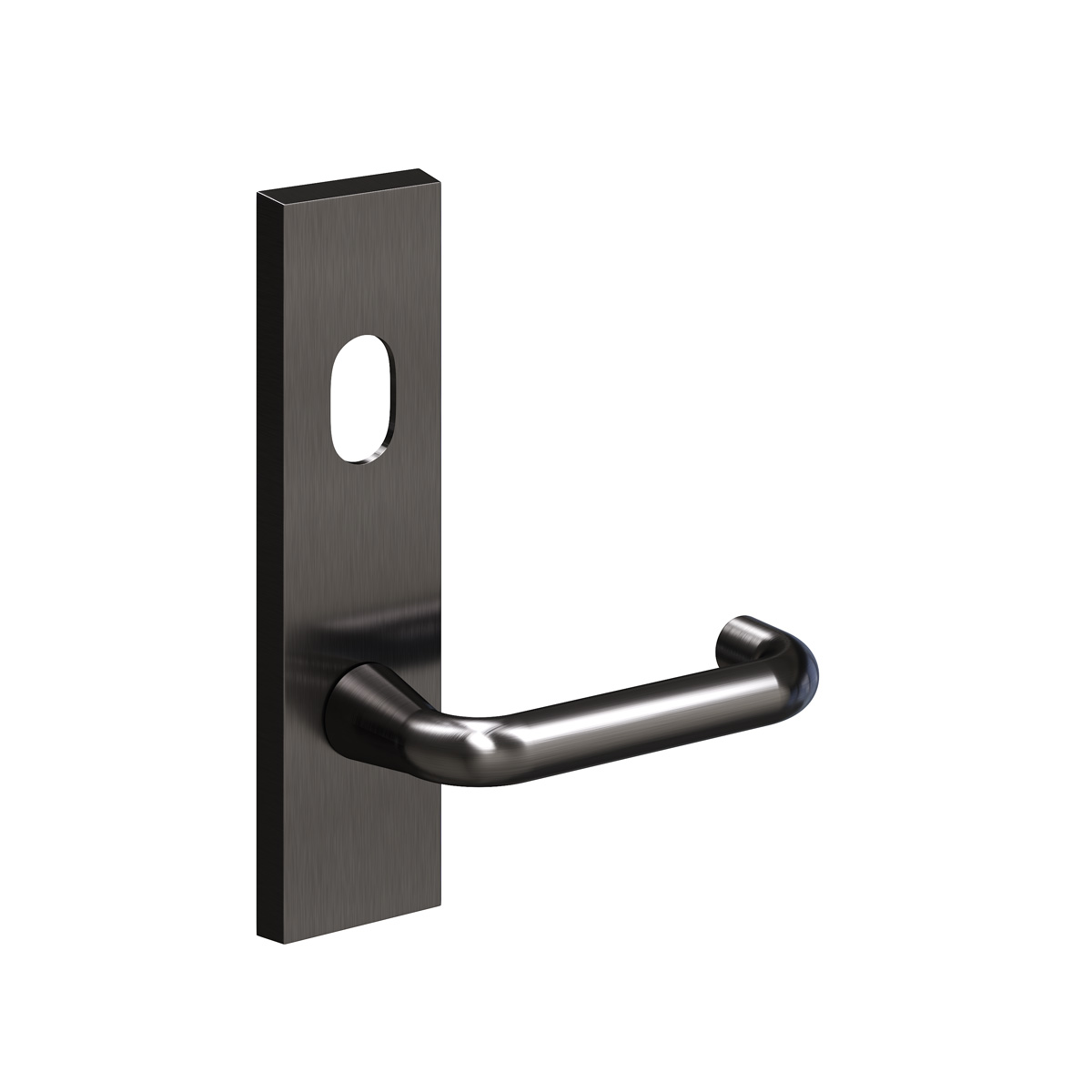

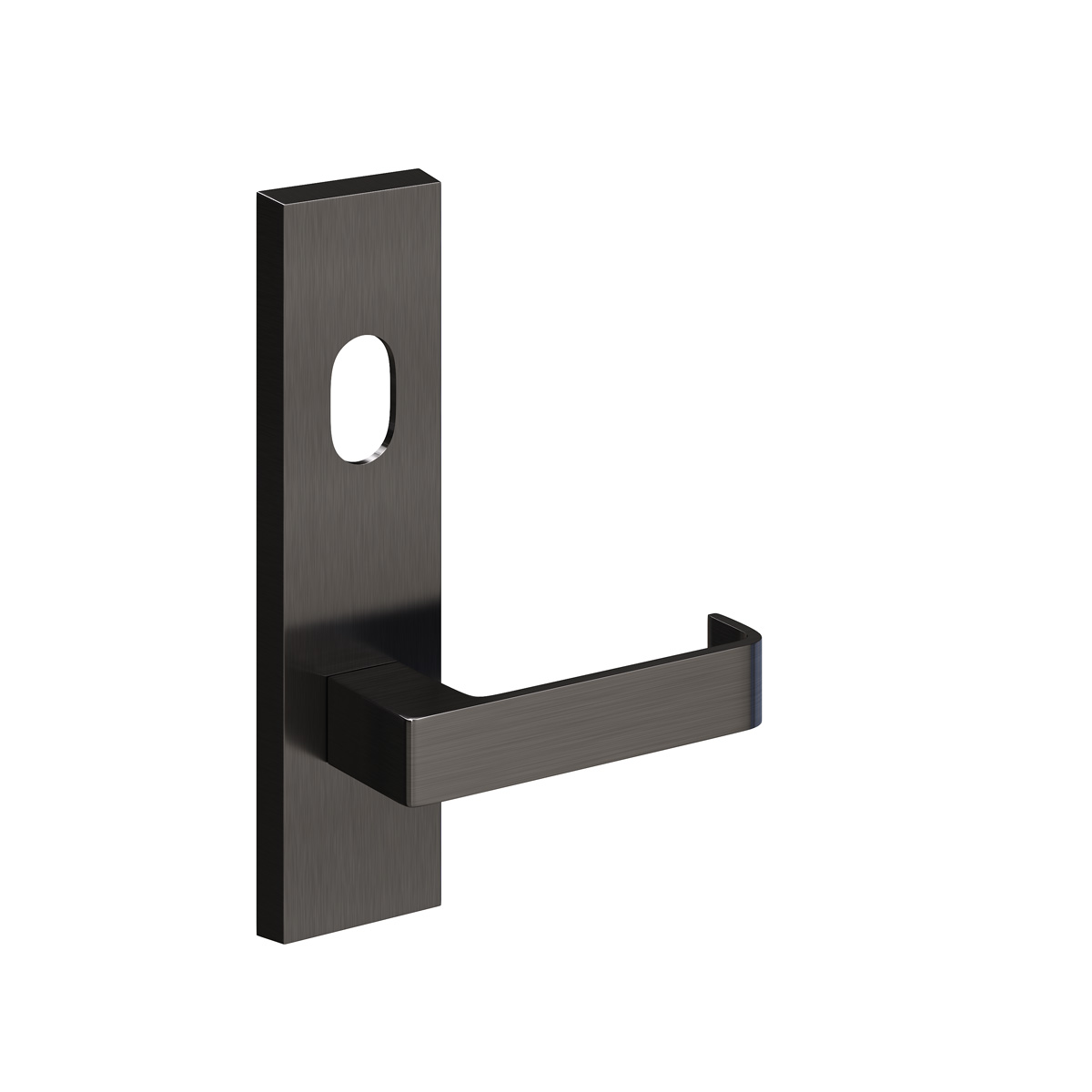

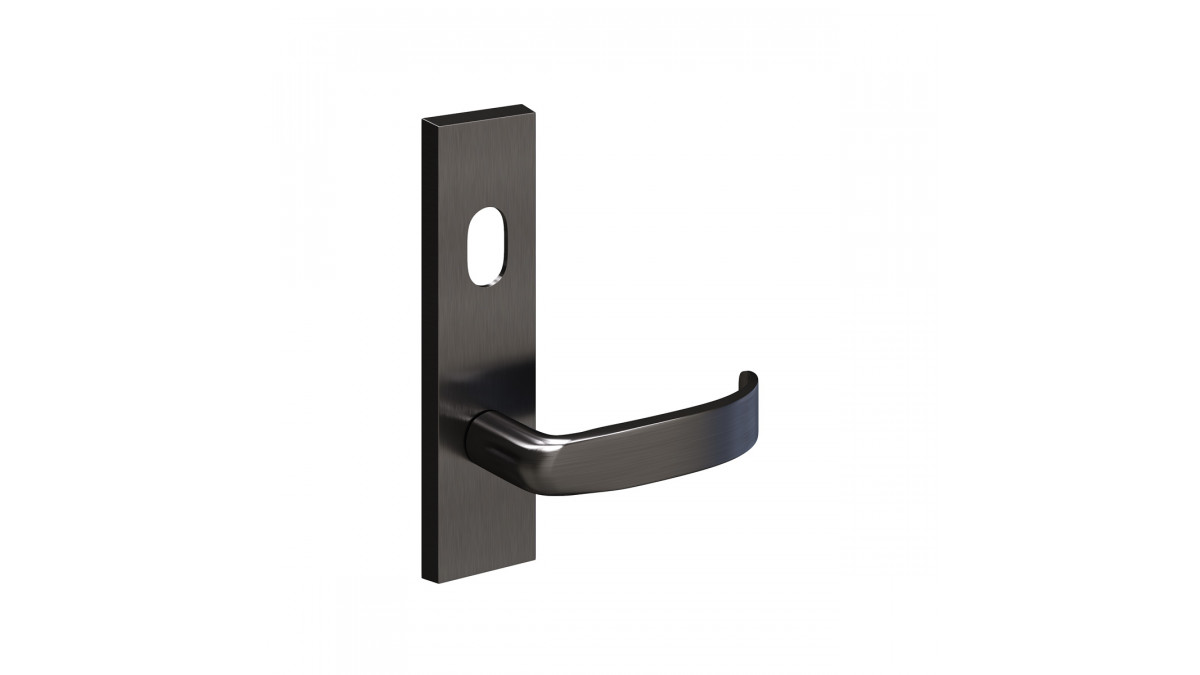

  • Oil Rubbed Bronze

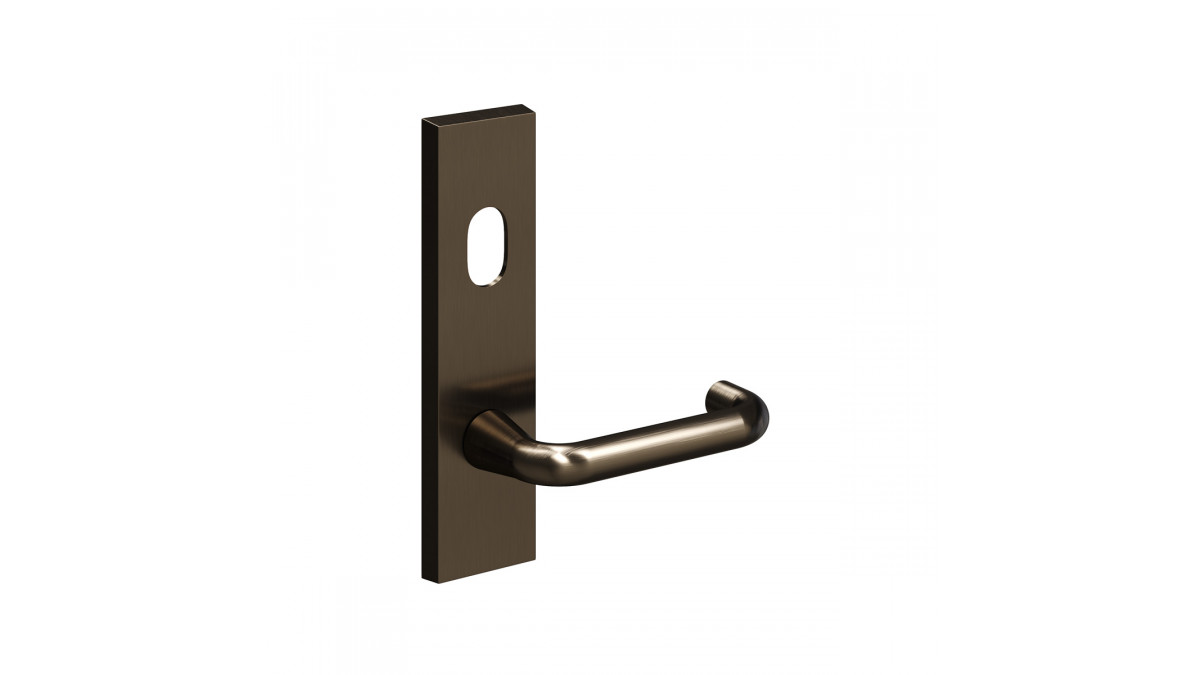

  • Antique Bronze

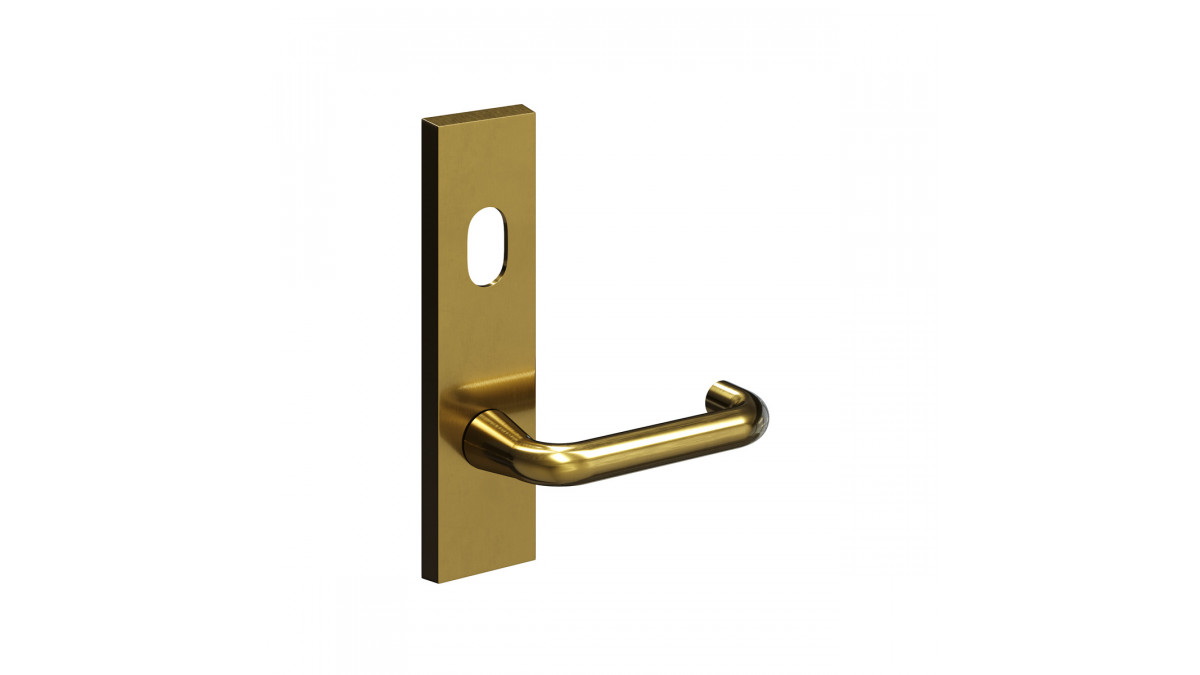

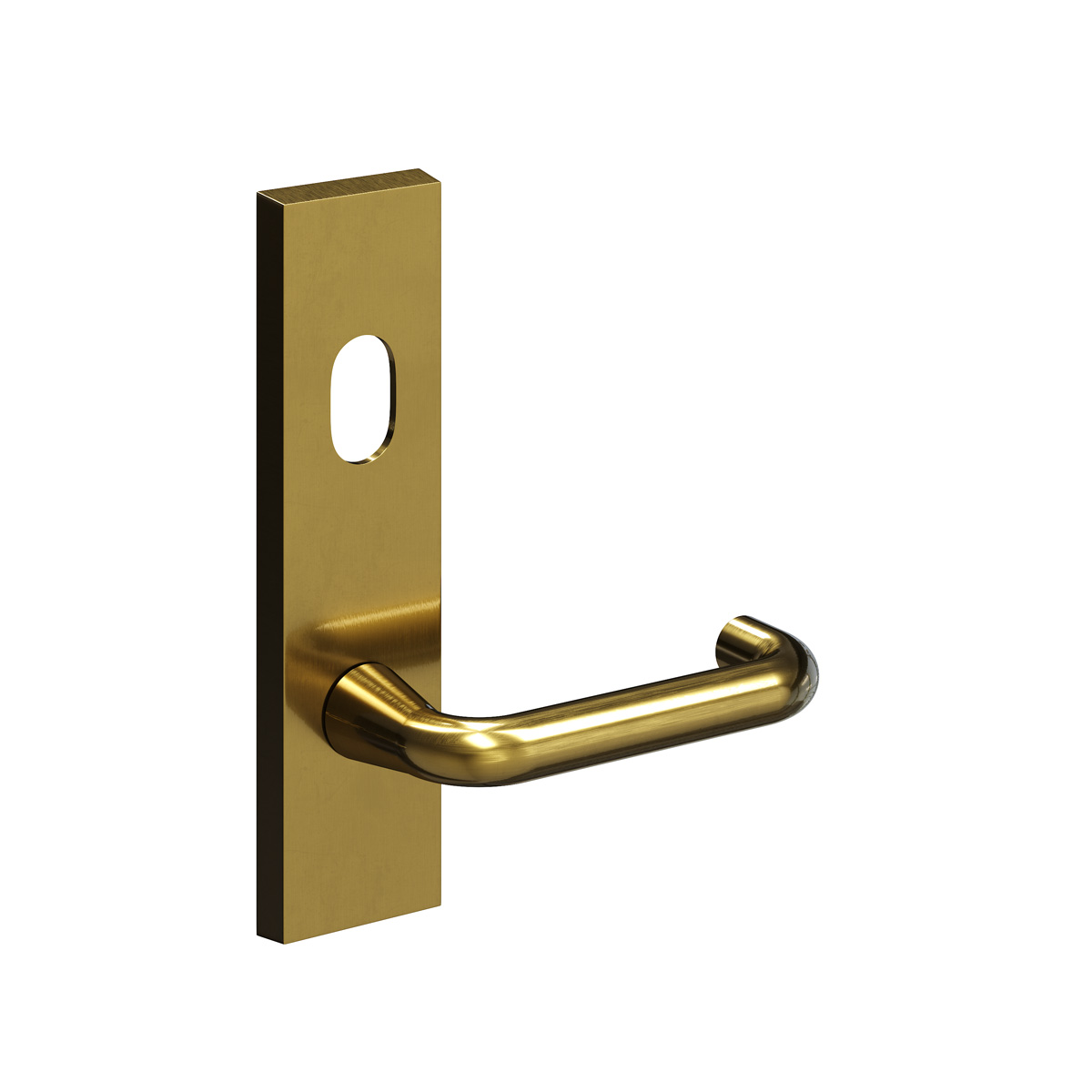

  • Satin Brass

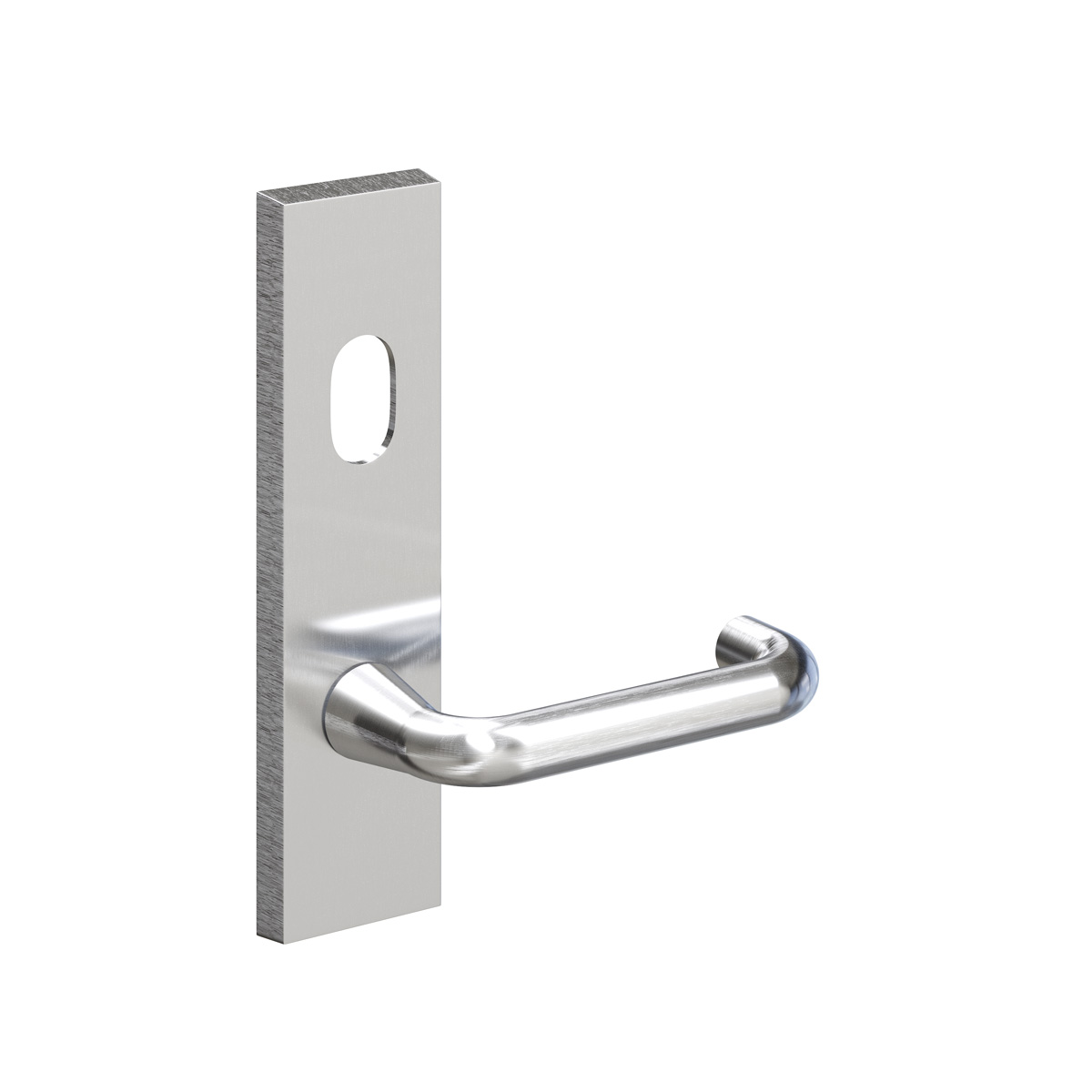

  • Satin Chrome

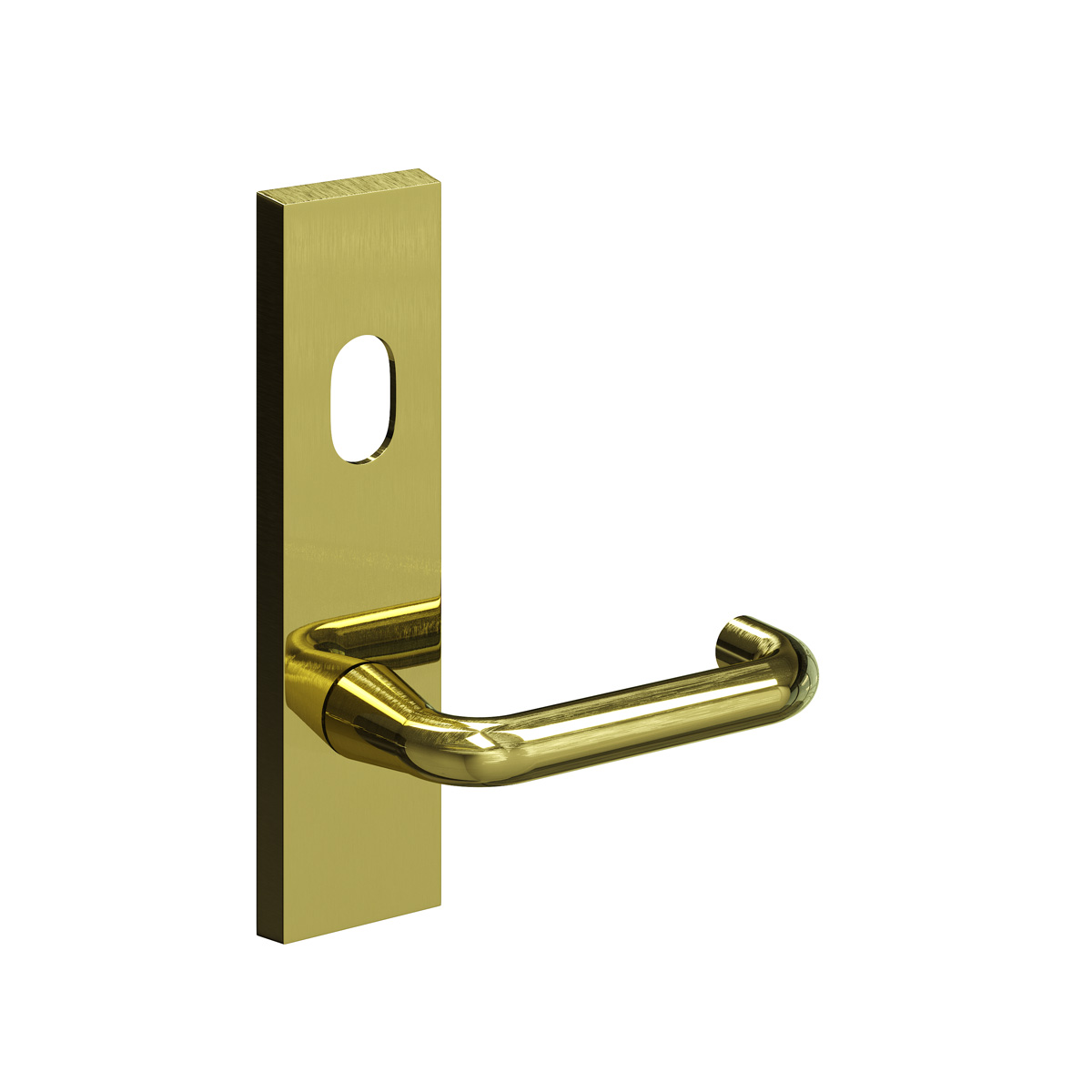

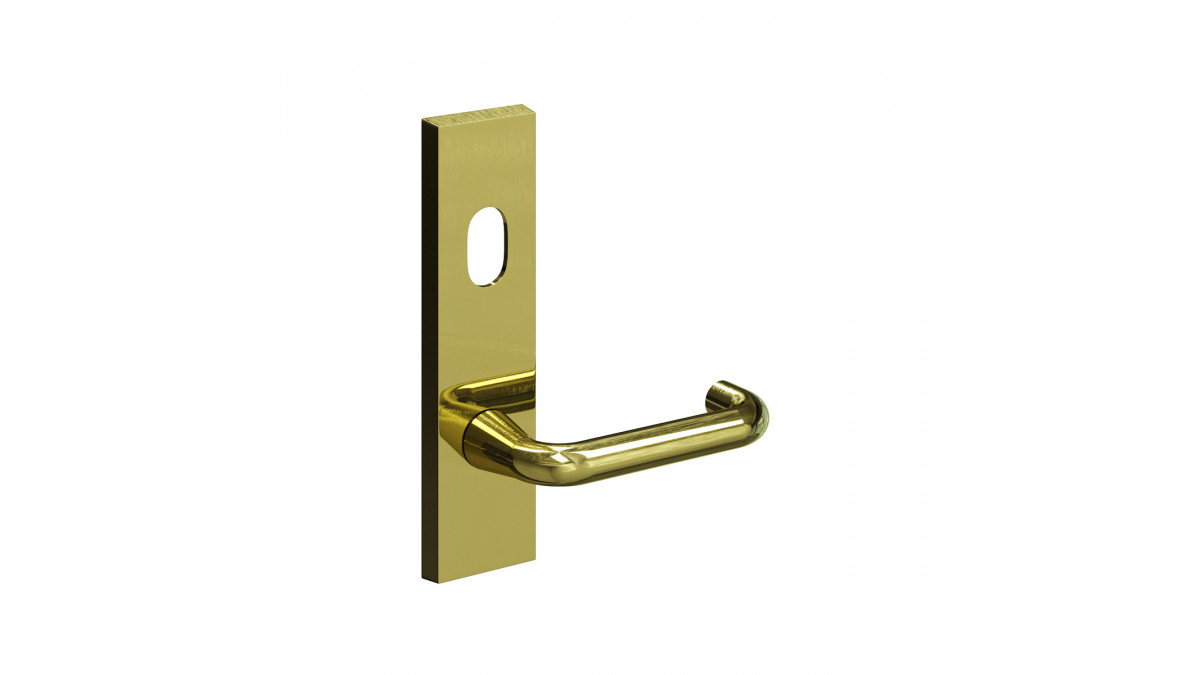

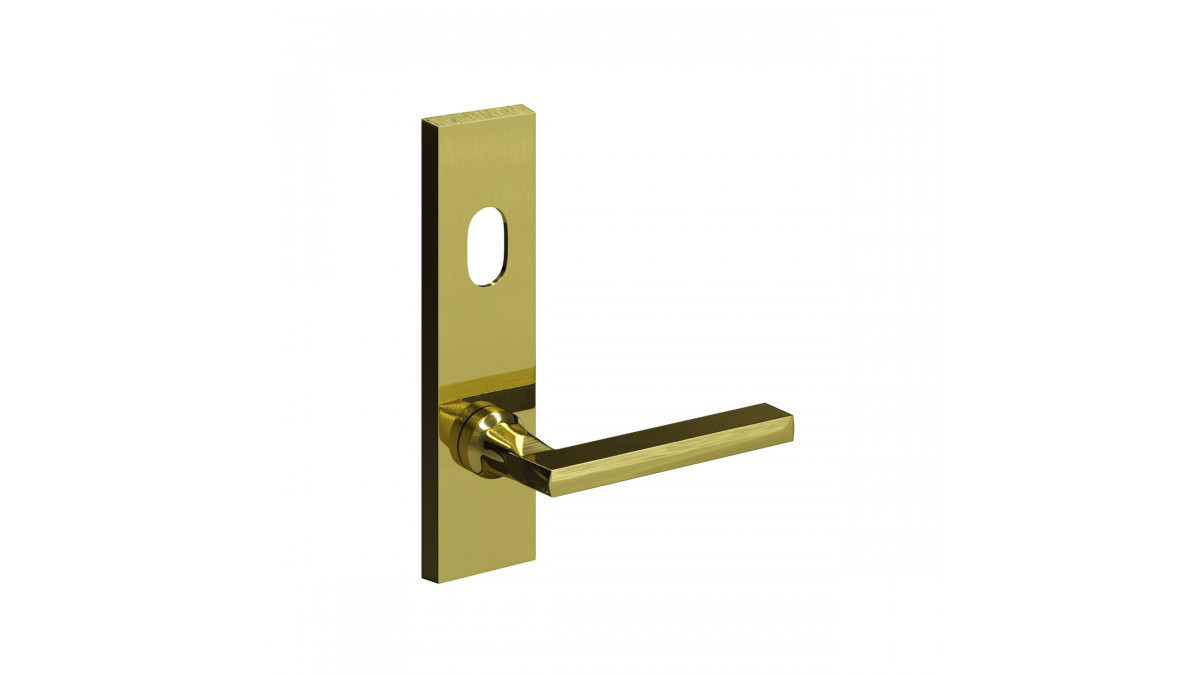

  • Polished Brass

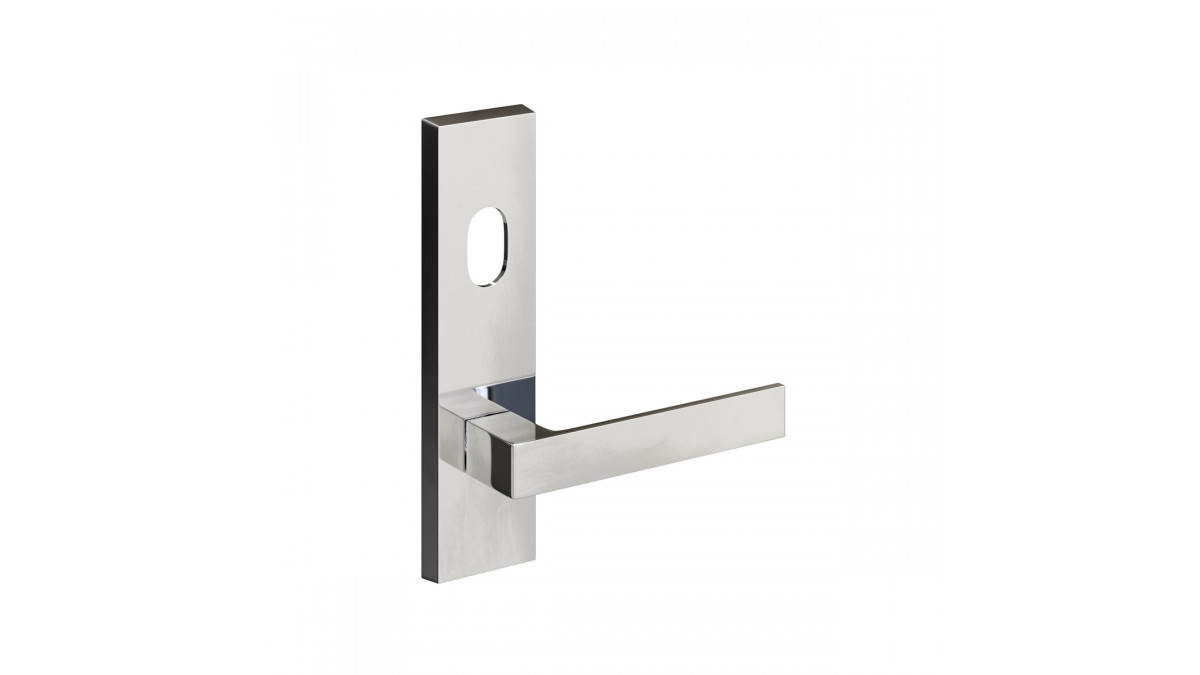

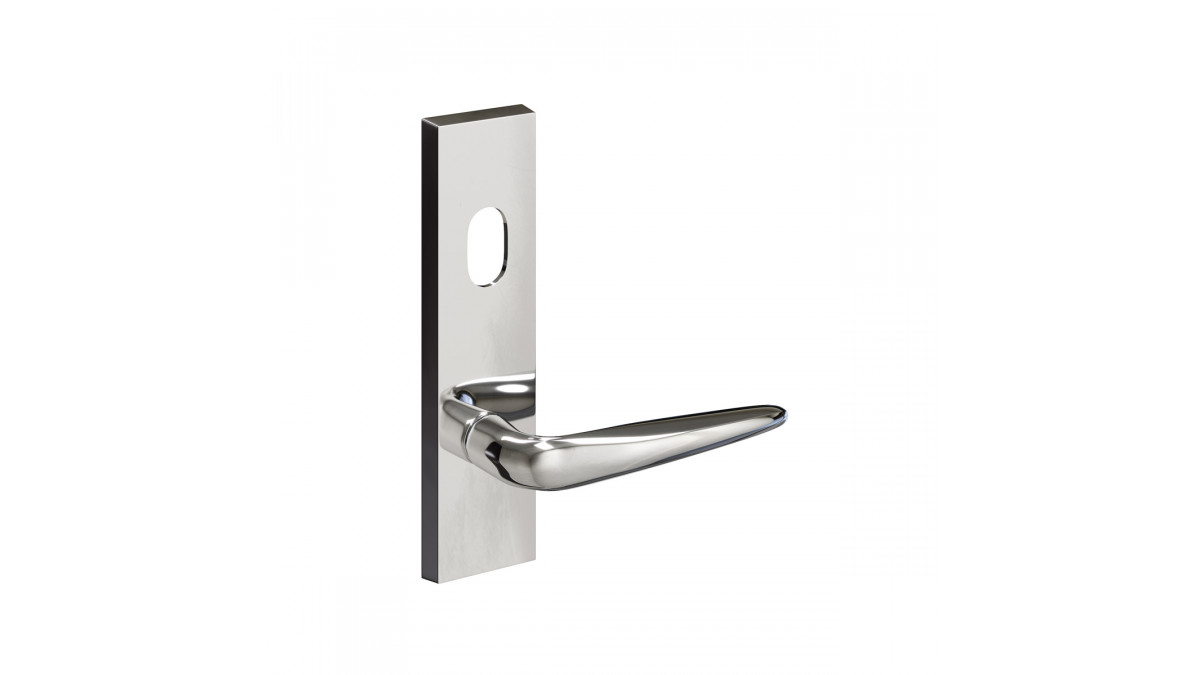

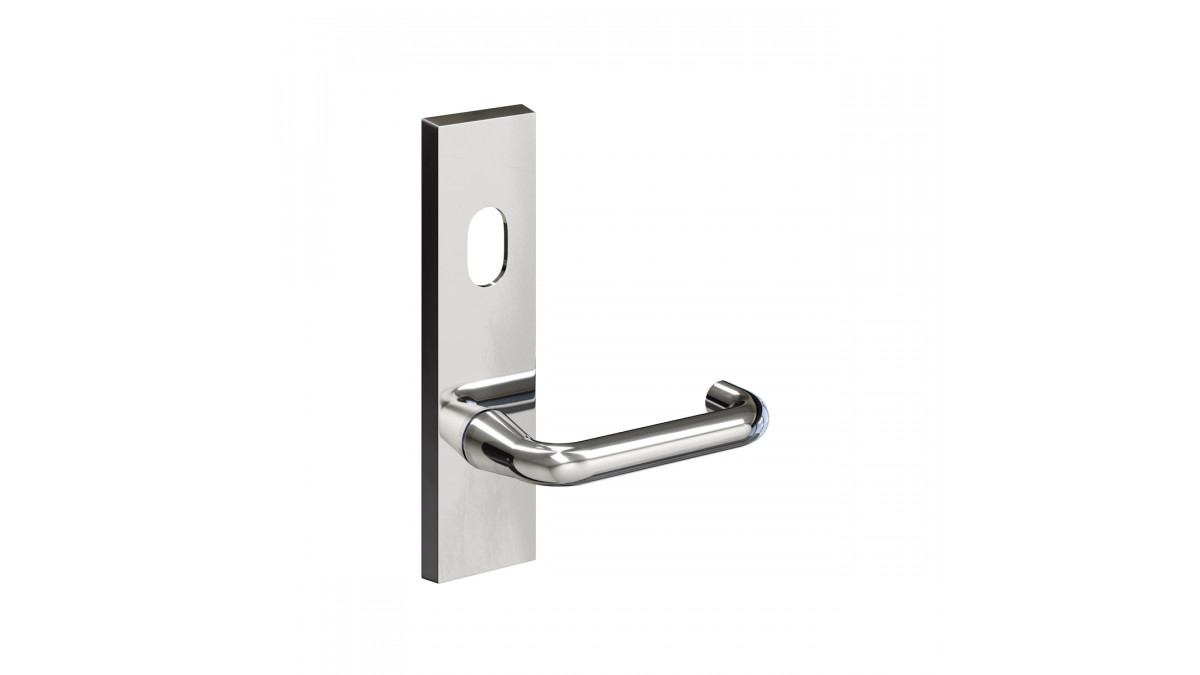

  • Chrome

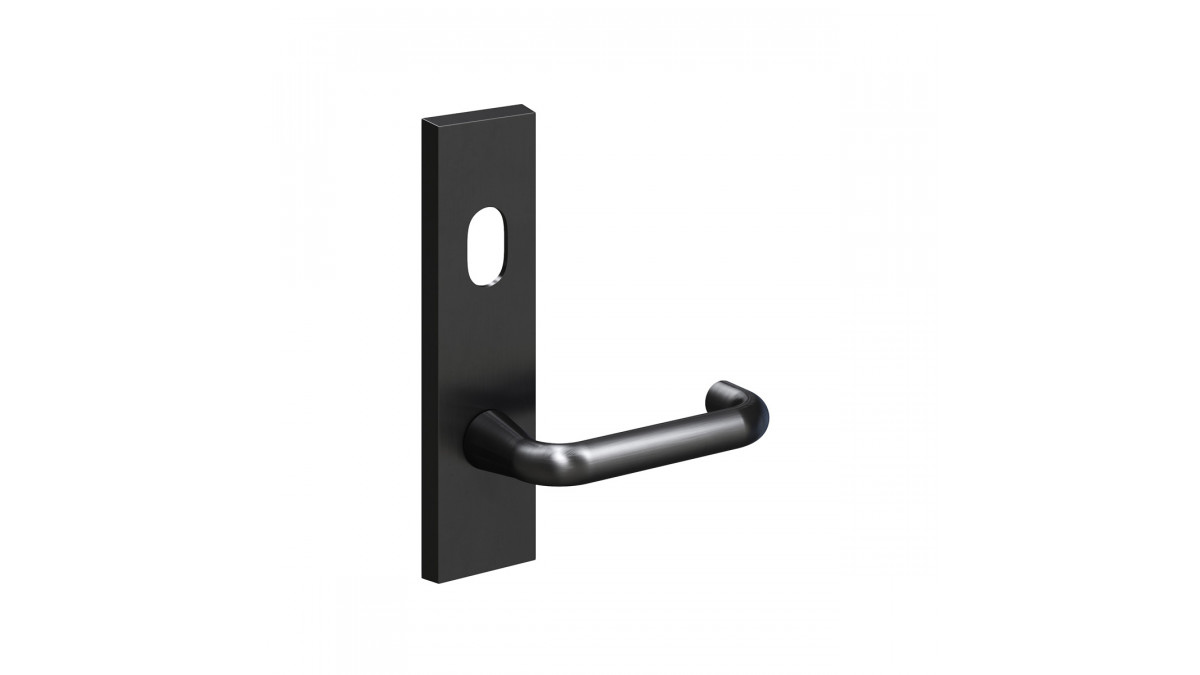

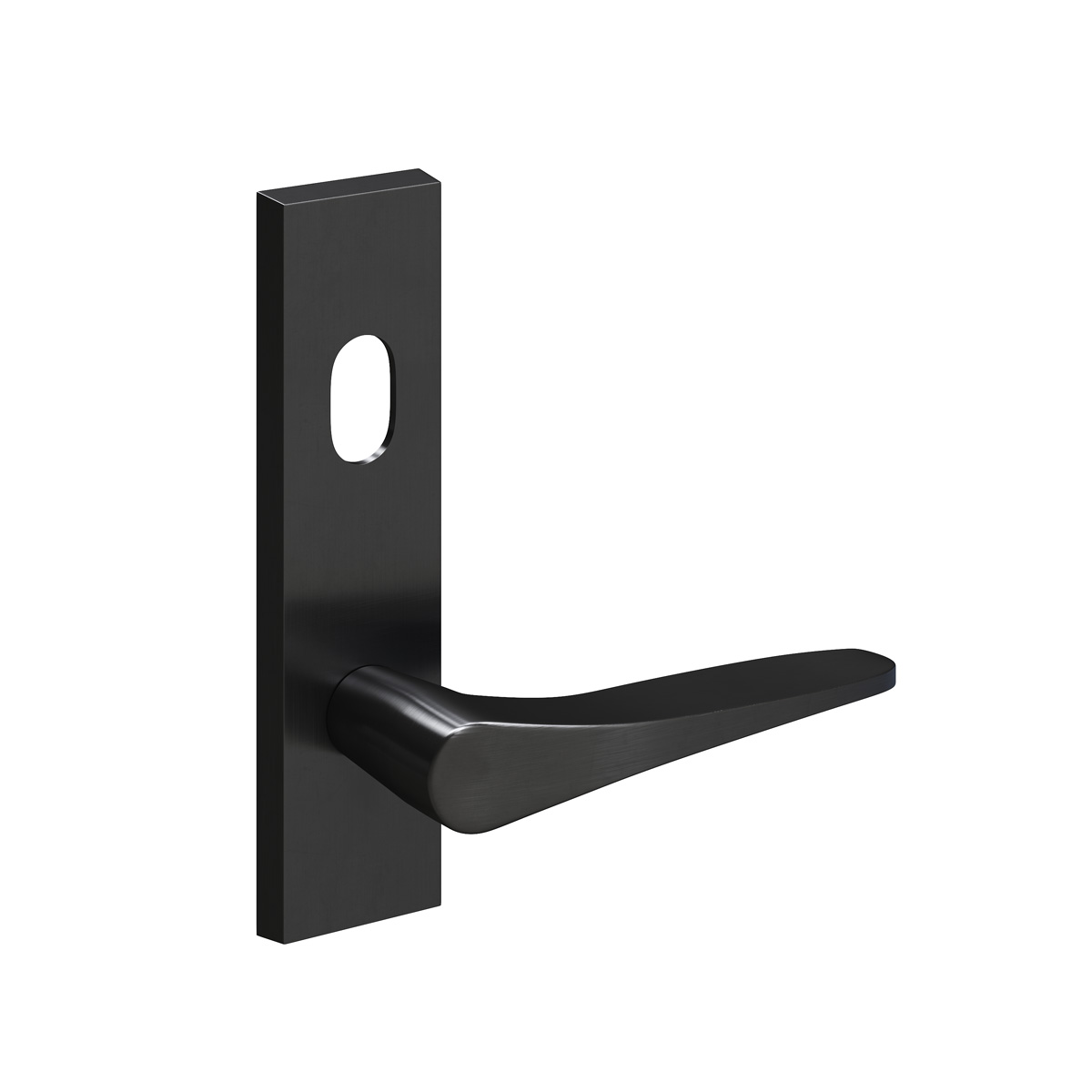

  • Satin Black Chrome
Key Features
  • Constructed of commercial-grade quality components, with forged brass levers and plates
  • Heavy-duty spring provides a smooth, positive return action of the lever and eliminates droop extending the life of the product
  • Furniture re-handed by simple relocation of lever using the screw stop block prior to installation
  • Anti-vandal option available
  • Anti-ligature option available
  • Suitable for use on fire door assemblies when used with fire-rated locks and latches
Scope of Use

Designed for use on commercial applications, including interior and exterior doors for retail, educational, governmental, medical, and public buildings.

  • Anti-vandal option available
  • Anti-ligature option available
  • Suitable for use on fire door assemblies when used with fire-rated locks and latches
  • Door type: Timber or metal
  • Door thickness: 32mm to 55mm (56mm to 75mm with optional extended screws)
  • Fixing centres: 158mm
  • Plate height: 171mm
  • Plate width: 47mm
  • Plate thickness: 11mm
  • Lever to cylinder centres: 63.5mm
  • Spindle size: 7.6mm
  • Compatible locks/latches: Legge 990MF Series mortice locks
  • Fixing: Back to back, external plates concealed fixing, screws supplied with exterior plates only, screw length 75mm, optional extended screw 100mm
Other Performance Attributes
  • Constructed of commercial-grade quality components, with forged brass levers and plates
  • Heavy-duty spring provides a smooth, positive return action of the lever and eliminates droop extending the life of the product
