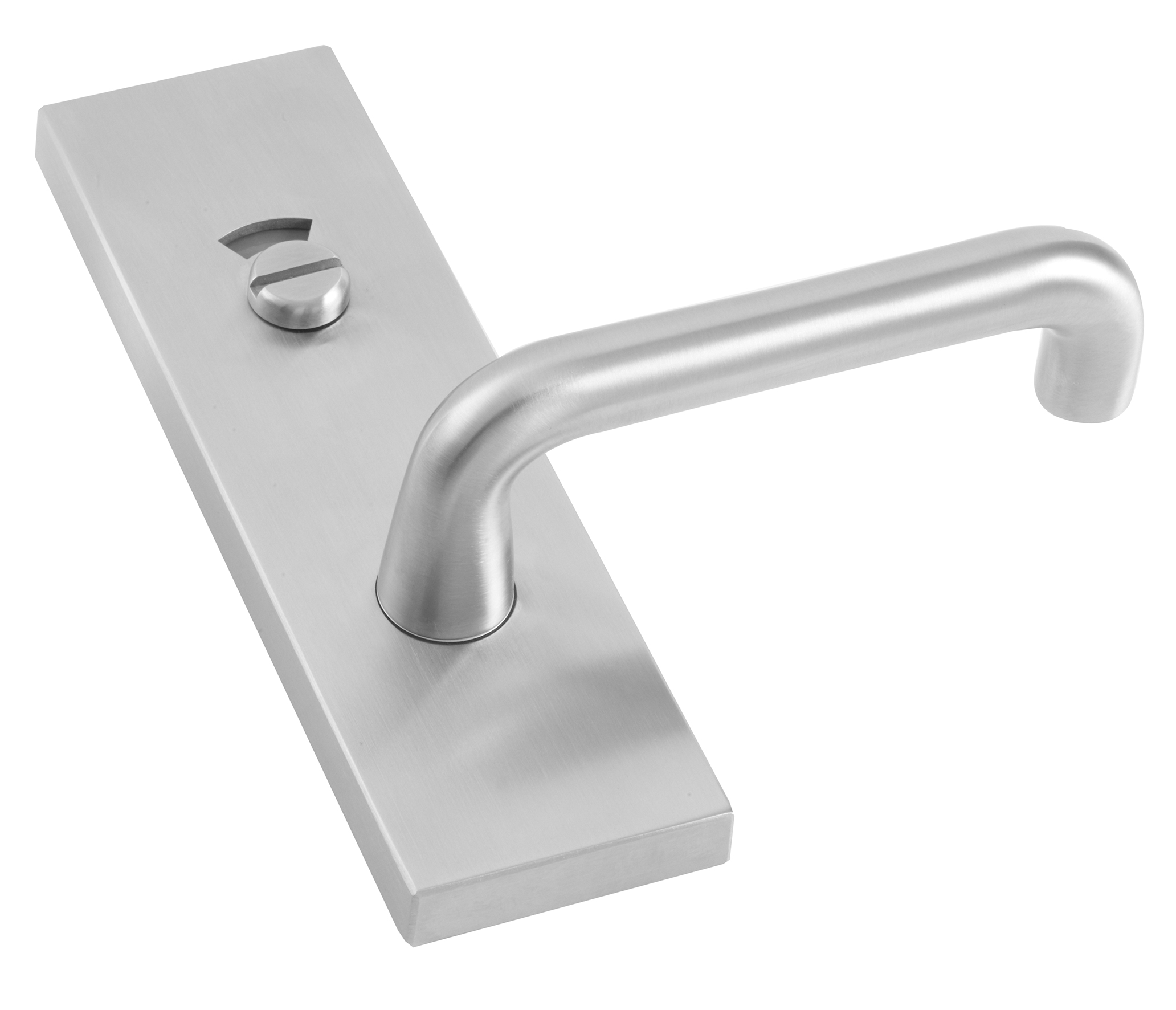

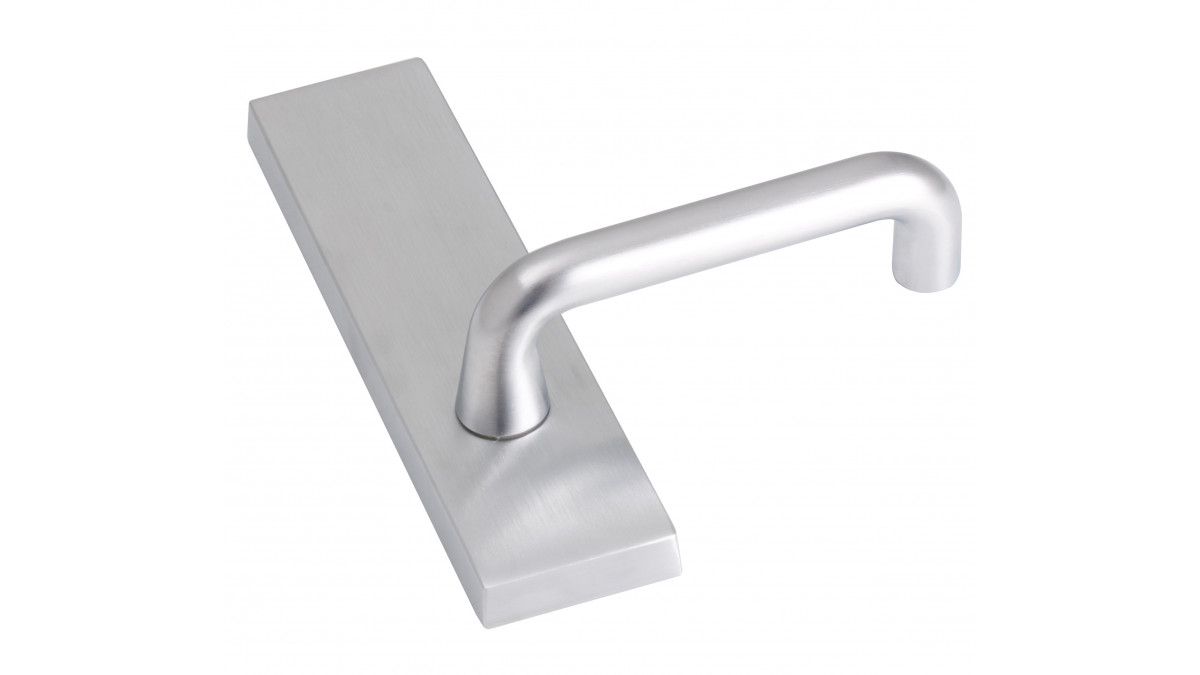

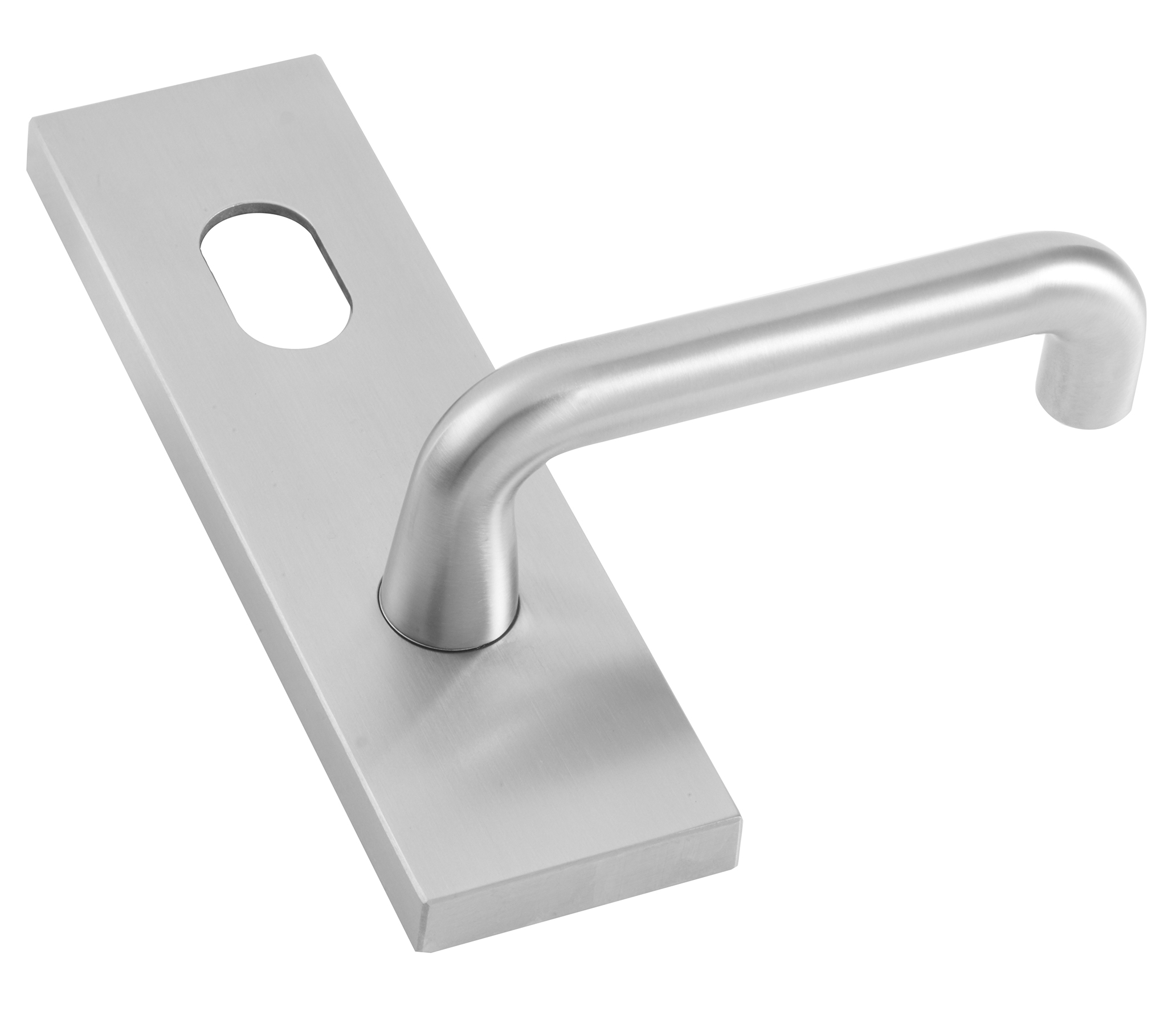

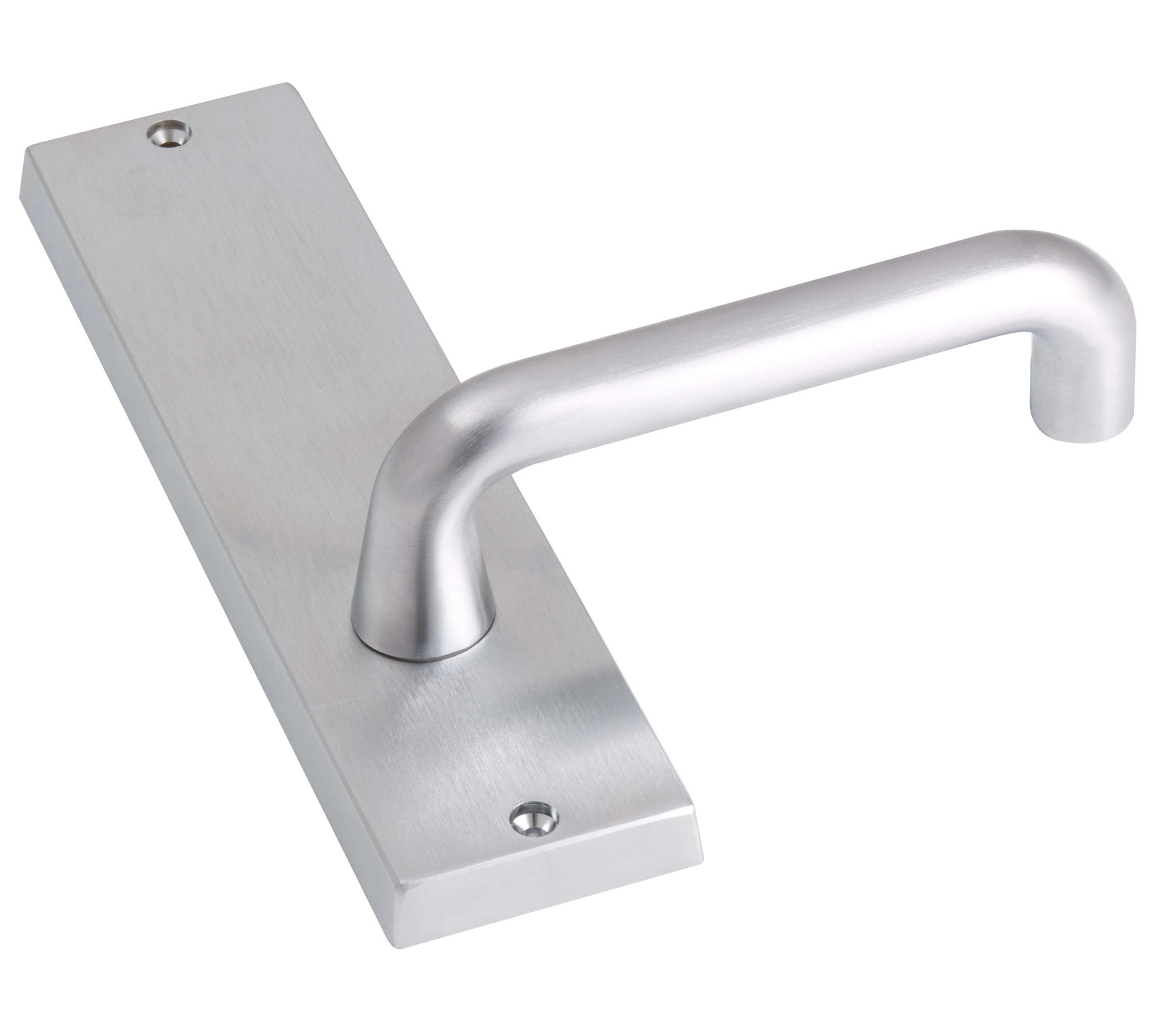

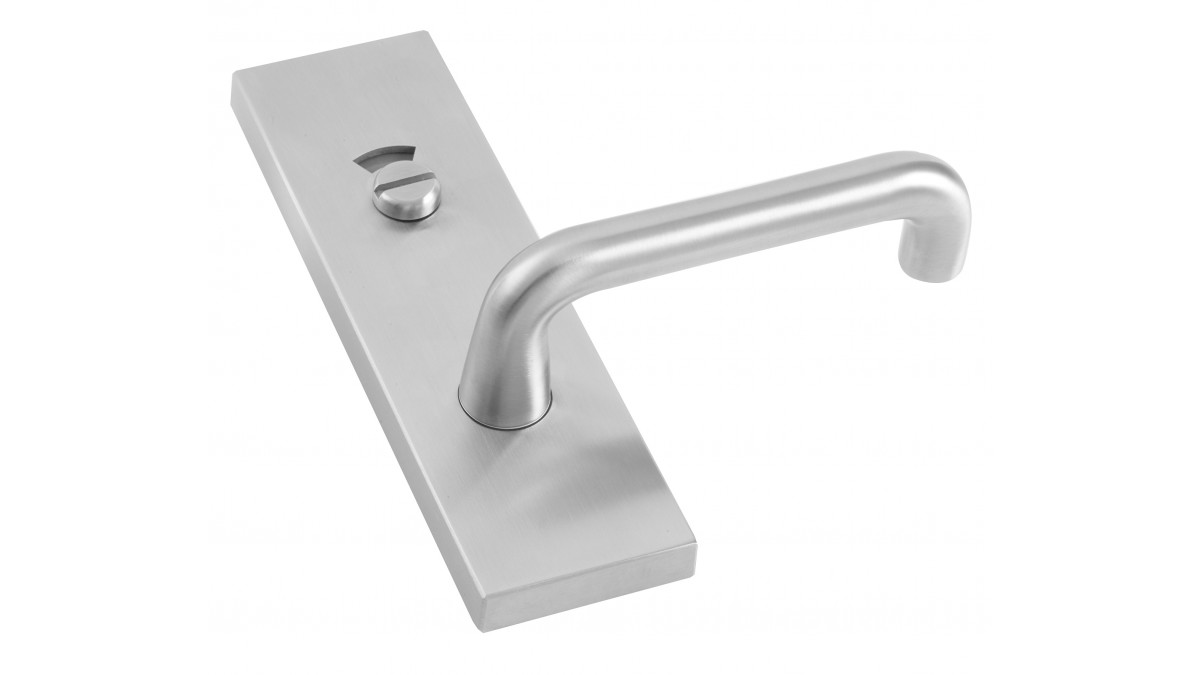

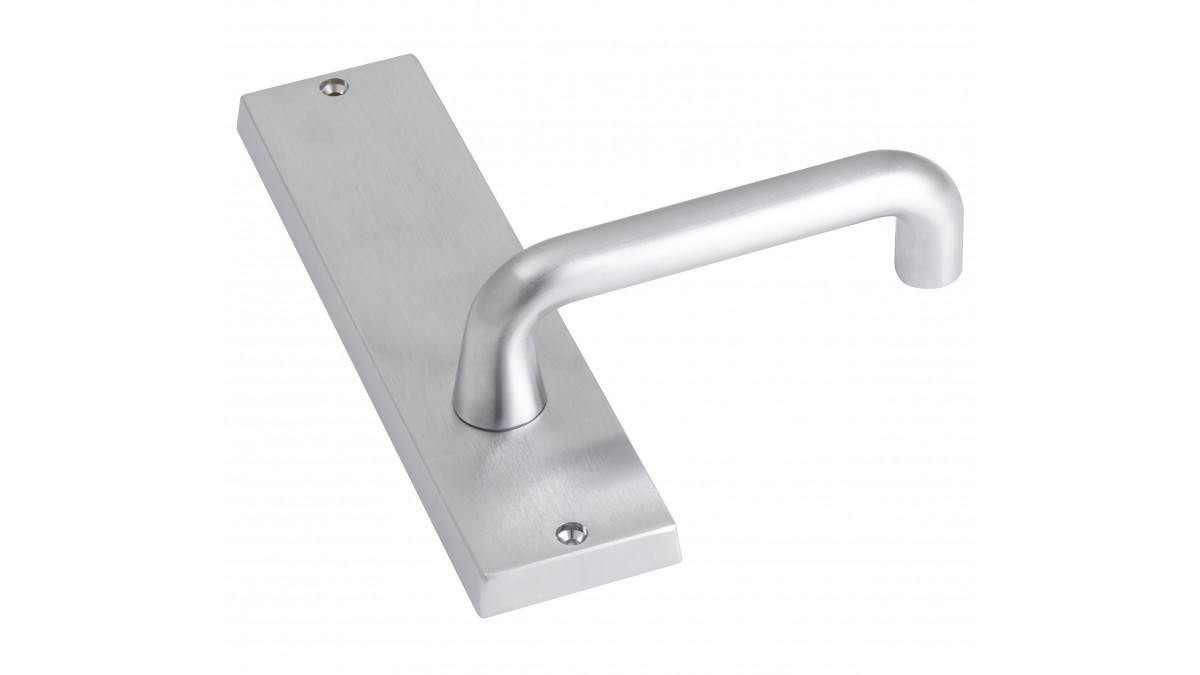

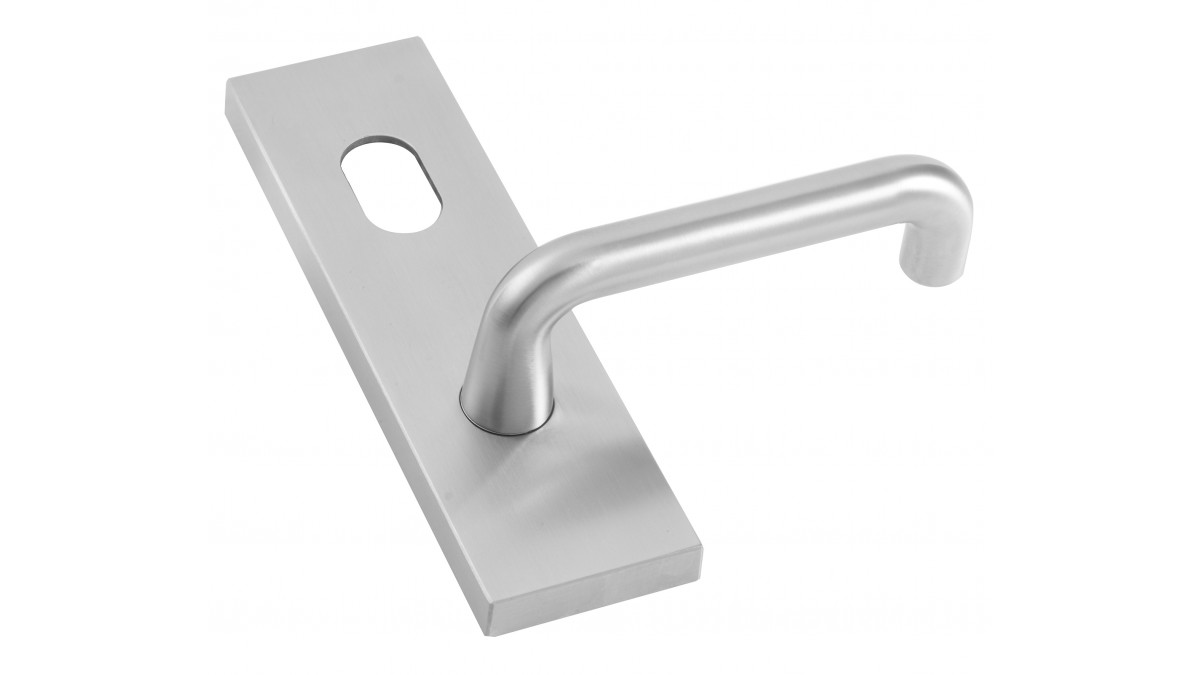

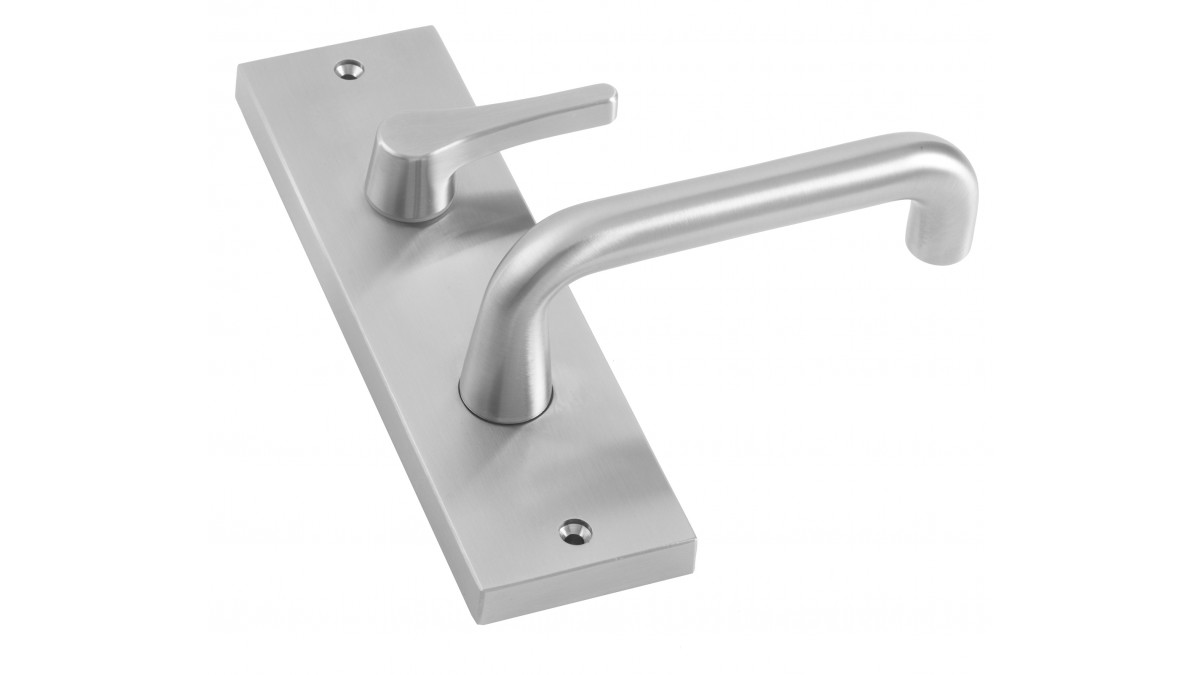

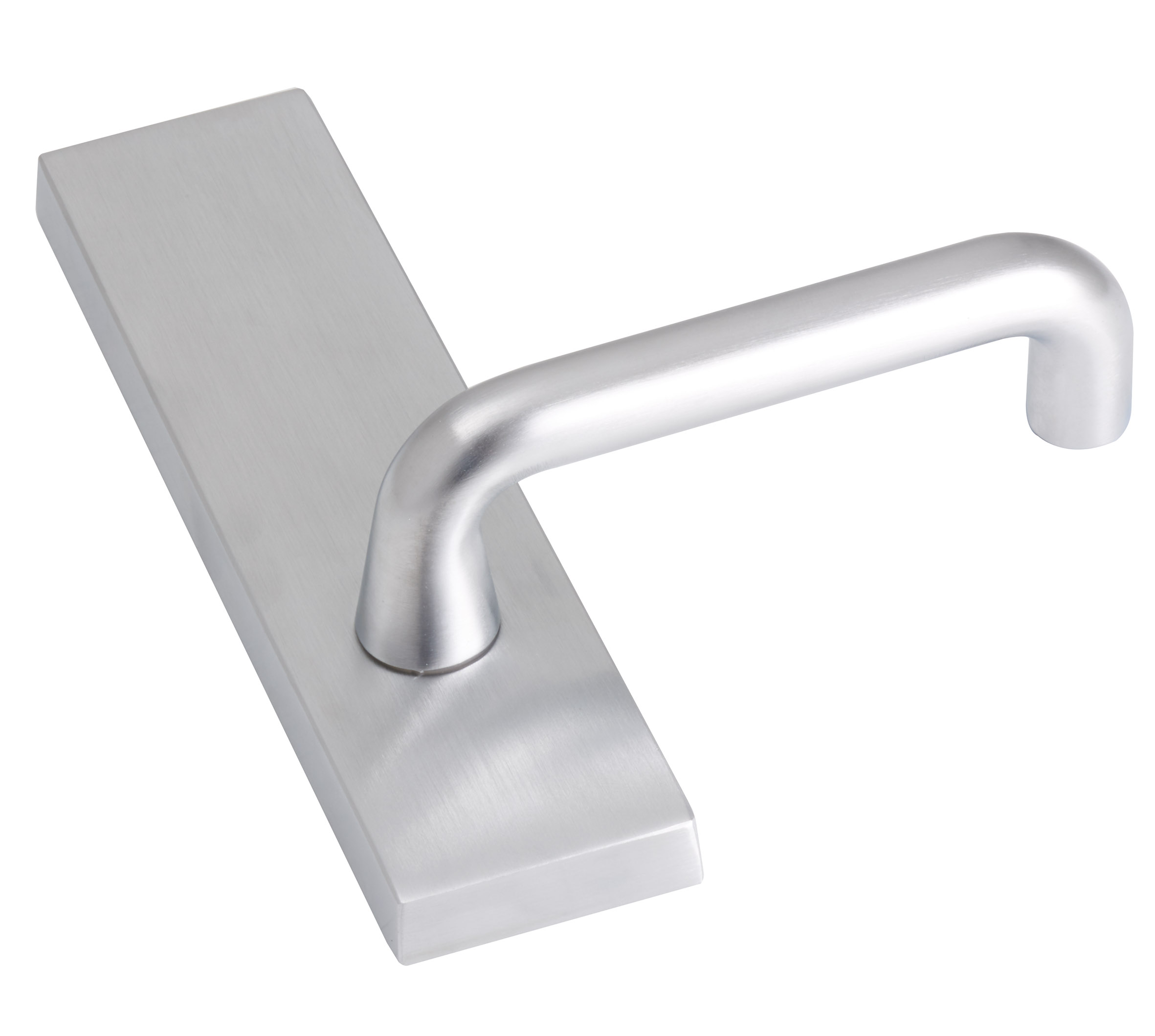

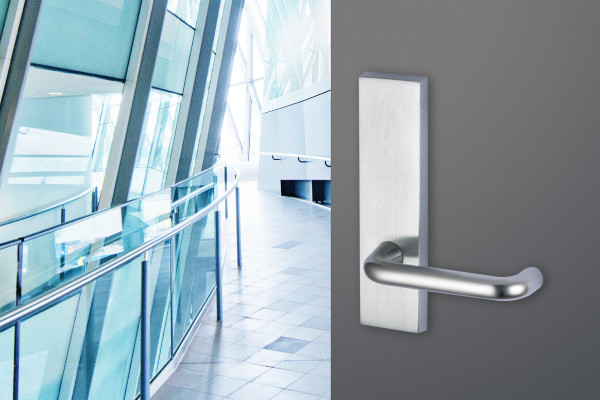

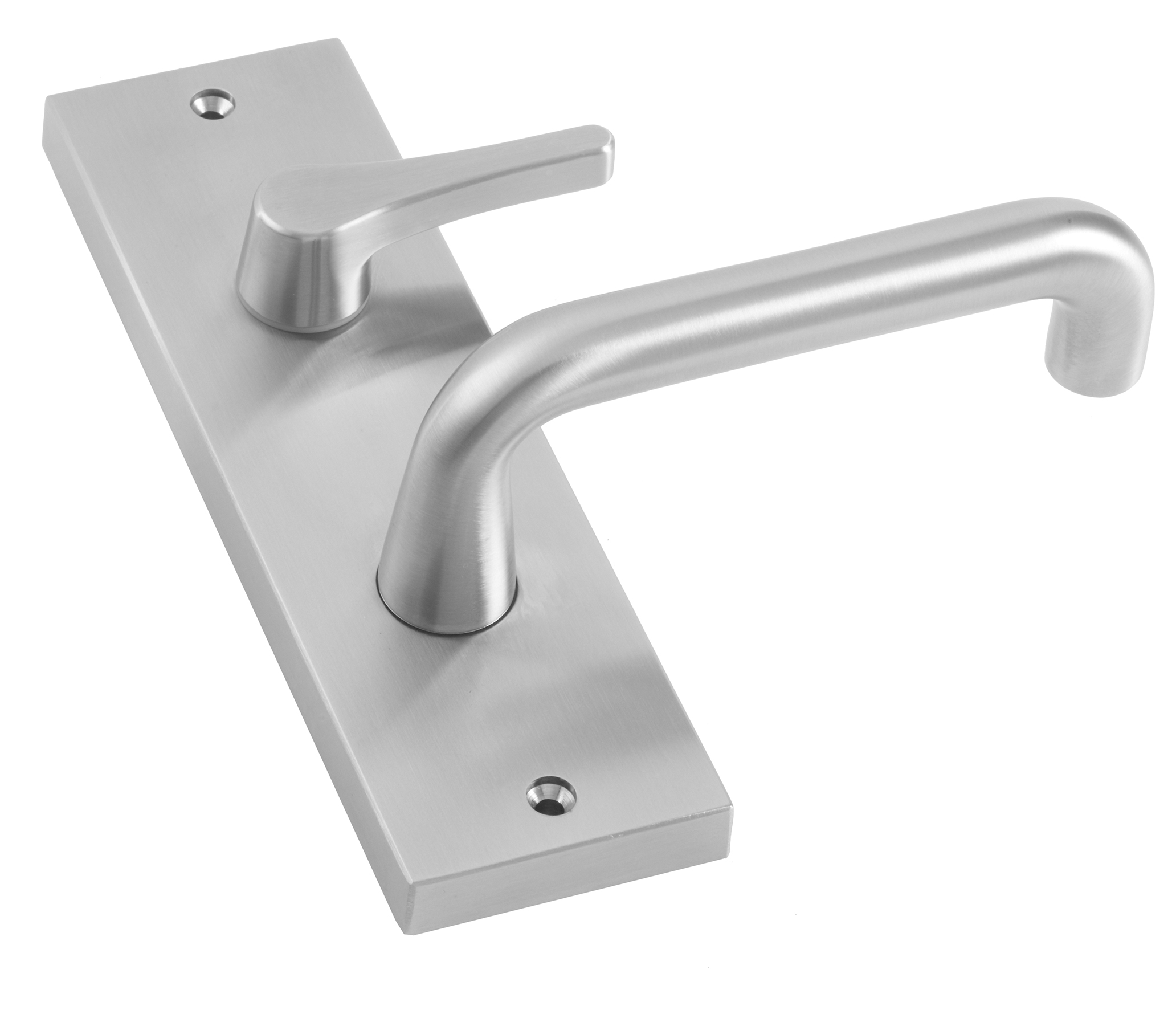

Legge 700 Marine Series
Description

The Legge 700 Marine Series door furniture has been designed for heavy-duty commercial applications. This Series is constructed from 316 marine grade stainless steel making it suitable for both external and internal applications. It is suitable for use in high traffic applications such as retail, educational, government buildings, healthcare and commercial premises.

The handing mechanism of this Series allows the furniture to be handed on-site, prior to installation by rotating the lever to the preferred hand and fitting the stop block to secure its position.



Key Features

316 Satin Stainless Steel properties include:

  • Increased wear resistance
  • Corrosion-resistant
  • Suitable for coastal applications
  • Suitable for areas where hygiene is important
Scope of Use

Designed for heavy-duty commercial applications — suitable for use in high traffic applications such as retail, educational, government buildings, healthcare and commercial premises.

  • Suitable for coastal applications
  • Suitable for areas where hygiene is important
  • Door type: Timber or metal
  • Door thickness: 32mm to 50mm
  • Fixing centres: 148mm
  • Plate height: 168mm
  • Plate width: 50mm
  • Plate thickness: 11mm
  • Lever to cylinder centres: 63.5mm
  • Spindle size: 7.6mm
  • Compatible locks/latches: Legge 990MF Series mortice locks
  • Fixing: Back to back, external plates concealed fixing, screws supplied with exterior plates only, screw length 75mm
Other Performance Attributes
  • 316 Satin Stainless Steel for increased wear resistance and corrosion-resistance
