Legge 6000 Series
Description

Legge offers a range of leading hardware furniture designs for commercial and quality residential applications. Legge 6000 Series has a round rose with a wide selection of designer levers to choose from.

The Legge 6000 Series will enhance the standard and elegance of any residential and commercial applications including apartments, office fitouts, hotels, and high end homes.

Available Finishes:

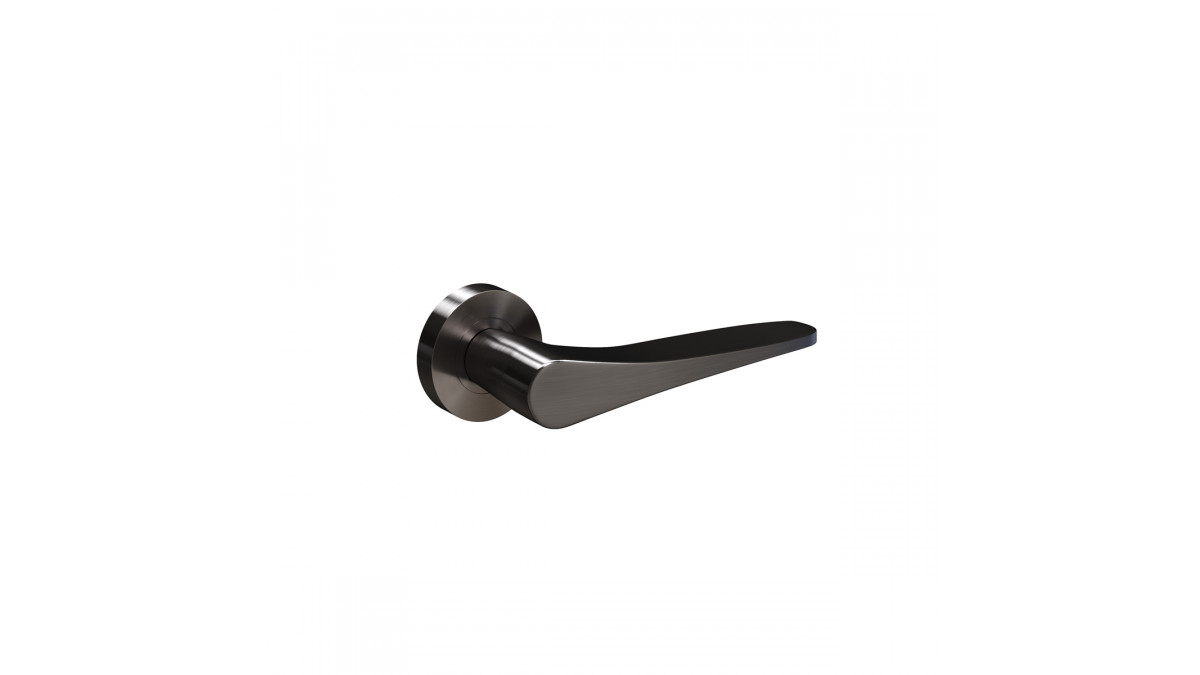

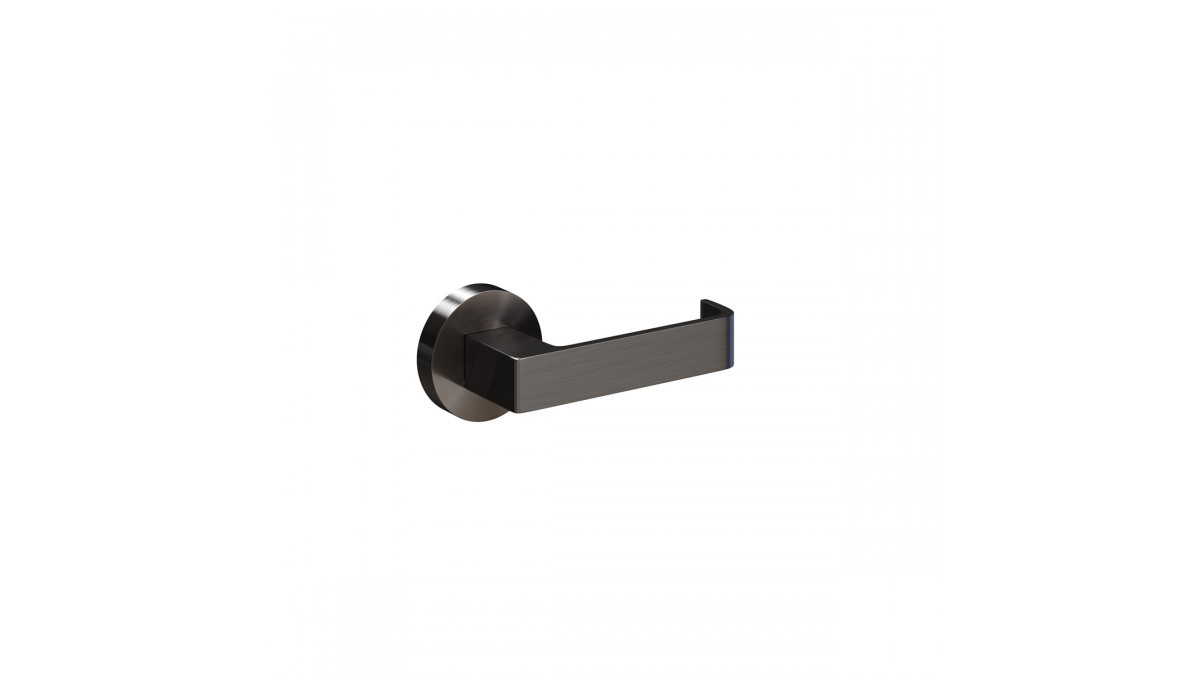

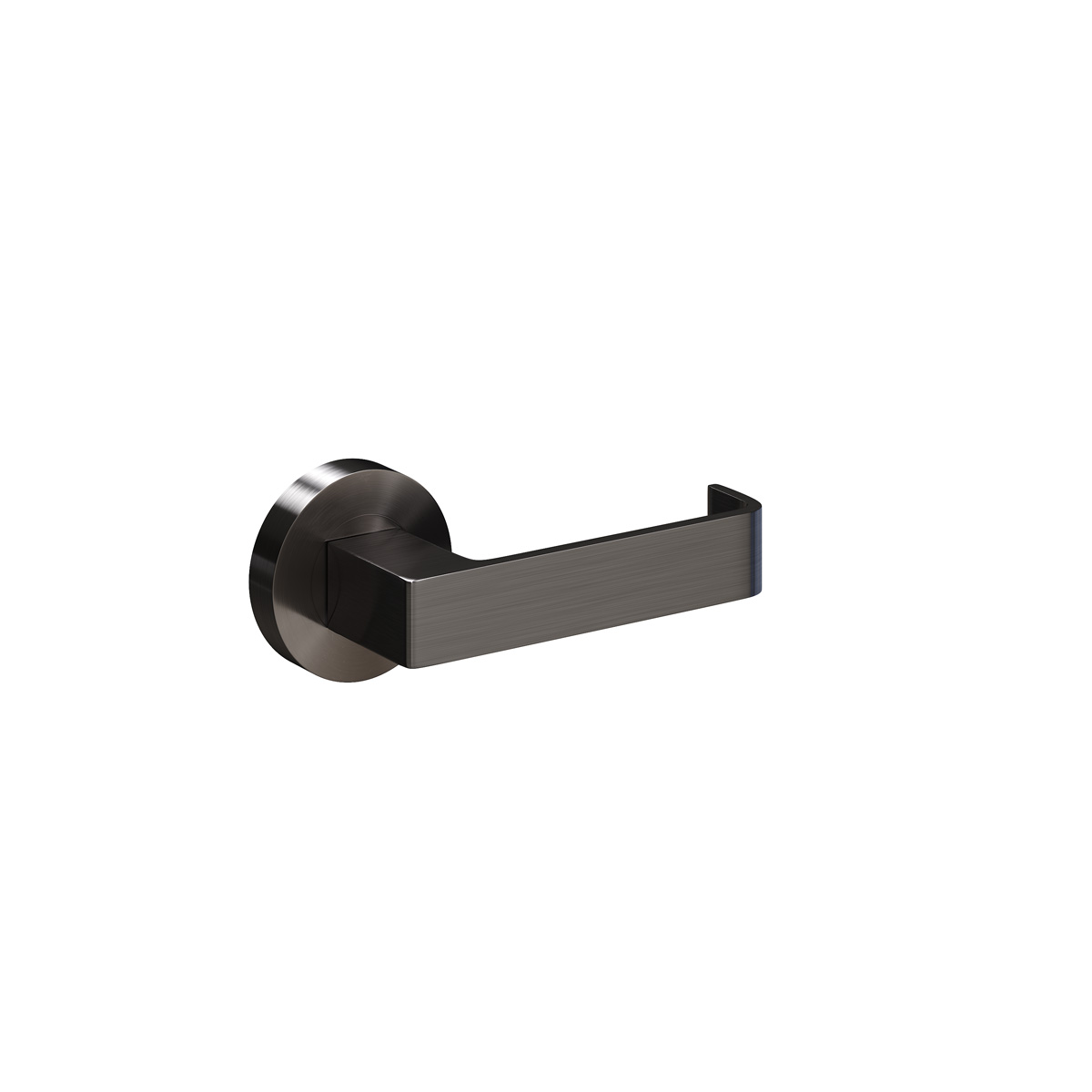

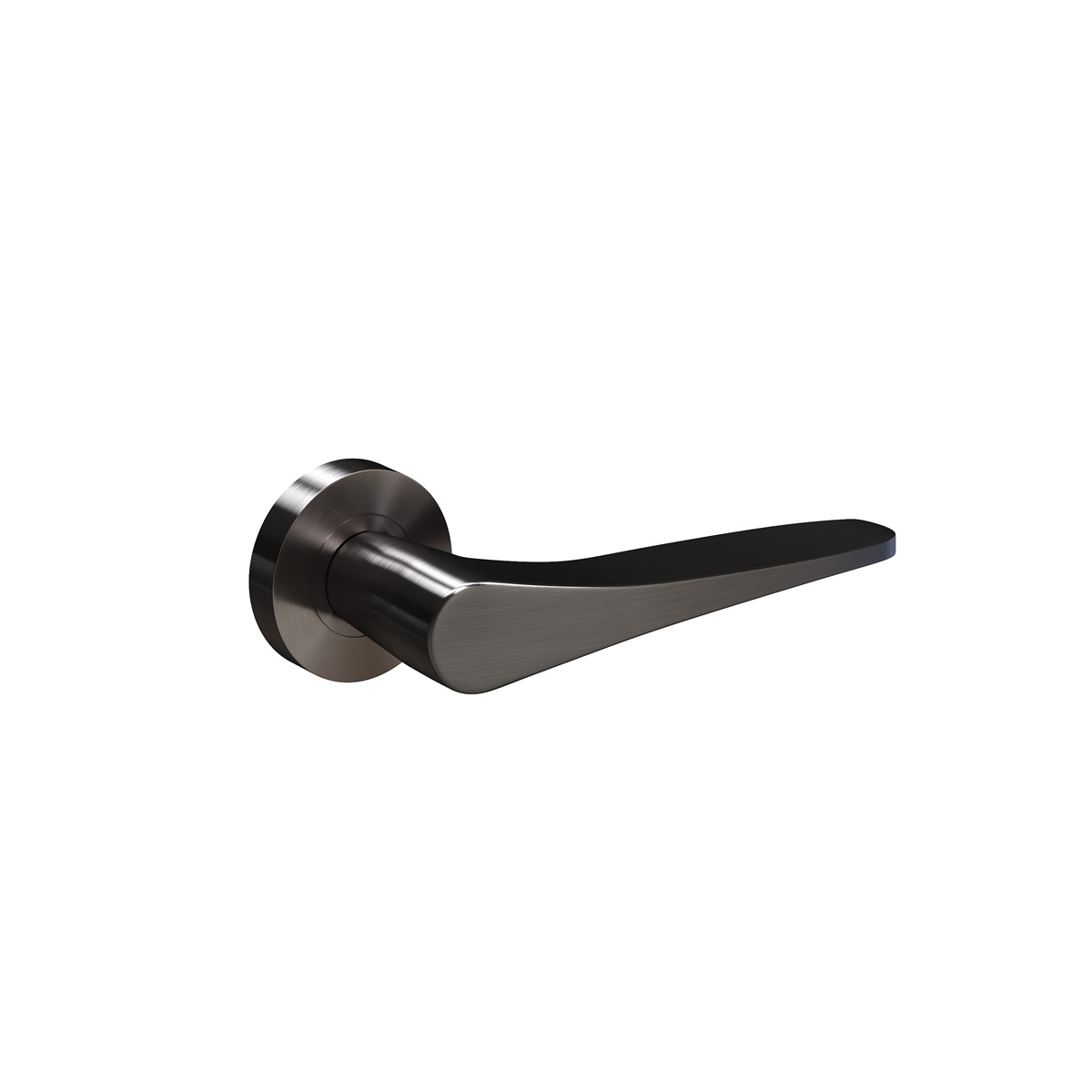

  • Oil Rubbed Bronze

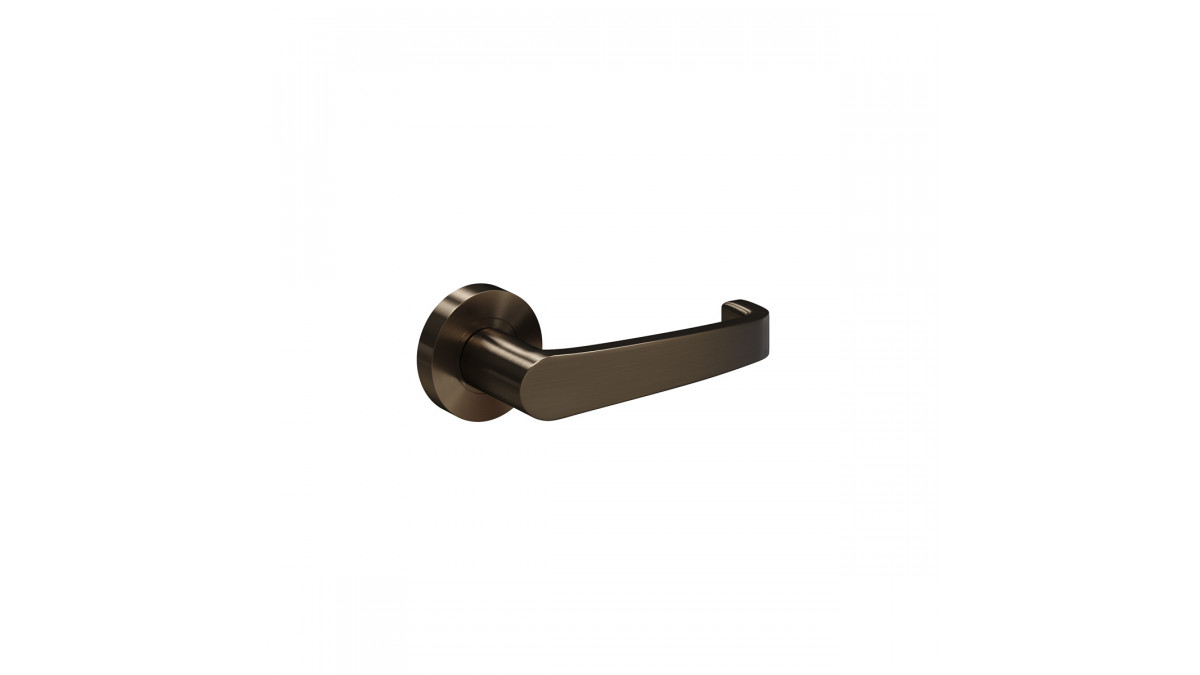

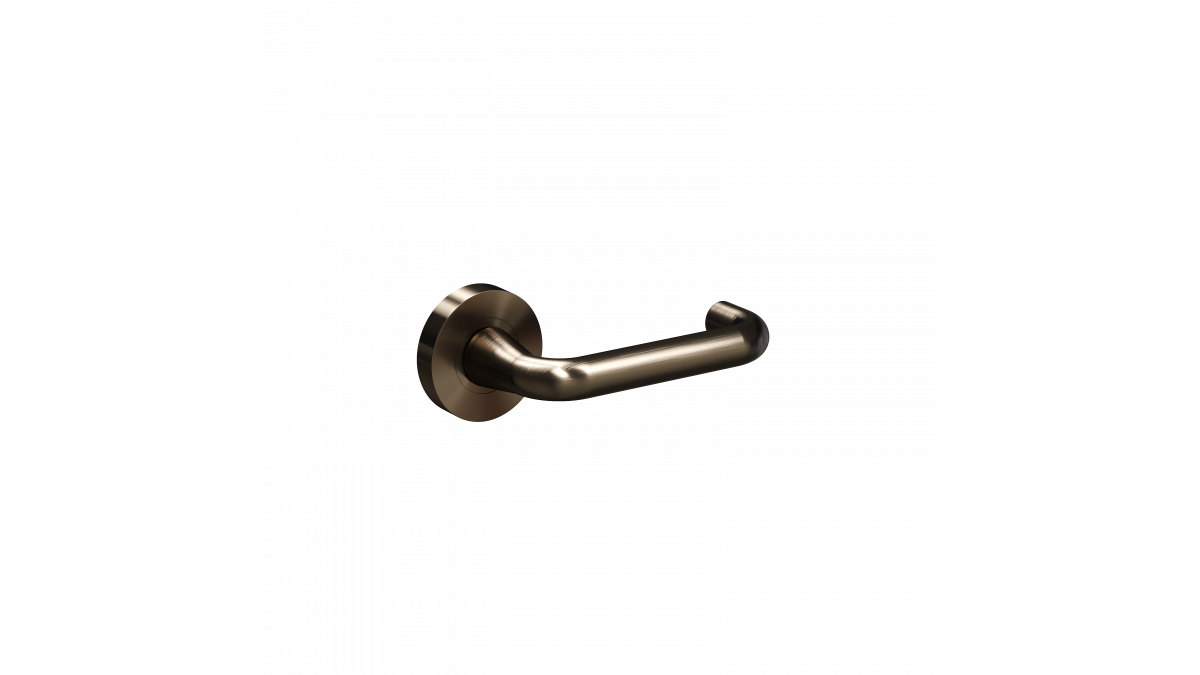

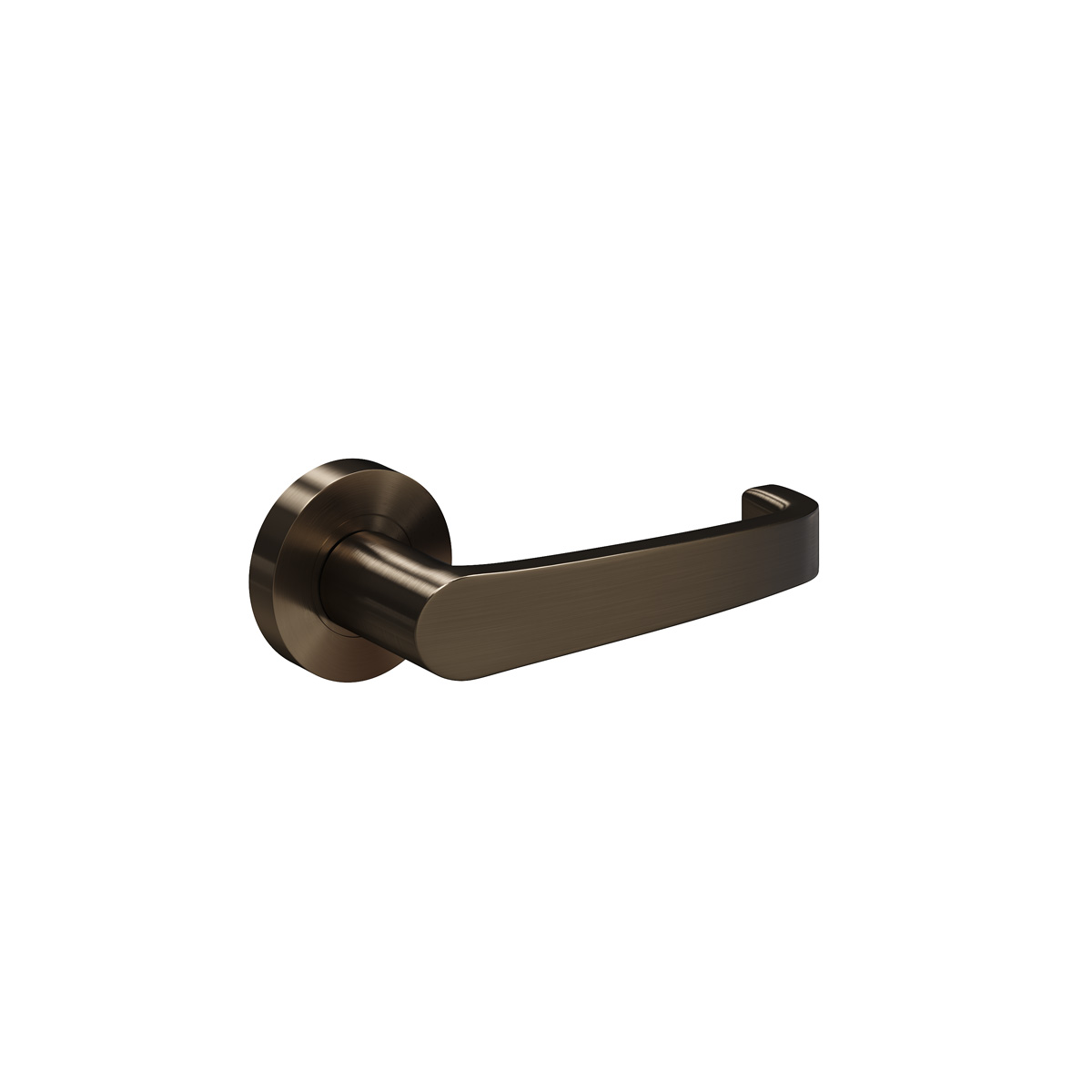

  • Antique Bronze

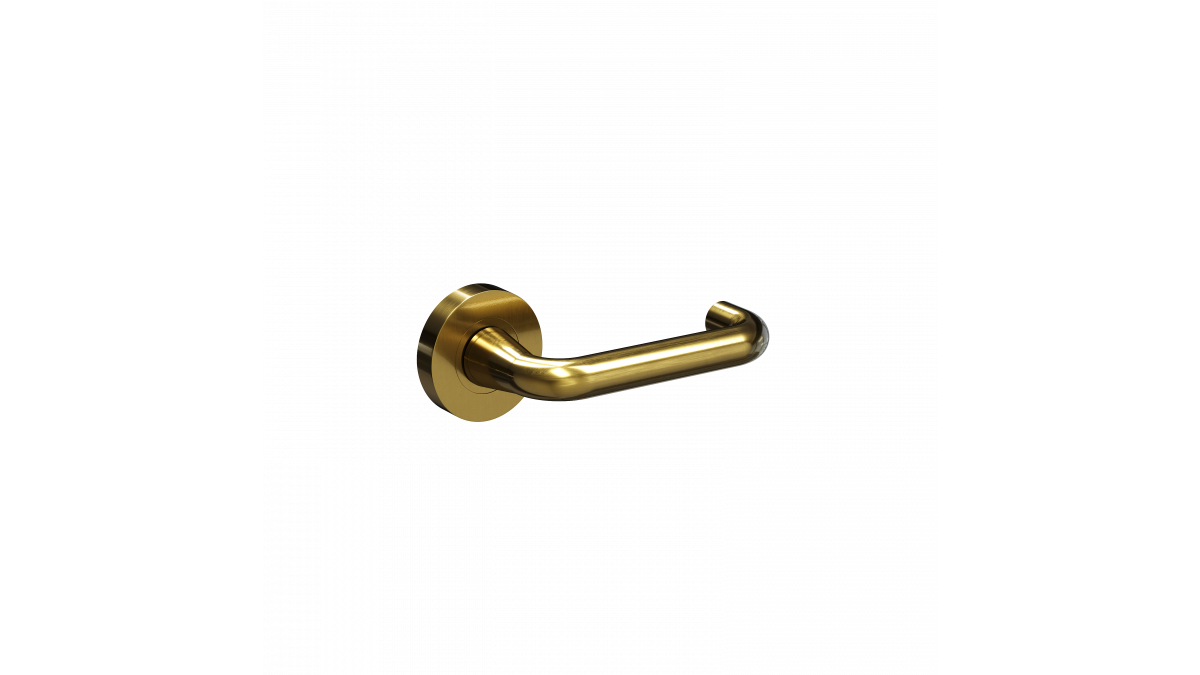

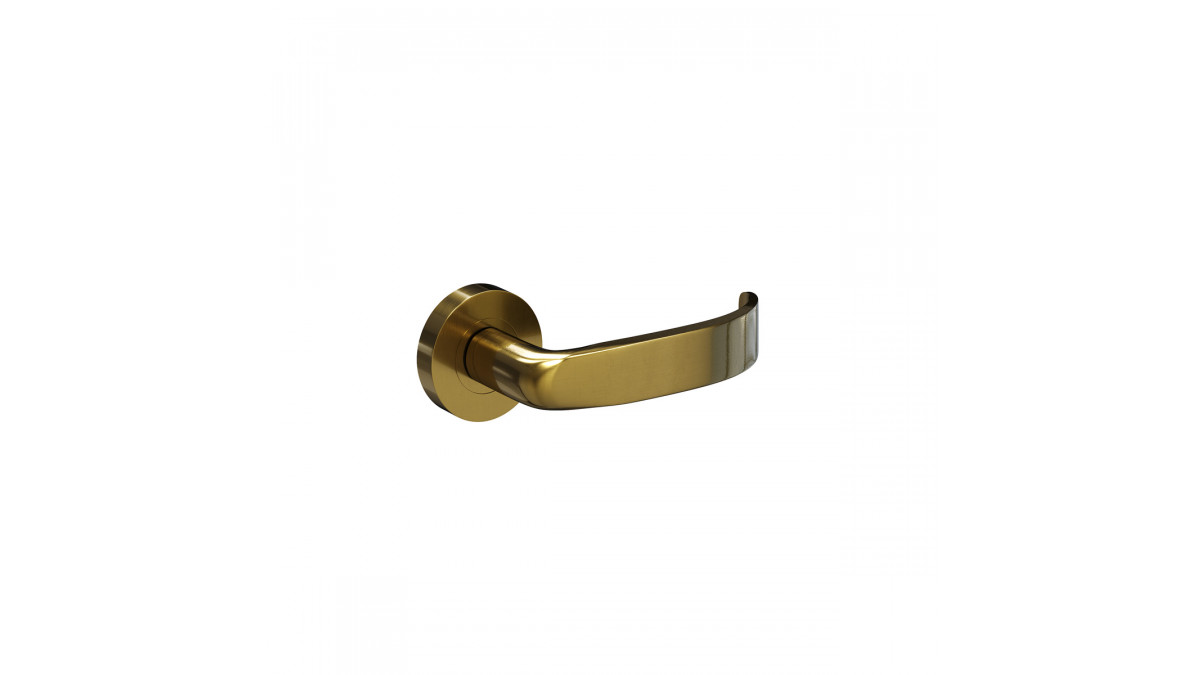

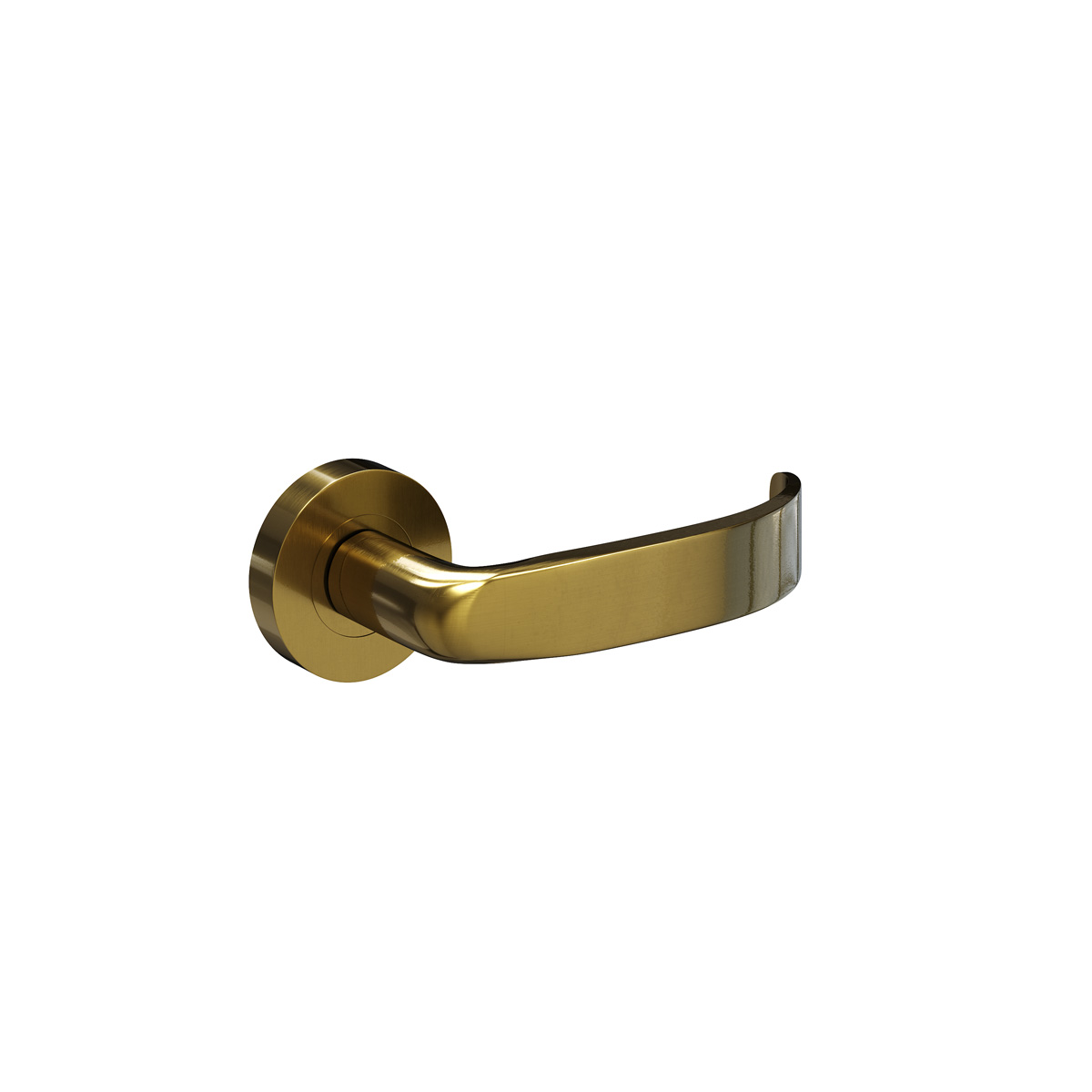

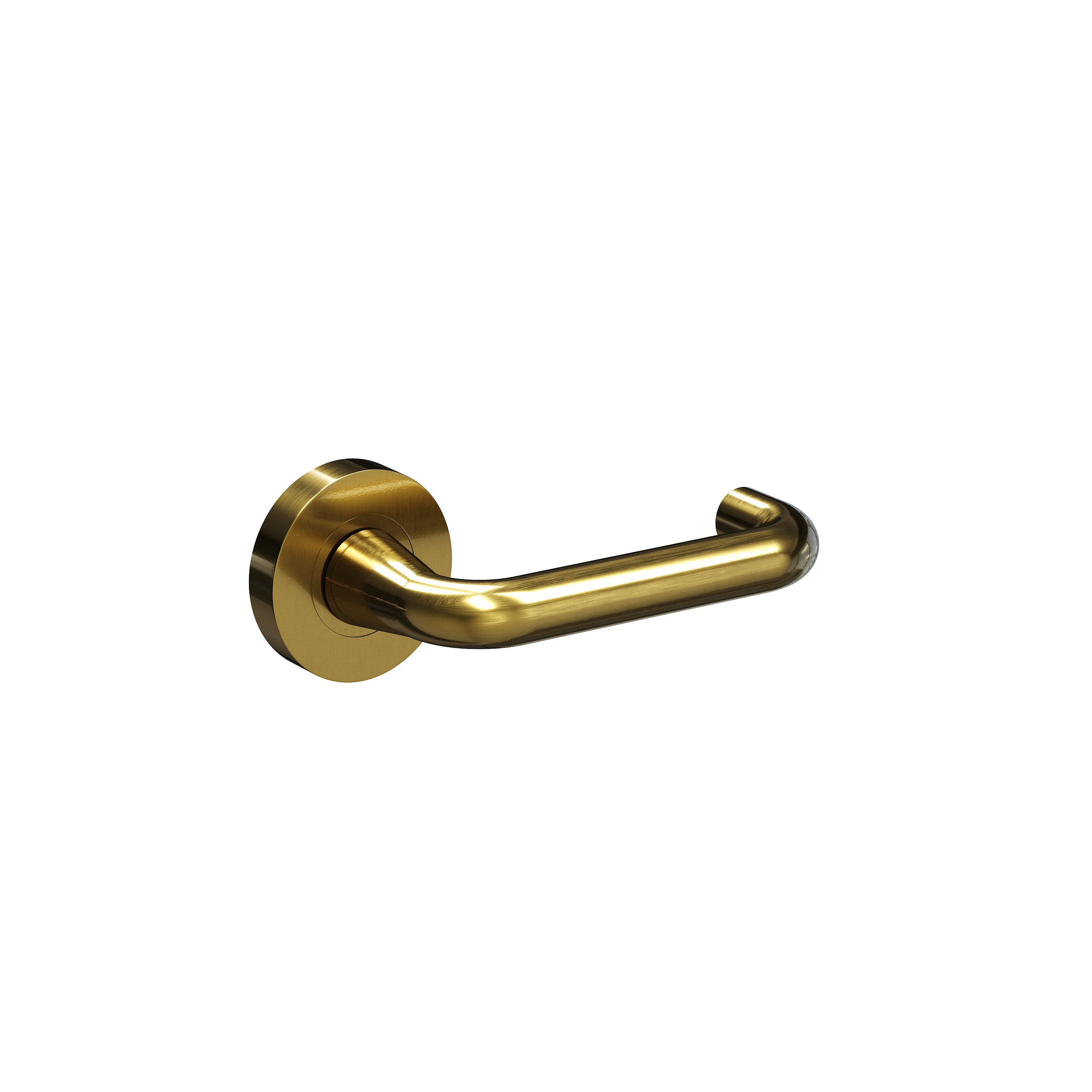

  • Satin Brass

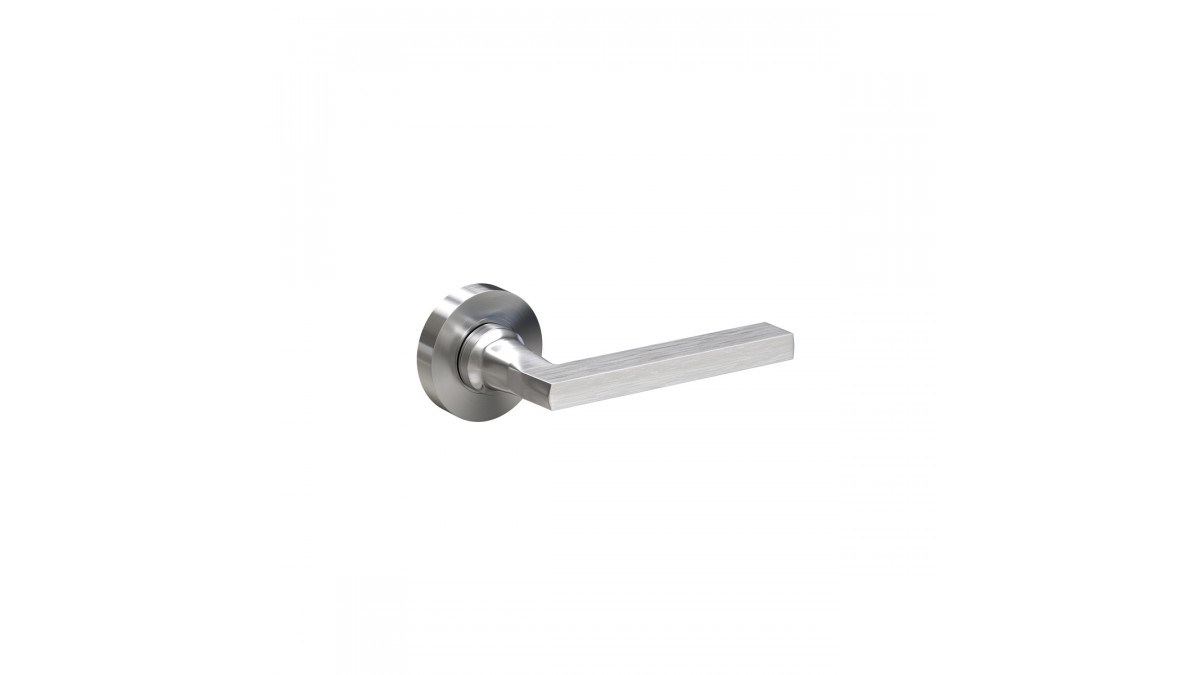

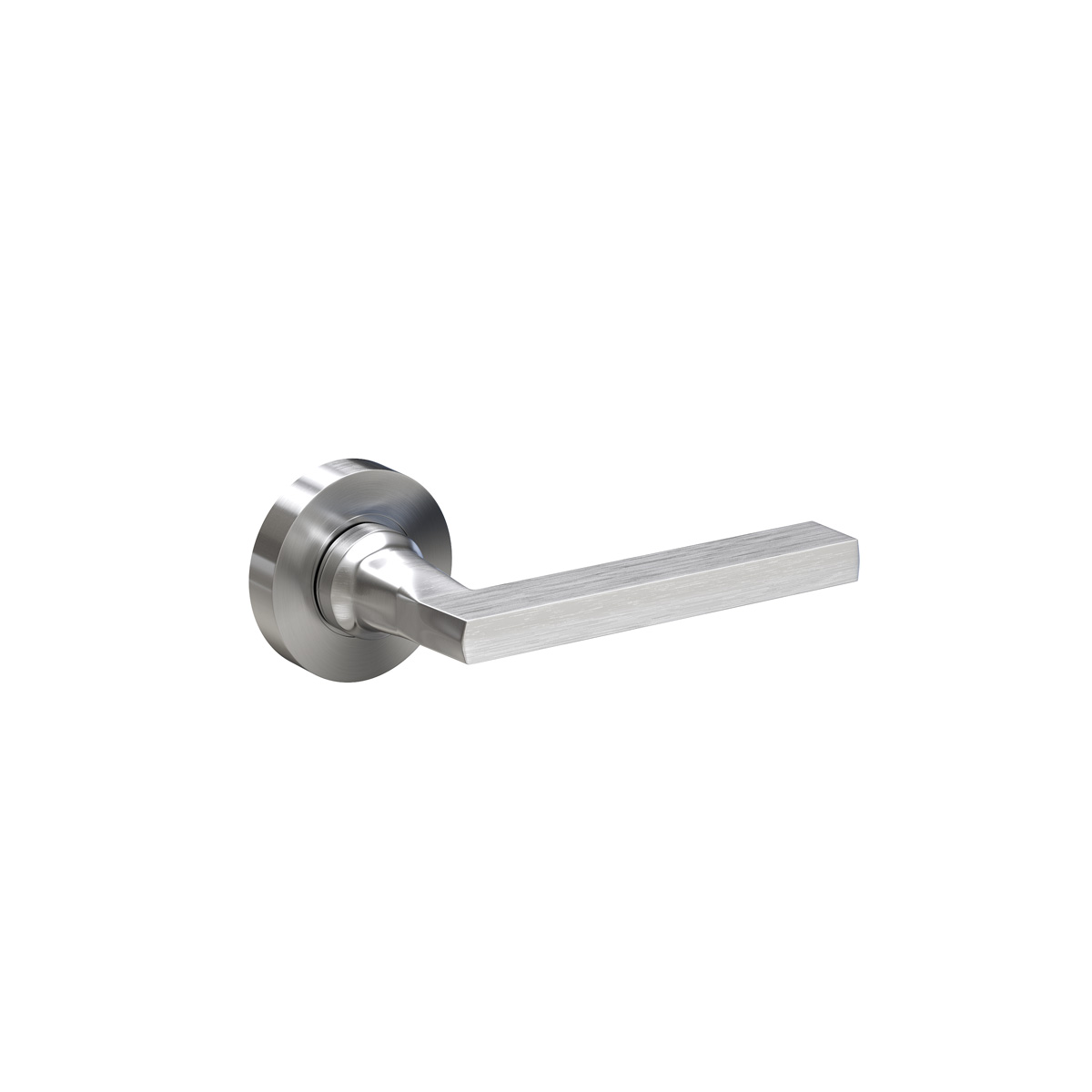

  • Satin Chrome

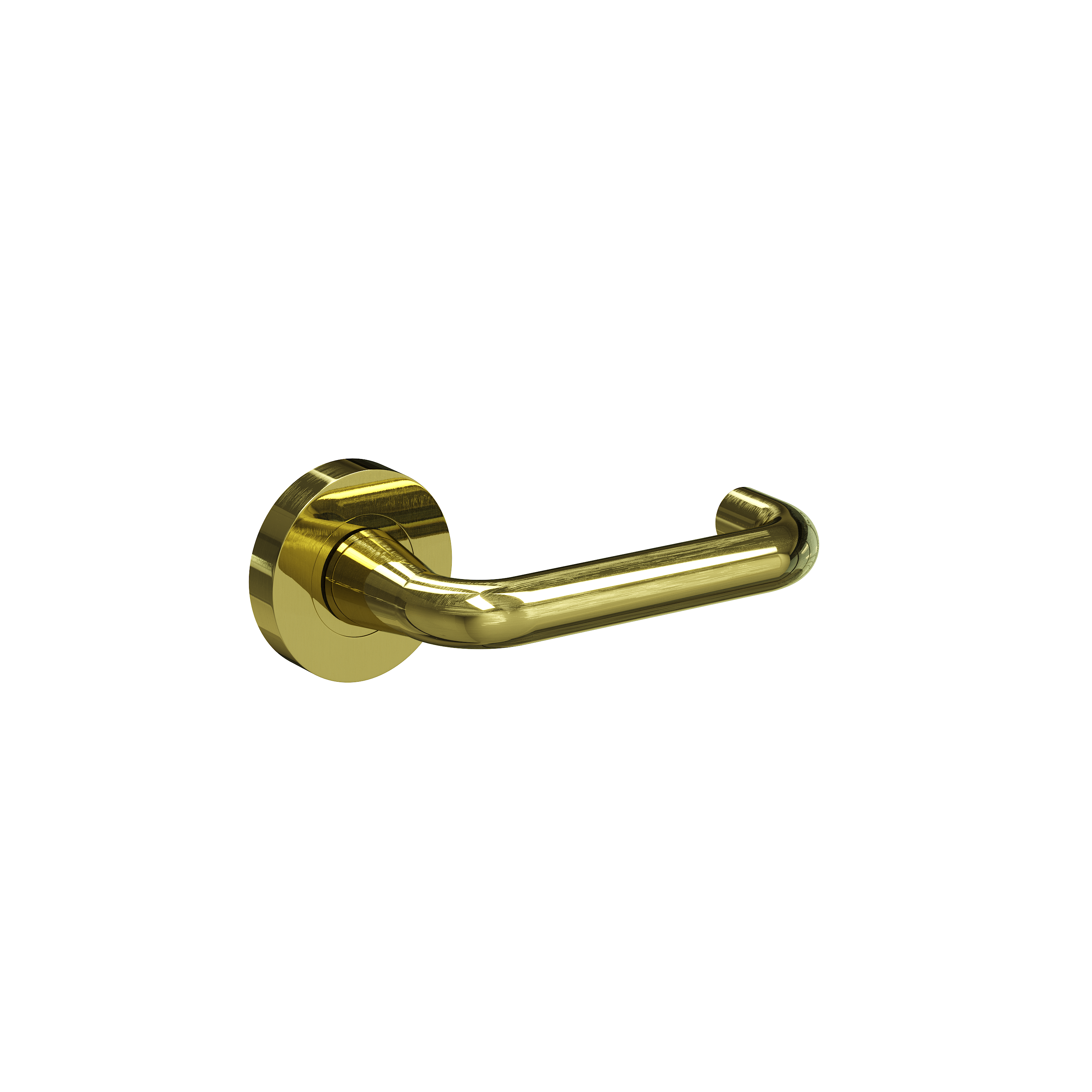

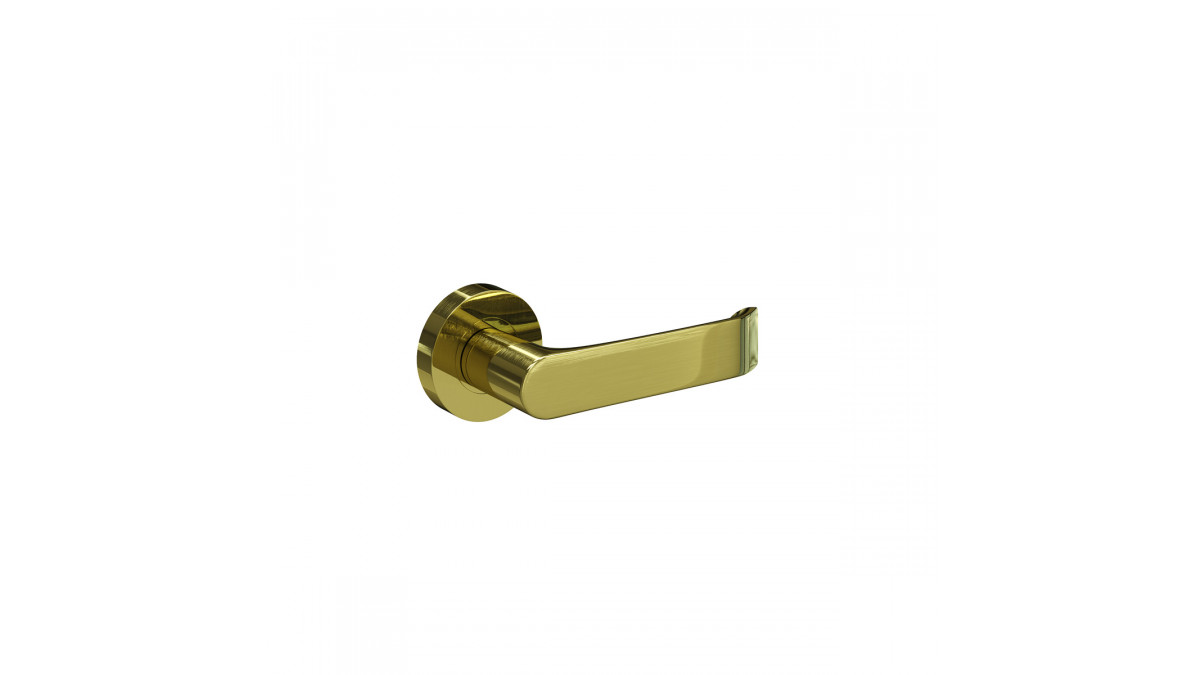

  • Polished Brass

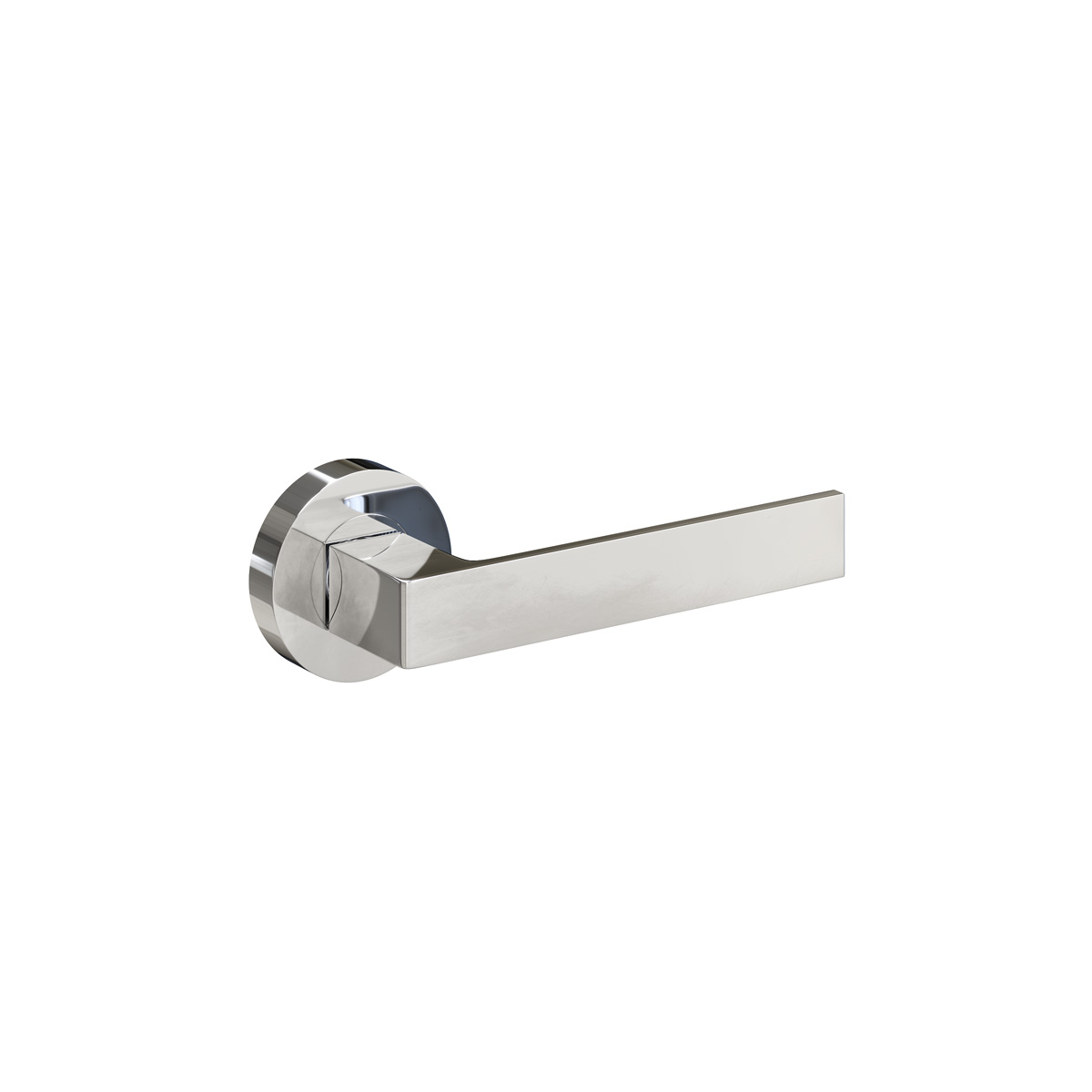

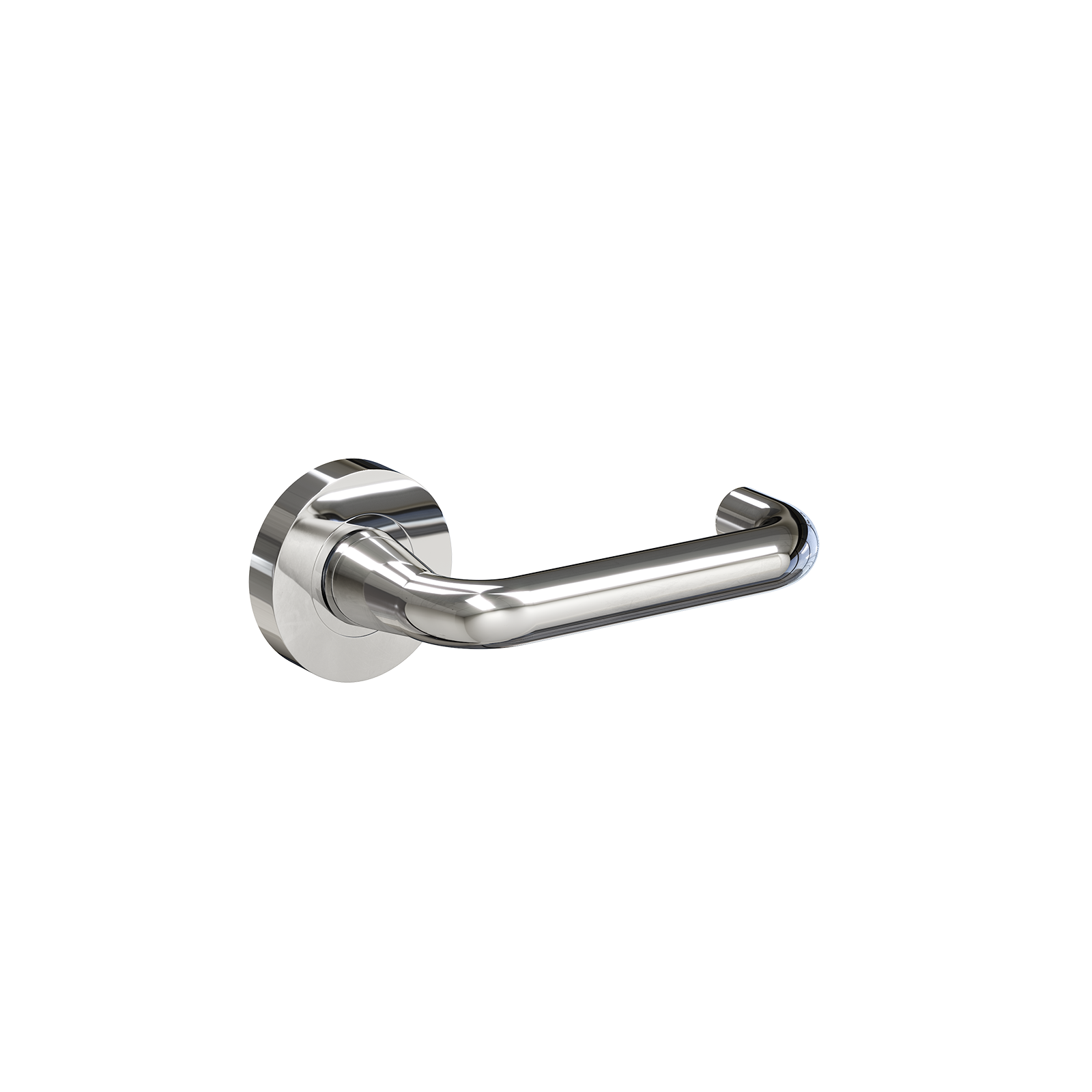

  • Chrome

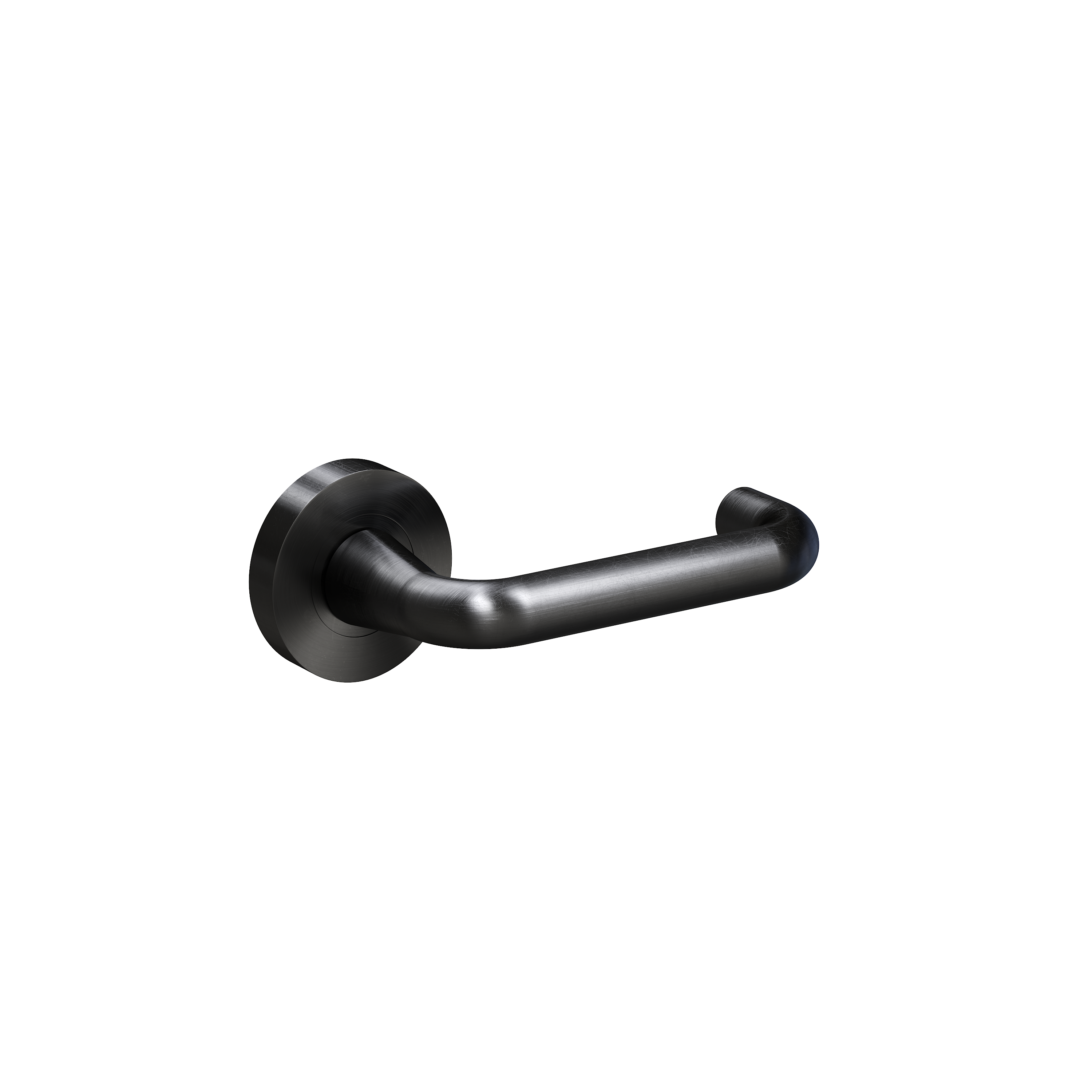

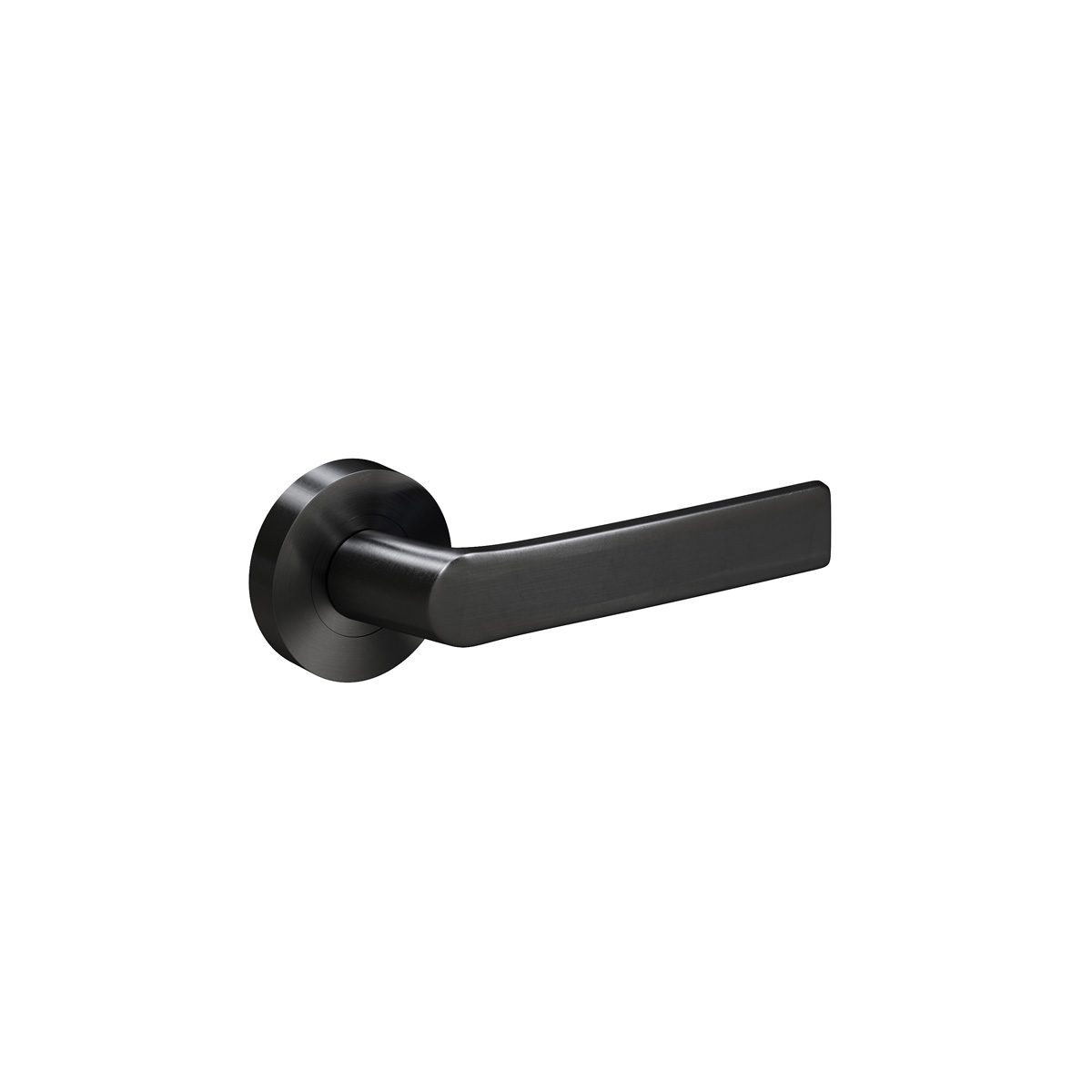

  • Satin Black Chrome
Key Features
  • Constructed of quality components, with forged brass levers and die cast roses
  • Heavy duty spring provides a smooth, fast return action of the lever and minimises droop extending the life of the furniture
  • Furniture re-handed by simple relocation of stop block
  • Levers non-handed, except for Alessandro and Chagall when used as either a half set or half set fixed
  • The 30 year mechanical warranty provides specifiers and users with assured quality and performance
  • Designed for use with Legge 990MF Mortice Locks and Latches or alike products
  • Suitable for use on fire door assemblies when used with fire rated locks and latches
Scope of Use
  • The 6000 Series is ideally suited for apartments, offices, hotels/motels and high quality residential homes
  • The 6000 series can also be used with tubular latches
  • Door type: Timber or metal
  • Door thickness: Latch furniture 32mm to 50mm, passage set 32mm to 50mm, privacy set 32mm to 42mm
  • Backset: 60mm
  • Spindle size: 7.6mm
  • Compatible locks/latches: Schlage ME Series mortice locks, Legge 990MF Series mortice locks
  • Fixing bolt-through concealed fixing. Screw length 75mm
Other Performance Attributes
  • 10 year warranty
