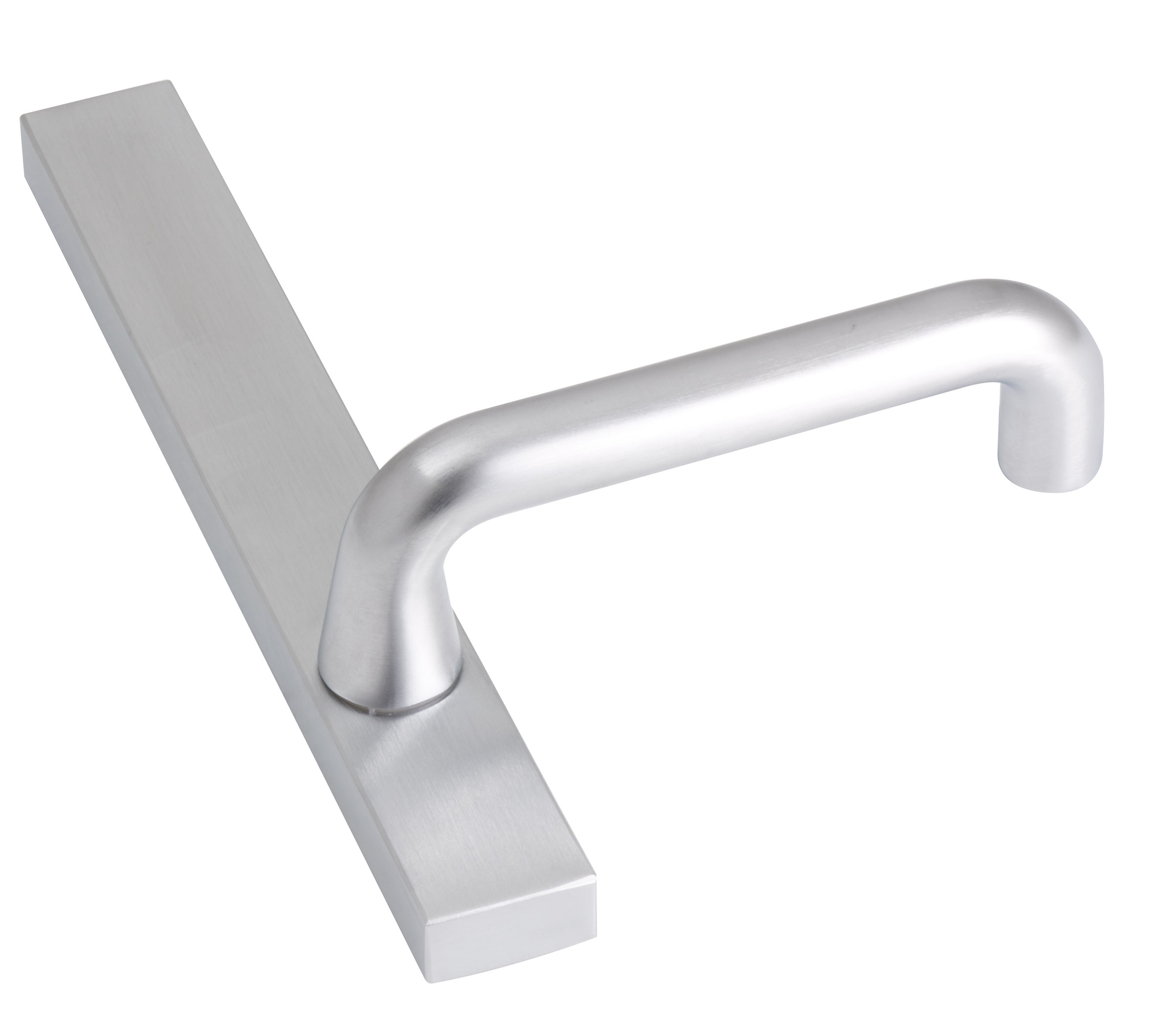

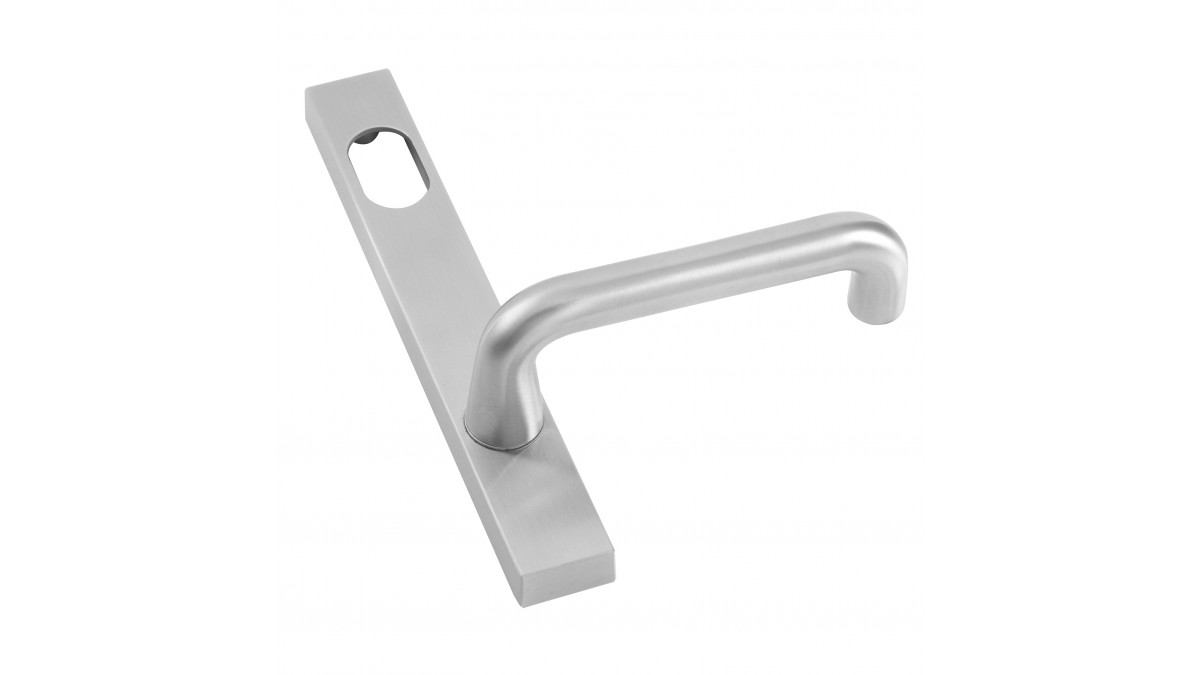

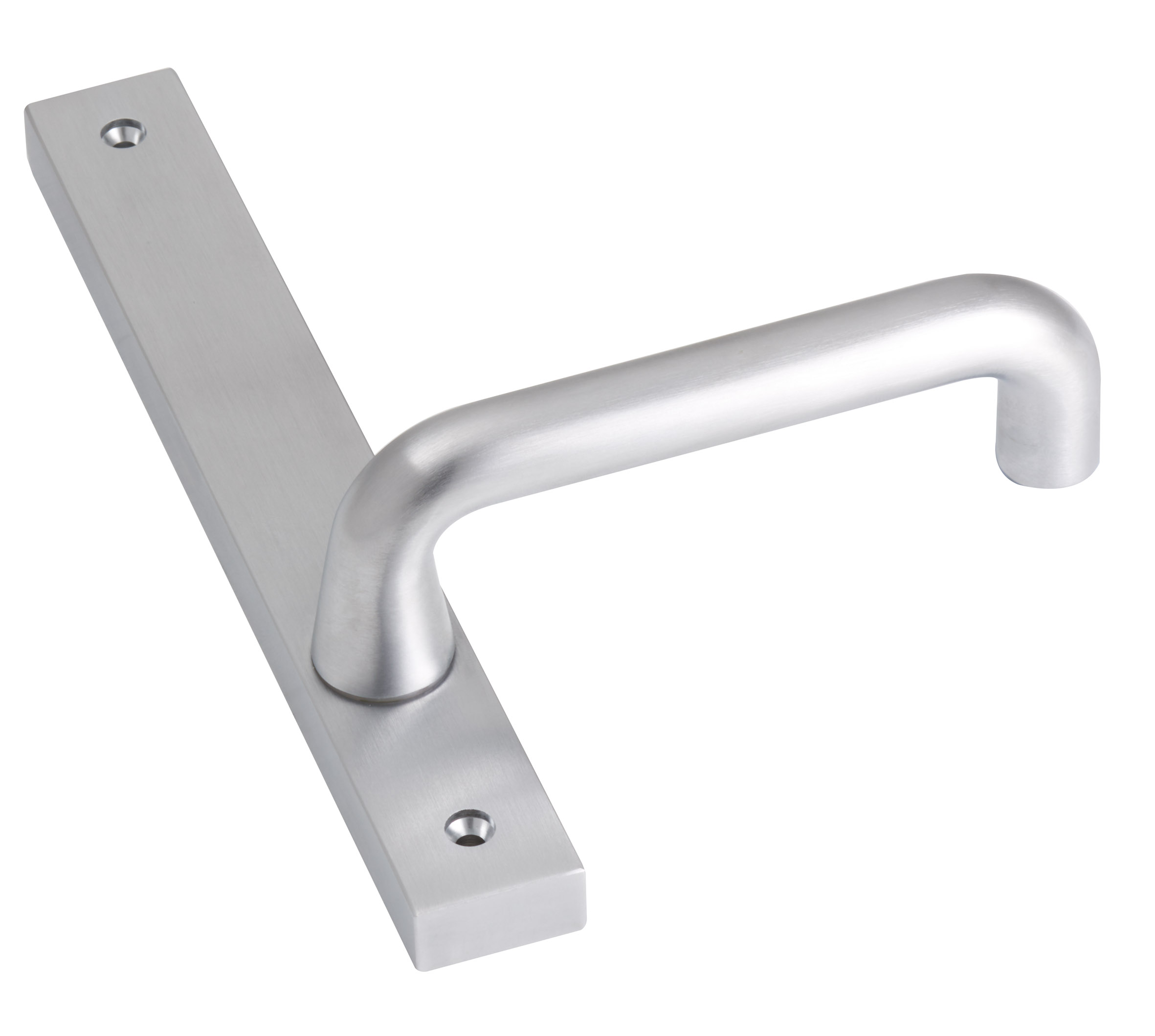

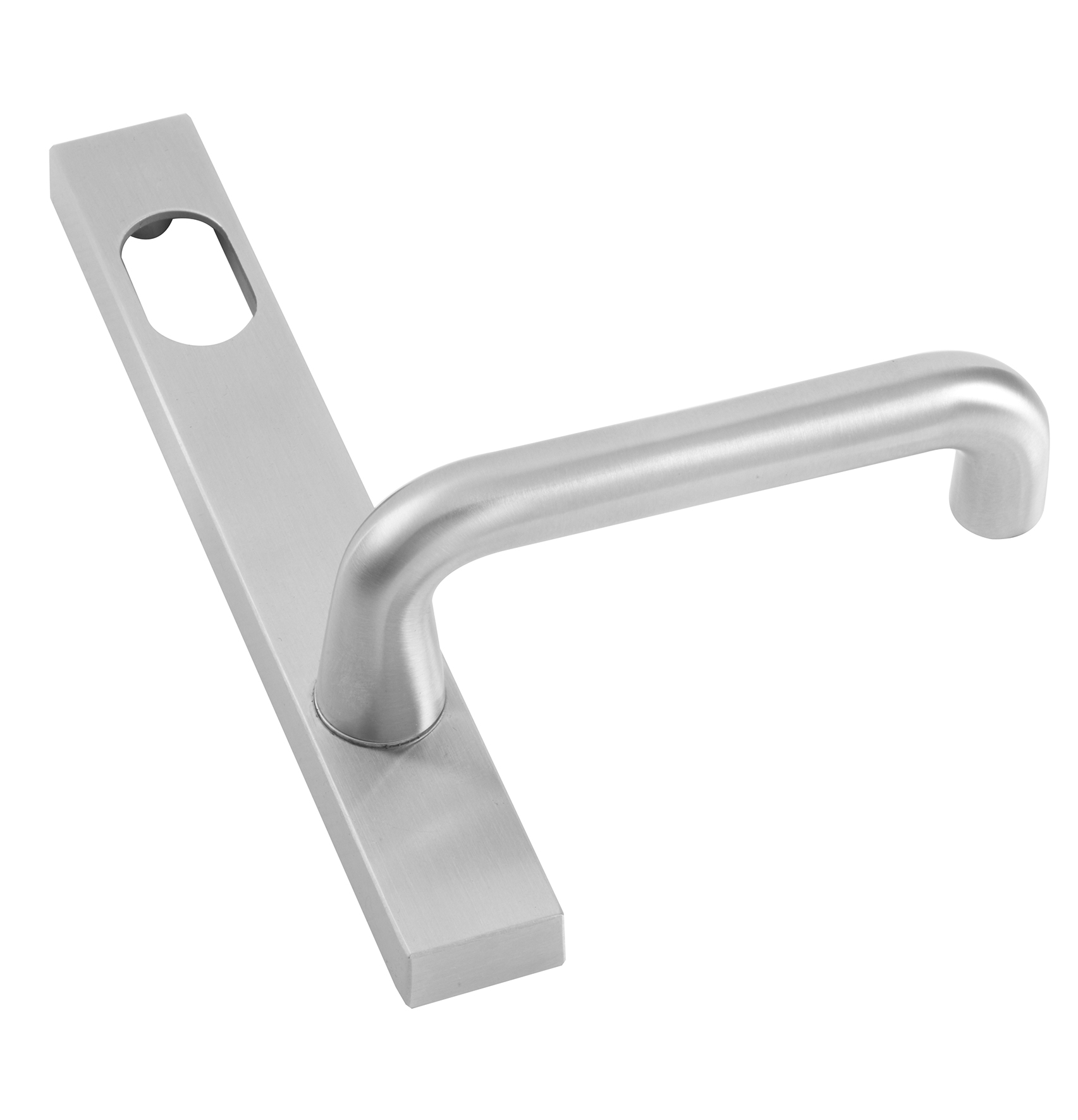

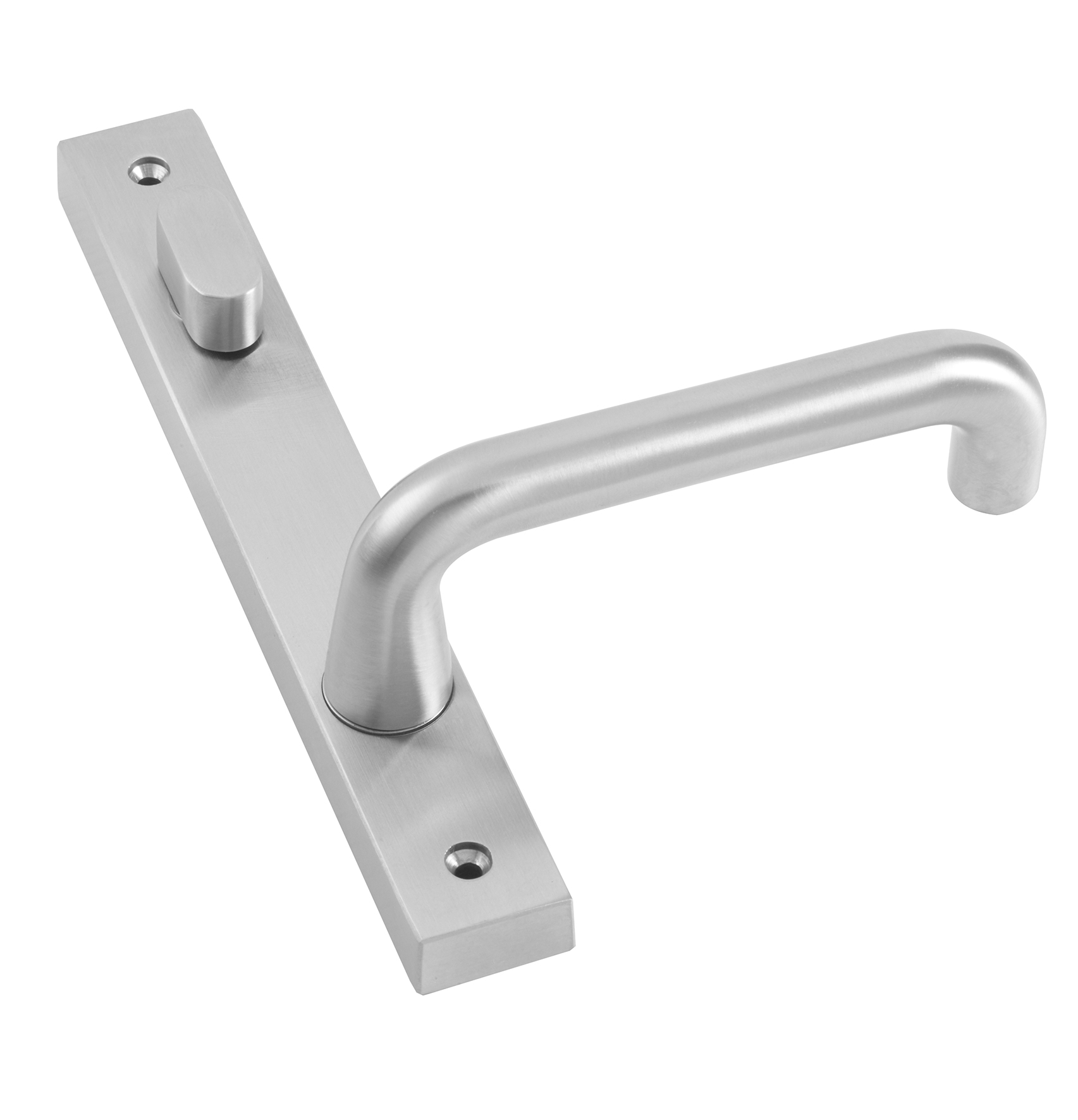

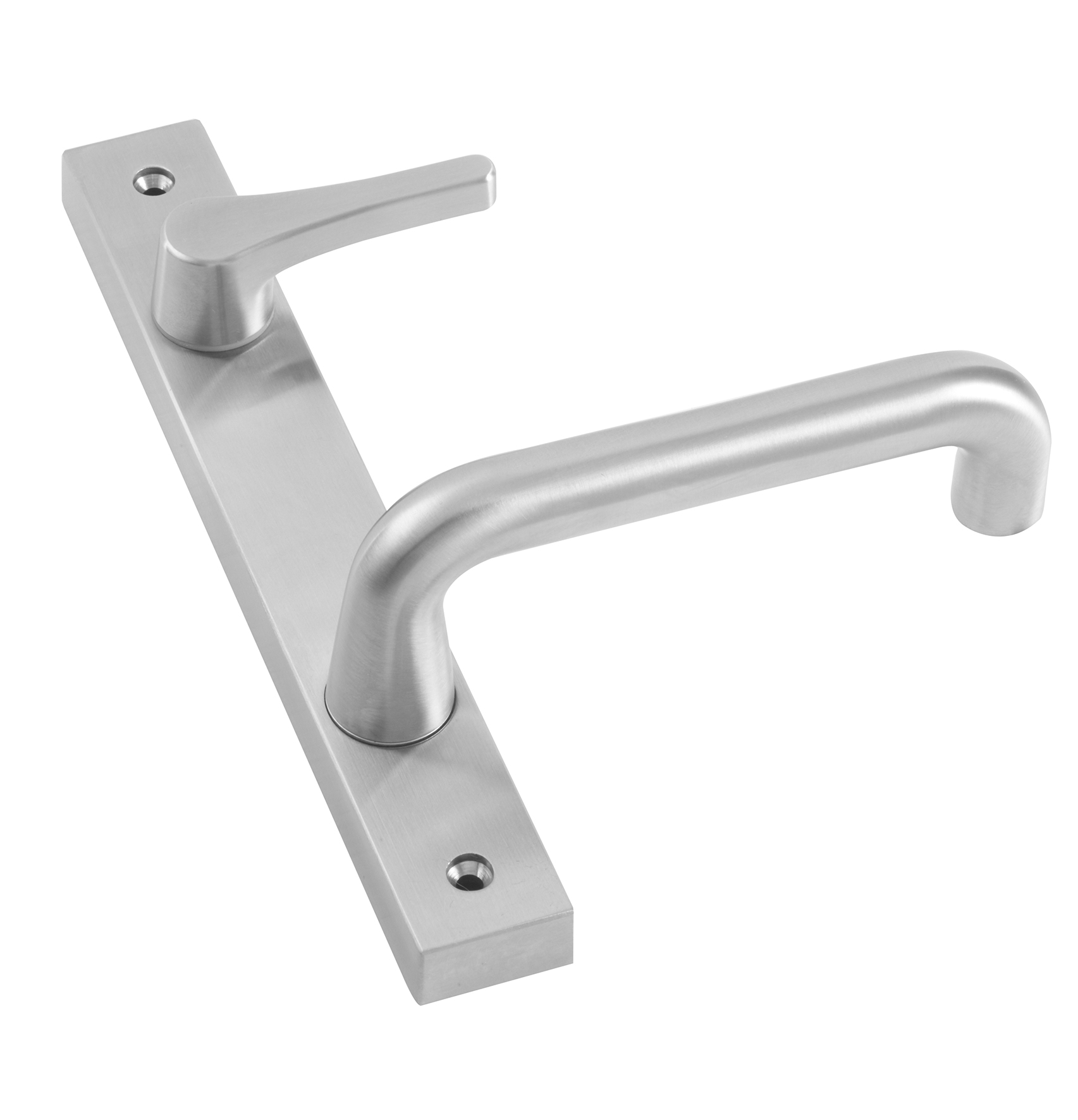

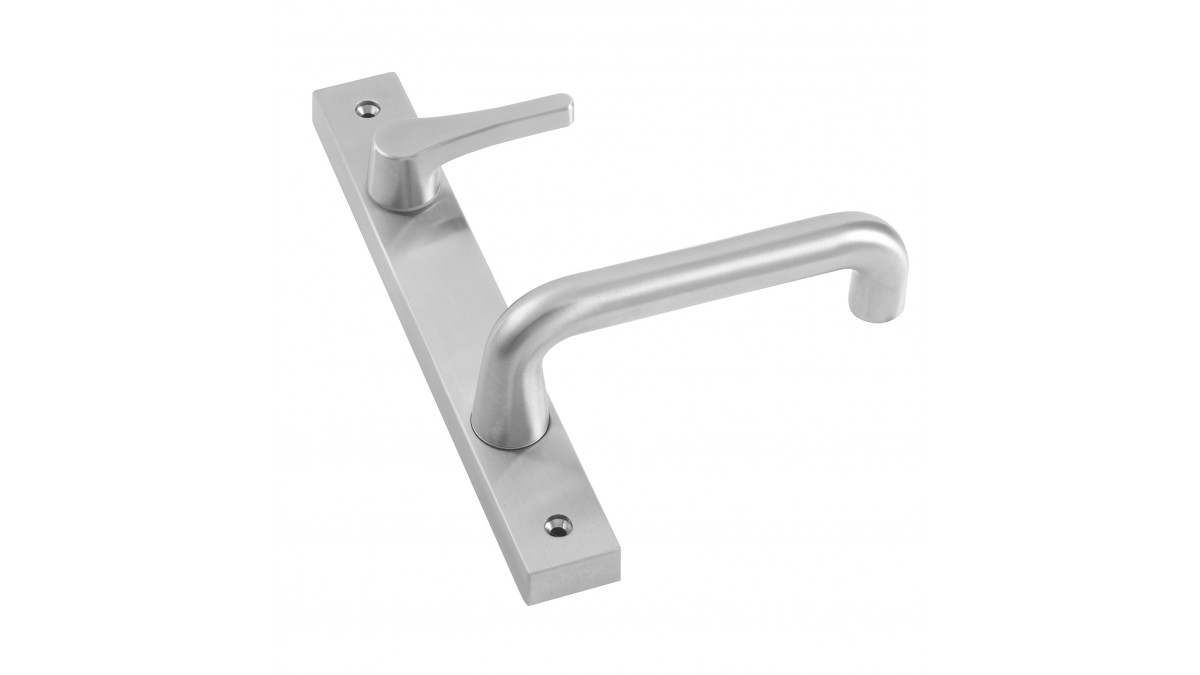

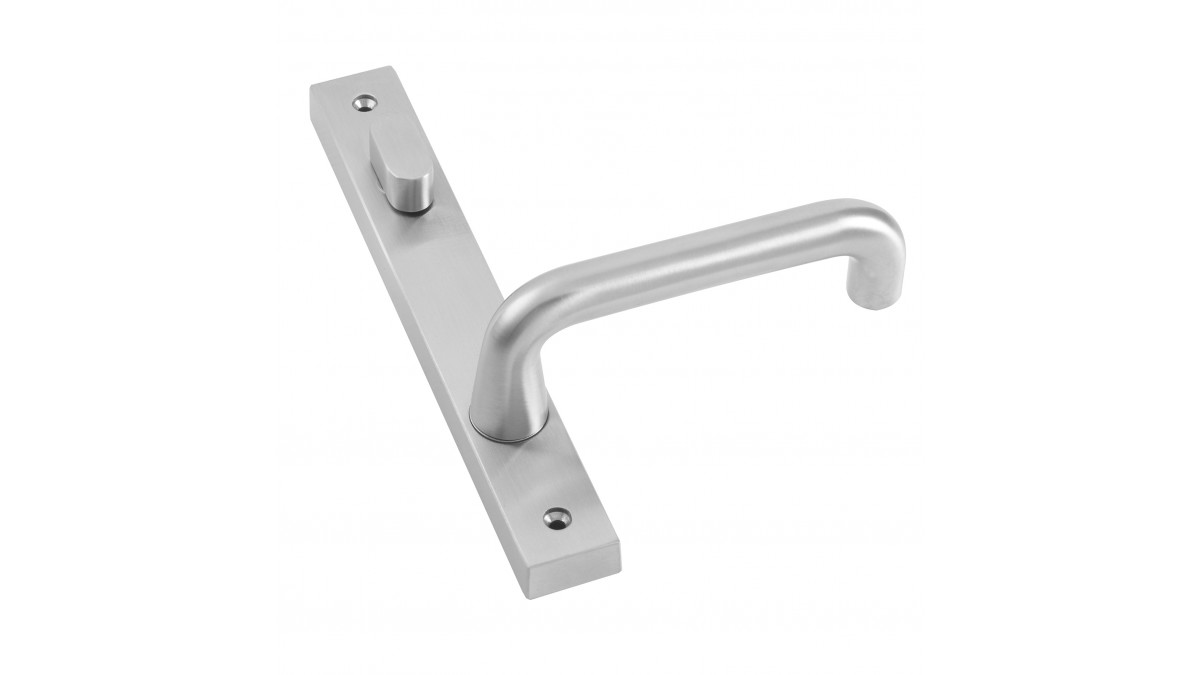

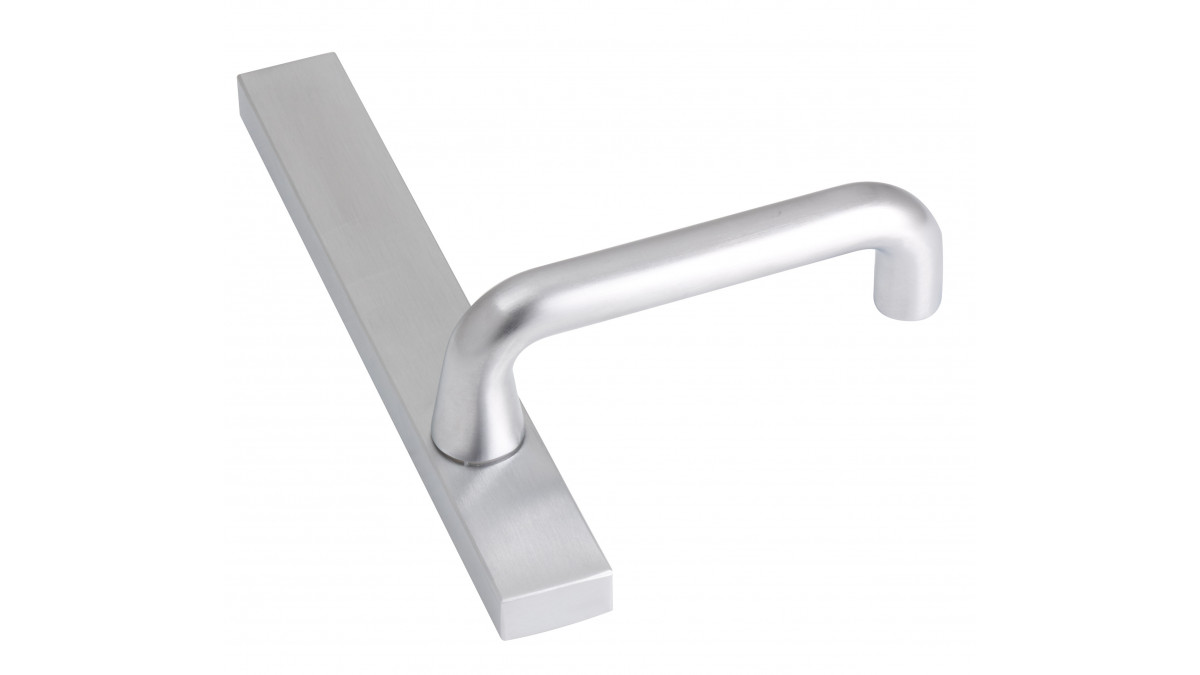

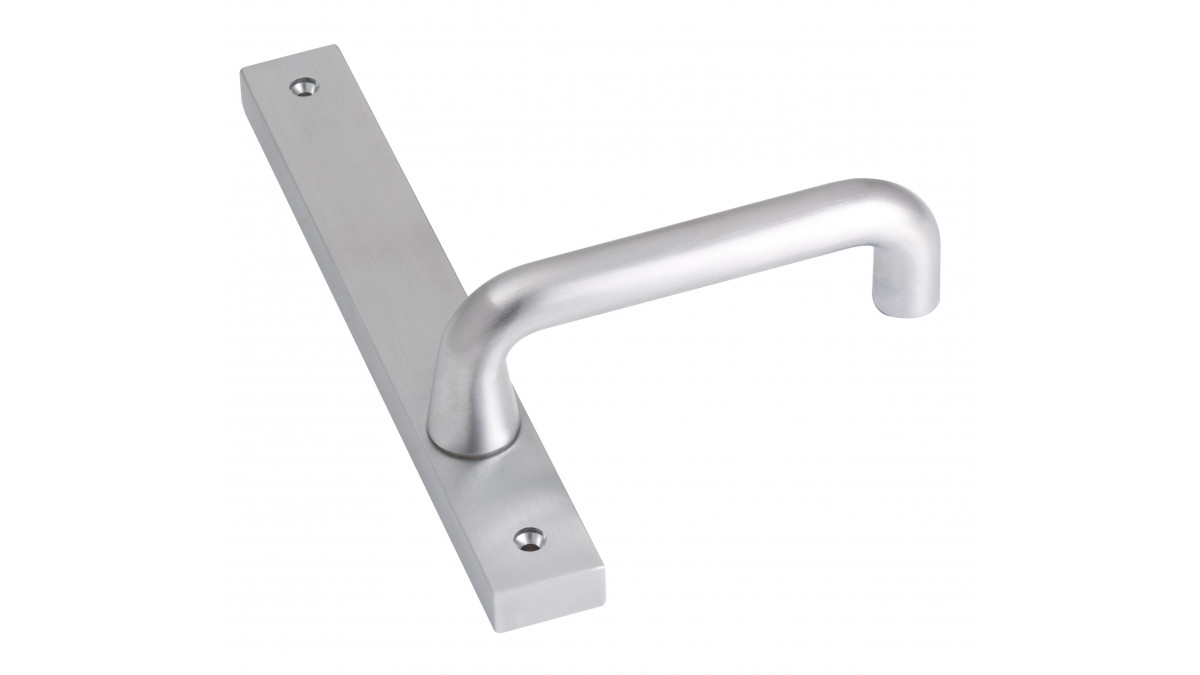

Legge 5300 Marine Series
Description

The Legge 5300 Series narrow stile furniture has been designed for heavy-duty commercial applications. This Series is constructed from 316 marine grade stainless steel, making it suitable for both external and internal applications.

It also suits high traffic applications, such as retail educational, government buildings, healthcare, and commercial premises. The narrow plate is ideal for use on narrow aluminium or timber stiles. 316 marine grade stainless steel properties include increased wear resistance, corrosion resistance, and suitability for coastal applications.

Key Features
  • Constructed from marine-grade 316 stainless steel
  • For use with narrow stile joinery
  • Suitable for external or internal applications
Scope of Use
  • The Legge 5300 Marine Series of narrow stile furniture is designed for commercial applications, including exterior and interior doors for retail/shopfront, educational, governmental, medical and public buildings
  • Suitable for both external and internal applications
  • Designed for use with Legge 995 Narrow Stile Mortice Locks, the 5300 Series can also be supplied to suit Legge 990MF Mortice Locks
  • Door type: Timber or metal
  • Door thickness: 32mm to 50mm (51mm to 75mm with optional extended screws)
  • Fixing centres: 159mm
  • Plate height: 185mm
  • Plate width: 25mm
  • Plate thickness: 12mm
  • Lever to cylinder centres: 90mm for 995MF mortice lock
  • Spindle size: 7.6mm
  • Compatible locks/latches: Legge 995MF
  • Fixing: Back to back., external plates concealed fixing. Screws supplied with exterior plates only. 75mm M4 screw
Documents
Data Sheet
Installation and Operation
Commercial Warranty 2023
Caring for Door Hardware
