Briton 2700 Series Cam Action Closer
Allegion
All products

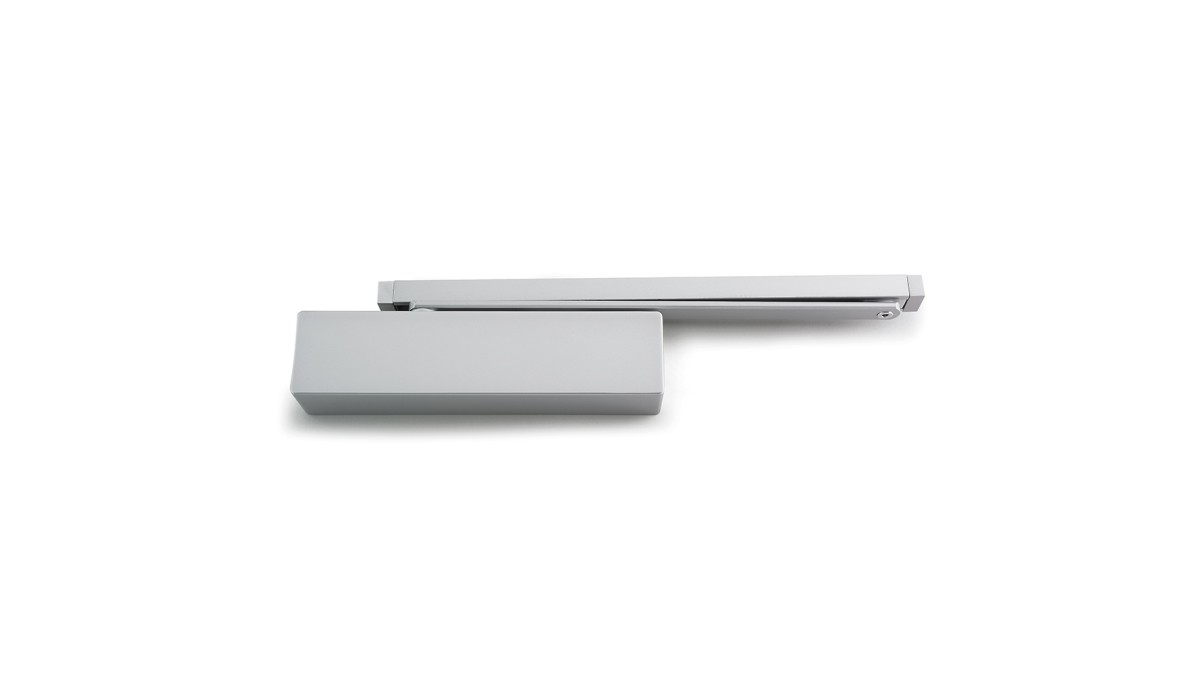

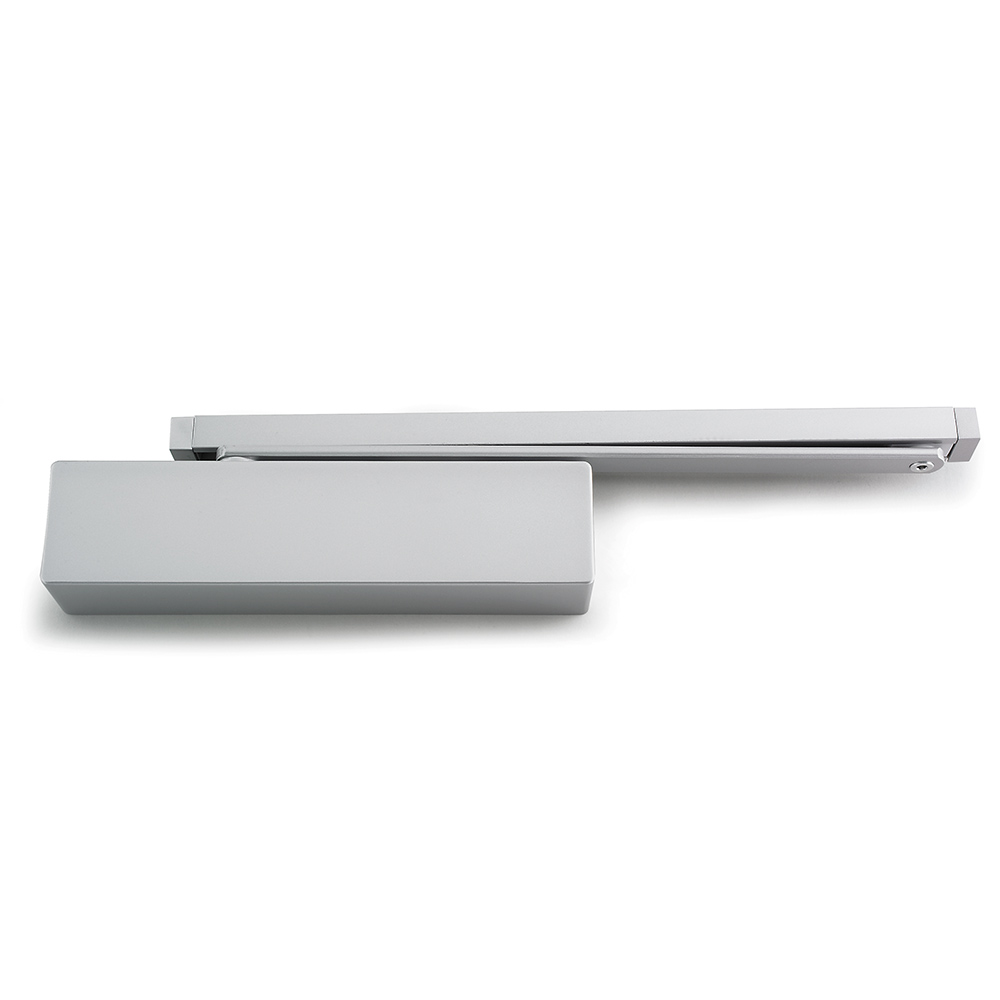

2721BD.T.A.SE

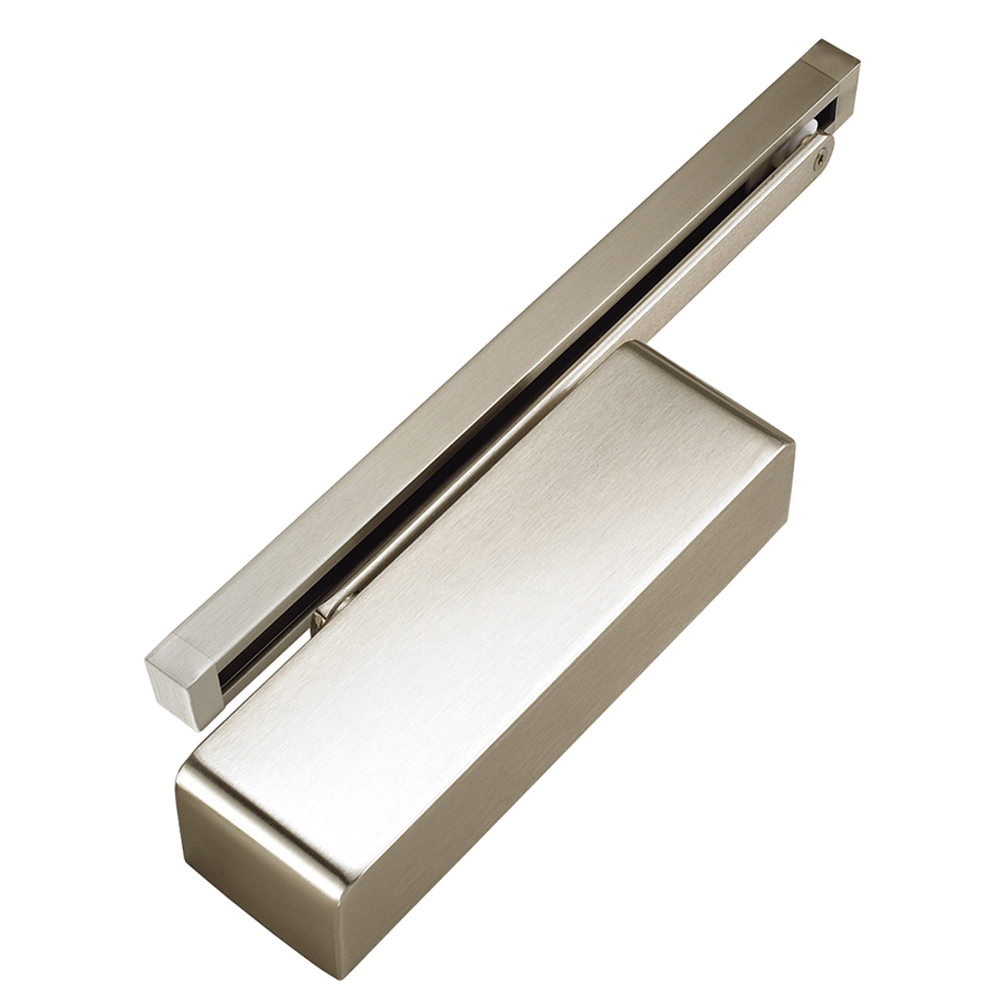

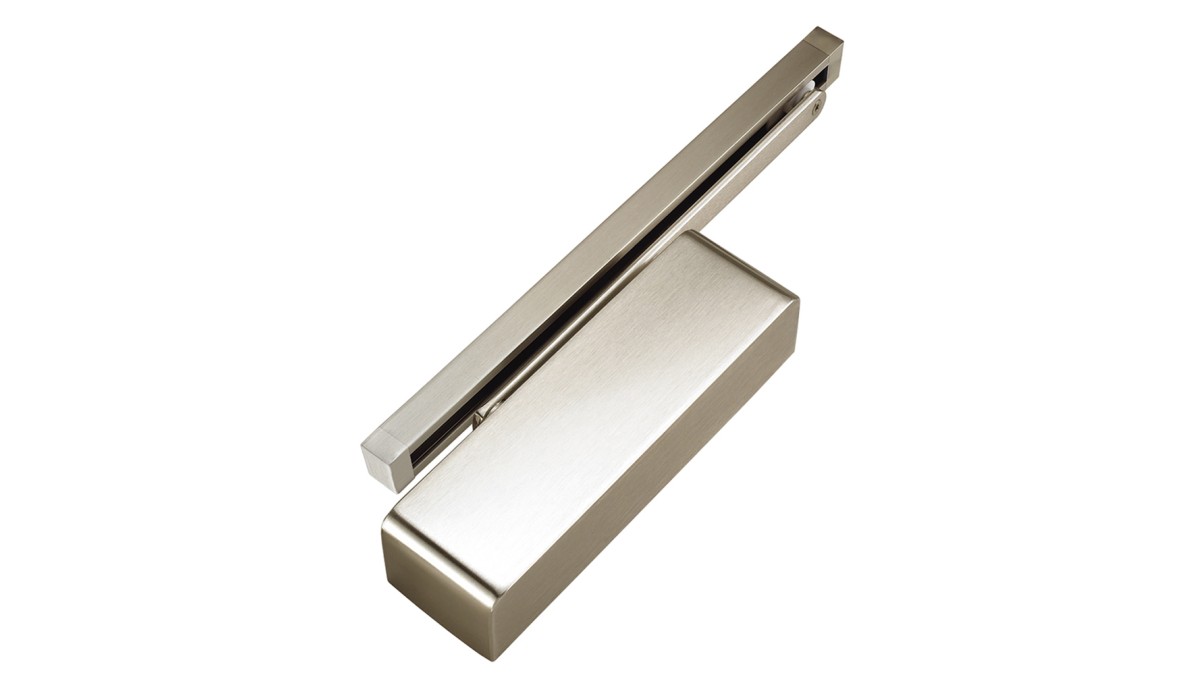

2720BD.T.S.SSS

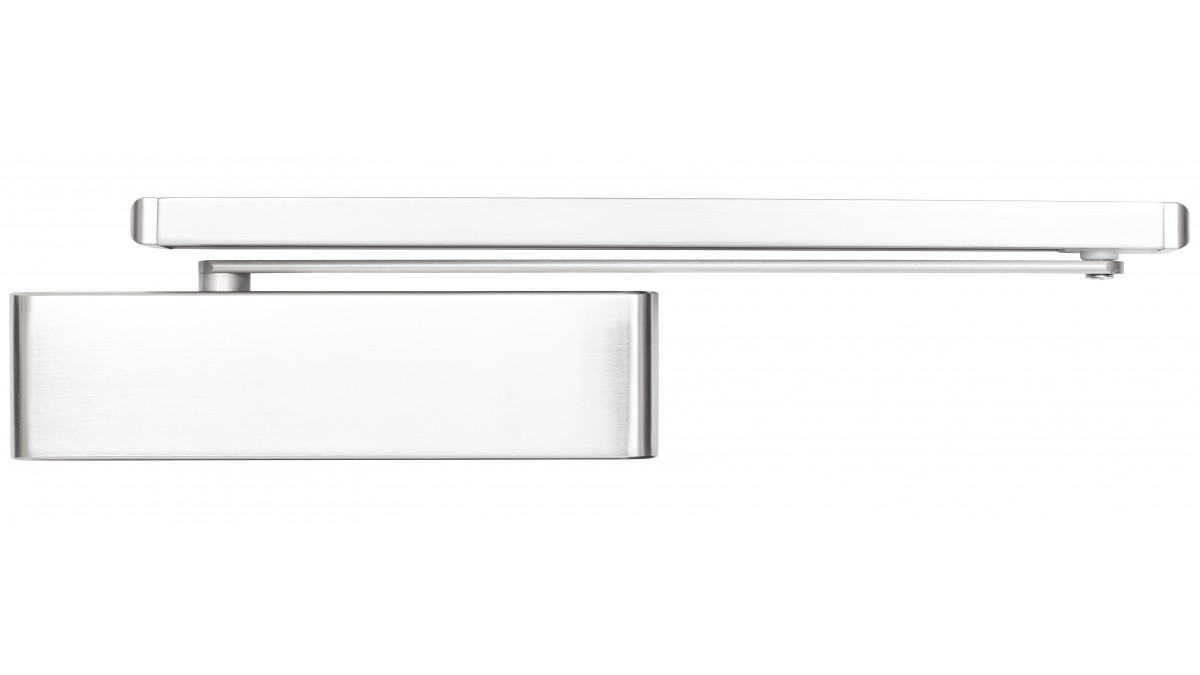

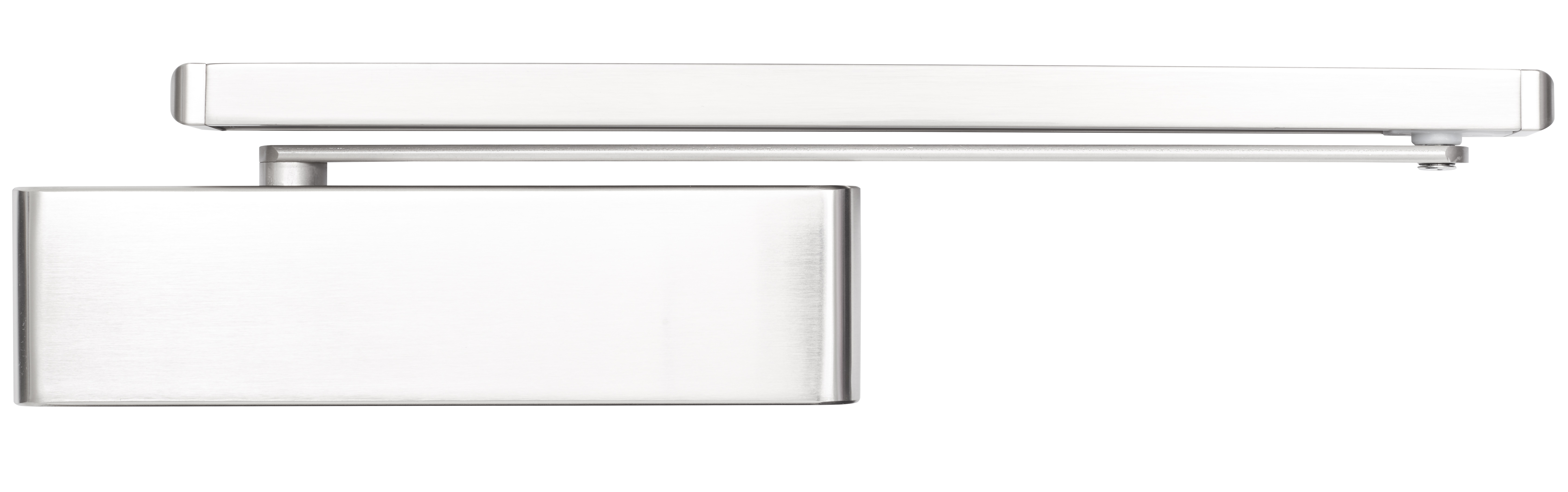

2700 SCP v1
Description

The Briton 2700 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.

The reduced force required to open fire doors makes entering and exiting buildings much easier for all users – including the elderly, those with physical disabilities and small children.

In contrast to a conventional rack and pinion door closer, the linear cam action principle is extremely efficient. The initial opening force decreases as the door opens, and the closer retains power and control to close the door afterwards.

The Briton 2700 Series offers easy opening and reliable closing, while meeting accessibility standards.

Key Features
  • Extruded aluminium body with cam action technology
  • High-quality hydraulic fluid with built-in temperature compensation (will operate effectively between -15 to +40 degrees Celsius)
  • Adjustable backcheck and delayed action as standard
  • Adjustable closer strength 1 - 5
  • Separate closing speed and latch action adjustment
  • Optional mechanical hold-open available: 80° - 120°angle
  • Electroplated stainless steel finish
  • Optional finish in silver or matt black powdercoat finishes with slide cover
  • 10 year mechanical warranty
Categories
Door Closers
Ranges
Briton Door Control
Scope of Use

Suitable for commercial applications:

  • Handing: Non-handed
  • Models: Push and Pull Mounting
  • Mounting Strength: Adjustable strength 1 to 5
  • Arm type: Track
  • Max open angel: 180° (pull side)
  • Max door weight: 40 - 100kg
  • Max door width: 850mm - 1250mm
  • Dimension: 270mm x 68mm x 60mm
  • Adjustments: Delayed action, backcheck, closing and latching speed
  • Options: 80-120° hold open & cushion limit stay
Other Performance Attributes
  • The Briton 2700 Series is CE marked to EN1154 and fire tested to EN1634 on timber doors to achieve a 2 hour fire rating, and 1 hour for metal doors.
  • The Briton 2700 Series is tested to meet local accessibility, durability and fire standards, refer to fire door manufacturer for approval.
  • 10 year mechanical warranty
