Electric Underfloor Heating Systems: Carpet, Laminate and Wood
Description

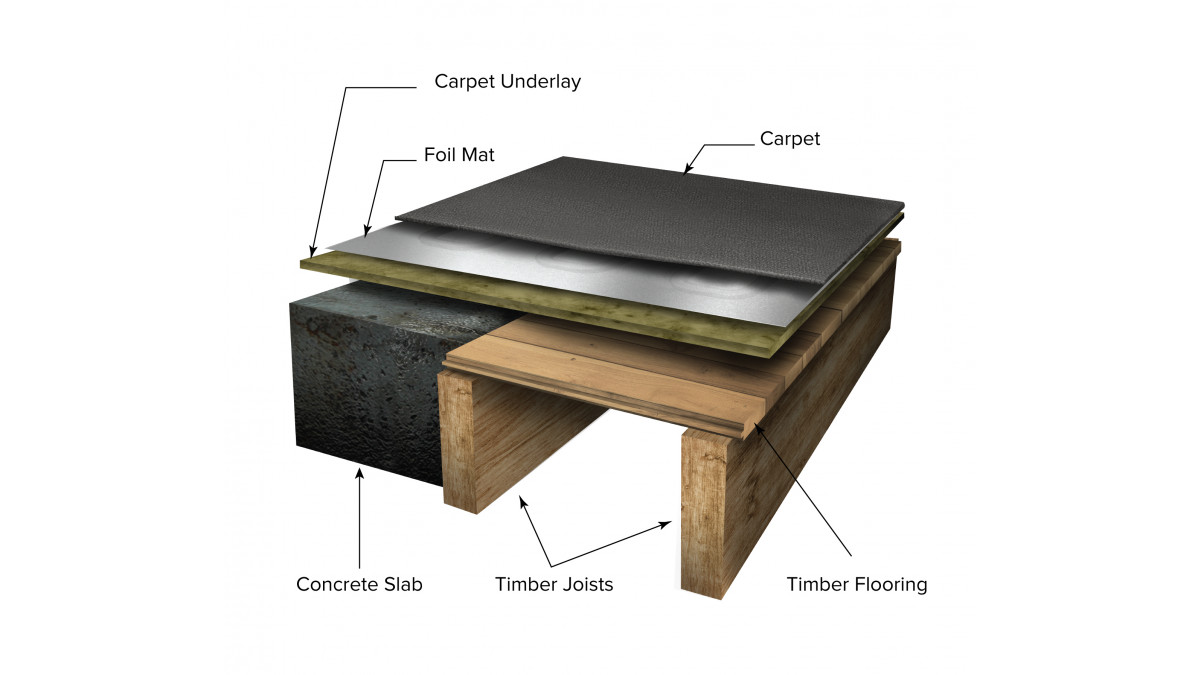

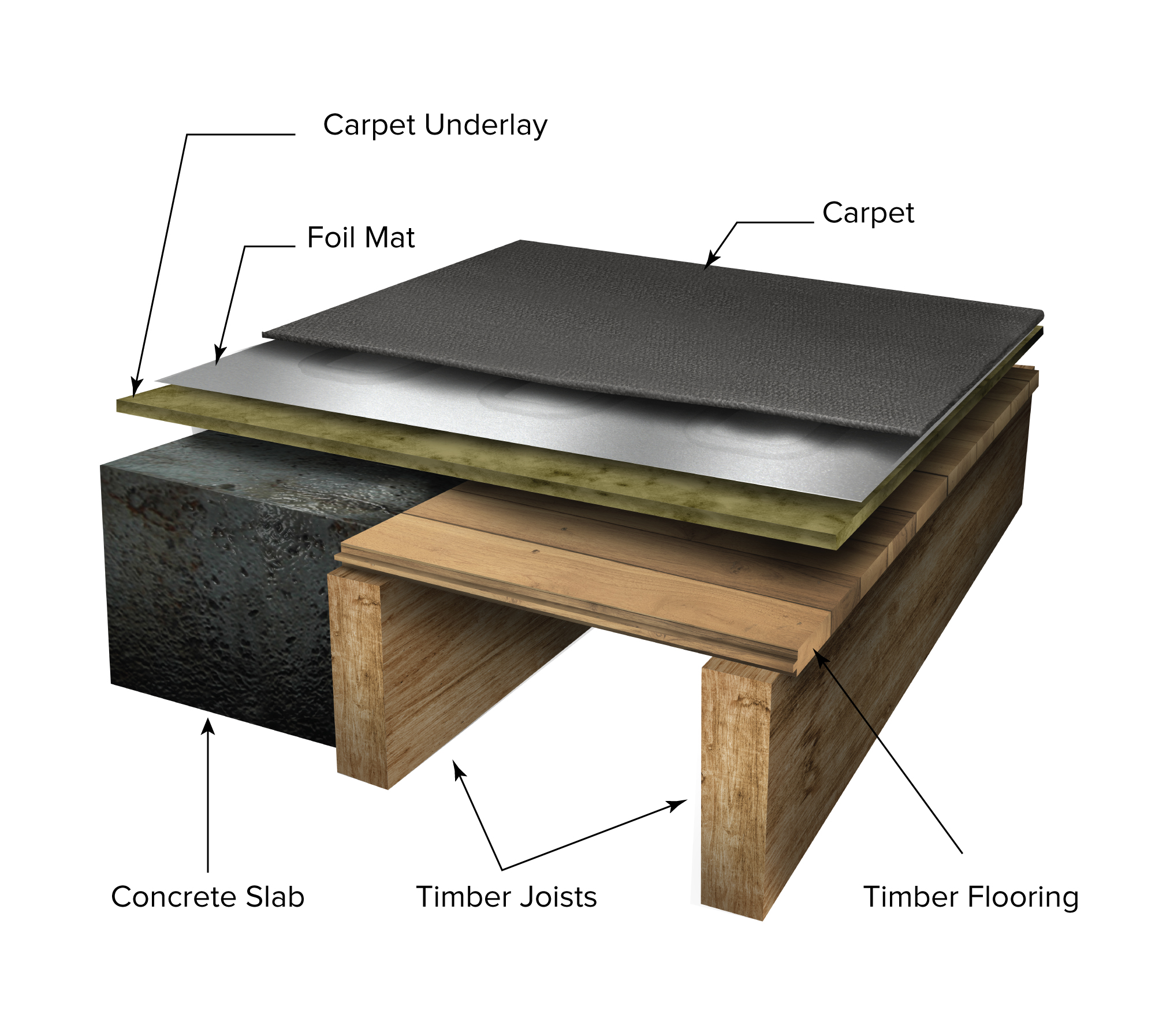

Warmup heating mats are strategically placed wherever required. Positioned between the carpet and underlay, the heating mats are available in a range of sizes designed to fit most rooms. There's no maintenance required, and no annual check-ups are needed. With efficient zoning and a programmable thermostat, it's easy to regulate home temperature while saving energy and money.

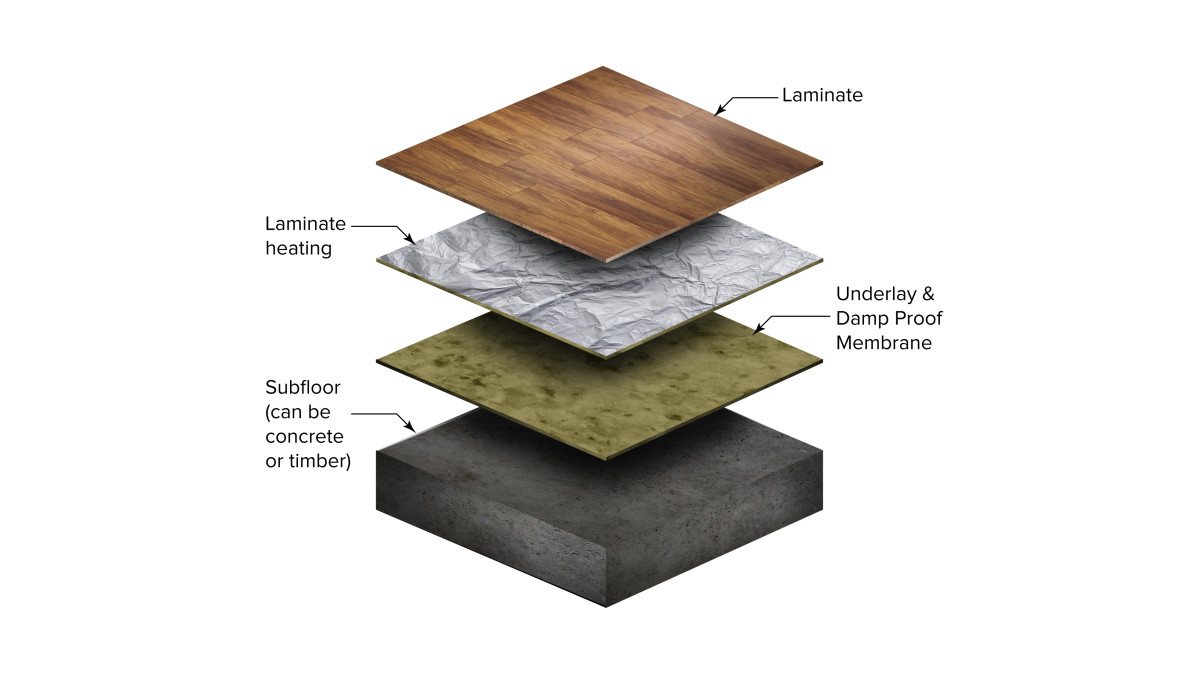

Warmup foil heating mat is specifically suitable for use with floating floors in areas of varying size — from a small bedroom to a large open space room. The super-thin flat aluminium foil will not raise the floor levels visibly, which is why it is a great solution for renovations.

The foil heater is made up of a fibre reinforced foil encasing a multi stranded heating cable that is insulated with an advanced fluoropolymer. The Warmup Undertile Heating element is a multi stranded conductors, teflon insulated (fluoro polymer), full earth screen with outer PVC insulation.

Key Features
  • 100% waterproof and safe as it's an RCD protected circuit
  • Even heat distribution throughout the room
  • Flexible core wire comes in different shapes
  • No raise to floor levels, fits around objects
  • Completely hidden — no visible part
  • Quick and easy to install
  • 5 year warranty
  • Backed by an established New Zealand company
  • Doesn't dry out air, recommended for allergy sufferers
Scope of Use
  • Can be used in Residential (private and terraced houses) and Commercial properties — e.g. apartments, aged care facilities, and hotels
  • Can be used for laminate, carpet, vinyl, engineered wood and other floating floor finishes
  • Electric foil heating mats can be used both as a primary or secondary heating source
  • Installed directly under the floor finish. No self-levelling required, will not raise the floor levels visibly
  • Ideal solution for renovations

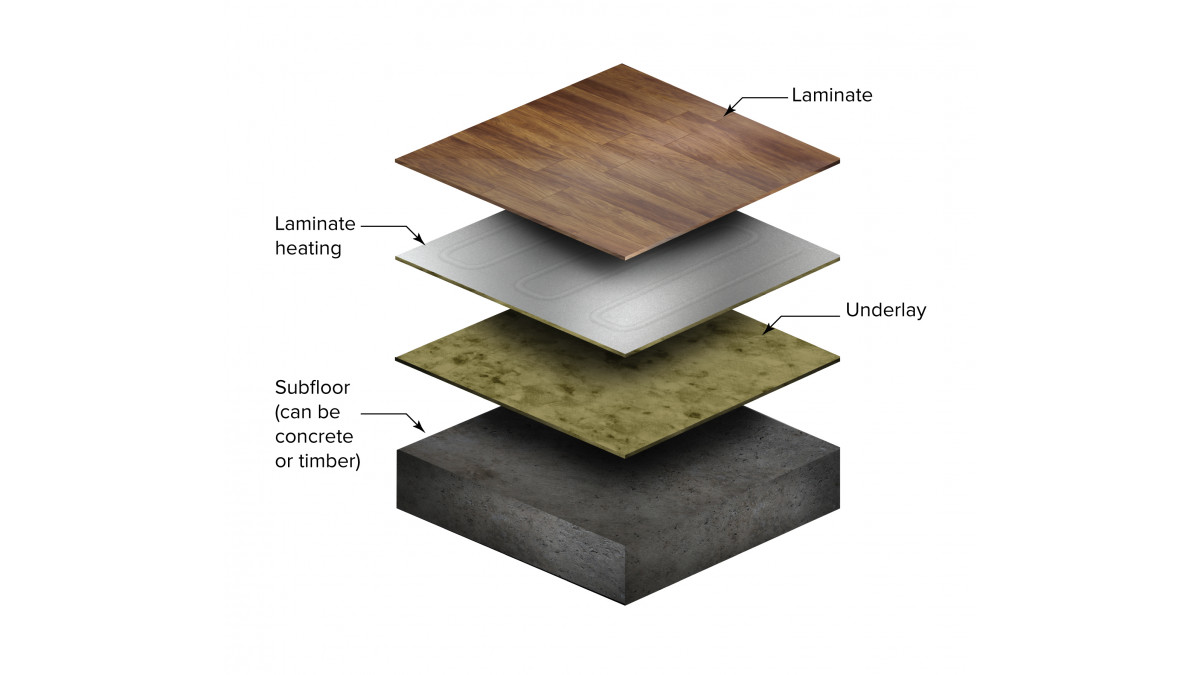

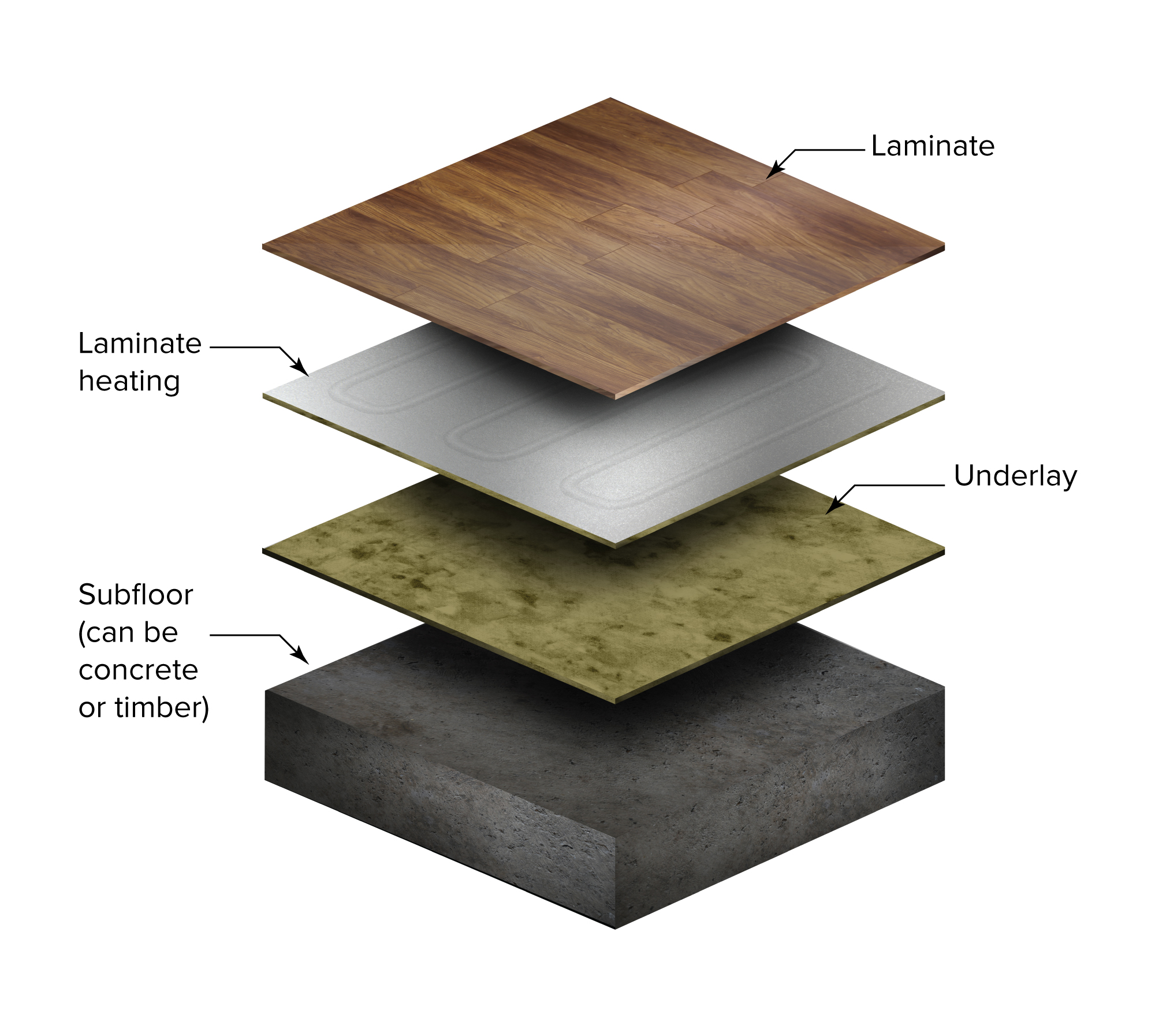

  • If using laminate or wood, the floor finish can be laid directly on top of the heater or if using vinyl or carpet flooring, the overlay can be used between the heater and the floor finish to give extra protection for the heater
  • Can be used on any type of subfloor
  • Recommended for allergy sufferers
Limitations on Use
  • Not to be used in wet areas
  • Not to be used with floor covering other than carpet, wood, laminate or vinyl
  • Recommended to check the subfloor has adequate thermal insulation
  • Do not place large objects like heavy rugs and bean bags on the heated floor to avoid trapping the heat
In-Service History

Warmup undercarpet heating systems have been in New Zealand since 1994. Warmup has a network of distributors and accredited installed across the country.

Other Performance Attributes
  • Energy-efficient — the running costs are comparable to heat pumps
  • Silent and odour-free heating system
  • Doesn’t dry out the air
  • Recommended for people with asthma and allergies

Warranty

Warmup Underfloor Heating System for carpet, wood, laminate and vinyl has a 5 year warranty on components and installation if installed by an accredited Warmup installer.

Documents
Electrical Requirements: Underfloor Heating
Installation Manual: Foil Heating System
Running Cost: Under Carpet
