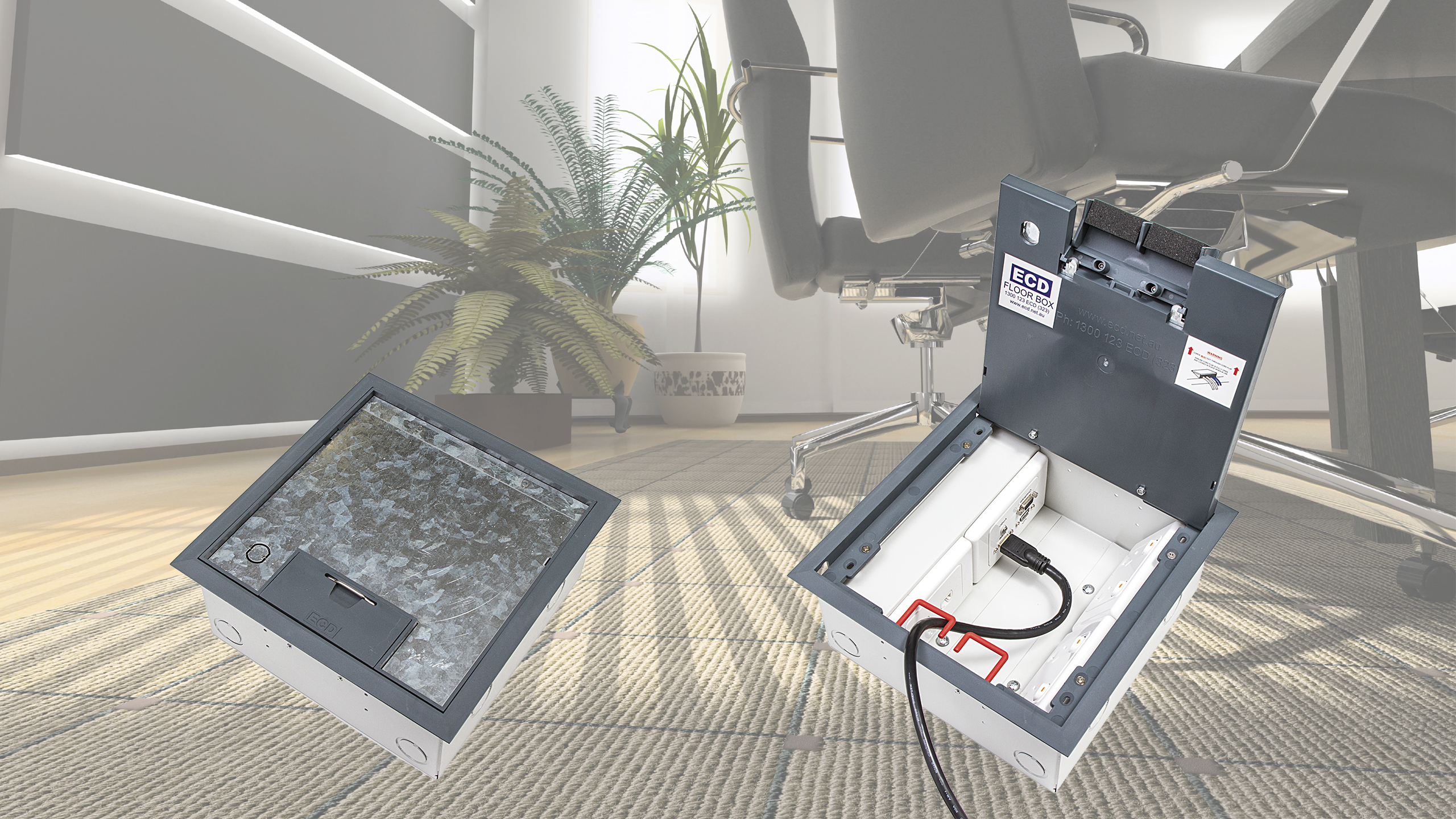

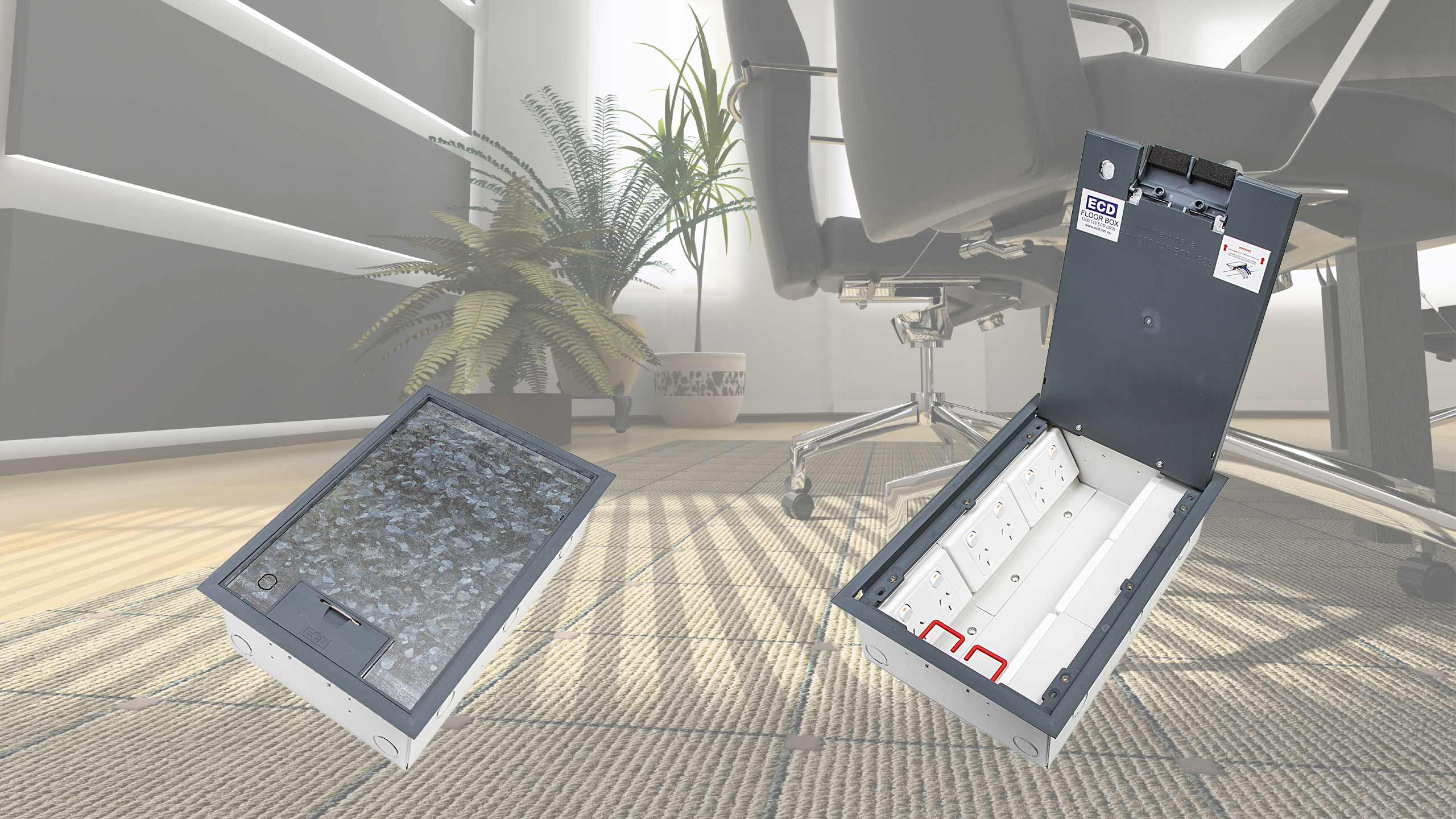

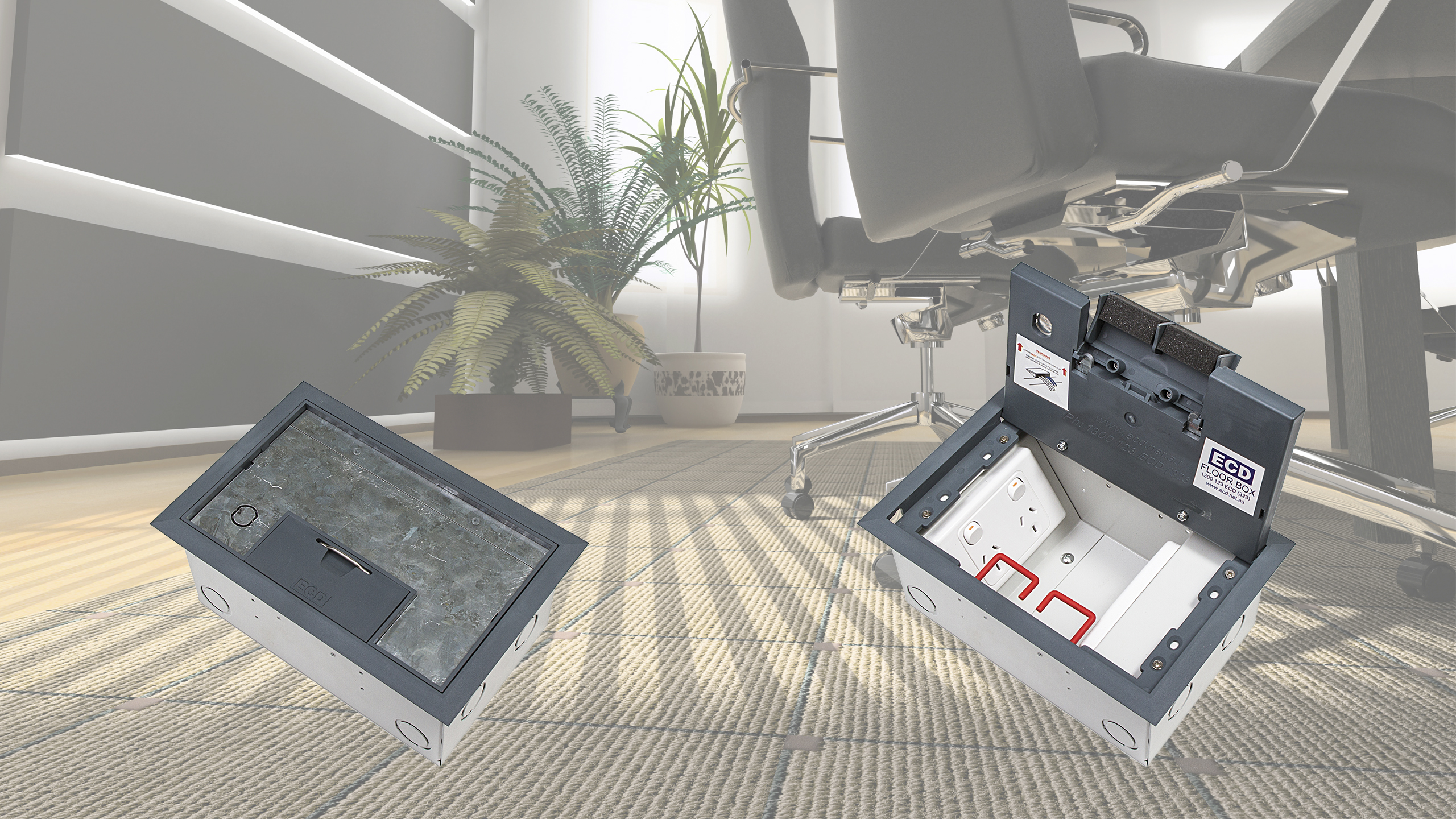

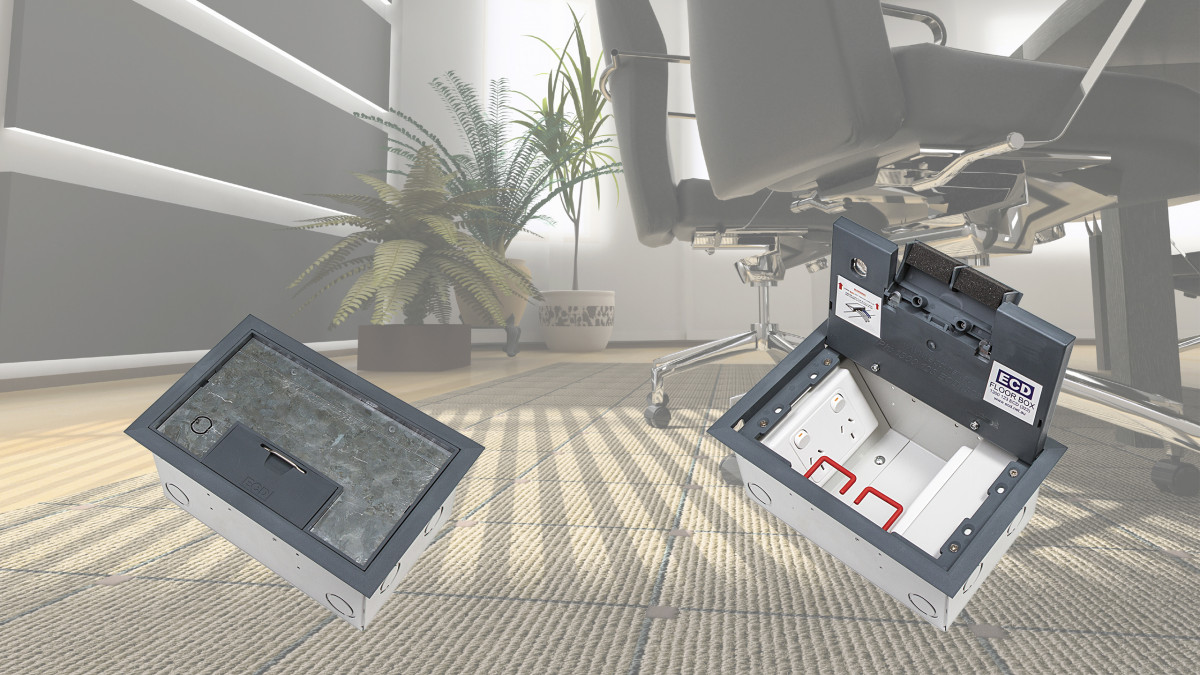

Plastic Floor Boxes
Description

The Plastic range of floor boxes from PDC are robust boxes with reversible low profile lids. They also have a modular box body and lid design, interchangeable with stainless and other lids in the floor box range.

Key Features
  • Moulded polyamide reversible lid
  • Large capacity cable exit flap with retracing handle.
  • Bevelled edge that sits on top of flooring finish

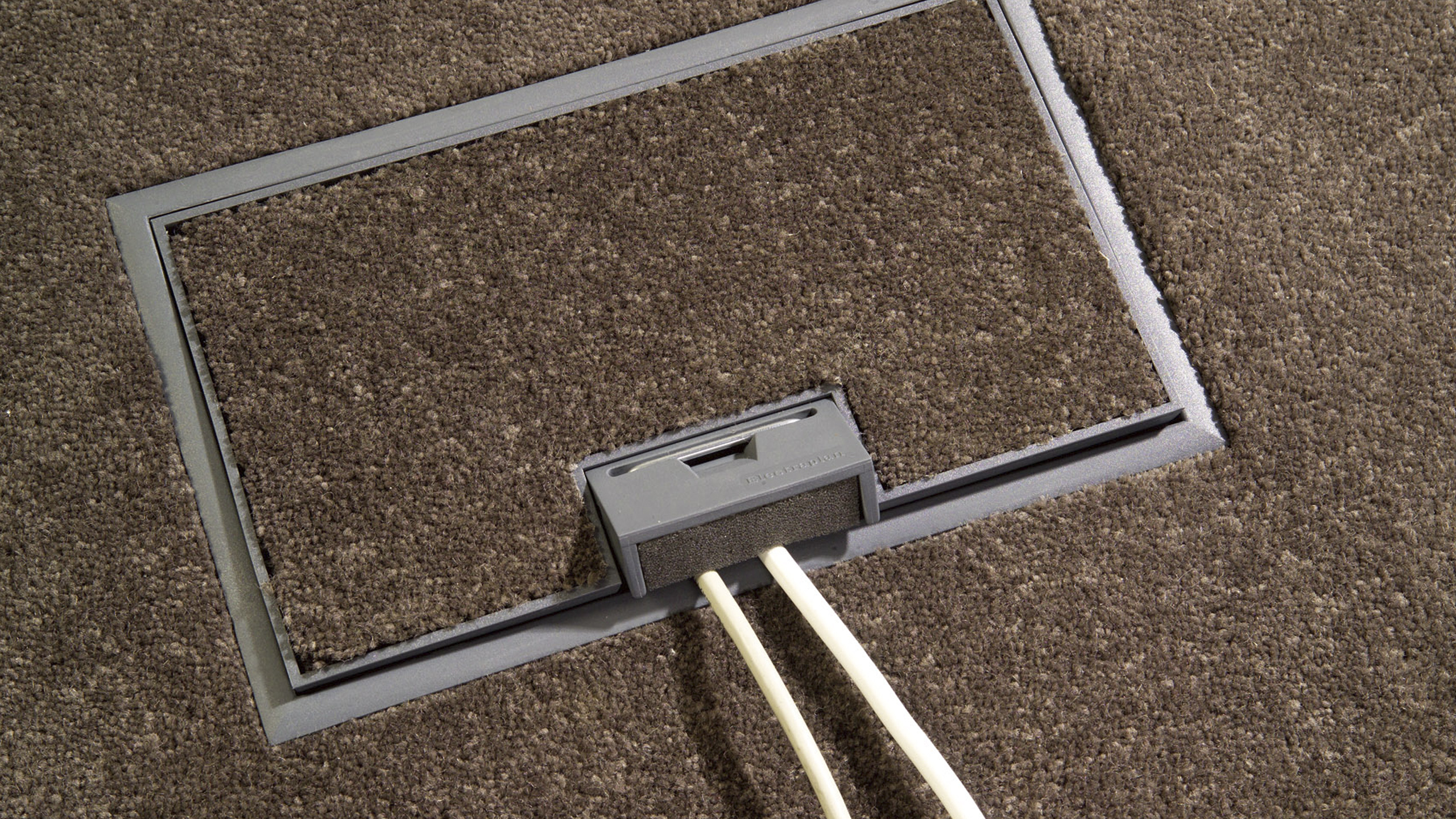

  • 7mm rebated lid, to insert carpet, lino, tiles or other flooring section.
  • Option to fit cam lock

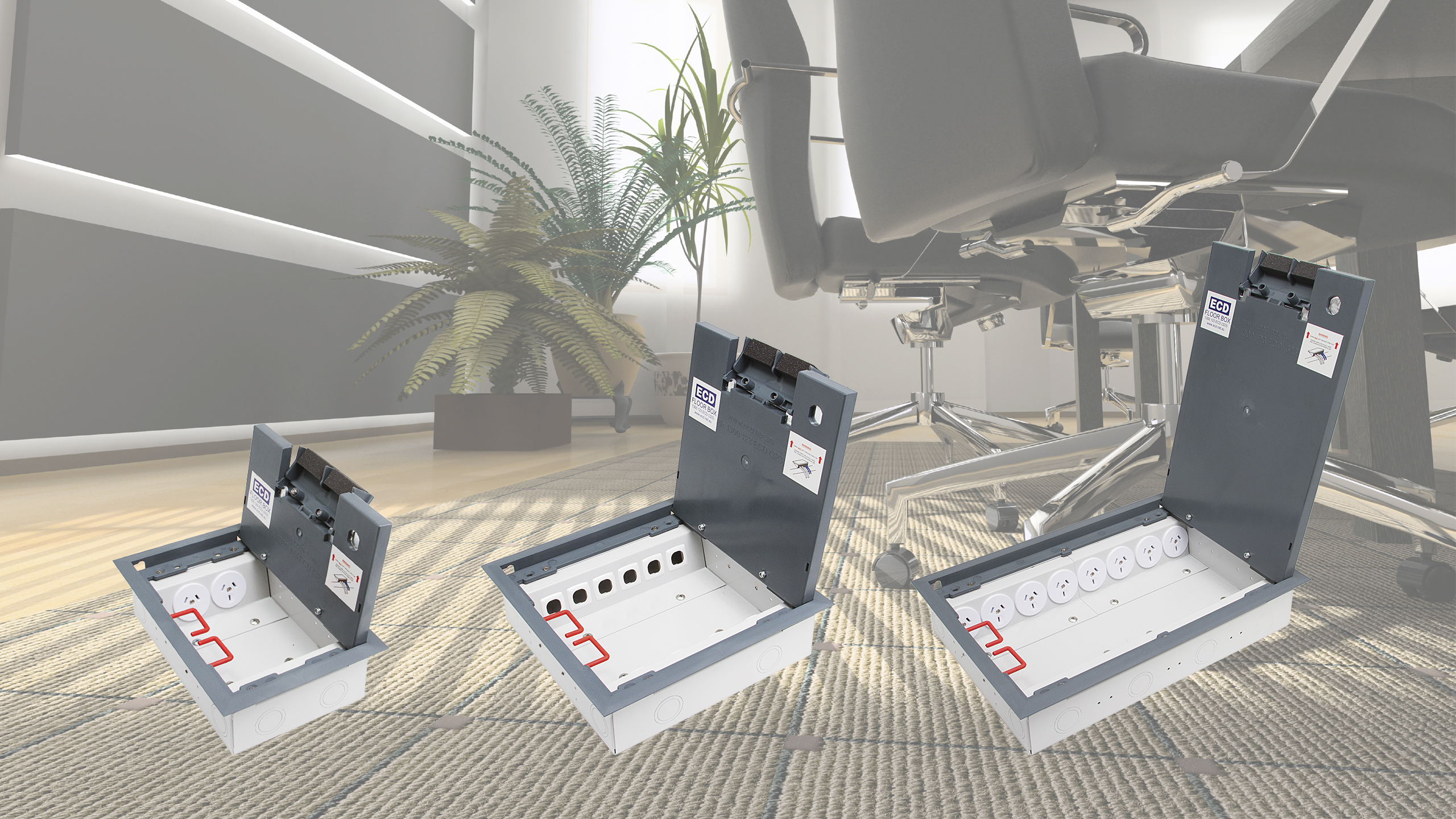

  • Available in various sizes and 2 depths
Categories
Electrical
Ranges
Cablerein
NZ-Owned Business
NZ-Owned Business
Scope of Use

Can be used in the following applications:

  • High intensity work environments with a requirement for fixed power solutions
  • Office units
  • Educational facilities
  • Workshops
Limitations on Use

This product is not suitable for use in wet areas. It is intended for use with fixed wiring only and must be installed according to the AS/NZS 3000 Wiring Rules.

Statement of Building Code Compliance
  • All PDC Floor Boxes comply with the AS/NZS 3000 Wiring Rules and AS/NZS 3112 Approval and Test Specifications – Plugs and Socket outlets providing they have been correctly installed according to the PDC installation instructions in the datasheets.
  • The Floor Boxes are suitable for Cat 6 Data Cables. Minimum bend radiuses can be maintained if correctly installed and the recommended Data Modules are used.
  • All product is quality checked during manufacture and before dispatch. In the event of a failure in use the product is backed up by the standard Vynco/PDC 12 month manufacturers warranty. Contact PDC for further warranty information.
  • Some replacement parts are available if required due to failures in service outside of the warranty terms and conditions.
Documents
Datasheet: Plastic Large
Datasheet: Plastic Large Shallow
Datasheet: Plastic Medium
Datasheet: Plastic Medium Shallow
Datasheet: Plastic Small
Datasheet: Plastic Small Shallow
