Monaco for Commercial Occupancy Types B,E,C3,C1,C2,D
Description

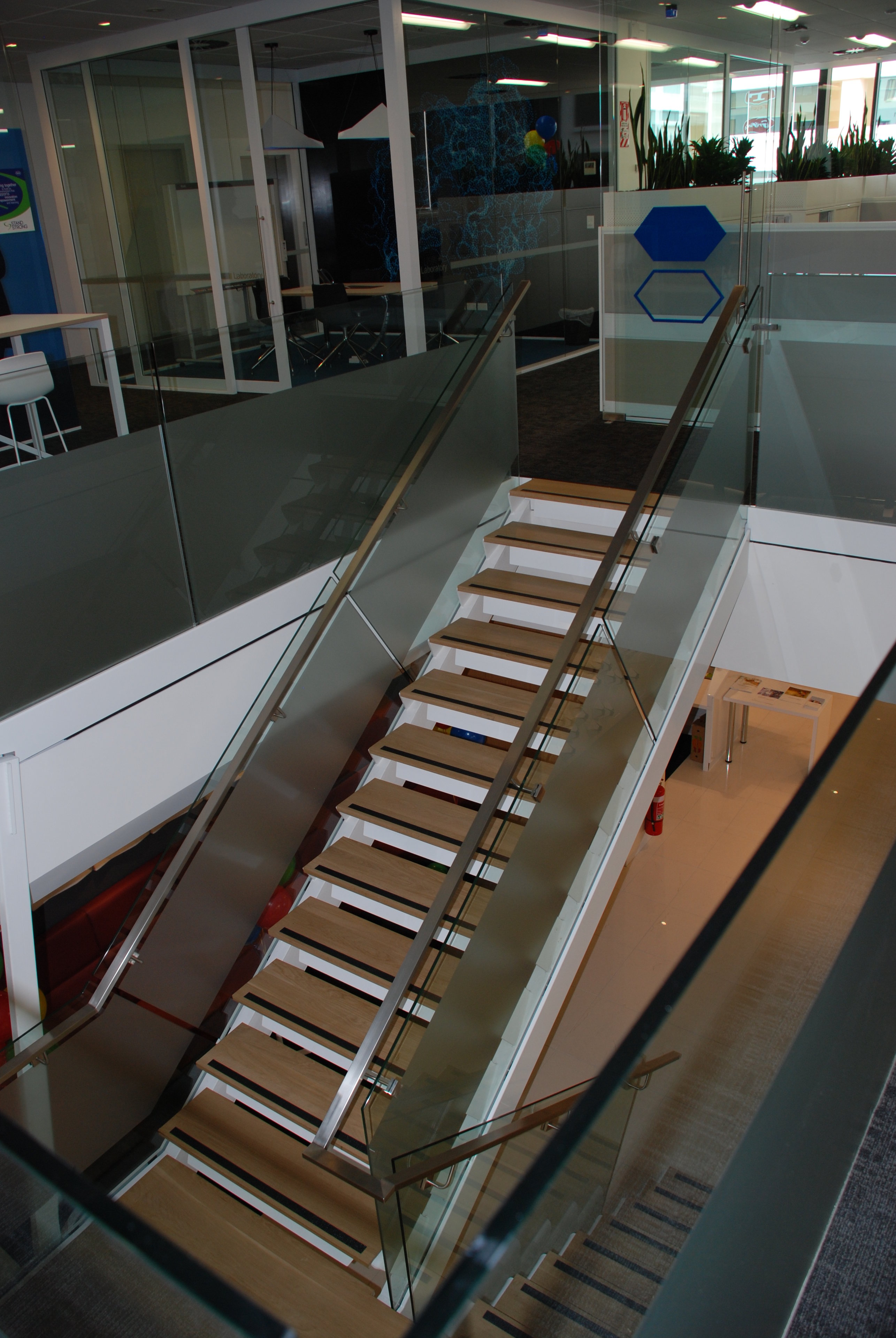

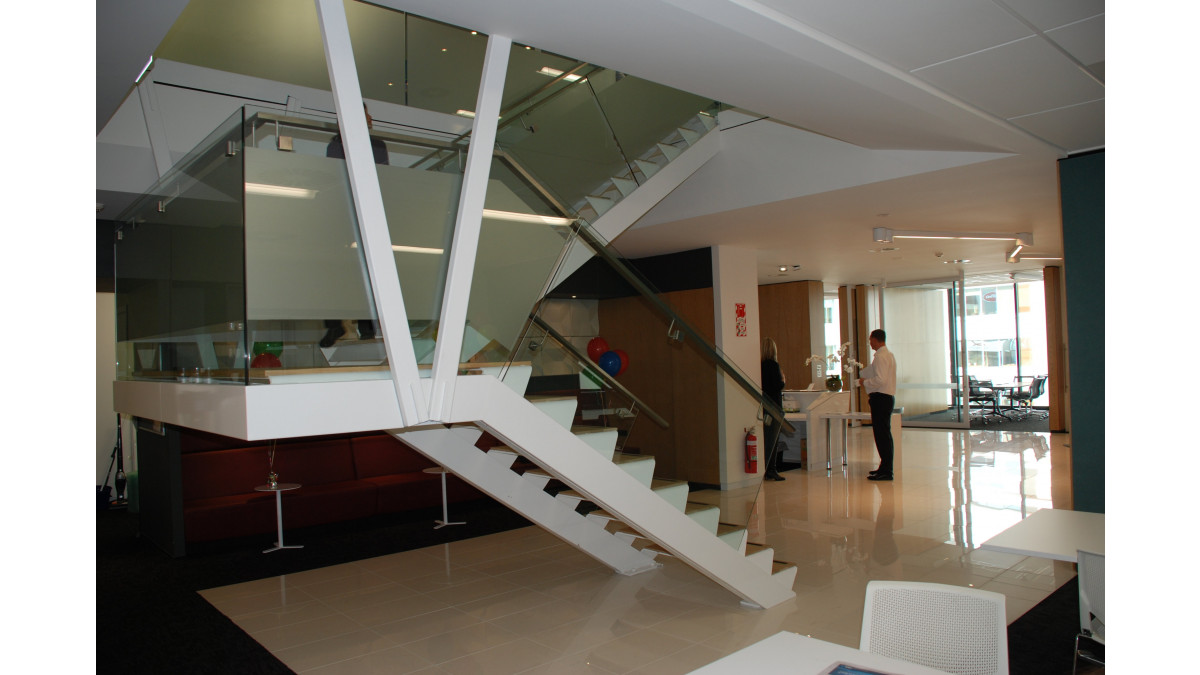

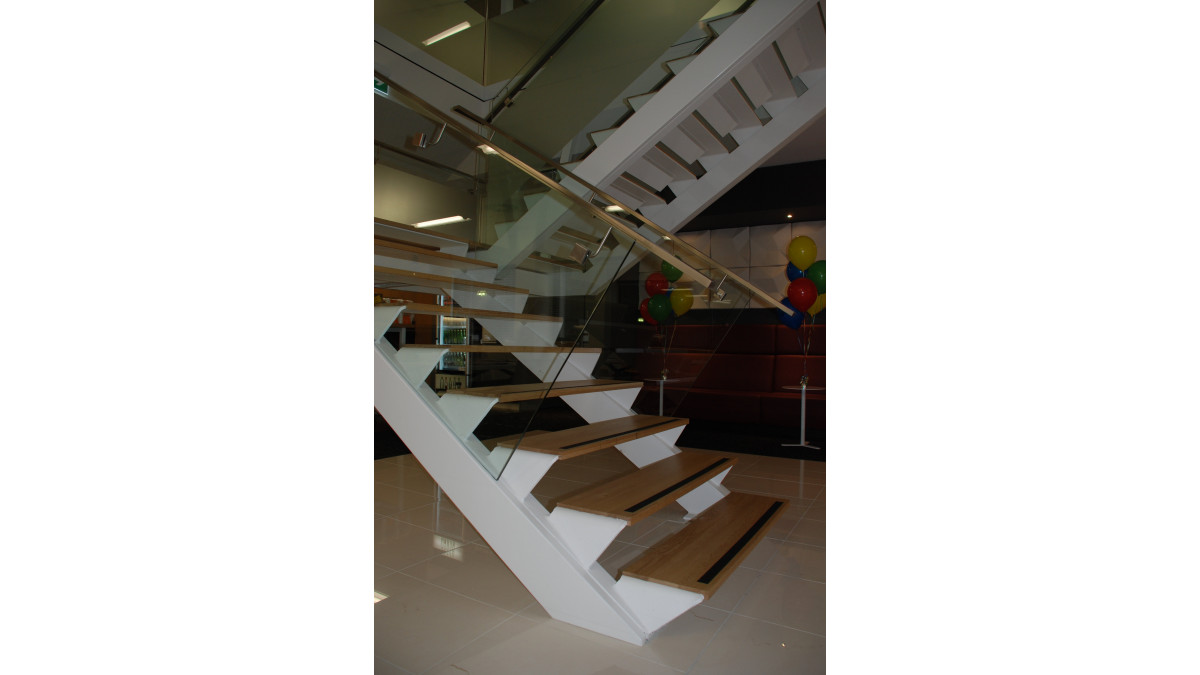

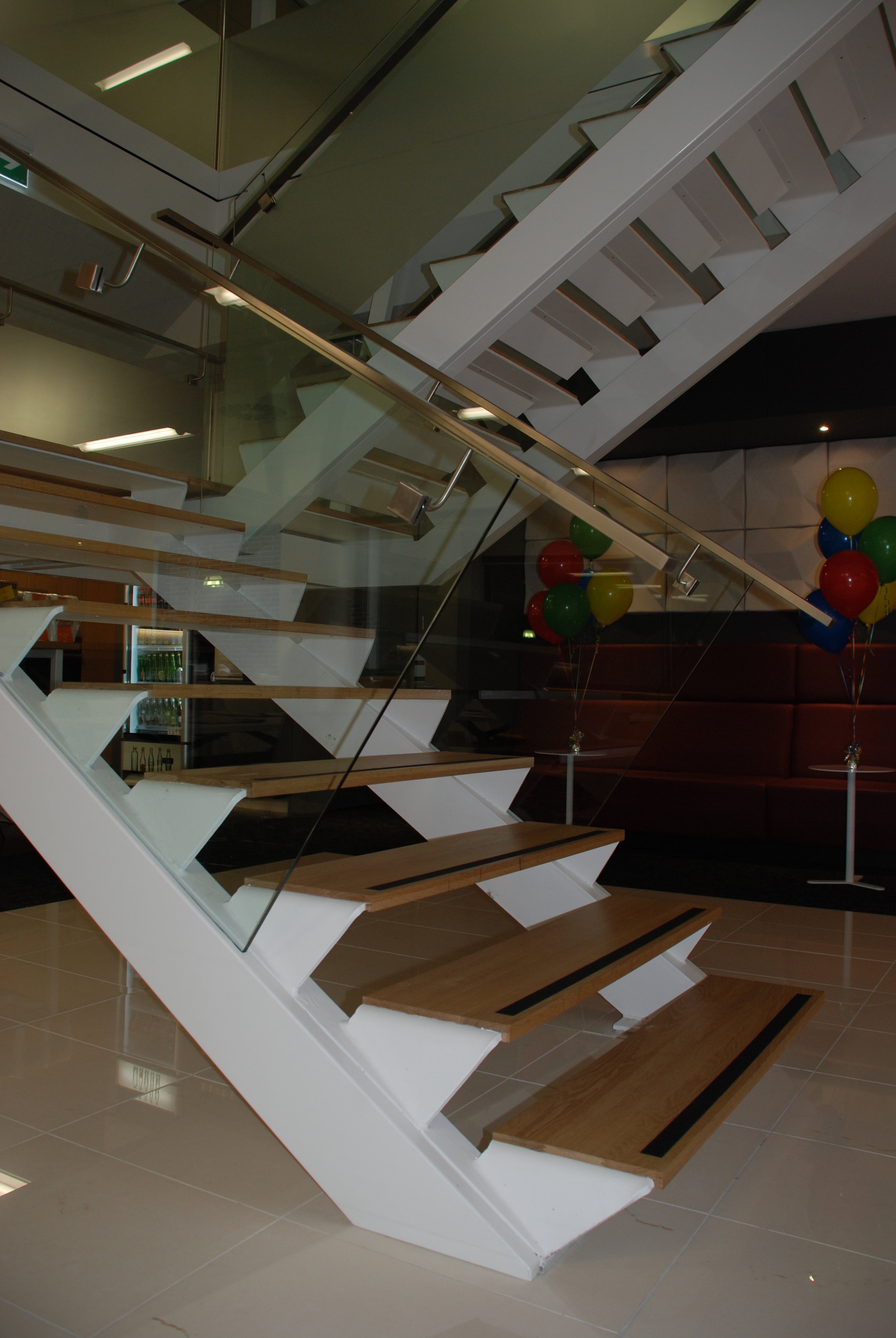

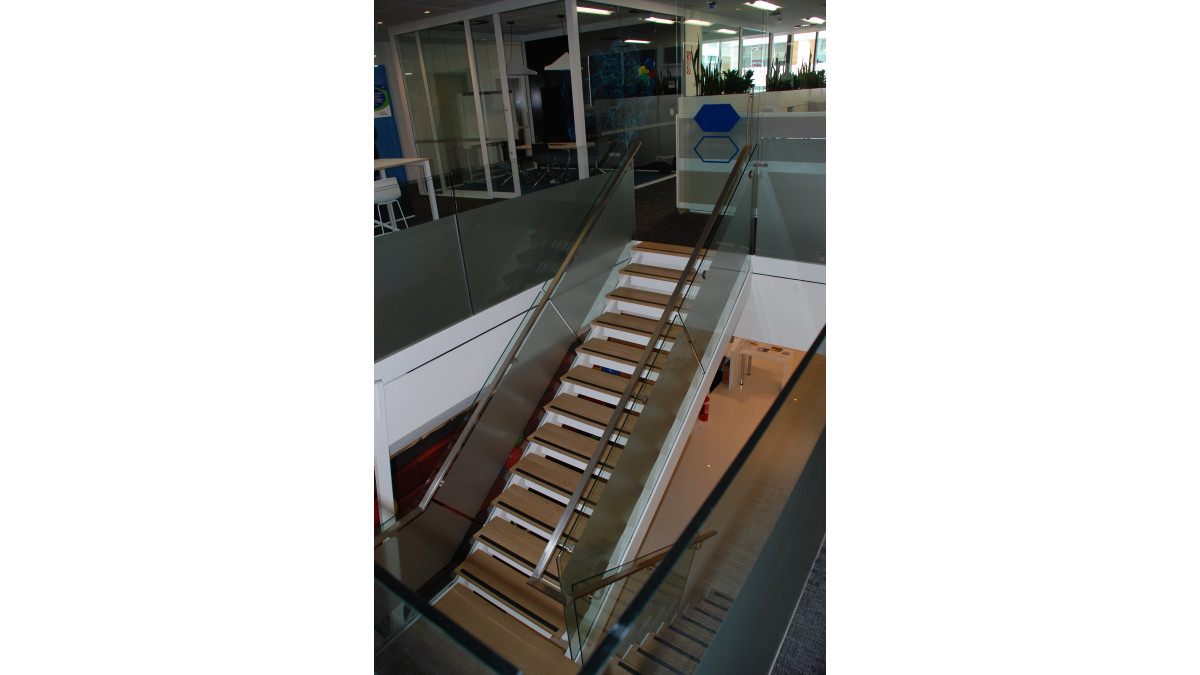

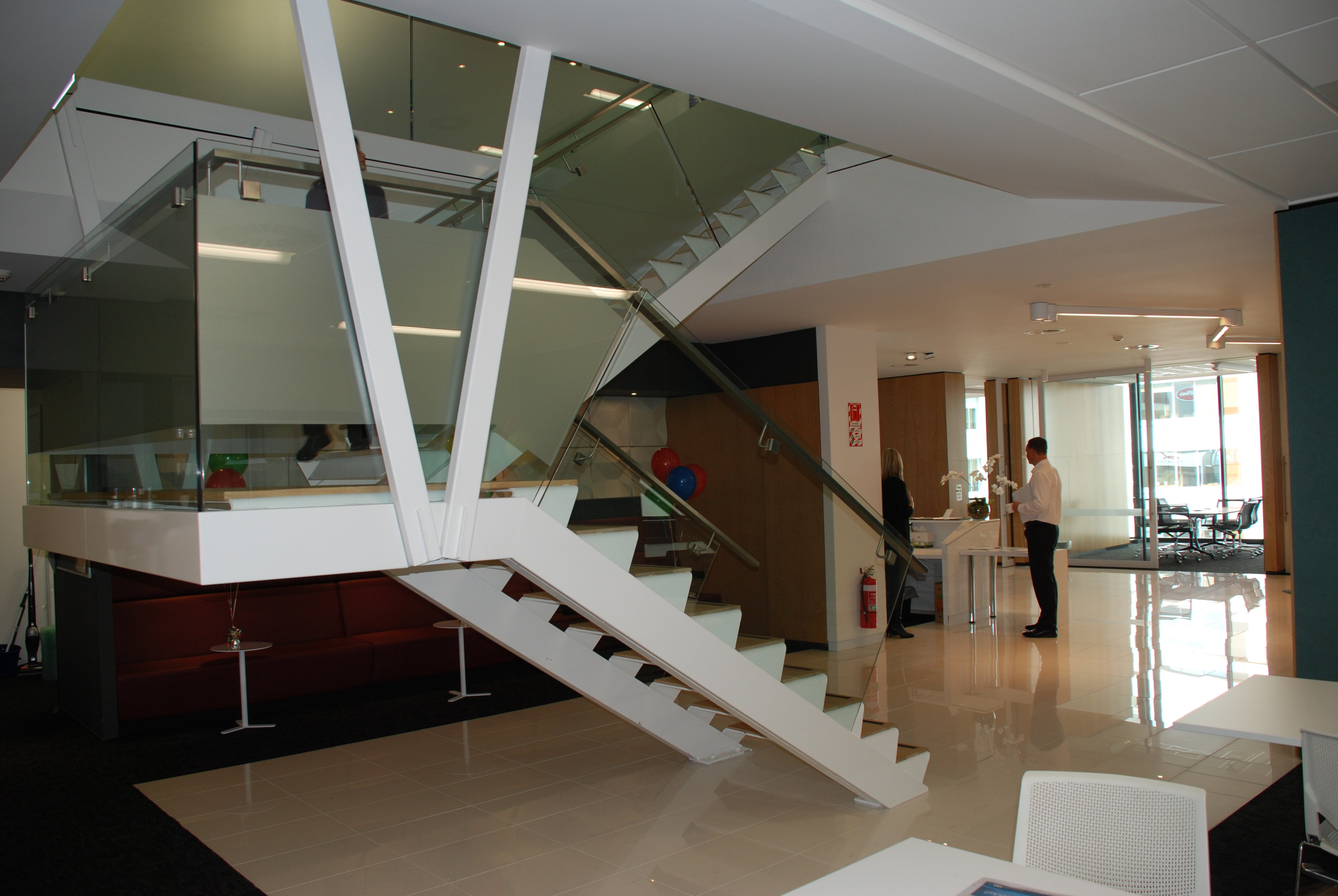

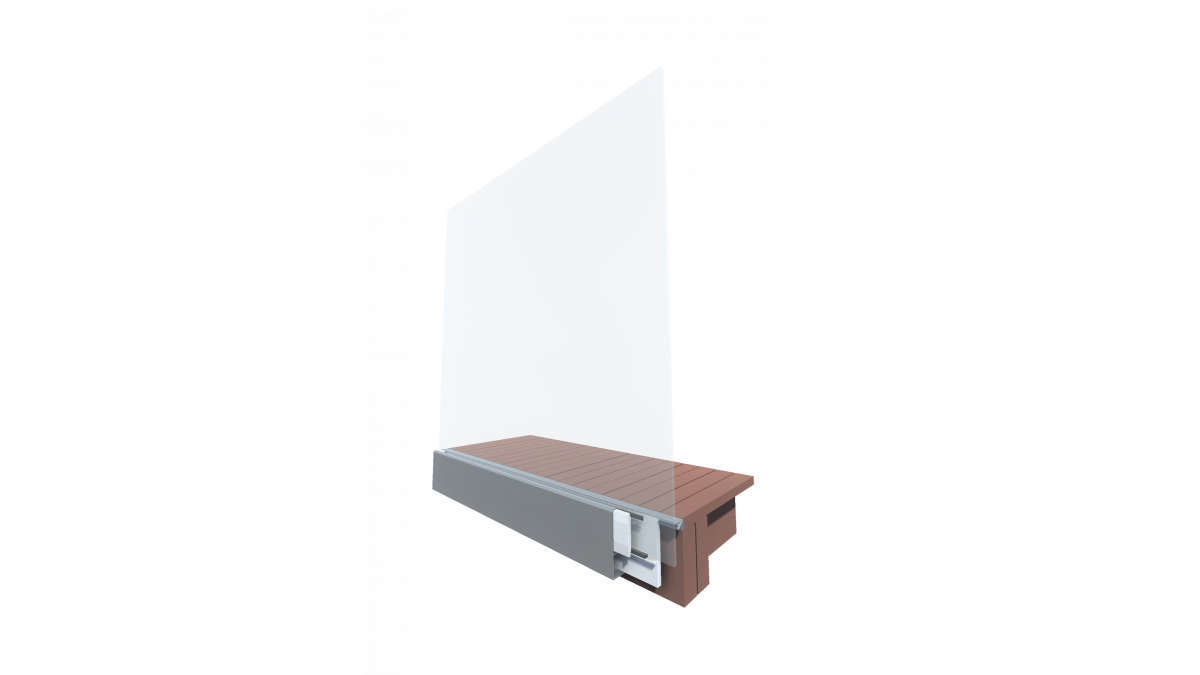

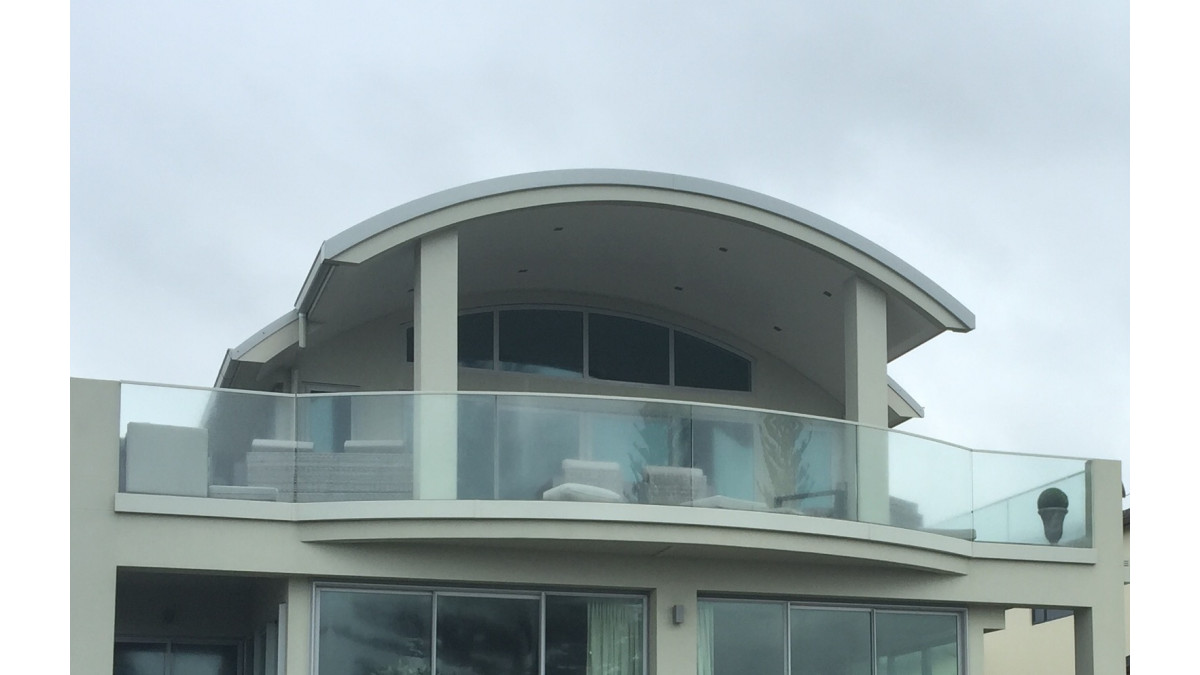

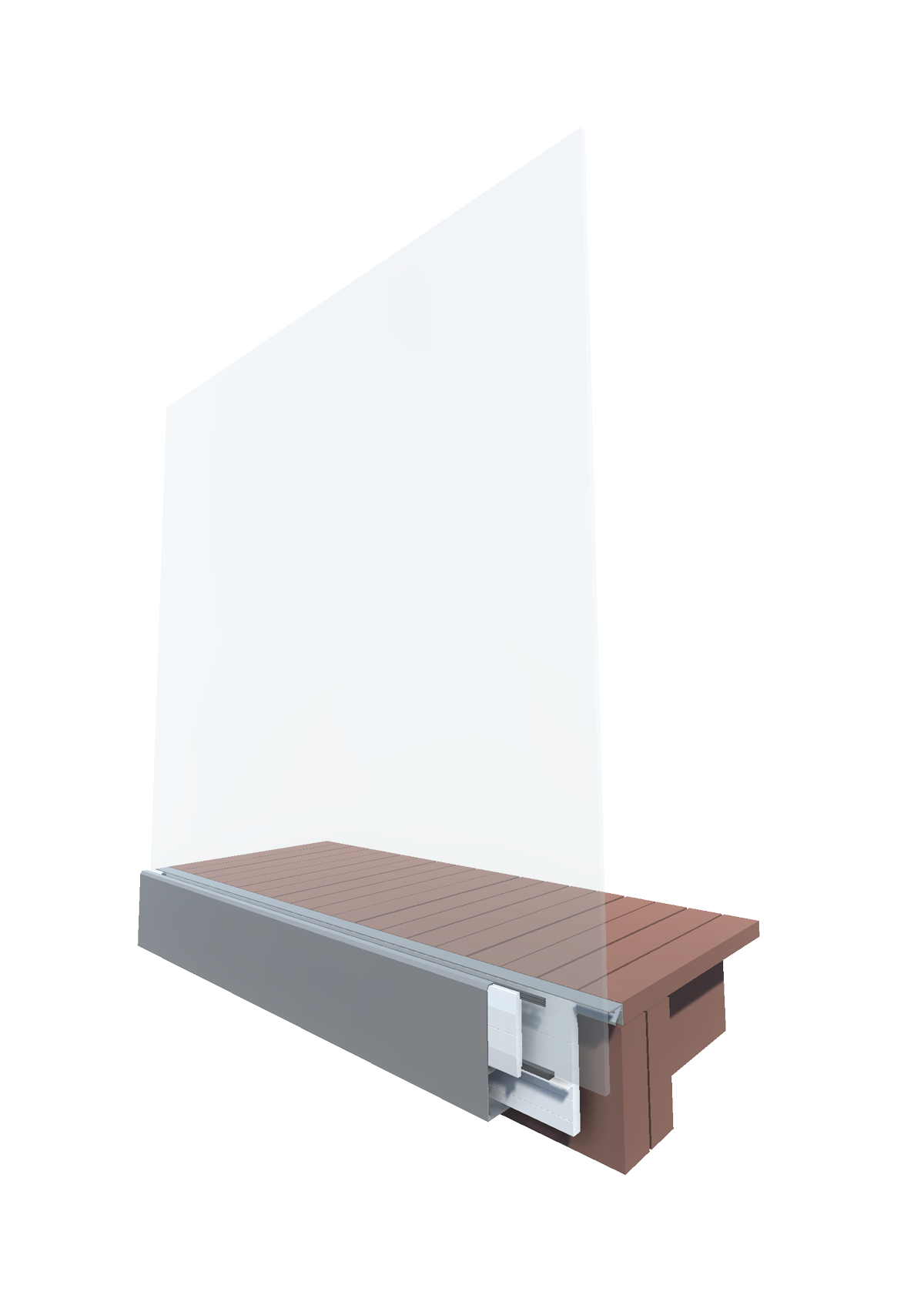

MONACO is very similar to our LUGANO system. MONACO is designed to take higher loads and thicker types of glass in comparison to a LUGANO

Monaco is the best system to use for commercial projects.

Key Features

 - MONACO is an aluminium system for fascia fixed balustrades. It reflects the trend for sleek flush surfaces, square edges and continuous sightlines.

 - MONACO creates a seamless blend. When standing on the deck all you see is glass spanning up from the edge of the deck.

 - All the fixings are concealed beneath the face plate which can be powder coated any colour to blend in with the building structure.



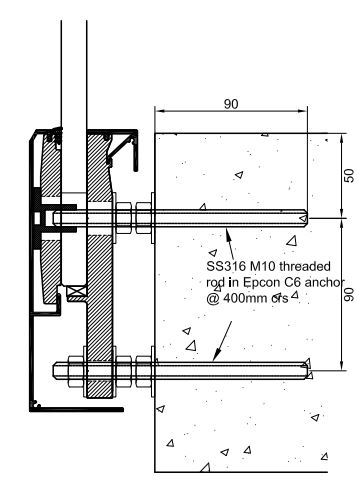

 - Compliant with NZBC clause E2. The MONACO base channel is face fixed and sits 25mm off the substrate. Compressed EPDM fixing sealing washers are easily located against the substrate.

Scope of Use

MONACO is designed to be used as;

 - Balustrades for External Decks and Stairwells

 - Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors



MONACO can be attached to the following substrates;

 - Concrete

 - Timber

 - Steel



MONACO complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

SAFE: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems;

 1) Squareline

 2) Roundline

 3) Archline

SAFER: Viridian's toughened EVA laminated safety glass and Euroglass gap clamps.

SAFEST: Viridian's toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps.  SENTRYGLAS® incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier.





MONACO is Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match your colour scheme.

Statement of Building Code Compliance

Rated to be used up to a extra high wind zone (2.13Kpa or less)



This proprietary balustrade system complies with New Zealand Building Code Clauses;

 B1 - Structure and B1/VM1

 B2 - Durability

 F2 - Hazardous Building Materials

 F4 - Safety from Falling

 D1 - Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)

 E2 - External Moisture (must be designed and installed in accordance with our technical data sheets)



Based on barrier loads taken from AS/NZS1170.0 MONACO can be used for Commercial Occupancy Types;

B & E - Office and work areas not included elsewhere including storage areas.

Areas not susceptible to overcrowding in office and institutional buildings also industrial and storage buildings. Light access stairs and gangways not more than 600mm wide. Fixed platforms, walkways, stairways and ladders for access.

C3 - Areas without obstacles for moving people and not susceptible to overcrowding.

Stairs, landings, external balconies, edges of roofs

Taken from table 3.3 AS/NZS1170.1.1



Maximum glass height from the top of the system is 1200mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

 - 15mm toughened safety glass with interlinking rail

 - 17.5mm toughened laminated safety glass with Euroglass gap clamps

 - 17.52mm toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)





Based on barrier loads taken from AS/NZS1170.0 MONACO can be used for Commercial Occupancy Types;

C1 & C2 - Areas with tables or fixed seating.

Areas with fixed seating adjacent to a balustrade, restaurant, bars etc.

D - Retails areas.

All retail areas including public areas of bank/building societies, (see C5 for areas where overcrowding may occur).

Taken from table 3.3 AS/NZS1170.1

Maximum glass height from the top of the system is 1200mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

 - 19mm toughened safety glass with interlinking rail

 - 21.2mm toughened laminated safety glass with Euroglass gap clamps



 - 21.52mm toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)

Documents
Balustrade - Monaco commercial face fix clamp 10-2-17
Occupancy Table AS/NZS 1170
Selection of Side Mounted Interlinking Rails to NZS 4223.3

2016 version 7

Selection of Top-Capped Interlinking Rails to NZS 4223.3

2016 version 3

Euroglass — Request for balustrade PS1 v4
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass
Hardware
CAD/PDF Details
