Milano Posts for Commercial Occupancy Types C1,C2,D
Description

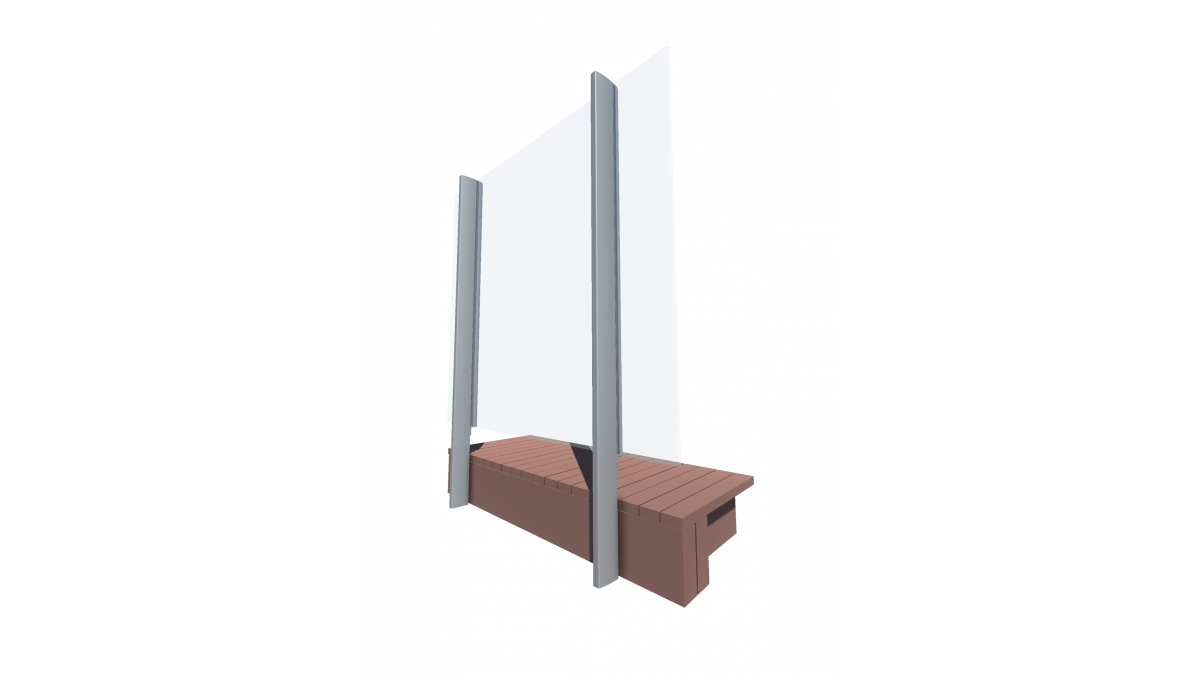

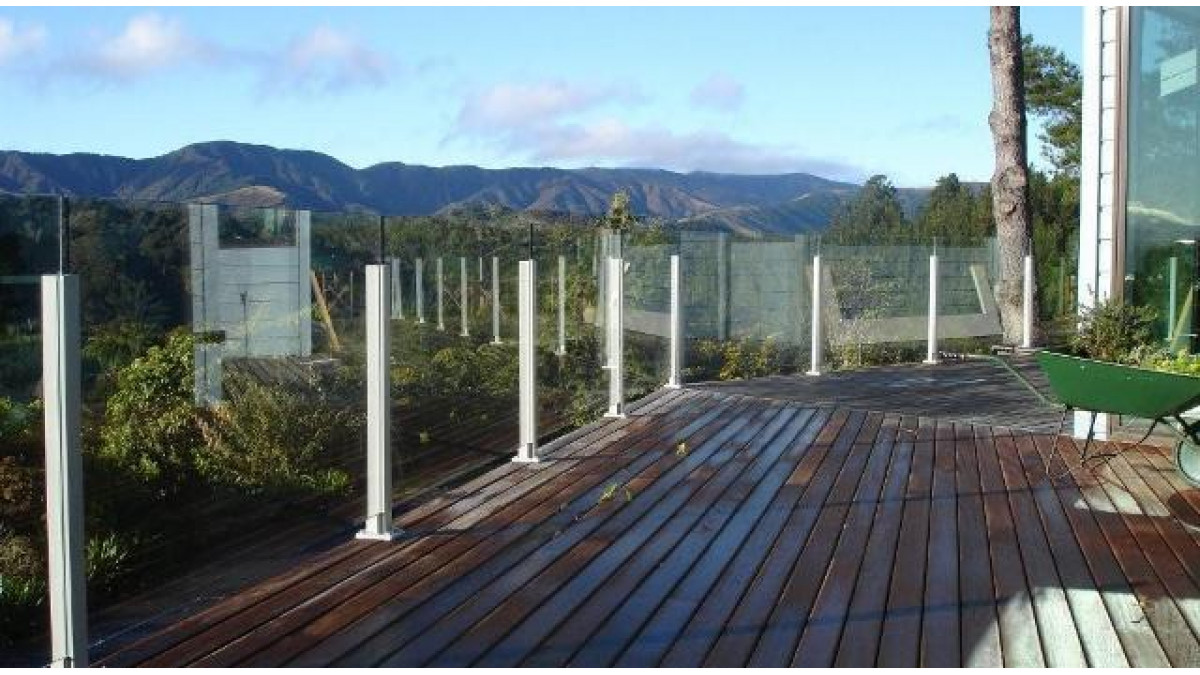

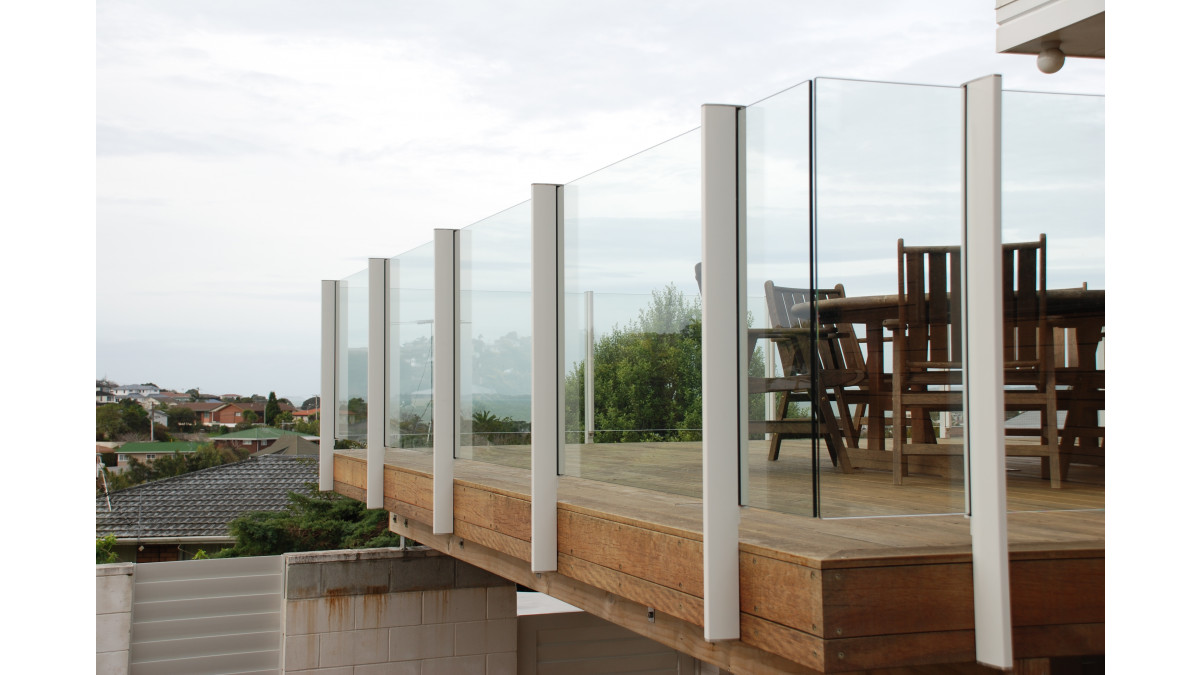

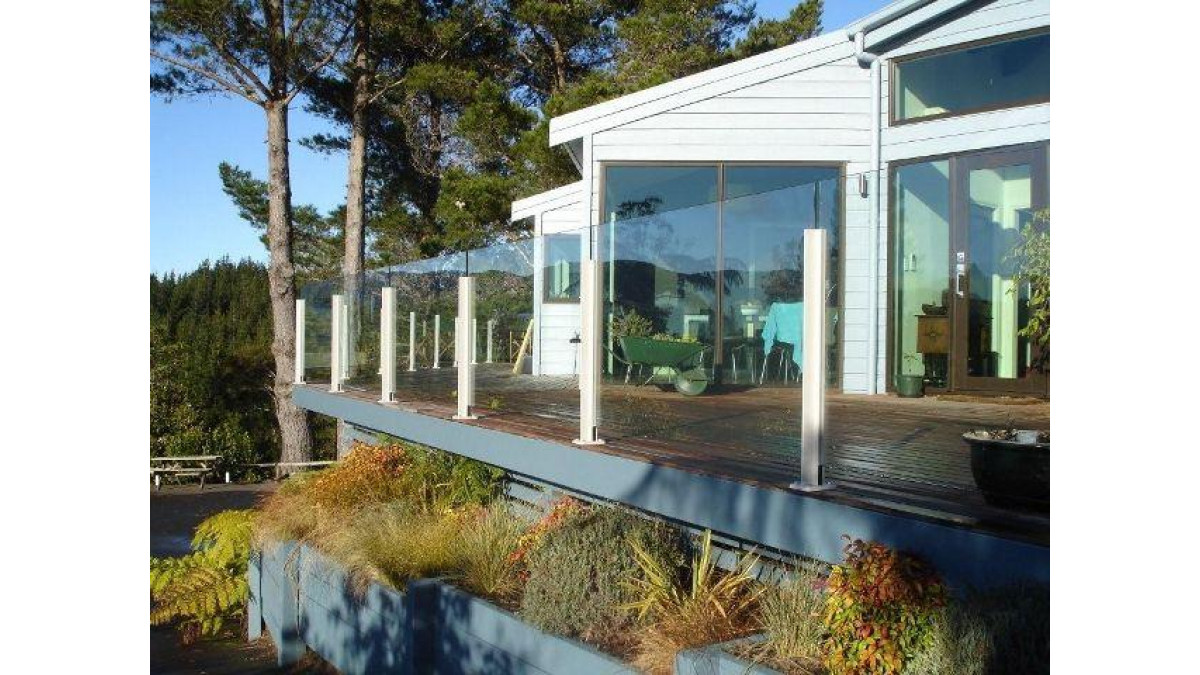

MILANO is a frameless full height post system where the top and bottom edges of the glass are exposed.

Key Features

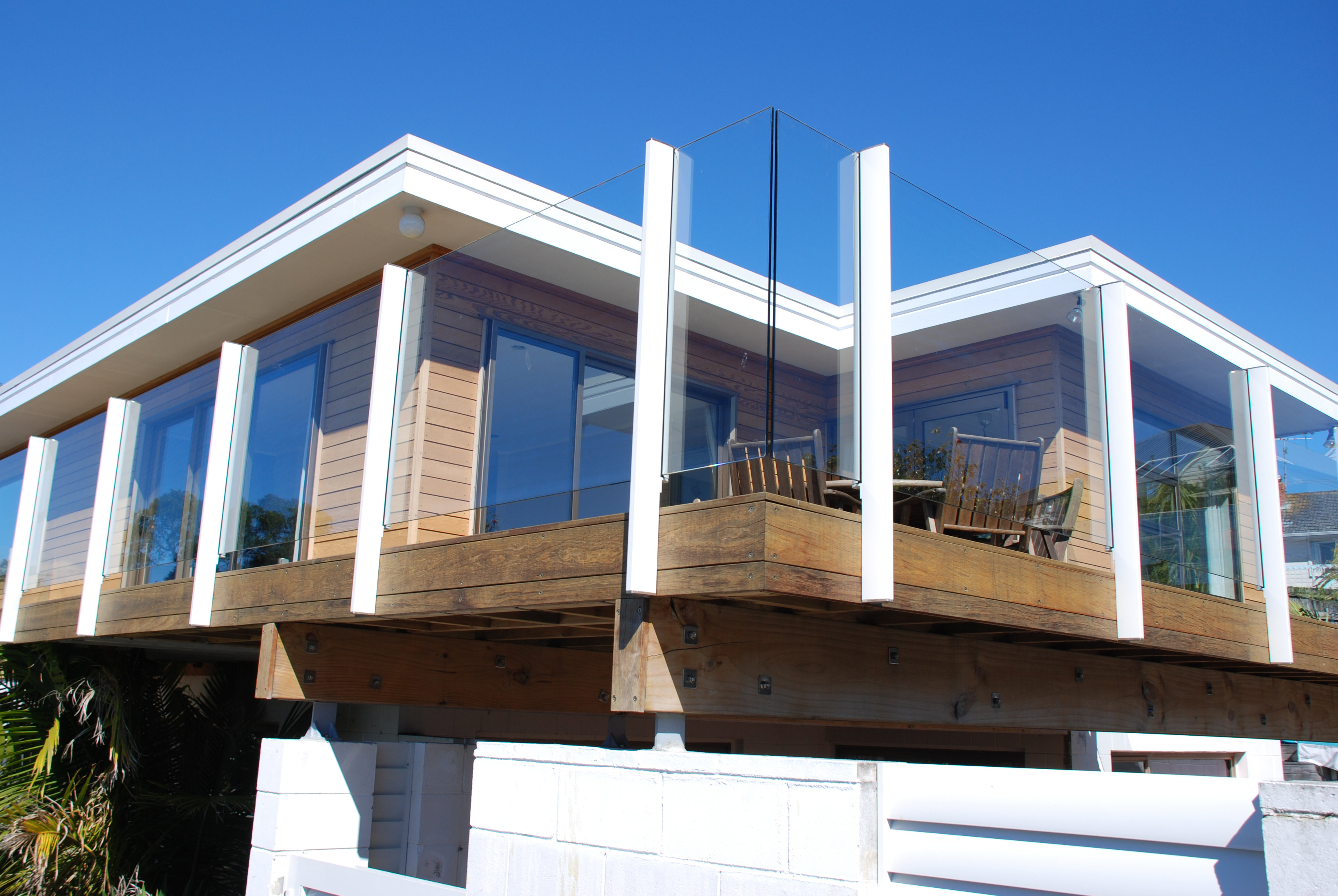

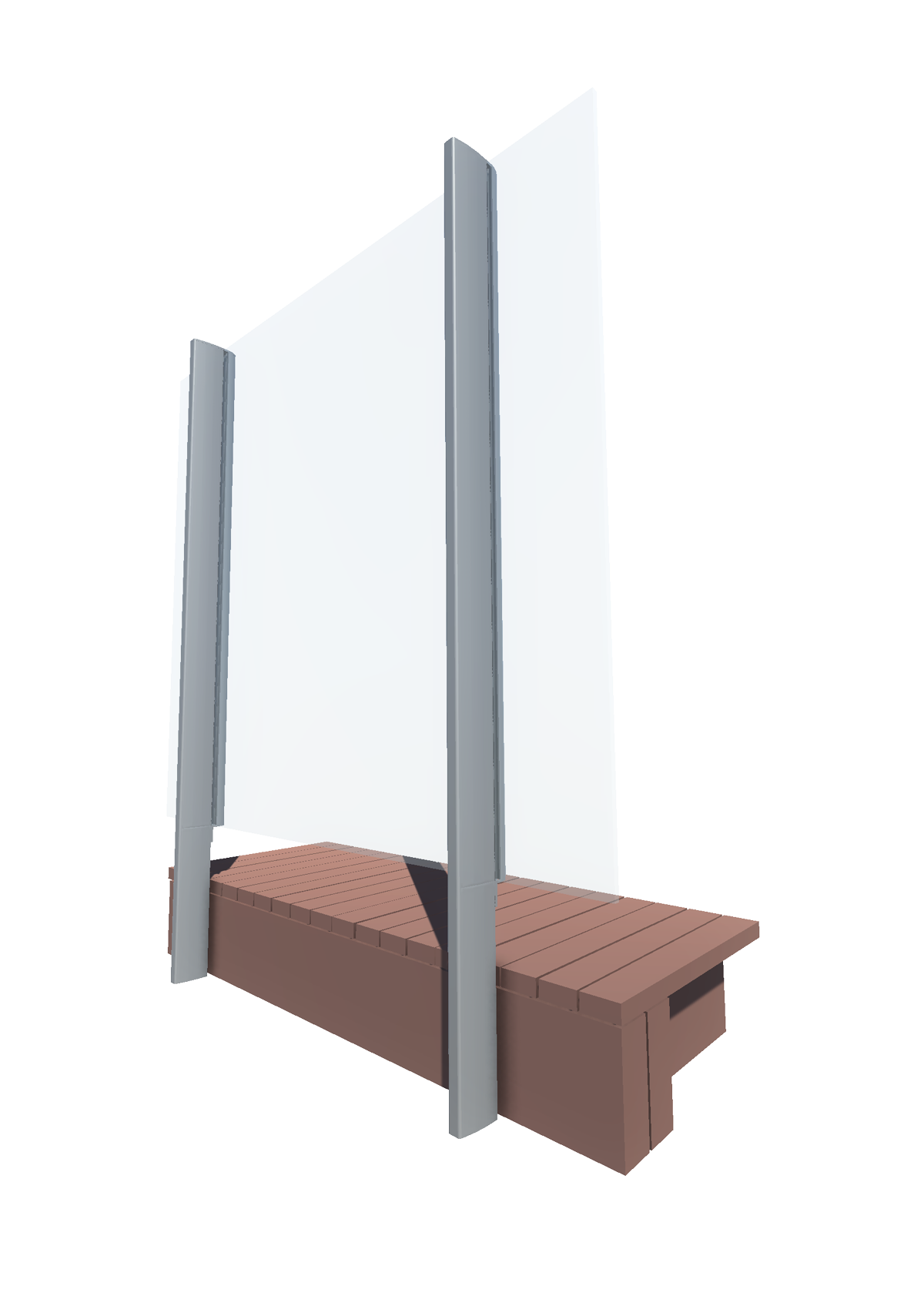

 - MILANO posts can be face or floor mounted.

 - Post spacing is determined by the post height. Refer to technical data sheets for guidance.

 - No need for corner posts, the glass can span horizontally through the end post. The maximum overhang of glass is 300mm

Scope of Use

MILANO is designed to be used as;

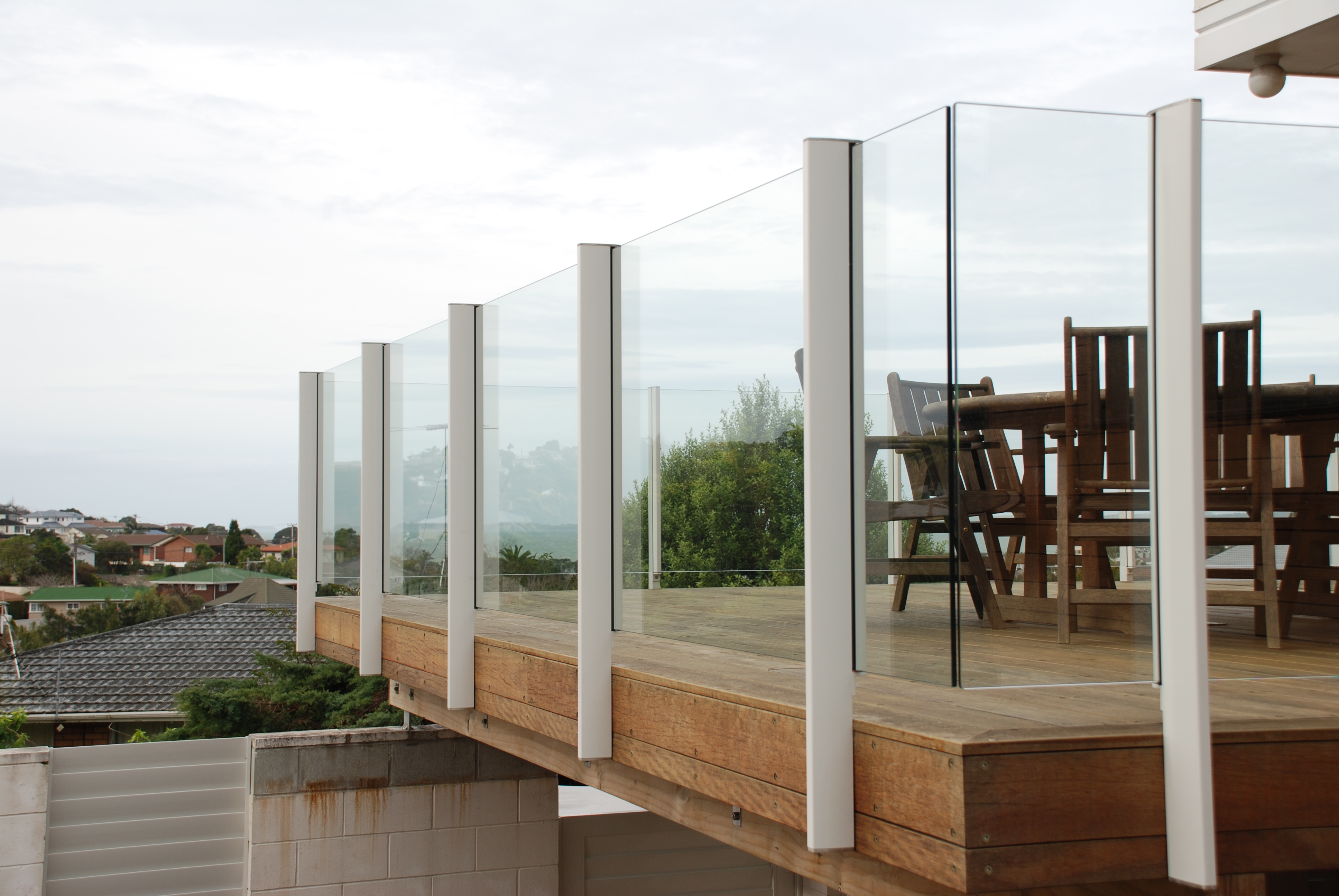

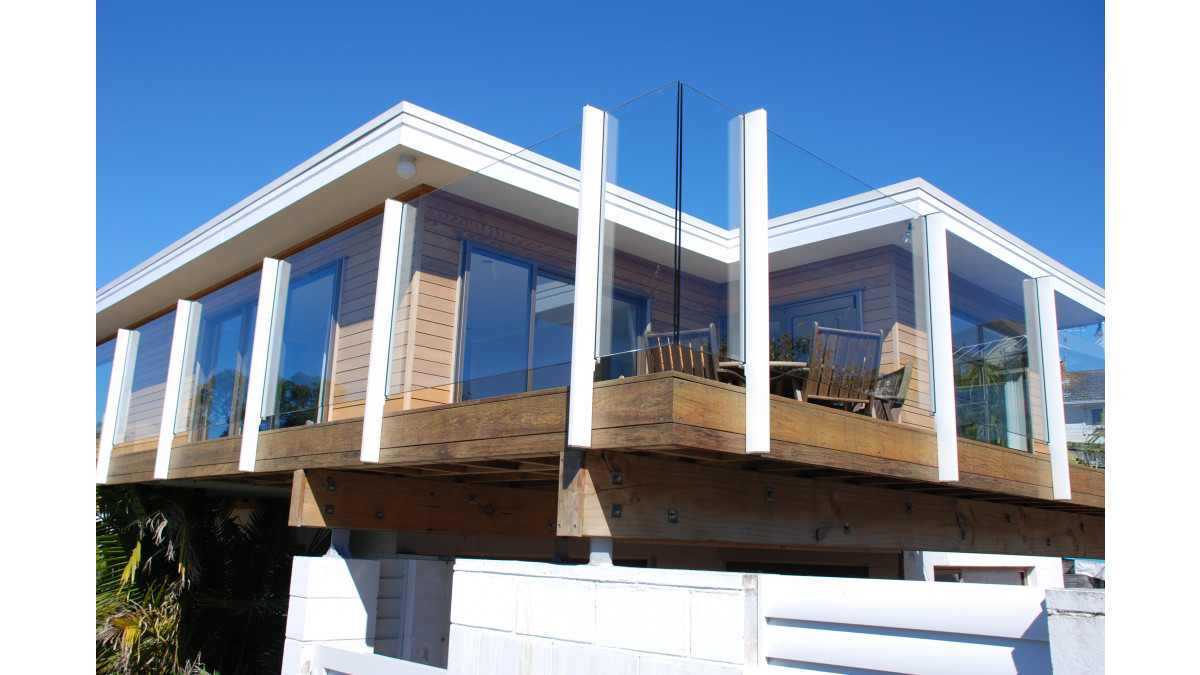

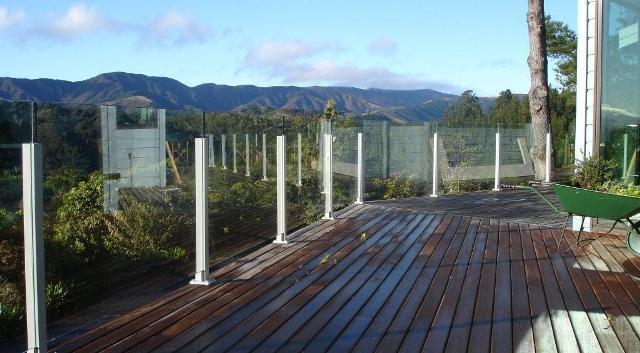

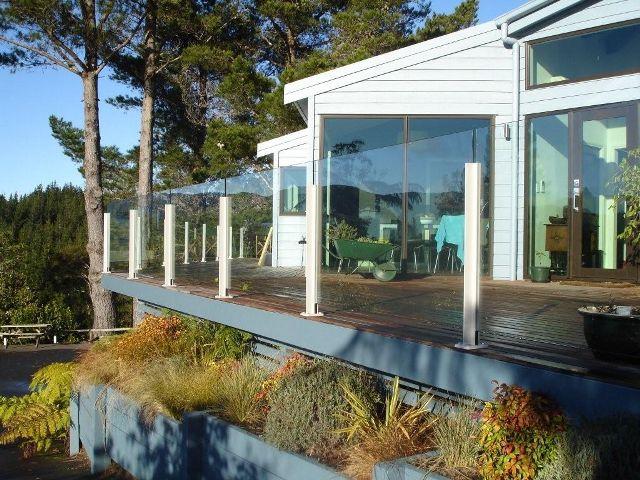

 - Balustrades for External Decks and Stairwells

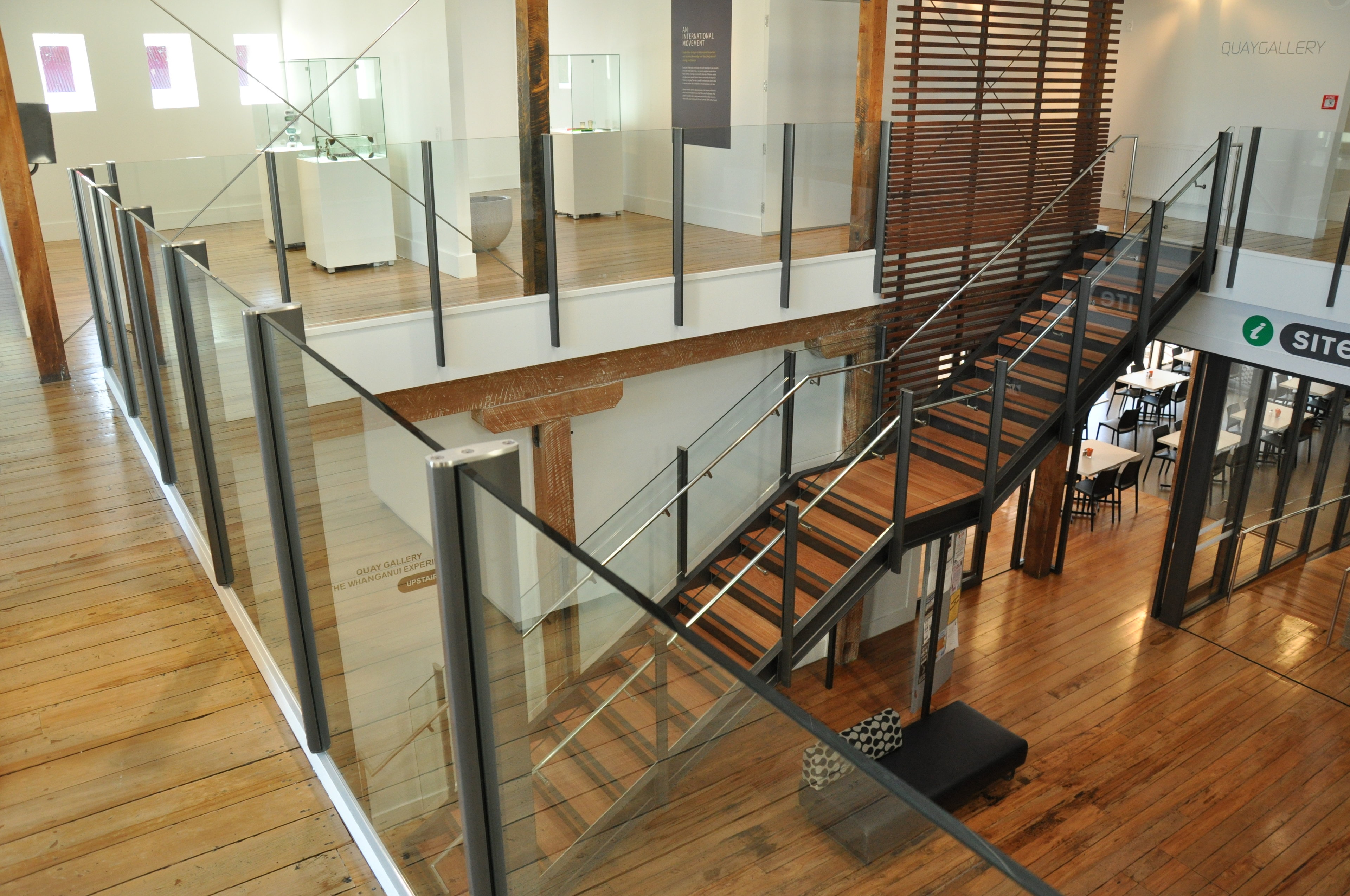

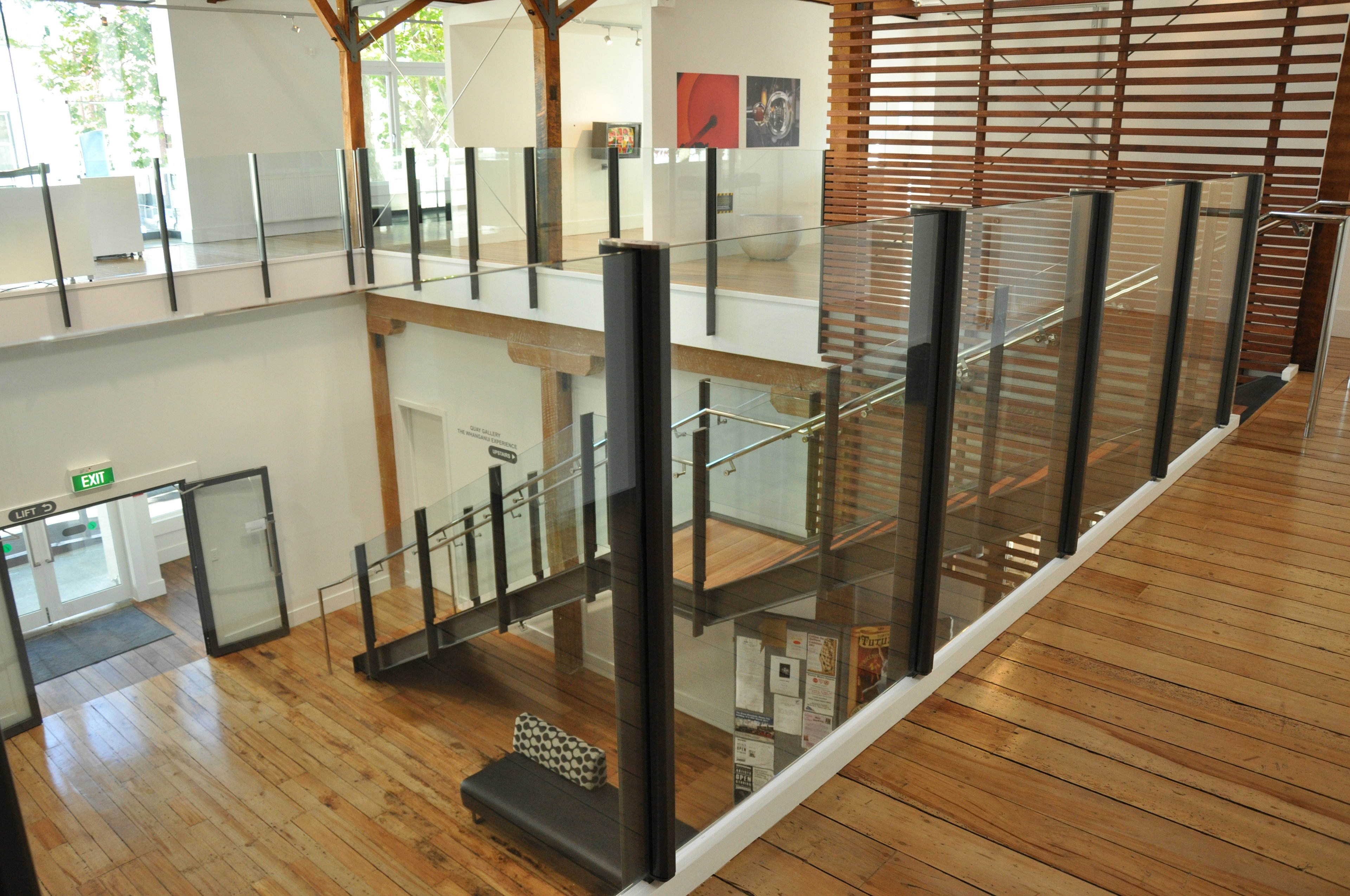

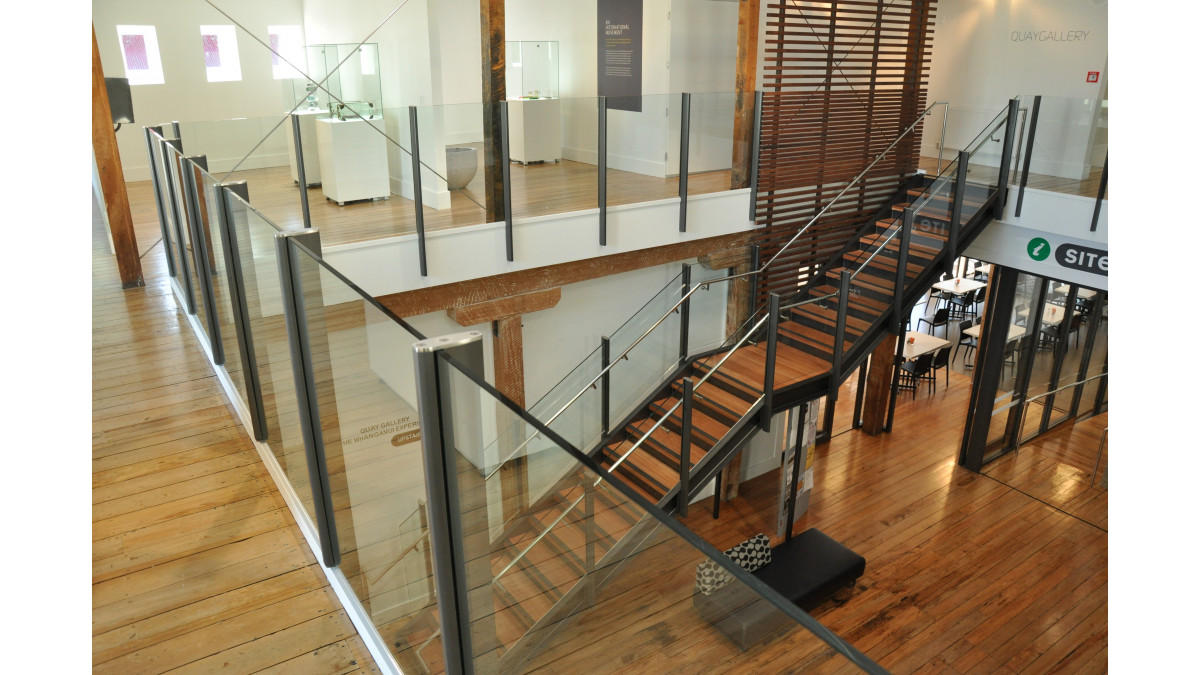

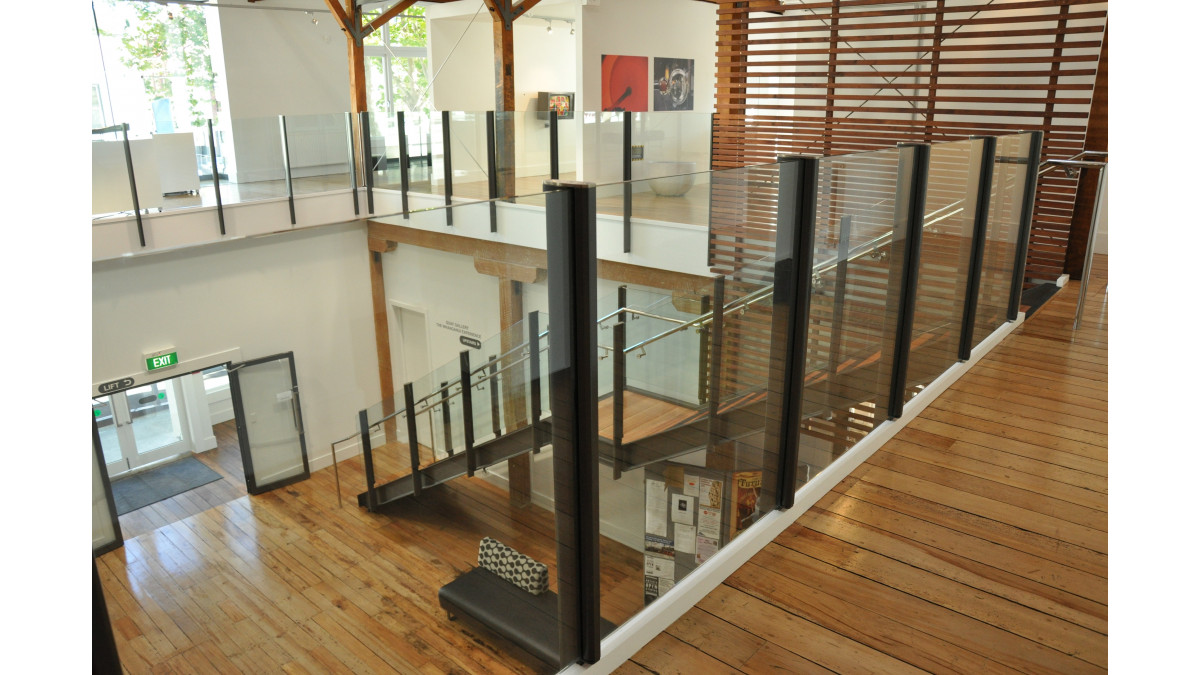

 - Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors



MILANO can be attached to the following substrates;

 - Concrete

 - Timber

 - Steel



MILANO complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

SAFE: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems;

 1) Squareline

 2) Roundline

 3) Archline

SAFER: Viridian's toughened EVA laminated safety glass.

SAFEST: Viridian's toughened SENTRYGLAS® laminated safety glass.





MILANO is Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match your colour scheme.

Statement of Building Code Compliance

Rated to be used up to an extra high wind zone (2.13Kpa or less)



This proprietary balustrade system complies with New Zealand Building Code Clauses;

 B1 - Structure and B1/VM1

 B2 - Durability

 F2 - Hazardous Building Materials

 F4 - Safety from Falling

 D1 - Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)



Based on barrier loads taken from AS/NZS1170.0 MILANO can be used for Commercial Occupancy Types;

C1 & C2 - Areas with tables or fixed seating.

Areas with fixed seating adjacent to a balustrade, restaurant, bars etc.

D - Retails areas.

All retail areas including public areas of bank/building societies, (see C5 for areas where overcrowding may occur).

Taken from table 3.3 AS/NZS1170.1



Glass height from the finished floor level are between 1100mm and 1900mm depending on post fixing centres, using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

 - 15mm toughened safety glass with interlinking rail.

 - 17.2mm toughened laminated safety glass.



 - 17.52mm toughened SENTRYGLAS® laminated safety glass  (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)

Documents
Balustrade - Milano Europost commercial occupancy C1,C2, D 27-7-16
Occupancy Table AS/NZS 1170
Euroglass — Request for balustrade PS1 v4
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass
Hardware

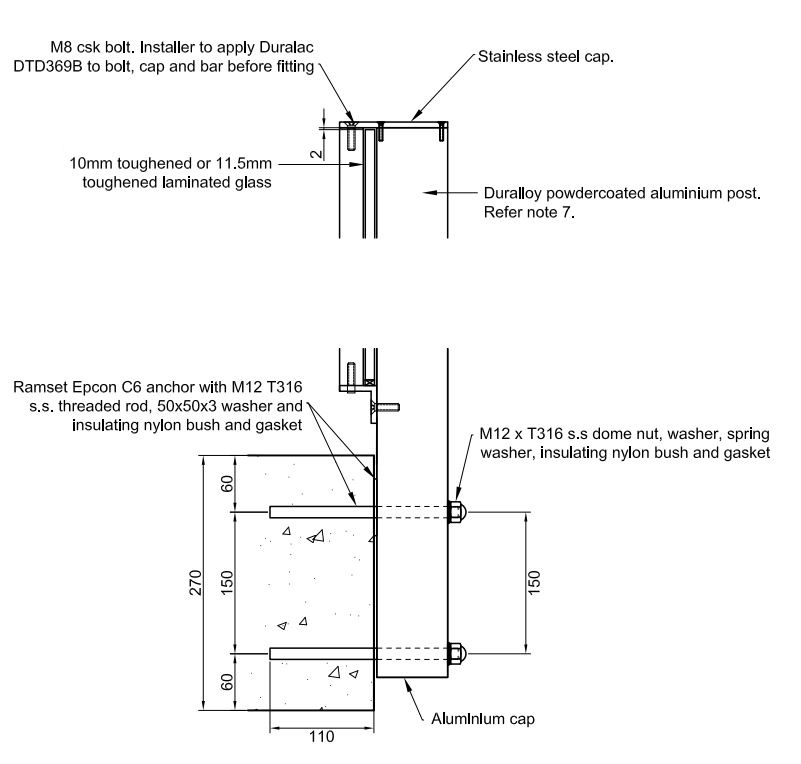

CAD/PDF Details
Milano commercial C1,C2 and D for specifier
