Milano Posts for Commercial Occupancy Types B,E,C3
Description

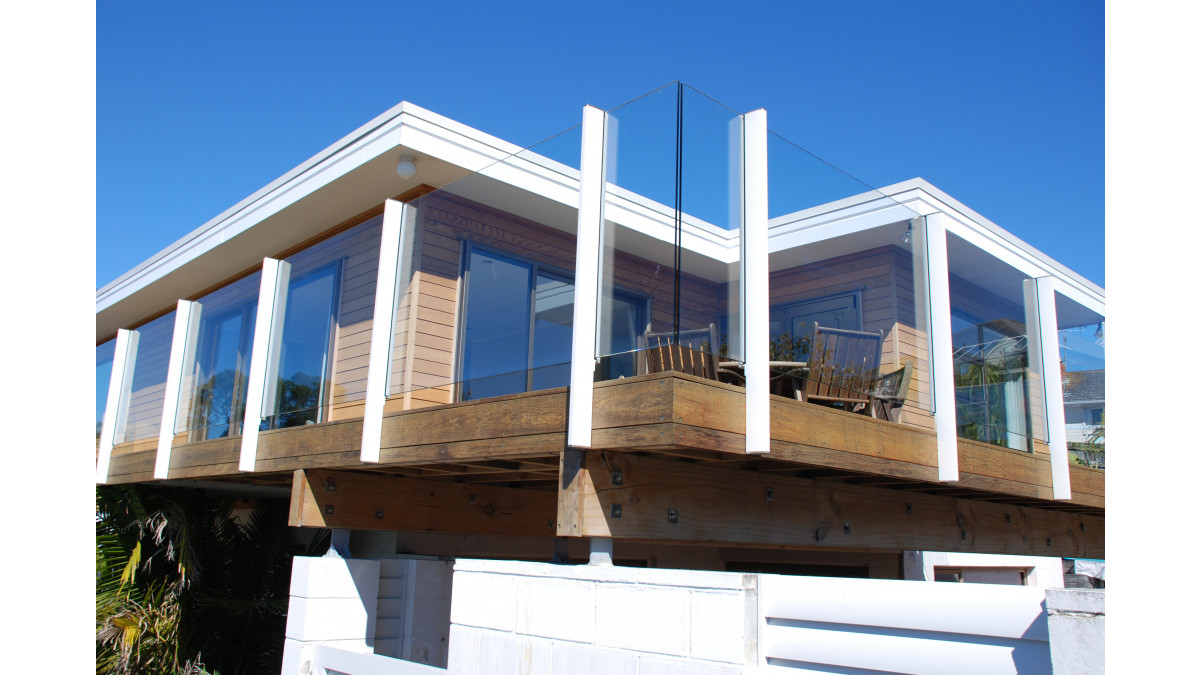

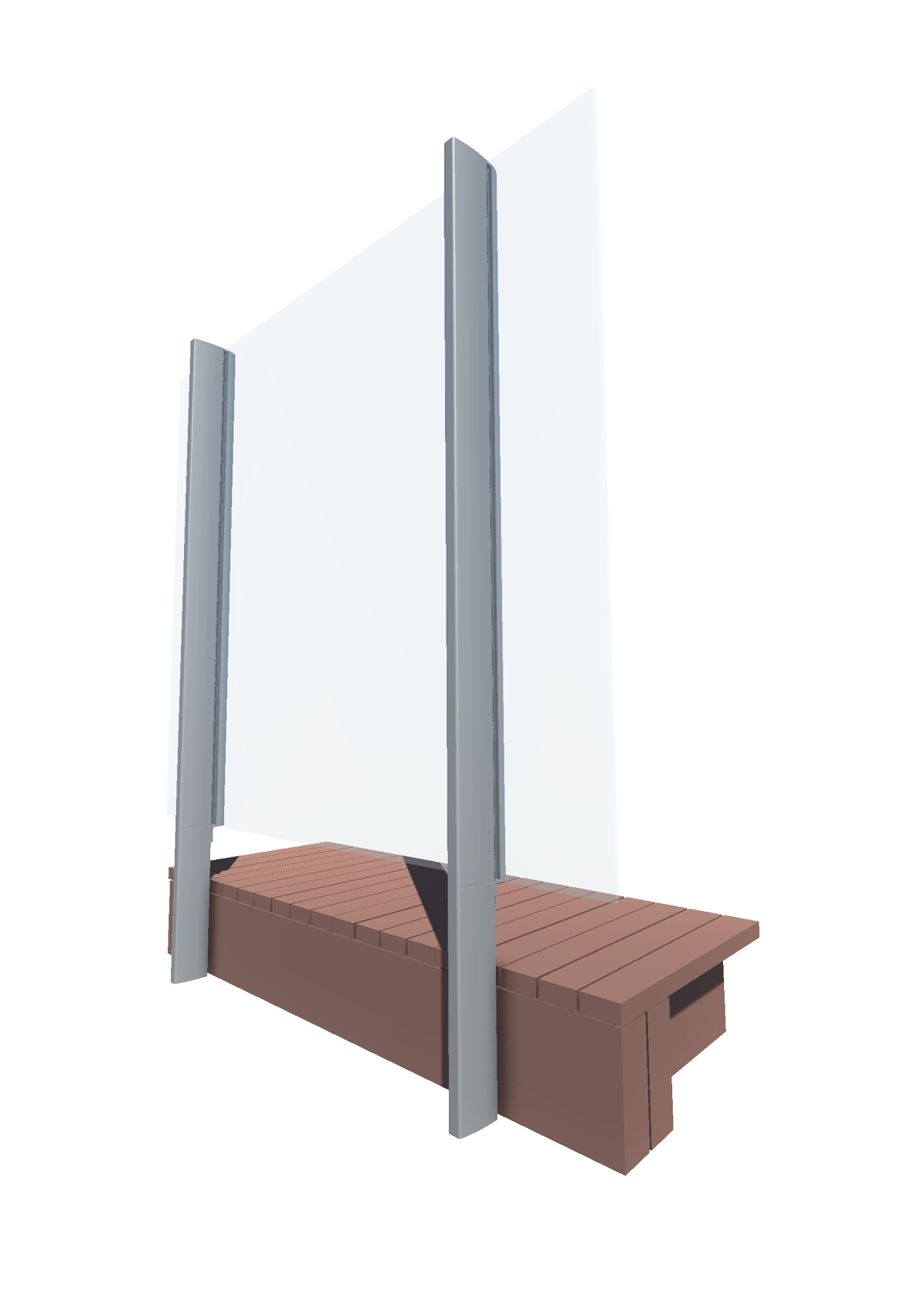

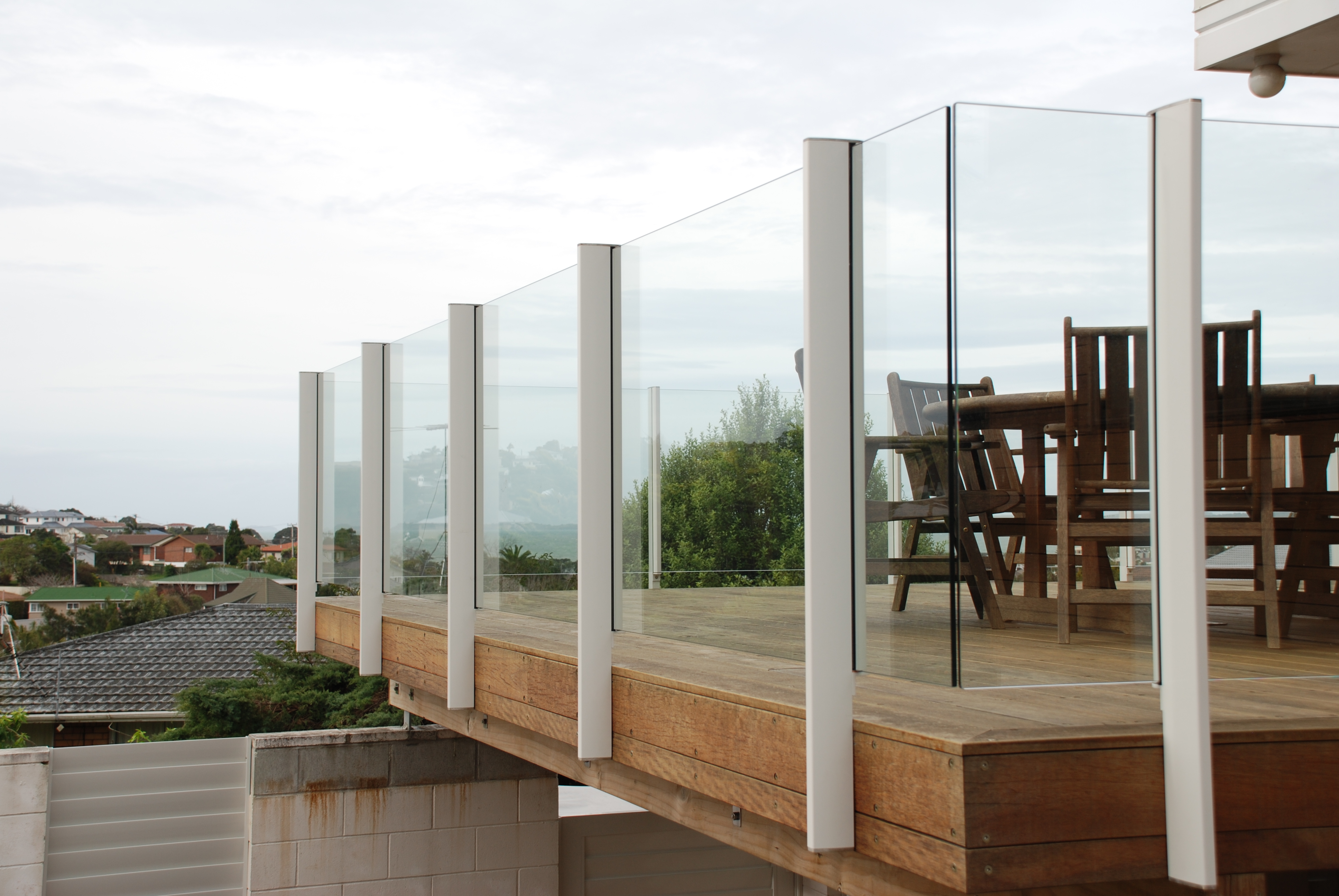

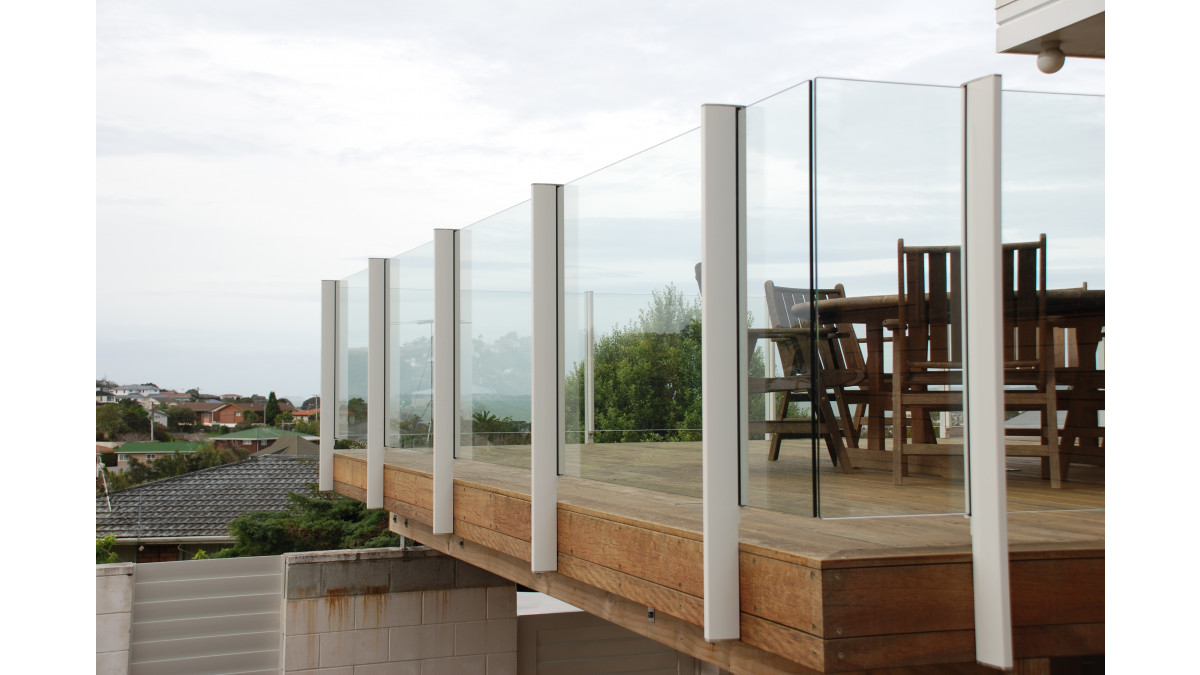

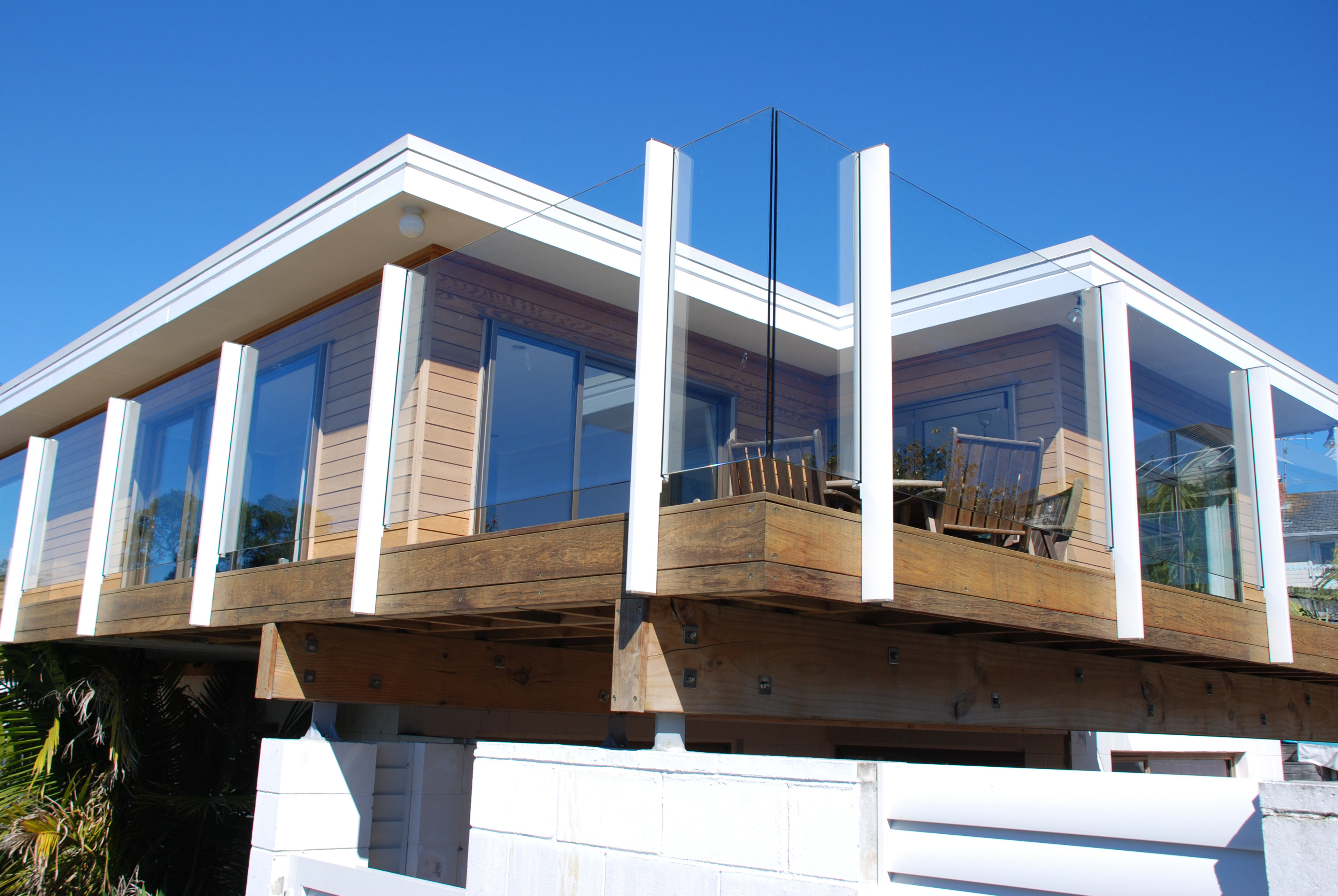

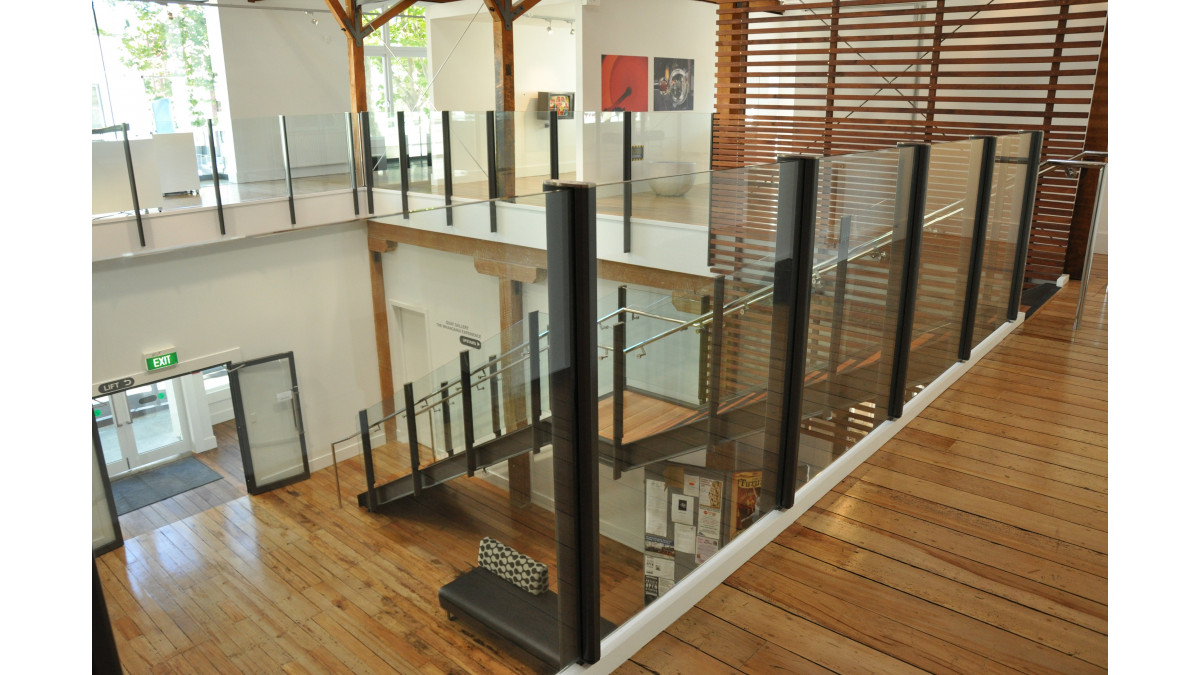

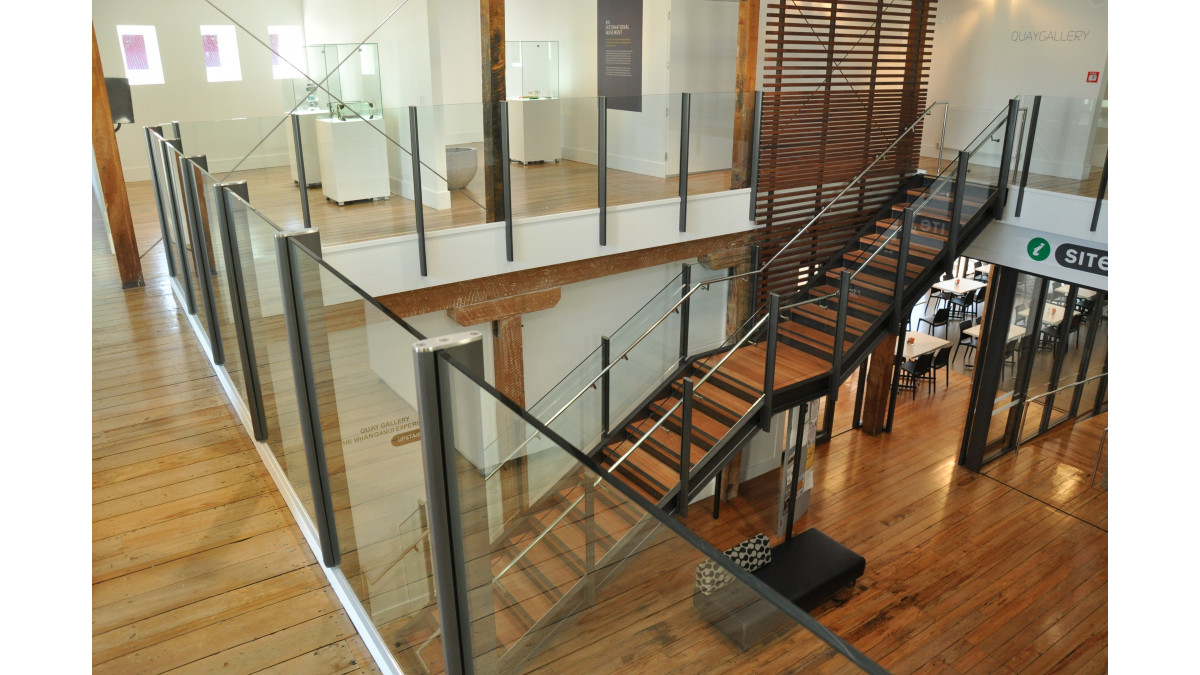

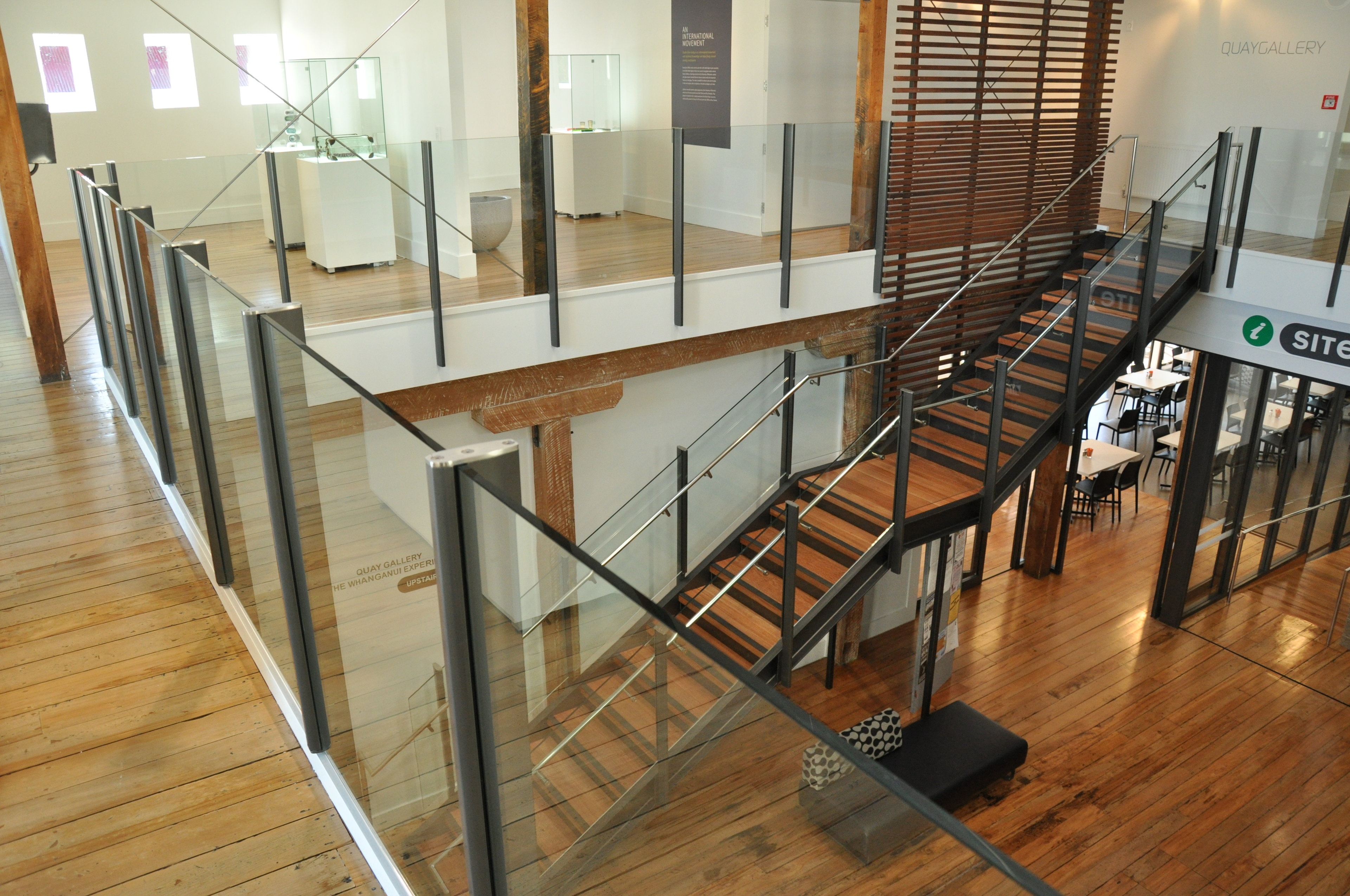

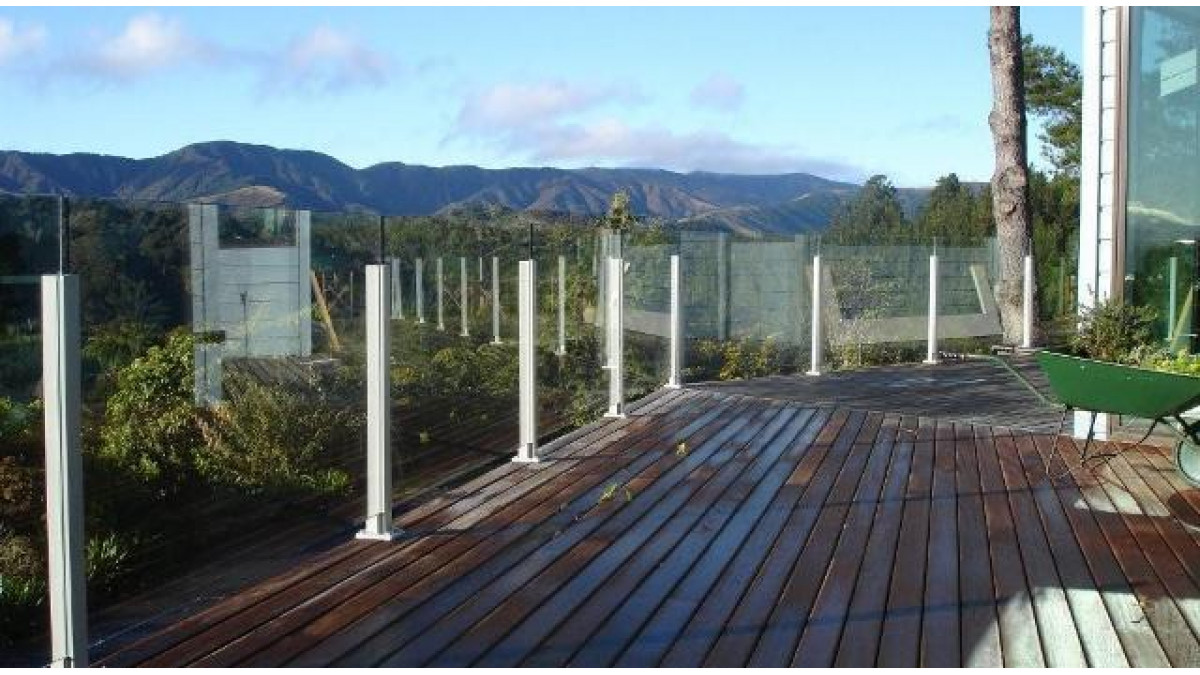

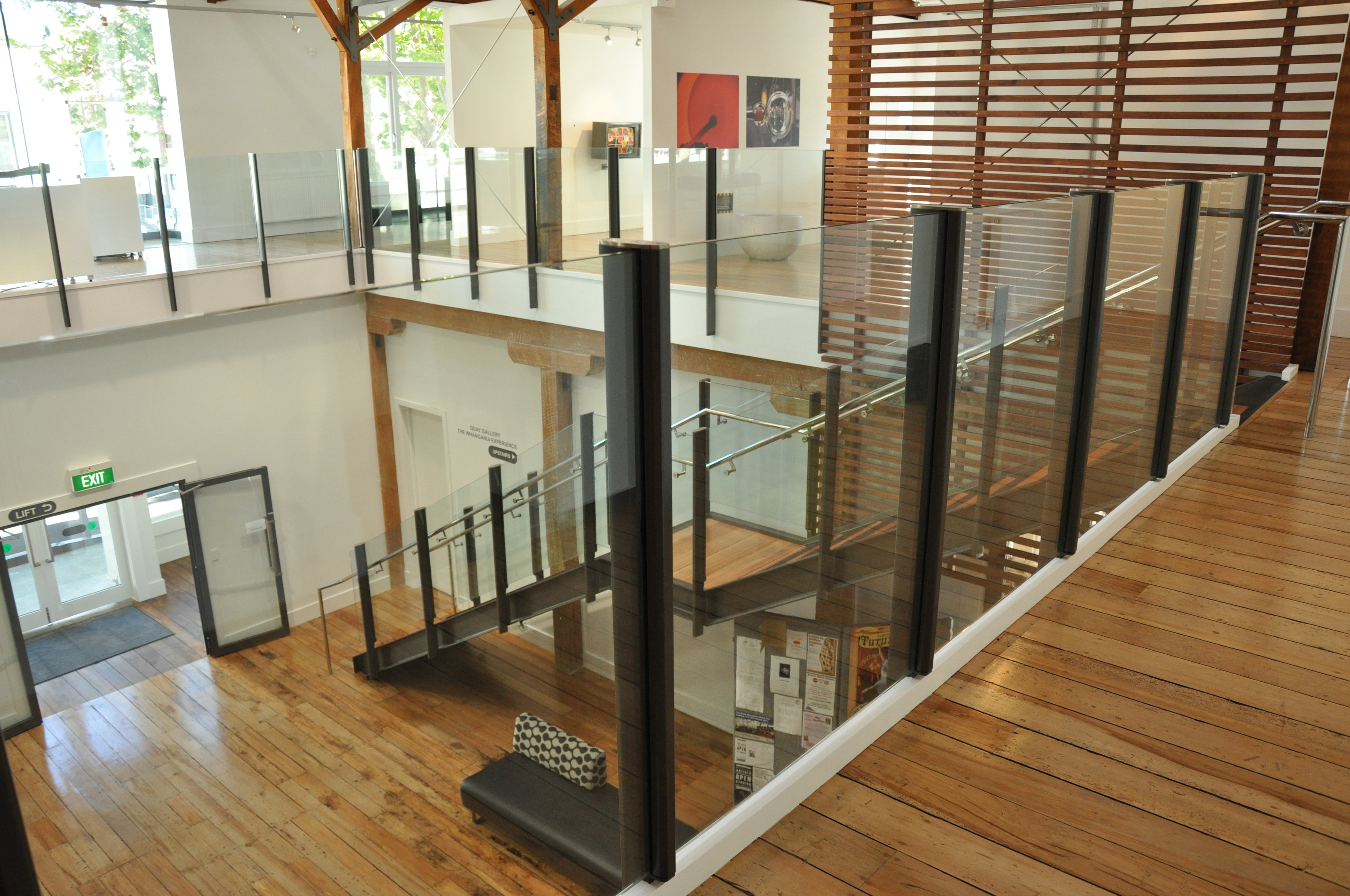

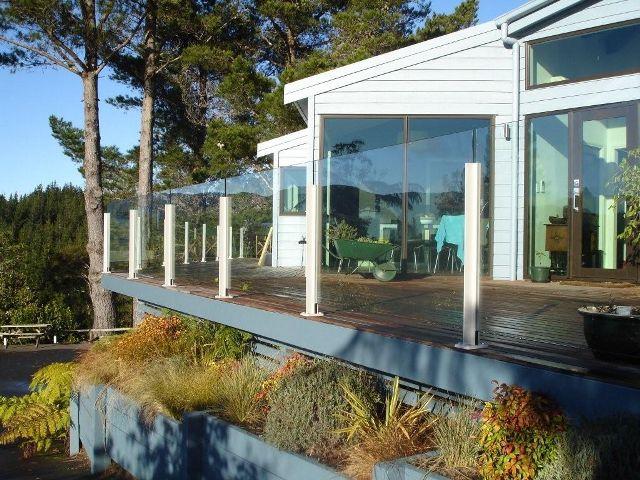

Milano is a frameless full height post system where the top and bottom edges of the glass are exposed.

Unlike other residential glass post systems, Milano posts are fixed every 1650mm apart which reduces the amount posts required across the deck. A Euroglass MILANO system also doesn't need any corner posts. The glass corners neatly butt together to create a seamless look.

Key Features

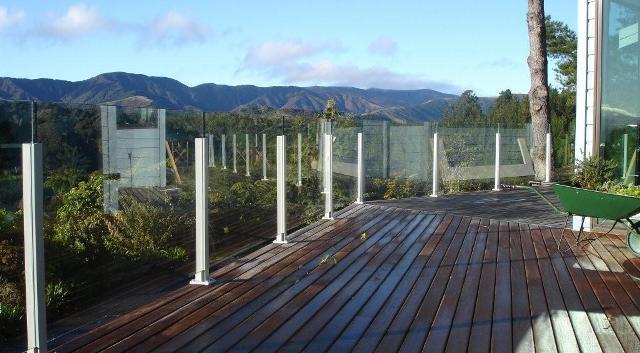

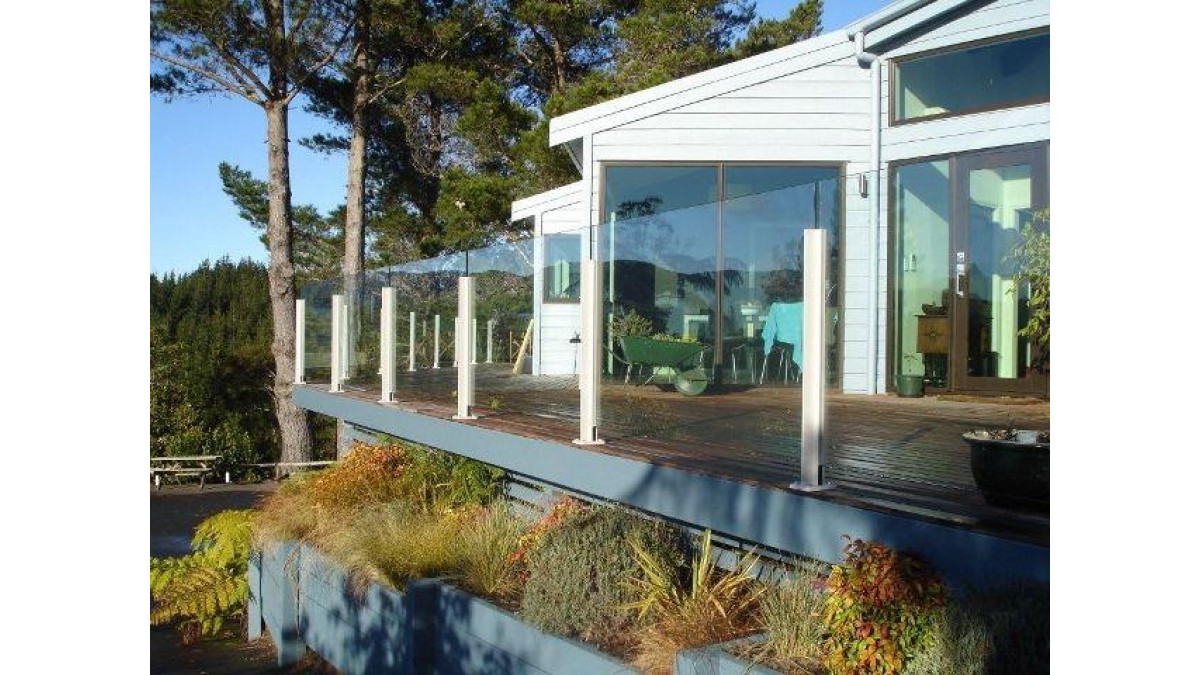

  • Posts can be face or floor mounted
  • Maximum spacing between the posts is 1650mm
  • No need for corner posts, the glass can span horizontally through the end post. The maximum overhang of glass is 500mm
  • No holes or notches are required. The glass is clamped to the post
  • Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match the colour scheme
Scope of Use
  • Rated to be used up to an Extra High Wind Zone (2.13Kpa or less)
  • Maximum spacing between the posts is 1650mm
  • No need for corner posts, the glass can span horizontally through the end post. The maximum overhang of glass is 500mm

Milano is designed to be used as;

  • Balustrades for External Decks and Stairwells
  • Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors

Milano can be attached to the following substrates:

  • Concrete
  • Timber

Based on barrier loads taken from AS/NZS1170.0 Milano can be used for Commercial Occupancy Types;

  • B & E: Office and work areas not included elsewhere including storage areas:
    Areas not susceptible to overcrowding in office and institutional buildings also industrial and storage buildings. Light access stairs and gangways not more than 600mm wide. Fixed platforms, walkways, stairways and ladders for access
  • C3: Areas without obstacles for moving people and not susceptible to overcrowding:
    Stairs, landings, external balconies, edges of roofs

Taken from table 3.3 AS/NZS1170.1.1

Limitations on Use

Maximum glass height from the finished floor level is 1100mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are:

  • 10mm toughened safety glass with interlinking rail
  • 11.2mm toughened laminated safety glass
  • 11.52mm toughened SENTRYGLAS laminated safety glass
Statement of Building Code Compliance

This proprietary balustrade system complies with New Zealand Building Code Clauses;

  • B1: Structure and B1/VM1
  • B2: Durability
  • F2: Hazardous Building Materials
  • F4: Safety from Falling
  • D1: Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)

Milano complies with the NZBC and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

  • Safe: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems:
    • 1) Squareline
    • 2) Roundline
    • 3) Archline
  • Safer: Viridian's toughened EVA laminated safety glass
  • Safest: Viridian's toughened SENTRYGLAS laminated safety glass
Other Performance Attributes
  • Anotec powder coated with a 10 year warranty
  • SENTRYGLAS is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016
Documents
Balustrade Milano Europost Commercial B,E and C3

27-2-16

Occupancy Table AS/NZS 1170
Selection of Top-Capped Interlinking Rails to NZS 4223.3

2016 version 3

Euroglass — Request for balustrade PS1 v4
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass
Hardware

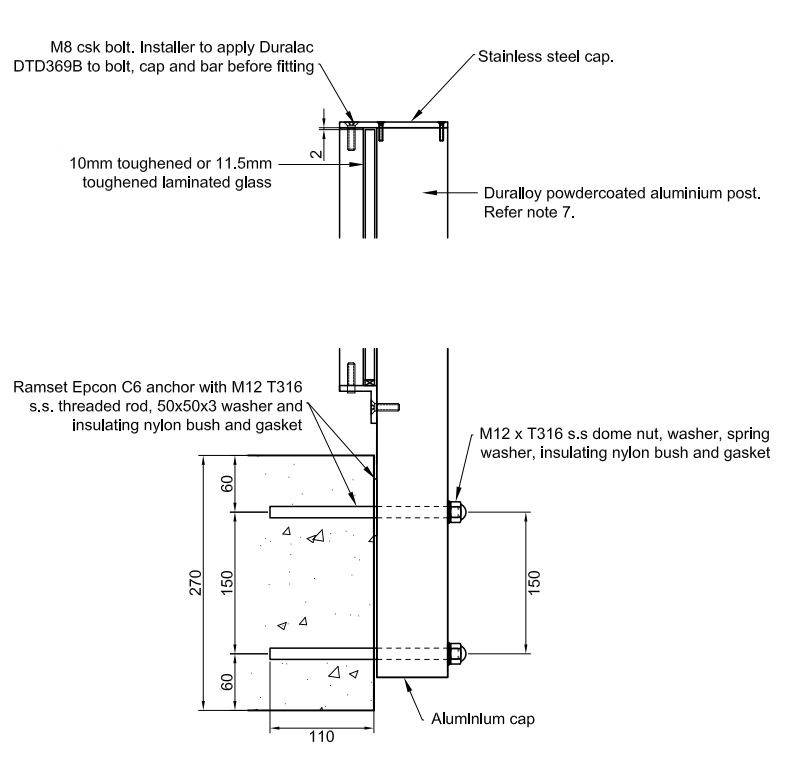

CAD/PDF Details
Milano commercial for specifier
