Anzio: Residential Balustrade (Max height 1100mm)
Description

ANZIO is the latest innovation on frameless glass barrier design.

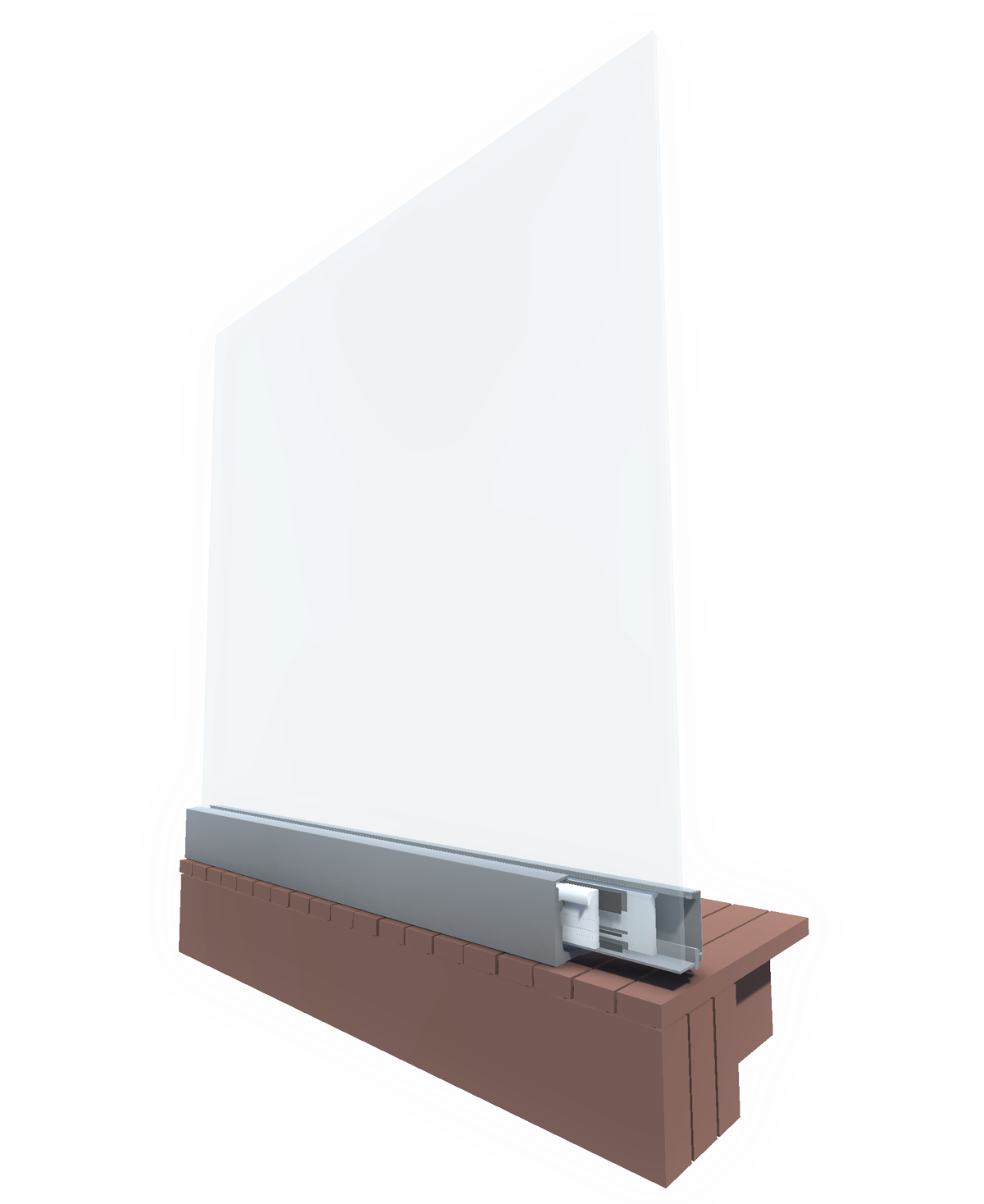

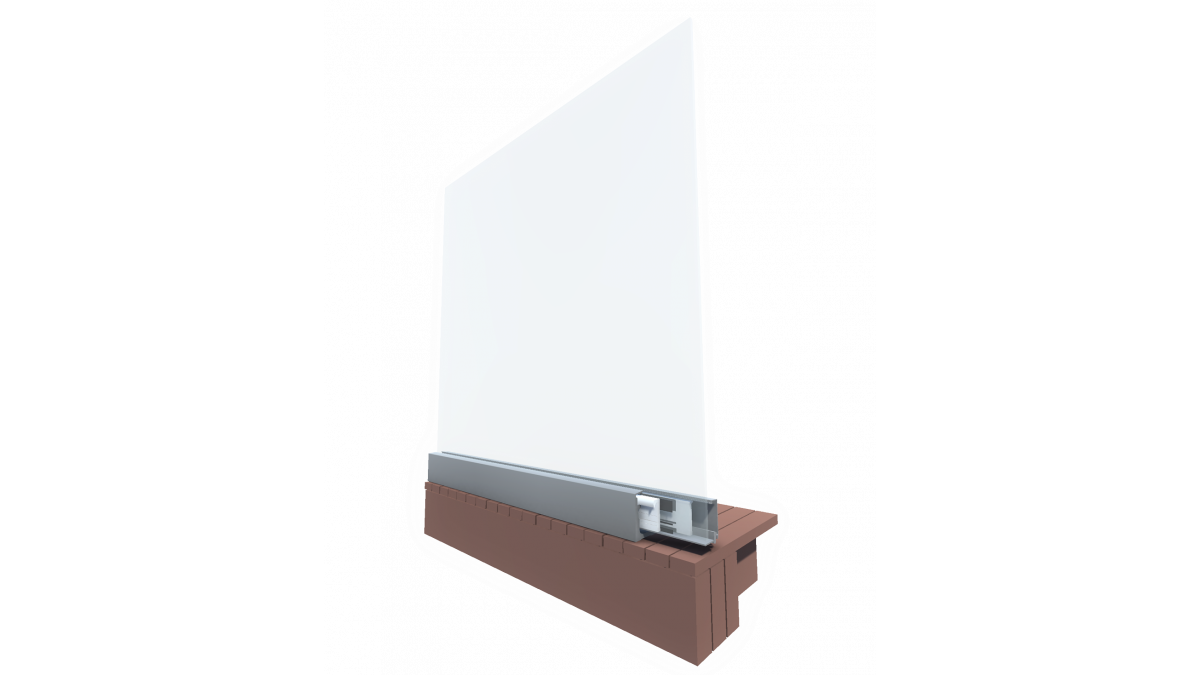

ANZIO is a floor mounted cantilevered frameless glass barrier system.

Key Features
  • No need for scaffolding. ANZIO is easily installed from the deck without the need for ladders or scaffolding
  • Quick to install and easy to adjust. Fastest floor mounted system we have designed to date
  • Architecturally designed with square edges. The square shaped profile allows for flooring to be easily butted up against ANZIO for a tidy seamless look
Scope of Use

ANZIO is designed to be used as:

  • Balustrades for External Decks and Stairwells
  • Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors

ANZIO can be attached to the following substrates:

  • Concrete
  • Timber
  • Steel

Rated to be used up to a Extra High Wind Zone (2.13Kpa or less)

ANZIO complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

  • Safe: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems;
    1) Squareline
    2) Roundline
    3) Archline
  • Safer: Viridian's toughened EVA laminated safety glass and Euroglass gap clamps
  • Safest: Viridian's toughened SENTRYGLAS laminated safety glass and Euroglass gap clamps.  SENTRYGLAS incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier.





ANZIO is Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match your colour scheme.

Statement of Building Code Compliance

This proprietary balustrade system complies with New Zealand Building Code Clauses:

  •  B1 Structure and B1/VM1
  •  B2 Durability
  •  F2 Hazardous Building Materials
  •  F4 Safety from Falling
  •  D1 Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)

Based on barrier loads taken from AS/NZS1170.0 ANZIO can be used for Residential Occupancy Types;

  • A: Domestic and residential activities
    All areas within or serving exclusively one dwelling including stairs, landings etc. but excluding external balconies and edges of roofs (see C3)
    Other residential (see also C)

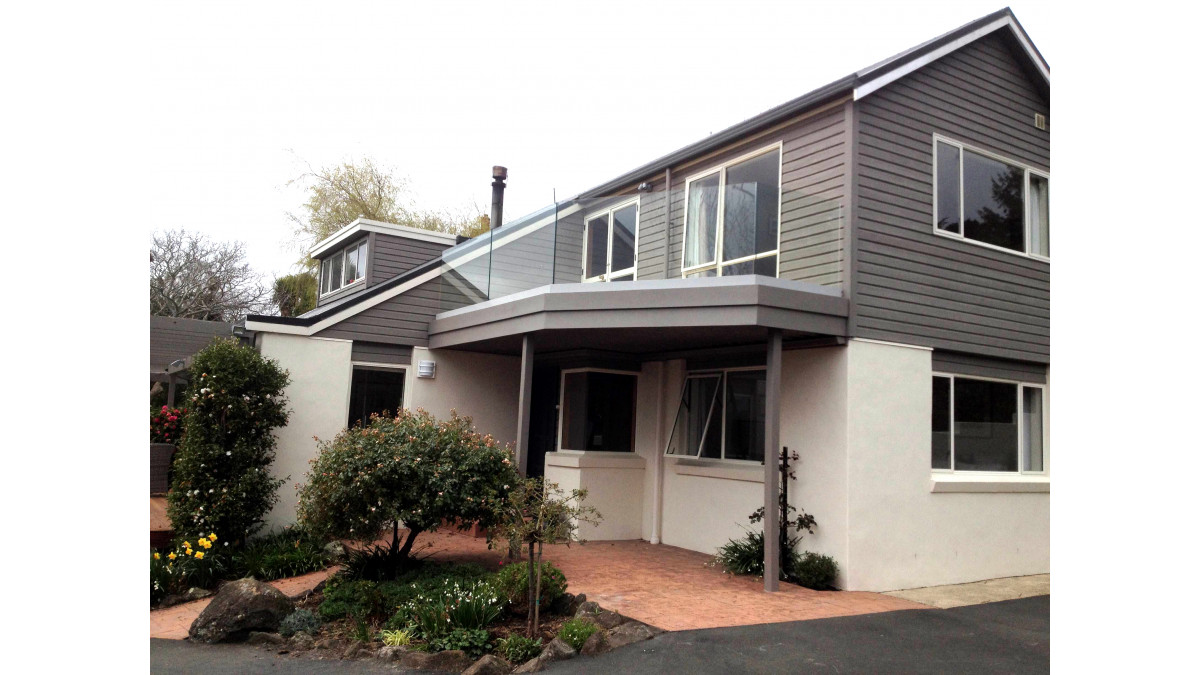

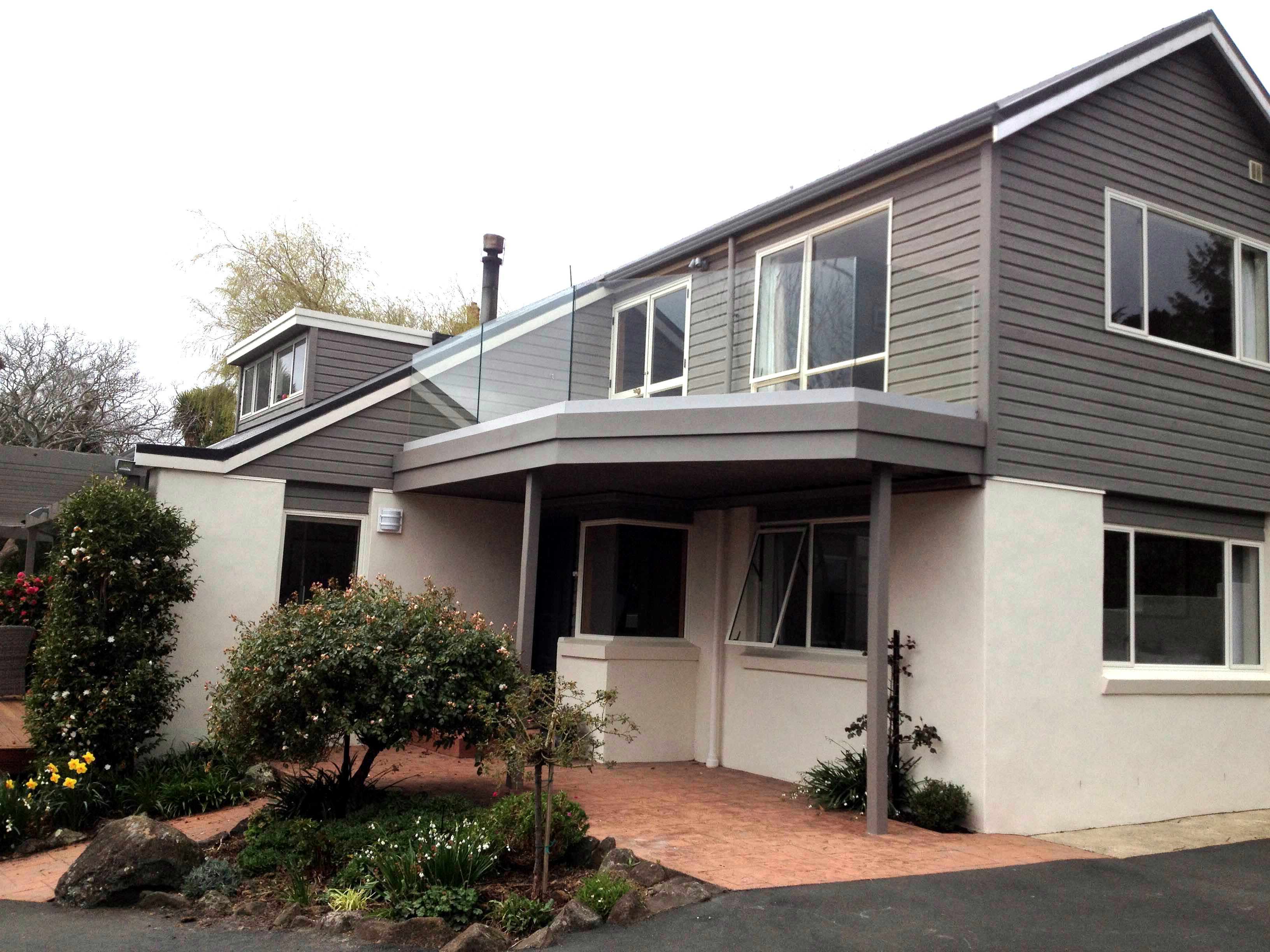

  • C3: Areas without obstacles for moving people and not susceptible to overcrowding
    Stairs, landings, external balconies, edges of roofs

Taken from table 3.3AS/NZS1170.1

Maximum glass height from the finished floor level is 1100mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

  • 12mm toughened safety glass with interlinking rail
  • 13.5mm toughened laminated safety glass with interlinking gap clamps
  • 13.52mm toughened SENTRYGLAS laminated safety glass  (SENTRYGLAS is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)
Documents
Balustrade - Anzio residential balustrade A and C3 12-5-17
Occupancy Table AS/NZS 1170
Selection of Top-Capped Interlinking Rails to NZS 4223.3

2016 version 3

Euroglass - Request for balustrade PS1 v6
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass
Hardware

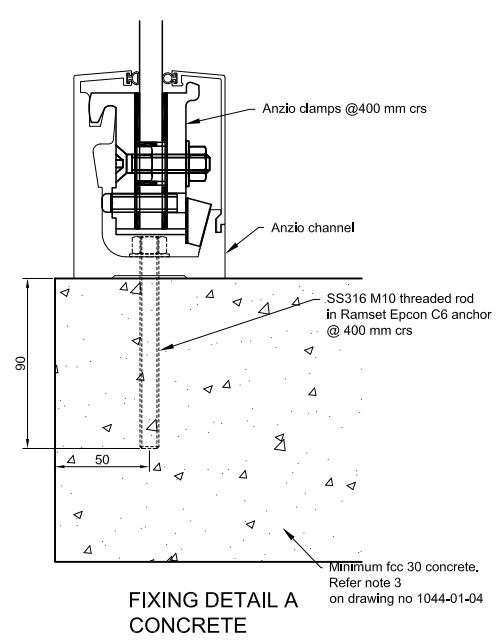

CAD/PDF Details
Anzio for specifier
