Assure Fence and Gate System by Urban Group

Assure Fence and Gate System

Urban Group

All products

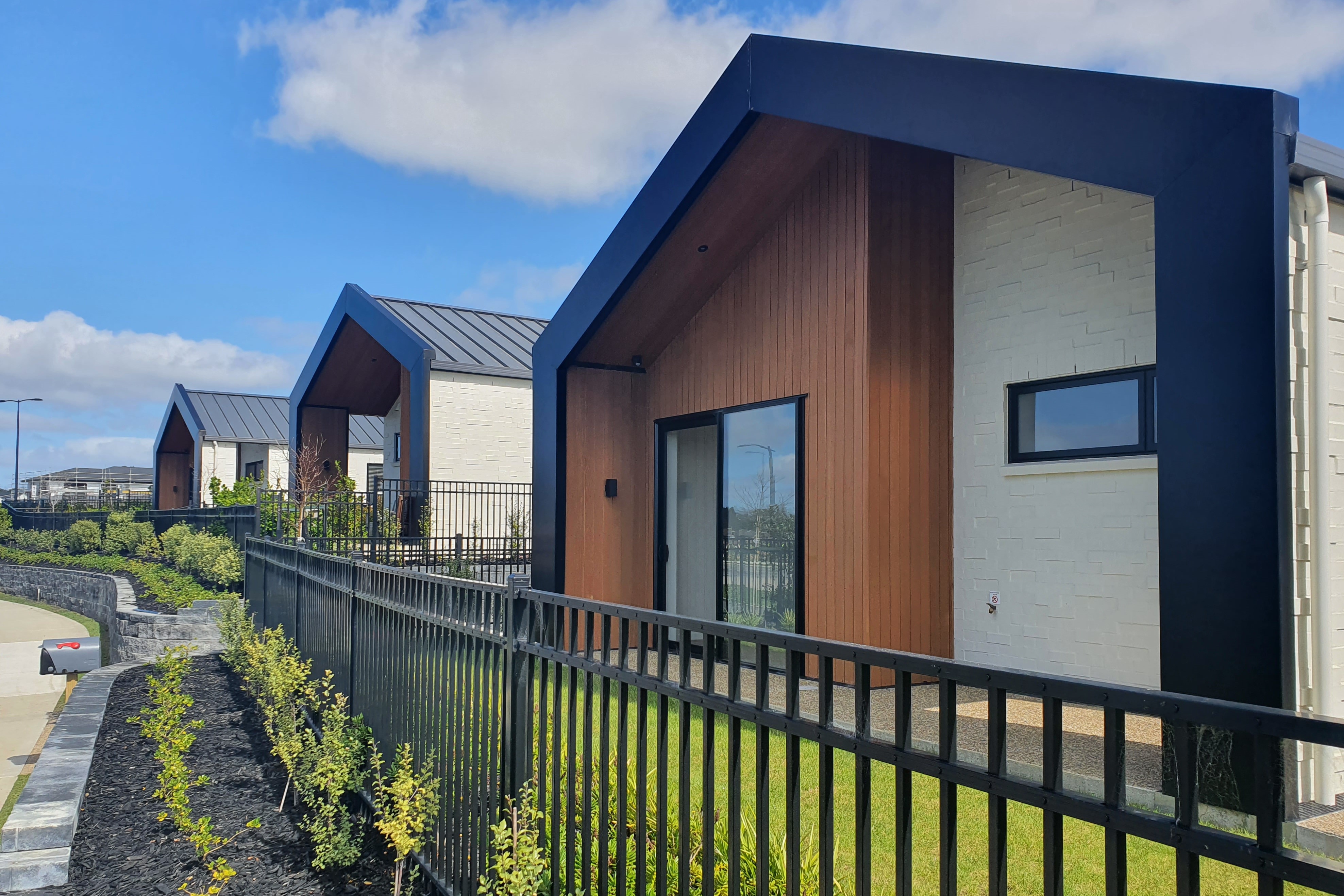

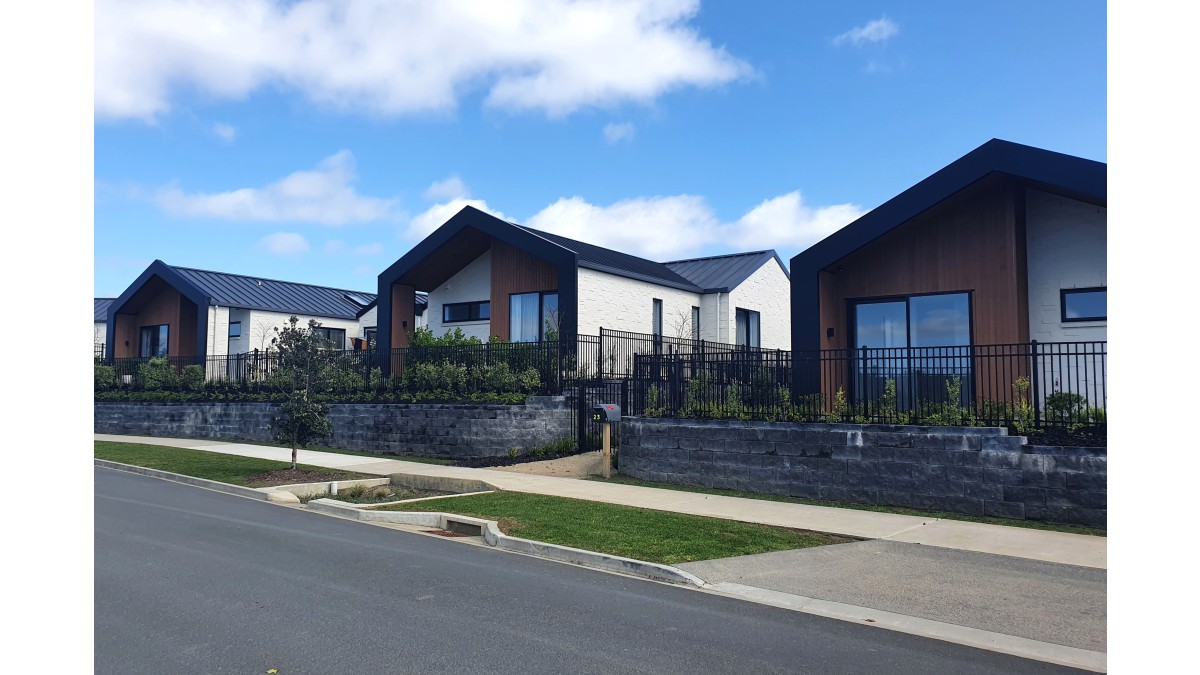

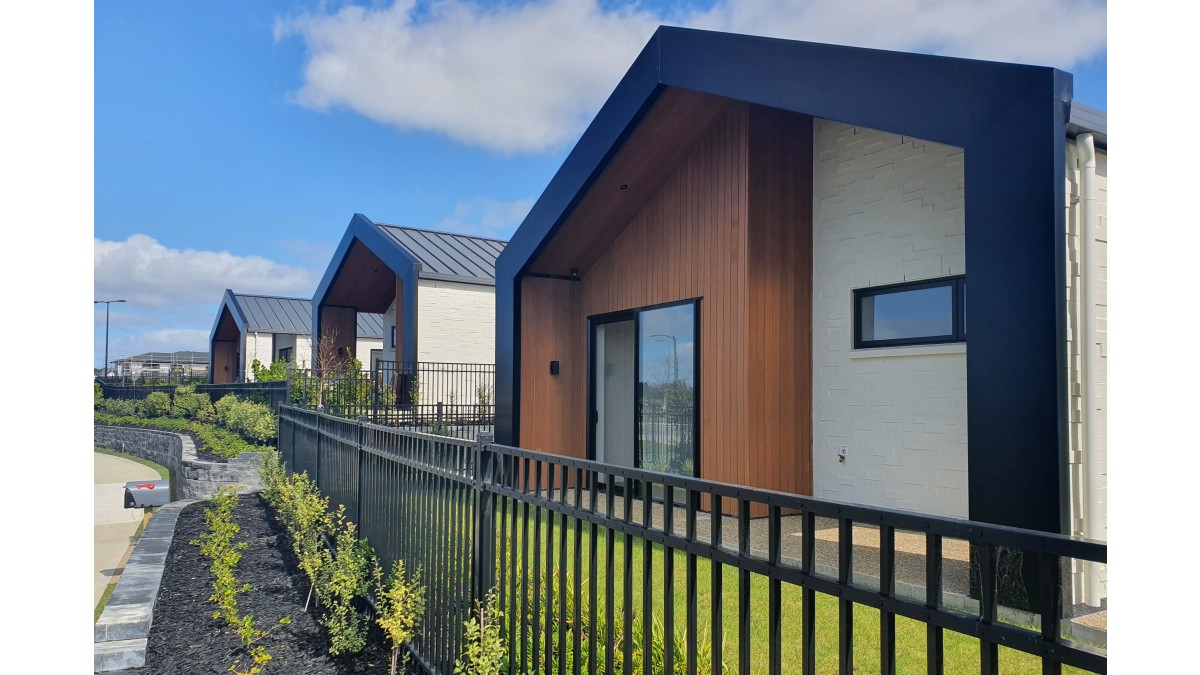

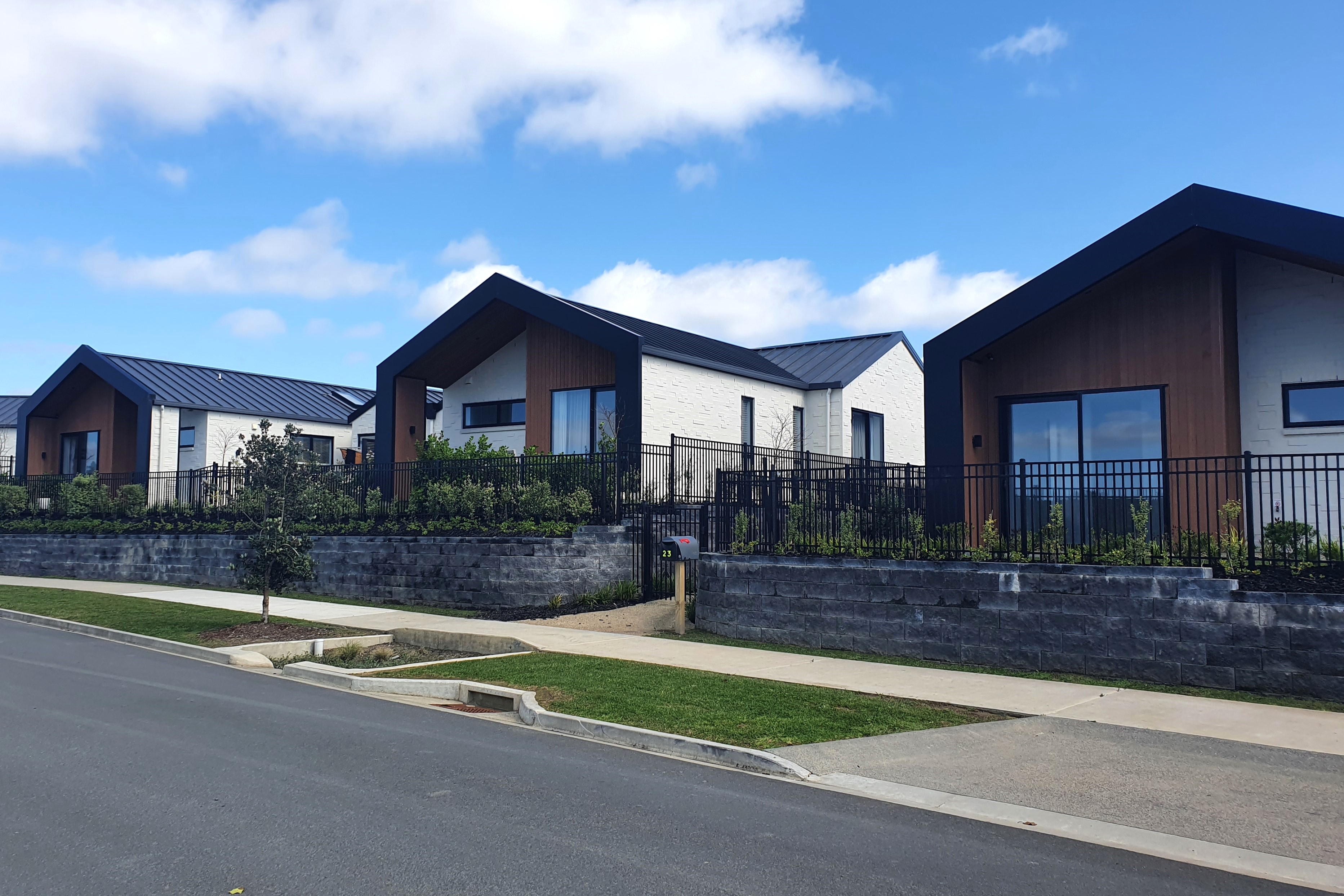

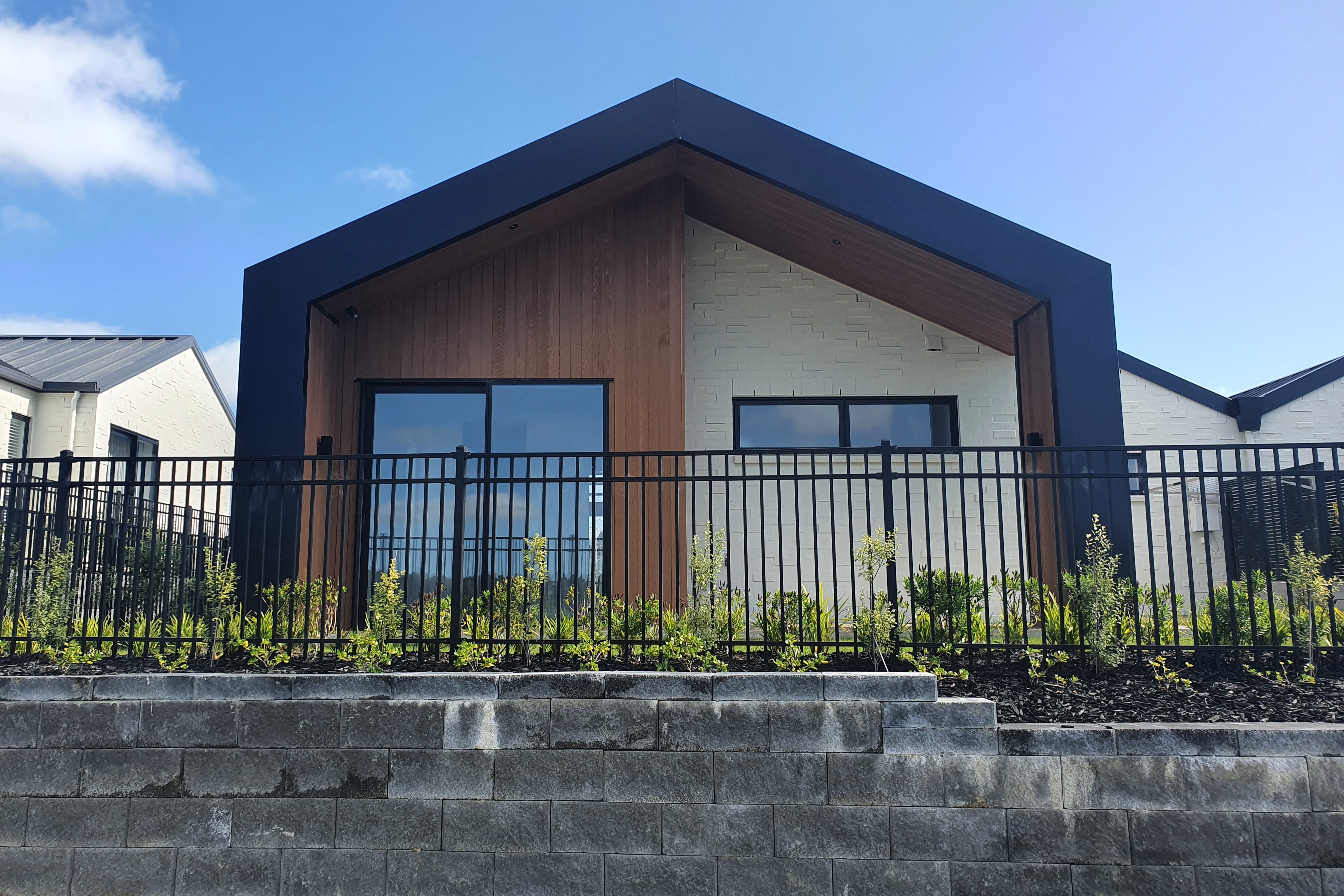

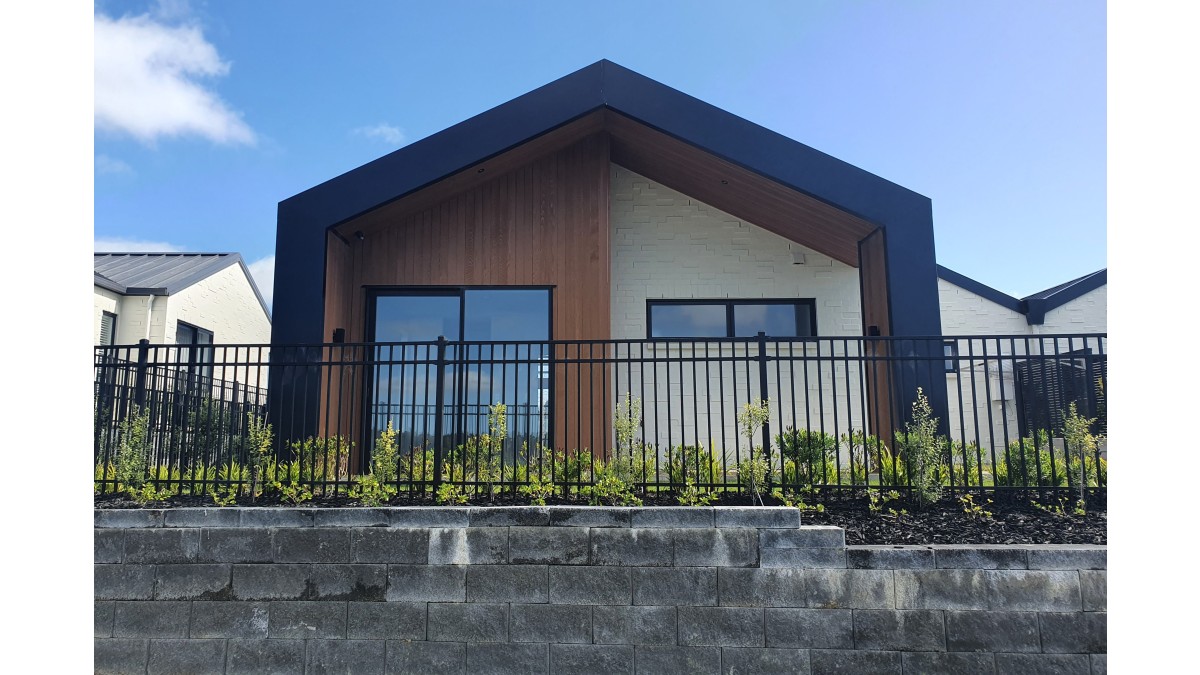

1.2m Assure fence installed at Huapai Country Club, Auckland

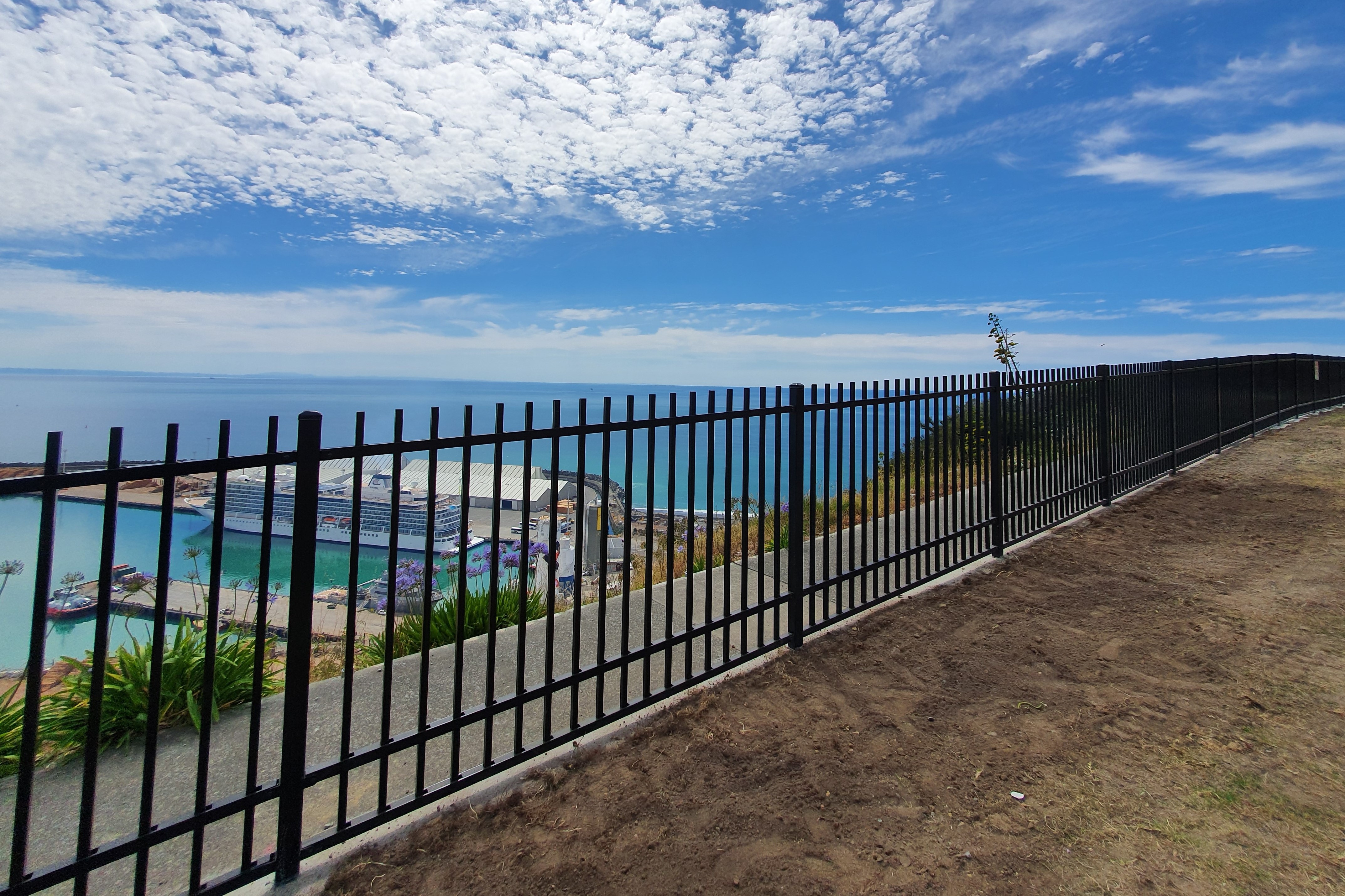

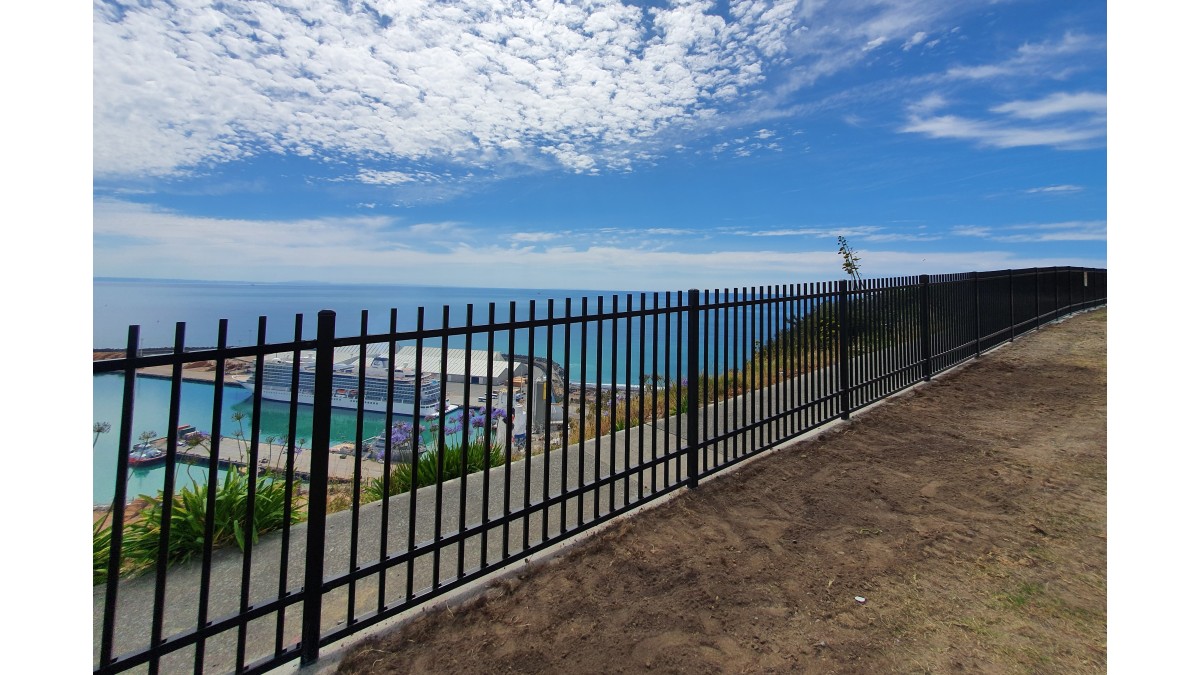

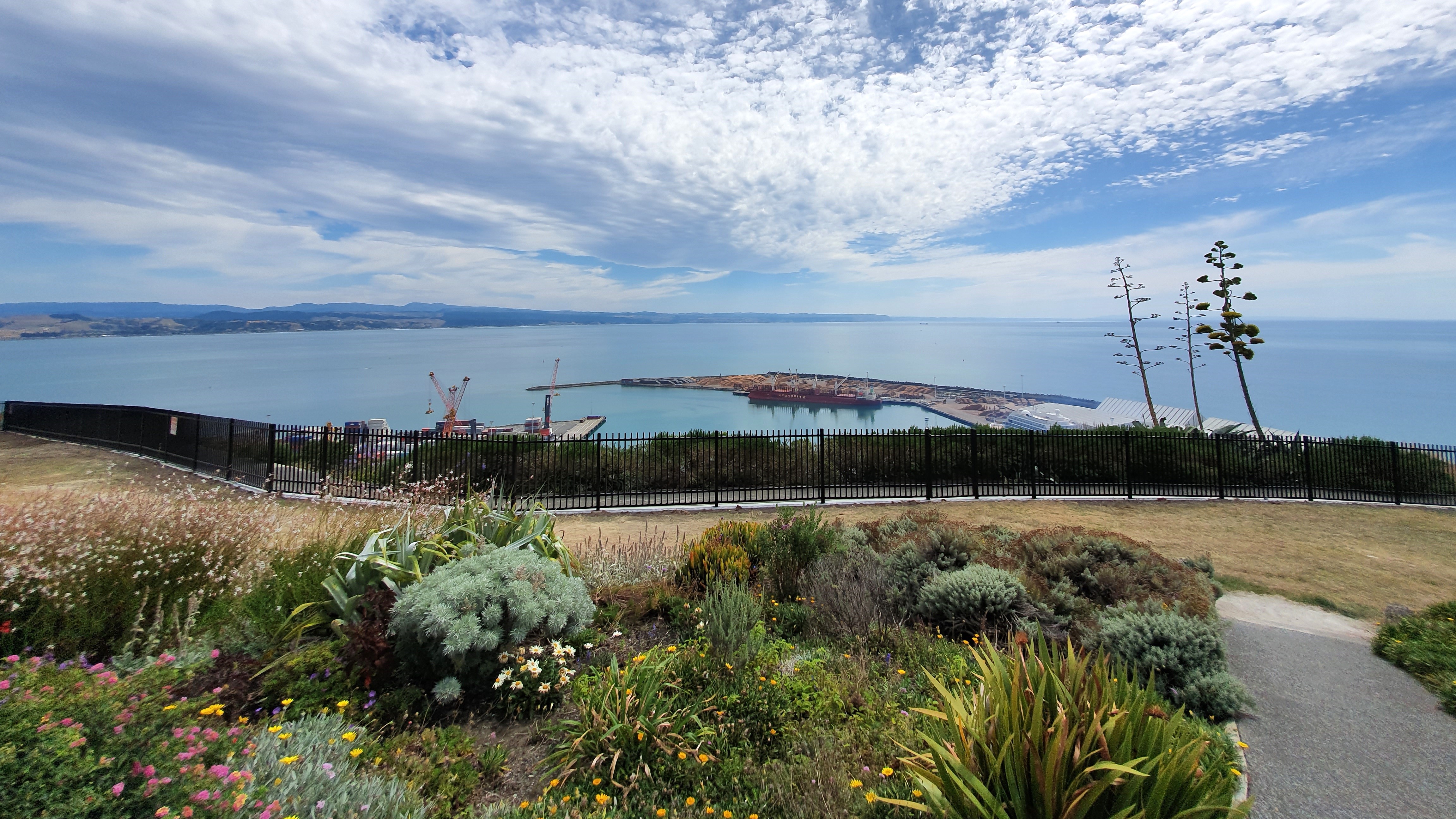

1.2m Assure installed studded-side up at Nelson Port lookout

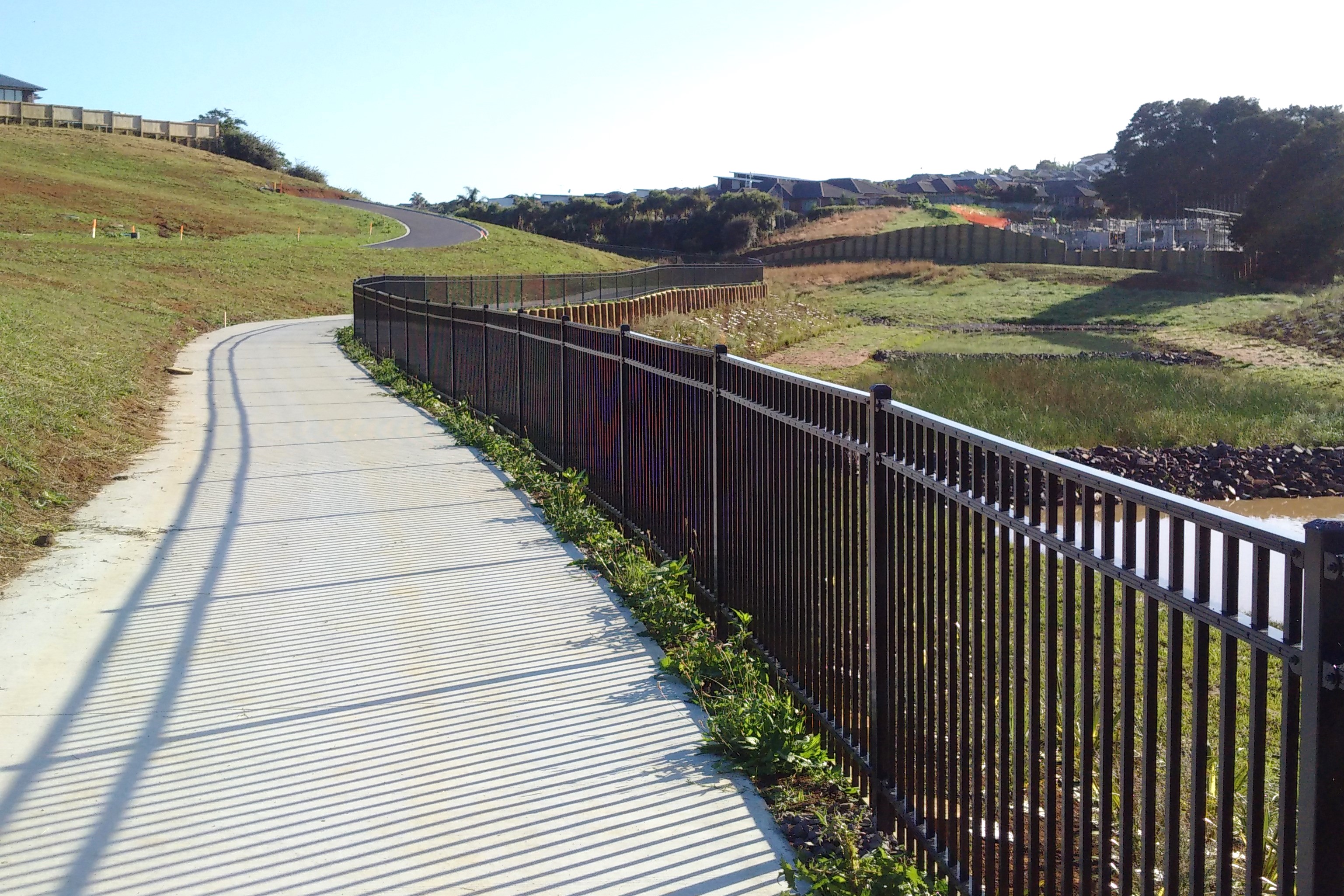

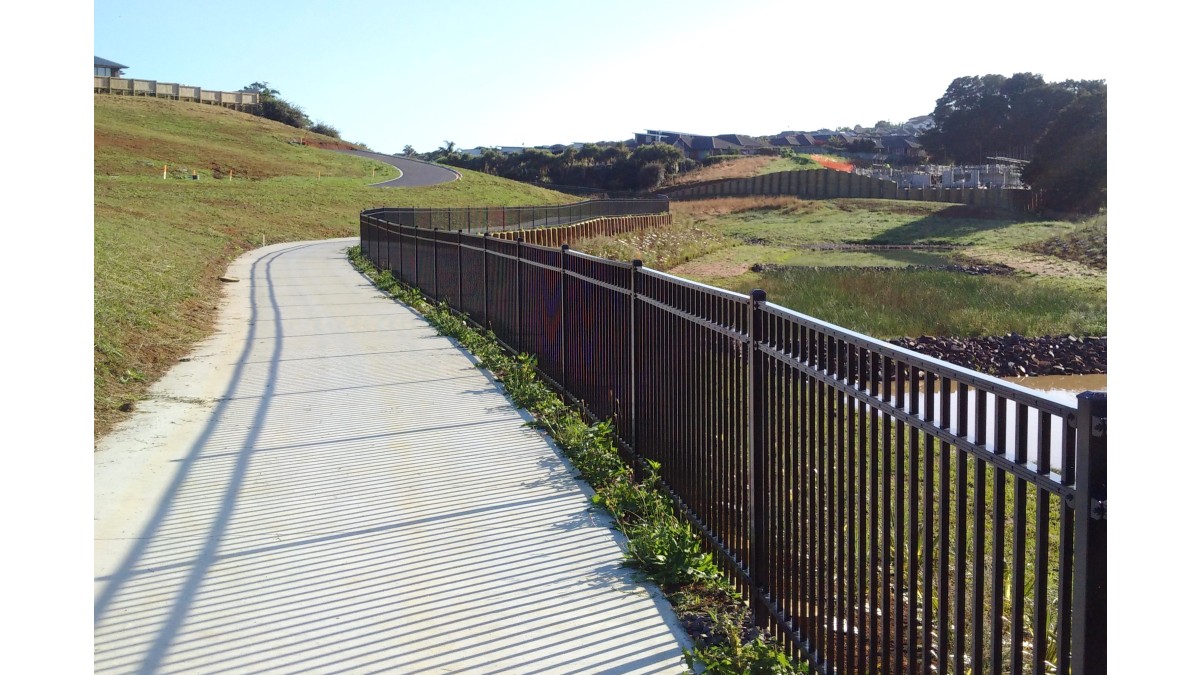

1.2m Assure fence installed at Ryman Pukekohe

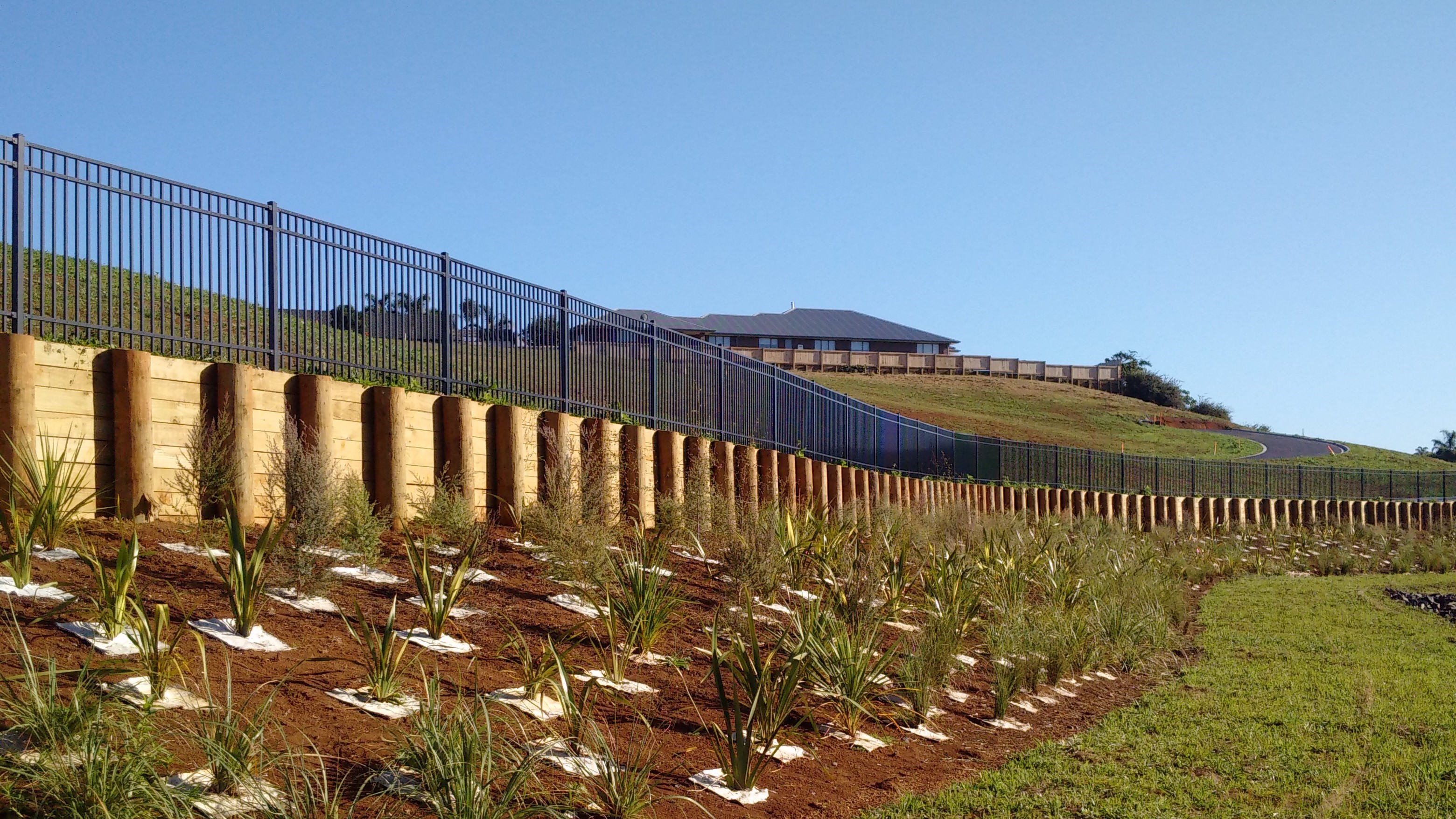

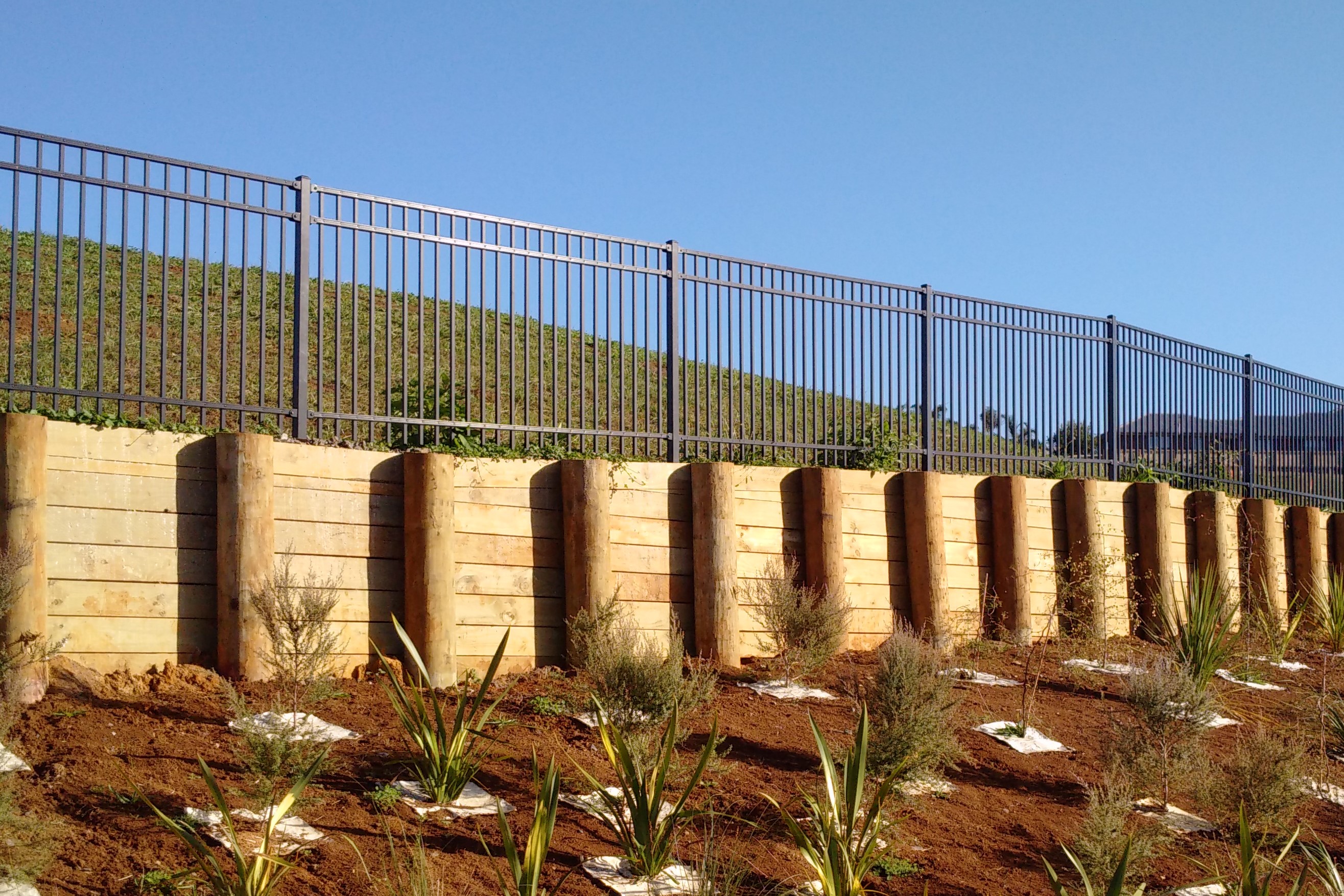

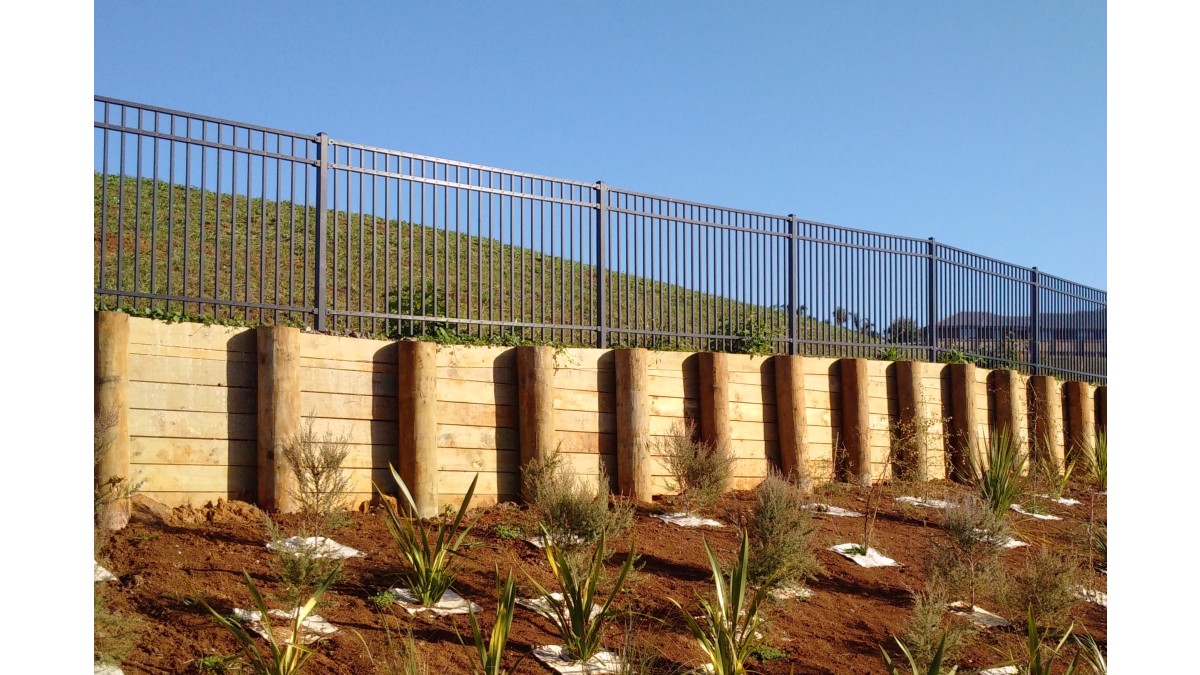

1.2m Assure fence for retaining wall installed at Ryman Pukekohe

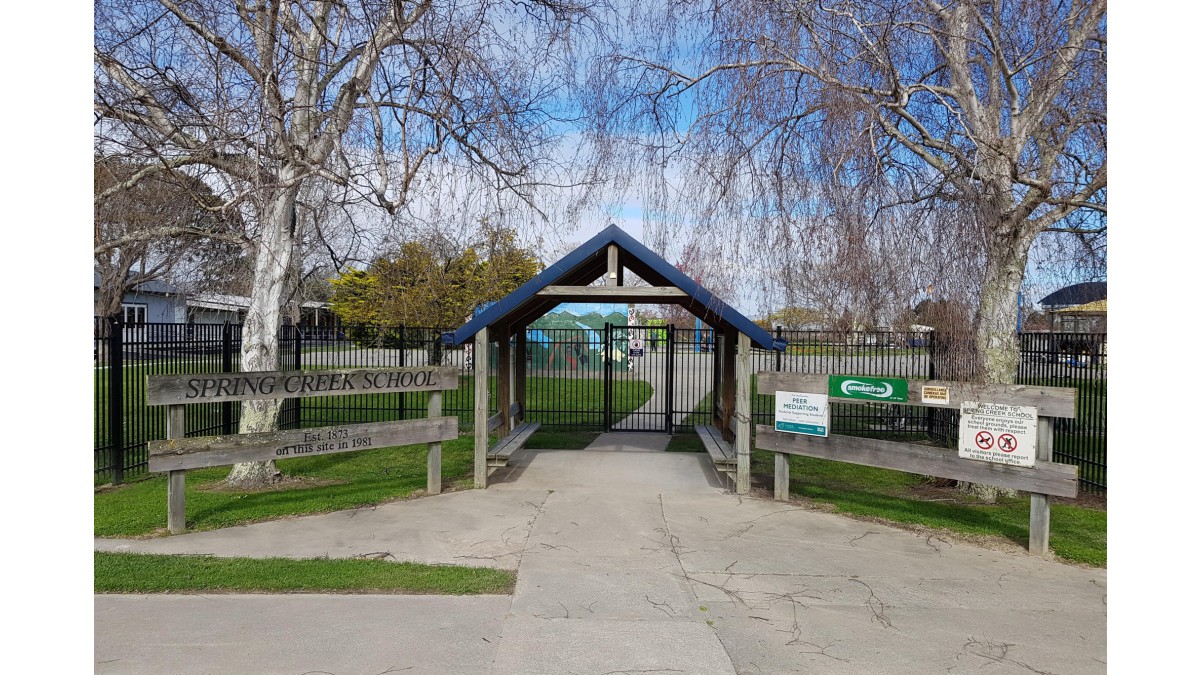

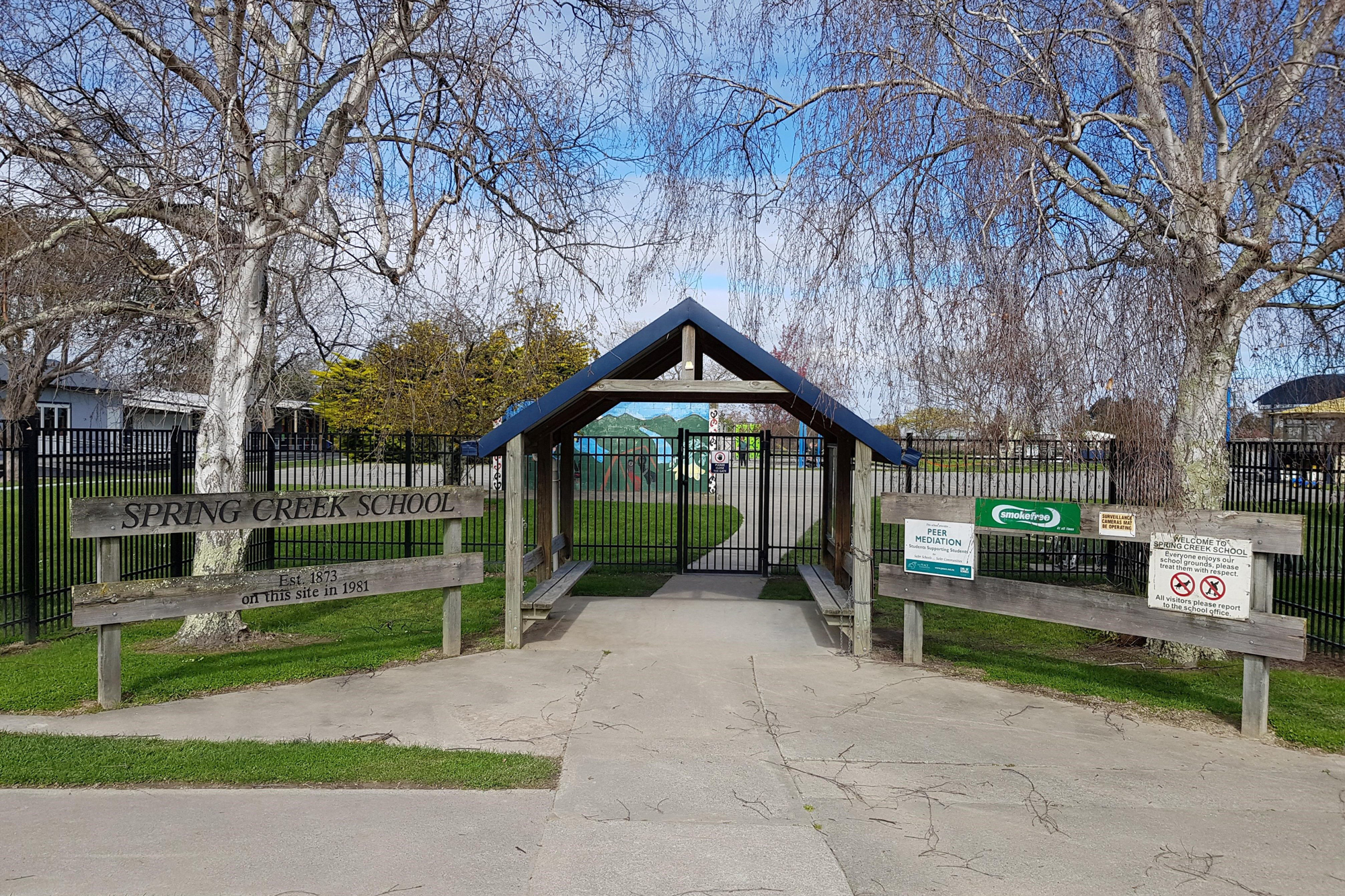

1.8m Assure fence with pedestrian gate installed at Spring Creek School

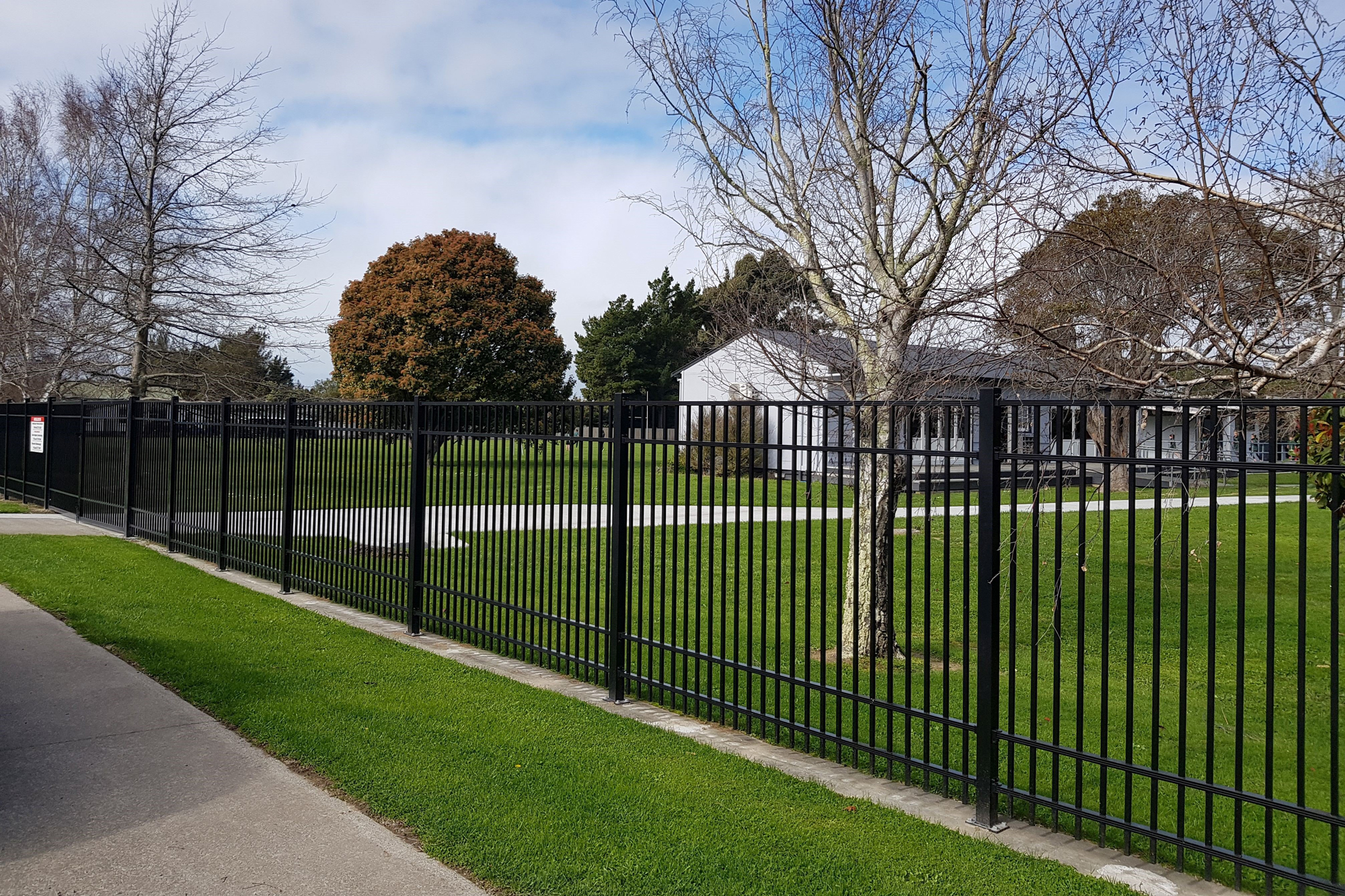

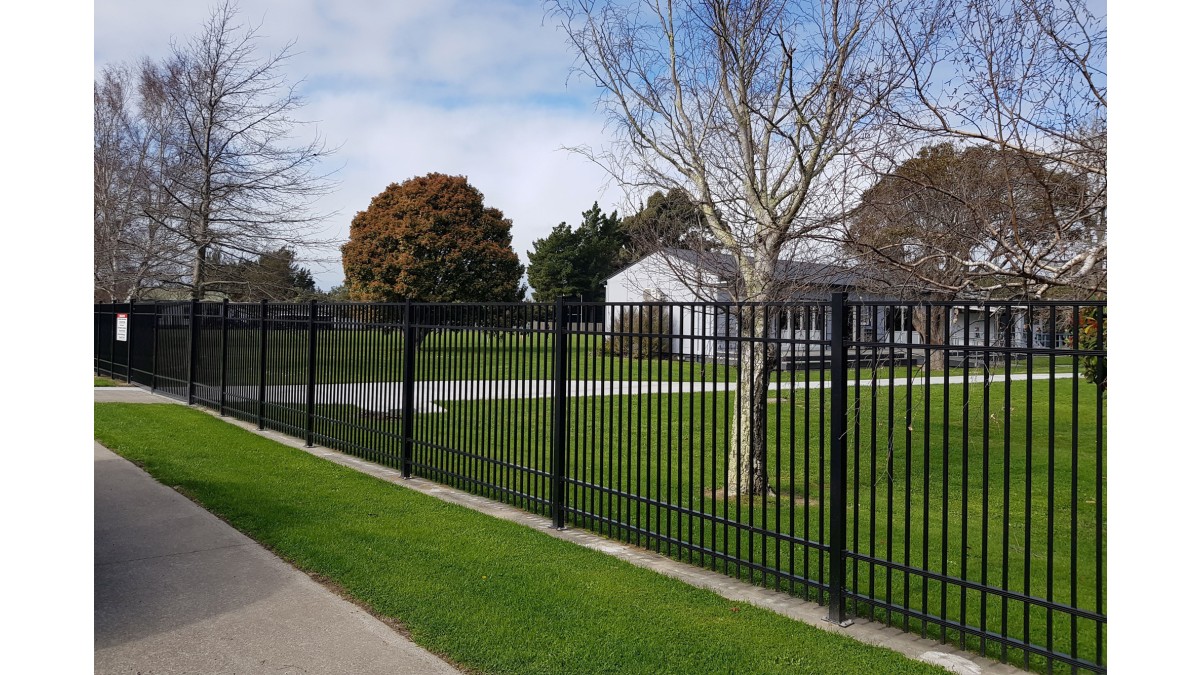

1.8m Assure fence installed at Spring Creek School

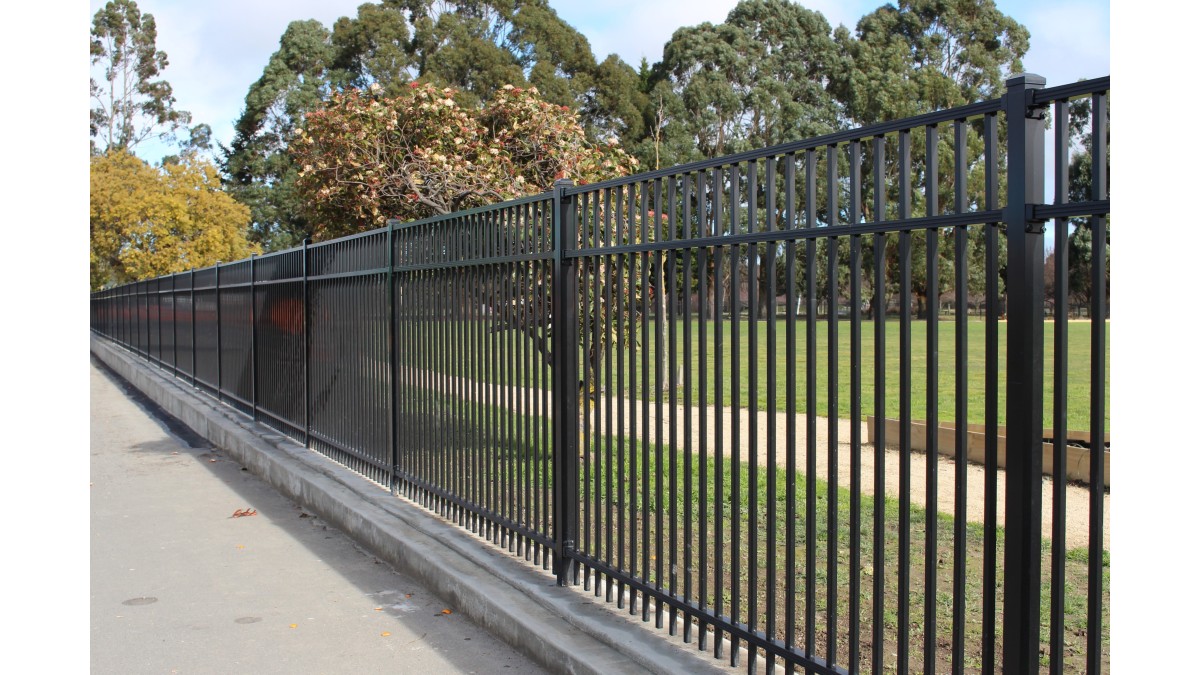

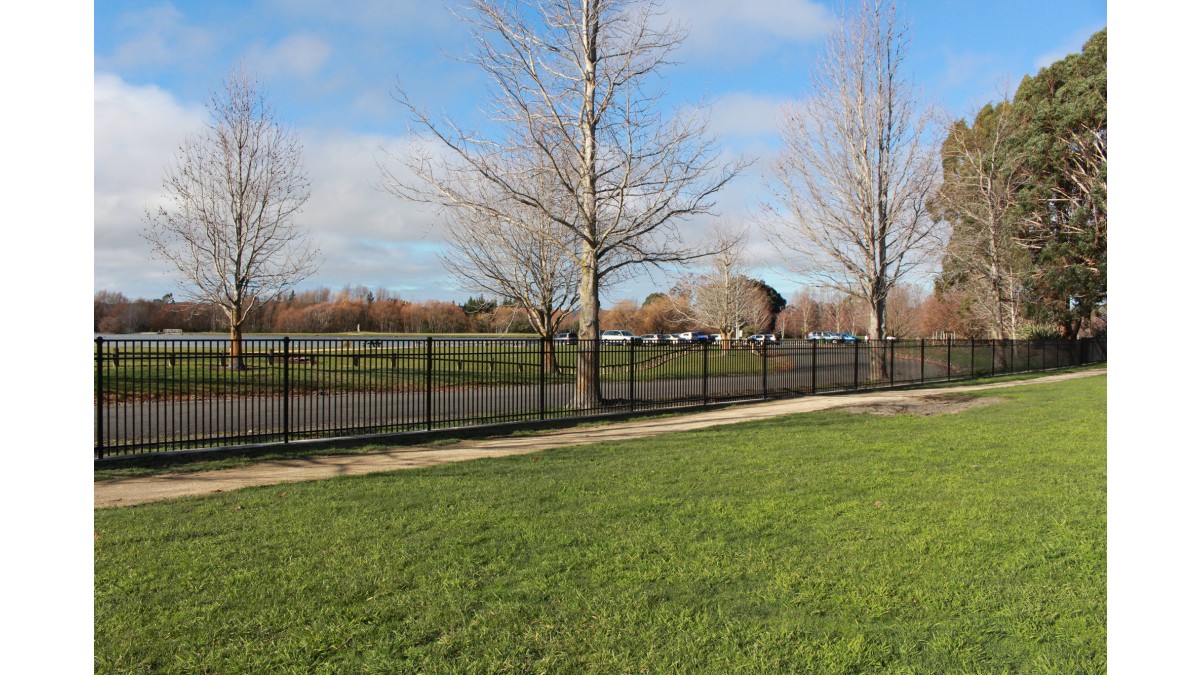

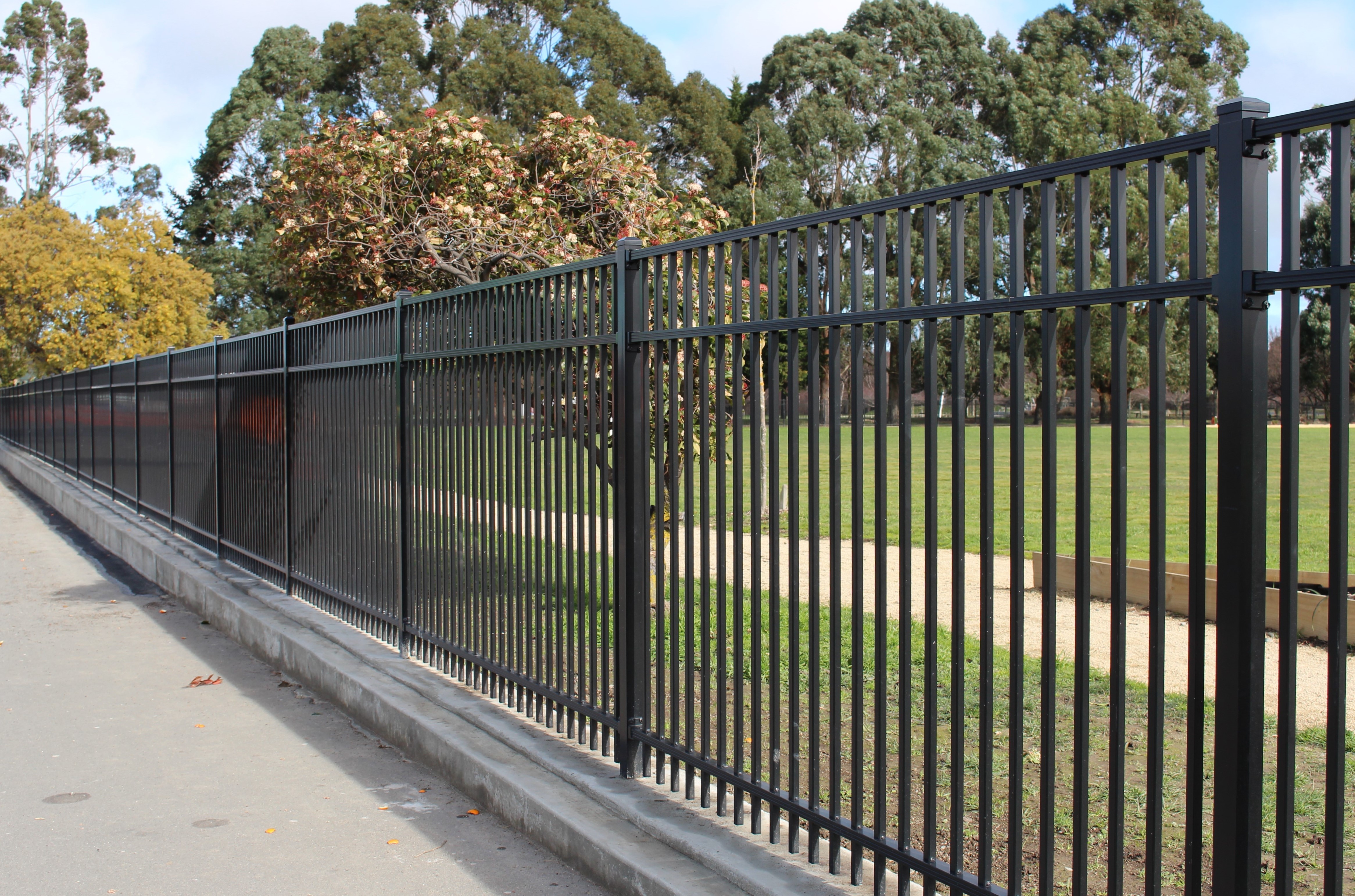

11 1.8m Assure fence installed at Lakeview School

1.8m Assure fence with pedestrian gate installed at Lakeview School

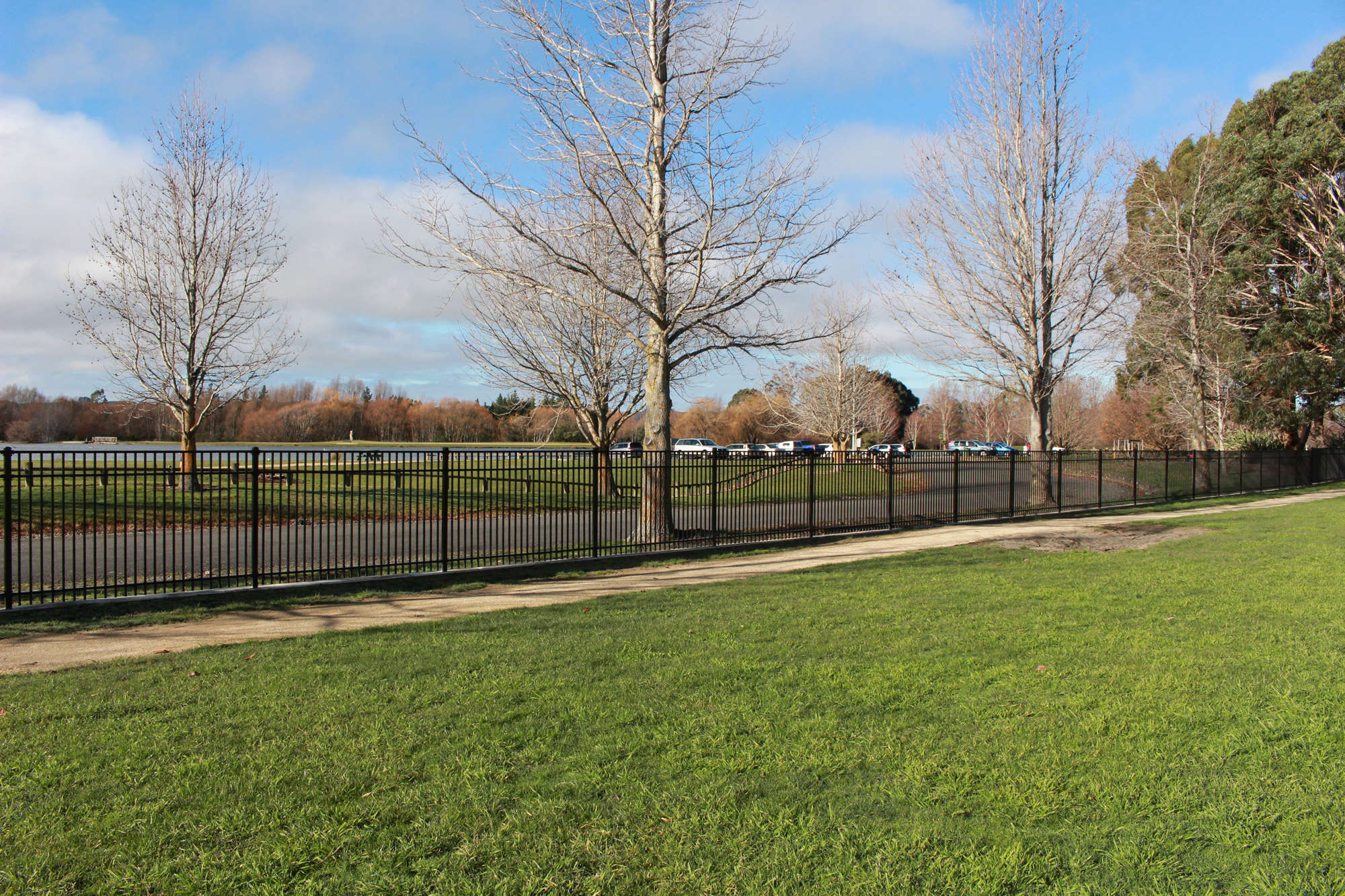

12a 1.8m Assure fence installed at Lakeview School

1.8m Assure fence with pedestrian gate installed at Lakeview School

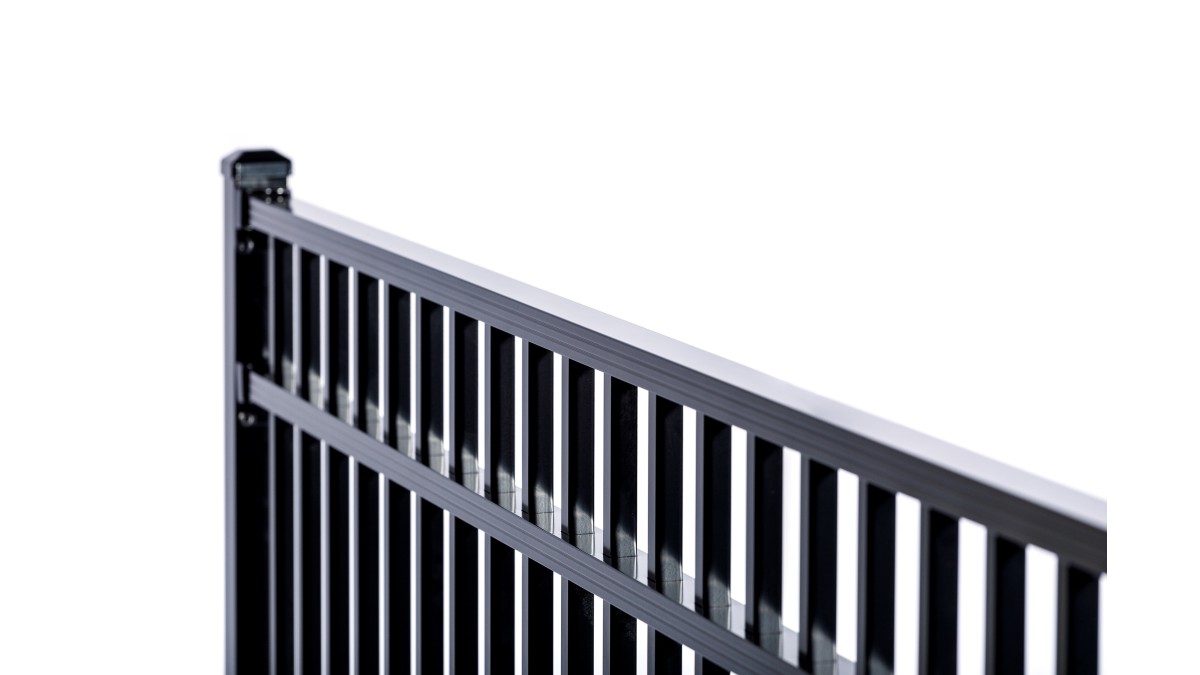

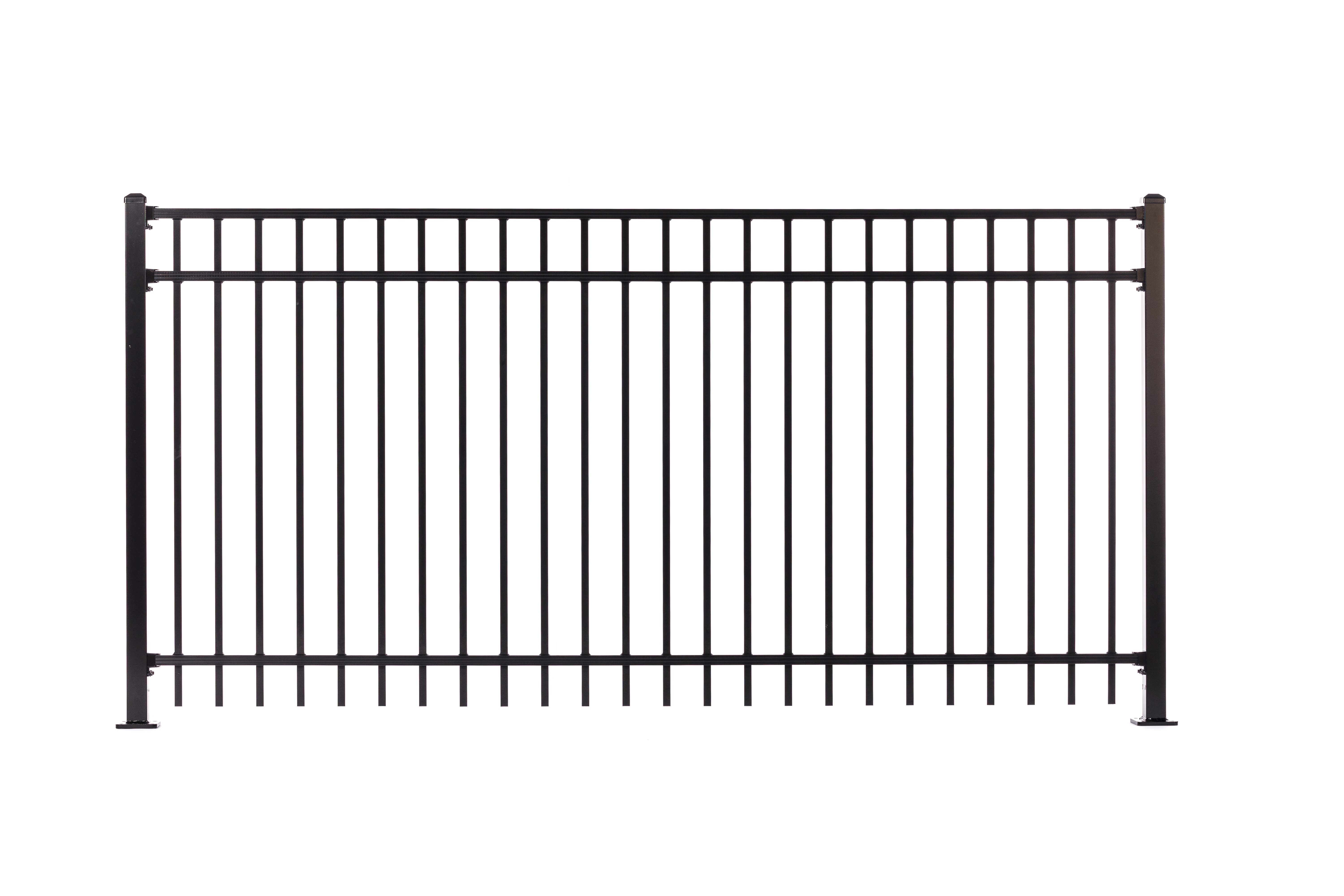

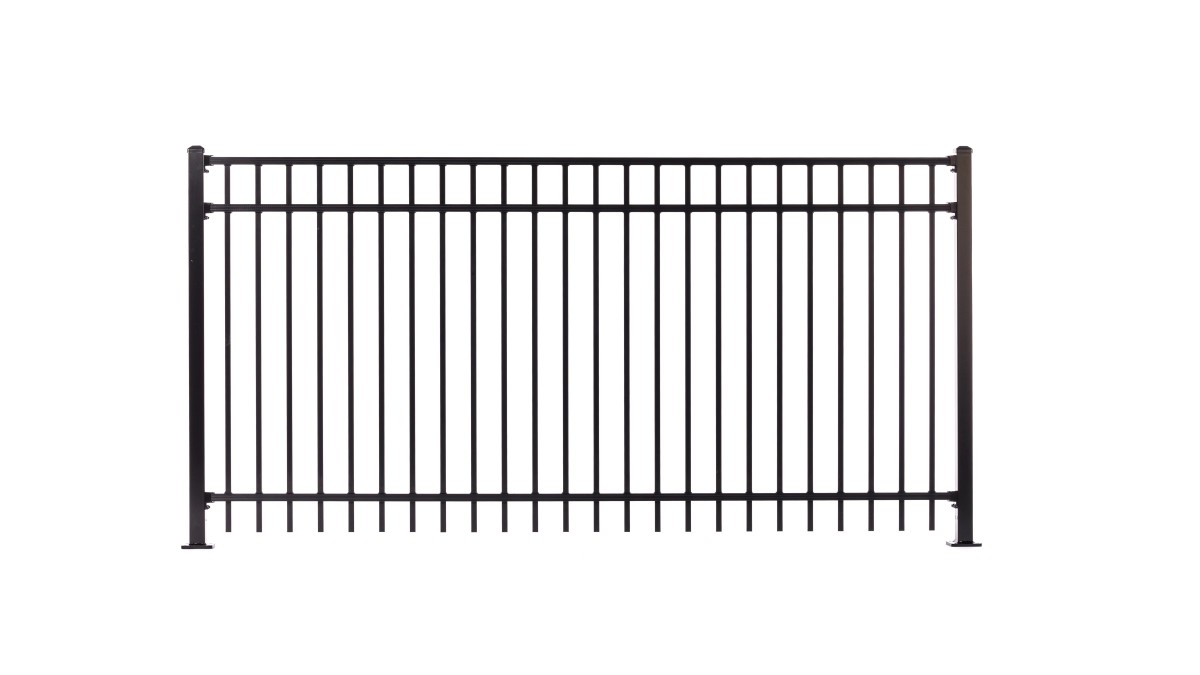

1.2m Assure fence panel

Product Enquiries

Description

Stylish and versatile, the Assure panel can be installed with either a smooth top-rail or, simply by turning it upside down, with the verticals extending above the rail, making specifying for both safety and security easy.

Whatever the orientation, Assure is ideal for school and childcare environments and residential applications, and is strong and robust, delivering years of maintenance-free security.

Sizes and Options

Fence panels:

Install studded-side or flat rail-side up
Heights: 1200, 1500, and 1750mm
Width: 2400mm

Pedestrian gates:

Heights: 1200, 1500, and 1750mm
Width: 1200mm
Custom widths available

Driveway gates:

Custom width
Optional automation and access control systems

Key Features

Low maintenance strong aluminium construction
Light weight and easy to install
Exclusively available as raking panel up to 30 degrees
Ability to select the top profile, smooth rail or studded
Black powder coated finish as standard. Custom colours available on request
Options for pedestrian and driveway gates
Optional automation and access control systems
Brackets and hardware supplied with system

Scope of Use

Applications:
- Residential
- Commercial
- Balustrading
- Pool fencing (residential only)
- Childcare
- Civil
- Parks and cycleways
Option to install studded-side or flat rail-side up
Raking version of the Assure fence panel — can rake up to 30 degrees to accommodate extremely steep terrain
Brackets and hardware supplied with system

Limitations on Use

Must be installed at up to 1265mm post centres to comply with NZBC F4 Safety from falling
Must be installed at standard 2465mm post centres to comply with NZBC F9 Restricted access to residential pools

Statement of Building Code Compliance

Compliant with NZ Building Code F4 Safety from falling when installed at up to 1265mm post centres
Compliant with NZ Building Code F9 Restricted access to residential pools when installed at standard 2465mm post centres
Compliant with Ministry of Education school boundary fencing specifications
Generic PS1 available
Site specific PS1 available on request
