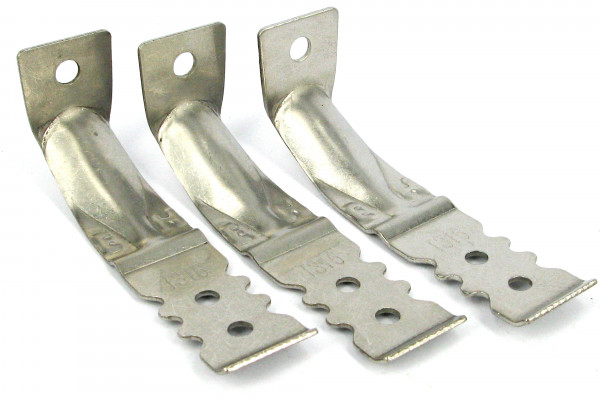

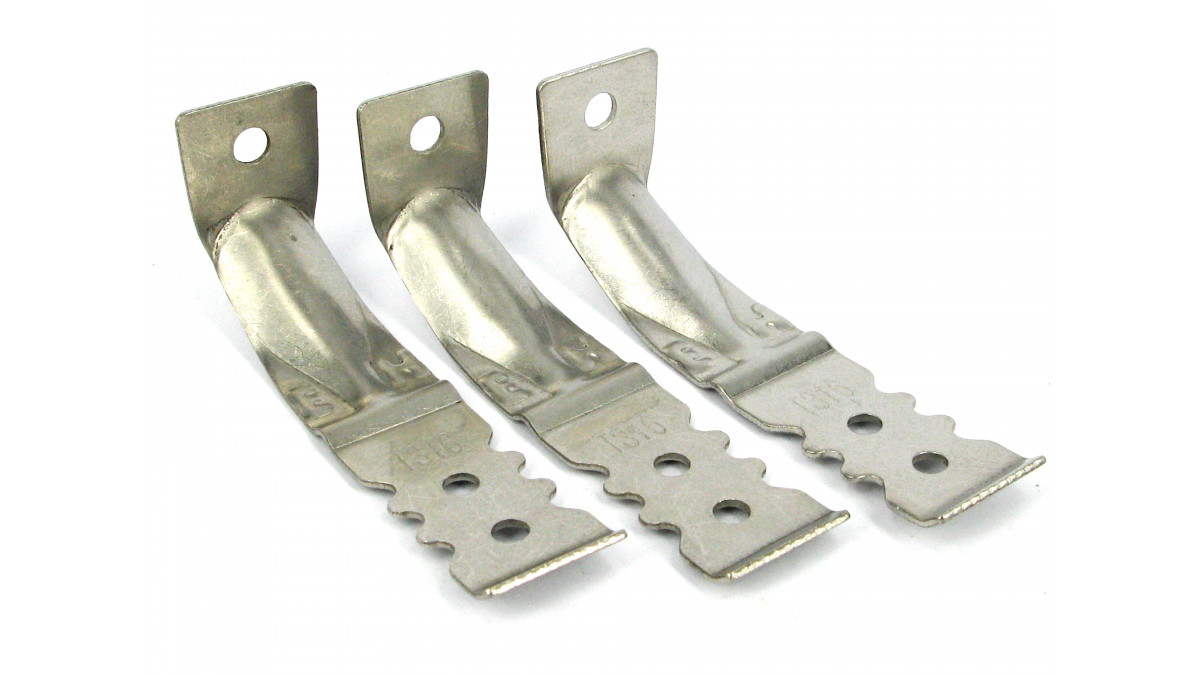

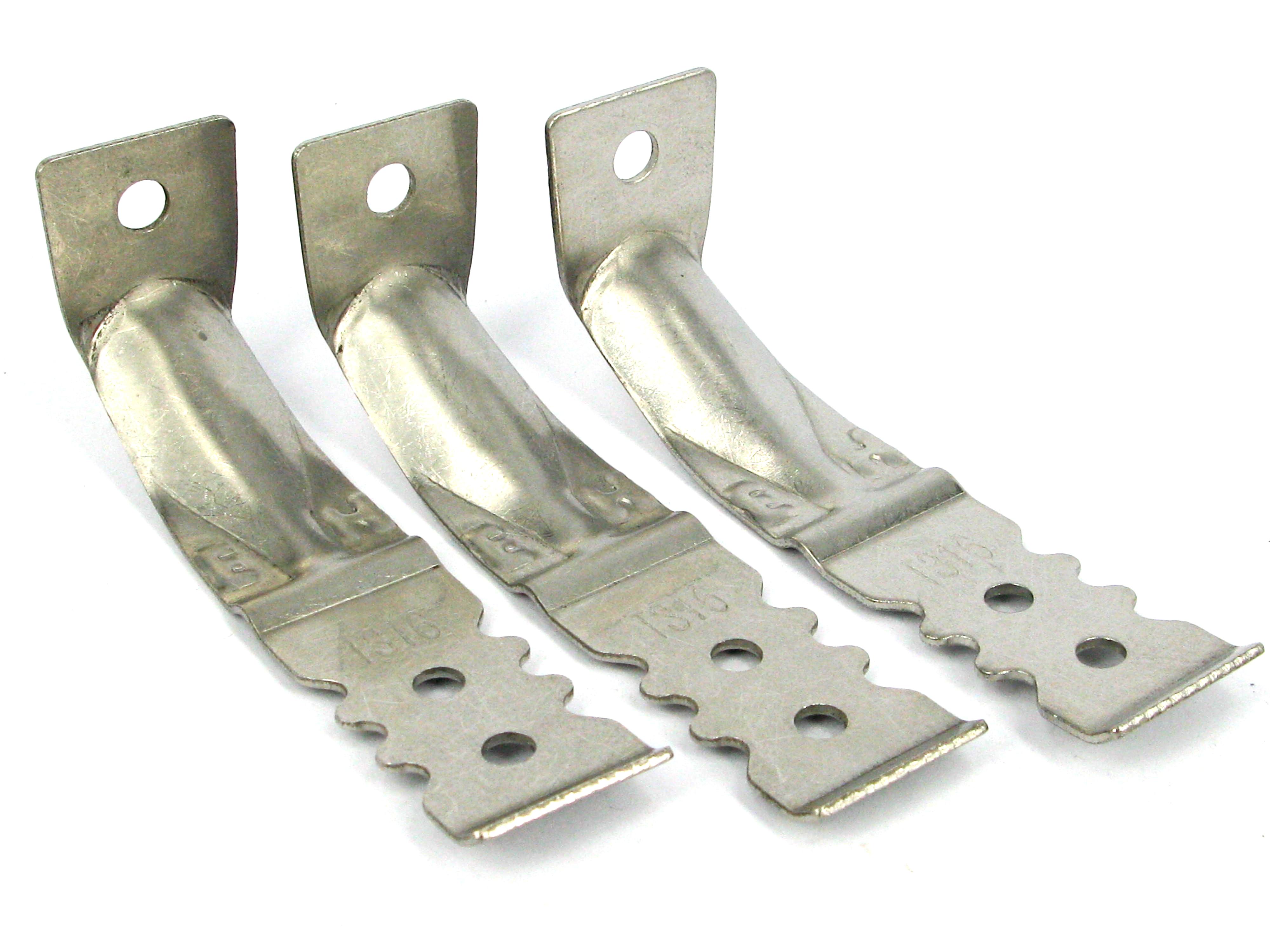

The Ultimate Brick Tie
Description

Specifically designed for use in New Zealand conditions, The Ultimate Brick Tie offers strength and durability, both critical elements of brick veneer construction.

New technology in galvanising now offers over 20% more coating thickness than AS 2699.1:200 standard requires.

Available in premium hot dipped galvanised and T316 stainless steel. The Ultimate Brick Tie offers superior grip tension for both "in plane" and "out of plane" movement whilst maintaining residual strength between the framing and veneer.

Key Features
  • Available in two lengths (90mm and 115mm), covering a broader range of cavity widths
  • Available in premium hot dipped galvanised and T316 stainless steel
  • 50 year durability warranty
  • 15 degree angle greatly reduces water entry
  • 3 stage mortar locking system
  • Secondary water stop feature
  • Maximum strength, minimum torsion, residual flexibility
  • Rated Earthquake Heavy and stamped EH as required under AS 2699.1:200
Documents
BIM-spec Full Library
Brochure: Product Showcase
