Transportable Concrete Floor
Description

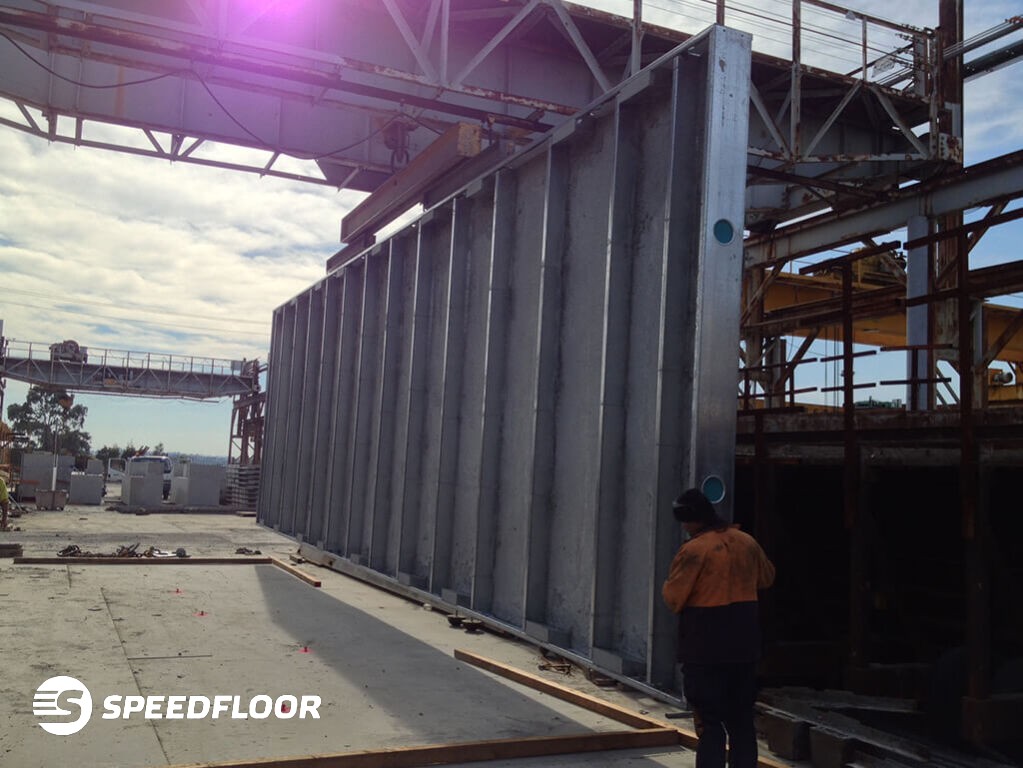

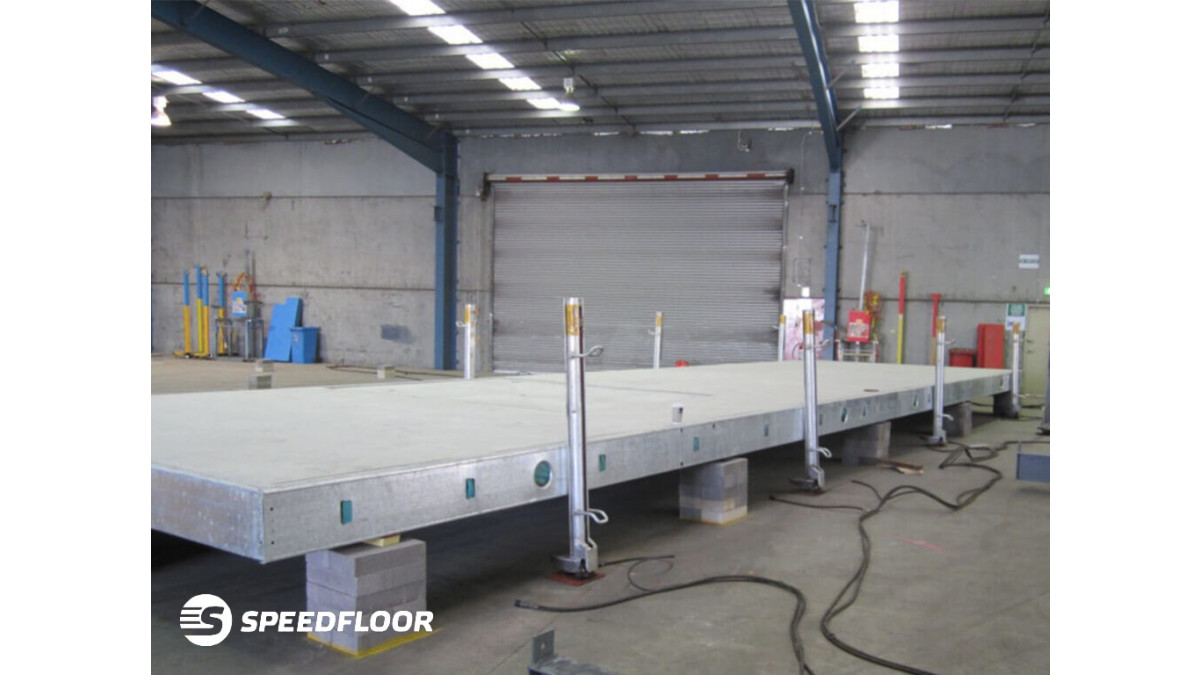

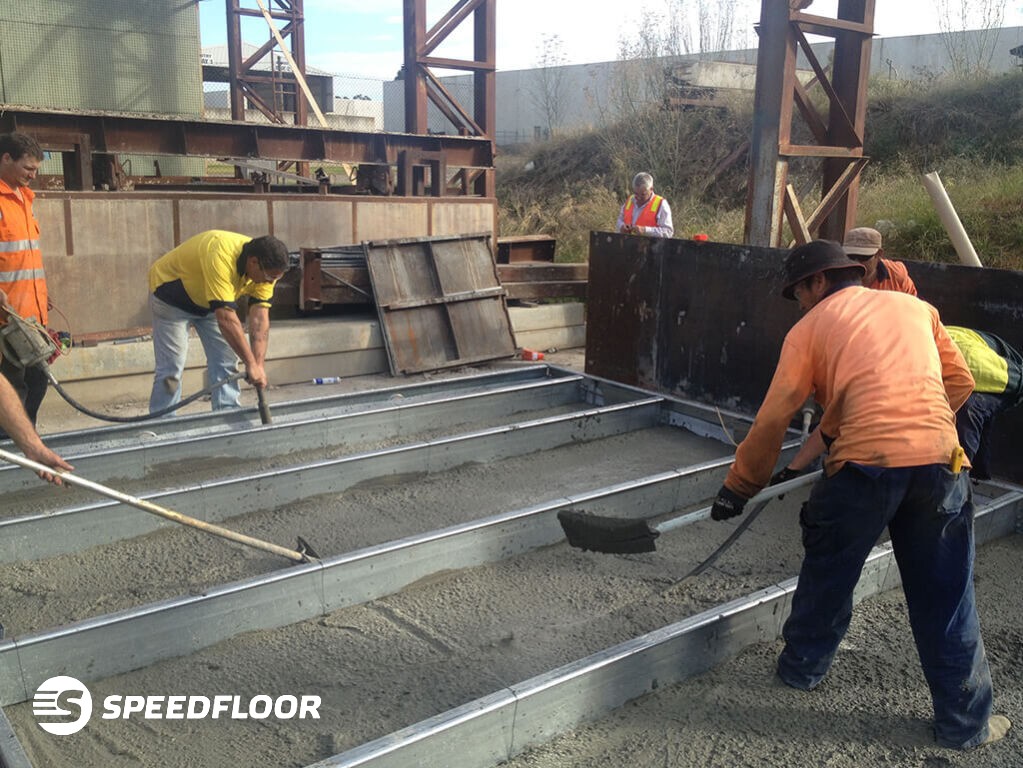

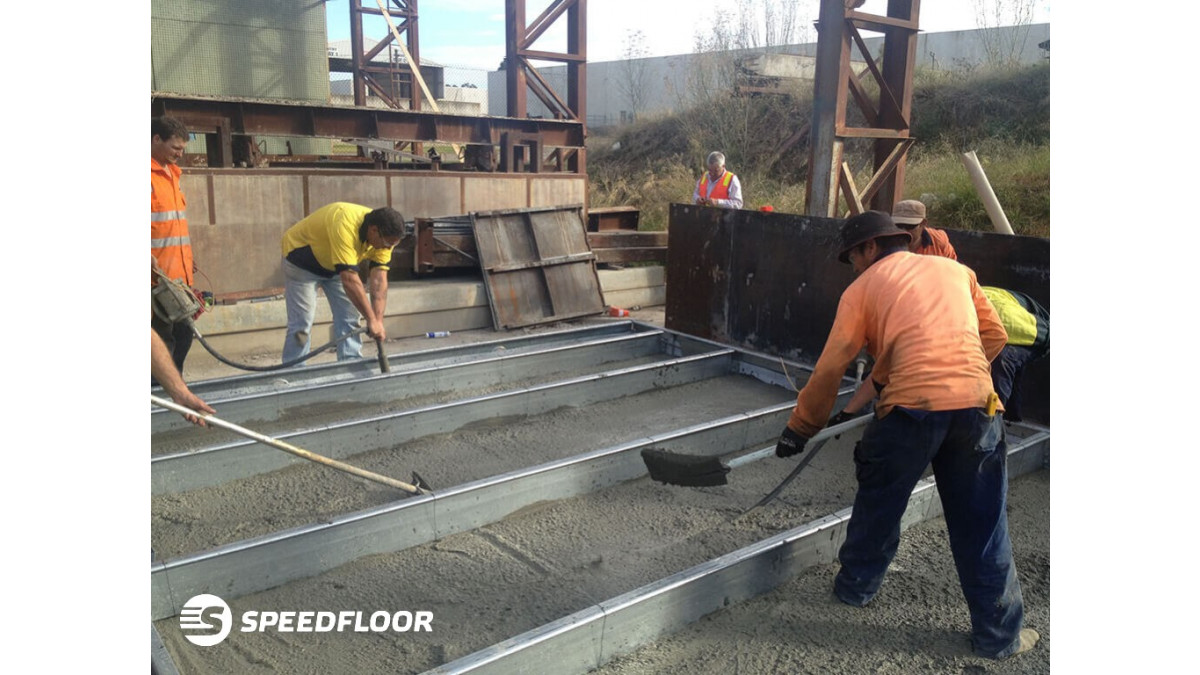

Speedfloor's Transportable Concrete Floor System is an engineered solution for modular off-site pre-fabricated residential and commercial applications. Its unique steel joist system is combined with a roll-formed perimeter channel to create a strong, lightweight, concrete floor with slab topping between 65 to 95mm and maximum steel joist span of 4200mm, that can be manufactured without the cost of a mould.

The roll-formed steel sections ensure dimensional accuracy and are galvanised to 275g/sqm or 450g/sqm. Because the floor requires no mould or formwork, any area can be produced within the limits of the roll-formed sections.

The Speedfloor Transportable Floor meets New Zealand Building Standards and under normal conditions, can be expected to meet the durability performance criteria set out in the New Zealand Building Code for a period of 50 years.

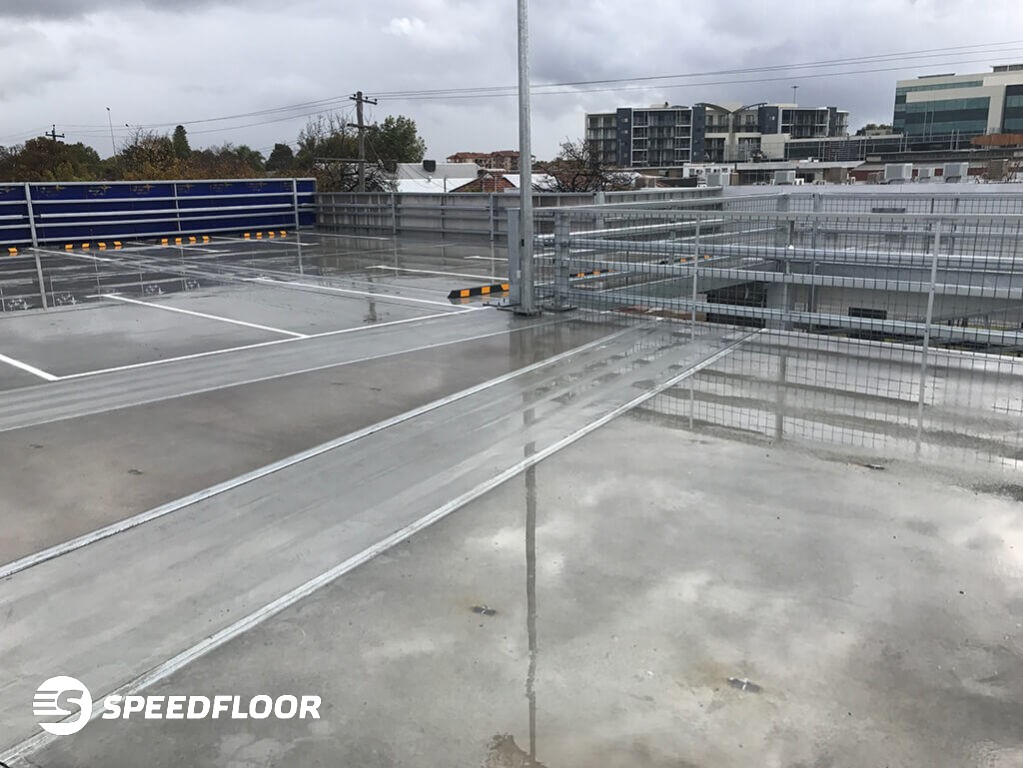

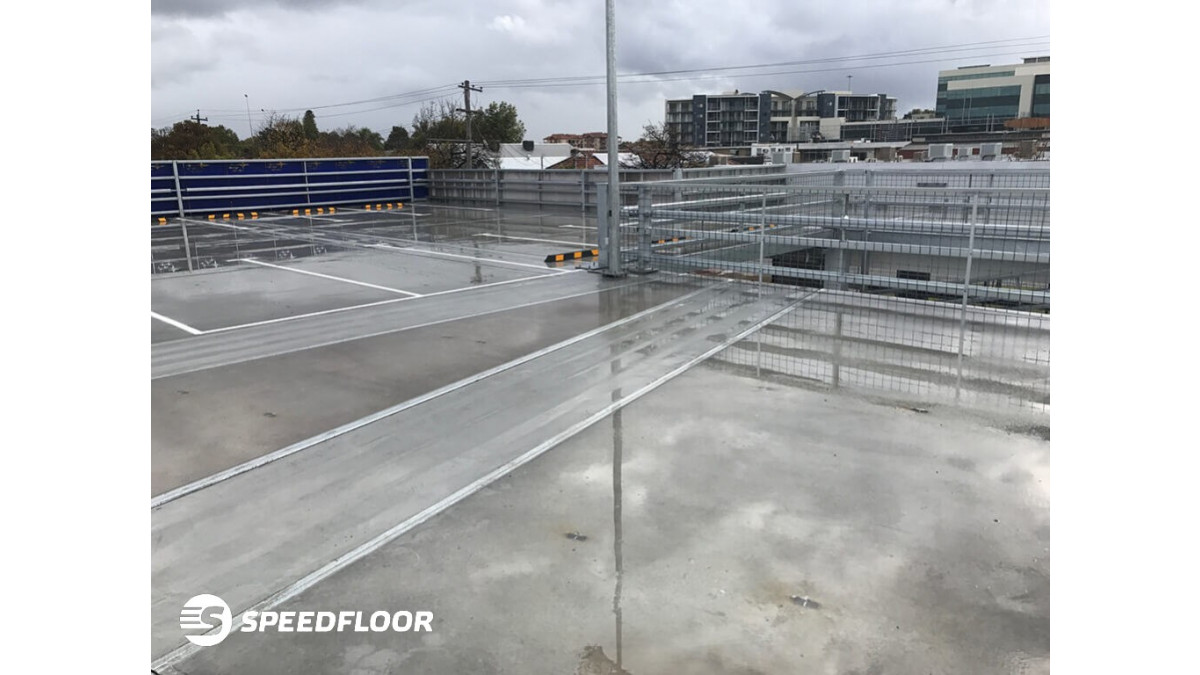

The Transportable Concrete Floor can be used in residential single level sub-floor applications, and has performed well where there is need for mass in the base of buildings without the excessive weight of concrete floor cast in steel mould. The Transportable Concrete Floor is a proven solution as a suspended floor such as carparks, and is also ideal where minimal disruption is important.

Key Features

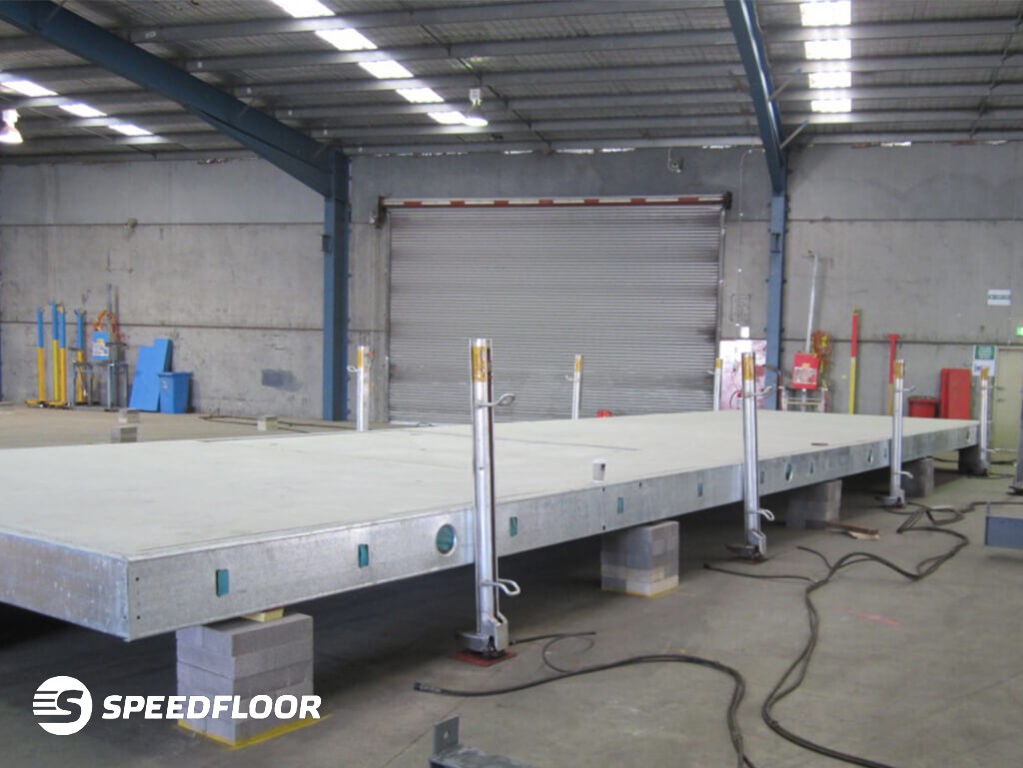

  • Service holes and connecting bolt holes are pre-punched into the boundary channels.

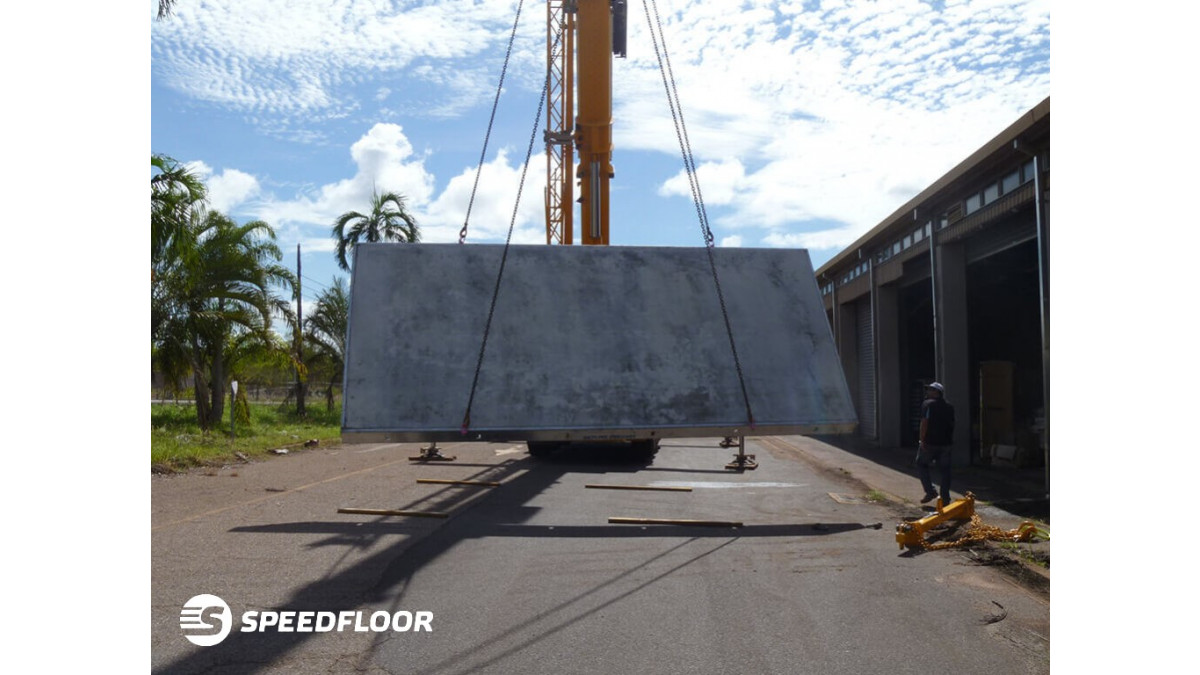

  • Lifting eyes, pier positions and frame hold down connections are factory fitted.
  • Available in thickness of 65mm to 90mm.
  • Recesses are easily pre-formed into the finished slab.
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Transportable Concrete Floor can be used in residential single level sub-floor applications, and has performed well where there is need for mass in the base of buildings without the excessive weight of concrete floor cast in steel mould. The Transportable Concrete Floor is a proven solution as a suspended floor such as carparks, and is also ideal where minimal disruption is important.

  • Modular residential
  • Modular commercial
  • Modular industrial
Limitations on Use
  • PS1 required for specific design
Statement of Building Code Compliance

When supplied and installed in accordance with the manufacturers specifications and design parameters, the Speedfloor transportable concrete floor can be reasonably expected to meet the performance criteria set out in clause B2, Durability of the New Zealand Building Code for a period of 50 years.

  • AS 3600-2009 Concrete Structures
  • AS/NZS 4600:2005 - Cold Formed Steel Structures
  • AS 4100-1998 - Steel Structures
  • AS 2327-2033 - Composite Structures Part 1
In-Service History

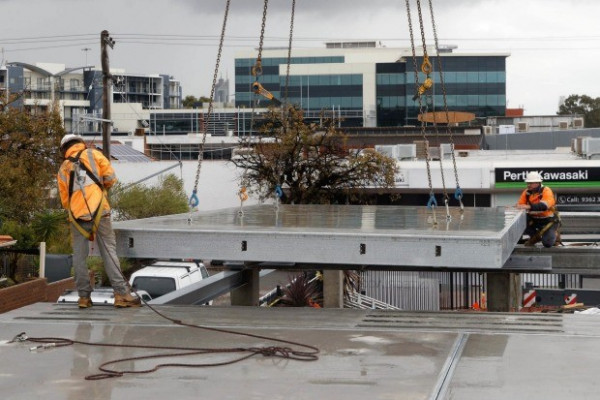

Developed in 2012 the Speedfloor Transportable Concrete Floor System has been successfully used in multipule modular residential projects in New Zealand and Australia. Residential projects in WA, NSW & SA have all been delivered via Modular Housing providers. The NZ based projects have been smaller in scope and completed by private interest or developers. Applications as a suspended carparking deck are being delivered in Perth mid 2018.

B1 Structure compliant
