Solatube M74 SkyVault® Series
Solatube
All products

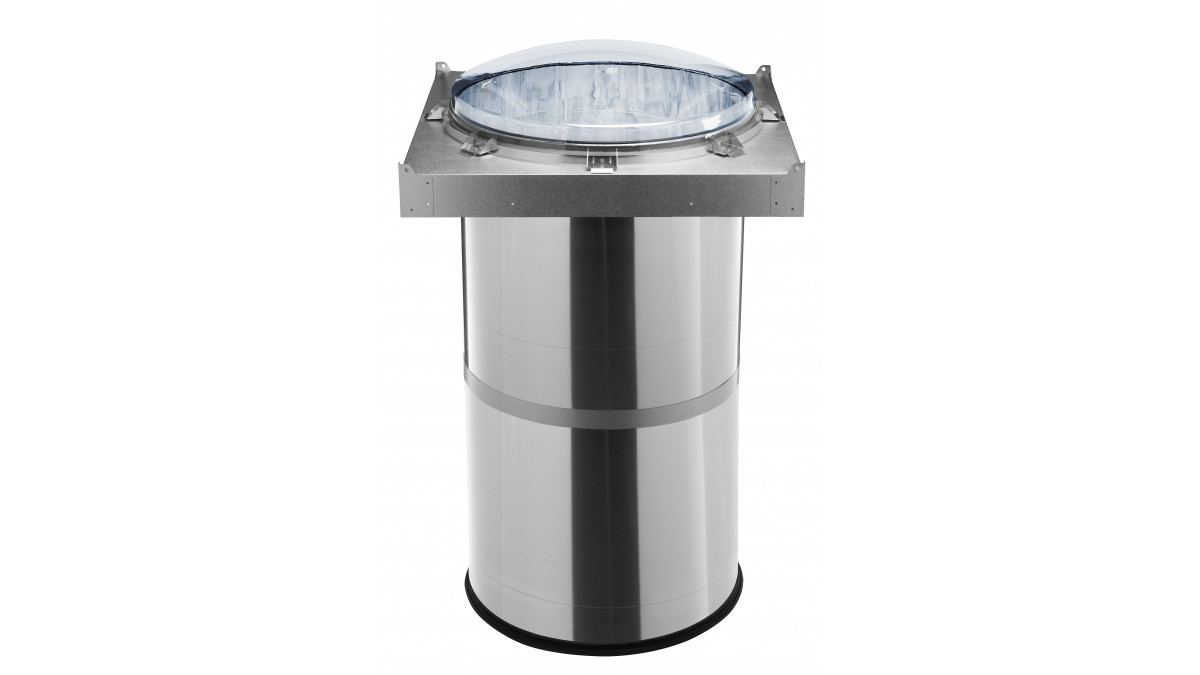

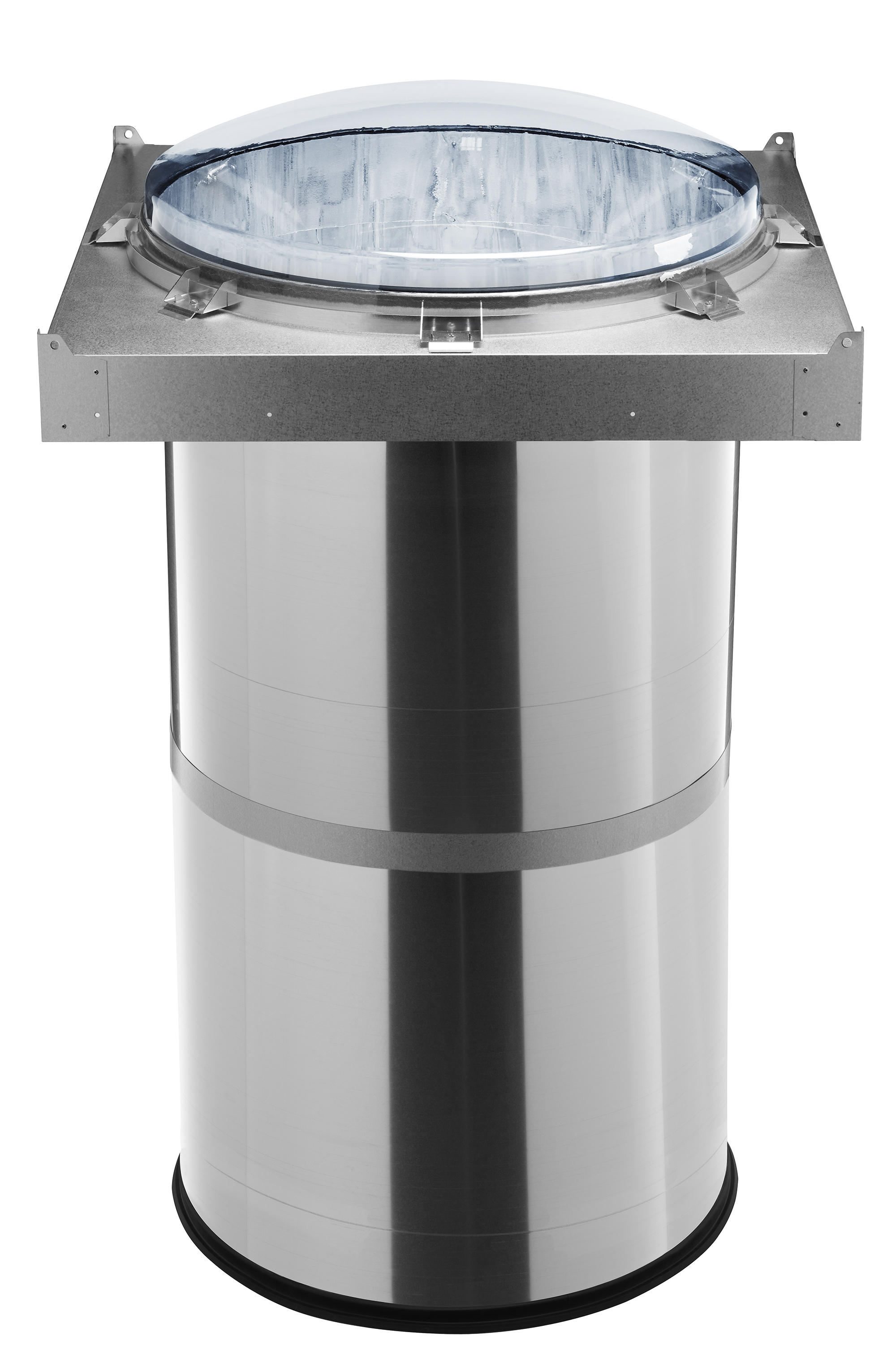

Solatube Skyvault Single Glazed Dome Assembly

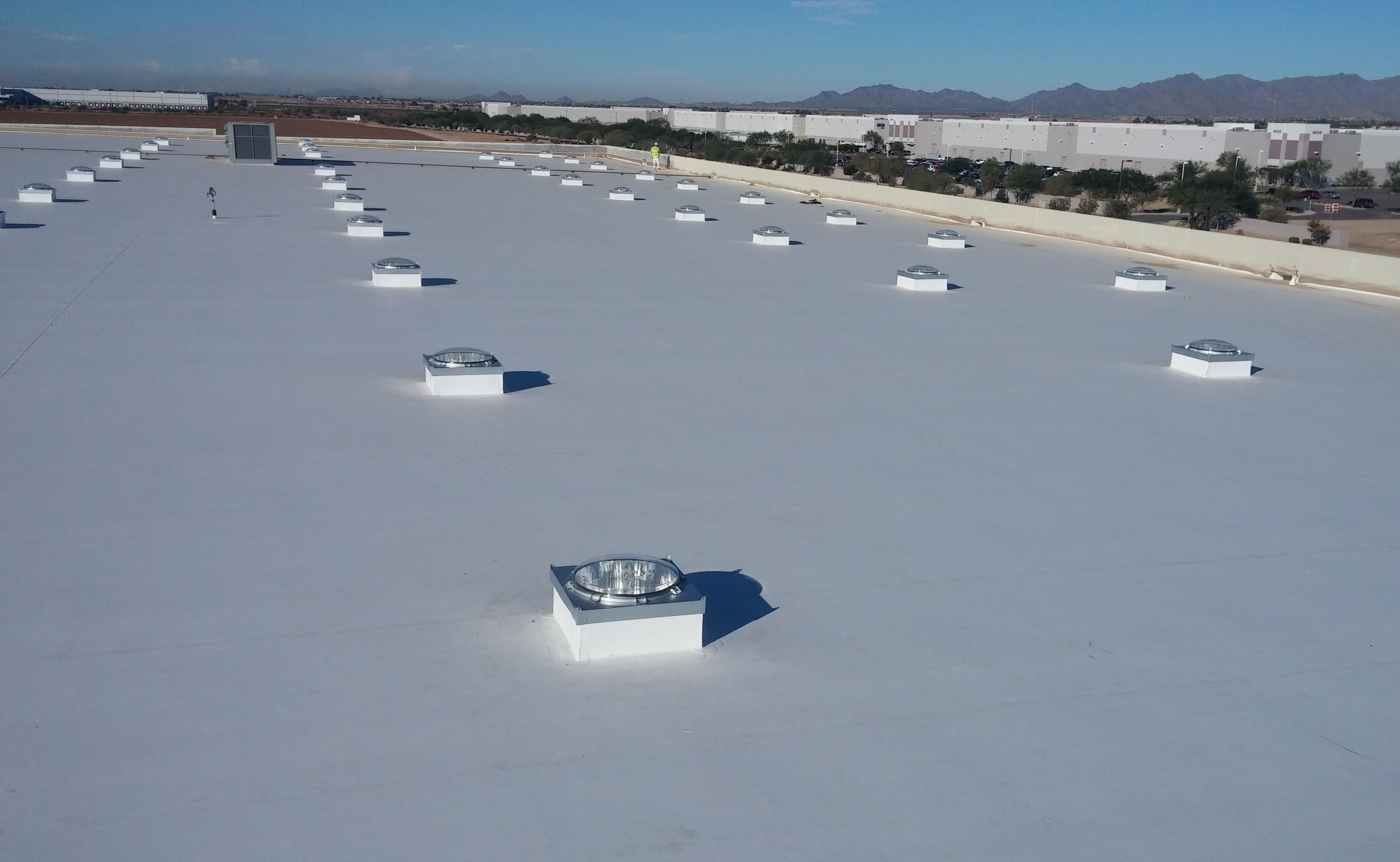

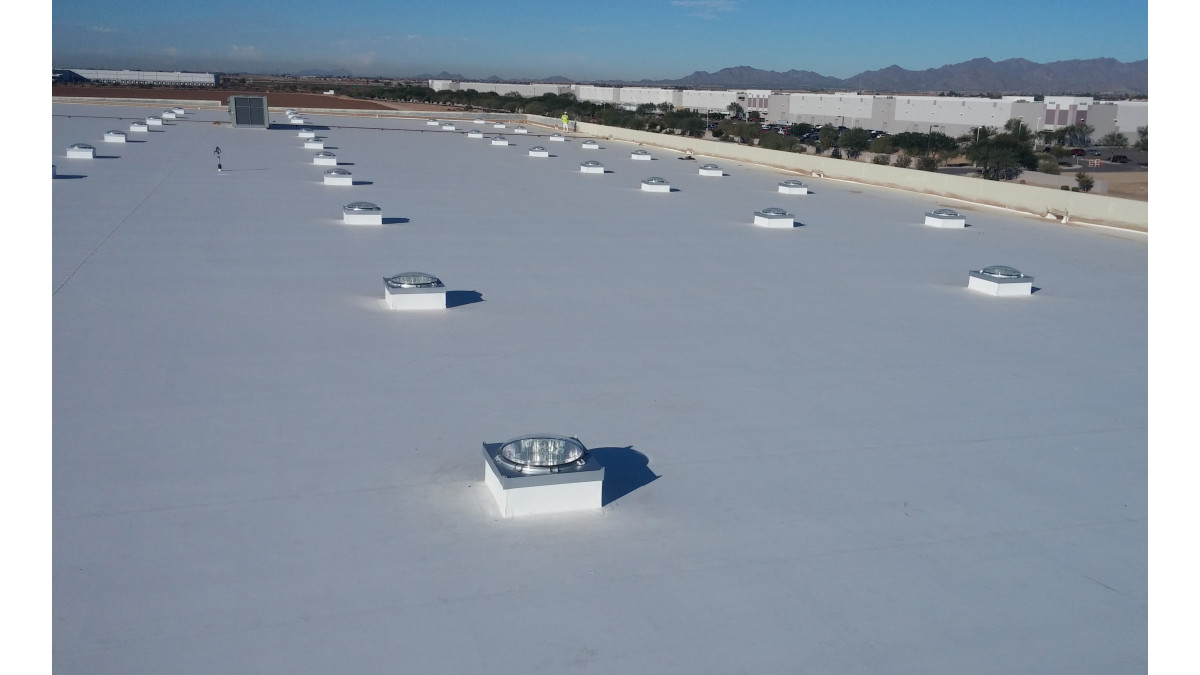

Solatube SkyVault at Macys Fulfillment Center Goodyear AZ

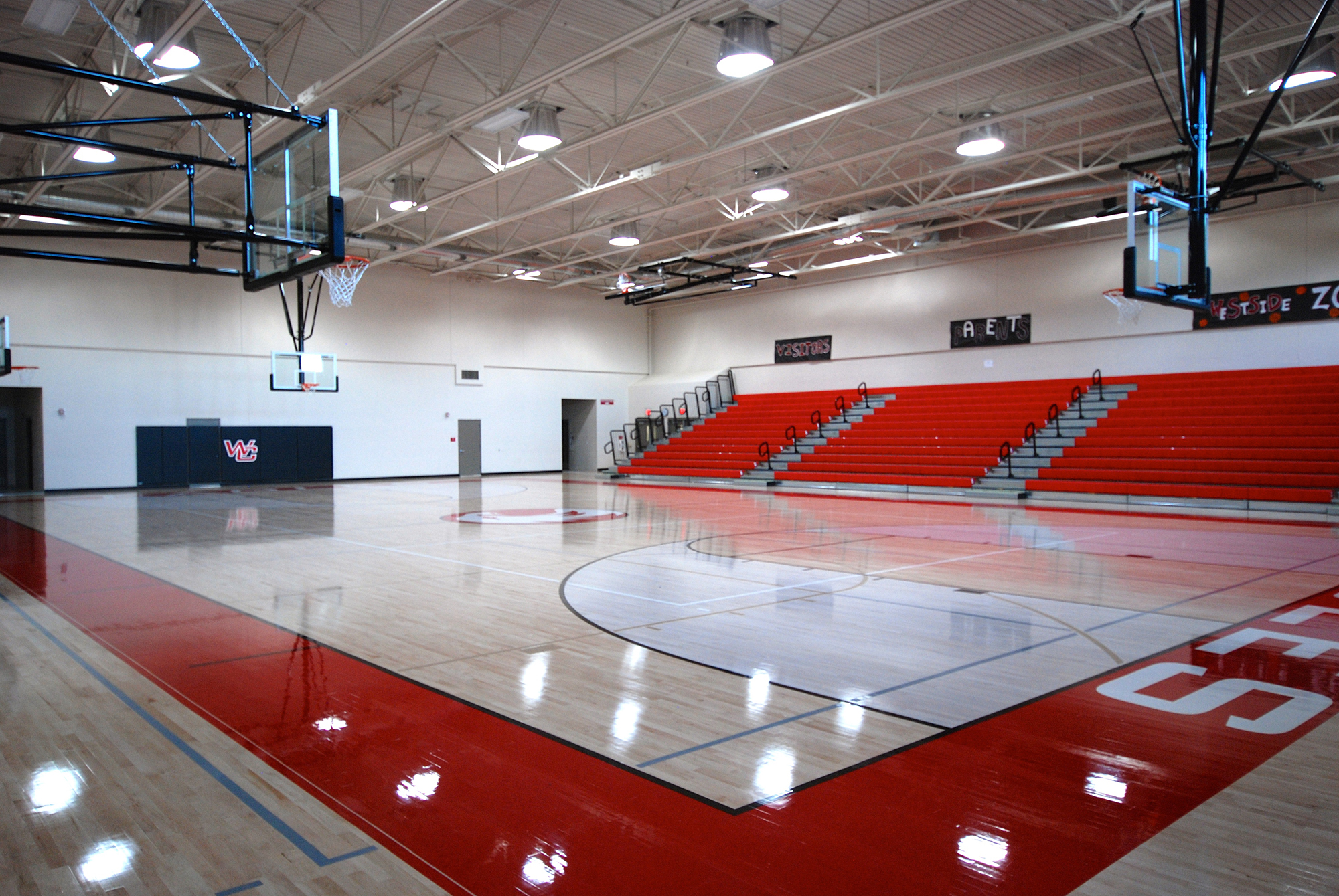

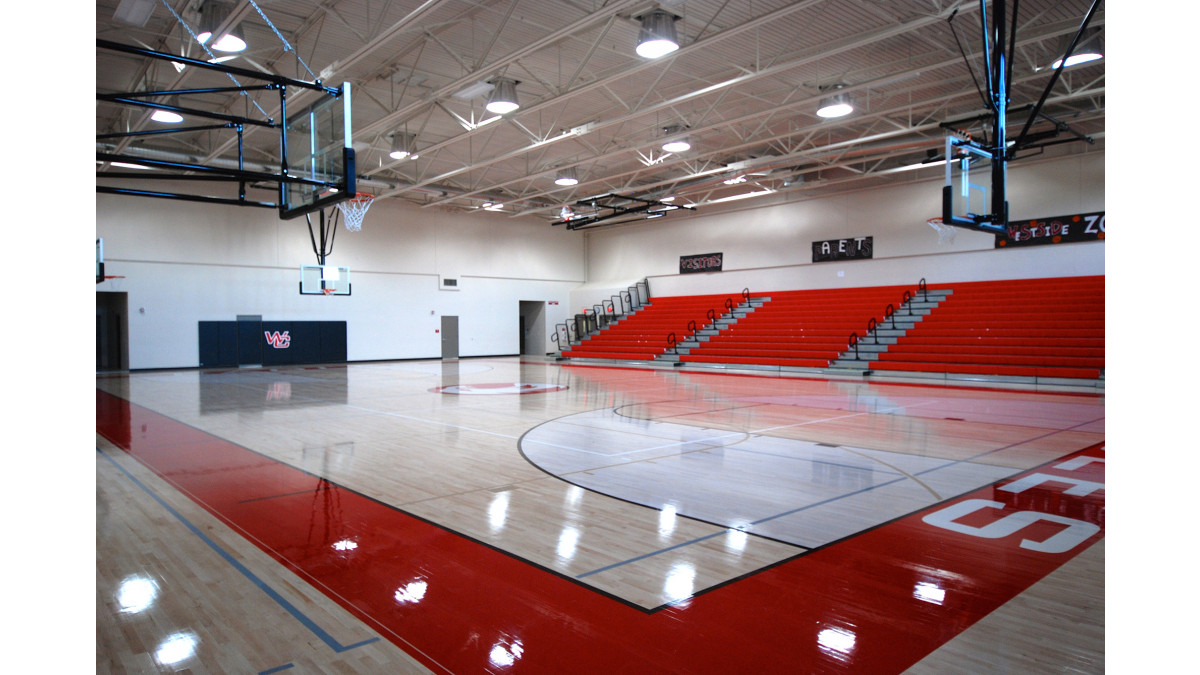

Solatube SkyVault Westside Christian High School

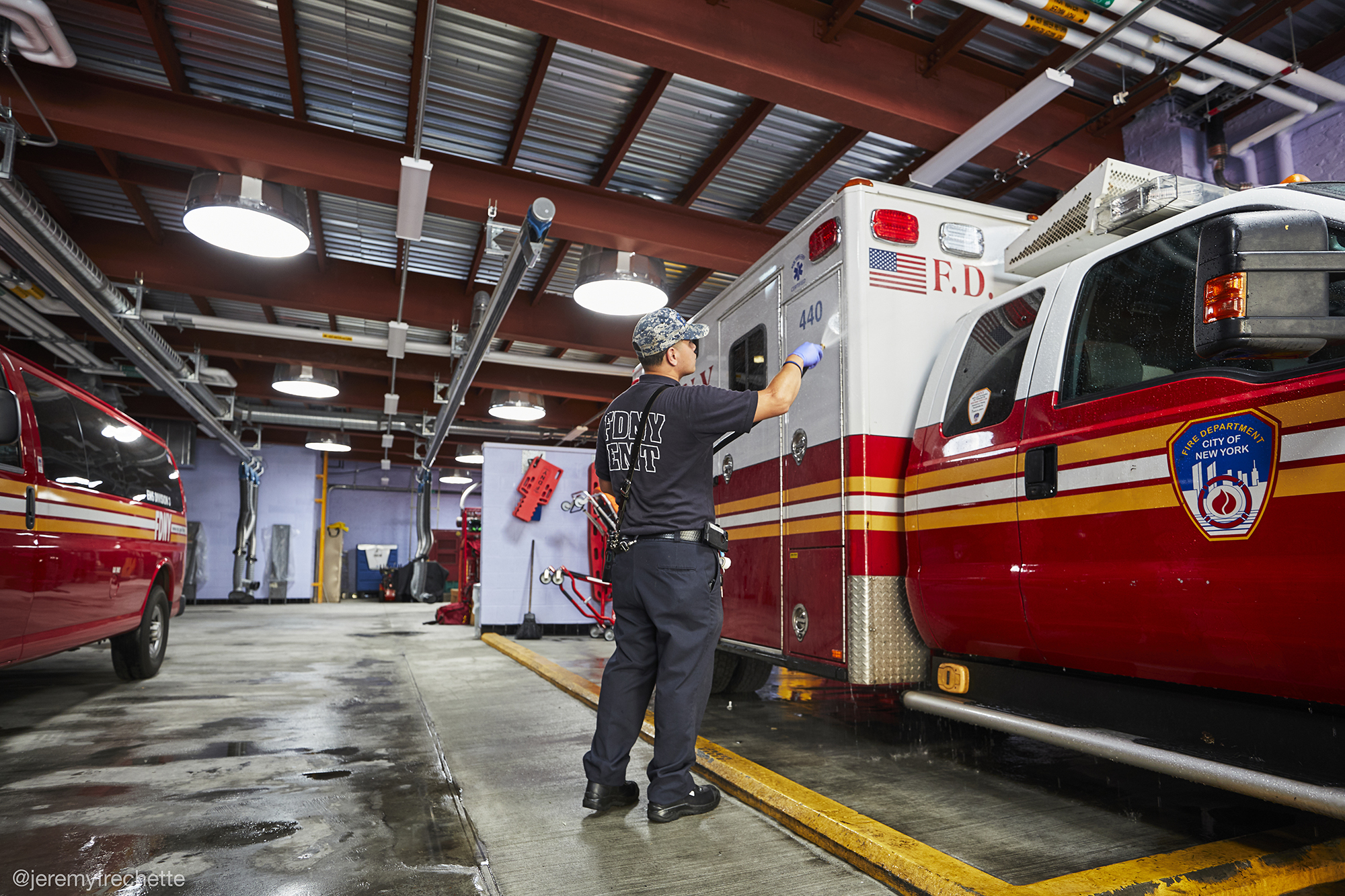

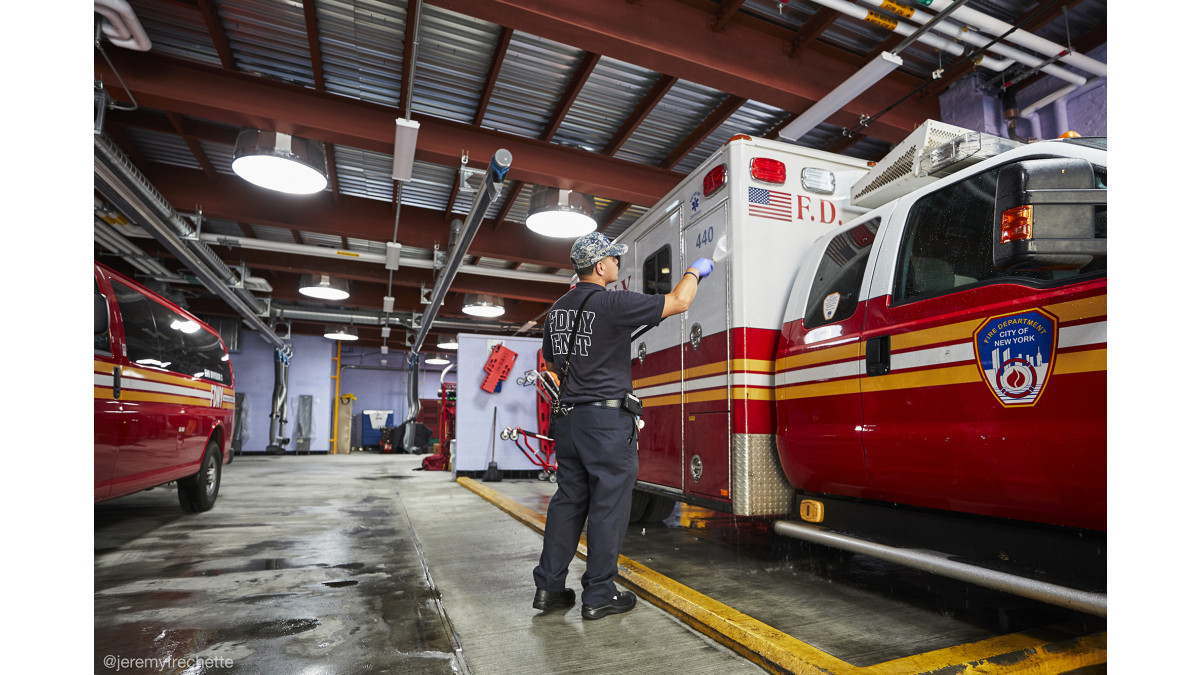

Solatube SkyVault with Amplifier FDNY EMS 39 Brooklyn NY

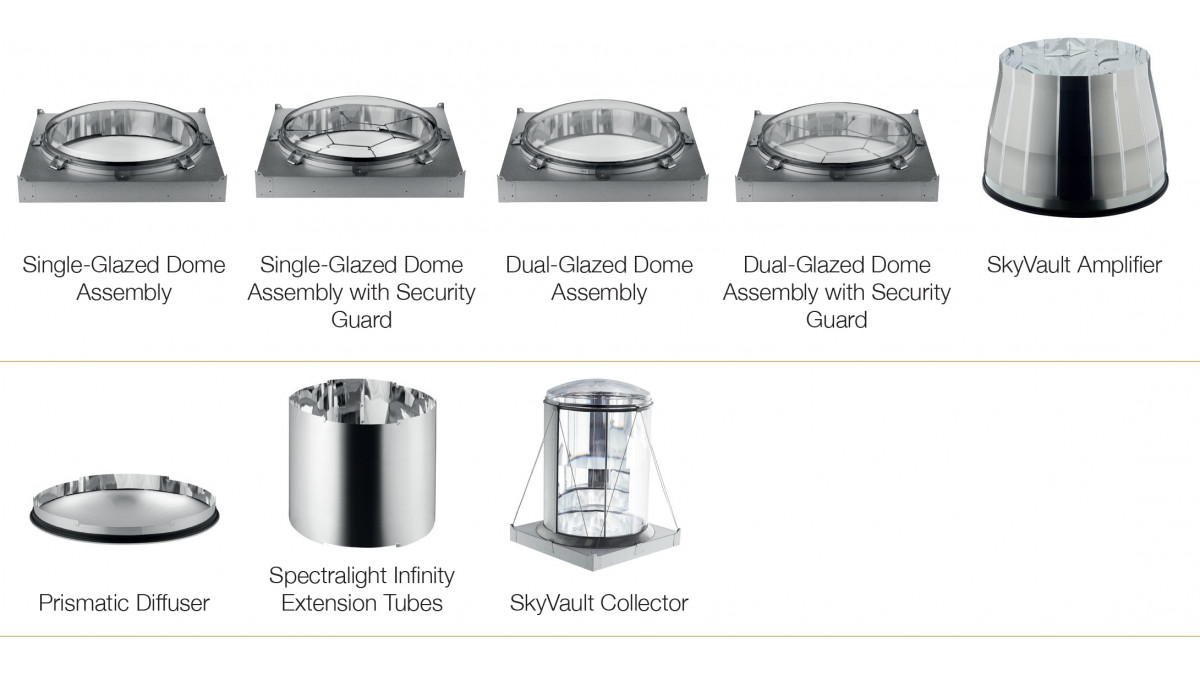

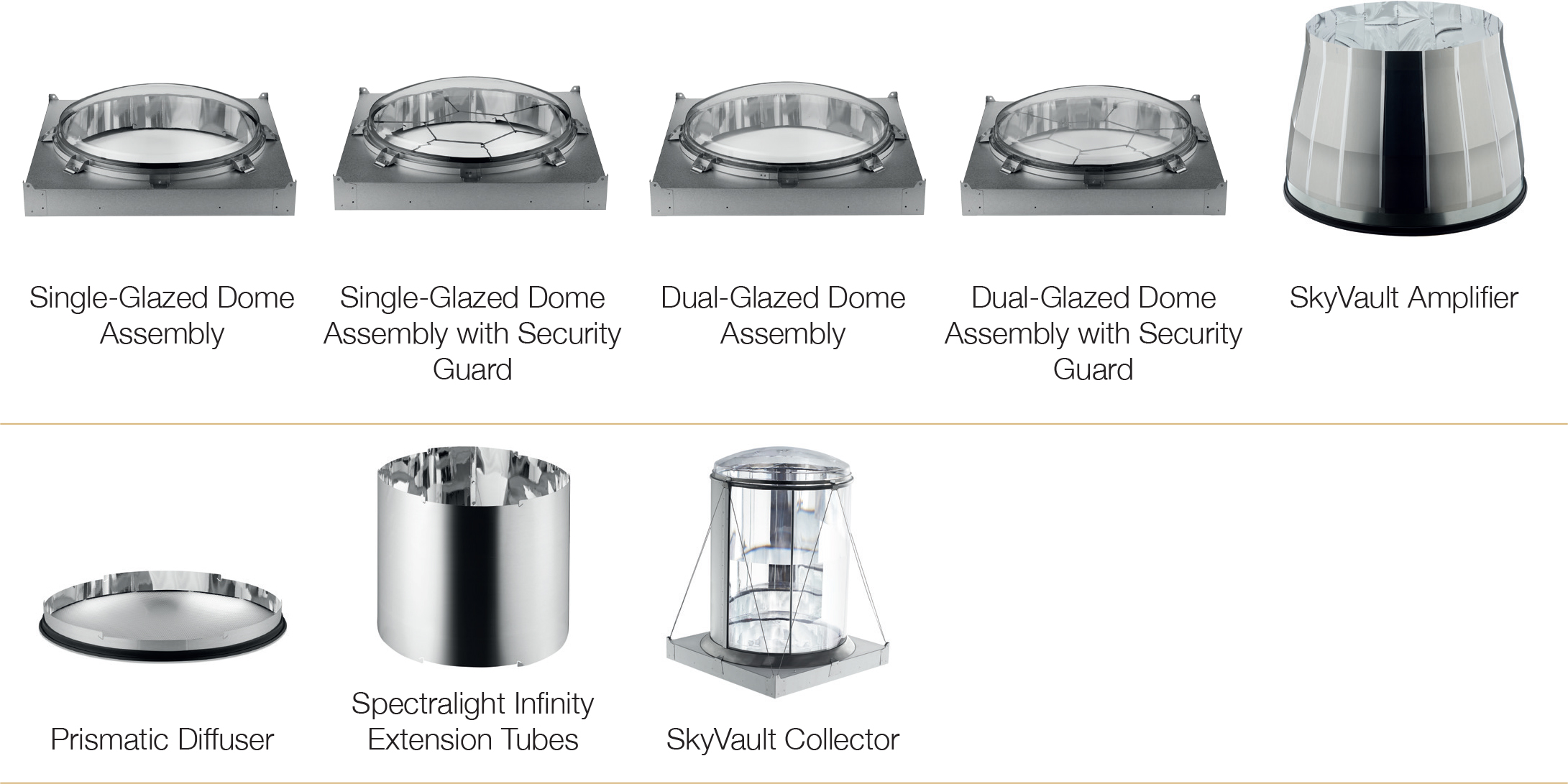

Solatube SkyVault Series
Description

Combining breakthrough optics with progressive engineering, the SkyVault Series is HomeTech's biggest, boldest technology yet. Whether to enhance light capture, focus light over greater distances, or spread light evenly throughout a space, the patented technologies built into the SkyVault Series deliver powerful performance for any application with its 740mm diameter dome and tube length up to 30m.

Key Features
  • Various combinations of domes including single or double glazed
  • Tube length can extend to 30m
  • Optional security guards comes pre-installed in specific dome assemblies and consists of stainless steel rods welded into a hexagonal grid riveted into the curb cap turret, creating a visual and physical deterrent at the dome level
  • Optional Amplifier significantly improves the delivery of daylight in high bay and high ceiling applications to provide task lighting:
  • Optional Thermal Insulation Panel has two climate control discs paired with polycarbonate ring prevent conductive and convective heat transfer. Spectralight® Infinity material inside ring maximises light transfer
  • Optional Daylight Dimmer that uses a patented butterfly baffle designed to ensure even light distribution in any position. The SkyVault Dimmer can be fully integrated into virtually any 0-10V digital lighting control system, working both in conjunction with and separately from electrical lighting
  • Optional Trim Ring provides a finished appearance to the installation, covering the cut edge of the roof deck penetration in an open ceiling application
  • Hurricane and impact resistant — Label Rating CW-PG80 36 x 36-Type TDD. Missile Level D
Categories
Rooflights and Overhead Glazing
Ranges
Solatube Daylighting Systems
Scope of Use
  • The Skyvault can be used in any large structure or building that requires energy efficient natural daylight:
    • Airports
    • Convention Centres
    • Gymnasiums
    • Hospitality
    • Large common areas
    • Military
    • Retail
    • Stadiums
    • Warehouse and industrial
  • Hurricane and impact resistant — Label Rating CW-PG80 36 x 36-Type TDD. Missile Level D
  • Tube length can extend to 30m
Limitations on Use
  • Installation should be done by an authorised installer
Statement of Building Code Compliance
  • B2 Durability
  • E2 External Moisture
  • F2 Hazardous Building Materials
  • G7 Natural Light
  • H1 Energy Efficiency
In-Service History

Solatube launched the SkyVault Series in 2013 to its world wide distribution network, and 10 x SkyVaults have been installed in the orangutan and Siamangs habitat at Auckland Zoo.

Other Performance Attributes
  • Solatube TDDs (Tubular Daylighting Devices) are among the first innovations to have received the "Solar Impulse Efficient Solution" Label by The Solar Impulse Foundation
  • Hurricane and impact resistant — Label Rating CW-PG80 36 x 36-Type TDD. Missile Level D
Documents
Data Sheet
pdf
CAD & Technical Resources
URL
Specification Clause/Guide
pdf
Brochure
pdf
