Arc Fault Detection Devices (AFDD)
Schneider Electric
All products

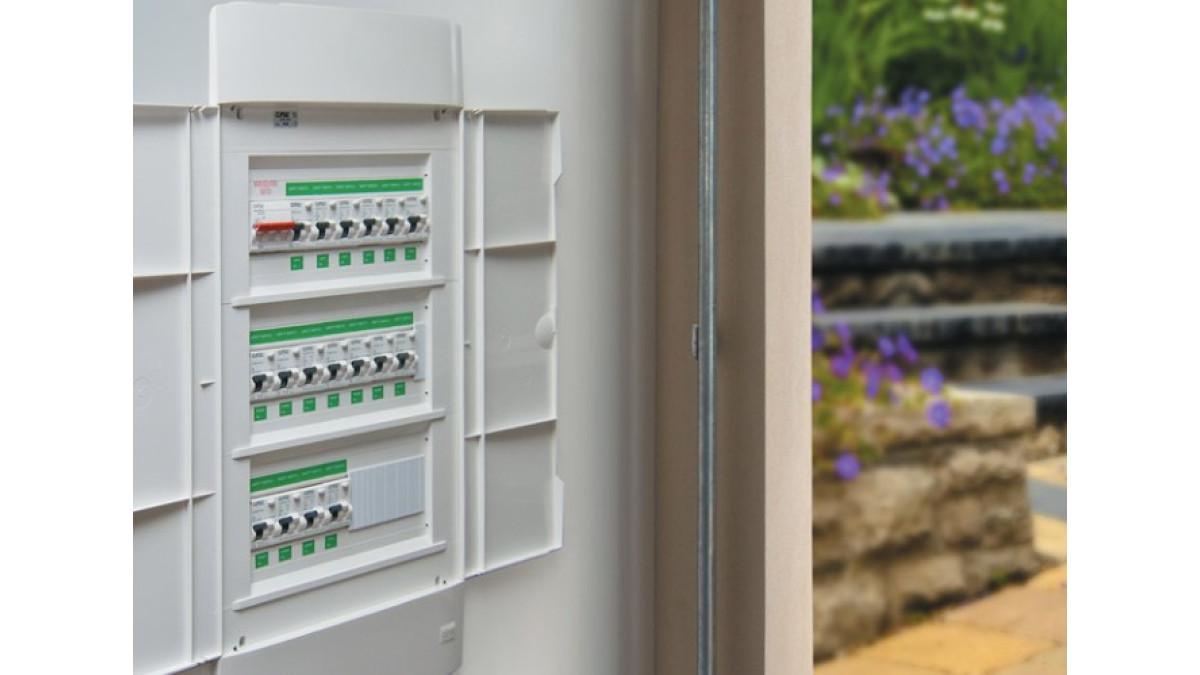

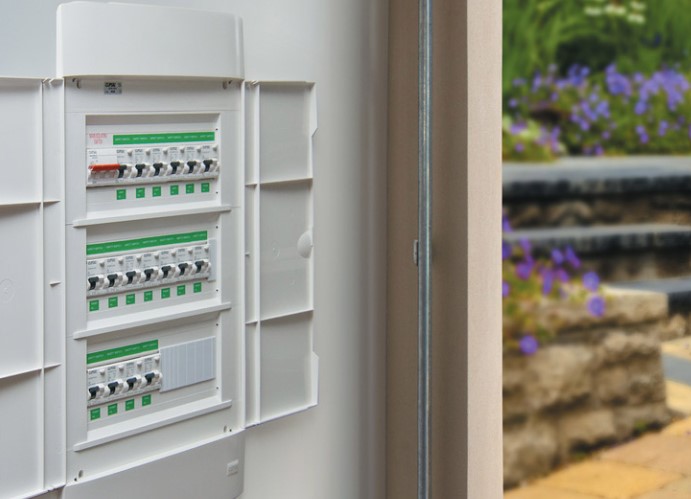

switchboard

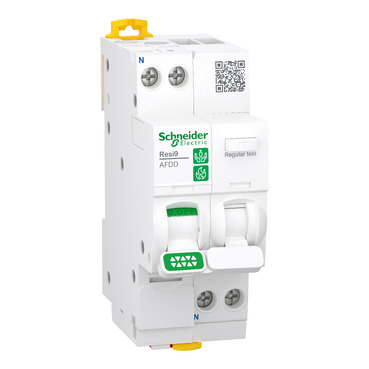

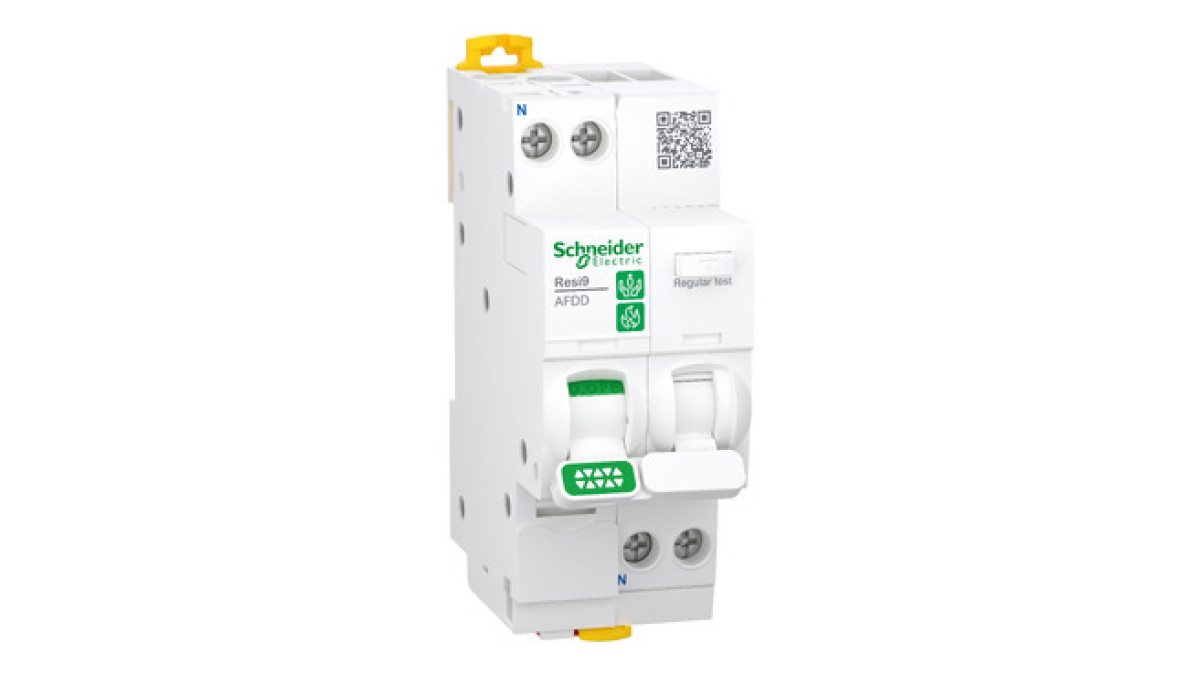

R9TDB3606 Image Generic web
Description

Switchboard mounted Arc Fault Protection Device (AFDD) for fire protection. Arc Fault Detection Devices (AFDDs) are an early warning system that help avoid electrical fires by detecting electric arc faults before they ignite. AFDDs are ideal for homes where wiring is older, where there may be damaged or squashed cables, or where a number of devices are left plugged in.

Key Features
  • Electrical arc detection which isolates circuits before flame appears
  • Voltage: 230/240 VAC
  • Reliable technology – can distinguish between abnormal arcs that could lead to fire and normal arcs that appear at the opening of switches or during the operation of electrical motors
  • Simplicity – can be installed instead of an MCB
  • Compatible – with existing residual current devices
  • 32mm wide AFDD + MCB reduces space in switchboard
Categories
Fire Safety Electrical
Ranges
Electrical Safety
Scope of Use

Particularly suitable for protecting circuits where the risk of fire is highest:

  • Bedroom and living room socket circuits which are live, unattended power outlets
  • Circuits susceptible to be damaged (surface mounted, outdoor etc.)
Statement of Building Code Compliance
  • Standards: EN/IEC 62606 AS/NZS 61009.1
Other Performance Attributes
  • C Curve
  • 6 - 25 A
  • 1P + N
  • Insulation voltage: 440 V AC 50 Hz
  • Impulse withstand voltage: 4kV
  • Operating temp: -25 to +70 deg
  • Breaking capacity: 6000 A Icn at 230 V AC 50Hz
  • Standards: EN/IEC 62606 AS/NZS 61009.1
  • News
Documents
Warranty
URL
AFDD Brochure
