KAFLEX cable Penetration Sealing Grommets
Description

KAFLEX Grommets are cable penetration seals consisting of soft, flexible EPDM rubber and will cope with up to 180 days UV exposure.

Key Features

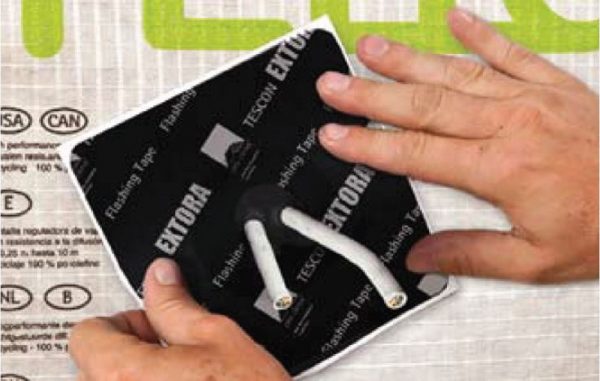

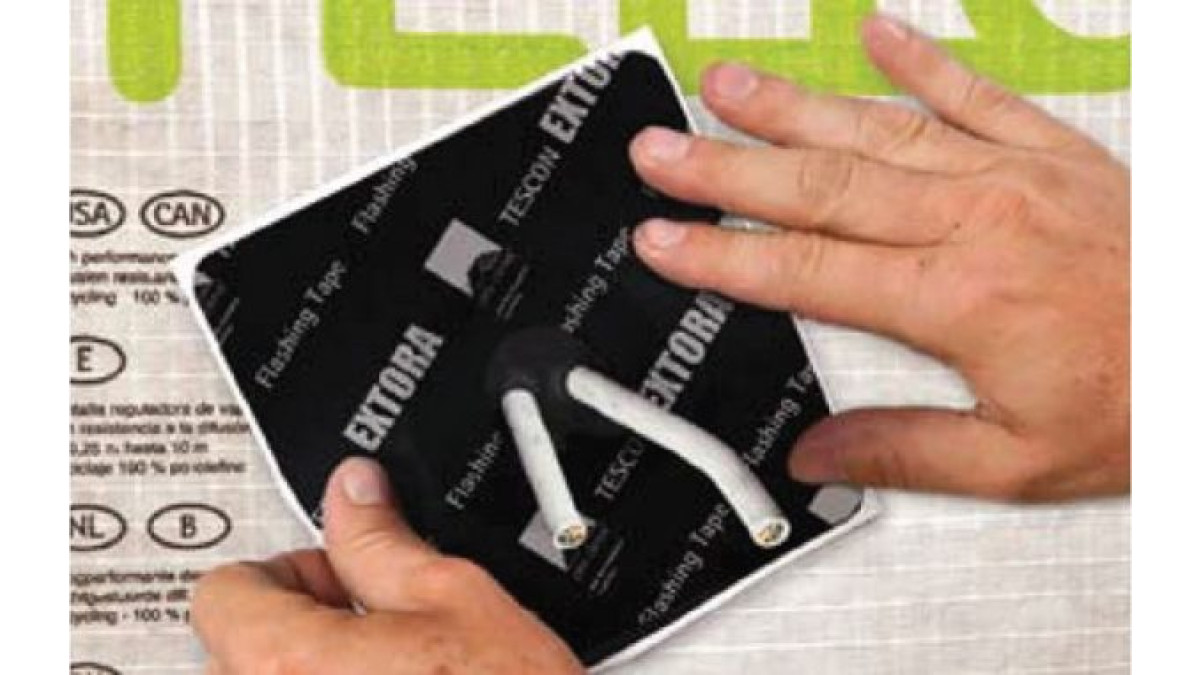

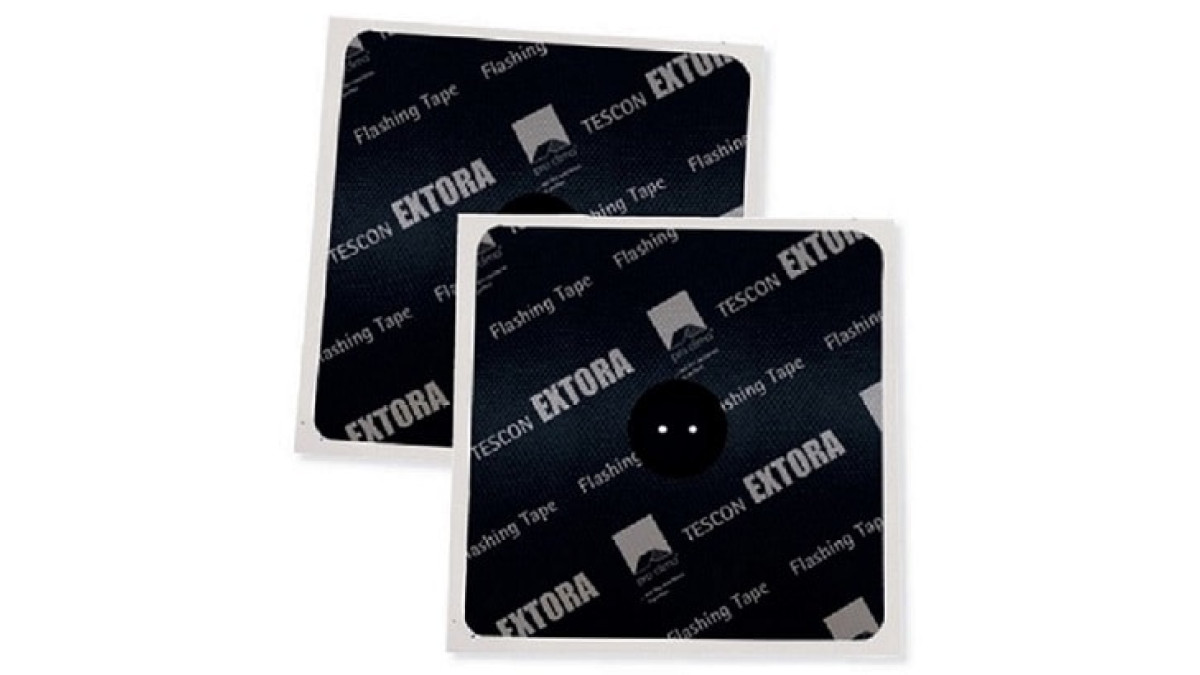

  • KAFLEX mono/duo grommets have integrated adhesive backing

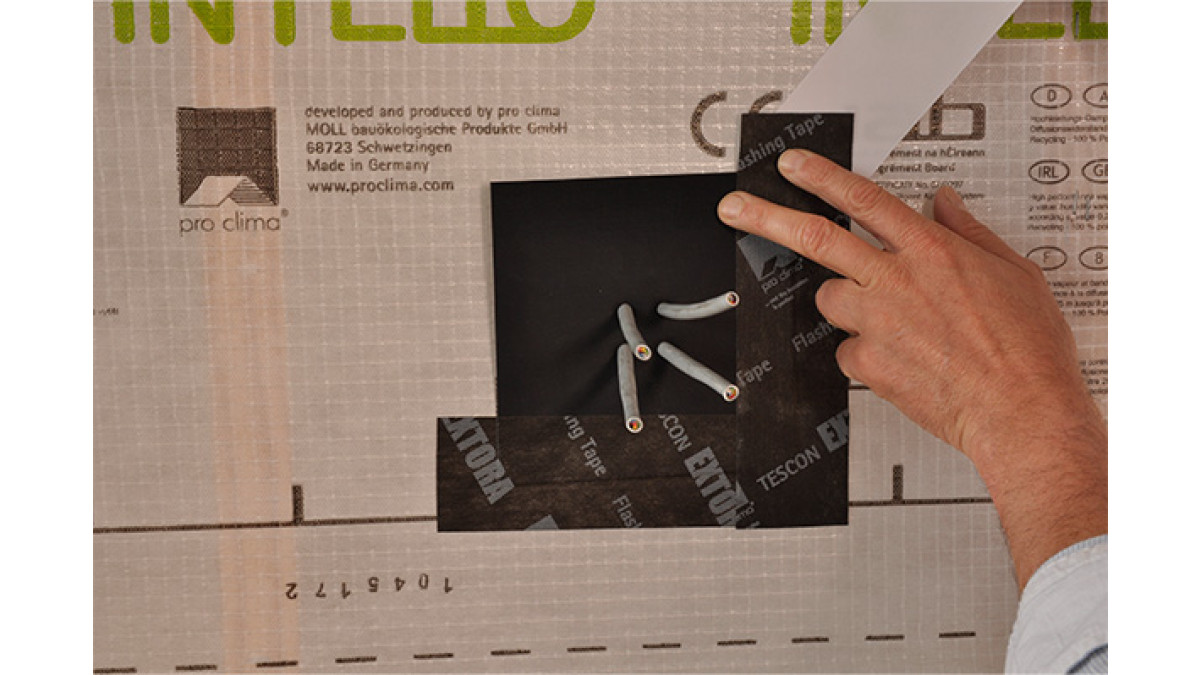

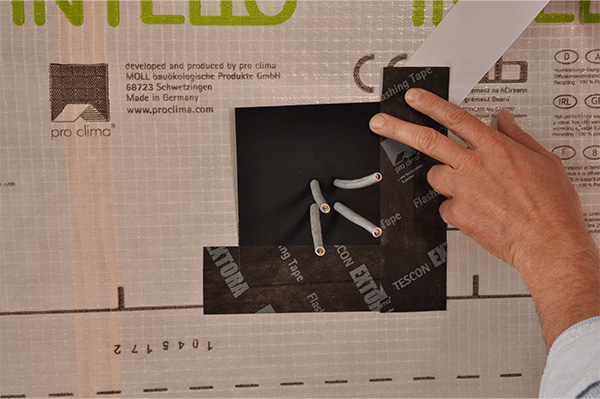

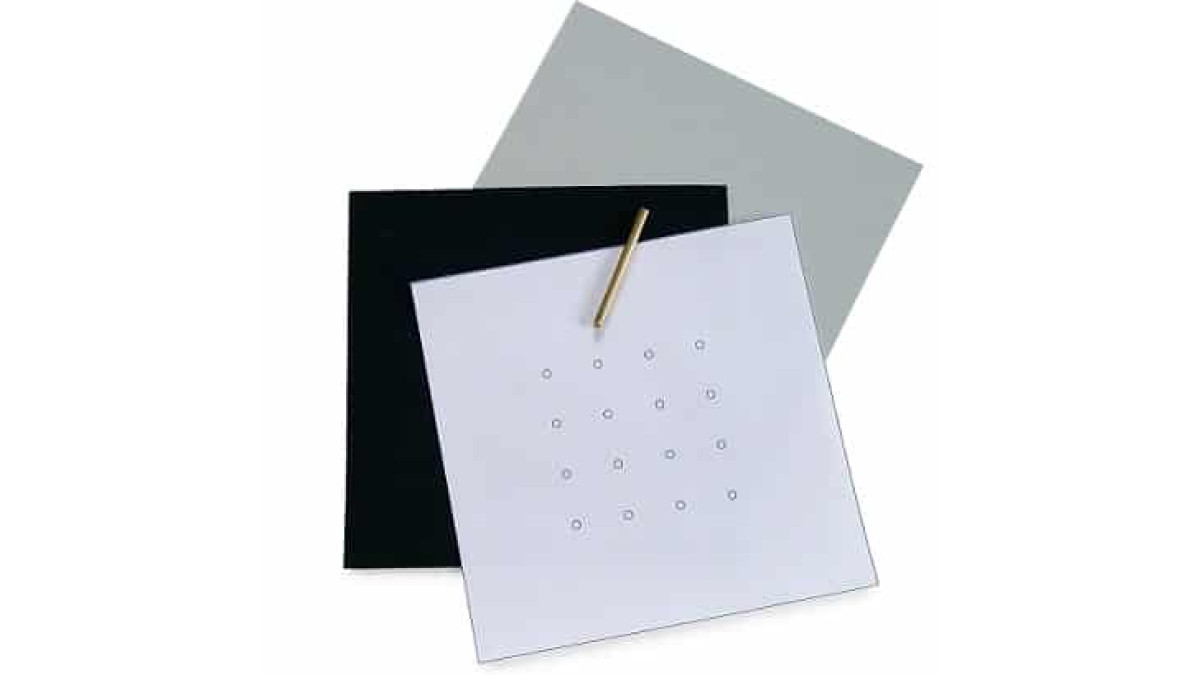

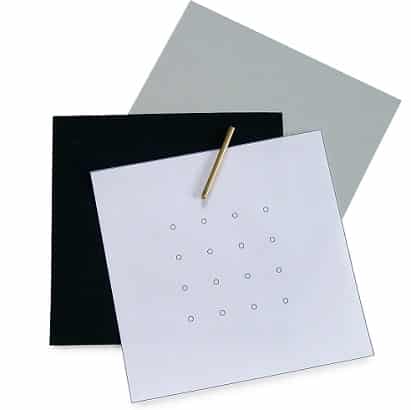

  • KAFLEX multi include tape in the box to seal the EPDM rubber grommet onto the substrate

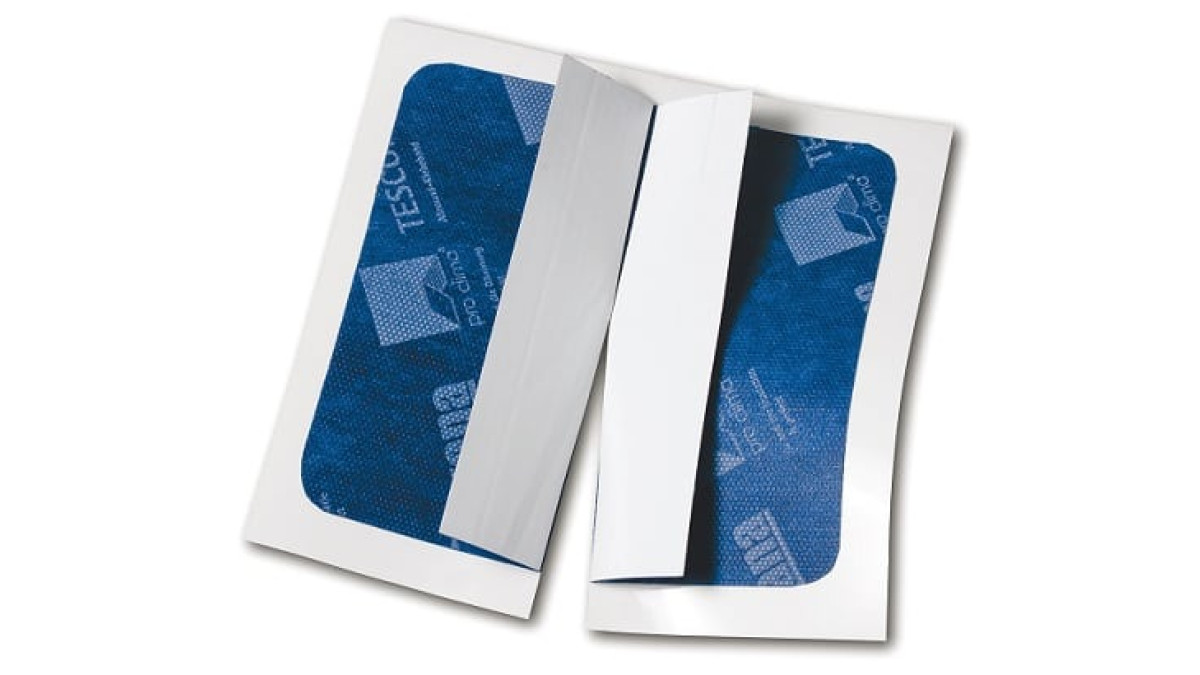

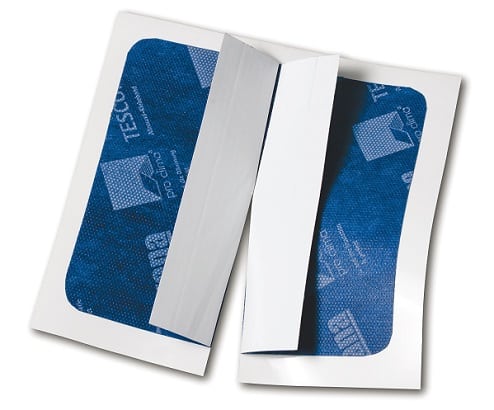

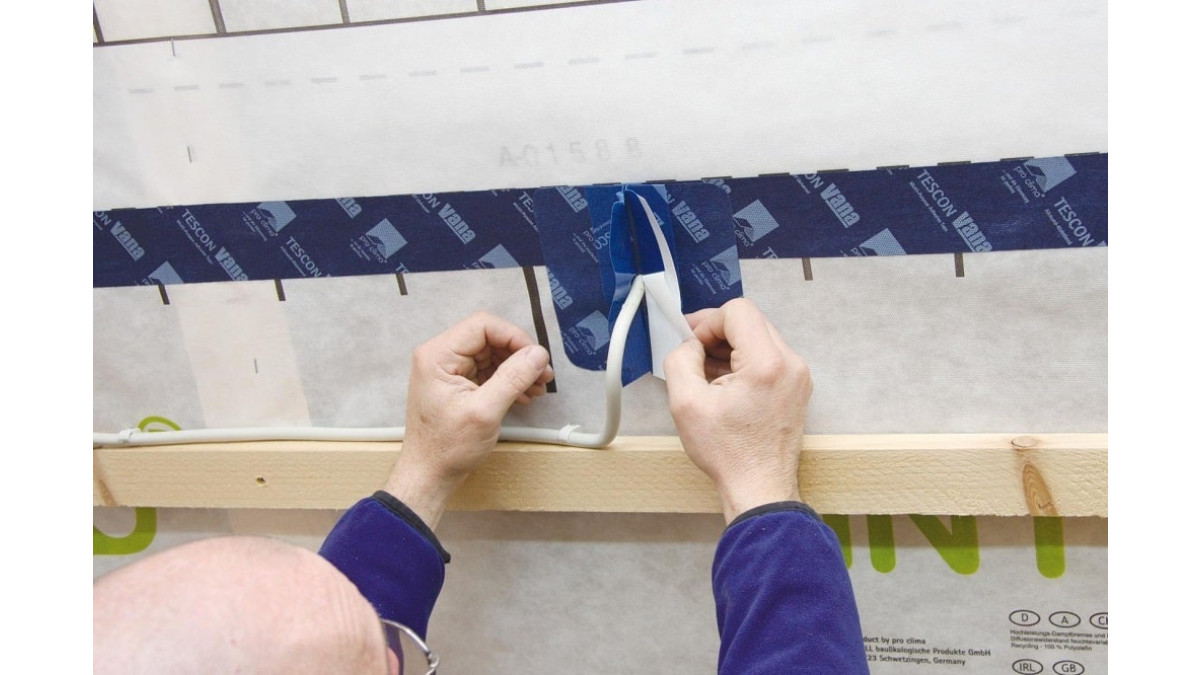

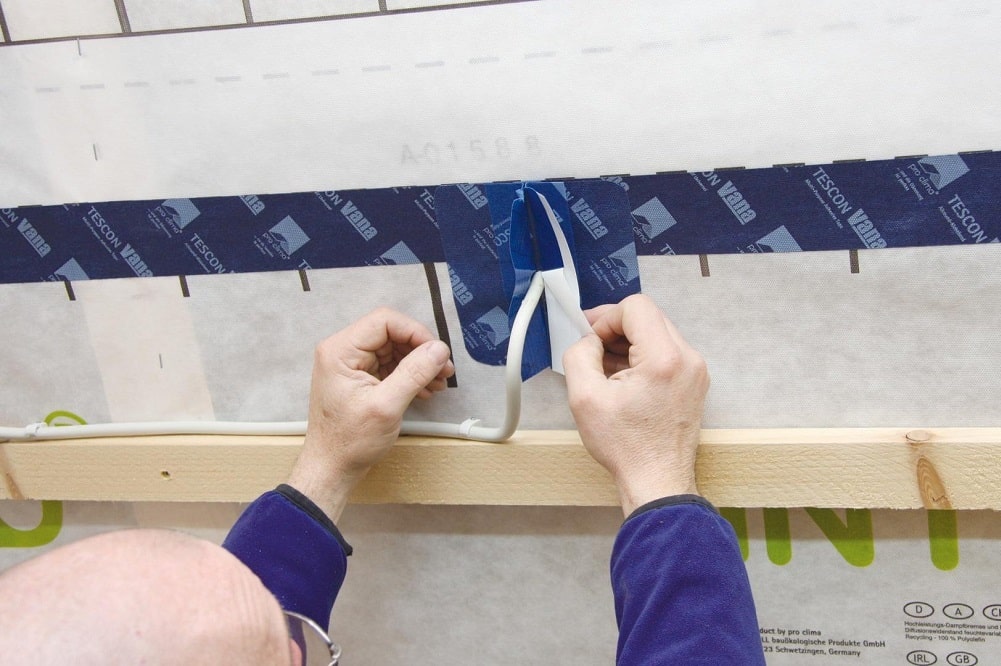

  • KAFLEX POST have an adhesive backing, and are designed to seal around existing cables & conduits up 20mm diameter (or where you cant get a grommet over the end of the cable)
  • 180 days weather and UV stability (30 days for KAFLEX POST)
  • Solid acrylic adhesive — can be used over damp substrates
  • Cables can be pulled or pushed without damaging the airtightness/weathertightness layer
  • Suitable for sealing penetrations of roof underlays and wall wraps
  • Quick and secure sealing



Declare LBC Red List Free
Declare LBC Red List Free
Scope of Use
  • Roof & Wall underlays
  • Internal air & vapour control membranes
  • Rigid air barrier systems
Limitations on Use
  • Separation must be provided from chimney or exhaust flues where the surface temperature will exceed 80 degrees C
Statement of Building Code Compliance

In the opinion of BRANZ, KAFLEX and ROFLEX Grommets, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years and B2.3.2. KAFLEX and ROFLEX Grommets meet these requirements. See Paragraphs 8.1 and 8.2.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. When used as part of the wall or roof cladding system, KAFLEX and ROFLEX Grommets will contribute to meeting this requirement. See Paragraphs 7.1 - 7.7 and 11.1 - 11.2.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. KAFLEX and ROFLEX Grommets meet this requirement and will not present a health hazard to people.
BRANZ Appraised
BRANZ Appraised
Documents
BPIR Product Statement: KAFLEX mono/duo
BPIR Product Statement: KAFLEX multi
BPIR Product Statement: KAFLEX post
Data Sheet: KAFLEX mono/duo
Data Sheet: KAFLEX multi
