Carcass Grade Ply
Description

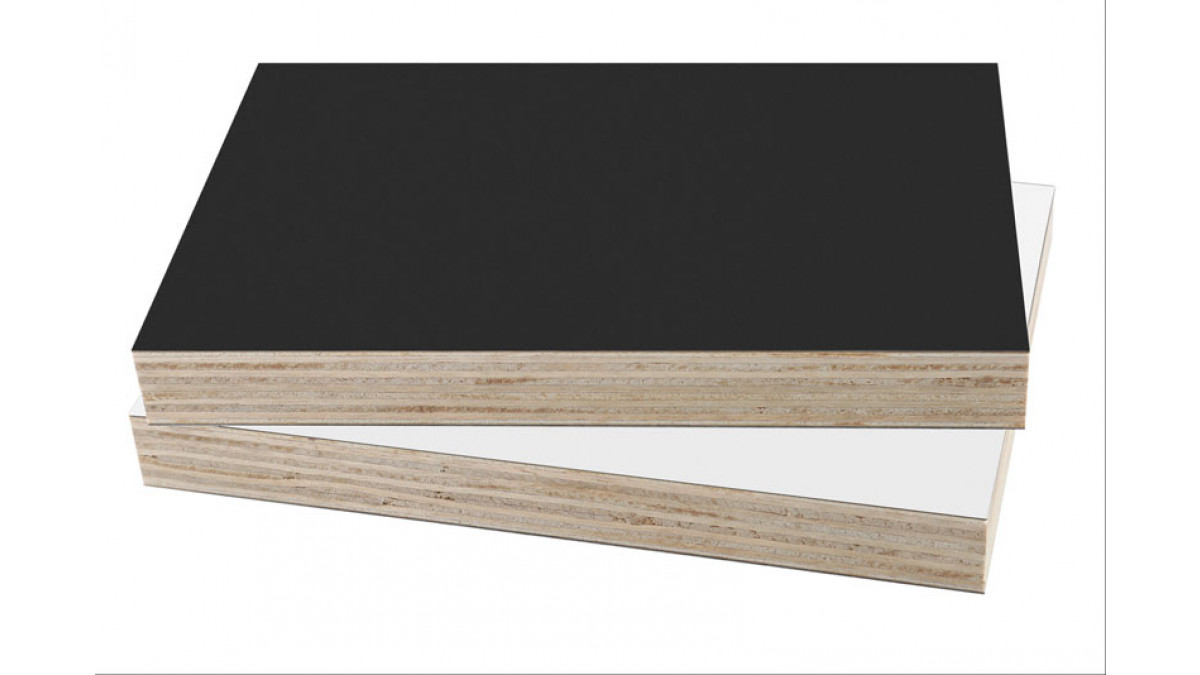

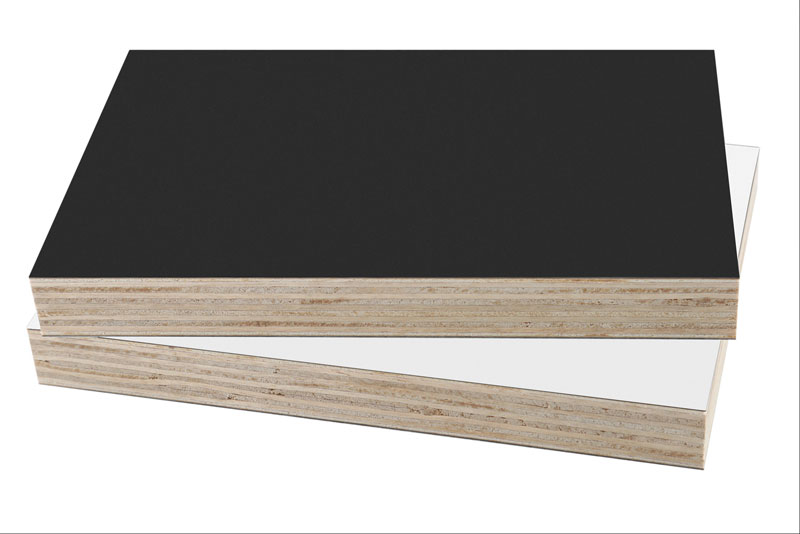

A mixed light-hardwood plywood finished on both sides with a white or black HPL (high pressure laminate). Carcass Grade Ply provides a superior performance compared to traditional MDF based panels, making it the perfect panel for the construction of kitchen carcasses and other joinery applications in 'wet areas' such as bathrooms and laundries.

Independently tested by EWPAA according to Australian Standard Test Method's AS/NZS 2098.11 and in accordance with Formaldehyde Emission Classes defined in AS/NZS 2269.0.

Key Features
  • Ideal for wet area carcasses and joinery — kitchens, bathrooms, laundries
  • Finished in 0.7mm thick high pressure laminate
  • White or Black featuring a fine embossed texture
  • Dimensions: 2440 x 1220mm — 16mm, 18mm
Scope of Use
  • Suitable for for interior use only
  • Carcass construction in typical wet areas: kitchens, bathrooms and laundry
Limitations on Use

For high-end applications where panel surface and edge detail is a distinct feature Plytech recommend using Plytech Futura HPL.

Other Performance Attributes

Independently tested by EWPAA according to Australian Standard Test Method’s AS/NZS 2098.11 and in accordance with Formaldehyde Emission Classes defined in AS/NZS 2269.0.
